MYE MWT-S8 User manual

MWT-S8
800MHz Single Channel Transmitter
Operation Manual
www.myeclubtv.com
manmwts8V4

2
DESCRIPTION………………………………………………… 2
SPECIFICATIONS……………………………………………… 2
MWT-S8 ORIENTATION………………………………….……. 3
SAFETY PRECAUTIONS……………………………………… 4
SETTING THE TRANSMITTER CHANNEL…………………. 4
CONNECTING THE TRANSMITTER………………………… 5
STANDY-BY MODE……………………………………………… 6
MWT-S8 MOUNTING BRACKET……………………..…..….. 7
WARRANTY…………………………………………….…….… 8
SPECIFICATIONS
Audio Input Sensitivity 0.1 to 2 Volts peak-peak (ALC)
Audio Input Impedance 5K Ohms
Signal to Noise -70dBm ref .7 volts
RF Output 1 mW
Distortion < 2%
Audio Frequency Response 20Hz to 18 KHz
Separation >25dB
Weight 2 lbs.
Power Requirements 9 VDC 200 mA
CONTENTS
The MWT-S8 transmitter allows a user to input an audio source and transmit onto any one of 13
possible MYE Entertainment 800MHz frequencies or 12 Cardio Theater / Enercise xTV frequencies. The
signal can be received on a MYE Entertainment MWC-8 or other compatible receiver.
DESCRIPTION
In keeping with the European Union’s (EU) WEEE (Waste Electrical and Electronic Equipment) directive for waste
management for electronic equipment sold into EU countries, the symbol on the product (shown) indicates that this product
must not be disposed of with other waste. It is the user’s responsibility to dispose of their waste electrical and electronic
equipment by handing it over to an approved reprocessor or recycler. For more information about where you can send your
waste e
q
ui
p
ment for rec
y
clin
g,
p
lease contact
y
our local cit
y
office or MYE Entertainment distributor.

RoHS

3
TRANSMITTER FRONT VIEW
TRANSMITTER REAR VIEW
MWT-S8 Orientation
AUDIO INDICATOR LIGHT
and ALC
POWER INDICATOR LIGHT
ROTARY TUNING SWITCHES AUDIO INPUT JACKS
DUAL DIVERSITYANTENNAS POWER INPUT JACK

4
Using the Rotary Tuning Switches, set the left and right switches to correspond to the channel
number you need to transmit on. The MWT-S8 has 13 possible transmitting channels of MYE
Frquencies and 12 Channels on the Cardio Theater / Enercise xTV Frequencies.
EXAMPLE: To set your transmitter to channel “1”, carefully turn the left Rotary Tuning Switch to the
number “0” and turn the right switch to the number “1”. Note: It is important to confirm the switch
“LOCKS” on the selected number.
SETTING the TRANSMITTER CHANNEL
Safety Precautions
•Read all instructions in this manual.
•Use the power adapter provided.
•Position cables safely.
•Keep the unit away from water and moisture.
•Keep the unit away from excessive heat.
•Do not drop.
•Do not open.
•Have all service performed by a qualified technician.
MYE Entertainment Cardio Theatre xTV
Transmitter Left
Dial Right Dial Transmitter Left Dial Right Dial
1 0 1 1 2 1
2 0 2 2 2 2
3 0 3 3 2 3
4 0 4 4 2 4
5 0 5 5 2 5
6 0 6 6 2 6
7 0 7 7 2 7
8 0 8 8 2 8
9 0 9 9 2 9
10 1 0 10 3 0
11 1 1 11 3 1
12 1 2 12 3 2
13 1 3

5
INPUTOUTPUT
LEFT
RIGHT RIGHT
LEFT
VIDEO
Audio Output
TV’s, VCR’s CD players, DVD players, Satellite and Radio Tuners can be used as audio sources for
the MWT-S8. All will require stereo RCA style audio output jacks in order to use the supplied MYE
stereo audio cable. Audio sources that use different output jacks will require a different audio cable.
To use a TELEVISION as an audio source for the MWT-S8 transmitter, the TV must have “Audio
Output Jacks.” Televisions with this capability may come with either “Fixed” or “Variable” audio
output. Please consult your television Owner’s Manual as to their operation.
Connect the Transmitter
1. Using the stereo audio cable supplied, connect one end into the left and right audio
OUTPUT jacks of the audio source.
2. Plug the other end of the audio cable into the left and right audio INPUT jacks on the
MWT-S8 transmitter.
Connecting the MWT-S8 to an Audio Source

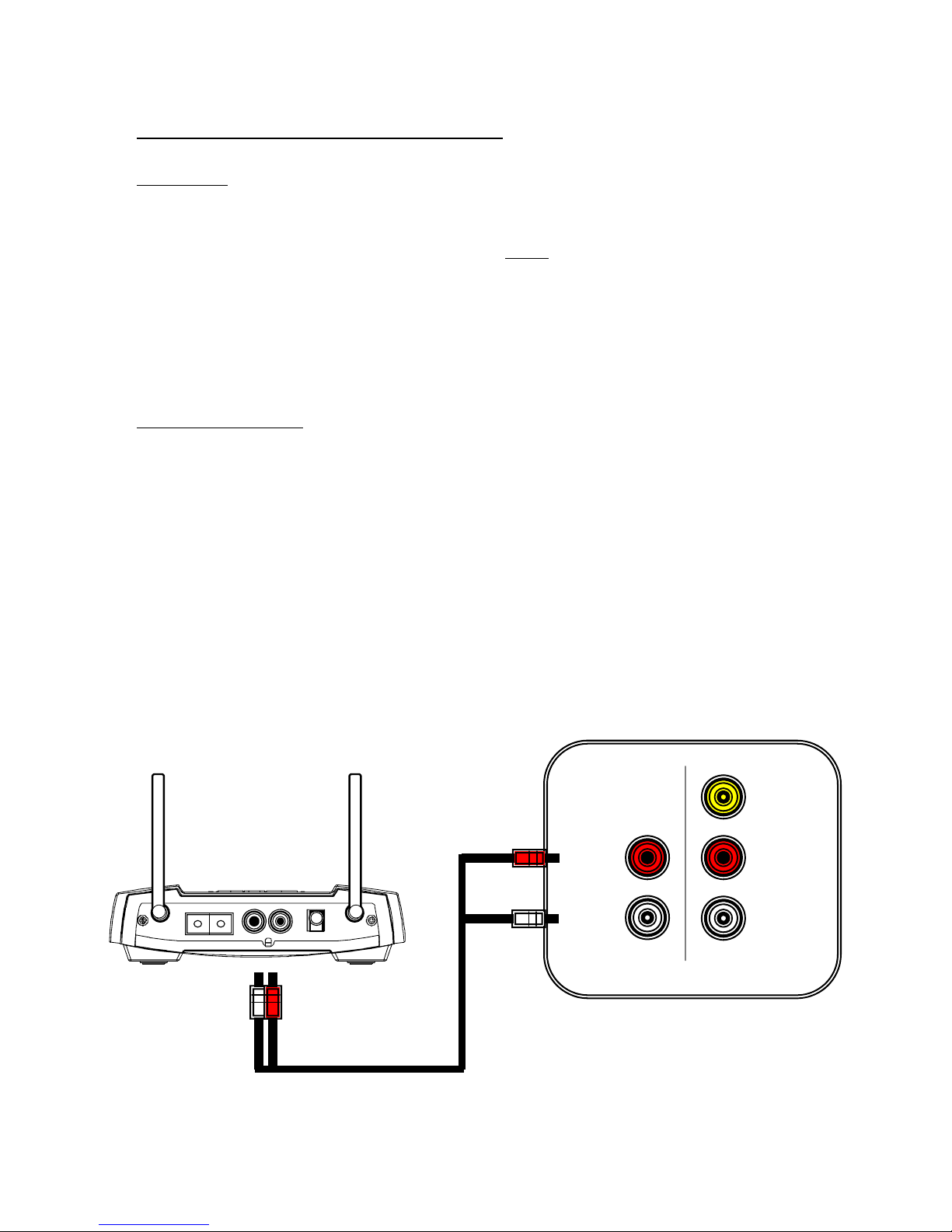

TV REAR JACK PANEL
EXAMPLE: TRANSMITTER TO TV CONNECTION

6
Note: The MWT-S8 Transmitter features an Automatic Level Control (ALC) to provide distortion
free sound without concern for loud commercials or audio track spikes.
3. Insert the DC power plug into the DC power jack on the MWT-S8 and plug the AC power
adapter into an AC outlet. The power light on the MWT-S8 will turn “GREEN”. The unit is
now ON.
4. Turn on your audio source and adjust audio level. When the audio signal is being received
by the MWT-S8 transmitter at an acceptable level the AUDIO INDICATOR LIGHT will turn
GREEN.
5. When using TV’s with audio output, turn the speakers down or off.
(Consult your TV’s Owner’s Manual for Fixed and Variable Audio Output operation.)
6. When the audio drops BELOW an acceptable level for the Automatic Level Control (ALC)
the audio light will turn OFF. A flashing GREEN audio light does not require adjustment of
the audio source for normal operation. When an acceptable audio level returns to the unit,
the light will turn green again.A flashing GREEN light may happen during TV programs or
songs when audio is low or not present.
7. When NO audio level is present for longer than 30 seconds the audio indicator light will turn
OFF. (If no audio light is present, check the audio level in the receiving devise then confirm
all your audio cable connections and/or check the audio source equipment.)
8. When audio risesABOVE the acceptable level for the Automatic Level Control (ALC) the
audio light will turn RED. If the audio light is RED for longer than 30 seconds, check and
reduce the settings of the source audio equipment.
9. The audio light may occasionally flash RED during some programming when audio levels
momentarily rise above acceptable levels.A flashing RED audio light does not need
adjustment of the audio for normal operation. When a continuous acceptable audio level is
returned to the unit, the light will turn green again. This may happen during some TV
programs or songs when audio levels spike naturally.
10. Use a MYE Entertainment 800MHz controller to verify audio transmission is complete.
Connecting the MWT-S8 to an Audio Source - cont
11. In keeping with R&TTE Directive 1999/5/EC if there is an interruption of the input audio for
longer than 4 minutes this transmitter will automatically switch to “low Power Stand-by”
mode. Indication the transmitter has entered Stand-by mode is a consistent flashing green
audio light.
Transmitting can be restored by reintroducing a constant audio signal into the transmitter for
longer than 5 seconds.
Stand-by Mode and Alert

7

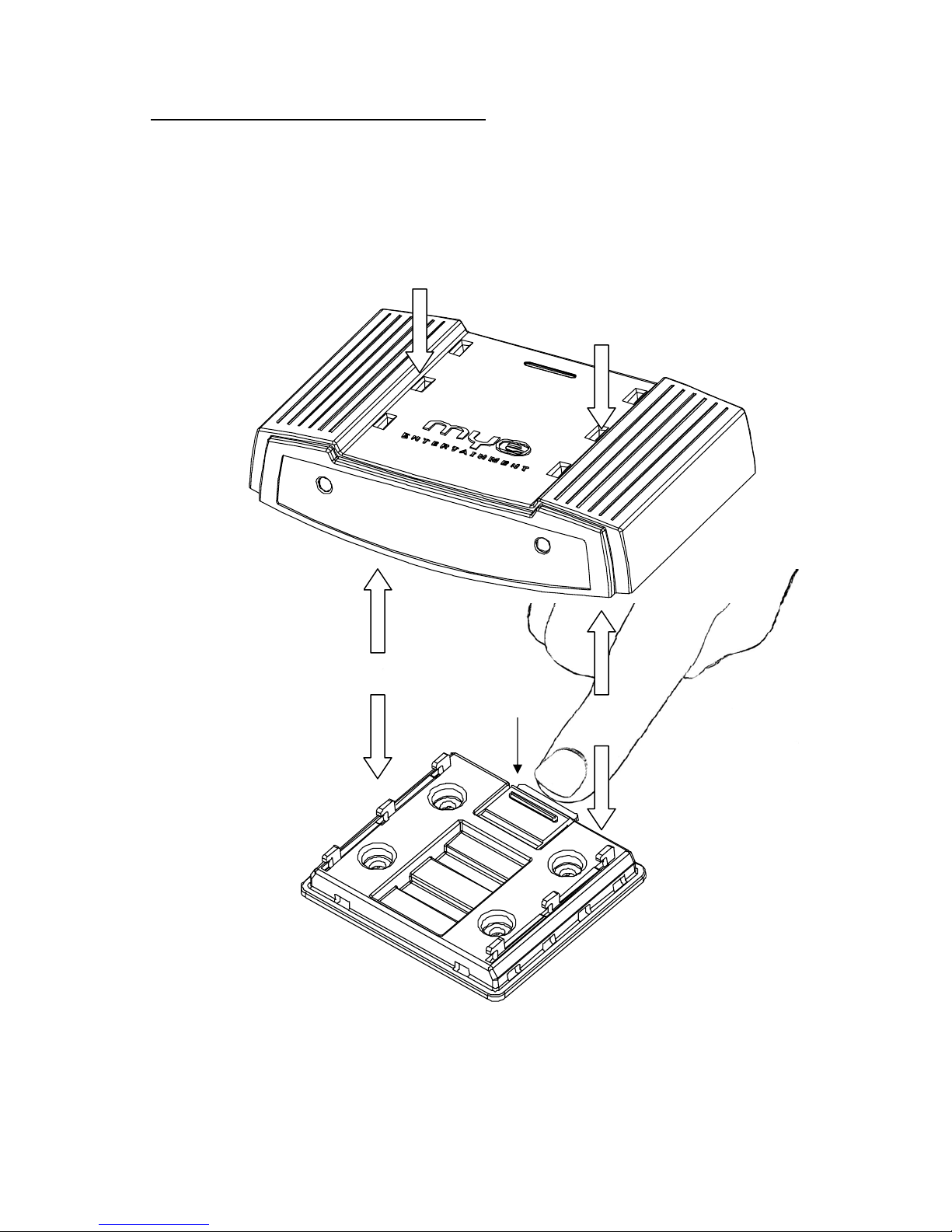

The MWT-S8 comes with a Mounting Bracket that allows for easy wall, ceiling or under-shelf
mounting of the transmitter. Four holes in the bracket give access for screws or nylon cable
ties. The mounting bracket SNAPS into either the TOP or BOTTOM of the MWT-S8 giving the
transmitter a high level of adaptability and solid positioning in nearly all mounting scenarios.
MW
T
-S8 MOUNTING BRACKET
BRACKET MOUNTING - TOP
BRACKET MOUNTING - BOTTOM
RELEASE TAB
MWT-S8 Mounting Bracket

8
PLEASE READ THESE WARRANTY TERMS AND CONDITIONS CAREFULLY BEFORE USING
YOUR MYE ENTERTAINMENT PRODUCT. BY USING THE EQUIPMENT, YOU ARE
CONSENTING TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND CONDITIONS.
LIMITED WARRANTY
MYE ENTERTAINMENT (MYE) WARRANTS ALL NEW MYE PRODUCTS TO BE FREE FROM DEFECTS IN MATERIALS AND
MANUFACTURERS FOR THE WARRANTY PERIODS SET FORTH BELOW. THE WARRANTY PERIODS COMMENCE ON THE INVOICE
DATE OF THE ORIGINAL PURCHASE. THIS WARRANTY APPLIES ONLY AGAINST DEFECTS DISCOVERED WITHIN THE WARRANTY
PERIOD AND EXTENDS ONLY TO THE ORIGINAL PURCHASER OF THE PRODUCT. PARTS REPAIRED OR REPLACED UNDER THE
TERMS OF THIS WARRANTY WILL BE WARRANTED FOR THE REMAINDER OF THE ORIGINAL WARRANTY PERIOD ONLY. TO
CLAIM UNDER THIS WARRANTY, THE BUYER MUST NOTIFY MYE OR YOUR AUTHORIZED MYE ENTERTAINMENT DEALER
WITHIN 30 DAYS AFTER THE DATE OF DISCOVERY OF ANY NONCONFORMITY AND MAKE THE AFFECTED PRODUCT
AVAILABLE FOR INSPECTION BY MYE ENTERTAINMENT OR ITS SERVICE REPRESENTATIVE. MYE ENTERTAINMENT
PRODUCTS DEEMED DEFECTIVE BY A MYE ENTERTAINMENT REPRESENTATIVE WILL BE ISSUED A RETURN
AUTHORIZATION NUMBER. MYE ENTERTAINMENT WILL NOT ACCEPT RETURNS WITHOUT A RETURN AUTHORIZATION
NUMBER. MYE ENTERTAINMENT RESERVES THE RIGHT, AT THEIR OPTION, TO REPAIR OR REPLACE THE PRODUCT AFTER
VERIFICATION OF DEFECT. PRODUCT THAT FAILS AFTER THE WARRANTY PERIOD EXPIRES WILL BE REPAIRED OR
REPLACED AT THE CURRENT PART AND LABOR PRICING AFTER AUTHORIZATION FROM THE CUSTOMER. REPAIRS ARE
WARRANTED FOR 90 DAYS. MYE ENTERTAINMENT’S OBLIGATIONS UNDER THIS WARRANTY ARE LIMITED AS SET FORTH
BELOW:
WARRANTY PERIODS AND COVERAGE:
MYE ENTERTAINMENT TRANSMITTERS 3 YEAR PARTS, LABOR
CONDITIONS AND RESTRICTIONS:
THIS WARRANTY IS VALID ONLY IN ACCORDANCE WITH THE FOLLOWING CONDITIONS:
THE WARRANTY APPLIES TO THE MYE ENTERTAINMENT PRODUCT ONLY 1) WHILE IT REMAINS IN THE POSSESSION OF THE
ORIGINAL PURCHASER AND PROOF OF PURCHASE IS DEMONSTRATED. 2) IT HAS NOT BEEN SUBJECT TO ACCIDENT,
MISUSE, ABUSE, IMPROPER SERVICE, MECHANICAL OR ELECTRICAL NON-MYE ENTERTAINMENT AUTHORIZED
MODIFICATION. 3) CLAIMS MADE WITHIN THE WARRANTY PERIOD.
THIS WARRANTY DOES NOT COVER DAMAGED OR FAILURE CAUSED BY ELECTRICAL WIRING NOT BEING IN COMPLIANCE
WITH ELECTRICAL CODES OR MYE’S OWNER MANUAL SPECIFICATIONS, OR FAILURES TO PROVIDE REASONABLE AND
NECESSARY MAINTENANCE AS OUTLINED IN THE OWNER’S MANUAL.
WARRANTIES OUTSIDE THE UNITED STATES AND CANADA MAY VARY. PLEASE CONTACT YOUR LOCAL DEALER FOR
DETAILS.
LIMITED WARRANTY SHALL NOT APPLY TO:
1) SOFTWARE UPGRADES.
2) NORMAL WEAR AND TEAR, CONSUMABLES AND COSMETIC ITEMS INCLUDING BUT NOT LIMITED TO LABELS.
3) REPAIRS REFORMED ON MYE PRODUCTS MISSING A SERIAL NUMBER OR WITH A SERIAL TAG THAT HAS BEEN
ALTERED, REATTACHED OR DEFACED.
4) SERVICE CALLS TO CORRECT INSTALLATION OF THE PRODUCT OR INSTRUCT OWNERS ON HOW TO USE THE
PRODUCT.
5) PICK UP AND DELIVERY INVOLVING REPAIRS
6) ANY LABOR COSTS INCURRED BEYOND THE APPLICABLE LABOR WARRANTY PERIOD
7) THE USER IS CAUTIONED THAT CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER
OF THE PRODUCT COULD VOID THE USER’SAUTHORITY TO OPERATE THE PRODUCT.
WARRANTY Terms and Conditions

9
THE WARRANTIES PROVIDED HEREIN ARE THE EXCLUSIVE WARRANTIES GIVEN BY MYE ENTERTAINMENT AND
SUPERSEDE ANY PRIOR, CONTRARY OR ADDITIONAL REPRESENTATIONS, WHETHER ORAL OR WRITTEN. ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE THAT APPLY TO ANY PARTS DESCRIBED ABOVE ARE LIMITED IN DURATION TO THE PERIODS OF
EXPRESS WARRANTIES GIVEN ABOVE FOR THOSE SAME PARTS. MYE HEREBY DISCLAIMS AND EXCLUDES
THOSE WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. MYE ENTERTAINMENT ALSO HEREBY
DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW
OR OTHERWISE, WITH RESPECT TO ANY NONCONFORMANCE OR DEFECT IN ANY PRODUCT, INCLUDING BUT
NOT LIMITED TO: (A) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN TORT, WHETHER OR NOT
ARISING FROM THE NEGLIGENCE OF MYE OR ITS SUPPLIERS (WHETHER ACTIVE, PASSIVE OR IMPUTED); AND
(B) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OF OR DAMAGE TO ANY PRODUCT. THIS
DISCLAIMER AND RELEASE SHALL APPLY EVEN IF THE EXPRESSED WARRANTY SET FORTH ABOVE FAILS OF
ITS ESSENTIAL PURPOSE.
FOR ANY PRODUCT DESCRIBED ABOVE THAT FAILS TO CONFORM TO ITS WARRANTY, MYE ENTERTAINMENT WILL
PROVIDE, AT THEIR OPTION ONE OF THE FOLLOWING: 1) REPAIR, 2) REPLACEMENT OR 3) REFUND OF THE
PURCHASE PRICE.
MYE AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR LIABILITY, WHETHER ARISING IN CONTRACT
(INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE, OR IMPUTED NEGLIGENCE AND STRICT
LIABILITY), OR OTHERWISE, FOR DAMAGE TO THE PRODUCT, PROPERTY DAMAGE, LOSS OF USE, REVENUE OR
PROFIT, COST OF CAPITAL, COST OF SUBSTITUTE PRODUCT, ADDITIONAL COSTS INCURRED BY BUYER (BY
WAY OF CORRECTION OR OTHERWISE) OR ANY OTHER INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, WHETHER RESULTING FROM NON-DELIVERY OR FROM THE USE, MISUSE OR INABILITY TO USE THE
PRODUCT. THIS EXCLUSION APPLIES EVEN IF THE ABOVE WARRANTY FAILS OF ITS ESSENTIAL PURPOSES
AND REGARDLESS OF WHETHER SUCH DAMAGES ARE SOUGHT FOR BREACH OF WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE OR STRICT LIABILITY IN TORT OR UNDER ANY OTHER LEGAL THEORY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO
THE ABOVE LIMITATION MAY NOTAPPLY TO YOU.
THIS WARRANTY GIVES SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.
WARRANTY – cont.
MYE Entertainment, Inc
25129 The Old Road
Suite 305
Stevenson Ranch, Ca. 91381
1-661-964-0217
www.myeclubtv.com
