MyKronoz ZeSport 2 User manual

USER GUIDE
Smart Watch

- 2 -
GET STARTED
1. Product overview
2. Charging
3. Basic touch operations
4. Shortcuts
PAIRING
5. System requirements
6. Set up
7. Firmware update
ACTIVITY TRACKING & SPORT MODES
8. Sport modes
9. Sensors
10. Heart rate
11. Activity tracking
12. Sleep monitoring
13. Stopwatch
14. Timer
CONNECTED FEATURES
15. Notifications
16. SMS
17. Incoming calls
18. Reminder
19. Weather forecasts
20. Camera remote
21. Music control
22. Find my phone
23. Anti-lost alert
CLOCK
24. Customize your watch
25. Menu style
26. Alarm
27. Settings
MAINTENANCE
28. Product care
29. Replace the watchband
30. Tech specs
Warnings / Safety Instructions / Regulatory Notice
03
04
05
06
07
08
09
10
12
13
14
16
16
17
17
18
19
20
21
21
22
22
22
22
23
23
24
25
26
26
27
TABLE OF CONTENTS

- 3 -
1. PRODUCT OVERVIEW
I UPPER BUTTON
• Press to light up the screen.
• Return to home page from any menu.
• Put the device in standby mode.
• Press & hold to reset the device.
I LOWER BUTTON
• Press to light up the screen.
• Go one step back in the menu stucture.
• Press & hold to Power ON/OFF.
I SMART CROWN
• Turn the crown to navigate through the main menu.
• Press the crown to confirm.
• Turn the crown to adjust digital settings (alarm, timer, reminder,...)
Color
touchscreen Upper
button
Charging
terminals
Smart
crown
Lower
button
Optical heart
rate sensor
To get the most accurate data we recommend wearing ZeSport
2
on your non dominant
hand and not too loose. Take ZeSport
2
outside to an open area and stand stlll for a while
to acquire a GPS signal.
i

- 4 -
2. CHARGING
We recommend you to initially charge your ZeSport
2
for about
90 minutes before using it for the first time.
ZESPORT2CHARGER CABLE
1. Position the back of your ZeSport
2
on the charging dock.
2. Plug the USB cable into the charger.
3. Plug the large end of the USB cable into a USB power source.
4. A battery indicator will fill in to indicate charging is in progress and turn to solid
green when it’s fully charged.
5. Unplug the cable after ZeSport
2
is charged.
When the battery level gets low, a low battery
indicator will appear on the watch screen.
i

- 5 -
3. BASIC TOUCHSCREEN OPERATIONS
SWIPE LEFT from the Watchface
SWIPE UP from the Watchface
SWIPE DOWN from the Watchface
SWIPE RIGHT from the Watchface
Watchface
Main menu
1. Activity
1. Shortcuts 2. Weather 3. Calendar
2. Sport modes 3. Heart rate 4. Barometer
Notifications

- 6 -
Swipe down from the main watch face
to access ZeSport
2
shortcuts
GPS
Vibration
and sounds
Find my phone
Helps you find your phone
as long as it is in range with
your ZeSport
2
Do not disturb
Find my phone is enabled
Find my phone is disabled
Do not disturb
is enabled
Do not disturb
is disabled
GPS is enabled
GPS is disabled
Turn on buzzer
Turn on vibration
Turn on vibration and buzzer
Mute
Bluetooth is ON
and the watch is paired
Bluetooth is ON
but the watch is not paired
Airplane mode is enabled
Shows the remaining battery
level of your watch
Brightness
Set screen brightness
for better visibility
Bluetooth status Battery level
4. SHORTCUTS

- 7 -
Visit www.mykronoz.com to get the latest compatibility list.
- iOS -
iOS 8+ devices with Bluetooth 4.0 BLE
iPhone 4s, 5, 5c, 5s, 6, 6s, 6s plus, 7, 7 plus, 8, 8 plus & X
- ANDROID -
Selected Android 5.0+ devices that support
Bluetooth 4.0 BLE
ZeSport
2
will sync the notifications of SMS, emails, social media,
calendar events, and personal life reminders once the ZeSport
2
app
has been successfully installed on your smartphone.
i
It is required to install ZeSport
2
mobile app on your smartphone to
properly set up and use your watch.
5. SYSTEM REQUIREMENTS

- 8 -
6. SET UP
When turning on your ZeSport
2
for the first time, you’ll be prompted
to download the ZeSport
2
mobile app on your smartphone in order
to proceed to its initial set up.
ITO SET UP YOUR ZESPORT
2
:
•Ensure that Bluetooth is enabled on your smartphone.
•Download the ZeSport2mobile app from the App store or the Google play store.
•Open the ZeSport2mobile app on your smartphone, sign up if you are a new
member or log in with your existing account. After entering your personal
information, follow the on-screen instructions.
•Make sure ZeSport2is nearby and select it in the list of devices.
•Scan the QR code displays on your watch to pair your device with your smartphone.
•When ZeSport2is successfully paired, you will be notified on both devices.

- 9 -
7. FIRMWARE UPDATE
MyKronoz will provide regular firmware updates which you will need
to install in order to access our latest upgrades and features for your
watch. With ZeSport
2
, all these updates need to be done by OTA
(Over The Air) and through the mobile app. Updates are performed
over the air using the mobile app. Before updating, make sure your
phone and your watch have more than 30% battery.
IIN ORDER TO UPDATE YOUR WATCH:
•Connect your ZeSport2to the mobile app.
•If a new update is available you will be prompted from the home
screen.
•You must accept it in order to start the updating process.
During all the update process you must keep your watch near your
smartphone and your application must be open. Avoid using your
phone during the update process.
i

- 10 -
8. SPORT MODES
ISTART AN ACTIVITY
Your ZeSport2can be used for indoor, outdoor and fitness activities.
When you start an activity, you will be prompted to activate GPS and
heart rate monitoring depending on the activity you select.
When you stop an activity, your watch returns to normal mode.
•Press and hold the lower button to enter the Sport modes or access it
through your watch menu.
•Select an activity among the available activities (walking, cycling,
swimming, trail running, indoor running, outdoor running & hiking).
•Follow the on-screen instructions and enter additional information if
necessary.
•If your activity requires GPS, make sure to go outside and wait a few
seconds/minutes until the watch acquires satellite signals.
•Press Play to start the timer.
The watch does not track your activity data until you start the timer.

- 11 -
I PAUSE/STOP/SAVE AN ACTIVITY
TO PAUSE AN ACTIVITY:
•From the Sport interface, press the bottom button.
•Tap on Pause.
•Press Pause to continue exercising or click on the Record icon to save/
delete your activity.
TO SAVE AN ACTIVITY:
•From the Sport interface, press the bottom button.
•Tap on Record.
•Select Save.
TO DISCARD AN ACTIVITY:
•From the Sport interface, press the bottom button.
•Tap on Record.
•Select Discard.
DELETE AN ACTIVITY
To erase a stored activity:
•From the watch history activity menu, select and long press a stored activity.
•Click on the Delete icon.
VIEW YOUR HISTORY
To view your recorded workout session:
•Access the Sport menu.
•Swipe left.
•Select one of the stored activities on the list.
You can also view additional details by using the ZeSport2Mobile App
•Go to the History tab.
•Select a recorded activity.
Your ZeSport2saves the overall multisport summary of your activity, ove-
rall steps, distance, pace, calories burned, elevation and other data. Your
watch allows you to view all your activities in chronological order. Thus,
you can compare dierent activity sessions for an activity.

- 12 -
9. SENSORS
IINDOOR ACTIVITIES
The ZeSport2can be used for indoor sports activities, such as indoor
running, swimming or stationary cycling. In this case, GPS is automatically
disabled for indoor activities. When you walk or run with GPS o, speed,
distance travelled and other activity data are calculated using the 6-axis
accelerometer built into the device.
TIP: Positioning your hands on the handrails of the treadmill reduces the
accuracy significantly. When indoor cycling with GPS switched o, speed
and distance are not available.
IOUTDOOR ACTIVITIES
For outdoor activities such as running, trail running or cycling, GPS is turned
on. Make sure that your device has access to satellite signals when you
enable GPS for the first time.
ISWIMMING
The ZeSport2is intended for surface swimming.
Before starting an indoor swimming activity, make sure to select your
pool size (pool length).
Note: Free or underwater diving is not recommended and void the
warranty. The device cannot record your pulse while swimming.
IALTIMETER & BAROMETER
Thanks to its altimeter and barometer, the ZeSport2continuously collects
Altitude and pressure data.
The altimeter displays your approximate altitude based on pressure
changes.
The barometer displays environmental pressure data based on the fixed
altitude at which the altimeter was most recently calibrated.
I3 AXIS MAGNETOMETER
The ZeSport2is equipped with a 3-axis magnetometer (compass) build-in
an automatic calibration. Based on your activity, the 3-axis magnetometer
features and appearance change whether GPS is enabled and whether you
are navigating to a destination.

- 13 -
I WEAR THE DEVICE
• Make sure to wear your device above your wrist bone.
• To track your pulse, go to the HR menu of your ZeSport
2
. Tap on the Heart icon.
• Go to the main interface of the heart rate menu to get more detailed data
(Average heart rate, last HR tracking, lowest and highest HR level).
Note: In order to obtain relevant and accurate data, please attach your watch
securely around your wrist without overtightening the strap.
Your watch should not move on your wrist, when running or exercising.
I TRACK YOUR PULSE
Equipped with an optical heart rate sensor, ZeSport
2
continuously measures your
heart rate frequency throughout the day.
I HR TIPS
If your heart rate data does not seem to be reliable or it is not visible,
please follow these steps:
• Clean your arm before putting your device on.
• Avoid applying cream or lotions on the area where you are wearing your device.
• Wear the watch around the wrist, just above the bone. Tighten the watch to your wrist.
• While exercising, wear a silicone band.
TO MEASURE
YOUR HEART RATE
• Securely attach your ZeSport
2
around your wrist.
• Go to the heart rate menu of your
watch.
• Touch the screen or press the
crown to start measuring your
heart rate.
TO SET YOUR HEART RATE
ALERT
ZeSport
2
can also alert you when
your heart rate is going above or
below preset limits. You can
customize those limits in the device
Settings > Activity > Heart rate >
Max HR/Min HR/Auto tracking.
It will take about 10 seconds to get the results displayed on your watch screen.
10. HEART RATE

- 14 -
I DEFINE YOUR PROFILE
Make sure to edit and update your gender, birthday, weight and height. The
ZeSport
2
relies on this information to evaluate and calculate accurate activity data.
I ACTIVITY TRACKING
The activity tracking feature tracks your daily activity, daily step counts, distance
traveled, active minutes and calories burned. Your watch has a built-in 6-axis
accelerometer that allows you to track your daily activity based on your
movements. This, together with your profile information, allows your watch to
calculate your steps, walking distance, minutes of activity and calories burned. In
order to get the most accurate results we recommend you to wear your watch on
your left wrist if you’re right handed and on your right one if you are left handed.
The number of steps taken, the distance covered and other activity data are visible
on most watch dials. You can find your data in real time in the activity menu of your
watch. To access this menu, from the main screen, slide your finger up. Slide your
finger to the left to view each step, distance, active minutes and calories burned.
Overall activity Steps
Calories
Distance
11. ACTIVITY TRACKING
Active minutes

- 15 -
I SYNC YOUR DAILY ACTIVITY
To synchronize your data manually, simply go to the activity page of the ZeSport
2
application and slide your finger down. Note that automatic synchronization occurs
each time you open or connect to the ZeSport
2
application.
On the main application screen, you can view your daily activity in real-time over
your set goals and get a detailed report in the mobile app.
TIPS: A goal alert appears for your daily steps goal, distance traveled goal,
calories burned goal and active minutes goal. This alert appears on your watch
and also in the App. The activity tracker resets at midnight and ZeSport
2
has the
ability to store up to 10 days of your activity data. Then, you will have to synchronize
your ZeSport
2
with your mobile app in order to avoid a loss of data.
I SET UP YOUR DAILY ACTIVITY GOAL
You can set your daily goals from the mobile app or in the activity section of the
watch Settings > Activity > Goals.
We recommend you set ambitious but realistic goals in order to keep a healthy daily
activity. You can obviously raise your goals over time to increase your performance.
On average it is recommended to have at least 30 minutes of physical activity per
day and walk 10000 steps.

- 16 -

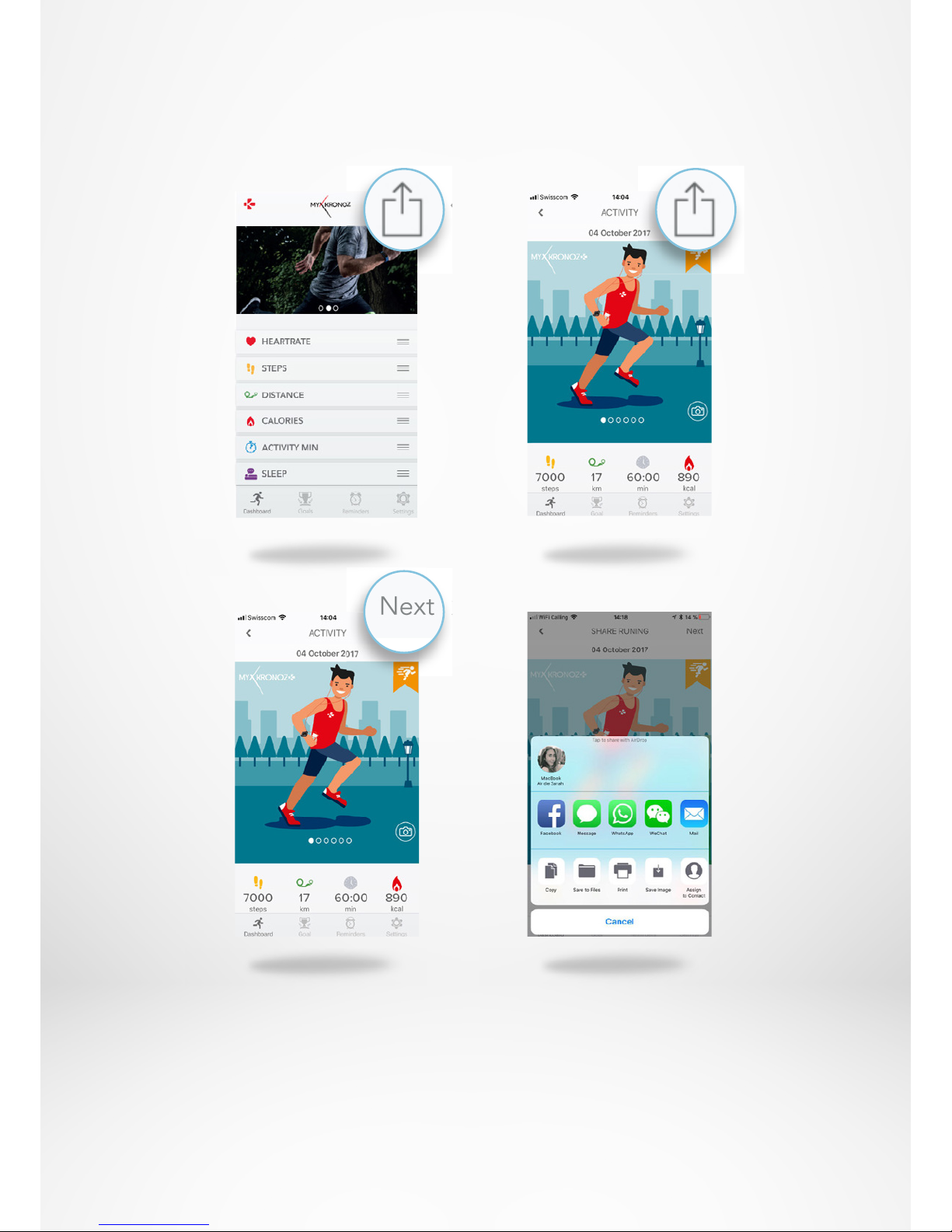

I SHARE YOUR ACTIVITY
Use the sharing function to publish your daily activity or special workouts on your
preferred social networks.
1. Press on the top right icon to start sharing your activity data with your friends and
family.
2. You can choose an image (by sliding left and right) or take a picture that you
want to share.
3. When it’s done, select the top right button “next”.
4. Select your prefered network to share your daily activity report.
1.
3.
2.
4.

- 17 -
ZeSport
2
can detect your micro-movements during your sleep and deduce the
quality of sleep, the time taken to fall asleep, how many times you woke up in the
night, the hours of light sleep and deep sleep, etc.
You can find all data related to your sleep on the ZeSport
2
App. Go to the Dashboard
home page and click on the Sleep band. You can also view data from your last night
on your ZeSport
2
. Go to the Sleep menu of your device.
Start and stop the sleep mode:
• Press the sleep app icon from the ZeSport
2
main menu.
• Press Start to enable sleep monitoring.
• Press End to stop sleep monitoring.
I TO USE THE STOPWATCH
• Open the stopwatch app from the App menu.
• Start the stopwatch by pressing the play icon.
• Track individual lap performance by pressing the blue icon while measuring is on.
• Stop counting by pressing the pause button.
To view the full lap-by-lap report, press the lap counter at the top of the screen.
Make sure to stop the stopwatch first. To delete the report, press the cross.
12. SLEEP MONITORING
13. STOPWATCH

- 18 -
I TO USE THE TIMER
• Open the timer app from the App menu.
• Adjust the timer duration by using the digital crown and start the timer by pressing
the green icon. Stop it by clicking on the same icon.
• Press the back arrow to reset the timer to 0.
• At the end of the countdown, your watch will alert you with a sound or/and vibration.
Before enabling notifications, make sure that the ZeSport
2
device is well paired
with your smartphone.
I MANAGING YOUR NOTIFICATIONS
You can use your smartphone to handle notifications that appear on your ZeSport
2
.
I SETTING UP NOTIFICATIONS FOR IOS USERS
If you are using an iOS device, go to the Settings of your iOS device:
• Tap «Notification center»
• Select which type of notifications you wish to receive on ZeSport
2
• Enable «Show in Notification Center» to receive the notification on ZeSport
2
I SETTING UP NOTIFICATIONS FOR ANDROID USERS
If you are using an Android device, access the ZeSport
2
App settings and click on
Notifications. Then, select the items to display on the watch.
14. TIMER
15. NOTIFICATIONS

- 19 -
I VIEWING YOUR NOTIFICATIONS
Each notification will appear over your selected watch face with its dedicated icon to
identify the item. Some notifications may be identified with a generic icon.
• To read your notifications, simply touch the screen on the notification area and it
will open instantly.
• To access to the notifications list, from the homepage, swipe left. Use the crown
or your finger to navigate and click on a notification to open it.
• To delete all your notifications, long press the screen and confirm.
• To delete one notification, select it, swipe left and confirm.

- 20 -
With ZeSport
2
, you can receive and read your SMS straight from your wrist.
• Quick reply (only available for Android users): ZeSport
2
allows you to reply using
preset short answers directly from your watch. You can also create your own preset
answers using the mobile app.
• To delete all your SMS notifications, go to the SMS list and long press the screen.
• To erase a SMS, select the message and slide your finger to the left.
16. SMS
17. INCOMING CALLS
When receiving a call, a notification will appear on your ZeSport
2
. You can accept or
reject it straight from your wrist. The phone call will occur on your smartphone, not
on your watch.
Android users can also reply to an incoming call by sending a
short preset text message from their watch (not available for iOS users).
i
