Mylek MYESG01 User manual

User Manual - Please read and retain for future reference
www.hygienesuppliesdirect.com
ELECTRIC PAINT SPRAYER
MYESG01
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 1

Contents
PAGE
Safety instructions for MYESG01 .................................3
Technical data MYESG01. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Explanation of the system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Materials which can be used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Materials which cannot be used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Explanatory diagram MYESG01......................................8
Preparation of the coating material .................................8
Measuring the viscosity with the viscosity measuring cup . . . . . . . . . 9
Viscosity table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Starting up........................................................10-11
Adjusting the spray gun .............................................11
Choice of spraying effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting the required spray effect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting the amount of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

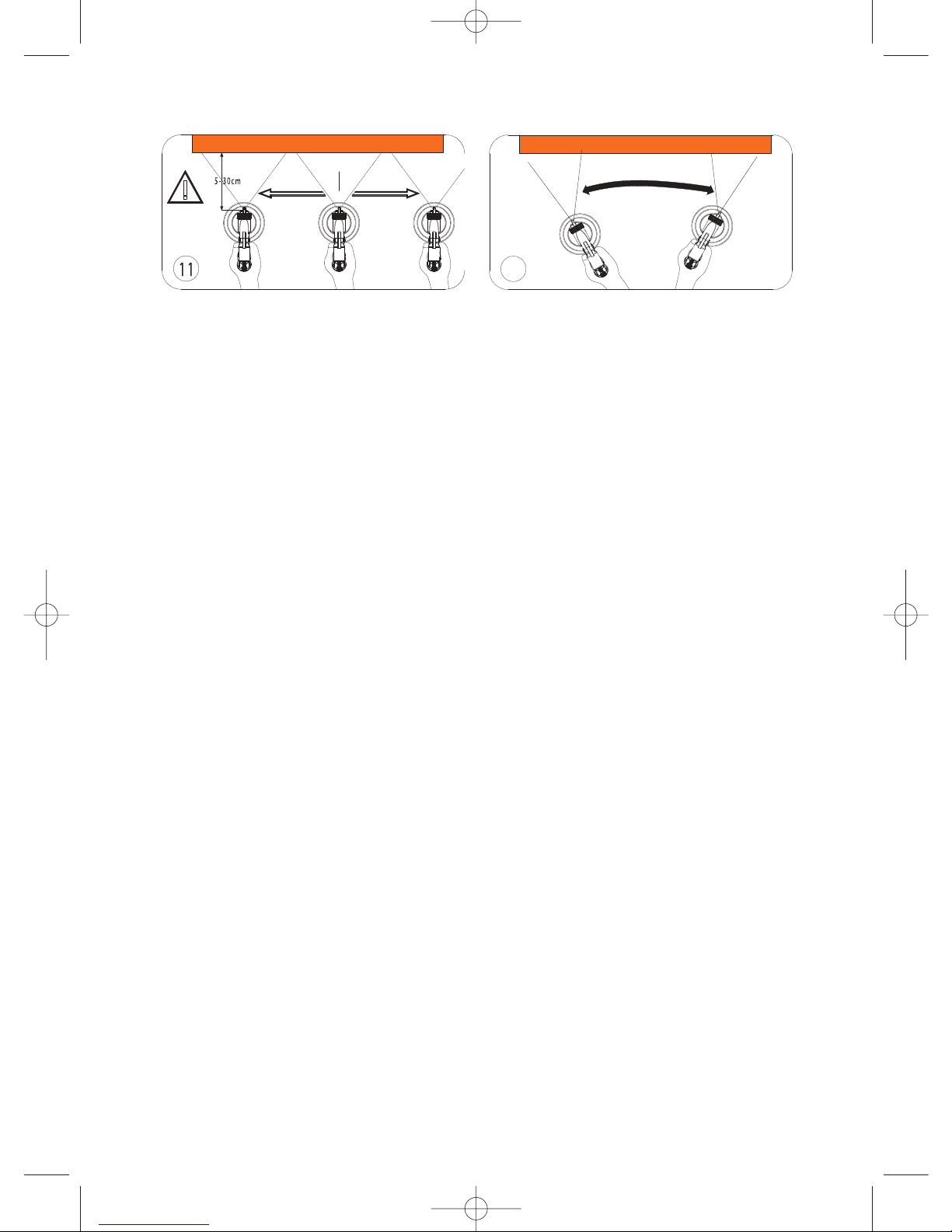

Spraying technique...............................................12-13
Closing down and cleaning ...................................13-14
Changing the washable air filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting .....................................................15
Environmental Responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
www.hygienesuppliesdirect.com
2
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 2

www.hygienesuppliesdirect.com
Safety instructions for MYESG01:
• Please read the operating instructions thoroughly and
observe the safety instructions
• Only coating materials such as paints, enamels, varnishes, etc,
with a flash point of 32°Cand above may be sprayed.
• The device may not be based in work places which are covered by the
explosion protection regulations.
• When spraying, ensure that there are no sources of ignition, e.g. open
fire, cigarettes, cigars, and pipes, sparks, glowing wires, hot surfaces,
etc, in the area.
• When working with the device MYESG01 inside and outside care must
be taken that no solvent vapours are sucked into the device.
• When outdoors observe wind direction. When working indoors ensure
that there is sufficient ventilation.
• Do not spray at the device.
• The device is only splash-proof when the air hose is correctly
connected.
• Do not let children play with the device. Keep out of reach of children.
This is NOT a toy.
• Care must be taken not to damage the cable. If the cable is damaged
take it immediately to an authorised customer service centre to be
changed.
• Remove mains plug from socket when not in use.
• Repairs to electrical parts should only be carried out at an authorised
customer service centre.
•Do not use spray guns to spray flammable liquids.
• Do not clean spray guns with flammable solvents.
• Take precautionary measures against potential hazards from spray
liquids and follow any instructions given on containers or laid down by
the manufacturer of liquid.
• Do not spray any liquids of unknown hazard potential.
• Keep work area clean and well illuminated.
• Do not operate the paint sprayer in an explosive atmosphere, such as
in the presence of flammable liquids, gases or dust.
3
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 3

www.hygienesuppliesdirect.com
• Keep children and bystanders away while operating the paint sprayer.
• The paint sprayer plug must match the outlet. Never modify the plug in
any way. Do not use with any adaptor plugs.
• Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators.
• Do not expose the paint sprayer to rain or wet conditions.
• Do not abuse the cord. Never use the cord for carrying or pulling the
paint sprayer. Keep cord away from heat, oil, sharp edges or moving
parts.
• When operating the paint sprayer outdoors, use an extension cord
suitable for outdoor use.
• Stay alert, watch what you are doing and use common sense when
operating a paint sprayer. Do not use a paint sprayer while you are
tired or under the influence of drugs, alcohol or medication.
• Use safety equipment. Always wear eye protection.
• Avoid accidental starting. Ensure the power switch is in the off position
before plugging in.
• Do not overreach. Keep proper footing and balance at all times.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts.
• If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
• Do not use the paint sprayer if the power switch is faulty.
• Disconnect the plug from the power source before making any
adjustments to the spray nozzle, changing accessories, or storing
power tools.
• Store the paint sprayer out of the reach of children and do not allow
persons unfamiliar with the paint sprayer or these instructions to
operate the paint sprayer.
• Maintain the paint sprayer. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may
affect the paint sprayers operation. If damaged, have the paint sprayer
repaired before use.
• Use the paint sprayer, in accordance with these instructions and in the
manner of it's intended purpose, taking into account the working
conditions and the work to be performed
4
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 4

www.hygienesuppliesdirect.com
• Recommendation: wear breathing protection when spraying.
• CAUTION: DANGER OF INJURY!
Never point the spray gun at yourself or other persons or animals.
• CAUTION: Never point or spray the gun directly at the unit.
5
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 5

www.hygienesuppliesdirect.com
Technical data MYESG01:
Max. viscosity: 60DIN-s
Voltage: 220-240VAC 50Hz
Power consumption: 700W
Max. back air pressure: 0.1-0.3bar
Double insulation:
Mains cable: 2m
Sound pressure level: 79.2 dB(A)
Oscillation level: 0.154m/s2
Air hose length: 1.8m
Container capacity: 900ml/1200ml
Nozzle size: 2.5mm
Weight: 2.5kg
What’s in the Box:
•1 x Spray Gun
•1 x 1.8m Hose
• 1 x Motor Unit
• 2 x paint cups
• 1 x spare filter
• 1 x cleaning needle
•1 x shoulder strap
•1 x viscosity measuring cup
6
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 6

www.hygienesuppliesdirect.com
Explanation of the system:
The device operates at low pressure. A high volume of air surrounds the
spray jet being ejected under low pressure. The air cap provides a very
fine atomisation with the lowest of spray mist .The coating material is
applied to the object quickly and evenly. Moreover, the air flow shortens
the drying time for the coating material. This gives perfect spraying
results with a respective saving of coating material and is therefore good
for the environment.
Function description:
The motor blower produces a flow of air which flows through the air hose
to the spray gun. The air flow atomises the coating material at the nozzle
and also pressurises the container. This pressure pushes the coating
material up the ascending pipe to the nozzle. The air and pressure
setting can be adjusted progressively.
Materials which can be used:
Oil and water-based paints, enamel paints, sealers, latex, varnishes,
primers, two-component paints, clear enamels, wood preservatives,
decking, sheds and fence stains. Always read the manufacturers label
which will state if it is suitable for use in a spray gun.
Materials which cannot be used:
Textured wall paints and acid containing coating materials. If the
manufacturer's instructions say 'brush application only' then the
material probably cannot be sprayed.
7
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 7

www.hygienesuppliesdirect.com
Preparation of the coating material:
Information regarding a sprayable dilution is normally not to be found on
the manufactures label.
Please use the viscosity table (below), viscosity = thickness of the coating
material.
8
1. Air cap
2. Nozzle
3. Union nut
4. Air hose
5. Spray gun
6. Paint flow adjustment knob
7. Trigger
8. Container
9. Motor
10. ON/OFF switch
11. Mains cable
12. Shoulder strap
Explanatory diagram MYESG01:
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 8

www.hygienesuppliesdirect.com
Measuring the viscosity:
Using the viscosity measuring cup
1. Thoroughly stir the coating material before starting measurement.
2.Immerse the viscosity measuring cup
(contents 100cm3) completely in the
coating material below rim level and
allow to fill.
3.Lift the viscosity measuring cup and
measure the time in seconds until the
flow of coating material stops.
4. This run-out time is called DIN
seconds (DIN-s).
Viscosity table:
Paint is “thinned” by adding the substance upon which the paint is based.
If it is water-based paint then water is added; if oil based then mineral
spirit or manufacturer’s recommended thinner is added. If the paint
requires thinning, start with a 10% dilution of the paint. To do this, partially
fill a container with one quart of paint. The viscosity cup supplied with the
unit holds 1/10 of a quart. Block the hole in the viscosity cup with your
finger and fill up with the required thinner. Add the thinner to the paint and
stir, and re-measure the viscosity. If the paint requires additional thinning,
repeat this step by adding 5% (5% will be equal to half a viscosity cup) with
the required thinner until desired viscosity is achieved.
COATING MATERIAL
Solvent containing gloss paints
Primers
Mordants/Dye
Component paints
Clear varnishes
Water-dilutable gloss paints
Motor-vehicle enamels
Wood preservatives
VISCOSITY DIN-S
15-50
25-50
undiluted
20-50
15-40
20-40
20-40
undiluted
9
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 9

Starting up:
1. Attach air hose.
Device end (fig.4) -Connect air hose connector to the device by
pushing it firmly into place.
Spray gun end (fig.5) -Connect the air hose connector to the spray gun
by pushing it firmly into the adjusting knob.
2. Unscrew the container from the spray gun.
3. Adjust the suction tube in the paint container accordingly.
It should be possible to spray the contents of the container leaving
hardly any material left in the container.
Spraying with horizontal objects
(fig.6)
Turn the suction tube A to face
forwards.
Spraying overhead objects (fig.7)
Turn the suction tube A to face
backwards.
www.hygienesuppliesdirect.com
Fig. 4
Fig. 6 Fig. 7
Fig. 5
10
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 10

4. Fill container with coating material. Screw firmly onto spray gun.
5. Place the spray gun in the spray gun holder.
6. Only place the device on an even and clean surface.
7. Before connecting to the mains ensure that the mains voltage
corresponds with the details on the rating plate and the power switch
on the unit is switched OFF.
8.Remove the spray gun from the spray gun holder and point at object to
be sprayed. Turn on using ON/OFF switch on the device.
9. Adjust the spraying pattern and amount of material; set the amount of
air and pressure, see fig.8,9,10.
10. Press the trigger on the spray gun.
Note:
When the device is switched on, air will continually flow from the air cap -
this is normal.
Adjusting for the required spray effect:
With the union nut (3) turn the air cap (1) to the required spray pattern.
www.hygienesuppliesdirect.com
Fig. 9 Fig. 10
11
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 11

www.hygienesuppliesdirect.com
Caution:
Never open the trigger when making adjustments on the air cap.
Adjusting the spray gun:
Choice of spraying effects
A = vertical flat jet - for horizontal surfaces
B = horizontal jet - for vertical surfaces.
C = round jet - for corners, edges and other hard to reach areas.
Adjusting the amount of material:
Adjust the amount of material by turning the adjustment screw.
+turn to the right -more material
-turn to the left -less material
Spraying technique:
The spraying result depends considerably on how smooth and clean the
surface is before spraying begins. For this reason the surface should be
carefully prepared and kept free from dust.
Surfaces not to be sprayed should be covered with sticky tape and
newspaper.
It is advisable to carry out a trial spraying onto cardboard or a similar
surface to find the most suitable spray gun adjustments.
12
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 12

www.hygienesuppliesdirect.com
Right Way (fig.11)
Always hold the spray gun at an even distance of approx. 5-15cm from the
object to be sprayed. Move the spray gun evenly across or up and down,
depending on the adjusted spraying effect. An even movement of the
spray gun will give a uniform and even surface quality.
Wrong Way (fig.12)
Excessive paint mist will form an uneven surface finish.
If coating material builds up on the nozzle (2) and air cap (1) clean both
parts with solvent or water.
• Turn off device and unplug from power source.
• Place spray gun in spray gun holder.
• Remove parts for cleaning.
Closing down and cleaning:
1. Turn off device. Open trigger so that the coating material in the spray
gun runs back into the container.
2. Unscrew the container. Return the remaining coating material into the
material tin.
3. Clean the container and the paint suction tube with a brush.
4.Fill the container with solvent or water and screw back into place.
Only use solvent with a flash point of over 32°C
Turn on device and spray the solvent or water into a container.
Due to high air volume some solvent or water will be deposited outside
the container.
5.Repeat the above procedure until clear solvent or water comes out of
the spray gun nozzle.
12
!1.000 !1.000 !1.000
13
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 13

www.hygienesuppliesdirect.com
6. Turn off device and unplug from power outlet.
7. Then completely empty the container. Always keep the container free of
coating material and check for damage.
8.Clean the outside of the spray gun and container with a cloth soaked in
solvent or water.
9. Unscrew the union nut. Remove air cap. Clean the air cap and nozzle
with brush and solvent or water.
Changing the washable air filter:
Unlike most paint sprayers, the MYLEK Paint Sprayer has a unique,
washable filter and if cleaned after every use will prolong the life of your
machine giving you many more years use compared to other
conventional units.
• Switch off the power and unplug from the power source.
• Remove the air intake guard from the rear of the motor unit by simply
pushing in the two clips at either side of the air intake guard.
• Remove the sponge like filter and wash with lukewarm soapy water and
rinse.
• Leave to dry completely.
• Place back into the correct position in the air intake guard and push
back into place at the rear of the unit making sure it clips securely back
into position. The unit is now ready for use.
• The unit is supplied with one extra filter, please keep this stored in a
safe place for future use.
PAT Testing:
When used in a workplace, this product must be safety-tested yearly by a
qualified electrician (PAT Tested) in order to comply with the Electricity at
Work Regulations. We recommend that it is PAT tested regularly when
used in a domestic environment.
14
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 14

Troubleshooting:
www.hygienesuppliesdirect.com
CAUSE
The nozzle is blocked.
The paint suction tube is blocked.
The small hole in the paint suction
tube is blocked.
Material adjustment knob turned too
far to the left (-).
The paint suction tube is loose.
No pressure is built up in the container.
The nozzle is loose.
The nozzle is worn.
Build up of coating material in the air
cap and nozzle.
Coating materials viscosity is too high
Too much material.
Material adjustment knob turned too
far to the right(+).
Nozzle dirty.
Air filter very dirty.
Not enough pressure built up in
container.
Refill
Clean
Clean or replace
Too much coating material applied
The distance to the object to be
sprayed is too large.
Too much coating material applied
PROBLEM
No coating material is
coming out of the nozzle
The coating material
drips from the nozzle
Spray too coarse
The spray jet pulses
Coating material in
container is running out.
The small hole in the
ascending pipe is blocked
Air filter very dirty.
Run in the coating
material
Too much coating material
mist (overspray)
REMEDY
Clean
Clean
Clean
Turn to the right (+)
Tighten the pipe
Tighten container
Tighten
Replace
Clean
Dilute
Turn material
adjustment knob
to the left (-)
Clean
Clean or replace
Tighten container
Turn the material
adjustment knob
to the left (-)
Reduce spraying
distance
Turn material
adjustment knob
to the left (-)
15
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 15

NLC Services Ltd, Brierley Hill, DY5 3JZ declares that the Electric Spray Gun
is exclusively manufactured and imported for Mylek.
www.hygienesuppliesdirect.com
Environmental Responsibilities
Meaning of crossed-out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.
Contact your local council for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain damaging
your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposal free of charge.
12 Months Limited Warranty
If within 12 months from the date of purchase you experience any problems with
your product, please return the product to its distributor/dealer for repair or
replacement. This warranty DOES NOT COVER normal wear, or any damage as a
result of accidents, misuse, abuse or negligence.
SERVICE WARRANTY
Hygiene Supplies Direct guarantees the product free from defects in materials
and workmanship for a period of 1 year from date of purchase.
Should this unit be operated under conditions other than those recommended,
at voltages other than the voltage indicated on the unit, or any attempts made to
service or modify the unit, then the warranty will be rendered void. The product
you buy may sometimes differ slightly from illustrations. This warranty is in
addition to, and does not affect, your statutory rights.
If you have any problems with this product, please call our Help Desk
on 0800 091 3171 or email [email protected]
16
MYESG01_Paint_sprayer_Manual 22/12/16 08:56 Page 16
