Nacra N460 User manual

1
Empowering Sail0rs
SINCE 1975
CAREFULLY READ THIS MANUAL BEFORE OPERATING YOUR NACRA.
Owner’s manual

2
Dear Customer,
Welcome to the Nacra family. We wish to thank you that you choose for Nacra Sailing.
It’s our constant endeavour to provide you with products that offer excellent performance throughout their ownerships period.
Which is why, in addition to producing great catamarans, we have also set up an extensive dealer network around the world.
Naturally, these Nacra Dealers knows everything there is to know about your catamaran and provides you with the best service
possible. So please find your dealer in your region on www.nacrasailing.com for any servicing needed and make sure that only
genuine spares are used for your Nacra.
This manual will familiarize you with the operation and maintenance of your new Nacra. It will also provide you with the important
safety information which should be read and understood before moving on to the assembly manual. The Assembly & operating
manuals of our catamarans can be found under the ‘after-sales’ button on our website; www.nacrasailing.com.
If this is your first sailboat, or you are changing to a new type of sailboat you are not familiar with? For your own comfort and
safety, please ensure that you obtain handling and operating experience before assuming control of the catamaran. Nacra Sailing or
National Sailing Federations or yacht clubs will be pleased to advise you about sailing schools or competent instructors.
When you have any query, please feel free to contact your local Dealer.
Happy Sailing.
EN

3
Craft record sheet
Model Name
HIN code N A C
ISAF Plaque nr
Rudder serial #
Daggerboard serial #
Owner's Name
Address
Postal code
Nacra Dealer
Address
Signature dealer
Dealers Stamp
Delivery Date
Mainsail serial #
Jib serial #
Gennaker serial #
City/town
Country
Starboard
Port
Starboard
Port
EN

4
IMPORTANT NOTICE
Please read this manual and follow the instructions carefully.
: This is the safety alert symbol used to alert you to potential hazards
including injuries or damage to your vessel or other property. Obey all
safety messages that follow this symbol.
Throughout this manual you will find special notations:
: This is a safety symbol which means 'Do not', or 'Do not do this', or 'Do
not let this happen'.
All information, illustrations, and specifications in this manual are based on the
latest product information available at the time of publication.
NAUTICAL SPORTS BV. (NACRA) reserve the right to change specifications or
designs at any time without notice and without incurring obligation.
WARNING!
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
serious injury or death.
PLEASE THREAD THIS MANUAL AS A PERMANENT PART OF YOUR NACRA
AND HAND IT OVER TO THE NEW OWNER WHEN YOU TRADE THE CRAFT.
Hull Identification Number
The Hull Identification Number (HIN number) is engraved on the starboard hull’s transom.
Do not adjust or remove this number from the transom.
CE Builders Plate
The CE builders plate which is located at the starboard hull transom. The CE plate contains
information on the Design Category, the Builder, the maximum number of crew, the maxi-
mum load and the number of the Notified Body assessing the craft.
EN

5
Table of content
1. Declaration of conformity……………………………………..
2. Design category…………………………………………………….
3. Important safety information……………………………….
4. Standard limited warranty coverage……………………..
4.1 Terms & Conditions……………………………………..
4.2 Owner’s Assistance……………………………………….
5. Maintenance & Service………………………………………...
6. Care of Carbon Fiber Spars…………………………………...
7. One-design integrity maintenance log………………….
8. ODCO ISO APPLICABLE STANDARDS……………………..
6
6
7
9
9
11
12
13
14
15
EN

6
Declaration of Conformity of Recreational Craft with the
Design, Construction and Noise Emission requirements of
Directive 94/25/EC as amended by Directive 2003/44/EC
Name of craft manufacturer: NAUTICAL SPORTS HOLDING BV
Address: HELLINGWEG 110-116
Town: DEN HAAG
Postcode: 2583 DX
Country: THE NETHERLANDS
Name of Notified Body: IMCI
Address: Rue Abbé Buypers 3
Town: Bruxelle
Postcode: B-1040
Country: Belgique
ID Number: 0609
Date: (yr/month/day) 12/03/09
The Recreational Craft Regulations 2004
Schedule 6 - Module Aa & Schedule 1-
Parts of Sections 3.2 & 3.3.
The EU Recreational Craft Directive 2003/44/EC Annex VI -
Module Aa & Annex 1 - Parts of Sections 3.2 & 3.3
DECSCRIPTION OF CRAFT
HIN NO: (fill fields below)
Brand Name of Craft: Nacra
Type or Number:
Nacra 460 / Nacra 500 / Nacra 570 / Nacra 580 / Nacra
F16 / Nacra 17 / Nacra Infusion / Nacra F20 Carbon.
Type of Craft: SAILBOAT
Type of Hull: MULTIHULL
Deck: FULLY DECKED
Type of Propulsion: SAILS
Hull Construction Material: PLASTIC , FIBER REINFORCED
DPLASTIC
Maximum Design Category: C
This declaration of conformity is issued under the sole
responsibility of the manufacturer. I declare on behalf of the
craft manufacturer that the craft HIN code as mentioned
above comply with all applicable essential requirements in
the way specified.
Name and function: Jesse van Leeuwen
(Technical Manager)
Signature:
Date: ___ /____ /________
For ODCO approved ISO APPLICABLE STANDARDS:
See page 14.
This craft is certified and its stability assessed by the IMCI
under DESIGN CATEGORY C.
CATEGORY C –inshore: Craft designed for voyages in
coastal waters, large bays, estuaries, lakes and rivers, where
conditions up to and including wind force of 5 beaufort and
significant wave heights up to and including 2m may be
experienced.
The Nacra range of crafts comply with this design category is
subject to:
 A crew having suitable skill and experience.
 Satisfactory maintenance of the craft and its equipment.
 Support the crew even when swamped.
 Be recovered by the crew after capsize.
Users of the craft should comply that:
 All crew should receive suitable training.
 Trapeze shall not be used carrying more than 2 persons.
 The craft shall not carry more than the maximum load.
 All inspection hatches and drains shall be closed
 Bilge water shall be kept to a minimum.
 Stability is reduced by any weight added above the cen-
tre of buoyancy.
N A C
2. design category
Model
Certificate number
LENGHT HULL
BEAM HULL
DRAUGHT
Light
Displacement
Minimum
Recommended
Capacity
Maximum
Recommended
Capacity
Maximum
Recommended
Load
Maximum
Loaded
Displacement
m m m KGS In persons In persons KGS KGS
N460 PCAT005 4.56 2.44 0.2 80 1 2 230 357
N500 PCAT006 5.08 2.44 0.2 100 2 4 340 454
N570 PCAT007 5.64 2.44 0.2 130 2 4 340 463
N580 BPCAT012 5.79 2.44 0.3 140 2 4 340 526
F16 BNACRA002 5 2.49 0.2 130 2 4 340 470
NACRA 17 BNACRA001 5.25 2.59 0.2 148 2 4 340 482
N F18 infusion BPCAT011 5.51 2.59 0.2 180 2 4 340 470
F20 Carbon BNACRA003 6.2 3.2 0.2 170 2 4 340 515
1. declaration of conformity EN

7
Please read the important safety information and read the
Assembly Manual before sailing your boat.
BEFORE YOU GO SAILING
 Check you are wearing suitable clothing and safety
equipment for the conditions and time of year;
 Secure the drain plugs before sailing and ensure that the
hulls are free of water. Ensure that any hatches are cor-
rectly fitted and have a good seal;
 Carry your Nacra or use beach wheels with cradles when-
ever possible to minimize keel wear;
 Make sure a third party knows where you are sailing and
how many people accompany you;
 Check the weather forecast;
 Check the time of high and low tides if applicable;
 Seek advice of local conditions if sailing in a new area.
 Always check the condition of your craft before setting
off.
SAILING AND BEACHING
 Never sail above your ability or that of your crew;
 A sailor’s safety knife should be carried on board;
 When launching through the surf, always make sure the
bow is facing the waves.
 Always know the direction that the wind is blowing;
 Watch out for changing weather conditions;
 Ensure that you and your crew can cope with any
changes in the weather conditions;
 After sailing, remove drain plugs to equalize the pressure
in the hulls, if no drain plugs installed, open the hatches;
 Understand and be competent in the sailing skills and
righting techniques.
RIGHTING AFTER A CAPSIZE
Even the best sailors capsize occasionally, so prepare your-
self and the boat for the inevitable. Install a righting line
onto the dolphin striker rod below the mast.
The boat will lose speed as it raises up on one hull and usu-
ally capsizes over slowly. Hang on to the boat, being careful
not to separate yourself from the boat if possible.
As the boat capsizes you may be located in the water or on
the top hull above the water, try to get as fast as possible
onto the bottom hull. It is important to get yourself to the
bottom hull as quickly as possible to prevent the boat from
turning upside down (turtle).
Do not let go of the boat, as the current and the wind
may make it hard or impossible to get back onto the
boat.
Release the main, jib and spinnaker sheets. Reach around
the front crossbar, and throw the righting line over the top
hull. Make sure that the bows of the hulls are facing into the
wind. Move your weight towards the bow to turn the boat
to obtain the proper angle. Be careful not to shift your com-
bined weight too far forward or afterwards as this may
cause the boat to roll over and turn turtle. If the mast is
pointed directly into the wind, the boat may turn over to the
other side when you get the boat upright
Standing even with the front crossbar, the skipper and crew
should grab the righting line, and hike out backwards. You
can tie knots in the righting line to prevent your hands from
slipping during this procedure. If you are single handling,
you may need to carry a righting bag to attain the necessary
weight to the boat upright.
Once the tip of the mast starts to come out of the water, the
boat will right quickly. Be sure to hold onto the righting line
until you can grab the boat and pull yourself up onto the
deck. Be careful to avoid being hit by the dolphin striker as
the boat comes down on top of you. One of the crew should
reboard over the front beam of the catamaran onto the
platform to ensure that the craft can not sail away without
the crew. The remaining crew can be recovered by the side
with the aid of the trapeze wires or crew. Stow the righting
line, organize the sheets, and you are sailing again!
Minimum crew weight required for righting:
Nacra 460 102 kg
Nacra 500 102 kg
Nacra 570 110 kg
Nacra 580 130 kg
Nacra F16 104 kg
Nacra F18 Infusion 140 kg
Nacra 17 116 kg
Nacra F20 Carbon 150 kg
3. important safety information
WARNING!
Always wear an approved buoyance aid or
lifejacket.
WARNING!
Check for overhead cables when raising or lower-
ing the mast, launching and sailing the boat. So
look up when moving the craft around and give
any wires a wide berth. A mast which comes in
contact with electrical power lines can cause seri-
ous injury or death!
EN

8
Important safety information
STABILITY AND BUOYANCY
The Nacra catamarans are equipped with one or more
sealed buoyancy compartments. The buoyancy compart-
ment is inserted during the build of the hulls. Consequently
the following points should be noted:
 Do not puncture the buoyancy compartment.
 When the buoyancy compartments become punctured
do not use the craft until the compartment is repaired.
 When a hatch is not closed correctly do not use the craft
until the hatches are fitted correctly.
 You may have to replace fittings from time to time.
Ensure that all fastenings are resealed properly using an
appropriate sealant.
The IMCI assessment of these crafts by determined that the
crew can upright the craft and will subsequently float. Each
of the Nacra Catamaran listed in the Declaration
of Conformity have been certified as conforming with the
requirements of the UK Statutory Instrument 2004 No 1464
Consumer Protection; the Recreational Craft Regulations
2004 Schedule 1
 Parts of Sections 3.2 &3.3; and the EU Recreational Craft
Directive 2003/44/EC Annex VI
 Module Aa & Annex 1 –Parts of sections 3.2 & 3.3.
TRAILING AND STORAGE
When trailing your Nacra you should only use an approved
road trailer. Tying down the craft to its trailer is important
because too much or too little tension could result in dam-
age.
Follow the instructions below for safe trailing:
 Ensure the catamaran is properly located on the road
trailer and that the boat is balanced correctly. Always
use trailers and beach trolleys with cradles designed to
fit the hulls rather than rollers. Risk of damaging the hulls
occurs when using trailers and dollies without proper
support
 Make sure that the catamaran is not too far forward
otherwise it may come into contact with the side of
your car as you turn corners.
 Tie the catamaran down to the trailer by using two
straps across the width of the hulls using the eyelets on
the frame of the trailer. You only need to apply suffi-
cient tension to hold the catamaran in contact with the
trailer. Use padded material where any straps touch the
deck.
 Always remove dagger boards, blocks, and rigging when
tailoring. Removal of the rudders and steering system is
recommended for long distance tailoring.
 Do not use the dolphin-striker as a tie down or for
pulling the boat. Use the main beam instead.
 Secure both ends of the mast. Be sure to mark off both
ends of the mast for visibility.
 Boat covers are recommended to protect against rocks,
gravel and road debris while trailing. These covers also
provide good protection from weather and the ele-
ments.
 Always leave the drain plugs and inspection hatches
open to avoid possible air pressure damage.
TOWING AFLOAT
Should it become necessary to tow the craft, you should
secure the towing line around the Front Cross Beam on one
of the sides and as close as possible to the hull. Raise the
daggerboards (if fitted) and stay at the tiller. In the event of
the loss of the rudder
sit well aft.
ANCHORING & MOORING
Mooring or anchoring of your boat is not recommended.
However, if the boat is moored in the water the warranty
must be complied with. Barrier and anti-fouling paint must
be applied to the bottom.
The Nacra range of catamarans are not normally required
to anchor/moor, as they are day boats for racing or cruising
in inshore or inland waters.
OUTBOARD ENGINE
The Nacra range of catamarans are not designed for use
with an outboard engine.
EN

9
Down below you will find our warranty details and instruc-
tions. Please follow these instructions so we can identify
you as a NACRA sailor when warranty issues arise.
4.1. Term of Conditions
Nacra reserves the right, before having any obligation un-
der this limited warranty, to inspect the damaged Nacra
product,. All costs for shipping the product to Nacra or Na-
cra dealer/distributor for inspection shall be paid solely by
the purchaser, in order to recover under this limited war-
ranty. The original invoice or warranty card registration
must also be presented of the product. (on-line registration
card www.nacrasailing.com, or any other documentation
Nacra deems acceptable)
Nacra, at it’s option, shall repair or replace the defective
unit covered by this warranty. This limited warranty does
not cover any damage due to accident, misuse, abuse or
negligence. Nacra shall approve beforehand any repairs
which will be carry out under this limited warranty. A quo-
tation must be send to the Nacra Dealer before proceed-
ings may go forward. Please note, this approval by Nacra
for the repair does not guarantee the warranty, as the re-
pair is part of the investigation of the warranty proceed-
ings.
Please retain the dated sales receipt as evidence of the
original date of purchase. You will need it for any warranty
service. In order to keep this limited warranty in effect, the
product must have been handled and used as prescribed in
the owner’s manual.
.
IMPORTANT NOTICES
Online warranty registration:
Make sure to register your boat at www.nacrasailing.com to
apply for your warranty. This registration is mandatory
Pre-Delivery Inspection
A thorough inspection of the new boat prior to delivery en-
sures that the condition of each boat meets the high stan-
dards set by Nacra. We certify that your boat was inspected
according to the procedures established by Nacra.
To Obtain Warranty Service
Within 10 days of discovering a defect, notify in writing,
along with proof of purchase (sales receipt or registration)
to an authorized dealer or service centre.
Maintenance records
It is also recommended that receipts covering the perform-
ance of regular maintenance be kept with your boat. Dam-
age to your boat caused by lack of maintenance is not cov-
ered by our warranty.
Owner satisfaction
Should you ever encounter a problem during or after the
warranty period that is not resolved, talk to the manage-
ment of the dealer or service centre. If the problem persists,
follow the two-stage satisfaction procedure outlined in this
section of the owners manual.
new Boat Limited Warranty
What is covered?
Nacra warrants each new Nacra boat, hereafter called
“boat.” The warranty covers repairs to correct any malfunc-
tion occurring during the warranty period resulting from
defects in material or workmanship. New or re-
manufactured parts may be used to affect repairs. Only
genuine Nacra parts and or Nacra licensed supplier parts
should be used for these repairs.
The warranty period for all coverage’s begins on the date
the boat is first delivered or put in use which ever comes
first.
The warranty period is 2 years / 24 months. This coverage
applies to all owners of the boat.
To obtain warranty repairs, take the boat to an authorized
Nacra dealer or service centre within the warranty period
and agree upon the repairs and/or adjustments required. A
reasonable time must be allowed for the dealer/service cen-
tre to perform necessary repairs and/or adjustments.
Charges for warranty repairs and adjustments (parts and/or
labour) will not be applied.
What is not covered?
Since this warranty applies only to defects in material and
workmanship, it does not apply to normal wear and tear, or
to damage caused by:
1. Neglect, lack of maintenance, accident, abnormal opera-
tion or improper installation and services. Failures due to
lack of proper maintenance as described in the mainte-
nance schedule; failure to follow maintenance schedule
intervals; failure to use lubricants recommended in the
warranty manual. Proof of proper maintenance is your
responsibility.
2. Keep all receipts and make them available if questions
arise concerning maintenance.
3. Accidents or damage caused by collision, fire, theft, elec-
trocution, freezing, vandalism, riot, and explosion or from
objects striking the boat and /or acts of God.
4. Standard limited warranty coverage EN

10
4. Misuse of the boat such as overloading, alterations to
the boat and or any damage caused by these alterations.
Discoloration, crazing, or blistering of gelcoat caused by
mooring or storing the boat in water [not recommended;
if boat is stored in water, anti fouling is advised.
5. Transportation of boats and/or parts to/or from Nautical
Sports BV or its dealers.
6. If your boat is equipped with a Cunningham system pur-
chases over 8:1, Mainsheet over 10:1; please be aware
that damages that are due to over-sheeting are not cov-
ered.
7. Damage caused by airborne fallout (chemicals, tree sap,
bird extractions etc.), stones, hail, earthquake, water or
flood, windstorm, lightning, etc.
8. Cleaning and polishing, lubricating performing other nor-
mal maintenance services. See maintenance schedule
and assembly manual for full details.
9. This warranty does not cover any economic loss includ-
ing (without limitation) payment for the loss of time or
pay, inconvenience, loss of boat use, boat rental ex-
penses, lodging bills, food, other travel costs, storage
charges and other incidental or consequential loss or
damage.
10.This is the only expressed warranty applicable to your
Nacra boat. Neither authorized Nacra dealers/service
centres nor Nacra authorize any person to create for
them any other obligation or liability in connection with
these boats. Any implied warranty of merchantability or
fitness for a particular purpose applicable to this boat is
limited to the duration of this written warranty.
11.The performance of repairs and needed adjustments is
the exclusive remedy under this written warranty. Nacra
shall not be liable for incidental or consequential dam-
ages resulting from breach of this written warranty.
12.Regarding the hulls and mast; both the hulls and the
mast can have intrusion of water; this is due to the na-
ture of use and build of the product. Water tightness
therefore is not warranted and or guaranteed. Please
check with your local legislator if a mast floatation device
is required.
Things to know about
limited warranty
General
We will repair everything covered under warranty that goes
wrong during the warranty period that is the fault of the
manufacturer.
Damage / defects
Please note the distinction between “defects” and
“damage” as used in the warranty:
Defects are covered by the manufacturer, but we have no
control over damage (Please read the following pages for
details) caused by such things as collision, misuse, transpor-
tation and lack of maintenance which occur after the boat is
delivered to you. Damage, for any reason, which occurs af-
ter the boat is delivered to you is not covered under war-
ranty.
Maintenance and repairs are recommended to be per-
formed by any authorized Nacra dealer or service centre,
who will offer first class service at competitive prices. War-
ranty repairs must be performed by an authorized Nacra
dealer or service centre. Authorized Nacra dealers and ser-
vice centres reserve the right to deny warranty coverage if
the boat has not been properly maintained.
Rust / corrosion
Your boat and its fittings are designed and built to resist
corrosion, but due to outside influence [salt, chemicals etc]
corrosion may occur. Please make sure that your boat is
rinsed with fresh water after every sail to prevent this
happening. Please refer to the maintenance schedule and/
or assembly manual for further details.
Warranty service
For warranty service, please see the authorized Nacra dealer
or service centre where you purchased the boat. If you are
touring or moved, please visit any authorized Nacra dealer
or service centre for warranty service. The nearest author-
ized Nacra dealer or service centre can be found on our
website: www.nacrasailing.com.
Warranty repair order
For your records, the servicing authorized Nacra dealer or
service centre will provide a copy of the warranty repair
order listing all warranty repairs performed.
Voiding Warranty
In case the repair is performed by a non authorized dealer,
service centre or repairer and/or non genuine parts are used
the warranty is void. Damages and/or defects caused by this
repair are not warranted.
After warranty repairs
If you have a problem with your boat after the warranty
coverage has expired, we recommend you to return to your
authorized Nacra dealer or service centre for routine main-
tenance and repair.
Production changes
The manufacturer and/or Nacra reserves the right to make
changes in boats built and/or sold by them at any time
without incurring any obligation to make the same or similar
changes on boats previously built and/or sold by them.
Wear & Tear exclusions
What is excluded?
 Wear and Tear from normal sailing and usage
 Discoloration
 Scratching [anodized] parts
 Battens
 Sheets / ropes / shock cords
 Rubbers
 Burn holes in the spinnaker due to incorrect snuffing
 Rudder alignment
 Wear due to beaching the boat
 Non- structural cracks in gelcoat
 Misuse
EN

11
4.2. owner Assistance
If you experience any concerns.
Two-Stage satisfaction procedure
ONE –Discuss your concern with a member of the
authorized Nacra dealer - or service centre management.
Concerns can often be resolved quickly and satisfactorily at
that level. If the concern has already been reviewed with the
sales or service manager, contact the owner of the author-
ized Nacra dealership/service centre or the general manager.
TWO –In the unlikely event that your concern cannot be
resolved by the authorized Nacra dealer or service centre
management, contact Nautical Sports BV at
[email protected]
By doing so you should be prepared to provide the following
information in English:
 Your name, address, telephone number and e-mail.
 The identification HIN number of your boat (This can be
found on the starboard hull stern)
 The name and address of the dealer.
 The delivery date of your boat.
 Details of your concern or request.
 Including photos and/or quote of repair.
Storage
It is most important that you store your boat properly, please
see page 8 of this manual how your boat should be stored.
Please make sure in case you store your boat for longer
periods it’s stored in a well ventilated area in order to avoid
an osmosis reaction between hulls and any (transport) sup-
ports.
Transport
To make sure that no damage is done to your boat, please
see page 8 of this manual.
MAINTENANCE—GENERAL INFORMATION
It is essential that your boat receives the maintenance out-
lined on the following pages to retain the safety, reliability
and performance built into your boat.
Do not leave the rig under tension when not sailing or during
storage. If rig tension is over tightened, or left on when not
sailing damage may occur.
Your boat should only be used with a proper launching trol-
ley. The use of any other trolley may damage the hull and
invalidate your warranty. Care must be taken to support the
hull adequately if the boat is not stored on the correct
launching trolley. Any sustained point loading could perma-
nently dent or distort the hull.
Any repairs to the hull should be undertaken by qualified
personnel with the relevant skills and equipment. Contact
your dealer for advice.
UV light may cause fading to some components and fittings,
a good quality cover is recommended to reduce UV degrada-
tion. Keep the equipment clean by frequently and
thoroughly flushing with fresh water.
Excess water should be removed from the hull and any cavi-
ties. Keep your craft drained and well ventilated. Ensure the
craft is stored with the bow raised to allow water to drain
away. Make sure that when you attach the rudder that
the rudder stop clips over the stock.
Salt water will deteriorate your sail and the stitching if the
sail is not rinsed in fresh water after sailing. Sails should be
dried before storing. Ideally we would recommend that you
should store sails in a convenient dry place away from the
craft. If you have to store sails on the craft ensure that a
good cover is used and that it prevents any water
coming into contact with the sails. Sails will be subject to
mould and mildew if left in water.
Trailers should be rinsed with fresh water and checked at
regular intervals. It is recommended that the trailer be ser-
viced annually. It is also a good idea to tie the craft down
when it is left in the dinghy park to prevent any damage
in the event of strong winds.
REPAIR
Contact your dealer or Nautical Sports BV for the best advise
MODIFICATIONS
Contact your dealer or Nautical Sports BV about any modifi-
cation. Please remember any modifications may endanger
your safety and invalidate your warranty.
CAUTION!
Always wash your boat with fresh water after
sailing. Salt water can cause severe corrosion
EN

12
Inspection before sailing
Platform [hulls & trampoline]
 Always keep trampoline lacing tight.
 Always check beam bolts to ensure proper torque.
 Check hulls for leaks at all hull fittings
 Check the trampoline for tears, or loose stitching. Repair
immediately to avoid further damage.
Sails
 Check for broken or delaminated battens. Never sail with
damaged battens.
 Check the sails for tears, or loose stitching. Repair imme-
diately to avoid further damage.
Rigging
 Check all shackles, clevis pins, and fasteners for loosen-
ing or wear. Replace as needed.
 Tape all split rings and cotter pins to prevent loss or
damage.
Inspection after sailing
Platform & Rigging
 Rinse ENTIRE boat with fresh water after each use. Be
sure to flush all blocks and fittings thoroughly.
Sails
 Rinse sails with fresh water, make sure sails are dry and
batten tension is released when storing for more than a
day.
 Never fold your sails
 Role your sails from top to bottom, this is to prevent luff
Damage
Maintenance every 3
months by owner
Platform
 Check mast ball for wear- replace if:
a) Maximum diameter of the plat spot on top of the
ball is bigger then 15mm/0.59 inch
b) Minimum height from bottom to top should be 35
mm/1,38 inch
 Check hulls for excessive wear on bottoms from beaching
and dragging the boat.
 Check hulls for leaks at all hull fittings by covering sus-
pected areas with soapy water and blowing air (from your
lungs) into the drain plug holes.
DO NOT USE COMPRESSED AIR AND OR ANY OTHER
TYPE OF MECHANICAL BLOWER AS THE EXCESSIVE
PRESSURE CAN DAMAGE THE HULLS.
 If the water bubbles, there is a leak. Remove the fitting
and/or cover with silicone sealant and replace. If the leak
is from fiber glassed area (no fittings) this should be re-
glassed to insure proper permanent bonding. Please see
your dealer
Sails
 Check for broken or delaminated battens. Never sail with
damaged battens.
 Check the sails and trampoline for tears, or loose
stitching. Repair immediately to avoid further damage.
Please see your dealer
Rigging
 Periodically check for and replace frayed, worn, or
kinked wires, shock cords and lines.
 Periodically check the bearings in the traveller car and
replace them if necessary. Rinse thoroughly with fresh
water to free any stuck bearings.
 Periodically check dolphin striker strap tension. Please
see assembly manual for the correct setting for your
boat. Adjust as necessary.
 Masts should be regularly inspected for water tightness
and diamond wire wear. Make sure fittings are sealed
with silicone.
 Replace wires that show any signs of wear. Check dia-
mond wire attachment points, turn buckles and seizing
wire. These areas could cause serious mast failure!
Conditions which requiring more frequent owner mainte-
nance
If your boat is regularly operated under one or more of the
following conditions:
 Temperatures below freezing or above 32°C / 90 F
 Take extra care when boat is left after sailing when freez-
ing is likely, ensure that hulls are dry.
 Beach storage

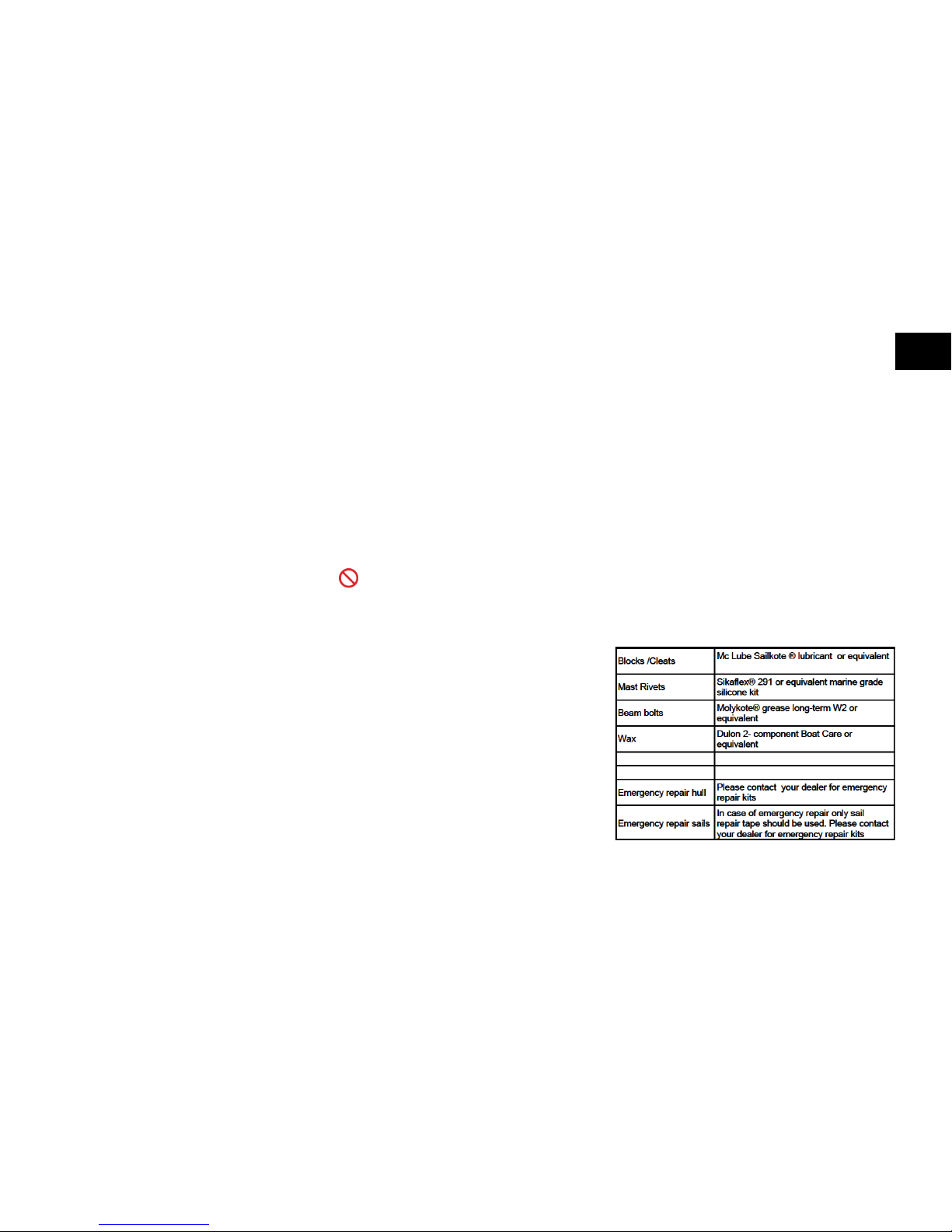

Recommended Fluids, Materials and Lubricants.
5. maintenance and service EN

13
Each carbon-fibre mast delivered by Nacra has been manu-
factured using heat and pressure autoclave curing, the best
process available.
Since carbon fibre composite is different than aluminium to
drill, file, or otherwise process, always contact your Nacra
dealer for advice before making any modifications to the
mast.
Handling & Storage
Carbon fibre has properties differing from aluminium.
Though carbon composite is stronger than aluminium, it is
less resistant to impact loads. Where aluminium will dent on
severe impact, carbon composite could shatter or suffer
serious delaminating. Clearly, subjecting your carbon spars
to severe impact is to be avoided.
When transporting your mast it is important to pack it well
using covers which are available at your Nacra dealer.
Ensure that rigging is removed to prevent the stays from
wearing or banging against the mast. It is recommended to
fully inspect your mast when re-rigging your mast.
Care
In order to get the maximum life from your carbon fibre
composite tubing we recommend the following care and
precautions:
 Do not allow the mast to become excessively hot.
High performance epoxy resins, together with oven post
curing, are used in the tubes, however at temperatures
above approximately 75oC the epoxy can soften which
dramatically reduces strength or otherwise can cause
the tube to bow or warp. Note that black objects are
the best absorbers of IR radiation (heat) and we have
recorded a surface temperature of 65oC from a tube
lying flat on the ground in the sun.
 Epoxy resins are UV light degraded. Although our ep-
oxy resins have UV light protection, excessive UV light
has the effect of turning the exposed epoxy resin into a
chalky layer. Therefore it is recommended to keep your
mast as much as possible out of the UV light . It is best
to cover it when not rigged. Therefore it is also recom-
mended to wax your mast with any UV protection wax
e.g. Teflon wax etc.
6. Care of Carbon fiber mast EN

14
Proof of Maintenance
Proper certification of maintenance will avoid problems covered by war-
ranty, or damage by lack of maintenance. Perform all recommended
maintenance to ensure that your boat is kept in good condition.
Repair Date Repair category details of repair done Name and address of servicing retailer
(repair category - warrenty repair / accident Repair / fatigue repair)
7. one-design integrity maintenance log
stamp
stamp
stamp
stamp
stamp
stamp

15
8. oDCO ISO applicable standards

16
Manufacturer: Nautical Sports B.V.
Address: Hellingweg 110 - 116
2583 DX Den Haag
The Netherlands
Office: [phone]
Fax: [phone]
Email: [email protected]
Website: www.nacrasailing.com
Distributor / dealer:
Connect with your
local dealer
Your local Nacra dealer is there to serve you - the customers.
Please take advantage of the many service that Authorized
Nacra Dealers can provide:
New Nacra fully assembled
Nacra parts and accessories
Expert advice on boat rigging, repair and maintenance
A direct source for all catamaran accessories
Contacts for multihull fleets and events
 2013 Nautical Sports B.V. - All rights reserved.
