Nags Head Hammocks NHDW48PS User manual

48” DOUBLE ROPE SWING
INSTRUCTIONS
• Rubber Mallet
• Adjustable Wrench • Phillips Head Screwdriver
(6) Barrel Nuts
(4) Locknuts
(1) Allen Wrench
(8) Washers
(2) 2” Hex Bolt
(4) 3.5” Hex Bolts
(2) Tree Hooks and
chain sets
(6) 4.5” Barrel Bolts
• CHAIN SETS: (2)
Eye Bolts, nuts, and washers attached
HARDWARE PACK
CHAIN SET
SUGGESTED TOOLS
LONGLONG
CHAINCHAIN
FRONTFRONT
SHORTSHORT
CHAINCHAIN
FRONTFRONT
NOTE. Add chains after
completeing assembly.
NOTE. Instructions not to scale.
ASSEMBLY

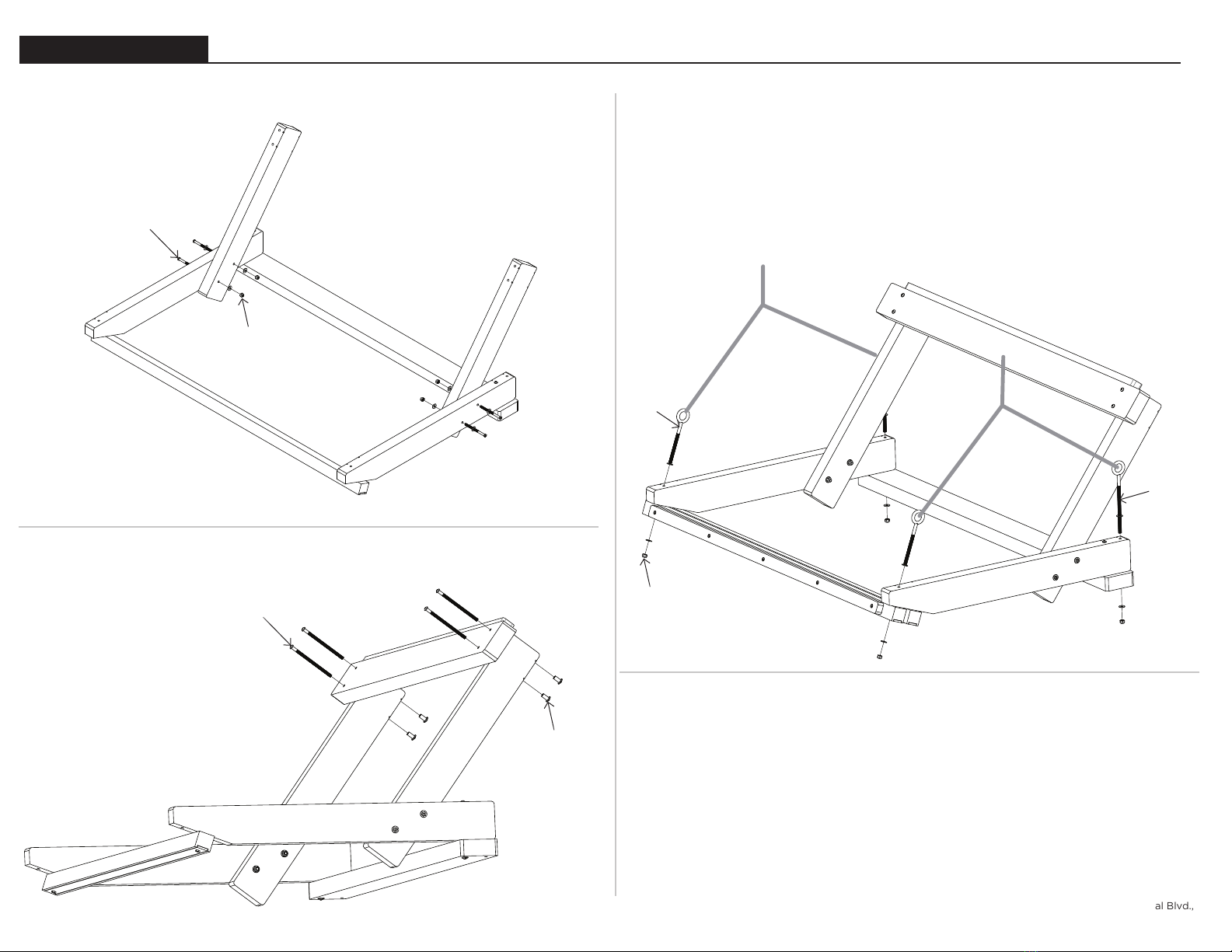

STEP 1. Arrange 2 side frames approximately 48” apart. Using Front
Cross support secure with (1) 2” Hex Bolt into the insert on each side.
Align back Cross Support and secure with (1) 4.5” Barrel Bolt per side.
NOTE. do not tighten bolts until Step 4.
4.5” Barrel Bolt
Barrel Nut
2” Hex Bolt

ASSEMBLY
STEP 2. Position an upright as shown and secure it with (2)
3.5” Hex bolts and a washer on each side of the material.
Repeat for the other side.
STEP 3. Unroll Rollup, use (4) 4.5” Barrel Bolts and (4) Barrel
Nuts to attach frame to left and right supports, one side at a
time.
STEP 4. Attach long bolt of Chain Assembly in the hole on the Left Side
Frame, by first unscrewing the nut and removing 1 washer. Thread bolt
with one washer through the frame and secure with washer and locknut.
Repeat for the right side, then repeat for the front using the front of the
rollup as shown.
Make sure to tighten all bolts then hang the swing using the included
tree hooks or two other properly installed hooks - spacing hooks
approximately 48” apart.
Enjoy your new Nag’s Head Double Swing!
Congratulations on purchasing this Original 48” Nag’s Head Double Rope Porch Swing. QUESTIONS REGARDING
THIS PRODUCT? Call our customer service team,
252-295-0405.
INSTALLATION - Get somebody to help you, some pieces are heavy and a second pair of hands is always helpful.
Do not tighten bolts until the product is fully assembled. Some pieces are harder to fit in place and this will help. A
hammer or rubber mallet is needed during assembly. Do not over-tighten the bolts or screws. Build your item close
to where it will be used to eliminate diculty in moving once completed. For a uniform look, face all nuts in the same
direction.
MAINTENANCE - Great care has been put into manufacturing this item. However, it is made of high density resin and
some natural esthetic imperfections and dark spots are normal and should be expected. You can wash the wood and
the rope using a hose and some bleach water. You can also brush the wood to help remove dirt.
WARRANTY & RETURNS - Nags Head Hammocks products are guaranteed to be free of defects in both workmanship
and material. Prolonged exposure to weather conditions including snow, rain, and humidity are not covered under
the warranty, nor is damaged caused by normal wear, mildew, or improper care, including storage, maintenance,
and assembly. If you are not satisfied with an item, return it unused in its original packaging for a complete refund
or exchange. You can return it to any of our stores or to our warehouse, Nags Head hammocks, 305 Industrial Blvd.,
Greenville, NC 27834. Please include a copy of your receipt and your contact information.
