Nags Head Hammocks NHDW48PS User manual

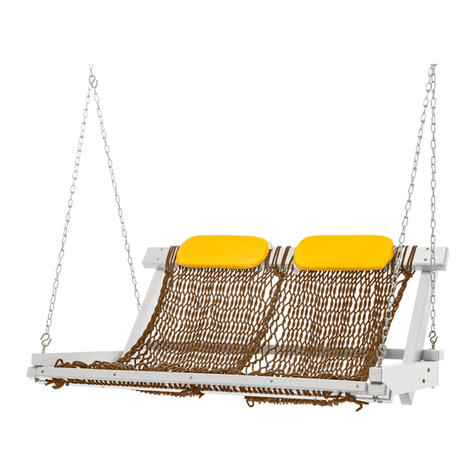

48” DOUBLE ROPE SWING
INSTRUCTIONS
• Rubber Mallet
• Adjustable Wrench • Phillips Head Screwdriver
(6) 1” Barrel Nuts
(4) Lock-nuts
(1) Allen Wrench
(8) Washers
(2) 2.25” Hex Bolt
(4) 3.5” Hex Bolts
(2) Tree Hooks and
chain sets
(6) 4.5” Barrel Bolts
• CHAIN SETS: (2)
Eye Bolts, nuts, and washers attached
HARDWARE PACK
CHAIN SET
SUGGESTED TOOLS
LONGLONG
CHAINCHAIN
FRONTFRONT
SHORTSHORT
CHAINCHAIN
FRONTFRONT
NOTE. Add chains after
completing assembly.
NOTE. Instructions not to scale.
ASSEMBLY
STEP 1. Arrange 2 side frames approximately 48” apart. Using Front
Cross support secure with (1) 2.25” Hex Bolt into the insert on each side.
Align back Cross Support and secure with (1) 4.5” Barrel Bolt per side.
NOTE. Do not tighten bolts until Step 4.
4.5” Barrel Bolt
Barrel Nut
2.25” Hex Bolt

ASSEMBLY
STEP 2. Position an upright as shown and secure it with (2)
3.5” Hex bolts and a washer on each side of the material.
Repeat for the other side.
STEP 3. Unroll Roll-up, use (4) 4.5” Barrel Bolts and (4) Barrel
Nuts to attach frame to left and right supports, one side at a
time.
STEP 4. Attach long bolt of Chain Assembly in the hole on the Left Side
Frame, by first unscrewing the nut and removing 1 washer. Thread bolt
with one washer through the frame and secure with washer and locknut.
Repeat for the right side, then repeat for the front using the front of the
roll-up as shown.
Make sure to tighten all bolts then hang the swing using the included
tree hooks or two other properly installed hooks - spacing hooks
approximately 48” apart.
Enjoy your new Nag’s Head Double Swing!
Lock Nut
#6089
3.5” Hex Bolt
Barrel Nut
4.5” Barrel Bolt
Lock Nut
5.5” EYE5.5” EYE
BOLTBOLT
4” EYE4” EYE
BOLTBOLT
*6089*
Congratulations on purchasing this Original 48” Nag’s Head Double Rope Porch Swing. QUESTIONS REGARDING THIS PRODUCT?
Call our customer service team,
252-295-0405.
INSTALLATION - Get somebody to help you, some pieces are heavy and a second pair of hands is always helpful. Do not tighten bolts
until the product is fully assembled. Some pieces are harder to fit in place and this will help. A hammer or rubber mallet is needed
during assembly. Do not over-tighten the bolts or screws. Build your item close to where it will be used to eliminate diculty in moving
once completed. For a uniform look, face all nuts in the same direction.
MAINTENANCE - Great care has been put into manufacturing this item. However, it is made of high density resin and some natural
aesthetic imperfections and dark spots are normal and should be expected. You can wash the wood and the rope using a hose and
some bleach water. You can also brush the wood to help remove dirt.
Thoroughly inspect product before each use. Periodically check bolts after assembly and re-tighten when necessary.
WARRANTY & RETURNS - Our Coastal Collections products are guaranteed to be free of defects in both workmanship and material.
The Durawood Frame is backed by a limited lifetime warranty. In the unlikely event that any splintering, rotting, cracking, peeling,
or chipping should ever occur on The Hammock Source will supply replacement parts, at no charge to you. This does not include
negligence, improper use, animal damage or damage caused by natural disasters. Our Duracord Rope components are guaranteed free
of defects in workmanship and materials for up to one year from the date of purchase. Prolonged exposure of the rope components
to weather conditions including snow, rain, and humidity are not covered under the warranty, nor is damage caused by normal
wear, mildew, or improper care, including storage, maintenance, and assembly. When using around fire, keep furniture at a minimum
distance of 30 inches from the heat source. Prevent prolonged exposure to chlorinated water. Note that an original sales receipt must
accompany any returned product, along with a Return Authorization Number from Nags Head Hammocks customer service; call (252)
295-0405.
