Nakamichi NA3605 User manual

Car AV Media Player System
AP8 NA3605
Enjoy the Lifestyle of In-Car Entertainment
Owner’s Manual
CLOCK
DISP OFF
VO IC E

CLOCK
DISP OFF
VOI CE
Press:
Hold:
Mute
Power
Volume Up
Volume Down
USB Jack
Aux In Jack
Mic Reset
OVERVIEW OF THE UNIT
2 EN
Functions Of The Buttons On The Head Unit
Functions Of The Buttons On The Remote Control
Press:
Hold:
Eject
Display Off
Press:
Hold:
Home
Voice Assistant
Press:
Hold:
Now Playing
Clock
2-ZONE
F R
ON OFF
EQ
AUTO
STORE
BAND
EJECT
X-BASS
EQ
Now
Playing
Home
2-Zone Control
Audio Control
Display Off
Media Playback Control

Home Screen Descriptions
Tuner
Radio
Audio Setting
Bluetooth
Phonecall
Disc 2-Zone
Front
USB
Bluetooth Audio
DVR Mode
(OPTIONAL)
Theme
Dimmer
Rear
USB
Setting
Menu
Clock
Aux In
Support USB Playback Mode
Video Music
SmartPhone
Connectivity
Phone
Charge
Video Music
SmartPhone
Connectivity
Phone
Charge
3 EN
OVERVIEW OF THE UNIT
Now Playing

View All Sources
Widget
Finger Cross Dancing Spectrum
Shortcut
Five finger lanuch home
Two-finger swipe screen to
display widget
Finger cross screen to display
dancing spectrum
Tap and hold the icon and drag
it to the shortcut area Swipe up/down to display/hidden shortcut
Tap return to Now Playing mode
OVERVIEW OF THE UNIT
4 EN

Preset Stations Change Band
(AM/FM)
Hold:Manual Seek
Press: Auto Seek
Station Information
Tap to store stations
Radio Operation
Radio Preset Station List
LISTENING TO THE RADIO
TIPS Tap to return Now Playing Mode.
5 EN

6 EN
DISC PLAYBACK
Disc Operation
Disc Content List
Play
Content
List
Play/
Pause
Track
Up
Track
Down
Play
Mode
Setup
Drag to fast Forward/Backward
Song
List
Return to Now
Playing Mode
Return to The
Previous Item

USB Media Operation
USB Media Content List
USB Album Art Wallpaper
USB PLAYBACK
Play
Content
List
Play/
Pause
Track
Up
Track
Down
Play
Mode
Setup
Drag to fast Forward/Backward
Folder
List
Category
List
Link
Search
Return to Now
Playing Mode
Return to The
Previous Item
You can set the Album Art to the background image. Tap /
to enable/disable this function.
Disable
Enable
7 EN

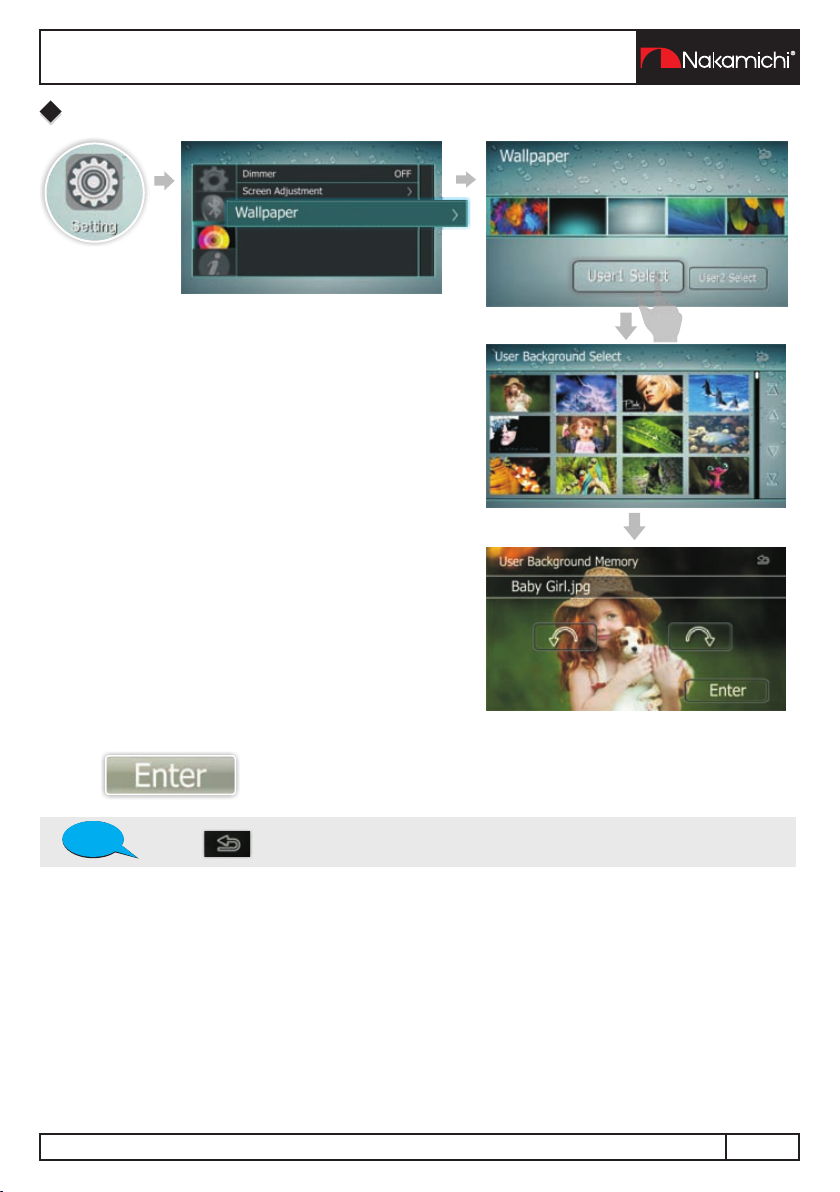

USB Capture Wallpaper
USB PLAYBACK
You can set the background image from stored in USB device on yourself.
Tap to confirm the selection.
Tap to exit.
TIPS
8 EN

Video Operation
USB Media Content List
Drag to fast Forward/Backward
Folder
List
Category
List
Return to Now
Playing Mode
Return to The
Previous Item
ENJOYING THE VIDEO
Aspect
Ratio
Play/
Pause
Repet/
Random
Screen
Adjust
Track
Up/
Down
Aspect
Ratio
9 EN

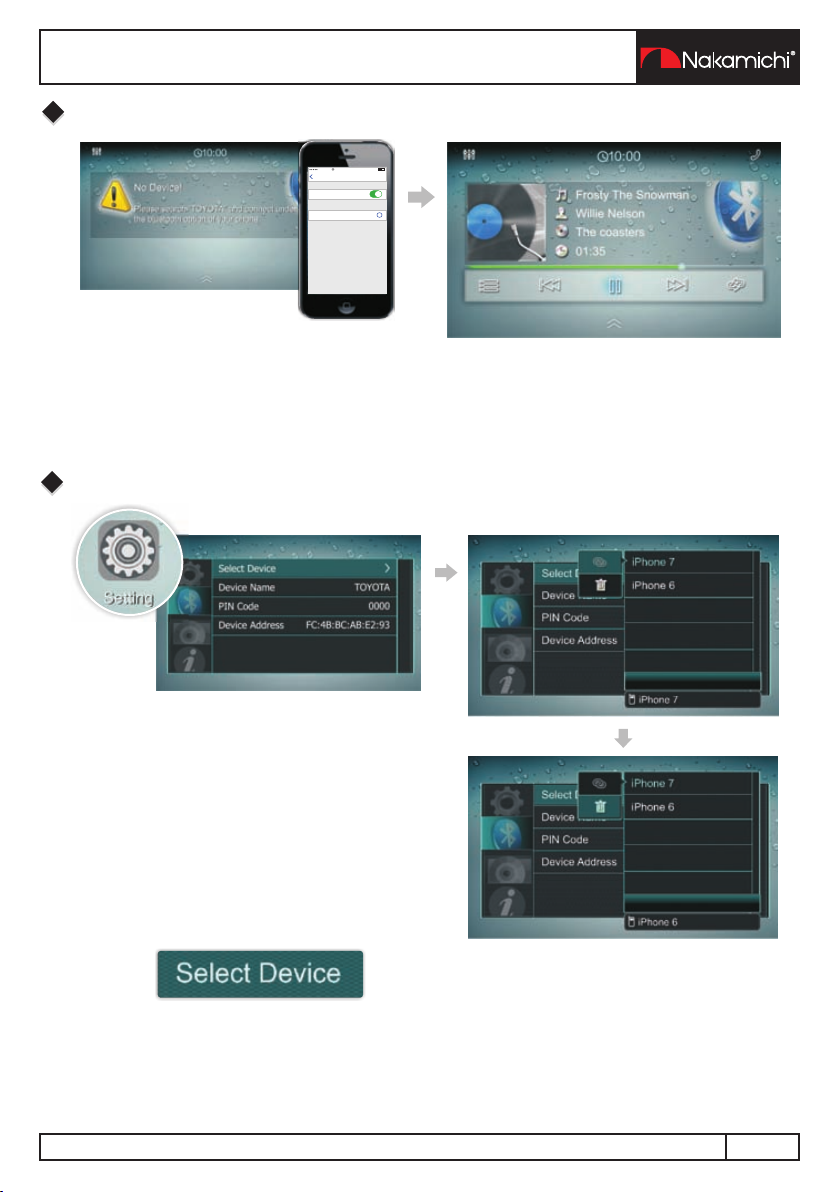

How To Pair The Device?
Connect/delete The Bluetooth Device
BLUETOOTH
1. Tap in the bluetooth setup menu.
2. Touch the device name you want to connect/delete.
中国联 通 10:57
Settings Bluetooth
Bluetooth
MY DEVICE
TOYOTA Connected i
Please search “TOYOTA” and connect under the bluetooth option of
your phone.
10 EN

Reject
Call
Call
Transfer
Dial
Call
Voice
Assistant
Phone
book
Call
Record
Pair
List
Back-
space
Dail
Keypad
To Download the Phonebook, please Authorize the request
on your phone
Voice Assistant
You can access the voice recognition function of the phone connected to this
Car AV System.
Tap to exit the Voice Control function.
You can use voice recognition function by press and hold
on the front panel.
This function must be operated in a state before connection
Bluetooth.
VOI C E
BLUETOOTH
Bluetooth Phonecall
TIPS
TIPS
11 EN

CLOCK
DISP OFF
VOIC E
SMART PHONE CONNECTIVITY
Please Select The From The
Menu Setting
Phone Connectivity Device
CarPlay Android Auto
iPhone Mirror
Android Mirror
Smart phone connectivity gives phone users an incredibly intuitive
way to make calls, use maps, listen to music and access message
with just a word or a touch.
2. Tap to start up.
Getting Start
1. Please use the USB cable to connect your phone and insert to the front USB
host of the Car AV System. After connected ok, the smart phone
connectivity icon will be lighted on.
Android Mirror
Before you use the smart phone connectivity, please go to phone
mirroring settings to select smart phone connectivity device.
Front USB host
TIPS
12 EN

CLOCK
DISP OFF
VOIC E
CLOCK
DISP OFF
VOICE
ABOUT ANDROID MIRRORING
Android Mirroring is a simpler way to direct mirror to use your
phone in the Car AV System.
Connect The Android Phone
If the smart phone connection to the Car AV System is not successful,
please unplug and insert USB cable and try again.
Compatible Android devices:
You can use Android Mirroring with devices of Android Version 5.0 or later.
Install A APP
When you connect the Android phone and the Car AV system by USB cable, the
advisory message will pop up on your phone and the car AV system. Please follow
it to install App.
Autolink APP is not be installed.
Autolink
No installed apps work with
this USB accessory. Learn
more about this accessory at
https://play.google.com/
store/apps/details?id=
com.link.autolink
“Autolink app”is not installed
or not authorized. Please check
your phone and follow it
to operate.
？
App installation and phone authorization
Install App Phone authorization
Method1: Please go to Google play to Download
and install“Autolink”App.
Method2: Please scan QR code to download and
install“Autolink”app.
Press
Authorization
Please follow the pop up authorization prompt on your phone and complete the authorization
Autolink
Open Autolink when this USB
accessory is connected?
Use by default for this USB
accessory.
Cancel OK
Autolink will start capturing
everything that's display on
your screen.
Don't show again
Cancel START NOW
QR Code for install Autolink App
Your phone must install the Autolink App and authorization, before you
can use the Android Mirroring.
If you want to have the authorization message on your phone, you can
unplug & insert USB cable to try again.
SMART PHONE CONNECTIVITY
Connection Successful
Connection failed
Music Video
Phone Mirror
TIPS
TIPS
TIPS
13 EN

CLOCK
DISP OFF
VOI CE
HOW TO SETUP ANDROID MIRRORING TWO WAY CONTROL?
Bluetooth Connect
Connect your phone to car AV system by USB cable, car AV system will connect
bluetooth with your phone automatically. the Android Mirroring two way control
will be activated once the bluetooth is connected successfully.
HOW TO POP UP THE ANDROID ASSISTIVE BUTTON?
When in Android mirroring mode, if the operation is not supported,
It will pop up the advisory message, you can click button to check
the detail information.
？
About the Smart Phone Connectivity help, you can go to Settings
/Phone Connectivity Device/Q&A to study.
SMART PHONE CONNECTIVITY
TIPS
14 EN

CLOCK
DISP OFF
VOIC E
ABOUT IPHONE MIRRORING
Connect An iPhone
Trust This Computer?
Your settings and data will be
accessible from this computer
when connected wirelessly or
using a cable.
Authorization
Please follow the pop up authorization prompt on your phone and "Trust" the device.
Trust Don't Trust
iPhone Mirroring is a simpler way to direct mirror to use your phone in
the Car AV System
Your iPhone must the Car AV System before you use
the iPhone Mirroring.
"Trust"
If you close the authorization message on your phone, you can
unplug & insert USB cable to try again.
If the smart phone connection to the Car AV System is not
successful, please unplug and insert USB cable and try again.
Compatible iPhone devices:
You can use iPhone Mirroring with devices of IOS Version 8.0 or later.
If your iPhone is IOS11 version or above, maybe the iPhone music
player and Video player sound can not output from the Car AV
System. You can try use the third music player & video player.
When in iPhone mirroring mode, if the operation not support will
pop up the advisory message, you can click button to check
the detail information.
？
About the Smart Phone Connectivity help, you can go to Settings
/Phone Connectivity Device/Q&A to study.
Your phone is not authorized.
Please check your phone and
follow the message to operate.
？
SMART PHONE CONNECTIVITY
CLOCK
DISP OFF
VOIC E
Connection Successful
Connection failed
Music Vid eo
Phone Mirror
TIPS
TIPS
15 EN

CLOCK
DISP OFF
VOIC E
ABOUT APPLE CARPLAY
CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes
the things you want to do with iPhone while driving and displays them on the
screen of the product.You can get directions, make calls, send and receive
messages, and listen to the the music from iPhone while driving. You can also
use Siri voice control to make it easier to operate iPhone.
Some features, applications, and services are not available in all areas.
For details, see: http://www.apple.com/ios/carplay/
Connect An iPhone
If iPhone CarPlay connection to the Car AV System is not successful,
please unplug and insert USB cable and try again.
Settings Of Apple Carplay
You can adjust the Carplay Sidebar is show on left or right as below:
Please unplug the USB cable after you change the CarPlay Sidebar
option.
SMART PHONE CONNECTIVITY
TIPS
Connection failed
Connection Successful
TIPS
TIPS
16 EN

CLOCK
DISP OFF
VO I C E
Operation Button Of Apple Carplay
Operation Button On Carplay Home
Hold to Activate Siri.
OPERATION OF APPLE CARPLAY
Switch forward and backward
between Apple CarPlay and
Playback mode
Hold:
Press:
To activates Siri
Display the home screen of CarPlay
Application Buttons
Exits the CarPlay screen and displays the HOME screen
Home
SMART PHONE CONNECTIVITY
17 EN

CLOCK
DISP OFF
VOIC E
ABOUT ANDROID AUTO
Android Auto enables you to use functions of your Android device convenient
for driving. You can easily access route guidance, make calls, listen to music,
and access convenient functions on the Android device while driving.
For details about Android Auto, visit the below adress:
https://www.android.com/auto
https://support.google.com/androidauto.
Compatible Android devices
You can use Android Auto with Android devices of Android
version 5.0(Lollipop) or later.
Android Auto may not be available on all devices and is not
available in all countries or regions.
Connect Android Phone
If Android Auto connection to the Car AV System is not successful,
please unplug and insert USB cable and try again.
To use Android Auto Please
engage parking brake and follow
the instructions on your phone.
Close
Initial Setup Android Auto
When you use Android Auto first time, you must engage parking brake and
follow the instructions to do on your phone.
SMART PHONE CONNECTIVITY
TIPS
Connection failed
Connection Successful
TIPS
STOP
EXIT
Android Auto will resume when your car’s
parked. Already parked? Engage the parking
brake.
What will Android Auto do?
Learn more
EXIT
CONTINUE
Turn on Bluetooth, pair, and sync your
contacts with your car.
Allow your car to access and display
notifications from your phone.
18 EN

Connect Android Phone
OPERATION OF ANDROID AUTO
Operation Button On Android Auto Home
Switch forward and backward
between Android Auto and
Playback mode
Google Assistant
Application/information buttons
Starts the application or displays information
Gauge icon for a car
APPS
Return to Car Home
Voice Only While Driving
When you use handwriting, you must engage parking brake.
Voice only while driving
Google Maps
SMART PHONE CONNECTIVITY
TIPS
CLOCK
DISP OFF
VO I C E
Hold to Activate Siri.
19 EN

Gesture EQ
Speaker X-Bass
Preset EQ
24 BIT DSP AUDIO OPERATION
Tap on to quickly access Audio Setting mode, this is
not in media mode.
Use the fingers biasing to customize
the gesture EQ, tap
to stroed.
Tap to adjust Fader.Balance/Delay
Set/Audio Zone/Sound Effect Mode.
Tap to Set the amount of bass boost,
and set the amount of boost of low
and high tones
User 1 User 2
User 3 User 4
Tap to select a preset EQ, tap
resume to factory default value.
TIPS
20 EN
