1. IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
1.1 Important Warnings
1.2 Important Safety Instructions
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner and/or operator of this equipment. When
installing and using this electrical equipment, basic safety precautions should always be followed.
Failure to follow safety warnings and instructions in this manual can result in serious injury and/or
damage to your equipment. Read and follow all warning notices and instructions which are
included in this manual.
The Control Unit internally contains live components. There is a danger of electric shock if opened. If
the power cord is damaged then it should be replaced by the manufacturer, their agent or similar
qualied person, in order to avoid a hazard. The product shall be installed according to AS/NZS 3000
wiring rules. It shall be installed outside the pool zone. Please contact Naked Pools on 1300 625 331
for further assistance.
To reduce the risk of injury, do not permit young children to use this product unless they have been
trained by the person responsible for their safety and they acknowledge their ability to use such
equipment. To reduce the risk of accidents or incidents, service on the unit should only be
performed by a qualied pool service professional.
When mixing acid with water, ALWAYS ADD ACID TO WATER. NEVER ADD WATER TO ACID.
DO NOT PLUG UNIT IN IF CARTON HAS BEEN WET.
GAS BUILDUP CAN OCCUR WITH IMPROPER WIRING: To reduce the risk of personal injury, the
Control Unit is designed so that the OXI Cell and ION Rods will only receive power when the pool
pump is on. Otherwise possible gas build-up can occur. If the pump is not installed to the AC Socket
(pump outlet) on the Control Unit, the installer must ensure that the OXI Cell and ION Rods are never
energised when the pool pump is OFF or water is not owing through the unit.
www.naked-pools.com
4

2. GENERAL OVERVIEW
Congratulations on the purchase of your NKD1 Fresh Water System. Please take a moment to read through
the entire manual before installing your new unit. Your system must be installed and operated as
specied.
While every effort has been made to ensure that the information contained in this guide is accurate and complete,
no liability can be accepted for any errors or omissions. Naked Pools Pty Ltd reserves the right to change the
specications of the hardware and software described herein at any time without prior notice.
Your NKD1 Fresh Water System is a true environmentally friendly system requiring far less maintenance than
traditional sanitisers. This hybrid swimming pool and spa sanitisation system uses a combination of copper and
silver ionisation as well as oxidation to treat and provide fresh water. This delivers up to 70% less salt/mineral levels
than its rivals, resulting in record low levels of chlorine being produced.
Please remember that your NKD1 Fresh Water System is not designed to chemically maintain your pool water and
keep it balanced. We encourage regular water and copper testing, balancing and correction if & when required to
maintain the recommended balanced levels of your pool water. This is a vital part of a complete maintenance
program and will ensure a trouble-free fresh water pool.
There is one design in our Naked Pools Fresh Water System range:
NKD1 is designed to optimally sanitise swimming pools up to and including 100,000L of water. Smart self-cleaning
technology allows the polarity of the OXI Cell plates to change direction every 4-16hrs (depending on your
setting). Reversing times can be changed, see 7.3 CELL CLEANING. The change of polarity causes the calcium to
dislodge and keep the OXI plates clean. Please note occasional cleaning of the plates may be necessary.
The ION Rods change direction every 3 minutes to ensure even wear and tear.
Please note the Rods are sacricial and will have to be changed from time to time (typically every 2 years)
depending on the size of your swimming pool.
Visit www.naked-pools.com or call 1800 NAKED1 (625 331) for further information.
2.1 Recommendations and Helpful Hints
• Read and keep your manual in a safe place.
• Operate the unit on manual when large number of swimmers are present to ensure sufficient water
turnover.
• Maintain your copper level between 0.2-0.4ppm at all times.
• Check your copper levels weekly with the test kit provided.
Please note pH must be adjusted to correct levels to ensure an accurate reading see 8.3 pH.
Visit www.naked-pools.com or call 1800 NAKED1 (625 331) for further information.
Do not use Stabilizer (Cyanuric Acid)
Do not use Bromine compounds
Do not use Aluminium based or any other occulants
Do not use Soda Ash (Sodium Carbonate)
Do not use Granular Chlorine
Do not use forms of Zeolite ltration media
• Maintain your TDS (Total Dissolved Solids) level between 800-1000ppm for optimum performance and
complete Fresh Water experience.
• Decrease running times when temperature goes down - see 6.7 WINTER MODE.
Thank you again for choosing a NKD1 Fresh Water System.
We wish you many happy years of swimming in your Fresh Water Pool.
www.naked-pools.com 5

2. GENERAL OVERVIEW

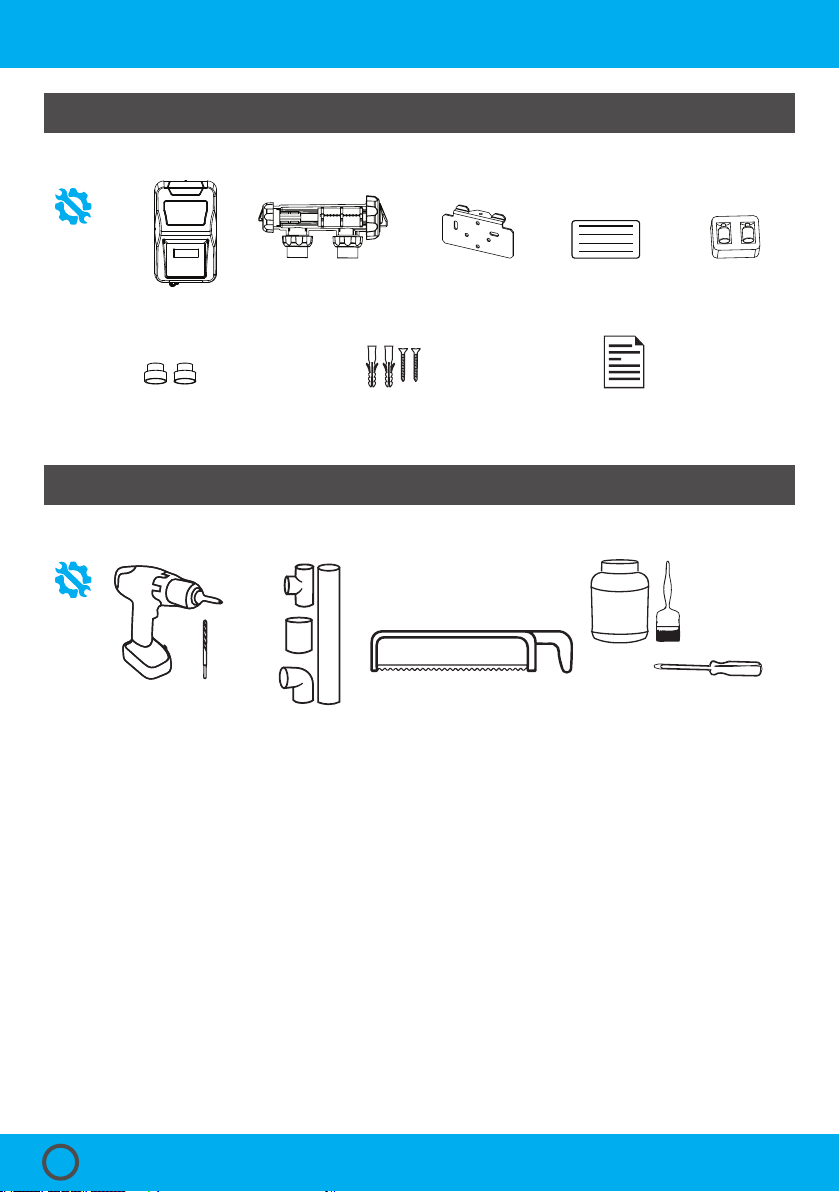

2.2 Contents
2.3 Tools Needed
DRILL WITH 6MM
BASIC PVC FITTINGS
HACKSAW NO.2 PHILIPS HEAD SCREWDRIVER
PVC PRIMER
AND GLUE
AB
2X Green Wall
Plugs with Screws The Installation & Operating Manual
2X50/40
Redusing Bushes
CONTROL UNIT
OXIDISER, IONISER,
HOUSING WITH UNIONS WALL MOUNTING BRACKET WATER TESTING CARD
COPPER TEST KIT
www.naked-pools.com
6

3. POOL PREPARATION
Before operating your NKD1 Fresh Water System please read the following:
Handy Tips
• Check your TDS levels in your pool before starting your system.
• TDS levels should ideally be 800-1000ppm and no more than 1200ppm.
• For all new pool installations please seek advice from your pool builder before adding salt or
minerals as some new surfaces request no addition when initially completed.
• NEVER ADD SALT/MINERALS DIRECTLY TO THE SKIMMER BOX. This high concentration of
either salt or minerals will pass through your ltration, pump and other pool equipment and may
cause damage.
• The system can operate on mineral/magnesium chloride salts and you should allow an extra 20-30%
for these type of salts.
• Salt or minerals should always be added to the shallow end of the pool and allowed to dissolve. Do
not let the salt settle on the oor of the pool as this may cause damage to the surface. Use your
pool brush to mix the salt into the water.
• Running the pump will mix the water and help the salt/minerals to dissolve.
When taking your pool water to a pool shop for testing please ensure you take the
enclosed laminated NKD1 System Card to ensure your water is tested correctly and
accurate results are achieved. See handy tips 8.0 WATER CHEMISTRY.
• The only pool chemicals needed are those for normal water balance.
• Copper levels of 0.2-0.4ppm need to be achieved in order to optimally sanitise the pool water. On
initial start up the system allows for the literage of your pool to be entered and this is critical to
ensure the run times of the system and all the levels are set correctly.
If unsure visit www.naked-pools.com or call 1800 NAKED1 (625 331) for further information.
www.naked-pools.com 7

4. NKD1 SYSTEM INSTALLATION
4.2 Control Unit Installation
• The NKD1 Control Unit has an Ingress Protection Rating of IP23 enabling it to be installed outdoors.
Regulations require that the Control Unit shall be installed outside the pool zone. The Control Unit
shall be installed according to AS/NZS 3000 wiring rules.
• The Control Unit should be installed in a well ventilated position ideally away from sunlight and
rain to prolong life and at least 1m above ground to prevent run off water entry.
• Ensure that the Control Unit is not stored near chemicals, fertilisers or in a closed unventilated
shed with similar products as the fumes will cause excessive corrosion and damage to the internals
of the Control Unit and may void warranty.
• When mounting the Control Unit on a post it is recommended to install a at panel at least the
same size to act as a waterproof backing plate.
• Mount the Control Unit with the Wall Mounting Bracket, Green Plugs and Screws provided.
The Control Unit should be mounted no further than 1.5 metres from the Housing for ease of
operation.

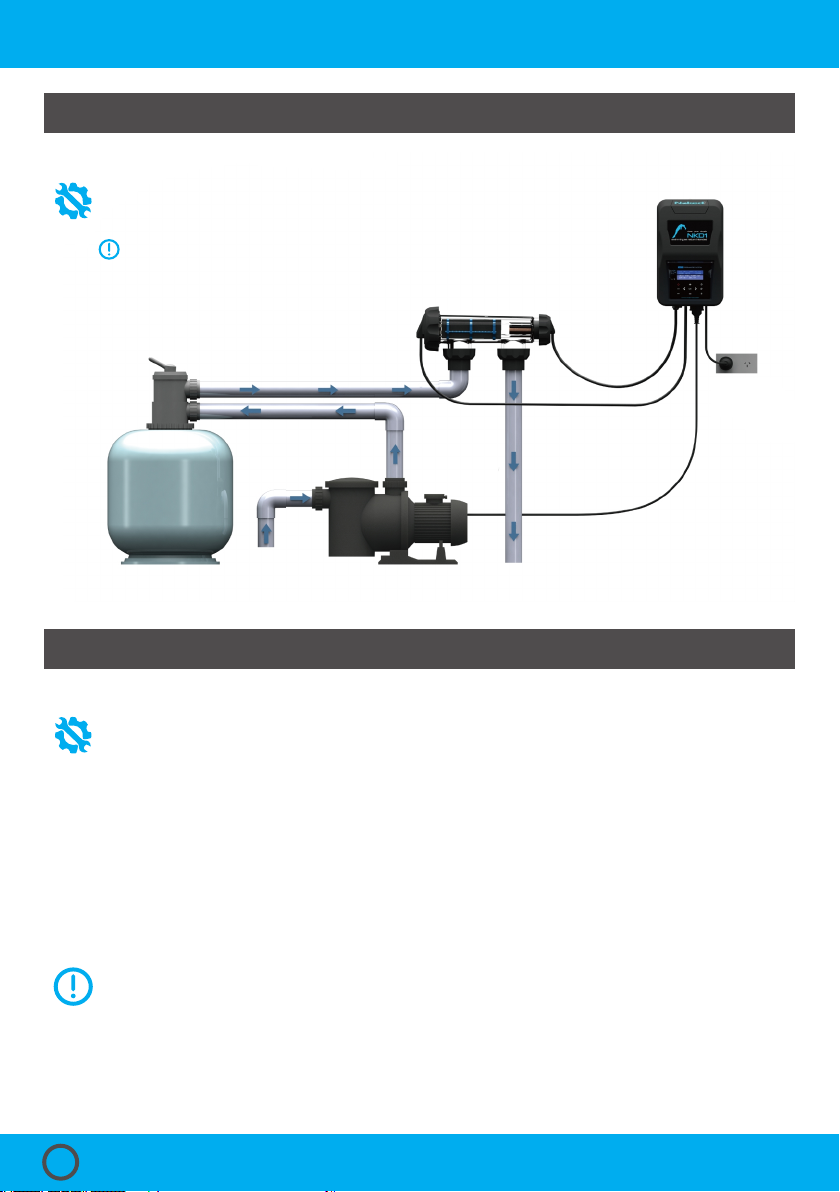

4.1 Installation Diagram
OXI & ION CELL
FILTER
PUMP
POWER
CONTROL UNIT
(Ensure good venlaon)
RETURN
TO POOL
FROM
SKIMMER BOX
WARNING: DO NOT plug in if carton has been wet.
www.naked-pools.com
8

4. NKD1 SYSTEM INSTALLATION
4.4 ION Installation
• Check that the O-ring is clean, greased with silicone grease (DO NOT use petroleum based jelly) and
securely located in the Housing.
• Fit the ION Rods and ensure the Locking Ring is rmly tightened by hand (DO NOT use a tool to
tighten).
• Connect the plug to the base of the Control Unit ensuring a rm snap lock connection.
• Plug the Control Unit 3 pin plug into a suitable weatherproof RCD protected 10amp outlet and
then plug the pump into the 3 pin AC Socket located at the bottom of the Control Unit.
NOTE: The pump rating must not exceed 8amps.
WARNING:
• We DO NOT recommend the use of valves on the inlet or outlet of the Housing. If you do use a
valve then it is important to ensure that the valve cannot deadhead (lock closed) while the pump is
running. It is the installers responsibility to ensure some form of ow control is installed in this
instance and it disables the pump.
• ALWAYS ensure that pipe work and equipment do not allow gases generated to collect and build
up in any part of the installation.
• It is RECOMMENDED that the Housing be installed horizontally to create a natural gas trap that
acts as a safety device. Installation in any other way may cause explosion, injury or death if the
installer does not allow for gas removal. A venturi pipe is installed/moulded within the Housing
design to eliminate any possible gas build up, although it is always recommended to ensure
proper installation to eliminate this from happening.
• The Housing must be installed in the RETURN pipework to the pool. It must always be installed
after the lter, gas heater, solar heating or heat pump.
• DO NOT apply priming uid to the Housing, it is not needed and may react with the plastic.
4.3 OXI/Housing Installation
• Connect the Housing horizontally in the return line to the pool (use reducing bushes supplied if
40mm PVC pipe) using high pressure PVC glue. The Housing can be mounted vertically but
provision must be made for a gas trap.
• Direction of water ow through the Housing is not critical although we do recommend entry from
the OXI Cell end and exit from the ION Rod end of the Housing.
• Check that the O-ring is clean, greased with silicone grease (DO NOT use petroleum based jelly)
and securely located in the Housing.
• Fit the OXI Cell and ensure the Locking Ring is rmly tightened by hand (DO NOT use a tool to
tighten).
• Connect the plug to the base of the Control Unit ensuring a rm snap lock connection.
www.naked-pools.com 9

5. STARTING YOUR NKD1 FRESH WATER SYSTEM
www.naked-pools.com
10

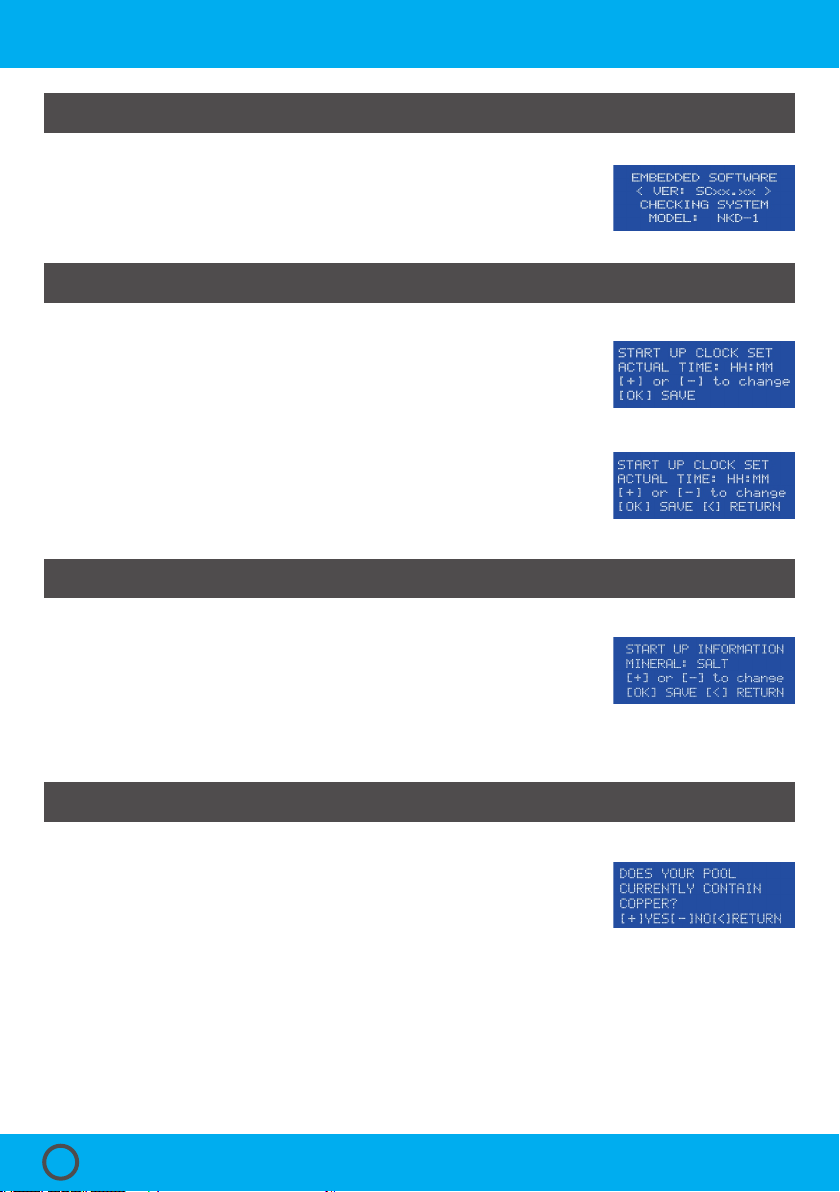

5.2 Start Up Clock Set
START UP CLOCK SET allows you to program the exact time of the day.
HH digits will ash and pressing [+] will increase the time and pressing
[-] will decrease the time.
Pressing [OK] saves the selected hour HH and MM.
Pressing [<] skips this menu however you will need to set this later.
MM digits will ash and pressing [+] will increase the time and pressing
[-] will decrease the time.
Pressing [OK] saves the selected hour HH and MM.
Pressing [<] returns you to the previous screen.
5.1 Switching on the Unit
When switching on the NKD1 Fresh Water System for the rst time the screen to the
right will be displayed.
5.3 Mineral or Salt Mix
MINERAL OR SALT MIX allows you to enter the type of mineral used in the pool.
Pressing [+] or [-] will change it from SALT to MINERAL MIX.
The reason for this is because a higher salt reading (TDS value) is required for
MINERALS to be as conductive as SALT.
Pressing [OK] conrms your selection.
Pressing [<] returns you to the previous menu screen.
5.4 Initial Start Up
On intial start up the unit will ask whether or not there is copper is currently in the pool.
The reason for this is the copper level needs to be added into the water in order for
system to operate correctly and sanitise the water.
All new pool installations press [-]NO and continue to 5.5 START UP INFORMATION
Pressing [<] returns you to the previous menu screen.
If the pool contains copper and an ioniser system is currently being used press [+] and
follow the prompts. Start Up Information (5.5) will appear the unit will automatically set
the timers to run as per the volume of water entered and www.naked-pools.com or call
1800 NAKED1 (625 331) for further information.

5. INITIAL START UP OF YOUR NKD1 FRESH WATER SYSTEM
www.naked-pools.com 11

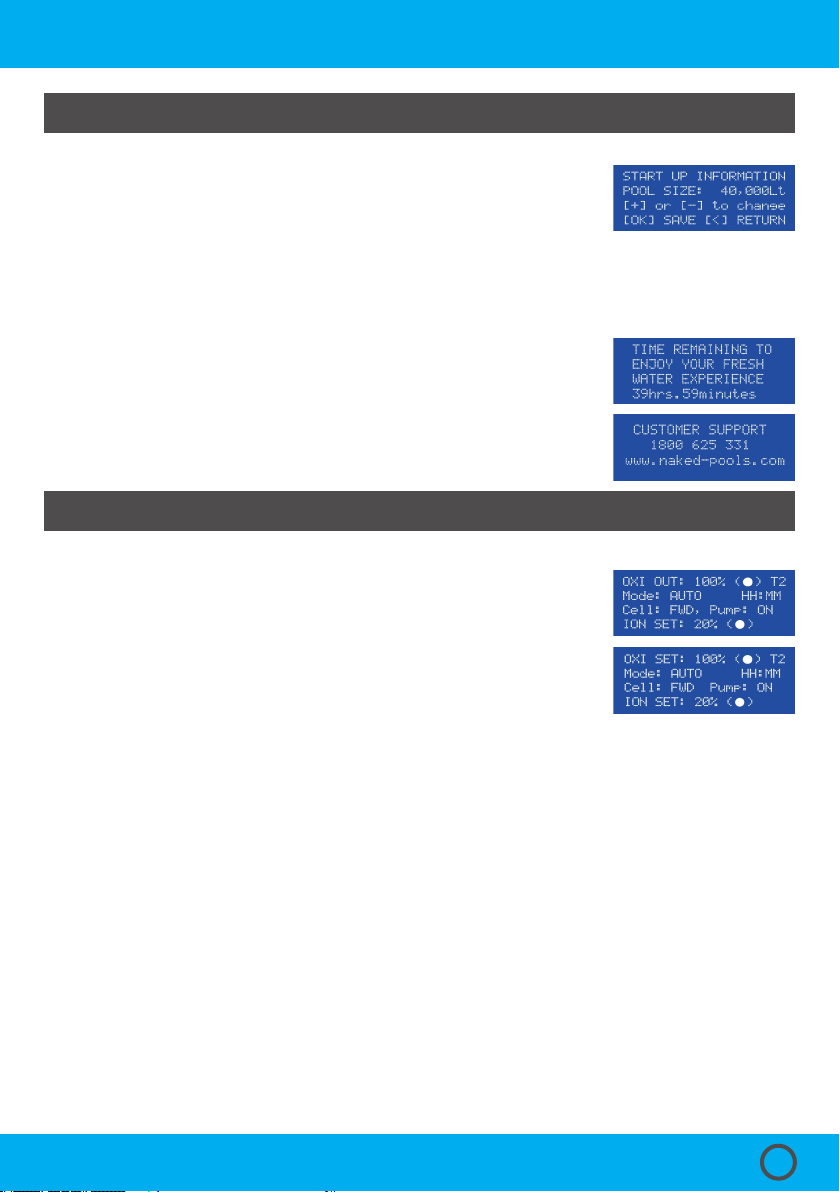

5.5 Start Up Information
START UP INFORMATION allows you to customise the unit to your pool size.
Pressing [+] or [-] will change it in 1,000lt increments.
Holding the [+] or [-] in will change it in 5,000lt increments.
A reading of 40,000Lt or similar ashes to show it can be changed.
Pressing [OK] conrms your selection. If you do not know your pool size you can press
[OK] and set this later or visit www.naked-pools.com or call 1800 NAKED1 (625 331) for
further information.
Pressing [<] returns you to the previous menu screen.
Selecting NO to DOES YOUR POOL CURRENTLY CONTAIN COPPER displays the
2 screens to the right.
The time displayed is the amount of hours the unit will run continuously to ensure the
copper levels are correct in the water based on the pool size entered in the previous
screen.
5.6 Default Display Screen
DEFAULT DISPLAY SCREEN (DDS) displays the screen to the right. This is the actual
output % of the unit.
Pressing [+] or [-] will increase the OXI Seng and the screen will change as seen on the
right.
This should always remain at 100% unless SPA MODE has been selected.
The (●) symbol indicates normal opearon.
T2 is the default mer displaying "Dual Timer Cycle" and T1 displays "Single Timer Cycle"
when single mer is selected.
The Mode shows AUTO and this can be changed by pressing Power/Mode (either AUTO,
ON or OFF).
The me shows with HH:MM in 24hr clock format.
The cell status shows as FWD when the cell is in the forward direcon and REV when in the
reverse direcon.
The pump AC socket status is displayed, either ON or OFF.
The ION Seng diplayed.
Any power failures return you to the DDS screen and the last saved MODE is acve.

6. CONTROL PANEL OPERATION
www.naked-pools.com
12

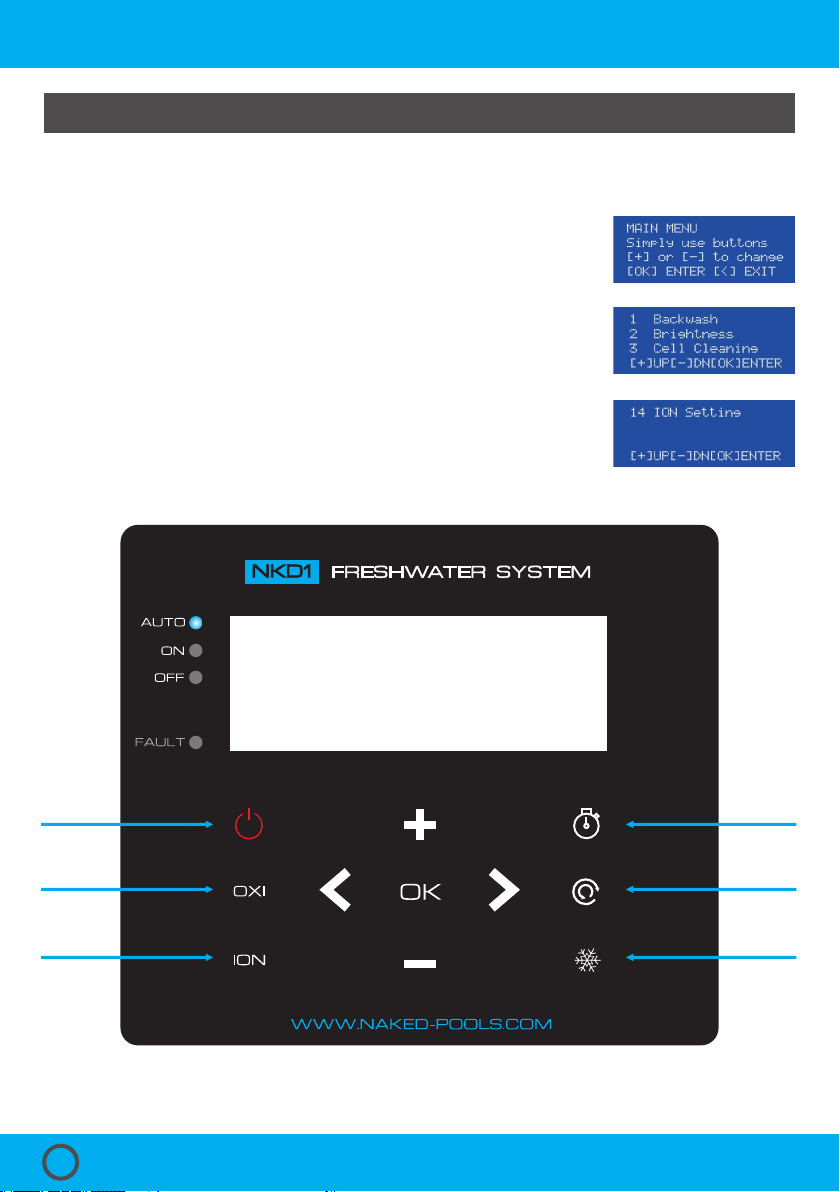

6.1 OK BUTTON
8 Power/Mode
9 Pump Setting
10 TDS Test
11 Service Menu
12 Spa Mode
13 Winter Mode
14 ION Setting
Menus are entered by either pressing the menus short cut button on the control panel or by entering MAIN MENU,
which is done by pressing the [OK] button.
MAIN MENU allows you to enter all MENU's including those available with shortcut
buttons on the control panel.
Pressing [+] takes you to the last menu and using the [-] or [OK] enters the rst 3 menus.
Pressing [<] returns you to the previous menu screen.
Pressing [+] or [-] scrolls up or down and [OK] enters the ashing menu.
Below are the available menus in the NKD1 Fresh Water System
1 Backwash
2 Brightness
3 Cell Cleaning
4 OXI Boost
5 OXI Setting
6 Clock/Timer
7 Contrast
Power/Mode
OXI Boost
ION Setting
Clock/Timer
Backwash
Winter Mode

6. CONTROL PANEL OPERATION
www.naked-pools.com 13

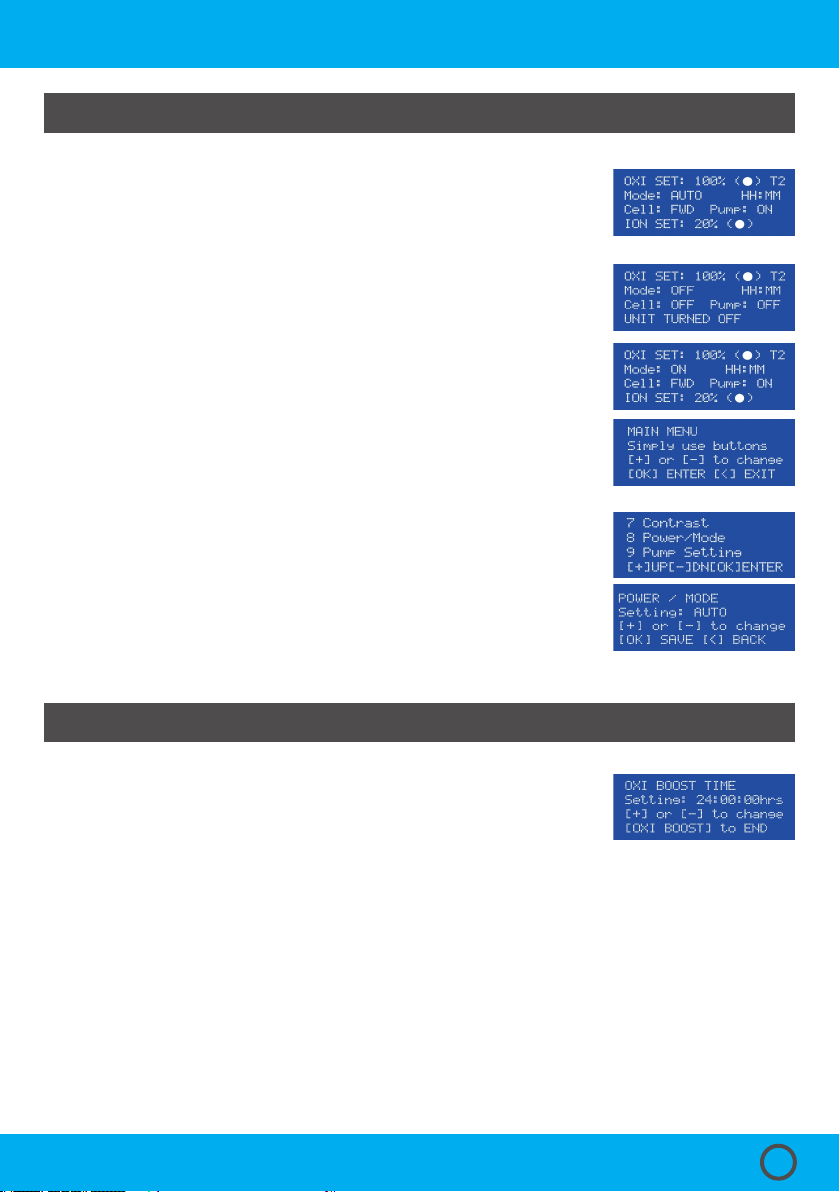

6.2 POWER/MODE
[POWER/MODE] button changes the operating modes of your NKD1 Fresh Water
System.
When pressed the Mode will change AUTO to OFF then ON.
When the unit is rst powered on the factory setting is in AUTO as shown to the right.
Pressing [POWER/MODE] to OFF will display the screen as seen to the right.
Pressing [POWER/MODE] to ON will display the screen as seen to the right.
Pressing [OK] from the DDS screen enters the MAIN MENU.
Pressing [+] takes you to the last menu and using the [-] or [OK] enters the
rst 3 menus.
Pressing [<] returns you to the DDS screen.
Pressing [+] takes you to last menu.
Pressing [+] 6 times displays the display shown to the right.
Press [OK] to enter POWER/MODE.
Pressing [OK] enters the display shown to the right and pressing
the [+] or [-] allows you to adjust the POWER/MODE setting from
AUTO to OFF to ON.
Pressing [OK] saves the required mode and returns to the DDS screen.
Pressing [<] returns you to the DDS screen.
6.3 OXI
BEFORE ENTERING OXI YOU MUST BE IN THE DDS SCREEN.
OXI BOOST sets the oxidiser and pump to operate continuously for 24hrs.
This allows for an injection of extra oxidising time when necessary, also known
as OXI BOOST.
OXI BOOST is entered by pressing the [OK] button in the MAIN MENU and scrolling to OXI BOOST
(Menu 4).
Pressing [+] or [-] allows you to adjust the time in one hour increments.
While the timer is counting down you can press [+] or [-] at any time and add or subract 1 hour.
After the selected OXI BOOST timer runs down (i.e. it reaches 0:00), the unit will return to the DDS
screen in the last selected POWER/MODE.

www.naked-pools.com
14
6. CONTROL PANEL OPERATION
BEFORE ENTERING CLOCK/TIMER YOU MUST BE IN THE DDS SCREEN.
Your NKD1 Fresh Water System comes with a built in digital timer.
CLOCK /TIMER displays are all shown in 24 hour format.
It is important to understanding the difference between CLOCK and TIMER. CLOCK means the physical time of the
day (e.g. 08:00) and TIMER means the settings programmed to turn the unit ON and OFF.
To run the system in MANUAL ON and override internal timers leave settings as 00:00 on all ON/OFF times.
CLOCK/TIMER can also be entered by pressing the [OK] button in MAIN MENU and scrolling to CLOCK/TIMER.
6.51 Clock Settings
CLOCK SETTING allows you to program the exact time of the day.
HH digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] exits you to the DDS screen.
MM digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
6.4 ION
6.5 CLOCK/TIMER
BEFORE ENTERING ION YOU MUST BE IN THE DDS SCREEN.
[ION] button automatically controls the IONISER output for your NKD1 Fresh Water
System.
The output is determined by the volume of water when your pool size is entered in 5.4 Start Up
Information.
This feature is particularly handy if the copper levels are not holding at the correct levels
(0.2-0.4ppm) or when you want to run the pump for longer hours (i.e. a variable speed pump on slow
setting or you want additional ltration). If this is the case ION levels would be decreased.
Pressing [+] or [-] increases or decreases in 1% increments.
ION can also be entered by pressing the [OK] button in MAIN MENU and scrolling to ION Setting.

6. CONTROL PANEL OPERATION
www.naked-pools.com 15

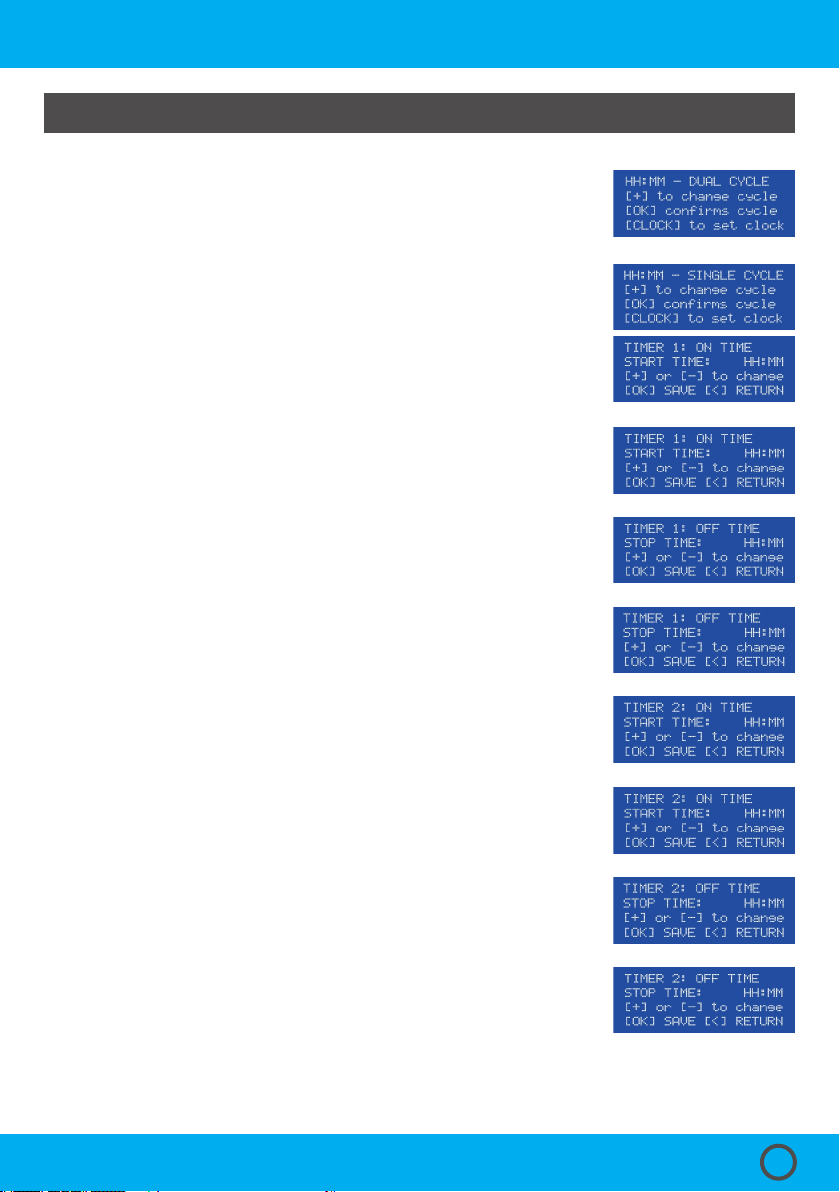

6.52 Timer Settings
Pressing [CLOCK/TIMER] displays the screen to the right.
Pressing [+] then it changes to Single Timer Cycle (T1).
Pressing [OK] accepts the selected cycle and enters the Timer Program.
To program the actual time of the day press [CLOCK/TIMER] again.
Pressing [+] changes back to Dual Timer Cycle (T2).
Pressing [OK] accepts the selected cycle and enters the Timer Program.
To program the actual time of the day press [CLOCK/TIMER] again.
TIMER 1: ON TIME (HH)
HH digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display.
TIMER 1: ON TIME (MM)
MM digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
TIMER 1: OFF TIME (HH)
HH digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display.
TIMER 1: OFF TIME (MM)
MM digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
TIMER 2: ON TIME (HH)
HH digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display.
TIMER 2: ON TIME (MM)
MM digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
TIMER 2: OFF TIME (HH)
HH digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display.
TIMER 2: OFF TIME (MM)
MM digits ash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.

6. CONTROL PANEL OPERATION
www.naked-pools.com
16

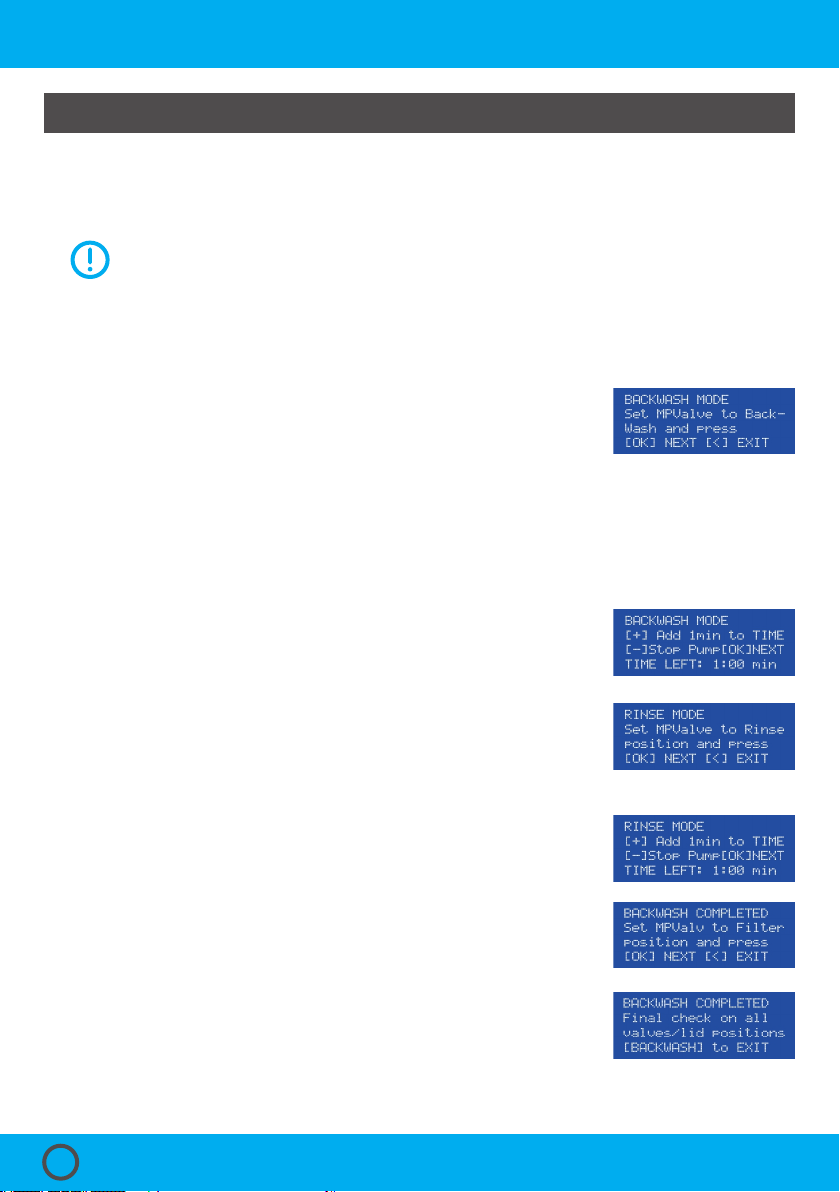

BEFORE ENTERING BACKWASH MODE YOU MUST BE IN THE DDS SCREEN.
[BACKWASH] button assists you in the operation of your pump and lter during the backwash process.
[BACKWASH] can also be entered by pressing the [OK] button in the MAIN MENU and scrolling to BACKWASH MODE.
ALWAYS FOLLOW MANUFACTURERS INSTRUCTIONS.
IF UNSURE PERFORM MANUALLY BY PRESSING POWER/MODE ON&OFF TO
DO THE FILTER CLEAN.
During BACKWASH the [POWER/MODE] button displays the ON LED when the pump is
running and the OFF LED displays when the pump is stopped.
CARTRIDGE FILTER: If you have a cartridge style lter you can now perform all your required cleaning functions.
Press [<] or [BACKWASH] to exit.
SAND, GLASS or D.E. FILTER: If you have these lters, rotate the lter multi-port valve to the backwash position, ensure
the handle locks are in place and once ready press [OK] to enter the [BACKWASH MODE] cycle.
Pressing [OK] starts the pump for 1 minute and TIME LEFT will be displayed
automatically counting down in 1 sec increments.
Once dirty water in the waste pipe or sight glass is clear press [OK] to nish.
RINSE MODE will then be displayed.
Pressing [OK] stops the pump and RINSE MODE is displayed.
Rotate the lter multi-port valve to the backwash position, ensure the handle locks in
place and once ready press [OK] to enter the RINSE MODE cycle.
Pressing [<] or [BACKWASH] allows you to exit and this takes you to BACKWASH
COMPLETE.
Pressing the [OK] button starts the pump for 1 minute.
TIME LEFT automatically starts counting down in 1 sec increments.
Once dirty water in the waste pipe or sight glass is clear then press [OK] to nish RINSE
MODE and enter BACKWASH COMPLETE MODE.
Pressing [OK] stops the pump and BACKWASH COMPLETED is displayed.
Rotate the lter multi-port valve to the lter position, ensure the handle locks in
place and once ready press [OK] to enter the nal BACKWASH COMPLETED cycle.
Pressing [<] or [BACKWASH] allows you to exit.
BACKWASH COMPLETED is displayed and the pump remains stopped.
This gives you time to ensure all lids are resealed and that all the required ow valves
are returned to their correct positions. Do a nal check that everything is in the correct
positions and sealed.
Press [BACKWASH] to exit the BACKWASH COMPLETED mode and you will return to the
DDS screen.
6.6 BACKWASH
IMPORTANT INFORMATION BEFORE PERFORMING A BACKWASH.
NEVER OPERATE THE FILTER LEVER WHILE THE PUMP IS RUNNING YOU MAY DAMAGE THE
SEAL AND LEAKS MAY OCCUR.
THE PUMP WILL START AND STOP AS YOU REQUIRE.
ENSURE ALL THE VALVES, VALVE HANDLE, LIDS, BASKETS, ETC. ARE IN THE CORRECT
POSITIONS AS PER THE REQUIREMENTS OF THE MANUFACTURERS OF THAT EQUIPMENT.

6. CONTROL PANEL OPERATION
www.naked-pools.com 17

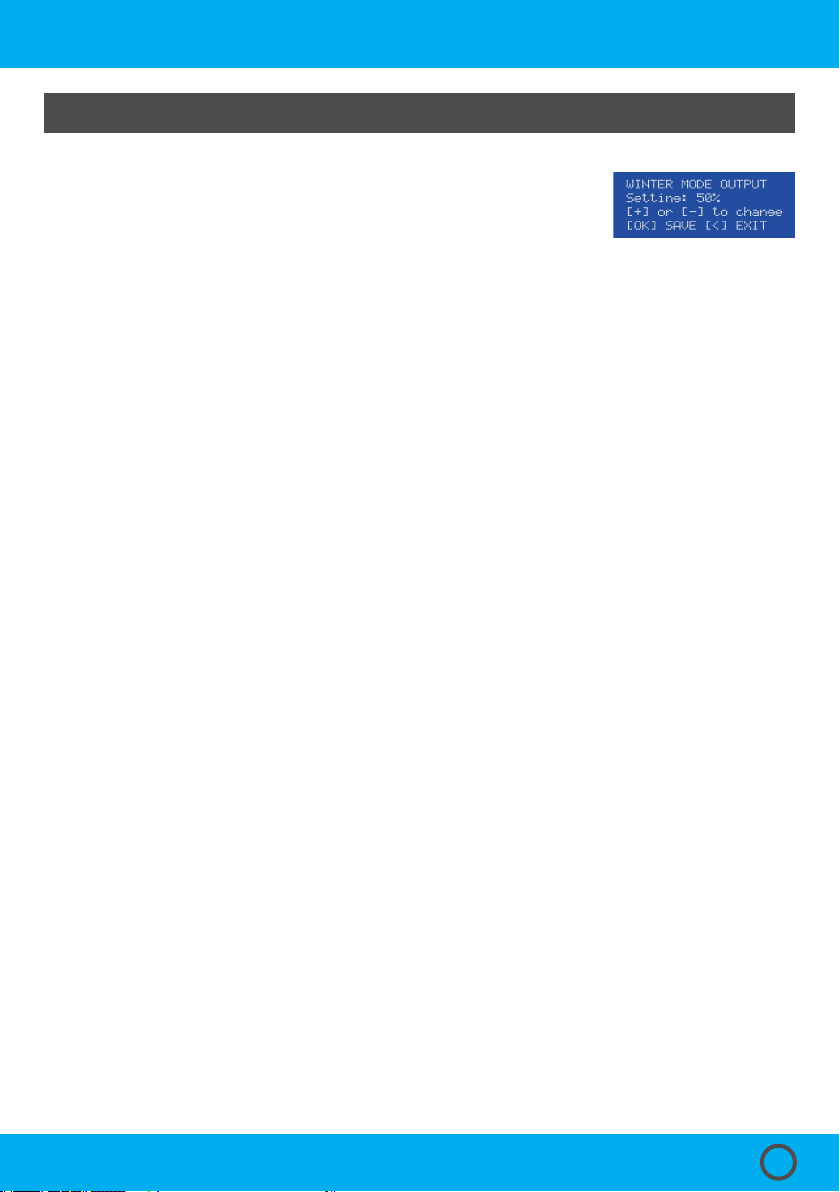

6.7 WINTER MODE
BEFORE ENTERING WINTER MODE YOU MUST BE IN THE DDS SCREEN.
[WINTER MODE] button automatically turns your NKD1 Fresh Water System OXI settings
down by 50% when the unit is either in AUTO or ON mode.
The unit defaults to a 50% set point and will stay on this until [WINTER MODE] is pressed
again.
Pressing [+] or [-] increases or decreases the OXI setting by increments of 10% from 0% to
90%.
Once your desired set point is entered, pressing [OK] will return to the DDS screen and the
output will display at the lowered set point (50% or different if you set it to that).
Signicant savings can be achieved in winter months as running times can also be altered
by up to 50% depending on your pool set up. Visit www.naked-pools.com or call 1800
NAKED1 (625 331) for further information.
WINTER MODE can also be entered by pressing the [OK] button in MAIN MENU and
scrolling to WINTER MODE.
Pressing [WINTER MODE] whilst ON automatically returns to the original setting.

7. NKD1 FRESH WATER SYSTEM MENU GUIDE
www.naked-pools.com
18
7.2 Brightness
BRIGHTNESS is entered by pressing the [OK] button in the MAIN MENU and scrolling to
BRIGHTNESS (Menu 2).
The factory setting is 65%.
Pressing [+] or [-] allows you to adjust the BRIGHTNESS. Pressing [OK] saves the required
BRIGHTNESS and returns to the DDS screen.
Pressing [<] returns you to the previous screen.
7.4 OXI Boost
7.3 Cell Cleaning – OXI Cell Reversing Time
Smart self-cleaning technology allows the polarity of the OXI Cell plates to change
direction every 4-16hrs (depending on your setting). The change of polarity causes the
calcium to dislodge and keep the OXI plates clean. Please note occasional cleaning
of the plates may be necessary.
The factory setting is every 10 hours and this can be adjusted from as low as 4 hours
(for high calcium areas) and as high as 16 hours.
In areas where the calcium hardness of the water is low (less than 200ppm) cleaning of the cell may not be
necessary. Where calcium levels exceed 200ppm, regular inspection of the cell is necessary. Cleaning in an
acid solution may be necessary.
CELL CLEANING is entered by pressing the [OK] button in the MAIN MENU and scrolling to CELL CLEANING (Menu 3).
Pressing [+] or [-] allows you to adjust the CELL CLEANING time in one hour increments and is displayed as shown to
the right.
Pressing [<] returns you to the previous screen.
7.1 Backwash
See 6.6 BACKWASH (CONTROL PANEL OPERATION)
See 6.3 OXI

7. NKD1 FRESH WATER SYSTEM MENU GUIDE
www.naked-pools.com 19
7.6 Clock/Timer
See 6.5 CLOCK/TIMER (CONTROL PANEL OPERATION)
7.7 Contrast
CONTRAST is entered by pressing the [OK] button in the MAIN MENU and scrolling to
CONTRAST (Menu 7).
The factory setting is 80%.
Pressing [+] or [-] allows you to adjust the CONTRAST adjustment and pressing [OK] saves
the required CONTRAST and returns to the DDS screen.
Pressing [<] returns you to the previous screen.
7.8 Power/Mode
See 6.2 POWER/MODE (CONTROL PANEL OPERATION)
7.9 Pump Setting
PUMP SETTING is designed to protect your pump if there is no ow of water. This
means the time the pump is allowed to run after the water sensor on the OXI Cell
detects there is no ow of water. The pump will be turned off from 3 to 10 minutes,
after detecting no water ow.
PUMP SETTING is entered by pressing the [OK] button in the MAIN MENU and scrolling to
PUMP SETTING (Menu 9).
The default setting is 3 minutes and pressing [+] or [-] allows you to adjust the time the pump is turned off for.
Pressing [OK] saves the required protection time.
You can also select OFF and it will be disabled and will not stop the pump outlet.
Pressing [<] returns you to the previous screen.
For installations where a ow switch or external pump controls are used then this can be left in the OFF position.
7.5 OXI Setting
BEFORE ENTERING OXI YOU MUST BE IN THE DDS SCREEN.
This feature is particularly handy when you want to run the pump for extended
running hours (i.e. with a variable speed pump or you want additional ltration). If this
is the case OXI levels can be decreased if necessary.
The factory setting is set to 100% and in majority of pools remains at 100%. If unsure
visit www.naked-pools.com or call 1800 NAKED1 (625 331) for further information.
Pressing [+] or [-] anytime whilst in the DDS screen increases or decreases in 1% increments.
OXI Setting can also be entered by pressing the [OK] button in MAIN MENU and scrolling to OXI Setting.

7. NKD1 FRESH WATER SYSTEM MENU GUIDE

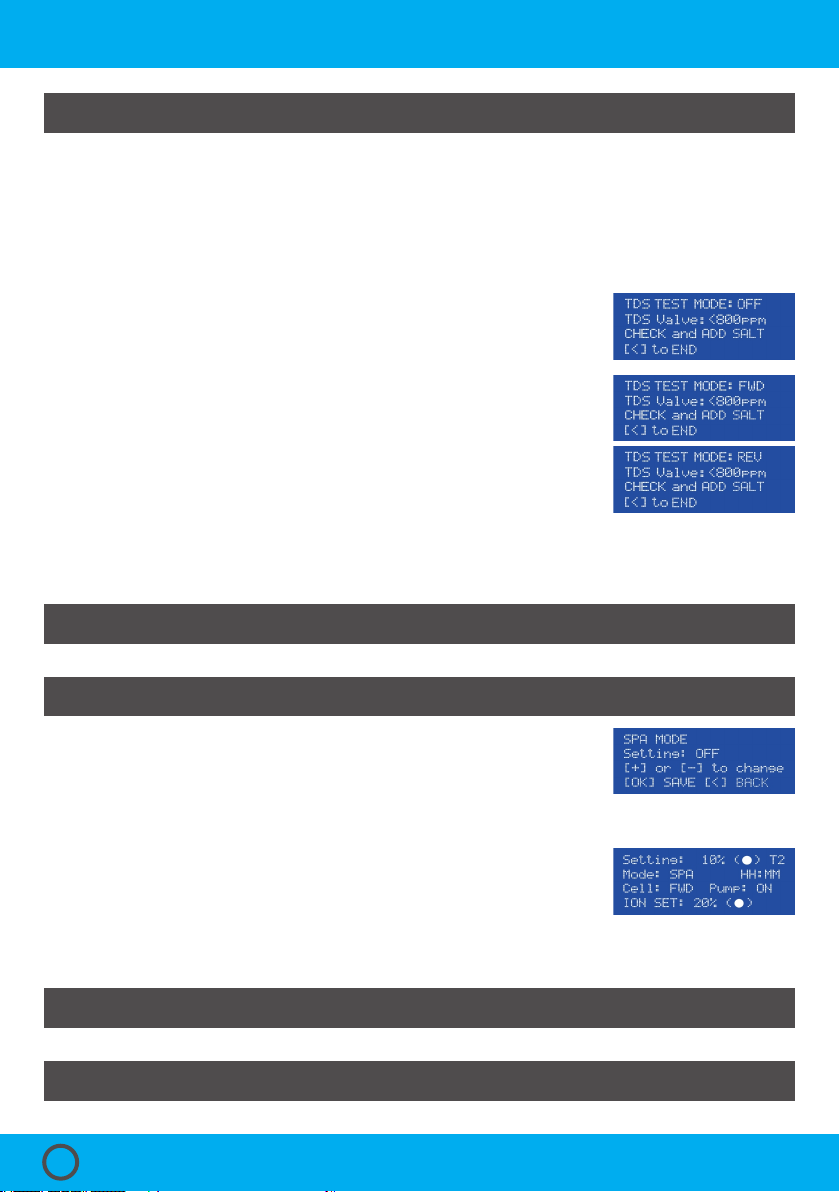

TDS TEST is designed to measure the TDS (Total Dissolved Solids) in the water. TDS is the combination of all solids
that are present in the water such as salts/minerals, calcium, sodium bicarbonate and acid.
TDS TEST is entered by pressing the [OK] button in the MAIN MENU and scrolling to TDS TEST (Menu 10).
BEFORE PERFORMING THIS TEST, ENSURE THE OXI CELL IS CLEAR OF ALL CALCIUM DEPOSITS AS THIS WILL
INSULATE THE ELECTRODES AND IMPACT YOUR READINGS. See 9.11 Inspecting and Cleaning the OXI Cell if
manual cleaning is required.
The TDS level is tested and displayed as shown to the right.
A total of 4 readings are displayed for 30 seconds in the FWD direction and then
another 30 sceonds in the REV direction.
Pressing the [<] and [>] button while in the above display and holding them in for
3 seconds brings you to this maintenance function which allows you to view the actual
TDS VALUE.
Testing starts off with FWD and if you want to check REV then press [<] and [>] in at
the same time and hold them in for 3 seconds, the direction will change to REV.
At the same time you will also be displayed the current reading in XXX.Xamps.
Pressing [<] returns you to the previous screen.
The TDS TEST measurement is meant to be a guide only as many factors can impact the result. We recommend you
take your pool water sample and Water Testing Card to your local pool shop before adding salt/minerals or replacing
your OXI Cell.
7.11 Service Menu
Please contact your local distributor or alternatively call 1800 NAKED1 (625 331) for further
7.13 Winter Mode
See 6.7 WINTER MODE (CONTROL PANEL OPERATION)
7.14 ION Setting
See 6.4 ION (CONTROL PANEL OPERATION)
7.12 Spa Mode
SPA MODE allows your system to be adjusted to suit your spa.
SPA MODE is entered by pressing the [OK] button in the MAIN MENU and scrolling to
SPA MODE (Menu 12).
Pressing [+] or [-] allows you to adjust the SPA MODE settings from OFF to ON and ON to OFF.
Selecting OFF leaves the OXI OUTPUT SETTING at 100% and ON changes the
OUTPUT SETTING to 10%.
When SPA MODE is selected ON the DDS screen will change as shown to the right.
Pressing [OK] saves the required setings and returns to the DDS screen.
Pressing [<] returns you to the previous screen.
7.10 TDS Test
www.naked-pools.com
www.naked-pools.com
20
