NanoCam Plus NCP-MIR43 User manual

USER MANUAL
CLIP ON REVERSE MIRROR MONITOR
& CAMERA PACK
NCP-MIR43

Thank you for purchasing NanoCam Plus' 4.3" Reverse Mirror Monitor & Camera Pack. We are certain that our product will give you trouble-
free operation while providing you with a safety feature that enhances your driving experience. Our products, like most after-market safety
enhanced devices, are designed to assist and aid the driver, not to replace the manual function of the person operating the vehicle.
For the latest manual and product updates, please visit our website at www.nanocamplus.com.au or www.nanocamplus.co.nz
Disclaimer
NanoCam Plus' NCP-MIR43 4.3" Reverse Mirror Monitor & Camera Pack is designed as a driver assistance device. Although this is a visual
aid and will allow you to view what is behind the vehicle, it does not remove the responsibility of driving the vehicle from the driver. The legal
responsibility and safe driving practise remains with the driver at all times. You have purchased this product with the understanding that its
use is as an aid only. We highly recommend that you have this product professionally installed to ensure that it will provide the functions it is
set out to perform.

3

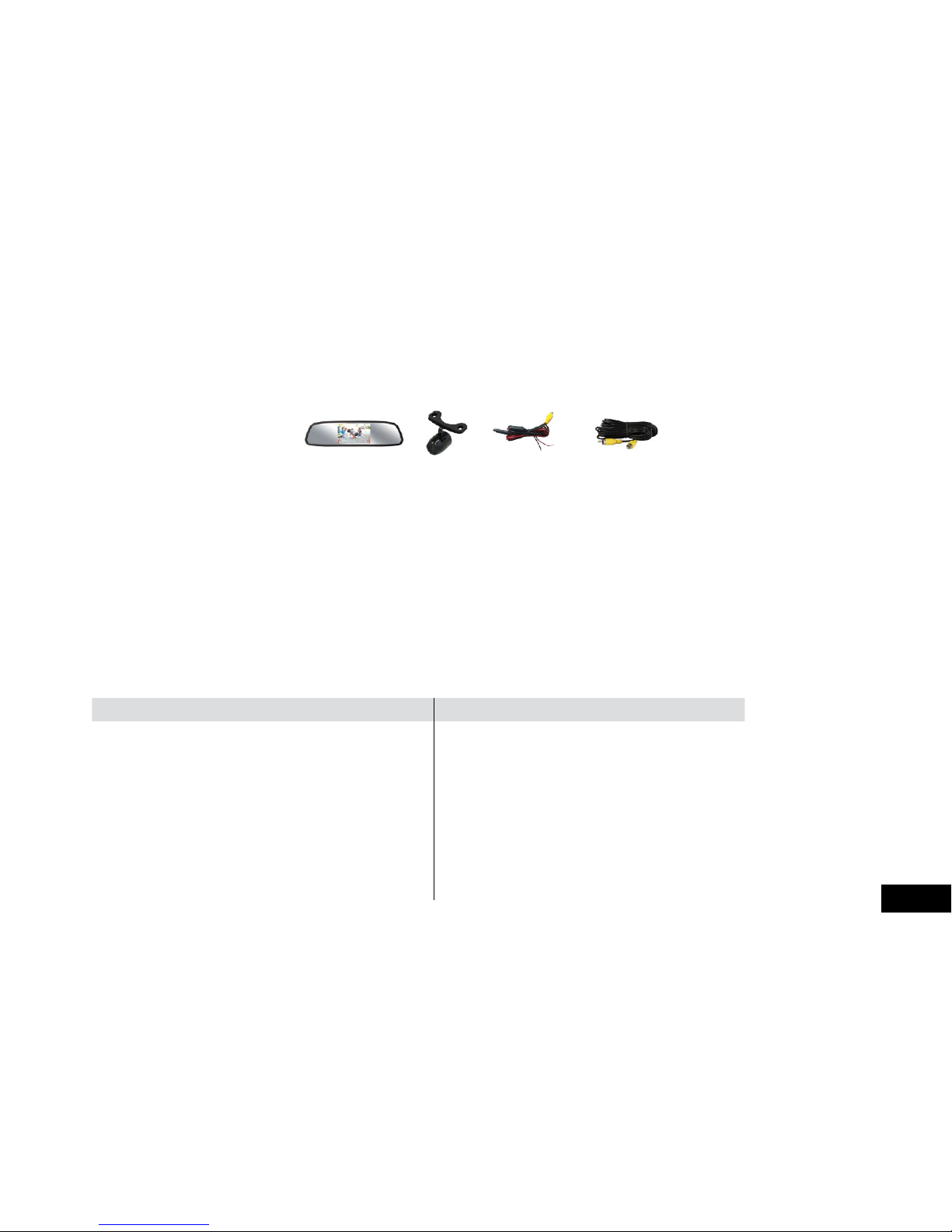

NCP-MIR43 Component List & Package Contents:
•Mirror Monitor
•Camera
•6M AV cable
•Power Cable
•Camera connection cable
Important Notice
1. Please read this manual carefully before using the product.
2. This unit is for vehicles with 12v DC only.
3. Route wiring harness away from heat sources and electrical components.
4. Wire connection points should be insulated
5. Please install this unit in a professional manner
6. Please perform tests after finishing the installation.
7. Specifications subject to change without prior notice.
Specifications (Mirror Monitor) Specifications (Camera)
Display: 4.3" (16:9 Ratio diagonal length)
Power: ≤3W
Power supply: 9-13V DC
Resolution: 480(W)*R.G.B.*272(H)
PAL/NTSC compatible
2 AV inputs (allows up to two cameras)
Auto activation upon reverse gear engagement
Adjustable brightness
Resolution: 420 TV Lines
Effective pixels: PAL = 648 x 520
NTSC: 648 x 488
Power supply: 9 – 16V DC
Operating Temperature: -20°C – +70°C
Horizontal Angle: 170° degrees
Water-proof rating: IP68
Minimum Illumination: 0.5 Lux
Normal to Mirror image switching
Grid-line switching
4.3" Monitor Camera Power Cable Extension Cable

4

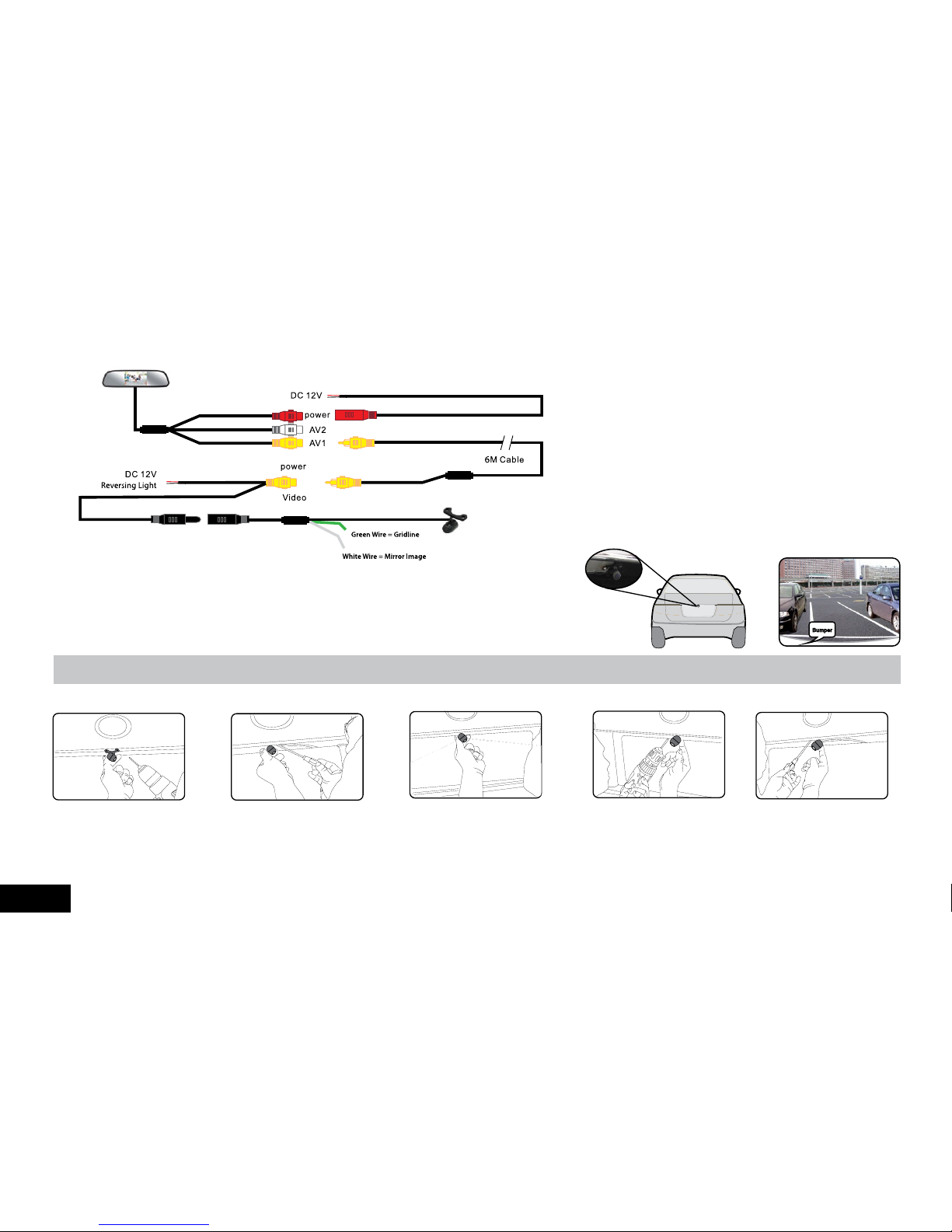

Wiring Diagram
Front view option: NCP-MIR43 functions as a rear
view camera standard and also supports front view
application. For front view application, you can cut
the thin WHITE wire near the camera lead and restart
power to see the image reversed.
Grid-line option: NCP-MIR43 comes with parking
grid-lines. To remove the grid-line application, you
can cut the thin GREEN wire near the camera lead
and restart power to show the removal of grid-lines
on your screen.
Camera Installation - Butterfly Mount
1. Select a flat and centred location near the number plate lamp at the
rear of the vehicle to mount camera.
IMPORTANT: When selecting this location it is highly recommended that the image transmitted by the camera show the rear bumper and area behind the vehicle.
Suggested location
to mount camera
2. Attach tape to the bracket
of the camera, and drill
a small hole for the first
screw.
3. Use a screw driver to fix
the first screw, but don’t
tighten it yet.
4. Insert camera wire
through newly drilled
hole and mount securely
in place.
5. Mark the position suitable
for the second screw and
drill a small hole for it.
6. Fix the second screw and
tighten both screws.

5
Installing the Mirror
1. Place the cable over the front of the mirror so that it does not get caught between the mirror monitor and your vehicles
rear view mirror during installation.
2. Place the clips on the top of the mirror monitor on the top of your rear view mirror.
3. Place your thumbs on the front of the mirror monitor to hold the unit in place, and use your index fingers to push the
bottom clips down over the bottom of the mirror.
4. Push the mirror monitor in to place ensuring that the monitor is secure.
Installation Diagram
Testing
How to Test:
1. Apply the parking brakes.
2. Turn Ignition on. (DO NOT TURN ON VEHICLE)
3. Shift into reverse
gear.
4. Image should
appear on the
mirror monitor.

6
Trouble Shooting
Problem Solution
“No Signal” appears while reversing
1. Check video input connections
2. Check camera power connections
Video image is not sharp Check camera lens for debris
Maintenance
Always keep camera clear from dirt and mud. Clean camera with a soft moist cloth.

7
Warranty Terms & Conditions
Our goods come with guarantees that cannot be excluded under the Australian & New Zealand Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty is provided in addition to your rights under the Australian & New Zealand Consumer Law.
NanoCam Plus warrants that this product is free from defects in material and workmanship for a period of 12 months from the date of
purchase or for the period stated on the packaging. This warranty is only valid where you have used the product in accordance with any
recommendations or instructions provided by NanoCam Plus.
This warranty excludes defects resulting from alterations of the product, accident, misuse, abuse or neglect.
In order to claim the warranty, you must return the product to the retailer from which it was purchased or if that retailer is part of a National
network, a store within that chain, along with satisfactory proof of purchase. The retailer will then return the goods to NanoCam Plus.
NanoCam Plus will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection.
All costs involved in claiming this warranty, including the cost of the retailer sending the product to NanoCam Plus, will be borne by you.
