Napoleon BGD40GN User manual

1
W415-1028 / A / 08.13.12
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
1.28C
$10.00
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
SAFETY INFORMATION
!WARNING
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50 • CSA 2.22 FOR VENTED GAS FIREPLACES.
BGD40GN
NATURAL GAS
BGD40GP
PROPANE
fire-parts.com

2
W415-1028 / A / 08.13.12
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.1.1 PENINSULA 5
2.1.2 SEE-THRU 5
2.2 GENERAL INSTRUCTIONS 6
2.3 GENERAL INFORMATION 7
2.4 RATING PLATE INFORMATION 7
3.0 VENTING 8
3.1 VENTING LENGTHS AND COMPONENTS 9
3.2 TYPICAL VENT INSTALLATIONS 10
3.3 SPECIAL VENT INSTALLATIONS 11
3.3.1 PERISCOPE TERMINATION 11
3.4 VENT TERMINAL CLEARANCES 12
3.5 VENT APPLICATION FLOW CHART 13
3.6 DEFINITIONS 13
3.7 ELBOW VENT LENGTH VALUES 13
3.8 HORIZONTAL TERMINATION 14
3.9 VERTICAL TERMINATION 16
4.0 INSTALLATION 18
4.1 WALL AND CEILING PROTECTION 18
4.1.1 HORIZONTAL INSTALLATION 19
4.1.2 VERTICAL INSTALLATION 20
4.2 USING FLEXIBLE VENT COMPONENTS 20
4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION 21
4.2.2 VERTICAL AIR TERMINAL INSTALLATION 22
4.2.3 APPLIANCE VENT CONNECTION 23
4.3 GAS INSTALLATION 23
5.0 FRAMING 24
5.1 MINIMUM CLEARANCE TO COMBUSTIBLES 25
5.2 MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES 25
5.3 MINIMUM MANTEL CLEARANCES 26
5.4 PENINSULA INSTALLATION 26
5.4.1 PENINSULA VENTING 26
5.4.2 PENINSULA FRAMING 26
5.4.3 COUNTER TOP / BAR INSTALLATION 27
5.4.4 FACING 28
5.4.5 FINISHING 28
5.5 SEE-THRU INSTALLATION 28
5.5.1 SEE-THRU VENTING 28
5.5.2 SEE-THRU FRAMING 28
5.5.3 FACING 28
5.5.4 FINISHING 29
6.0 FINISHING 29
6.1 DOOR INSTALLATION 29
6.2 END DOOR INSTALLATION (PENINSULA INSTALLATION ONLY) 29
6.3 HEAT SHIELD STAND-OFF REMOVAL (SEE-THRU INSTALLATION ONLY) 30
6.4 LOUVRE INSTALLATION 30
6.5 GLASS MEDIA INSTALLATION 31
6.6 LOGO PLACEMENT 31
7.0 OPTIONAL BLOWER INSTALLATION 31
8.0 ELECTRICAL CONNECTION 32
8.1 HARD WIRING CONNECTION 33
8.2 RECEPTACLE WIRING DIAGRAM 33
8.3 WIRING DIAGRAM 34
9.0 OPERATION 35
9.1 ANTI-CONDENSATION SWITCH 36
10.0 ADJUSTMENTS 36
10.1 PILOT BURNER ADJUSTMENT 36
10.1.1 VENTURI ADJUSTMENT 37
10.2 FLAME CHARACTERISTICS 37
10.3 RESTRICTING VERTICAL VENTS 37
11.0 MAINTENANCE 38
11.1 CARE OF GLASS 38
11.2 BURNER REMOVAL 39
12.0 REPLACEMENTS 40
13.0 TROUBLESHOOTING 44
14.0 WARRANTY 47
fire-parts.com

3
W415-1028 / A / 08.13.12
1.0 INSTALLATION OVERVIEW
Venting, see “VENTING”
section.
If installed as Peninsula, see
“COUNTER TOP / BAR
INSTALLATION” section.
Media, see “GLASS
BURNER
INSTALLATION”
section.
Louvre, see “LOUVRE
INSTALLATION” section.
Rating plate, see “RATING
PLATE INFORMATION”
section.
Door, see ”DOOR
INSTALLATION” section.
If installed as Peninsula, see
”END DOOR INSTALLATION”
section.
Gas control only accessible
from other side.
Mantel see “MINIMUM
MANTEL CLEARANCES”
section.
See “MINIMUM
CLEARANCE TO
COMBUSTIBLE
ENCLOSURES”
section.
Sidewall, See
“FACING” section.
fire-parts.com

4
W415-1028 / A / 08.13.12
2.0 INTRODUCTION
3.2B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS
AND IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict access to an appliance, install an adjustable safety gate
to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• The appliance is a vented gas-fired appliance. Do not burn wood or other materials in the appliance
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to
prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust
escaping through these openings can also cause the surrounding combustible materials to overheat and catch
fire.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as
well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against
Carbon Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage of decorations, a T.V. or other electronic components.
fire-parts.com

5
W415-1028 / A / 08.13.12
2.1 DIMENSIONS
2.1.1 PENINSULA
5" DIA.
8" DIA.
2
1
/ 2 "
4
1
/ 4 "
ELECTRICAL
INLET
GAS
INLET
6
1
/ 2 "
38"
32
1
/ 2 "
37
5
/ 8 "
36"
38
5
/ 8 "
22
1
/ 8 "
22
1
/ 8 "
2.1.2 SEE-THRU
5" DIA.
8" DIA.
2
1
/ 2 "
4
1
/ 4 "
ELECTRICAL
INLET
GAS
INLET
6
1
/ 2 "
22
1
/ 8 "
22
1
/ 8 "
38"
32
1
/ 2 "
36"
40
5
/ 8 "
fire-parts.com

6
W415-1028 / A / 08.13.12
2.2 GENERAL INSTRUCTIONS
4.1A
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location
for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
fire-parts.com

7
W415-1028 / A / 08.13.12
2.3 GENERAL INFORMATION
When the appliance is installed at elevations above 4,500 ft, and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of
4% for each additional 1,000 ft.
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is suitable for mobile
home installation.
Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
If utilizing one of Wolf Steel's trim or surround kits, follow the framing
instructions and the finishing instructions, for removal of the top extension.
NOTE: The protective wrap on plated parts is best removed when
the assembly is at room temperature but this can be improved if the
assembly is warmed, using a hair dryer or similar heat source.
2.4 RATING PLATE INFORMATION
SERIAL NUMBER/
NO. DE SERIE: BGD40
W385-0656
CERTIFIED UNDER / HOMOLOGUE SELON LES NORMES:ANSI Z21.50b-2009 CSA2.22b-2009 VENTED GAS FIREPLACE / FOYERAU GAZAVEC EVACUATION
NOT FOR USE WITH SOLID FUEL. FOR USE WITH
COVERS AND GLASS DOOR CERTIFIED WITH THIS
UNIT ONLY.
WARNING: DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH WILL COME IN
CONTACT WITH THE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH
THE APPLIANCE.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS /
DEGAGEMENTS MINIMAUX DES MATERIAUX COMBUSTIBLES:
TOP, FLOOR, SIDES & BACK 0”
DESSUS, PLANCHER, COTES ETARRIERE
RECESSED DEPTH (CORNER INSTALLATION ONLY) 25 1/4”
PROFONDEUR D’ENCASTRE (INSTALLATION DU COIN SEULEMENT)
VENT / EVENT 1”
MANTEL HEIGHT / HAUTEUR DU MANTEAU 5”*
*MAXIMUM HORIZONTAL EXTENSION/L’EXTENSION HORIZONTALE MAXIMALE: 3”. SEE
INSTRUCTION MANUAL FOR GREATER EXTENSIONS. REFERER AU MANUEL
D’INSTRUCTION POUR DES EXTENSIONS PLUS GRANDES.
MINIMUM AND MAXIMUM HORIZONTAL VENT LENGTHSARE 10 INCHES AND 20 FEET
RESPECTIVELY. LES LONGUEURS HORIZONTALES MINIMALE ET MAXIMALE SONT 10
POUCES ET 20 PIEDS RESPECTIVEMENT.
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILISE
AVEC CET APPAREIL. UTILISER AVEC LES
COUVERTURES ET LES PORTES VITREES
HOMOLOGUEES SEULEMENT AVEC CETTE UNITE.
AVERTISSEMENT: N’AJOUTEZ PASA CETAPPAREILAUCUN MATERIAU DEVANT
ENTRER EN CONTACT AVEC LES FLAMMES AUTRE QUE CELUI QUI EST FOURNIAVEC CET
APPAREIL PAR LE FABRICANT.
THE APPLIANCE MUSTBE VENTED USING THE APPROPRIATE WOLF STEEL VENT KITS. SEE
OWNERS INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER REINSTALLATION AND
RESEALING IS NECESSARYAFTER SERVICING THE VENT-AIR INTAKE SYSTEM.
L’APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L’ENSEMBLE D’EVACUATION PROPRE A
WOLF STEEL. REFERER AU MANUEL D’INSTALLATION DE PROPRIETAIRE POUR
L’EVACUATION PRECISE. IL EST IMPORTANT DE BIEN REINSTALLER L’EVENTAPRES AVOIR
ASSURE LE MAINTIEN DU SYSTME DE PRISE D’AIR.
ELECTRICAL RATING / CLASSIFICATION: 115V, 0.82 AMP, 60HZ
OPTIONAL FAN KIT / ENSEMBLE DE VENTILATEUR FACULTATIF: GZ-550KT
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
FOYER A GAZ VENTILE DIRECT. HOMOLOGUE POUR INSTALLATION DANS UNE CHAMBRE A
COUCHER, USE SALLE DE BAIN ET UN STUDIO. APPROPRIE POUR INSTALLATION
DANS UNE MAISON MOBILE SI SON INSTALLATION CONFROMEAUX EXIGENCES DE LA
NORME CAN/CSA Z240MH SERIE DE MAISONS MOBILES EQUIPEES AU GAZ, EN
VIGUEUR AU CANADA OU AUX ETATS-UNIS DE LA NORME DE SECURITE ET DE
CONSTRUCTION DE MAISONS MANUFACTUREES, TITRE 24 CFR, SECTION 3280.
DANS LE CAS OU CETTE NORME D’ETATS-UNIS NE PEUT ETRE APPLIQUEE, SE
REFERER A LA NORME RELATIVE AU CRITERE DE MESURES DE SECURITE CONTRE
L’INCENDIE POUR LES INSTALLATION DANS LES MAISONS MANUFACTURES, LES
SITES ET LES COMMUNAUTES, ANSI/NFPA 501A.
DIRECT VENT GAS FIREPLACE. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING
ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN
ACCORDANCE WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS
EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE
MANUFACTURED HOME CONSTRUCTION AND SAFETY STANDARD, TITLE 24 CFR,
PART 3280. WHEN THIS US STANDARD IS NOTAPPLICABLE USE THE STANDARD FOR
FIRE SAFETY CRITERIA FOR MANUFACTURED HOME INSTALLATIONS, SITES AND
COMMUNITIES, ANSI / NFPA501A.
BGD40GN BGD40N BCDV400N MODEL BGD40P BCDV400P BGD40GP
0-4500FT (0-1370m) ALTITUDE / ELEVATION 0-4500FT (0-1370m)
30,000 BTU/h INPUT /ALIMENTATION 30,000 BTU/h
20,000 BTU/hREDUCED INPUT / ALIMENTATION REDUITE 20,000 BTU/h
MANIFOLD PRESSURE: 3.5" WATER COLUMN MANIFOLD PRESSURE: 10" WATER COLUMN
PRESSION AU COLLECTEUR: 3.5" D'UNE COLONNE D'EAU PRESSION AU COLLECTEUR: 10" D'UNE COLONNE D'EAU
MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN
PRESSION D'ALIMENTATION MINIMALE: 4.5" D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MINIMALE: 11" D'UNE COLONNE D'EAU
MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN
PRESSION D'ALIMENTATION MAXIMALE: 7.0" D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MAXIMALE: 13" D'UNE COLONNE D'EAU

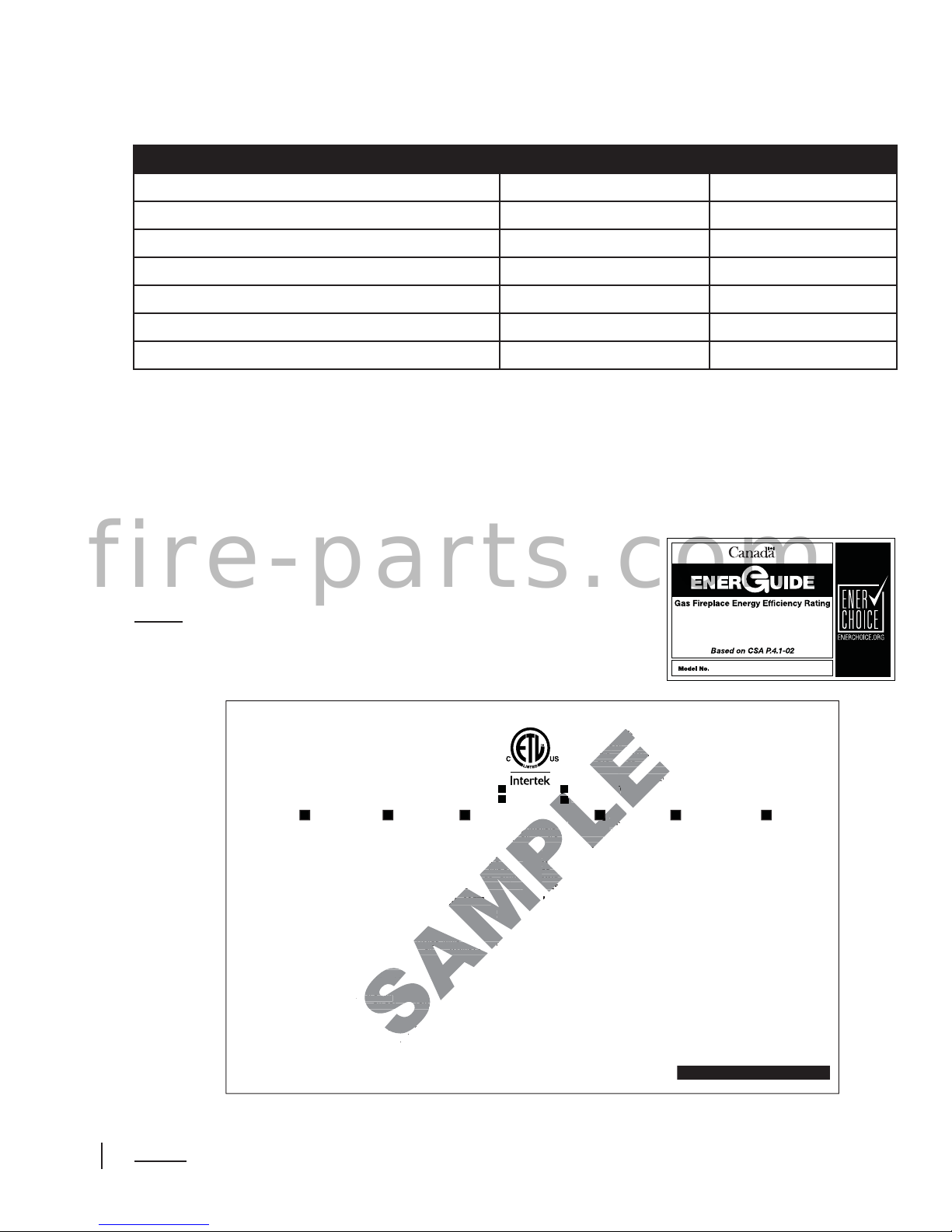

For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE: The rating plate must remain with the appliance at all time. It must not be removed.
NG LP
Altitude (FT) 0-4,500 0-4500
Max. Input (BTU/HR) 30,000 30,000
Max. Output Steady State (BTU/HR) 20,400 20,400
Min. Inlet Gas Supply Pressure 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water Column 13" Water Column
Manifold Pressure (Under Flow Conditions) 3.5" Water Column 10" Water Column
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!
SE WITHSE WITH
D WITH THISITH THIS
APPLIANCE, WHICH WILL COMEPLIANCE, WHICH WILL COME
UPPLIED BY THE MANUFACTURED BY THE MANUFACTU
RIALS /RIALS
COMBUSTIBLES:COMBUST
RE
ATION ONLY)
ON ONLY)
ION DU COIN SEULEMENT
ON DU COIN SEULEME
ON HORIZOON HORIZO
NS. RE
N
U
4
001657
(
NGZ
)GZ)
4
001659
(
WUSA
)4001659 (WUSA)
L
L
AL
ON MON MO
CSA Z240MCSA Z24
U CANADA OUU CANADA OU
UCTION DE MAISONCTION DE MAISO
LE CAS OU CETTE NORE CAS OU CETTE NOR
ERER A LA NORME RELATIVE
R A LA NORME RELATIVE
NCENDIE POUR LES INSTALLPOUR LES INSTALL
DEL
BGD4BGD
E / ELEVATION/ ELEVATION
0-450-45
/ ALIMENTATIONALIMENTATIO
303
ALIMENTATION REDUITELIMENTATION REDUITE
L
L
L
OLUMNLUMN
MANIFOLD PRESSMANIFOLD PRES
NE D'EAUNE D'EAU
PRESSION AU CPRE
ER COLUMNER COLUMN
MINIMUM SUMIN
OLONNE D'EAULONNE D'EA
PRESSIONPRES
WATER COLUMNTER COLUMN
MAXIMUMAXIM
NE COLONNE D'EAUE COLONNE D'EAU
PRESPRES
67.8%
BGD40G
fire-parts.com

8
W415-1028 / A / 08.13.12
3.0 VENTING
7.2B
THIS APPLIANCE USES A 5” EXHAUST / 8” AIR INTAKE VENT PIPE SYSTEM.
Refer to the section applicable to your installation.
For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Provide a means for
visually checking the vent connection to the appliance after the appliance is installed. Use a firestop, vent pipe
shield or attic insulation shield when penetrating interior walls, floor or ceiling.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions
provided for the initial installation.
NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent
pipes. Utilizing alternate constructions such as a chimney as part of the vent system is not permitted.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3 FEET
FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.
fire-parts.com

9
W415-1028 / A / 08.13.12
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab
venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations, and
air terminal locations for either system are set out in this manual and must be adhered to. For Simpson Dura-
Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the installation procedure provided
with the venting components.
A starter adaptor must be used with the following vent systems and may be purchased from the corresponding
supplier:
For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the installation
procedure found on the website for your venting supplier.
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using a
red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake vent
pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the appliance flue collar
which must be sealed using the black high temperature sealant Mill Pac.
When using Wolf Steel venting components, use only approved Wolf Steel rigid / flexible components with the following
termination kits: wall terminal kit GD422R-1, or 1/12 to 7/12 pitch roof terminal kit GD410, 8/12 to 12/12 roof terminal kit
GD411, flat roof terminal kit GD412 or periscope kit GD401 (for wall penetration below grade). With flexible venting, in
conjunction with the various terminations, use either the 5 foot vent kit GD420 or the 10 foot vent kit GD430.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows to a
minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify
that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer components must
not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal run
is 20 feet. The maximum allowable vertical vent length is 40 feet. The maximum number of vent connections is two
horizontally or three vertically (excluding the appliance and the air terminal connections) when using flexible venting.
Horizontal runs may have a 0” rise per foot however for optimum performance it is recommended that all horizontal
runs have a minimum 1/4” rise per foot using flexible venting. For safe and proper operation of the appliance, follow
the venting instructions exactly.
A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single family
dwellings and serves both dwellings. Local codes or regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼” air gap
all around between the inner liner and outer liner is required for safe operation.
PART 5”/8” SUPPLIER WEBSITE
Duravent W175-0170 Wolf Steel www.duravent.com
Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com
Direct Temp 5DT-AA Selkirk www.selkirkcorp.com
SuperSeal 5DDA Metal-Fab www.mtlfab.com
8.8
3.1 VENTING LENGTHS AND COMPONENTS
fire-parts.com

10
W415-1028 / A / 08.13.12
3.2 TYPICAL VENT INSTALLATIONS
When venting, the horizontal run must be kept to a
maximum of 20 feet. If a 20 foot horizontal run is re-
quired, the appliance must have a minimum vertical
rise immediately off the appliance of 57".
When installing with no vertical rise, ensure that the vent pipe does not slope downward.
When terminating vertically, the vertical rise is a
minimum 34" and a maximum 40 feet above the
appliance.
40 FT
MAX
34"
MIN
16" MIN
38" MIN
PLUS
RISE*
24" MAX
* See "VENTING" section.
37 3/4"
fire-parts.com

11
W415-1028 / A / 08.13.12
3.3 SPECIAL VENT INSTALLATIONS
3.3.1 PERISCOPE TERMINATION
Use the periscope kit to locate the air termination above grade. The periscope must
be installed so that when final grading is completed, the bottom air slot is located a
minimum of 12” above grade. The maximum allowable vent length is 10’ for a
fireplace and 8’ for a stove.
9.5A
37 3/4"
MIN
24" MIN REGARDLESS
OF HORIZONTAL VENT
LENGTH
12" MIN
TO
GRADE
fire-parts.com

12
W415-1028 / A / 08.13.12
3.4 VENT TERMINAL CLEARANCES
INSTALLATIONS
CANADA U.S.A.
A12” 12” Clearance above grade, veranda porch, deck or balcony.
B12” Δ9” ΔClearance to windows or doors that open.
C12” * 12” * Clearance to permanently closed windows.
D18” ** 18” ** Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of 2’ from
the centerline of the terminal.
E12” ** 12” ** Clearance to unventilated soffit.
F0” 0” Clearance to an outside corner wall.
G0” *** 0” *** Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).
2” *** 2” *** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H3’ 3’ **** Clearance to each side of the centerline extended above the meter / regulator assembly to a maximum
vertical distance of 15’.
I3’ 3’ **** Clearance to a service regulator vent outlet.
J12” 9” Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
K6’ 3’ Clearance to a mechanical air supply inlet.
L7’ ‡ 7’ **** Clearance above a paved sidewalk or paved driveway located on public property.
M12” †† 12” **** Clearance under a veranda, porch, deck or balcony.
N16” 16” Clearance above the roof.
O2’ †* 2’ †* Clearance from an adjacent wall including neighbouring buildings.
P8’ 8’ Roof must be non-combustible without openings.
Q3’ 3’ See chart for wider wall dimensions.
R6’ 6’ See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an open-
ing between the terminal and the open side of the structure.
ΔThe terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18” clearance from an inside corner.
**** This is a recommended distance. For additional requirements check local codes.
† 3 feet above if within 10 feet horizontally.
‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes. 12.3B
R
QM
GP
COVERED BALCONY APPLICATIONS
QMIN
RMAX
MAX
R
= 3 feet
= 2 x
 feet
QACTUAL
fire-parts.com

13
W415-1028 / A / 08.13.12
3.5 VENT APPLICATION FLOW CHART
13.1
TOP EXIT
Horizontal Termination Vertical Termination
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40 feet
Horizontal run +
vertical rise to
maximum of 24.75
feet
Horizontal run +
vertical rise to
maximum of 40 feet
Horizontal run +
vertical rise to
maximum of 40 feet
4.2 times the
vertical rise equal to
or greater than the
horizontal run
3 times the vertical
rise equal to or
greater than the
horizontal run
3.6 DEFINITIONS
14.2
For the following symbols used in the venting calculations and examples are:
> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
HT- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet
HR- combined horizontal vent lengths in feet
HO- offset factor: .03 (total degrees of offset - 135°*) in feet
VT- combined vertical vent lengths in feet
3.7 ELBOW VENT LENGTH VALUES
15.2
FEET INCHES
1° 0.03 0.5
15° 0.45 6.0
30° 0.9 11.0
45°* 1.35 16.0
90°* 2.7 32.0
* The first 45° and 90°offset has a zero value and is shown in the formula as -45° and - 90° respectively or
-135° when combined.
fire-parts.com

14
W415-1028 / A / 08.13.12
3.8 HORIZONTAL TERMINATION
16.5
Simple venting configuration (only one 45° and 90°
elbow)
(HT) < (VT)
For vent configurations requiring more than one 45° elbow and 90° elbow, the following formulas
apply:
Formula 1: HT< VT
Formula 2: HT+ VT< 40 feet
Example:
V1= 8 FT
VT= V1= 8 FT
H1= 2.5 FT
H2= 2 FT
HR= H1+ H2= 2.5 + 2 = 4.5 FT
HO= .03 (one 45° elbow + two 90° elbows - 135°) = .03 (225 - 135°) = 2.7 FT
HT= HR+ HO= 4.5 + 2.7 = 7.2 FT
HT+ VT= 7.2 + 8 = 15.2 FT
Formula 1: HT< VT
7.2 < 8
Formula 2: HT+ VT< 40 FT
15.2 < 40
Since both formulas are met, this vent configuration is acceptable.
90°
90°
45°
V1
H1
H2
02.5 5 7.5 10 12.5 15
40
10
20
30
17.5 20
39
REQUIRED
VERTICAL
RISE IN
FEET VT
HORIZONTAL VENT RUN PLUS OFFSET IN
FEET HT
See graph to determine the required vertical
rise VTfor the required horizontal run HT.
The shaded area within the lines represents
acceptable values for HTand VT
fire-parts.com

15
W415-1028 / A / 08.13.12
16.5_2
Simple venting configuration (only one 45° and 90°
elbow)
(HT) > (VT)
For vent configurations requiring more than one 45° elbow and 90° elbow, the following formulas
apply:
Formula 1: HT< 4.2 VT
Formula 2: HT+ VT< 24.75 feet
Example:
V1= 4 FT
V2= 1.5 FT
VT= V1+ V2= 4 FT + 1.5 FT = 5.5 FT
H1= 2 FT
H2= 1 FT
H3= 1 FT
H4= 1.5 FT
HR= H1+ H2+ H3+ H4= 2 + 1 + 1 + 1.5 = 5.5 FT
HO= .03 (one 45° elbow + four 90° elbows - 135°) = .03 (405 - 135°) = 8.1 FT
HT= HR+ HO= 5.5 + 8.1 = 13.6 FT
HT+ VT= 13.6 + 5.5 = 19.1 FT
Formula 1: HT< 4.2 VT
4.2 VT= 4.2 x 5.5 FT = 23.1 FT
13.6 < 23.1
Formula 2: HT+ VT< 24.75 FT
19.1 < 24.75
Since both formulas are met, this vent configuration is acceptable.
90°
90°
45°
V1
H1
H4
90° 90°
H3
H2
V2
REQUIRED
VERTICAL
RISE IN
INCHES VT
0515
20
100
50
150
12.5’
57”
147”
10
HORIZONTAL VENT RUN PLUS
OFFSET IN FEET HT
See graph to determine the required vertical
rise VTfor the required horizontal run HT.
The shaded area within the lines represents
acceptable values for HTand VT
fire-parts.com

16
W415-1028 / A / 08.13.12
3.9 VERTICAL TERMINATION
(HT) < (VT)
Simple venting configurations. See graph to determine the required vertical rise VTfor the
required horizontal run HT.
REQUIRED
VERTICAL
RISE IN
FEET VT
HORIZONTAL VENT RUN PLUS OFFSET IN FEET HT
For vent configurations requiring more than one 45° and one 90° elbow, the following formulas apply:
Formula 1: HT< VT
Formula 2: HT+ VT < 40 feet
Example:
V1 = 5 FT
V2 = 10 FT
VT = V1 + V2 = 5 + 10 = 15 FT
H1 = 3 FT
H2 = 2.5 FT
HR = H1 + H2 = 3 + 2.5 = 5.5 FT
HO = .03 (one 45° + three 90° elbows - 135°)
= .03 (45 + 270 - 135°) = 5.4 FT
HT =HR + HO = 5.5 + 5.4 = 10.9 FT
HT + VT = 10.9 + 15 = 25.9 FT
Formula 1: HT < VT
10.9 < 15
Formula 2: HT + VT < 40 FT
25.9 < 40
Since both formulas are met, this vent configuration is acceptable.
The shaded area within the lines represents acceptable
values for HT and VT
05101520
40
10
20
30
3
90°
V1
H1
H2
90°
90°
18.3
45°
V2
fire-parts.com

17
W415-1028 / A / 08.13.12
(HT) > (VT)
Simple venting configurations. See graph to determine the required vertical rise VTfor the
required horizontal run HT.
REQUIRED
VERTICAL
RISE IN
FEET VT
HORIZONTAL VENT RUN PLUS OFFSET IN FEET HT
For vent configurations requiring more than one 45° and one 90° elbow, the following formulas apply:
Formula 1: HT< 3VT
Formula 2: HT+ VT < 40 feet
Example:
V
1 = 1 FT
V
2 = 1.5 FT
V
T = V1 + V2 = 1 + 1.5 = 2.5 FT
H1 = 6 FT
H2 = 2 FT
HR = H1 + H2 = 6 + 2 = 8 FT
HO = .03 (one 45° + three 90° elbows - 135°)
= .03 (45 + 270 - 135°) = 5.4 FT
HT =HR + HO = 8 + 5.4 = 13.4 FT
HT + VT = 13.4 + 2.5 = 15.9 FT
Formula 1: HT < 3VT
3VT = 3 x 2.5 = 7.5 FT
13.4 > 7.5
Since this formula is not met, this vent configuration is unacceptable.
Formula 2: HT + VT < 40 FT
15.9 < 40
Since only formula 2 is met, this vent configuration in unacceptable and a new fireplace location or vent configuration
will need to be established to satisfy both formulas.
Example:
V
1 = 1.5 FT
V
2 = 8 FT
V
T = V1 + V2 = 1.5 + 8 = 9.5 FT
H1 = 1 FT
H2 = 1 FT
H3 = 10.75 FT
HR = H1 + H2 + H3= 1 + 1 + 10.75 = 12.75 FT
H
O
= .03 (three 90° elbows + two 45° elbows - 135°)
= .03 (270 + 90 - 135°) = 6.75 FT
HT =HR + HO = 12.75 + 6.75 = 19.5 FT
HT + VT = 19.5 + 9.5 = 29 FT
Formula 1: HT < 3VT
3VT = 3 x 9.5 = 28.5 FT
19.5 < 28.5
Formula 2: HT + VT < 40 FT
29 < 40
Since both formulas are met, this vent configuration is acceptable.
The shaded area within the lines represents acceptable
values for HT and VT
90°
V1
H2
90°
90°
18.3_2A
45°
05101520
10
20
3
25 30
19
V2
H1
90°
V1
H2
90°
90°
45°
V2
H145°
H3
fire-parts.com

18
W415-1028 / A / 08.13.12
4.0 INSTALLATION
4.1 WALL AND CEILING PROTECTION
!
WARNING
DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF
MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.
ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.
INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR
OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.
70.1
For clearance to combustible materials from the vent pipe, see "MINIMUM CLEARANCE TO
COMBUSTIBLES" section.
!
WARNING
FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS
EXACTLY.
ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE JOINTS MAY BE SEALED USING EITHER RED
RTV HIGH TEMP SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC
W573-0007 (NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR
WHICH MUST BE SEALED USING MILL PAC.
IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, 3 SCREWS MUST ALSO BE USED TO
ENSURE THE CONNECTION CANNOT SLIP OFF.
DO NOT CLAMP THE FLEXIBLE VENT PIPE.
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING
SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT
VENT SECTIONS PER INSTALLATION INSTRUCTIONS.
RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.
REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO
MAINTAIN CLEARANCES TO COMBUSTIBLES.
68.2A
fire-parts.com

19
W415-1028 / A / 08.13.12
This application occurs when venting through an exterior wall. Having
determined the correct height for the air terminal location, cut and frame
a hole in the exterior wall as illustrated to accommodate the firestop
assembly.
The length of the vent shield may be cut shorter for
combustible walls that are less than 8 1/2” thick but
the vent shield must extend the full depth of the
combustible wall.
A. Apply a bead of caulking (not supplied) all around and
place the firestop top, so that the vent shield covers the
top of the vent within the opening.
B. Place the firestop bottom against the firestop top and secure the
two together. Adjust the assembly to ensure it is tight to the vent.
Secure firestop to wall. This restricts cold air from being drawn
into the room or around the appliance. Ensure that both spacer
and shield maintain the required clearance to combustibles.
Once the vent pipe is installed in its final position,
apply sealant W573-0002 (not supplied) between
the vent pipe and the firestop spacer as illustrated.
DETERMINE
THE
CORRECT
HEIGHT
FIRESTOP
SPACER
FINISHING
MATERIAL
CAULKING
CAULKING
20.3
VENT
SHIELD
FIRESTOP
BOTTOM
FIRESTOP
TOP
!
WARNING
THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.
TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE
RETURN FLANGE OF THE MOUNTING PLATE.
4.1.1 HORIZONTAL INSTALLATION
fire-parts.com

20
W415-1028 / A / 08.13.12
4.1.2 VERTICAL INSTALLATION
This application occurs when venting through a roof. Installation kits for
various roof pitches are available from your authorized dealer / distributor. See
accessories to order specific kits required.
A
.Determine the air terminal location, cut and frame a square opening as
illustrated in the ceiling and the roof to provide the minimum 1“ clearance
between the vent pipe and any combustible material. Try to center the vent
pipe location midway between two joists to prevent having to cut them. Use
a plumb bob to line up the center of the openings. A vent pipe shield will
prevent any materials such as insulation, from filling up the 1” air space
around the pipe. Nail headers between the joist for extra support.
B. Apply a bead of caulking (not supplied) to the framework or to the Wolf
Steel vent pipe shield plate or equivalent (in the case of a finished
ceiling), and secure over the opening in the ceiling. A firestop must be
placed on the bottom of each framed opening in a roof or ceiling that the
venting system passes through. Apply a bead of caulking all around and place a
firestop spacer over the vent shield to restrict cold air from being drawn into the
room or around the fireplace. Ensure that both spacer and shield maintain the
required clearance to combustibles. Once the vent pipe is installed in its final
position, apply sealant between the pipe and the firestop assembly.
C. In the attic, slide the vent pipe collar down to cover up the open end of the shield and
tighten. This will prevent any materials, such as insulation, from filling up the 1” air space
around the pipe.
21.1
CAULKING
VENT PIPE
SHIELD
FIRESTOP
UNDERSIDE OF
JOIST
VENT
PIPE
COLLAR
VENT
PIPE
SHIELD
10 1/2" 10 1/2"
4.2 USING FLEXIBLE VENT COMPONENTS
For safe and proper operation of the appliance, follow the venting
instructions exactly.
All inner flex pipe and outer flex pipe joints may be sealed using high
temperature sealant W573-0002 (not supplied) or the high temperature
sealant W573-0007 Mill Pac (not supplied). However, the high temperature
sealant W573-0007 Mill Pac (not supplied) must be used on the joint
connecting the inner flex pipe and the exhaust flue collar.
Use only approved flexible vent pipe kits marked:
“Wolf Steel Approved Venting” as identified
by the stamp only on the outer flex pipe.
22.1
ELBOW
SPACERS
DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS.
KEEP IT PULLED TIGHT.
SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN
AIR GAP TO THE OUTER FLEX PIPE. THIS GAP IS REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED
AT THE START, MIDDLE AND END OF EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS
MUST NOT BE REMOVED.
!
WARNING
fire-parts.com
