Napoleon GVF40P User manual

1
W415-0810 / A / 05.04.10
$10.00
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.3A
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
- This is an unvented gas-fired heater that
uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and
ventilation air must be provided.
CERTIFIED FOR THE UNITED STATES USING ANSI METHODS.
GVF40P
PROPANE
GVF40N
NATURAL GAS
UNVENTED MILLIVOLT
SYSTEM
CERTIFIED UNDERAMERICAN NATIONAL STANDARDS, ANSI Z21.11.2B, VOLUME II FOR UNVENTED ROOM HEATERS.

2
W415-0810 / A / 05.04.10
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 GENERAL INSTRUCTIONS 6
2.3 GENERAL INFORMATION 7
2.4 RATING PLATE INFORMATION 7
3.0 INSTALLATION 8
3.1 COMBUSTION AND VENTILATION AIR PROVISIONS 8
3.2 DETERMINING CONFINED OR UNCONFINED SPACE 8
3.3 GAS INSTALLATION 10
3.4 ELECTRICAL CONNECTION 11
3.4 MOBILE HOME INSTALLATION 11
4.0 PENINSULA INSTALLATION 12
4.1 FRAMING 12
4.2 COUNTER TOP / BAR INSTALLATION 13
4.3 BRICK PANEL INSTALLATION 13
4.4 FACING 14
4.5 FINISHING 14
5.0 OPEN-END INSTALLATION 15
5.1 FRAMING 15
5.2 BRICK PANEL INSTALLATION 16
5.3 FACING 16
5.4 FINISHING 16
6.0 SEE-THRU INSTALLATION 17
6.1 FRAMING 17
6.2 BRICK PANEL INSTALLATION 18
6.3 FACING 18
6.4 FINISHING 18
7.0 ISLAND INSTALLATION PROCEDURES 19
7.1 FRAMING 19
7.2 BRICK PANEL INSTALLATION 20
7.3 FACING 20
7.4 FINISHING 20
8.0 FINISHING 21
8.1 MINIMUM MANTEL CLEARANCES 21
8.2 LOG PLACEMENT 21
8.3 CHARCOAL EMBERS 23
8.4 HOOD 23
8.5 LOUVRE INSTALLATION 24
8.6 HEAT SHIELD STAND-OFF REMOVAL 24
8.7 LOGO PLACEMENT 24
9.0 OPTIONAL BLOWER INSTALLATION 25
10.0 OPERATION 27
11.0 ADJUSTMENT 28
11.1 VENTURI ADJUSTMENT 28
11.2 FLAME CHARACTERISTICS 28
11.3 FLAME ADJUSTMENT 28
12.0 MAINTENANCE 29
12.1 OXYGEN DEPLETION SENSOR PILOT CLEANING 29
12.2 CARE OF PLATED PARTS 29
13.0 REPLACEMENTS 30
14.0 TROUBLE SHOOTING GUIDE 34
15.0 WARRANTY 37
16.0 SERVICE HISTORY 38
17.0 NOTES 39

3
W415-0810 / A / 05.04.10
1.0 INSTALLATION OVERVIEW
Louvres, see “LOUVRE
INSTALLATION” section.
Hood, see “HOOD”
section.
Counter top, see “COUNTER
TOP / BAR INSTALLATION”
section.
Logs, see “LOG PLACEMENT”
section.
Bricks, see “BRICK
PANEL INSTALLATION”
section.
Rating plate, see “RATING
PLATE INFORMATION”
section.

4
W415-0810 / A / 05.04.10
3.4
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS
PROHIBITED.
• Under no circumstances should this appliance be modified.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal
edges may be sharp.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing
and operating the appliance. Never obstruct the front opening of the appliance.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have
it serviced. Keep burner and control compartment clean.
• Do not burn wood or other materials in this appliance.
• Young children should be carefully supervised when they are in the same room as the appliance. Tod-
dlers, young children and others may be susceptible to accidental contact burns. Aphysical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance, install an
adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in
the appliance are kept clean. The appliance should be inspected before use and at least annually by a
qualified service person. More frequent cleaning may be required due to excessive lint from carpeting,
bedding material, etc. The appliance area must be kept clear and free from combustible materials,
gasoline and other flammable vapours and liquids.
• Furniture or other objects must be kept a minimum of 4 feet away from the front of the appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
• Do not allow fans to blow directly into the appliance. Avoid any drafts that alter burner flame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this
appliance.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your
home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have
it serviced by a qualified technician before operating it again.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide.
• The appliance screen must be in place when the appliance is operating.
2.0 INTRODUCTION

5
W415-0810 / A / 05.04.10
2.1 DIMENSIONS
36"
40"
27"
22
1
/ 8 "
22
1
/ 8 "
2
1
/ 2 "
GAS
ELECTRICAL
INLET
4
1
/ 4 "
6
1
/ 2 "
32
1
/ 2 "
RATING PLATE
LOCATION
38"
4-SIDED
SEE-THRU
36"
40
1
/ 2 "
27
1
/ 2 "
22
1
/ 8 "
22
1
/ 8 "
2
1
/ 2 "
GAS
ELECTRICAL
INLET
4
1
/ 4 "
6
1
/ 2 "
32
1
/ 2 "
RATING PLATE
LOCATION
3 8 "
38"
25
1
/ 8 "
36"
40
1
/ 2 "
27"
22
1
/ 8 "
22
1
/ 8 "
2
1
/ 2 "
GAS
ELECTRICAL
INLET
4
1
/ 4 "
6
1
/ 2 "
32
1
/ 2 "
RATING PLATE
LOCATION
38"
38"
OPEN-END
PENINSULA
22
1
/ 8 "
38"
36"
41"
22
1
/ 8 "
27"
32
1
/ 2 "
RATING PLATE
LOCATION

6
W415-0810 / A / 05.04.10
2.2 GENERAL INSTRUCTIONS
This gas appliance should be installed and serviced by a qualified installer to conform with local codes.
Installation practices vary from region to region and it is important to know the specifics that apply to your
area, for example: in Massachusetts State:
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36“.
• The appliance is not approved for installation in a bedroom or bathroom unless the appliance is a direct
vent sealed combustion product.
• A carbon monoxide detector is required in all rooms containing gas fired appliances.
• WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the
commonwealth of Massachusetts.
• Un-vented room appliance shall be installed in accordance with 527 CMR 30.00 and 248 CMR 3.00
through 7.00.
• Sellers of un-vented propane or natural gas-fired space / room appliances shall provide to each purchaser
a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfireplaces.com/
Webshare/installation_manuals/mass_requirements.pdf
In absence of local codes, install the appliance to the current National Fuel Gas Code, ANSI Z223.1
Installation Code which can be obtained from:
American National Standards Institute Inc. or National Fire Protection Association Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02269
!
WARNING
CARBON MONOXIDE POISONING MAY LEAD TO DEATH
EARLY SIGNS OF CARBON MONOXIDE POISONING RESEMBLE THE FLU, WITH HEADACHE, DIZZI-
NESS AND/OR NAUSEA. IF YOU HAVE THESE SIGNS, THE HEATER MAY NOT BE WORKING PROP-
ERLY. GET FRESH AIR AT ONCE! HAVE HEATER SERVICED.
SOME PEOPLE---PREGNANT WOMEN, PERSONS WITH HEART OR LUNG DISEASE, ANEMIA, THOSE
UNDER THE INFLUENCE OF ALCOHOL, THOSE AT HIGH ALTITUDES--- ARE MORE AFFECTED BY
CARBON MONOXIDE THAN OTHERS.
THE APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE.
THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.
OBJECTS PLACED IN FRONT OF THE HEATER SHOULD BE KEPT A MINIMUM OF 48” AWAY FROM
THE FRONT FACE OF THE APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES AND REPLACEMENT PARTS (BLOWERS,
LOUVRES, TRIMS, GAS COMPONENTS, VENT COMPONENTS, ETC.) COULD RESULT IN A SAFETY
HAZARD AND WILL VOID THE LIMITED LIFETIME WARRANTY.
NOT DESIGNED FOR USE WITH A GLASS DOOR. SCREEN MUST BE CLOSED WHEN APPLIANCE IS
IN OPERATION.
THIS APPLIANCE MUST NOT BE INSTALLED IN A BEDROOM OR BATHROOM.

7
W415-0810 / A / 05.04.10
2.3 GENERAL INFORMATION
No external electricity (110 volts or 24 volts) is required for the gas system operation.
Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected.
This appliance is equipped with a pilot light safety system referred to as an oxygen depletion sensor and is
designed to turn off the appliance if not enough fresh air is available.
4.2B
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The appliance must be
isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa). When
installed with a blower the junction box must be electrically connected and grounded in accordance with local
codes. In the absence of local codes, use the current ANSI / NFPA 70 National Electric Code. In the case
where the blower is equipped with a power cord it must be connected into a properly grounded receptacle.
The grounding prong must not be removed from the cord plug.
As long as the required clearance to combustibles is maintained,
the most desirable and beneficial location for the appliance is in the
center of a building, thereby allowing the most efficient use of the
heat created. The location of windows, doors and the traffic flow in
the room where the appliance is to be located should be considered.
If the appliance is installed directly on carpeting, vinyl tile or other
combustible material other than wood flooring, the appliance shall be installed on a metal or wood panel
extending the full width and depth. NOTE: This does not apply to stoves.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org

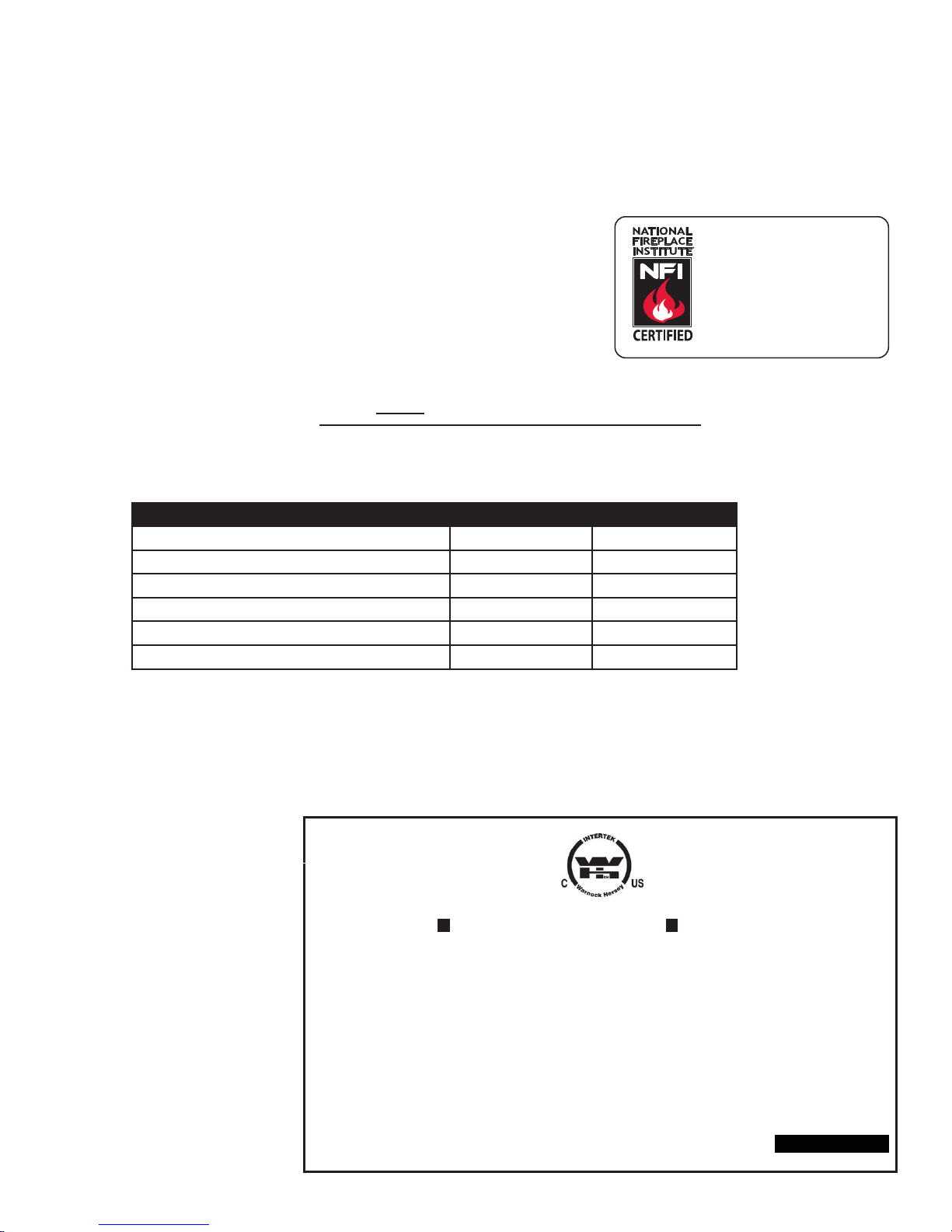

2.4 RATING PLATE INFORMATION
WARNING: FIREPLACE SCREENS MUST BE CLOSED WHILE IN OPERATION.DO NOT ADD ANY MATERIAL TOTHE APPLIANCE, WHICH WILL COME IN
CONTACT WITH THE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE. DO NOT USE BLOWER INSERT, HEAT EXCHANGER INSERT OR OTHER
ACCESSORIES NOT APPROVED FOR USE WITH THIS HEATER. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTAINANCE CAN CAUSE PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE. REFER TO THE OWNER'S INFORMATION MANUAL PROVIDED WITH THIS APPLIANCE. INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER.
W385-0254
MADE IN CANADA
WOLF STEEL LTD, BARRIE, ON, CANADA
SERIAL NUMBER: GVF40 / CVF400
*MAXIMUM HORIZONTAL EXTENSION: 2". SEE INSTRUCTION
MANUAL FOR GREATER EXTENSIONS.
ELECTRICAL RATING: 115V 0.82AMP, 60HZ
OPTIONAL FAN KIT: GZ550-KT
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS:
TOP / SIDES / BACK / FLOOR 0
RECESSED DEPTH 25¼"
MANTLE 5" *
CERTIFIED UNDER: ANSI Z21.11.2-2000 VOLUME II, UNVENTED ROOM HEATER
CERTIFIED FOR USA
ALTITUDE
INPUT
REDUCED INPUT
ORIFICE
MANIFOLD PRESSURE: 10" WATER COLUMN
MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN
MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN
SIT CONTROL: #820636
OPERATING PILOT OXYPROTECTOR: #8404
MANIFOLD PRESSURE: 3.5" WATER COLUMN
MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN
MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN
SIT CONTROL: #820637
OPERATING PILOT OXYPROTECTOR: # 8214
**ABOVE 2,000FT, CONSULT LOCALAUTHORITY HAVING JURISDICTION
NOT FOR USE WITH SOLID FUEL.
**0-2000FT (0-610m)
30,000 BTU/h
20,000BTU/h
#39
0-2000FT (0-610m) **
28,500 BTU/h
22,000BTU/h
#53
GVF40-N / CVF400-N
MODEL
GVF40-P / CVF400-P
MODEL
THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET,
PERMANENTLY LOCATED, MANUFACTURED (MOBILE) HOME, WHERE
NOT PROHIBITED BY LOCAL CODES. THIS APPLIANCE IS ONLY FOR USE
WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE. THIS
APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.
THIS IS A GAS-FIRED UNVENTED ROOM HEATER THAT REQUIRES AD-
EQUATE COMBUSTION AND VENTILATION AIR. THIS UNIT IS NOT APPROVED
FOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION.
REFERENCE # W/N 15515
For rating plate
location, see
“DIMENSIONS”
section.
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!
APPLIANCE NG LP
Altitude (FT) 0-2,000 0-2,000
Max. Input (BTU/HR) 30,000 30,000
Min. Inlet Gas Supply Pressure 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water Column 13" Water Column
Manifold Pressure (Under Flow Conditions) 3.5" Water Column 10" Water Column

8
W415-0810 / A / 05.04.10
This appliance shall not be installed in a room or space unless the required volume o
f
indoor combustion air
is provided by the method described in the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, the International
Fuel Gas Code, or applicable local codes.
To determine the volume of the room where the appliance is to be installed, multiply the width x the length x
the ceiling height of that room measured in feet. If any adjoining rooms are connected by grilles or openings
such as kitchen pass-throughs, etc., the volume of those rooms may be added to the total.
Multiply the room volume by 1000 and divide this amount by 50 to determine the maximum BTU/hr that the
space can support with adequate combustion and ventilation air.
A
dd the Btu/hr of all fuel burning appliances located within the space such as gas furnace, gas water
appliance, etc. Do not include direct vent gas appliances which draw their input and output air from and to the
outdoors.
Unusually tight construction is defined as construction where:
A) Walls and ceilings exposed to the outside atmosphere have a continuous water vapour retarder with a
rating of 1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings gasketed or sealed, and
B) Weather stripping has been added on openable windows and doors, and
C) Caulking or sealants are applied to areas such as joints around window and door frames, between sole
plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
!
WARNING
IF THE AREA IN WHICH THEAPPLIANCE MAY BE OPERATED IS SMALLER THAN THAT DEFINED AS
AN UNCONFINED SPACE OR IF THE BUILDING IS OF UNUSUALLY TIGHT CONSTRUCTION, PROVIDE
ADEQUATE COMBUSTION AND VENTILATION AIR BY ONE OF THE METHODS DESCRIBED IN THE
NATIONAL FUEL GAS CODE ANSI Z223.1/ NFPA 54 ,AIR FOR COMBUSTION AND VENTILATION, OR THE
APPLICABLE LOCAL CODE.
IF THE AREA IN WHICH THEAPPLIANCE MAY BE OPERATED DOES NOT MEET THE REQUIRED VOLUME
FOR INDOOR COMBUSTION AIR, COMBUSTION AND VENTILATION AIR SHALL BE PROVIDED BY ONE
OF THE METHODS DESCRIBED IN THE ANSI Z223.1 / NFPA 54, THE INTERNATIONAL FUEL GAS CODE,
OR APPLICABLE LOCAL CODES.
3.2 DETERMINING CONFINED OR UNCONFINED SPACE
3.0 INSTALLATION
The GVF40 is rated at 30,000 BTUs per hour for natural gas and 28,500 BTUs for propane and therefore
requires a minimum unconfined space of 1,500 and 1,425 cubic feet respectively.
17.1A
This appliance shall not be installed in a con
fi
ned space or unusually tight construction unless provisions are
provided for adequate combustion and ventilation air.
The National Fuel Gas Code, ANSI Z223.1 / NFPA 54 defines a confined space as a space whose volume is
less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances
installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed, through openings not
furnished with doors are considered a part of the unconfined space.
3.1 COMBUSTION AND VENTILATION AIR PROVISIONS

9
W415-0810 / A / 05.04.10
19.1A
A
n unvented room appliance is recommended for use as a secondary heat source rather than as a primary
source. Gas combustion produces water vapour which could occur at the rate of approximately one ounce of
water for every 1,000 BTU/hr of gas input. During the cold weather season, indoor humidity levels tend to be
low. Consequently, this water vapour can enhance the living space. However if a problem should occur:
A) Ensure sufficient combustion and circulation air
B) Use a dehumidifier
C) Do not use the unvented room appliance as a primary heat source
Without sufficient fresh air for proper operation, poor fuel combustion can result. Carbon Monoxide is a result
of poor combustion.
If additional fresh air is required, use one of the methods described in the National Fuel
Gas Code, ANSI Z223.1, Section 5.3 or the applicable local code.
Room Volume = Length x Width x Height
Max BTU/hr = Room Volume x 1000 / 50
LENGTH
HEIGHT
ROOM 2
ROOM 1
WIDTH
If for example:
The length of the rooms is 10 feet,
The width of Room 1 is 10 feet,
The width of Room 2 is 15 feet,
The height of the rooms is 8 feet.
The volume of Room 1: 10x10x8 = 800 cubic feet
The volume of Room 2: 10x15x8 = 1200 cubic feet
If there are no more fuel burning appliances within this space then the 30,000 BTU/h input of the appliance is
suitable to be installed. This also assumes that the construction of this space is not unusually tight.
19.3
EXAMPLE 2:
If in this example a solid door separates Room 1 from Room 2, the volume of Room 2 could not be used. In
this case the maximum BTU/h would be:
Maximum BTU/h: 800x1000 = 16,000 BTU/h
50
This would be considered a confined space since it can not support the 30,000 BTU/h input of the appliance
and it would be necessary to provide adequate combustion and ventilation air to Room 1.
19.2
EXAMPLE 1:
In this example, because there is no door to the adjoining room, the volume of the adjoining room may be
added to the volume of the room with the heater to get a total unconfined space.
The total unconfined space: 800 + 1200 = 2000 cubic feet.
Maximum BTU/h: 2000x1000 = 40,000 BTU/h
50

10
W415-0810 / A / 05.04.10
30.1A
Installation and servicing to be done by a qualified installer. Do not use open flame.
• Move the appliance into position and secure.
• If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
• When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
• The gas line flex-connector should provide sufficient movement to permit shifting the burner assembly
on it’s side.
• Check for gas leaks by brushing on a soap and water solution.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
3.3 GAS INSTALLATION
3.3.1
3.3.2
3.3.3
3.3.4
3.3.5
3.3.6

11
W415-0810 / A / 05.04.10
3.4 ELECTRICAL CONNECTION
For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient
location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The
recommended maximum lead length depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.
50.1
3
1
2
!
WARNING
DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE DIRECTLY TO 110
VOLT ELECTRICITY.
3.4 MOBILE HOME INSTALLATION
29.2
S
uitable
f
or mobile home installation where the mobile home has been permanently placed on its site.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where
not prohibited by local codes.
For mobile home installations, the appliance must be fastened in place. It is recommended that the appliance
be secured in all installations. See “REPLACEMENTS” section for the levelling / securing kit specific to your
appliance.

12
W415-0810 / A / 05.04.10
4.0 PENINSULA INSTALLATION
4.1 FRAMING
It is best to frame your appliance after it is
positioned. Use 2x4’s and frame to local
building codes.
A = 22 1/8” minus finishing material
thickness each side.
To install the appliance face flush with
the finished wall, position the frame-
work to accommodate the thickness of
the finished wall.
38 1/4”
22 1/8”
39 1/2”
6 1/8”
2 1/2”
THE UNIT IS
NOT LOAD
BEARING
A
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLI-
ANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY
OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO COMBUSTIBLES IS
MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN AIR
SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH SAGGING
OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK OPENING
INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE INSULATION AND
OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO MAIN-
TAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS LISTED
MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING
ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COM-
BINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING ASTM E 136,
STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE FURNACE AT
750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE INSTALLED.
71.1

13
W415-0810 / A / 05.04.10
NOTE: Wolf Steel trim and/or surround kits will
not totally cover the top extension of the appli-
ance. In order to obtain a smooth transition from
the trim / surround to the wall, it is recommended
that the top extension be removed and the unit
be installed following the preceding procedure.
TOP EXTENTION
TOP OF THE UNIT
NONCOMBUSTIBLE
MATERIAL
COMBUSTIBLE
MATERIAL
4.3 BRICK PANEL INSTALLATION
Install the base panels as illustrated. The side panel sits under the bracket tab. Holding the side panel in
position, bend down the tab to secure.
RETAINER
4.2 COUNTER TOP / BAR INSTALLATION
When finishing the appliance, combustible material may rest
directly on of the top extension.
NOTE: Maximum weight tolerance is 400 lbs, provided
that it is evenly distributed across the top extensions of
the appliance.
In order to achieve a counter top or bar type appearance
with the minimum height allowed, framing must be non-
combustible and may be done with metal studding attached
to the heat shield sides or the upper frame of the appliance.
*The topextension may beremovedif non-combustible fram-
ing is faced with a non-combustible material placed flush with
the front face of the unit and extending from the top of the unit.
(Example:cementboard)(not supplied). Combustible counter/
bar tops must maintain a minimum of 38 inches from the base
of the appliance to the underside of the top.
STUD
5"
NON-COMBUSTIBLE
MATERIAL *METAL
3" *COMBUSTIBLE
MATERIAL
EXTENSION
TOP
5"

14
W415-0810 / A / 05.04.10
4.4 FACING
Combustible materials may be installed flush
with the front of the appliance but must not cover
any of the black face-areas of the appliance.
Non-combustible material (brick, stone or
ceramic tile) may protrude in these areas. It is
not necessary to install a hearth extension with
this appliance system.
When roughing in the appliance, raise the
appliance to accommodate for the thickness of
the finished floor materials, i.e. Tile, carpeting,
hard wood, which if not planned for will interfere
with the opening of the lower access door and
the installation of many decorative flashing
accessories.
4.5 FINISHING
See “FINISHING” section for complete instructions regarding mantel requirements and installations, log
placement and upper and lower louvre attachments.
DRYWALL
4” MIN
DRYWALL

15
W415-0810 / A / 05.04.10
5.0 OPEN-END INSTALLATION
5.1 FRAMING
It is best to frame your appliance after
it is positioned and the vent system is
installed. Use 2x4’s and frame to local
building codes.
A = 25 1/8” minus finishing material
thickness each side.
NOTE: Left corner unit illustrated.
To install the appliance face flush with
the finished wall, position the framework
to accommodate the thickness of the
finished wall.
38 1/4”
38”
6 1/8”
2 1/2”
THE UNIT IS
NOT LOAD
BEARING
A
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLI-
ANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY
OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO COMBUSTIBLES IS
MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN AIR
SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH SAGGING
OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK OPENING
INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE INSULATION AND
OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO MAIN-
TAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS LISTED
MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING
ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COM-
BINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING ASTM E 136,
STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE FURNACE AT
750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE INSTALLED.
71.1

16
W415-0810 / A / 05.04.10
RETAINER
5.2 BRICK PANEL INSTALLATION
Install the base panels as illustrated in on page 11. The side panel sits under the bracket tab.Holding the side
panel in position, bend down the tab to secure.
DRYWALL
DRYWALL
4” MIN
5.3 FACING
Combustible materials may be installed flush with the front of the appliance but must not cover any of the black
face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in these
areas.
It is not necessary to install a hearth extension with this appliance system.
When roughing in the appliance, raise the appliance to accommodate for the thickness of the finished floor
materials, i.e. Tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower
access door and the installation of many decorative flashing accessories.
5.4 FINISHING
See “FINISHING” section for complete instructions regarding mantel
requirements and installations, log placement and upper and lower
louvre attachments.

17
W415-0810 / A / 05.04.10
6.0 SEE-THRU INSTALLATION
6.1 FRAMING
It is best to frame your appliance after
it is positioned and the vent system is
installed. Use 2x4’s and frame to local
building codes.
A = 22 1/8” minus finishing material
thickness, each side.
38 1/4”
40 1/2”
6 1/8”
2 1/2”
A
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLI-
ANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY
OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO COMBUSTIBLES IS
MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN AIR
SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH SAGGING
OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK OPENING
INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE INSULATION AND
OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO MAIN-
TAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS LISTED
MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING
ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COM-
BINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING ASTM E 136,
STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE FURNACE AT
750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE INSTALLED.
71.1

18
W415-0810 / A / 05.04.10
RETAINER
RETAINER
6.2 BRICK PANEL INSTALLATION
Install the base panels as previously illustrated. Both side panels sit under the bracket tab. Holding the side
panel in position, bend down the tab to secure.
DRYWALL
DRYWALL
4”
MIN
6.3 FACING
Combustible materials may be installed flush with the front of the appliance but must not cover any of the black
face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in these
areas.
It is not necessary to install a hearth extension with this appliance system.
When roughing in the appliance, raise the appliance to accommodate for the thickness of the finished floor
materials, i.e. Tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower
access door and the installation of many decorative flashing accessories.
6.4 FINISHING
See “FINISHING” section for complete instructions
regarding mantel requirements and installations, log
placement and upper and lower louvre attachments.

19
W415-0810 / A / 05.04.10
7.0 ISLAND INSTALLATION PROCEDURES
7.1 FRAMING
It is best to frame your appliance after it is positioned.
Use 2x4’s and frame to local building codes.
A= 22 “ minus finishing material thickness
each side.
To install the appliance face flush with the finished
wall, position the framework to accommodate the
thickness of the finished wall.
38 1/4”
36”
6 1/8”
2 1/2”
THE UNIT IS
NOT LOAD
BEARING
A
22 1/8”
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLI-
ANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY
OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO COMBUSTIBLES IS
MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN AIR
SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH SAGGING
OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK OPENING
INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE INSULATION AND
OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO MAIN-
TAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS LISTED
MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING
ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COM-
BINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING ASTM E 136,
STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE FURNACE AT
750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE INSTALLED.
71.1

20
W415-0810 / A / 05.04.10
Install the base panels, see “PENINSULA INSTALLATION PROCEDURES” section.
7.2 BRICK PANEL INSTALLATION
Combustible materials may be installed flush with
the front of the appliance but must not cover any
of the black face-areas of the appliance. Non-
combustible material (brick, stone or ceramic tile)
may protrude in these areas.
It is not necessary to install a hearth extension with
this appliance system.
When roughing in the appliance, raise the appliance
to accommodate for the thickness of the finished
floor materials, i.e. Tile, carpeting, hard wood, which
if not planned for will interfere with the opening of
the lower access door and the installation of many
decorative flashing accessories.
7.3 FACING
See “FINISHING” section for complete instructions regarding mantel requirements and installations, log
placement and upper and lower louvre attachments.
7.4 FINISHING
DRYWALL DRYWALL
