Napoleon BGNV36N User manual

1
W415-0275/D/10.01.07
CERTIFIEDUNDERCANADIANANDAMERICANNATIONALSTANDARDS,CSA2.22,ANDANSIZ21.50RESPECTIVELYFORVENTEDGASFIREPLACES.
MILLIVOLT SYSTEM
INSTALLATION AND OPERATION INSTRUCTIONS FOR
VENTED GAS FIREPLACE
NATURAL GAS MODEL BGNV36N
PROPANE GAS MODEL BGNV36P
CERTIFIED FOR CANADAAND UNITED STATES USINGANSI / CSA METHODS
WARNING: If theinformationinthese instructionsis notfollowed exactly,a fireor explo-
sionmay resultcausingpropertydamage,personal injuryor death.
FOR YOUR SAFETY
Donot storeoruse gasolineor otherflammable vapoursandliquids inthe vicinityof this
orany otherappliance.
WHAT TO DO IF YOU SMELL GAS:
• Donot trytolight anyappliance.
• Donot touchany electricalswitch.
• Donot useany phonein yourbuilding.
• Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier'sinstructions.
• If you cannot reach your gas supplier, call
thefire department.
Installationand servicemust be performedby aqualifiedinstaller, serviceagencyor the
gassupplier.
INSTALLER:THESEINSTRUCTIONSMUSTBECONVEYEDTOANDREMAINWITHTHEHOMEOWNER.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • [phone] • fax[phone]
www.napoleonfireplaces.com • [email protected]

2
W415-0275/D/10.01.07
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
WARNINGWARNING
WARNINGWARNING
WARNING
PLEASE RETPLEASE RET
PLEASE RETPLEASE RET
PLEASE RETAINAIN
AINAIN
AIN THIS MANUTHIS MANU
THIS MANUTHIS MANU
THIS MANUAL FOR FUTURE REFERENCEAL FOR FUTURE REFERENCE
AL FOR FUTURE REFERENCEAL FOR FUTURE REFERENCE
AL FOR FUTURE REFERENCE
PG 2-4 INTRODUCTION
Warranty
General Instructions
General Information
Care of Glass & Plated Parts
5 VENTING
Safety Switch
Hi Limit Switch
Venting Action Check
6-7 INSTALLATION
Gas Installation
Framing
Nailing Tab Installation
Mantle Clearances
8-9 FINISHING
Door Opening & Closing
Louvre Installation
Log Placement
Charcoal & Glowing Embers
Logo Placement
PG10 OPTIONALBLOWER INSTALLATION
11 OPTIONAL FAN INSTALLATION
OPTIONALTHERMOSTATICSENSOR
1
2-13 OPERATION / MAINTENANCE
Operating Instructions
Maintenance
13 ADJUSTMENTS
Pilot Burner Adjustment
Venturi Adjustment
1
4-15 REPLACEMENTS
Ordering Replacement Parts
Replacement Parts
Accessories
1
6-17 TROUBLE SHOOTING GUIDE
18 SERVICE HISTORY
• Do not burn wood or other materials in this fireplace.
• Adults and especially children should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition. Supervise young children when they are in the same room as the
fireplace.
• Clothing or other flammable material should not be placed on or near the fireplace.
• Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the fireplace is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the fireplace.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
fireplace and venting system are kept clean. The fireplace and its venting system should be inspected before
use and at least annually by a qualified service person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. The fireplace area must be kept clear and free from
combustible materials, gasoline and other flammable vapours and liquids.
• Under no circumstances should this fireplace be modified.
• This fireplace must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to
inspect the fireplace and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the fireplace with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the fireplace glass door.
TT
TT
TABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTS

3
W415-0275/D/10.01.07
®
®
®
®
®
®
®
®
®
®
®®
®
®
®
®®
®®
®
®

4
W415-0275/D/10.01.07
Minimum inlet gas supply pressure is 4.5 inches water
column for natural gas and 11 inches water column for
propane.Maximuminlet gaspressure is7incheswater
columnfor natural gas and 13 inches water column for
propane.Manifoldpressureunderflowconditionsis3.5
incheswater columnfornaturalgasand 10 incheswater
columnforpropane.
This fireplace is approved for bedroom and bed-sitting
roominstallation.
Noexternal electricity (110 volts or 24volts)is required
for the gas system operation. Expansion / contraction
noises during heating up and cooling down cycles are
normal and are to be expected.
Donotuseabrasivecleaners to clean plated parts. Buff
lightly with a clean dry cloth. The fireplace is factory
equippedwith 3/16" thick tempered glass. Use only re-
placementglassavailable from your Napoleon dealer.
Do not substitute materials.
Cleantheglass after the first10 hours of operation with
arecommendedgasfireplaceglasscleaner. Thereafter
cleanas required.
Do not clean glass when hot!
If the glass is not kept clean permanent discolouration
and / or blemishes may result.
Use only accessories designed for and listed with
yourspecific fireplace.
Provide adequate ventilation and combustion air. Pro-
videadequate accessibility clearance forservicing and
operating the fireplace. Never obstruct the front open-
ing of the fireplace.
Objects placed in front of the fireplace must be kept a
minimum of 48" away from the front face of the unit.
Forsafeandproper operation of the fireplace follow the
venting& operating instructions exactly.
Provideameans for visually checking theventconnec-
tion to the fireplace after the fireplace is installed.
In order to avoid the possibility of exposed insulation
andvapour barrier coming intocontactwiththefireplace
body, it is recommended that the walls of the fireplace
enclosure be 'finished' (ie: drywall/sheetrock) as you
wouldfinishanyotherwallof the home. This will ensure
thatclearance to combustibles ismaintained within the
cavity.

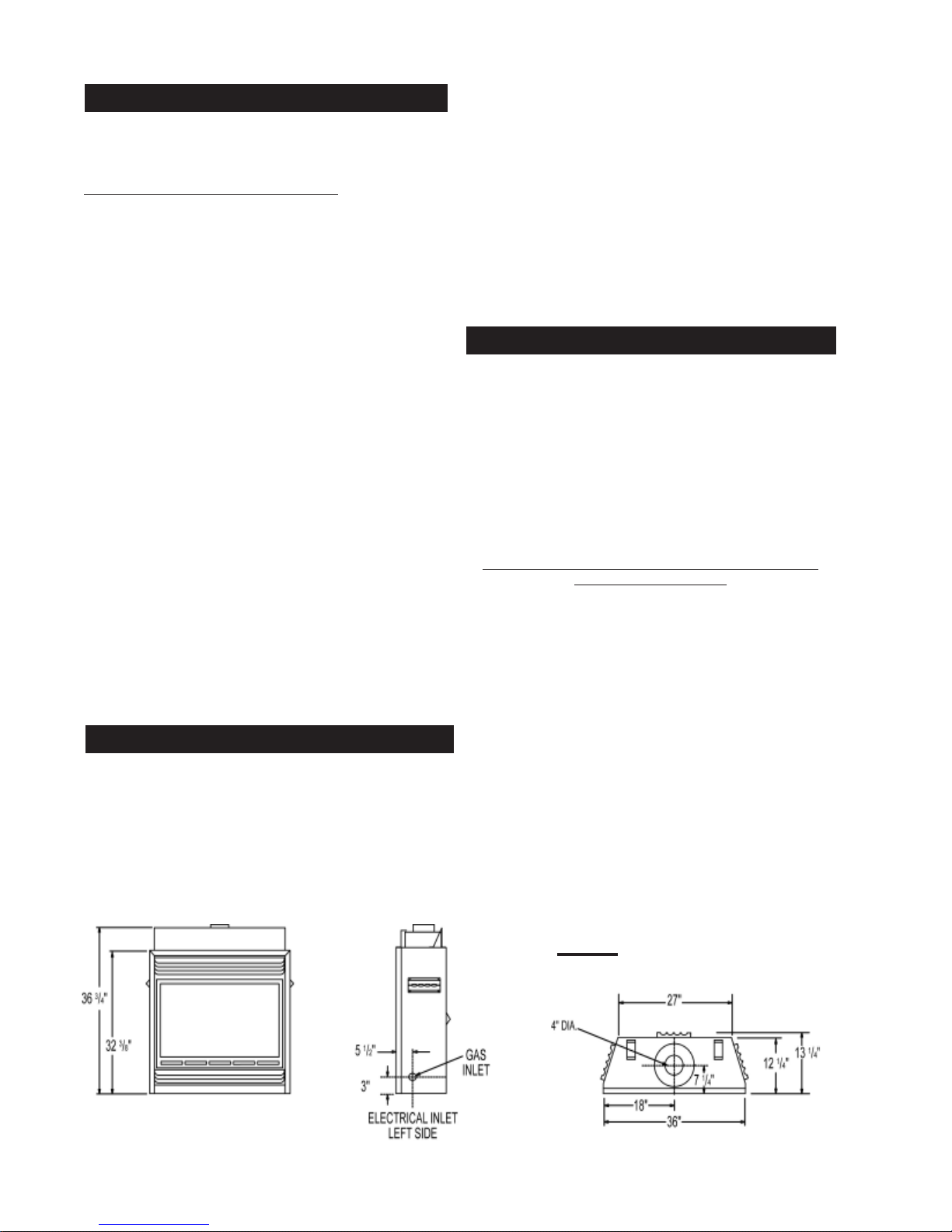

FIGURE1
This gas fireplace should be installed and serviced by
a qualified installer to conform with local codes.
Installationpracticesvaryfrom region to region and itis
importantto know the specifics that apply to your area,
for example: in Massachusetts State:
•The fireplace damper must be removed or welded in
the open position prior to installation of the fireplace
insert or gas log.
•Theapplianceoffvalvemustbea"T" handle gas cock.
•The flexible connector must not be longer than 36
inches.
•The appliance is not approved for installation in a
bedroom or bathroom unless the unit is a direct vent
sealedcombustion product.
• WARNING: This product must be installed by a
licensedplumber or gas fitter when installed within the
commonwealthof Massachusetts.
In absence of local codes, install the fireplace to the
current National Fuel Gas Code, ANSI Z223.1, or the
currentCAN/CGA B149, Installation Codes.
The fireplace and its individual shutoff valve must be
disconnectedfromthegassupplypipingsystem during
any pressure testing of that system at test pressures
in excess of 1/2 psig (3.5 kPa). The fireplace must be
isolated from the gas supply piping system by closing
itsindividual manual shutoffvalve during anypressure
testingof thegassupplypiping systemattestpressures
equal to or less than 1/2 psig (3.5 kPa).
When the fireplace is installed directly on carpeting,
vinyltile or other combustiblematerial other than wood
flooring, the fireplace shall be installed on a metal or
woodpanel extending the full widthand depth.
If the optional fan or blower is installed, the junction
box must be electrically connected and grounded in
accordance with local codes. In the absence of local
codes, use the current CSA C22.1 CANADIAN
ELECTRICALCODE in Canada or theANSI/NFPA70
NATIONALELECTRICALCODE in the United States.
FOR YOUR SATISFACTION, THIS FIREPLACE HAS
BEEN TEST-FIRED TO ASSURE ITS OPERATION
AND QUALITY! Maximum input for the fireplace is
17,000 BTU/h for natural gas and propane. When the
fireplaceisinstalled at elevations above4,500ft, and in
theabsense of specificrecommendationsfromthelocal
authority having jurisdiction, the certified high altitude
input rating shall be reduced at the rate of 4% for each
additional1,000ft.
GENERAL INSTRUCTIONS
GENERAL INFORMATION
CARE OF GLASS, AND PLATED PARTS

5
W415-0275/D/10.01.07
This is a vented appliance and must be connected to a
chimney in accordance with the current installation
codes. In absence of local codes, install to the current
National Fuel Gas Code, ANSI Z223.1, or the current
CAN/CGA B149, Installation Codes. This model can be
common-vented.
A minimum four inch diameter (4"ø) B-vent or class A vent
is required. A minimum 10' vent height is required. Secure
the B-vent to the exhaust collar on the stove top with 3
screws. In cold climates, the use of a B-vent and an insu-
lated chase is recommended.
This thermally activated switch, located in front of the draft
hood, senses an increase in temperature and acts as a
safety shut-off (See 'A' below). It shuts down the gas to the
main burner in the event of a severe downdraft of air or a
blocked or disconnected chimney flue. If the flue is blocked
or has no "draw", the safety switch will automatically shut
off the supply of gas to the main burner within 10 minutes.
This switch must be manually reset by depressing the
plunger. Refer to Figure 2.
Tampering with the safety switch can result in carbon
monoxide poisoning and possible death.
This thermally activated switch, located in front of the draft
hood, senses an increase in temperature and acts as a
safety shut-off (See 'A' below). It shuts down the gas to the
main burner in the unlikely event of the unit overheating.
The HI Limit switch will automatically reset after the unit
has cooled down, resuming gas flow to the main burner.
A test for correct venting action must be made before
the installed unit can be left with the customer.
Follow the procedure below:
1. Close all doors and windows in the room / start
exhaust fans in the home / turn the fireplace blower off (if so
equipped).
2. Set controls to "high" and light the unit.
3. Wait 5 minutes. Light a match and hold to the front of
the draft draft hood. FIGURES 4 & 5.
FIGURE4
Venting action is satisfactory, if smoke and flames are
drawn into the draft hood.
Venting action is unsatisfactory, if the smoke spills back, and
the flame splays outward. If venting action is unsatisfactory,
turn off the unit, wait 10 minutes and try again. If the smoke is
still not drawn into the draft hood, turn the unit off and check for
vent blockage or restriction. If necessary, consult with a quali-
fied inspector.
TheSafety or Hi Limit switchesmustnot be adjusted
or disabled.
Inthe eventthat eitherswitchor anyassociated parts
are exchanged, only original manufacturer's parts
may be used.
FIGURE5
VENTING
SAFETY SWITCH
HIGH LIMIT SWITCH
VENTING ACTION CHECK
TH
TP
TH
O
T
P
I
L
L
O
I
H
N
F
L
O
T
O
P
I
F
O
THERMOSTAT OR
WALL SWITCH
VALV E
HIGH LIMIT
SWITCH
SAFETY
SWITCH
FIGURE3
1
2
3
B
A
PLUNGER
HI LIMIT
SWITCH

6
W415-0275/D/10.01.07
P
I
P
I
L
O T
3
12
N
O
L
O
T
H
I
L
O
F
F
O
It is best to frame your fireplace after it is positioned and
the vent system is installed. Use 2x4's and frame to local
building codes.
Combustible materials may be installed flush with the front
of the fireplace but must not cover any of the black face-
areas of the fireplace. Non-combustible material (brick,
stone or ceramic tile) may protrude in these areas.
Combustible objects, like furniture, placed in front of the
fireplace, must be kept a minimum of 48" away from the
front face.
In order to avoid the possibility of exposed insulation and
vapour barrier coming into contact with the fireplace body, it
is recommended that the walls of the fireplace enclosure
be 'finished' (ie: drywall/sheetrock) as you would finish any
other wall of the home. This will ensure that clearance to
combustibles is maintained within the cavity.
It is not necessary to install a hearth extension with this
fireplace system.
When roughing in the fireplace, raise the fireplace to ac-
commodate for the thickness of the finished floor materi-
als, i.e. tile, carpeting, hard wood, which if not planned for
will interfere with the opening of the lower access door and
the installation of many decorative flashing accessories.
Proceed once the vent installation is complete.
1. Move the fireplace into position and secure using the
nailing tabs and/or secure to the floor through the 1/4"ø
holes located at either end of the base.
2. Route a 3/8" N.P.T. black iron gas line, 1/2" type-L
copper tubing or equivalent to the fireplace.
3. For ease of accessibility, an optional remote wall
switch or millivolt thermostat may be installed in a conven-
ient location. Route 2-strand (solid core) millivolt wire
through the electrical hole located at the bottom left side of
the unit. The recommended maximum lead length de-
pends on wire size:
WIRESIZE MAX.LENGTH
14gauge 100 feet
16gauge 60 feet
18gauge 40 feet
Attach the one lead to terminal 3 (located on the gas valve)
and the other lead to the vent safety switch wire ( located
loose in the valve compartment). See FIGURE 3.
Do not connect either the wall switch, thermostat or
gas valve to electricity (110 volts).
4. Install rigid black pipe, 1/2" type-L copper tubing or, if
local codes permit, a 3/8" flex connector and shutoff valve
to the gas line and the fireplace gas valve. Seal and tighten
securely. An adapter fitting is required between the gas
valve and the coppertubing or flex connector. DO NOT KINK
FLEXIBLECONNECTOR.FIGURE6.
5. Check for gas leaks by brushing on a soap and water
solution. Do not use open flame.
Purge all gas lines with the glass door of the fireplace
open. Assure that a continuous gas flow is at the burner
before closing the door.
FIGURE7
FIGURE6 FIGURES8
FIGURE 10a-b
FIGURE9
GAS INSTALLATION FRAMING
CLEARANCE TO COMBUSTIBLE
MAINTAIN THESE MINIMUM CLEARANCES TO
COMBUSTIBLECONSTRUCTION FROM FIREPLACE AND
VENTSURFACES:
Fireplace framing - 0” to stand-offs (rear, sides,bottom
and top).
Fireplace finishing.
Sides, back and bottom 0” inches
Enclosure top 12" inches
Recessed depth 13 1/4” inches
Vent Pipe 1” inch, B-VENT

7
W415-0275/D/10.01.07
1”
12”
4 5/8”
1”
4” B-VENT
FIRESTOP
3”
FIGURE13a
NAILING
TAB
FIGURE11
1) Attach the nailing tabs to the corner posts using
the 2 sheet metal screws supplied. Se-
cure through the centre of the top and
bottom slots in the nailing tab and then
through the existing holes in the cor-
ner posts.
If there are no existing holes, follow
these instructions:
Position the nailing tab so that the front
face is offset with the front edge of the
corner post (approx. ½"). Centre the
nailing tab vertically on the corner
post.
Figure 12 a.
Drill through the centre of the top and
bottom slots in the nailing tab. Secure
using the two sheet metal screws
supplied. This allows the nailing tab
to slide back and forth for desired fram-
ing.Figure 12 b.
2) To determine the final location of the nailing tab
you must first determine the thickness of your finishing
material (i.e. drywall). This will determine the dimension
from the front edge of the corner post to the nailing tab.
Once the nailing tab is in the desired location, drill through
the centre hole of the nailing tab. Secure with a sheet metal
screw*. Figure 12 c.
* Additional set screws may be installed.
NAILING TAB INSTALLATION
TOP SLOT
FINISHING
MATERIAL
CORNER
POST
NAILING
TAB
AB
C
CENTRE
HOLE
FIGURE12a-c
MINIMUM MANTLE AND
ENCLOSURE CLEARANCES
Combustible mantle clearance can vary according to the
mantle depth. Use the graph to help evaluate the clear-
ance needed.
MANTLE DEPTH
H
T
H
I
G
E
N
L
E
T
M
A
6
6
2
0
4
2 4
10
8
12
128 10
TOP OF
FIREPLACE
8” MANTLE
6”
4”
2”
2”
4”
6”
8”
FIGURE13b&c

8
W415-0275/D/10.01.07
The upper louvres must be
removed to allow the door
to be opened or closed. To
access the lower door
latch, open the valve con-
trol door. Release the top
andbottom door latches,lo-
cated at the right side of the
door.
UPPERLOUVRES:Insert the
upper louvres into the slots
on both brackets. Press the
top flange of the hood into the
four clips located along the
top of the unit as shown.
LOWER LOUVRES: Attach
each hinge to the firebox with
2 screws. door and optional
louvre.
HINGE SCREEN:Position the hinge screen into place and
with the control door open, secure to the firebox using three
screws.
DOORLATCH
UPPER LOUVRE
FLANGE CLIP
FIGURE13
LOWER LOUVRES
(VALVE CONTROLDOOR)
LOUVRE
HOOD
SLOT
BRACKET
FINISHING
DOOR OPENING & CLOSING
GVFL LOUVRE INSTALLATION
FIGURE14
FIGURE15
FIGURE16
FIGURE17
A
C
B
HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening.
Secure using a screw through
the centre slot.
ACLIPS
CENTRE
SLOT
FLANGE
UPPERLOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
SLOT
TAB
B
LOWERLOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
CHINGE
CLIP SLOT
L36 LOUVRE INSTALLATION

9
W415-0275/D/10.01.07
4. Position the notch located on the end of the center log
(#5) against the middle grate post with the other end of the
log resting in the pocket of the left crossover log.
5. Place the bottom of the right crossover log (#6) against
the right firebox side and pulled forward to the grate. The
top of the log should rest in the pocket provided on the
center log (#5).
PHAZERTM logs and glowing embers exclusive to Napoleon
Fireplaces, provide a unique and realistic glowing effect
that is different in every installation. Take the time to care-
fully position the glowing embers for a maximum glowing
effect.
Log colours may vary. During the initial use of the fireplace,
the colours will become more uniform as colour pigments
burn in during the heat activated curing process.
1. Place the back log (#1) onto the log
support tray and in front of the tabs. The
tabs maintain an air space between the
log and firebox back to facilitate combus-
tion air flow. Ensure that the back of the
log rests against the brackets on the back
wall of the firebox.
2. Move the two small logs (#2 & #3) into position, lining
up the studs located on the burner with the holes on the
bottom of the logs. Ensure that the small logs sit flat on the
burner.
3. Place the bottom of the left crossover log (#4) against
the left firebox side and pulled forward to the grate.
The top of the log should rest in the pocket on the back log.
LOG PLACEMENT
Randomly place the charcoal embers along the front and
sides of the log support tray in a realistic manner. Fine dust
found in the bottom of the bag should not be used.
Tear the embers into pieces and place along the front row
of ports covering all of the burner area in front of the small
logs (#2 & #3). Care should be taken to shred the embers
into thin, small irregular pieces as only the exposed edges
of the fibre hairs will glow. The ember material will only
glow when exposed to direct flame; however, care
should be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern,
carbon deposits and delayed ignition. PHAZERTM logs glow
when exposed to direct flame. Use only certified "glowing
embers" and PHAZERTM logs available from your Napo-
leon dealer.
Remove the backing of the
logo supplied and place on the
glass viewing door, as indi-
cated.
CHARCOAL EMBERS
GLOWING EMBERS
LOGO PLACEMENT
½"
½"
LOGO
FIGURE19
FIGURE18a-f
TAB
SIDEVIEW

10
W415-0275/D/10.01.07
Attach the connectors from
the black and white wires
to the thermodisc and se-
cure the thermodisc
bracket to the securing
studatthe bottomleftof the
unit using a lock washer
and wing nut. Ensure that
the thermodisc touches
the firebox wall.
Attach the connectors from the black and
red wires to the blower.
Attach and secure the variable speed
switch using the nut provided. Plug the
harness cord into the receptacle.
The wire harness provided in this kit is a universal
harness. When installed, ensure that any excess
wire is contained, preventing it from making con-
tact with moving or hot objects.
Because the blower is thermally activated, when
turned on, it will automatically start approximately
15 minutes after lighting the fireplace and will run
for approximately 30-45 minutes after the fireplace
has been turned off. Use of the fan increases the
output of heat.
Drywall dust will penetrate into the blower bear-
ings causing irreparable damage. Care must be
taken to prevent drywall dust from coming into
contact with the blower or its compartment. Any
damage resulting from this condition is not cov-
ered by the warranty policy.
A
B
INSTALLATION TO BE
DONE BY A QUALIFIED
INSTALLER and must be
electrically connected and
grounded in accordance
withlocal codes. Inthe ab-
sence of local codes, use
the current CSA C22.1
CANADIAN ELECTRICAL CODE in
Canada or the
ANSI/NFPA 70 NATIONAL
ELECTRICAL CODE intheUnited States.
The three slots allow ease
of adjustment of the
blower. For a quiet run-
ning blower, do not allow
the assembly to sit on the
firebox base.
Slide the vibration reducing pad (A) into the clip and onto
the threaded stud (B) at the other end, piercing a hole into
the pad. The blower must be able to be positioned entirely
onto the pad.
Tilt the blower onto its side. Slide it past the controls and
into the clip (C). Secure to the threaded stud using the lock
washer and wing nut provided. Ensure that the blower
does not touch the fireplace base or the firebox.
C
A
B
OPTIONAL BLOWER INSTALLATION
FIGURE22 FIGURE23
red
white
black
FIGURE20
ADJUSTMENT
SLOTS
FIGURE21
THERMODISC
GROUND
SCREW
JUNCTION
RECEPTACLE /
BOX
FIGURE24
FIGURE25

11
W415-0275/D/10.01.07
RECEPTACLE /
JUNCTION BOX
OPTIONAL THERMOSTATIC
SENSOR
SLOTS
OPEN ENDED
BRACKET
VARIABLE SPEED/
PIEZO IGNITOR
JUNCTION BOX
THERMODISC
SENSOR ASSEMBLY
BRACKET
RECEPTACLE /
Attach and secure the sensor assembly bracket to the se-
curing stud located next to the receptacle/junction box at
the bottom left of the unit using the lock washer and wing
nut. Ensure that the thermodisc touches the firebox wall.
Plug the power cord back into the receptacle.
When installed, ensure that any excess wire is contained,
preventing it from making contact with moving or hot ob-
jects.
Slide the fan assembly past the controls and and into the
clip. Secure using the lock washer and nut provided.
Plug the harness cord into the receptacle.
ELECTRICAL INSTALLATION TO BE DONE BY A QUALI-
FIED INSTALLER and must be connected and grounded
in accordance with local codes. In the absence of local
codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE
in Canada or the ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in
the United States.
The wire harness provided in this kit is a universal har-
ness. When installed, ensure that any excess wire is con-
tained, preventing it from making contact with moving or
hot objects.
Position the vibration reducing pad into the clip and onto
the threaded stud at the other end, piercing a hole into the
pad. The fan assembly must be able to be positioned
entirely onto the pad.
FIGURE27
FIGURE26
FIGURE29
FIGURE28
This optional kit is meant to be used only in conjunction
with the GD65 Fan Kit, shown above, which may be or-
dered from your Wolf Steel / Napoleon dealer.
With the thermostatic sensor option, the fan, when turned
on, becomes thermally activated, and will automatically run
approximately 10 minutes after the fireplace has been lit
and for approximately 30-45 minutes after the fireplace has
been turned off.
Use of the fan increases the output of heat.
Unplug the power cord from the receptacle. Connect all
wires as shown.
OPTIONAL FAN INSTALLATION
THERMOSTATIC SENSOR CONTROL

12
W415-0275/D/10.01.07
P
I
N
O
L
O
T
F
F
O
FLAME
ADJUSTMENT
KNOB
O T
P
I
L
L
O
I
H
T
P
I
L
O
N
O
F
F
O
PILOT
ON/OFF
KNOB
• Turn off all gas to the fireplace.
• Open windows.
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire de-
partment.
GAS KNOB
A. This fireplace is equipped with a pilot which must be lit
by hand while following these instructions exactly.
B. Before operating smell all around the fireplace area for
gas and next to the floor because some gas is heavier
than air and will settle on the floor.
C. Use only your hand to turn the gas control knob. Never
use tools. If the knob will not turn by hand, do not try to
repair it. Call a qualified service technician. Force or
attempted repair may result in a fire or explosion.
D. Do not use this fireplace if any part has been under
water. Immediately call a qualified service technician to
inspect the fireplace and replace any part of the control
system and any gas control which has been under water.
WARNING: The gas valve has an interlock device which
will not allow the pilot burner to be lit until the thermocou-
ple has cooled. Allow approximately 60 seconds for the
thermocouple to cool.
Whenlighting and re-lighting, the gasknob cannotbe turned
from pilot to off unless the knob is depressed slightly.
1. Stop! Read the above safety information on this label.
2. Turn off all electric power to the fireplace.
3. Turn the gas knob clockwise to off.
4. Wait five (5) minutes to clear out any gas. If you smell
gas including near the floor. Stop! Follow "B" in the above
safety information on this label. If you don't smell gas go
the next step.
5. Turn gas knob counter-clockwise to pilot.
6. Depress slightly and hold gas knob while lighting the
pilot with the push button ignitor. Keep knob depressed
for one minute, then release. If pilot does not continue
to burn, repeat steps 3 through 5.
7. With pilot lit, depress and turn gas knob counter-clock-
wise to on.
8. If equipped with remote on-off switch/thermostat, main
burner may not come on when you turn valve to on.
Remote switch must be in the on position to ignite
burner.
9. Turn on all electric power to the fireplace.
1. Turn off all electric power to the fireplace if service is to
be performed. 2. Push in gas control knob slightly and turn clockwise
to off. Do not force.
Purge all gas lines with the glass door of the fireplace
opened. Assure that a continuous gas flow is at the
burner before closing the door.
When lit for the first time, the fireplace will emit a slight
odour for a few hours. This is a normal temporary condi-
tion caused by the curing of the logs and the "burn-in"
of internal paints and lubricants used in the manufac-
turing process and will not occur again.
After extended periods of non-operation such as fol-
lowing a vacation or a warm weather season, the fire-
place may emit a slight odour for a few hours. This is
caused by dust particles in the heat exchanger burning
off. In both cases, open a window to sufficiently venti-
late the room.
OPERATION / MAINTENANCE
FOR YOUR SAFETY READ BEFORE LIGHTING: WHAT TO DO IF YOU SMELL GAS:
LIGHTING INSTRUCTIONS
TO TURN OFF GAS
FIGURE30
FIGURE31

13
W415-0275/D/10.01.07
AIRSHUTTERADJUSTMENTMUST ONLYBEDONE BYA
QUALIFIEDGASINSTALLER!
Air shutter is accessed beside gas valve.
P
I
P
I
PILOT SCREW
L
O T
N
O
L
O
T
H
I
L
O
F
F
O
Adjust the pilot screw to provide properly sized flame. Turn
in a clockwise direction to reduce the gas flow.
Closing the air shutter will cause a more yellow flame, but
can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner
ports. The flame may not appear yellow immediately; al-
low 15 to 30 minutes for the final flame colour to be estab-
lished.
FIGURE32
FIGURE33
FIGURE34
MODELBGNV36
NG 1/16"
LP 3/8"
VENTURI
FIGURE 35 (not exactly as shown)
ADJUSTMENTS
3. Check to see that all burner ports are burning. Clean out
any of the ports which may not be burning or are not burn-
ing properly.
4. Check to see that the pilot flame is large enough to
engulf the thermocouple and thermopile and reaches to-
ward the burner with the third jet.
5. Replace the cleaned logs.
6. Check to see that the main burner ignites completely on
all openings when the gas knob for the burner is turned
on. A 5 to 10 second total light-up period is satisfactory. If
ignition takes longer, consult your Napoleon dealer / dis-
tributor.
7. Check that the gasketing on the sides, top and bottom of
the door is not broken or missing. Replace if necessary.
Turn off the gas and electrical power before servicing
the fireplace.
CAUTION: Label all wires prior to disconnection when serv-
icing controls. Wiring errors can cause improper and dan-
gerous operation. Verify proper operation after servicing.
This fireplace and its venting system should be inspected
before use and at least annually by a qualified service per-
son. The fireplace area must be kept clear and free of com-
bustible materials, gasoline or other flammable vapours
and liquids. The flow of combustion and ventilation air must
not be obstructed.
1. In order to properly clean the burner and pilot assembly,
remove the logs to expose both assemblies.
2. Keep the control compartment, logs, burner, air shutter
opening and the area surrounding the logs clean by vacu-
uming or brushing, at least once a year.
MAINTENANCE
PILOT BURNER ADJUSTMENT
VENTURI ADJUSTMENT

14
W415-0275/D/10.01.07
# PART NO. DESCRIPTION
1 W357-0001 PIEZO IGNITER
2 W680-0004 THERMOPILE
3 W680-0005 THERMOCOUPLE
4 W010-0764 BURNER
5 W010-0800 NATURAL GAS PILOTASSEMBLY
5 W010-0801 PROPANE GAS PILOTASSEMBLY
6 W660-0021 SAFETY SWITCH
7 W660-0007 HI LIMIT SWITCH
8* W660-0005 ON/OFF TOGGLE SWITCH
9 W455-0069 NATURAL GAS PILOT INJECTOR
9 W455-0067 PROPANE GAS PILOT INJECTOR
10 W725-0025 NATURAL GAS VALVE
10 W725-0026 PROPANE GAS VALVE
11* W385-0245 NAPOLEON LOGO
12* GD660 STANDARD WALL SWITCH & 20FT OF WIRE
13* W225-0099 BLACK DOOR FRAME
14 W010-0856 GLASS c/wGASKET
15 W010-0857 BLACK DOOR C/W GLASS
16 W455-0093 #48 NATURAL GAS ORIFICE
16 W455-0047 #56 PROPANE GAS ORIFICE
17 GL-639 LOG SET
18 W361-0016 GLOWING EMBERS
19 W550-0001 CHARCOAL EMBERS
20 W135-0183 BACK LOG (#1)
21 W135-0184 LEFT MIDDLE LOG (#2)
22 W135-0185 RIGHT MIDDLE LOG (#3)
23 W135-0186 LEFT CROSSOVER LOG (#4)
24 W135-0187 MIDDLE CROSSOVER LOG (#5)
25 W135-0188 RIGHT CROSSOVER LOG (#6)
26 W010-0805 LOUVRE HOOD W/ LOUVRE BRACKETS
# PART NO. DESCRIPTION
27* W690-0001 MILLIVOLTTHERMOSTAT
28* W660-0010 REMOTE CONTROL - ADVANTAGE
28* W660-0011 REMOTE CONTROL - ADVANTAGE PLUS
29 GZ550-1KT BLOWER KIT
30* GD65 FAN KIT
31* GD36 THERMOSTATIC SENSOR CONTROL KIT USE WITH GD65 ONLY
32* W500-0033 VARIABLE SPEED SWITCH WALLMOUNTING PLATE
33 GA-566 HOT AIR DISTRIBUTION KIT
34* W690-0005 THERMOSTAT 110V FOR USE WITH GA-566
35 GA-72 HOT AIR EXHAUST KIT
36 GA-70 EXTENSION KIT 5FT
37 GVFLK-1 LOUVRE KIT, UPPER & LOWER - BLACK
37 GVFLPB-1 LOUVRE KIT, UPPER & LOWER - POLISHED BRASS
37 GVFLAB-1 LOUVRE KIT, UPPER & LOWER - ANTIQUE BRASS
37 GVFLSS-1 LOUVRE KIT, UPPER & LOWER - BRUSHED STAINLESS STEEL
38 L36K LOUVRE KIT - UPPER & LOWER - BLACK
39 HOIG-1 HERITAGE ORNAMENTAL INSETS - GOLD PLATED
39 HOIKG-1 HERITAGE ORNAMENTAL INSETS - BLACK GOLD PLATED
39 HOIBC-1 HERITAGE ORNAMENTAL INSETS - BRUSHED COPPER PLATED
39 HOIBG-1 HERITAGE ORNAMENTAL INSETS - BRUSHED GOLD PLATED
40 DOIG-1 DIAMOND ORNAMENTAL INSETS - GOLD PLATED
40 DOIKG-1 DIAMOND ORNAMENTAL INSETS- BLACK GOLD PLATED
40 DOIBC-1 DIAMOND ORNAMENTAL INSETS- BRUSHED COPPER PLATED
40 DOIBG-1 DIAMOND ORNAMENTAL INSETS- BRUSHED GOLD PLATED
41 GOIG-1 GOTHIC ORNAMENTAL INSETS - GOLD PLATED
41 GOIKG-1 GOTHIC ORNAMENTAL INSETS - BLACK GOLD PLATED
41 GOIBC-1 GOTHIC ORNAMENTAL INSETS - BRUSHED COPPER PLATED
41 GOIBG-1 GOTHIC ORNAMENTAL INSETS - BRUSHED GOLD PLATED
42 SOIG-1 SEASHELL ORNAMENTAL INSETS - GOLD PLATED
42 SOIKG-1 SEASHELL ORNAMENTAL INSETS - BLACK GOLD PLATED
42 SOIBC-1 SEASHELL ORNAMENTAL INSETS - BRUSHED COPPER PLATED
42 SOIBG-1 SEASHELL ORNAMENTAL INSETS - BRUSHED GOLD PLATED
43 EOIG-1 ECLIPSE ORNAMENTAL INSETS - GOLD PLATED
43 EOIKG-1 ECLIPSE ORNAMENTAL INSETS - BLACK GOLD PLATED
43 EOIBC-1 ECLIPSE ORNAMENTAL INSETS - BRUSHED COPPER PLATED
43 EOIBG-1 ECLIPSE ORNAMENTAL INSETS - BRUSHED GOLD PLATED
44 DK36-R DOOR KIT, RECTANGULAR - BLACK
44 DK36-RG DOOR KIT, RECTANGULAR - GOLD PLATED
45 DK36-A DOOR KIT, ARCHED - BLACK
45 DK36-AG DOOR KIT, ARCHED - GOLD PLATED
46 DK36-W DOOR KIT, WEBBED - BLACK
46 DK36-WG DOOR KIT, WEBBED - GOLD PLATED
47* W175-0159 FUEL CONVERSION KIT - NG-LP
47* W175-0164 FUEL CONVERSION KIT - LP-NG
Contact your dealer or the factory for questions concerning
prices and policies on replacement parts. Normally all parts
can be ordered through your Napoleon dealer or distributor.
When ordering replacement parts always give the follow-
ing information:
1. MODEL &SERIAL NUMBER OF FIREPLACE
2. INSTALLATION DATE OF FIREPLACE
3. PART NUMBER
4. DESCRIPTION OF PART
5. FINISH
FOR WARRANTY REPLACEMENT PARTS,APHOTOCOPY OF THE
ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM.
REPLACEMENTS
REPLACEMENT PARTS ACCESSORIES
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION, CONTACT YOUR NAPOLEON DEALER.

15
W415-0275/D/10.01.07

16
W415-0275/D/10.01.07
Pilot will not light. - check if pilot can be lit by a match
- check that the wire is connected to the push button ignitor.
- check if the push button ignitor needs tightening.
- replace the wire if the wire insulation is broken or frayed.
- replace the electrode if the ceramic insulator is cracked or broken.
- replace the push button ignitor.
No spark at pilot burner
- fill the tank.Out of propane gas
Spark gap is incorrect - spark gap should be 0.150" to 0.175" (5/32" to 11/64" approx.) from
the electrode tip and the pilot burner. To ensure proper electrode
location, tighten securing nut (finger tight plus 1/4 turn).
No gas at the pilot burner - check that the manual valve is turned on.
- check the pilot orifice for blockage.
- replace the valve.
- call the gas distributor.
Main burner goes
out; pilot goes out. Refer to "MAIN BURNER GOES OUT; PILOT STAYS ON"
Faulty thermocouple. - replace.
Main burner goes
out; pilot stays on. Pilot flame is not large enough or not engulfing the
thermopile
- turn up pilot flame.
- replace pilot assembly.
Thermopile shorting - clean thermopile connection to the valve. Reconnect.
- replace thermopile / valve.
Remote wall switch wire is
too long; too much resist-
ance in the system.
- shorten wire to correct length or wire gauge.
Faulty thermostat or switch. - replace.
Vent safety switch has
opened. (Tripped)
Hi Limit switch has opened.
(Tripped)
- Vent has become blocked or disconnected. Correct. See Figure 2.
- Unit has overheated. See Figure 2
Pilot goes out when
the gas knob is re-
leased.
The gas valve has
an interlock device
whichwillnotallow
the pilot burner to
be lit until the ther-
mocouple has
cooled. Allow ap-
proximately 60
seconds for the
thermocouple to
cool.
System is not correctly
purged. - purge the gas line with the glass door open.
Out of propane gas. - fill the tank.
Pilot flame is not large
enough - turn up the pilot flame.
- gently twist the pilot head to improve the flame pattern around the
thermocouple.
Pilot flame is not engulfing
the thermocouple.
Thermocouple shorting /
faulty. - loosen and tighten thermocouple. - clean thermocouple and valve connection.
- replace thermocouple.
Faultyvalve. - replace.
Pilot burning; no
gas to main
burner; gas knob
is on 'HI'; wall
switch / thermostat
is on.
Themostat or switch is de-
fective. - connect a jumper wire across the wall switch terminals; if main
burner lights, replace switch / thermostat.
Mainburnerorifice is plugged. - remove stoppage in orifice.
Faultyvalve.
Vent safety switch has opened.
(Tripped)
HiLimitswitchhasopened.(Tripped)
- replace.
- Vent has become blocked or disconnected. Correct. See Figure 2.
- Unit has overheated. See Figure 2
Wall switch wiring is defec-
tive. - disconnect switch wires & connect a jumper wire across terminals
1 & 3; if the main burner lights, check the wires for defects and / or
replace wires.
TROUBLE SHOOTING GUIDE
SYMPTOM PROBLEM TEST SOLUTION
B EFORE ATTEMPTING TO TROUBLESHOOT , PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPENED .

17
W415-0275/D/10.01.07
P
I
A
B
P
I
L
O T
N
O
L
O
T
H
I
L
O
F
F
O
White / grey film
forms. Sulphur from fuel is being deposited on glass, logs or
combustion chamber sur-
faces.
- clean the glass with a recommended gas fireplace glass cleaner.
DO NOT CLEAN GLASS WHEN HOT.
If deposits are not cleaned off regularly, the glass may become
permanently marked.
Pilot goes out
while standing;
Main burner is in
'OFF' position.
Gas piping is undersized. - turn on all gas appliances and see if pilot flame flutters, dimin-
ishes or extinguishes, especially when main burner ignites. Monitor
appliance supply working pressure.
- check if supply piping size is to code. Correct all undersized piping.
Flames are con-
sistently too large
or too small.
Carboning occurs.
- check pressure readings:
Inlet pressure can be checked by turning screw (A) counter-clock-
wise 2 or 3 turns and then placing pressure gauge tubing over the
test point. Gauge should read 7" (minimum 4.5") water column for
natural gas or 13" (11" minimum) water column for propane. Check
that main burner is operating on "HI".
Outlet pressure can be checked the same as above using screw
(B). Gauge should read 3.5" water column for natural gas or 10"
water column for propane. Check that main burner is operating on
"HI".
AFTER TAKING PRESSURE READINGS, BE SURE TO TURN
SCREWSCLOCKWISEFIRMLYTORESEAL.DONOTOVERTORQUE.
Leak test with a soap and water solution.
Unit is over-fired or under-
fired.
Remote wall
switch is in "OFF"
position; main
burner comes on
when gas knob is
turned to "ON" po-
sition.
Wall switch is mounted up-
side down - reverse.
Faultyvalve. - replace.
- replace.Remote wall switch is
grounding.
- check for ground (short); repair ground or replace wire.Remote wall switch wire is
grounding.
Carbon is being
deposited on
glass, logs or com-
bustion chamber
surfaces. Flame is impinging on the
logs or combustion cham-
ber.
- check that the logs are correctly positioned.
- open air shutter to increase the primary air.
- check the input rate: check the manifold pressure and orifice size
as specified by the rating plate values.
- check to ensure proper venting action
Air shutter has become
blocked - ensure air shutter opening is free of lint or other obstructions.
Exhaust fumes
smelled in room,
headaches.
Fireplace is spilling. - check for chimney blockage
- check that chimney is installed to building code.
- room is in negative pressure; increase fresh air supply.
Main burner flame
is a blue, lazy,
transparent flame.
Not enough combustion air - room is in negative pressure; increase fresh air supply
SYMPTOM PROBLEM TEST SOLUTION

18
W415-0275/D/10.01.07
Wolf Steel Fireplace Service History
This fireplace must be serviced annually depending on usage.
Date ServiceTechnician
Name ServicePerformed Special ConcernsDealerName

19
W415-0275/D/10.01.07
NOTES

20
W415-0275/D/10.01.07
NOTES
