Napoleon HD4N User manual

EN
W415-1146 / A / 02.16.13
FR
PG
57
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.37A
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
CERTIFIED FOR CANADAAND UNITED STATES USING ANSI/CSAMETHODS.
$10.00
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
CERTIFIED
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
Decorative Products: Not for use as a heating appliance.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CSA 2.22 FOR VENTED GAS FIREPLACES.
HD4N
NATURAL GAS
HD4P
PROPANE

W415-1146 / A / 02.16.13
2
EN
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.1.1 SEE-THRU (HD4ST, HD4STG AND HD4STC) 5
2.1.2 PENINSULA (HD4P, HD4PG AND HD4PC) 5
2.2 GENERAL INSTRUCTIONS 6
2.3 GENERAL INFORMATION 7
2.4 RATING PLATE / LIGHTING INSTRUCTION LOCATION 8
3.0 VENTING 9
3.1 VENTING LENGTHS AND COMPONENTS 10
3.2 TYPICAL VENT INSTALLATIONS 11
3.3 SPECIAL VENT INSTALLATIONS 12
3.3.1 PERISCOPE TERMINATION 12
3.4 VENT TERMINAL CLEARANCES 13
3.5 VENT APPLICATION FLOW CHART 14
3.6 DEFINITIONS 14
3.7 ELBOW VENT LENGTH VALUES 14
3.8 HORIZONTAL TERMINATION 15
3.9 VERTICAL TERMINATION 17
4.0 INSTALLATION 19
4.1 WALL AND CEILING PROTECTION 19
4.1.1 HORIZONTAL INSTALLATION 20
4.1.2 VERTICAL INSTALLATION 20
4.2 USING FLEXIBLE VENT COMPONENTS 21
4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION 22
4.2.2 VERTICAL AIR TERMINAL INSTALLATION 23
4.2.3 APPLIANCE VENT CONNECTION 23
4.3 GAS INSTALLATION 24
4.4 MOBILE HOME INSTALLATION 24
5.0 FRAMING 25
5.1 FRAMING 26
5.1.1 SEE-THRU FRAMING 26
5.1.2 PENINSULA FRAMING 26
5.2 MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES 27
5.3 INSTALLING CEMENT BOARD 28
5.3.1 FINISHING SUPPORT ADJUSTMENT 29
5.4 NON-COMBUSTIBLE FACING MATERIAL 30
5.5 ALCOVE ENCLOSURE 31
5.6 MINIMUM MANTEL CLEARANCES 32
6.0 FINISHING 33
6.1 DOOR REMOVAL / INSTALLATION 33
6.2 END DOOR REMOVAL / INSTALLATION 34
6.3 HEARTH PAD INSTALLATION (HD4ST AND HD4P ONLY) 34
6.4 LOG PLACEMENT (HD4ST AND HD4P ONLY) 35
6.5 GLASS MEDIA INSTALLATION 37
6.6 OPTIONAL ROCK PLACEMENT (HD4STC AND HD4C ONLY) 37
6.7 LOGO PLACEMENT 38
7.0 ELECTRICAL CONNECTION 38
7.1 HARD WIRING CONNECTION 38
7.2 RECEPTACLE WIRING DIAGRAM 39
7.3 BATTERY BACK-UP INSTALLATION 39
7.4 WIRING DIAGRAM 40
8.0 OPERATING INSTRUCTIONS 41
8.1 OPERATING INSTRUCTIONS - FOR YOUR SAFETY READ BEFORE OPERATING 41
8.2 LIGHTING INSTRUCTIONS 41
8.3 ANTI CONDENSATION SWITCH 42
9.0 ADJUSTMENT 43
9.1 PILOT BURNER ADJUSTMENT 43
9.2 VENTURI ADJUSTMENT 43
9.3 FLAME CHARACTERISTICS 44
10.0 MAINTENANCE 45
10.1 ANNUAL MAINTENANCE 45
10.2 GLASS / DOOR REPLACEMENT 46
10.3 CARE OF GLASS 46
10.4 BURNER REMOVAL 47
10.4.1 LOG BURNER REMOVAL (HD4ST AND HD4P ONLY) 47
10.4.2 GLASS BURNER REMOVAL (HD4STG AND HD4PG ONLY) 47
10.4.3 GLASS AND ROCK BURNER REMOVAL (HD4STC AND HD4PC ONLY) 48
10.5 VALVE TRAIN REPLACEMENT 48
10.6 RESTRICTING VERTICAL VENTS 48
11.0 REPLACEMENTS 49
12.0 TROUBLESHOOTING 52
13.0 WARRANTY 55

W415-1146 / A / 02.16.13
3
EN
1.0 INSTALLATION OVERVIEW
COMBUSTIBLE MATERIAL
Venting, see “VENTING”
section
Rating plate, see “RATING
PLATE INFORMATION”
section
Door, see “DOOR REMOVAL/
INSTALLATION” section
Framing, see
“FRAMING” section
NON-COMBUSTIBLE
MATERIAL
Door, see “ END DOOR
INSTALLATION” section
Mantel, see “MINIMUM
MANTEL CLEARANCES”
section

W415-1146 / A / 02.16.13
4
EN
2.0 INTRODUCTION
3.2B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS
AND IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict access to an appliance, install an adjustable safety gate
to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• The appliance is a vented gas-fired appliance. Do not burn wood or other materials in the appliance
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to
prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust
escaping through these openings can also cause the surrounding combustible materials to overheat and catch
fire.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as
well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against
Carbon Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage of decorations, a T.V. or other electronic components.

W415-1146 / A / 02.16.13
5
EN
HD4STG ILLUSTRATED
HD4STG ILLUSTRATED
42 3/8”
(1076.3mm)
32 1/4”
(819.2mm)
38 1/4”
(971.6mm)
5” (127mm)
DIA.
8” (203.2mm) DIA.
GAS INLET
ELECTRICAL
INLET
1 3/4”
(44.5mm)
13 1/4”
(336.6mm) 8 1/2”
(215.9mm)
6 1/2”
(165.1mm)
20 1/8”
(511.2mm)
17 5/8” (447.7mm)
14 3/4”
(374.7mm)
RIGHT
SIDE LEFT SIDE
30 1/4”
(768.4mm)
20 1/8” (511.2mm)
36 1/8”
(917.6mm)
41 1/8”
(1044.6mm)
GAS INLET
ELECTRICAL
INLET
RIGHT
SIDE LEFT SIDE
32 1/4”
(819.2mm)
1 3/4”
(44.5mm)
13 1/4”
(336.6mm) 8 1/2”
(215.9mm)
6 1/2”
(165.1mm)
20 1/8”
(511.2mm)
30 1/4”
(768.4mm)
5” (127mm)
DIA.
8” (203.2mm) DIA. 17 5/8” (447.7mm)
14 3/4”
(374.7mm)
20 1/8” (511.2mm)
2.1 DIMENSIONS
2.1.1 SEE-THRU (HD4ST, HD4STG AND HD4STC)
2.1.2 PENINSULA (HD4P, HD4PG AND HD4PC)

W415-1146 / A / 02.16.13
6
EN
2.2 GENERAL INSTRUCTIONS
4.1B
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches (914.4mm).
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location
for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” (1219.2mm)
FROM THE FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35 mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING

W415-1146 / A / 02.16.13
7
EN
2.3 GENERAL INFORMATION
When the appliance is installed at elevations above 4,500 ft (1371.6m), and in the absence of specific
recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be
reduced at the rate of 4% for each additional 1,000 ft (304.8m).
This appliance is approved for bathroom, bedroom and bed-sitting room
installations and is suitable for mobile home installation.
No external electricity (110 volts or 24 volts) is required for the gas system
operation. Expansion / contraction noises during heating up and cooling
down cycles are normal and are to be expected.
If utilizing one of Wolf Steel's trim or surround kits, follow the framing
instructions and the finishing instructions, for removal of the top extension.
NOTE: The protective wrap on plated parts is best removed when the assembly is at room temperature
but this can be improved if the assembly is warmed, using a hair dryer or similar heat source.
67.9%
HD4
NG LP
Altitude (FT) 0-4,500 0-4500
Max. Input (BTU/HR) 30,000 30,000
Max. Output Steady State (BTU/HR) 23,000 23,000
Min. Inlet Gas Supply Pressure 4.5" (11.2mb)
Water Column
11" (27.4mb)
Water Column
Max. Inlet Gas Supply Pressure 7" (17.4mb)
Water Column
13" (32.4mb)
Water Column
Manifold Pressure (Under Flow Conditions) 3.5" (8.7mb)
Water Column
10" (24.9mb)
Water Column
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!

W415-1146 / A / 02.16.13
8
EN
2.4 RATING PLATE / LIGHTING INSTRUCTION LOCATION
W385-1899 / B
CERTIFIED
CHD4N CHD4P
&(57,),('81'(5+202/2*8(6(/21/(61250(6$16,=E&6$E9(17('*$6),5(3/$&()2<(5*$=9(17,/e
VENTED GAS FIREPLACE. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE WITH THE CURRENT
STANDARD CAN/CSAZ240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTIONAND SAFETY STANDARD,TITLE 24 CFR, PART
3280. WHEN THIS US STANDARD IS NOTAPPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME INSTALLATIONS, SITESAND COMMUNITIES, ANSI/NFPA 501A. FOYER À
GAZ VENTILÉ. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON MOBILE SI SON INSTALLATION
CONFORME AUX EXIGENCES DE LANORME CAN/CSA Z240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉES AU GAZ EN VIGEURAU CANADA OUAUX ÉTATS-UNIS DE LA NORME DE SECURITE ET DE CONSTRUC-
TION DE MAISONS MANUFACTUREE, TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D’ÉTATS-UNIS NE PEUT ETRE APPLIQUÉE, SE REFERERA LANORME RELATIVEAU CRITÈRE DE
MESURES DE SÉCURITÉ CONTRE L’INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS,ANSI/NFPA501A. THIS APPLIANCE MUST BE INSTALLED IN
ACCORDANCE WITH LOCAL CODES, IF ANY; IF NONE, FOLLOW THE CURRENT ANSI Z223.1 OR CSA B149, INSTALLATION CODES. INSTALLER L’APPAREIL SELON LES CODES D’INSTALLATION ANSI Z223.1 OU
CSA-B149 EN VIGUER.
7+,69(17('*$6),5(3/$&(
IS NOT FOR USE WITH AIR
FILTERS.
NOT FOR USE WITH SOLID FUEL.
FOR USE WITH GLASS DOORS
&(57,),(':,7+7+,681,721/<
CERTIFIED FOR / CERTIFIEE
POUR CANADA / USA
REFERENCE # 161746
WARNING: '2127$''$1<0$7(5,$/
TO THE APPLIANCE, WHICH WILL COME IN
CONTACT WITH THE FLAMES, OTHER THAN
7+$76833/,('%<7+(0$18)$&785(5
WITH THE APPLIANCE.
'(&25$7,9(352'8&7127)2586($6$
HEATINGAPPLIANCE
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS:
TOP 0”
FLOOR 0”
SIDES 0”
BACK 0”
9(17723 µ
9(176,'(6%27720 µ
9(57,&$/9(17 µ
MANTEL 8”*
7236,'(6%$&.3(567$1'2))63$&(56)25)5$0,1*
MATERIALS. FOR FINISHING MATERIALS SEE OWNER’S MANUAL
*MAXIMUM HORIZONTALEXTENSION / L’EXTENSION HORIZONTALE
MAXIMALE: 2”. SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS.
SEE OWNER’S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM LENGTHS.
(/(&75,&$/5$7,1*9+=/(667+$1$03(5(6
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA 63e&,),&$7,216e/(&75,48(69
60HZ. MOINS DE 12 AMPÈRES.
HD4N HD4P
MODEL PROPANE /
PROPANE MODÈLE
&(7)2<(5*$=9(17,/e
1(673$63285/86$*($9(&
LES FILTRES D'AIR.
UN COMBUSTIBLE SOLIDE NE
3$6È75e87,/,6e$9(&&(7
$33$5(,/87,/,6(5$9(&/(6
3257(9,75e(6+202/2*8e(6
6(8/(0(17$9(&&(77(81,7e
$'9(57,66(0(17N’AJOUTEZ PASA
&(7$33$5(,/$8&810$7e5,$8'(9$17
(175(5(1&217$&7$9(&/(6)/$00(6
$875(48(&(/8,48,(67)2851,$9(&7&(7
APPAREIL PAR LE FABRICANT.
352'8,7'e&25$7,)1(3$687,/,6(5&200(
APPAREIL DE CHAUFFAGE
'e*$*(0(1760,1,0$8;'(60$7e5,$8;
COMBUSTIBLES :
DESSUS 0”
PLANCHER 0”
&Ñ7e6 µ
ARRIÈRE 0”
'(6686'8&21'8,7'·(9(17 µ
&Ñ7e6(7'(66286'8&21'8,7
'·(9(17 µ
&21'8,7'·(9(179(57,&$/ µ
TABLETTE 8”*
'(6686&Ñ7e6$55,Ë5(6(/21/(6(63$&(856'(
'e*$*(0(173285/(60$7(5,$8;'·266$785(6(/21
/$0$18(/'(35235,e7$,5(3285/(60$7e5,$8;'(
FINITION. *L’EXTENSION HORIZONTALE MAXIMALE : 2”.
5e)e5(5$80$18$/'·,16758&7,213285'(6
(;7(16,2163/86*5$1'(65e)e5(5$80$18(/
'·,167$//$7,21'(35235,e7$,5(
MODEL NATURAL GAS /
GAZ NATURAL
0-4500FT (0-1370M) $/7,78'(e/e9$7,21 0-4500FT (0-1370M)
30,000 BTU/H
INPUT / ALIMENTATION 30,000 BTU/H
 %78+ 5('8&(',1387$/,0(17$7,215e'8,7( ,000 BTU/H
3.5” WATER COLUMN/D’UNE COLONNE D’EAU MANIFOLD PRESSURE / 10” WATER COLUMN/D’UNE COLONNE D’EAU
PRESSION AU COLLECTEUR
4.5“ WATER COLUMN/D’UNE COLONNE D’EAU 0,1,0806833/<35(6685( 11” WATER COLUMN/D’UNE COLONNE D’EAU
PRESSION D’ALIMENTATION MINIMALE
7.0“ WATER COLUMN/D’UNE COLONNE D’EAU 0$;,0806833/<35(6685( 13” WATER COLUMN/D’UNE COLONNE D’EAU
PRESSION D’ALIMENTATION MAXIMALE
67.9% P.4 67.9%
SERIAL NUMBER/ NO. DE SÉRIE: HD4
/·$33$5(,/'2,7e9$&8(56(6*$=(187,/,6$17
/·(16(0%/('·e9$&8$7,2135235($1$32/(215e)e5(5
$80$18(/'·,167$//$7,21'(35235,e7$,5(3285
/·(9$&8$7,2135(&,6(,/(67,03257$17'(%,(1
5e,167$//(5(75(6&(//(5/·(9(17$35e6$92,5$6685e
/(0$,17,(1'86<67e0('(35,6('·$,5
7+($33/,$1&(0867%(9(17('86,1*7+($335235,$7(
1$32/(219(17.,766((2:1(56,167$//$7,210$18$/
)259(17,1*63(&,),&63523(55(,167$//$7,21$1'
5(6($/,1*,61(&(66$5<$)7(56(59,&,1*7+(9(17$,5
,17$.(6<67(0

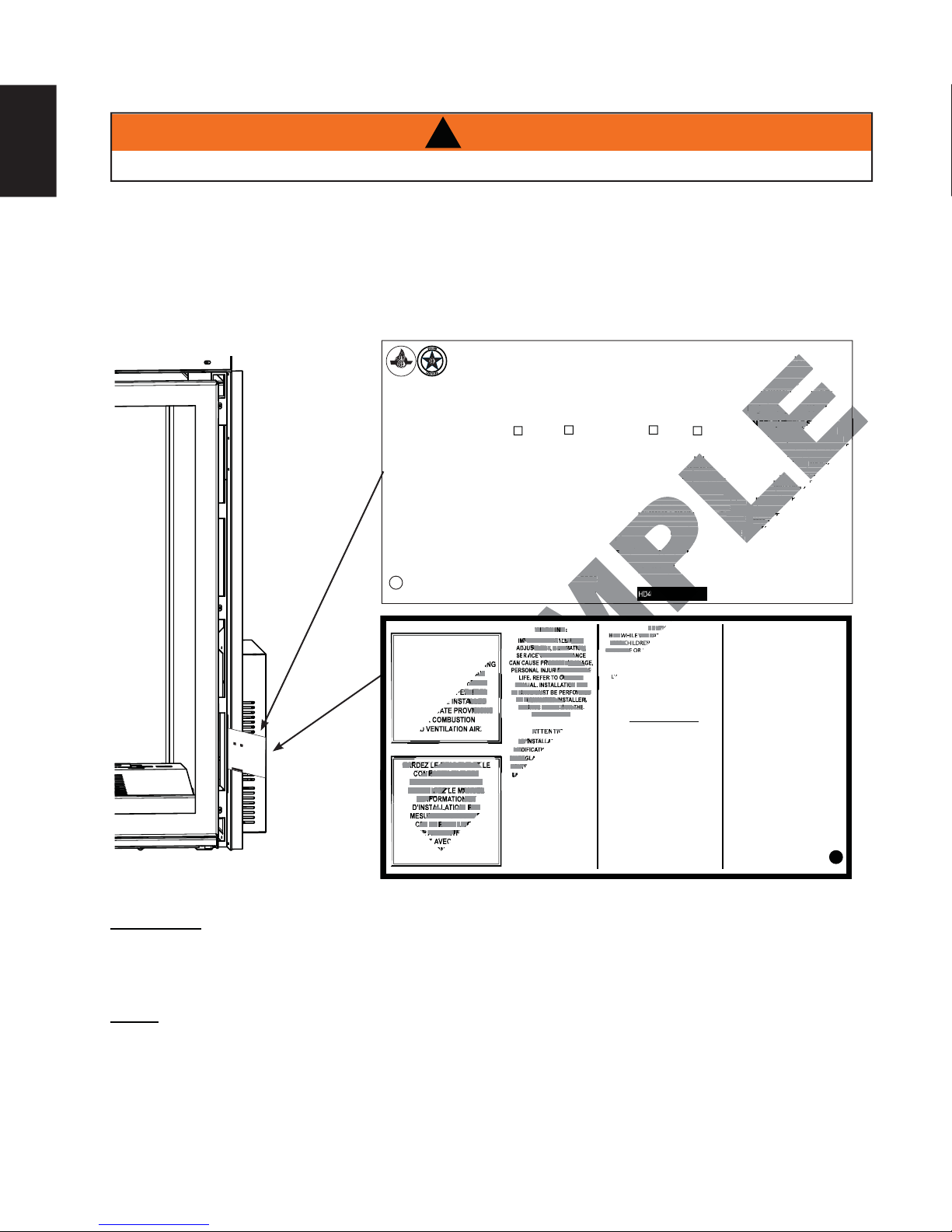

Both the rating plate and lighting instructions are attached to a cable and inserted in a mail slot on the right end
of the appliance (access side). It is recommended to remove the door prior to instruction removal. Using your
fingers or a tool such as a screw driver or pencil, gently pull the cable toward you. With the cable at the bulb end
of the slot, wiggle the rating plate out being careful not to tear the instructions as they pass through the slot.
To replace, fold and slide the instructions and the cable back through the slot, as illustrated below, and re-attach
the door (if removed).
W385-1899
CBHD4P
&6A2.33- 2009 VENTED GAS FIREPLACE HEATER/ CHAUFFAGE DE GAZ VENTILÉ
N
GROOMINSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATIONIF INSTALLED IN ACCORDANCE WITH THE CURRENT
ORINTHE UNITED STATESTHE MANUFACTURED HOMECONSTRUCTIONAND SAFETYSTANDARD, TITLE24CFR,PART
R
ESAFETYCRITERIAFO R MANUFACTURED HOME INSTALLATIONS,SITES ANDCOMMUNITIES,ANSI/NFPA 501A. FOYER DE
U
NECHAMBREÀ COUCHER, UNE SALLE DE BAINET UN STUDIO.APPROPRIÉ POUR INSTALLATIO N DANSUNE MAISON
S
AZ240MHSÉRIEDE MAISONS MOBILES ÉQUIPÉES AUGAZEN VIGEUR AUCANADAOUAUXÉTATS-UNIS DE LANORME DE
E
CTION3280.DANS LECAS OU CETTE NORME D’ÉTATS-UNIS NE PEUT E TRE APPLIQUÉE, SE REFERERALANORME
S
INSTALLATIONSDANSLES MAISONS MANUFACTURÉS,LES SITES ET LES COMMUNAUTÉS, ANSI/NFPA501A.THIS
N
ONE,FOLLOWTHE CURRENTANSI Z223.1 OR CSA B149,INSTALLATIONCODES. INSTALLER L’APPAREILSELON LES
SPÉCIFICATIONSÉLECTRIQUES : 115 V,
60HZ.MOINS DE 12 AMPÈRES.
P
4
DH
B
MODELPROPANE/
PROPANEMODÈLE
UNCOMBUSTIBLE SOLIDE NE
PASÊTRÉ UTILISÉ AVEC CET
APPAREIL.UTILISER AVECLES
PORTEVITRÉES
HOMOLOGUÉESSEULEMENT
AVECCETTE UNITÉ.
ADVERTISSEMENT:
N’AJOUTEZPAS
ACETAPPA REILAUCUNMATÉRIAUDEVAN T
ENTRERENCONTACT AVECLESFLAMMES
AUTREQUECELUIQUI EST FOURNI AVECT
CETAPPAREILPAR LE FABRICANT.
DÉGAGEMENTSMINIMAUXDES MATÉRIAUX
COMBUSTIBLES: ”0
S
U
S
SED ”
0
RE
H
C
N
A
L
P”0
2
E
C
A
F
E
V
A
LC
N
E’
L
E
D
R
U
E
DN
O
F
O
R
P
”
0
SÉT
Ô
C”
0
E
R
ÈI
R
R
A
DESSUSDUCONDUIT D’EVENT 3”
CÔTÉSETDESSOUS DU CONDUIT ”
2
T
NEV
E
’
D
CONDUITD’EVENTVERTICAL1”
*
”
8
E
T
TEL
B
A
T
DESSUS,CÔTÉS& ARRIÈRE : SELON LES ESPACEURS DE
DÉGAGEMENTPOURLES MATERIAUXD’OSSATURE SELON
LAMANUELDEPROPRIÉTAIRE POUR LES MATÉRIAUX DE
FINITION.*L’EXTENSIONHORIZONTALE MAXIMALE : 2”.
RÉFÉRERAUMANUALD’INSTRUCTION POUR DES
EXTENSIONSPLUSGRANDES. RÉFÉRERAUMANUEL
D’INSTALLATIONDEPROPRIÉTAIRE.
É
LÉVATION
0-4500FT(0-1370M)
M
ENTATION
30,000BTU/H
H
/
U
T
B
0
0
0
,
3
2
E
T
I
U
D
É
R
N
O
I
T
A
T
N
E
M
R
ESSURE/
10”WATER COLUMN/D’UNE COLONNE D’EAU
R
U
E
T
C
E
L
LO
C
Y
PRESSURE/
11”WATERCOLUMN/D’UNE COLONNE D’EAU
E
NTATIONMINIMALE
L
YPRESSURE
13”WATER COLUMN/D’UNE COLONNE D’EAU
NTATIONMAXIMAL
E
%
9
.
7
6
E
F
SÉRIE: BHD4
L’APPAREILDOITÉVACUERSES GAZ EN UTILISANT
L’ENSEMBLED’ÉVACUATIONPROPREA NAPOLEON. RÉFÉRER
AUMANUELD’INSTALLATIONDE PROPRIÉTAIRE POUR
L’EVACUATIONPRECISE.ILEST IMPORTANT DE BIEN
RÉINSTALLERETRESCELLER L’EVENT APRÉS AVOIRASSURÉ
LEMAINTIENDU SYSTÉME DE PRISE D’AIR.
!
WARNING
ALLOW THE APPLIANCE TO COOL BEFORE PERFORMING ANY MAINTENANCE OR CLEANING.
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.
KEEP BURNER AND CONTROL
COMPARTMENT CLEAN. SEE
INSTALLATION AND OPERATING
INSTRUCTIONS MANUAL.
APPLIANCE NEEDS FRESH
AIR FOR SAFE OPERATION
AND MUST BE INSTALLED
WITH ADEQUATE PROVISIONS
FOR COMBUSTION
AND VENTILATION AIR.
GARDEZ LE BRULEUR ET LE
COMPARTIMENT DES
CONTROLES PROPRES.
CONSULTEZ LE MANUEL
D’INFORMATION ET
D’INSTALLATION. PAR
MESURE DE SECURITE.
CET APPAREIL DOIT
ETRE ALIMENTE ENAIR
FRAIS ET AVEC SUFFISANT
D’AIR COMBURANTET
DE VENTILATION.
WARNING:
IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF
LIFE. REFER TO OWNER’S
MANUAL. INSTALLATION AND
SERVICE MUST BE PERFORMED
BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR THE
GAS SUPPLIER.
ATTENTION:
UN INSTALLATION OU UNE
MODIFICATION INAPPROPRIEE
DU REGLAGE, DU SERVICE ET DE
L’ENTRETIEN POURRAIENT ETRE
LA CAUSE DE DOMMAGES A LA
PROPRIETE DE BLESSURES
CORPORELLES OU MEME LA
MORT. CONSULTER LE MANUEL
D’INFORMATION, L’INSTALLATION
ET LE SERVICE DOIVENT
ETRE EXECUTES PAR UN
INSTALLATEUR QUALIFIE POUR
LE AZ, UNE ENTREPRISE DE
SERVICE OU LE FOURNISSEUR
DE GAZ SEULEMENT.
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN VICINITY OF THIS
OR ANY OTHER APPLIANCE.
CAUTION:DO NOT OPERATE
THE FIREPLACE WITH THE GLASS
REMOVED, CRACKED OR BROKEN.
REPLACEMENT OF THE GLASS
SHOULD BE DONE BY ALICENSED
OR QUALIFIED PERSON.
CAUTION:
HOT WHILE OPERATING. DO NOT TOUCH.
KEEP CHILDREN, CLOTHING, FURNITURE,
GASOLINE OR OTHER FLAMMABLE VAPORS
AWAY.
AVERTISSEMENT:
L’APPAREIL EST CHAUD PENDANT SON
FONCTIONNEMENT. LES ENFANTS,LES
VETEMENTS, LES MEUBLES, L’ESSENCE ET
AUTRES LIQUIDES QUI EMETTENT DES GAZ
VOLATILS INFLAMMABLES DOIVENT
ETRE TENUS ELOIGNES DE L’APPAREIL.
“This appliance is only for use with the type(s)
of gas indicated on the rating plate and may
be installed in an aftermarket, permanently
located, manufactured home (USA only) or
mobile home, where not prohibited by local
codes. See owner’s manual for details. This
appliance is supplied with a conversion kit.”
«Cet appareil doit être utilisé uniquement
avec les types de gaz indiqués sur la plaque
signalétique et peut être installé dans une
maison préfabriquée (É.-U. seulement) ou
mobile installée à demeure si les règlements
locaux le permettent. Voir la notice de
l’utilisateur pour plus de renseignements. Une
trousse de conversion est fournie avec cet
appareil.»
POUR VOTRE
SECURITE:
NE PAS ENTREPOSER NI UTILISER
D’ESSENCE NI D’AUTRES VAPEURS
OU LIQUIDES INFLAMMABLES
ANS LE VOISINAGE DE CET
APPAREIL OU DE TOUT AUTRE
APPAREIL.
AVERTISSEMENT: NE PAS
UTILISER L’APPAREIL SI LE
PANNEAU FRONTAL EN VERRE
N’EST PAS EN PLACE, EST CRAQUÉ
OU BRISÉ. CONFIEZ LE
REMPLACEMENT DU
PANNEAU À UN
TECHNICIEN
AGRÉÉ.
MP
MPLE
AN
DARD, TITARD, T
ES,ANSI/NFPAES,ANSI/NFPA
AISON MOBILE SI SONSON MOBILE SI S
RME DE SECURITE ET DE CME DE SECURITE
ORME RELATIVEAU CRITÈRE DERME RELATIVEAU CRITÈRE
01A. THIS APPLIANCE MUST BE INSTAL1A. THIS APPLIANCE MUST BE INS
N LES CODES D’INSTALLATION ANSI Z223.1 OULES CODES D’INSTALLATION ANSI Z223.
$03(5(603(5(6
&(7)2<(5*$=9(17,/e&(7)2<(5*$=9(17,/e
1
(
6
73$
6
3
28
5/
86
$
*
($9(
&

1(673$63285/86$*($9(&
LE
S
FILTRE
S
D'AIR.
LES FILTRES D'AIR.
U
N
CO
MB
US
TIBLE
SO
LIDE NE
N COMBUSTIBLE SOLIDE NE
3
$
6
È75e
8
7,/,
6
e$9(
&

&
(7
6È75e87,/,6e$9(&&(7
$33$5(,/
8
7,/,
6
(5$9(
&
/(
65(,/87,/,6(5$9(&/(6
3257(9,75e(6+202/2*8e(69,75e(6+202/2*8e(6
6(8/(0(17$9(&&(77(81,717$9(&&(77(81,
$'9(57,
66
(0(17
0(17
N’AJOUTEN’AJOUT
&(7$33$5(,/$8&810$7e5,$8'($8&810$7e5,$8'
(175(5(1&217$&7$9(&/(6&217$&7$9(&/(6
$875(48(&(/8,48,(67)28(&(/8,48
APPAREIL PAR LE FABRICAEIL PAR LE FABRIC
352'8,7'e&25$7,)1(2'8,7'e&25$7,)1
APPAREIL DE CHAUFFAPPAREIL DE CHAUF
'e*$*(0(176'e*$*(0(17
COMBUSTIBCOMBUSTIB
DESSUSDESSUS
PLANCPLAN
&Ñ7&Ñ
A
'(6686&Ñ7e6$55,Ë5(6(/21/(6(63$&(856'('(6686&Ñ7e6$55,Ë5(6(/21/(6(63$&(856'(
'e
*
$
*
(0(173
28
5/(
6
0$7(5,$
8
;'·
266
$7
8
5(
6
(/
2
1
'e*$*(0(173285/(60$7(5,$8;'·266$785(6(/21
/$0$1
8
(/'(35
2
35,e7$,5(3
28
5/(
6
0$7e5,$
8
;'(
/$0$18(/'(35235,e7$,5(328
F
INITI
O
N.
*
L’EXTEN
S
I
O
N H
O
RIZ
O
NTALE MAXIMALE : 2”.
FINITION. *L’EXTENSION HORIZON
5e)e5(5$
8
0$1
8
$/'·,1
6
75
8&
7,
2
13
28
5'(
6e)e5(5$80$18$/'·,1675
(;7(16,2163/86*5$1'(65e)e5(5$80$18(/16,2163/86*5$1'(
'·,1
6
7$//$7,
2
1'(35
2
35,e7$,5(
//$7,21'(35235,e7
N/D’UNE COLONNE D’EAU/D’UNE
OLUMN/D’UNE COLONNE D’EAUOLUMN/D’UNE COLO
TER COLUMN/D’UNE COLONNE D’EAULUMN/D’UNE COLONNE D
AL NUMBER/ NO. DE SÉRIE:MBER/ NO. DE SÉRIE:
7e9$&8(56(6*$=(187,/,6$17e9$&8(56(6*$=(187,/,6$17
'·e9$&8$7,2135235($1$32/(215e)e5(5·e9$&8$7,2135235($1$32/(215e)e5(5
/'·,167$//$7,21'(35235,e7$,5(3285'·,167$//$7,21'(35235,e7$,5(3285
$7,2135(&,6(,/(67,03257$17'(%,(1$7,2135(&,6(,/(67,03257$17'(%,(1
67$//(5(75(6&(//(5/·(9(17$35e6$92,5$6685e7$//(5(75(6&(//(5/·(9(17$35e6$92,5$6685e
0$,17,(1'86<67e0('(35,6('·$,50$,17,(1'86<67e0('(35,6('·
SAM
SAM
SAM
M
SA
SA
IN
AL.
FRESH
ER
A
TION
A
ALLED
VISIONS
R
GARDEZ LE BRULEUR ET
OM
P
ARTIMENT DES
P
CONTROLES PROPRES.
CONSU
L
TEZ LE MANUEL
L
D’INFO
N ET
D
ALL
T
A
TION.
P
AR
P
URE DE SECURITE
CET
AP
P
AREI
P
L
DO
RE
ALIMENTE
W
ARN
W
I
N
G
:
MPROPER INS
T
ALL
T
A
TION,
A
STMEN
T
,
T
A
L
TER
L
A
TION,
E OR MAINTENAN
ROPERT
Y
DAMAG
Y
R
Y
R
OR LOSS OF
Y
OWNER’S
MANUA
ION
AND
SE
R
VICE MUST BE PERFORMED
R
B
Y
A
QUALIFIED INS
A
R,
SE
R
VICE
R
AGENC
Y
OR TH
Y
GAS SUPPLIER.
A
T
A
TIO
UN IN
MOD
DU REG
L
’ENTR
L
A
SA
SA
C
A
UTIO
H
O
T
WHILE OPE
R
A
T
A
KEEP CHILDREN
GASOLINE

W415-1146 / A / 02.16.13
9
EN
3.0 VENTING
7.2C
THIS APPLIANCE USES A 5” (127mm) EXHAUST / 8” (203.2mm) AIR INTAKE VENT PIPE SYSTEM.
Refer to the section applicable to your installation.
For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Provide a means for
visually checking the vent connection to the appliance after the appliance is installed. Use a firestop, vent pipe
shield or attic insulation shield when penetrating interior walls, floor or ceiling.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions
provided for the initial installation.
NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent
pipes. Utilizing alternate constructions such as a chimney as part of the vent system is not permitted.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT
(0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.

W415-1146 / A / 02.16.13
10
EN Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab
venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations,
and air terminal locations for either system are set out in this manual and must be adhered to. For Simpson
Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the installation procedure
provided with the venting components.
A starter adaptor must be used with the following vent systems and may be purchased from the
corresponding supplier:
For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the installation
procedure found on the website for your venting supplier.
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using a
red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake vent
pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the appliance flue collar
which must be sealed using the black high temperature sealant Mill Pac.
When using Wolf Steel venting components, use only approved Wolf Steel rigid / flexible components with the following
termination kits: wall terminal kit GD422-1, GD422R-1, or 1/12 to 7/12 pitch roof terminal kit GD410, 8/12 to 12/12 roof
terminal kit GD411, flat roof terminal kit GD412 or periscope kit GD401 (for wall penetration below grade). With flexible
venting, in conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD420 or the 10 foot (3.1m)
vent kit GD430.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows to a
minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify
that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer components must
not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal
run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of vent
connections is two horizontally or three vertically (excluding the appliance and the air terminal connections) when
using flexible venting.
Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is recommended
that all horizontal runs have a minimum 1/4” (6.4mm) rise per foot/meter using flexible venting. For safe and proper
operation of the appliance, follow the venting instructions exactly.
A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single family
dwellings and serves both dwellings. Local codes or regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”
(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.
PART 5”/8” SUPPLIER WEBSITE
Duravent W175-0170 Wolf Steel www.duravent.com
Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com
Direct Temp 5DT-AA Selkirk www.selkirkcorp.com
SuperSeal 5DDA Metal-Fab www.mtlfab.com
8.3A
3.1 VENTING LENGTHS AND COMPONENTS

W415-1146 / A / 02.16.13
11
EN
3.2 TYPICAL VENT INSTALLATIONS
When venting, the horizontal run must be kept to
a maximum of 20 feet (6.1m). If a 20 foot (6.1m)
horizontal run is required, the appliance must
have a minimum vertical rise immediately off the
appliance of 57" (1447.8mm).
On all horizontal vent runs, ensure that the vent pipe does not slope downward.
When terminating vertically, the vertical rise is a
minimum 36"(914.4mm) and a maximum 40 feet
(12.2m) above the appliance.
40 FT
(12.2m)
MAX
36"
(914.4mm)
MIN
16" MIN
(406.4mm)
39" (990.6mm)
MIN PLUS
RISE*
24" (609.6mm)
MAX
* See "VENTING" section.
39" (990.6mm)

W415-1146 / A / 02.16.13
12
EN
3.3 SPECIAL VENT INSTALLATIONS
3.3.1 PERISCOPE TERMINATION
Use the periscope kit to locate the air termination above grade. The periscope must
be installed so that when final grading is completed, the bottom air slot is located a
minimum of 12” (304.8mm) above grade. The maximum allowable vent length
is 10’ (3.1m) for a fireplace and 8’ (2.4m) for a stove.
9.5B
30 1/4"
(768.4mm)
MIN
24" (609.6mm) MIN
REGARDLESS OF
HORIZONTAL VENT
LENGTH
12"
(304.8mm)
MIN TO
GRADE

W415-1146 / A / 02.16.13
13
EN
3.4 VENT TERMINAL CLEARANCES
INSTALLATIONS
CANADA U.S.A.
A12” (304.8mm) 12” (304.8mm) Clearance above grade, veranda porch, deck or balcony.
B12”
(304.8mm) Δ9” (228.6mm)ΔClearance to windows or doors that open.
C12”
(304.8mm)*
12”
(304.8mm)* Clearance to permanently closed windows.
D18”
(457.2mm)**
18”
(457.2mm)**
Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of
2’ (0.6m) from the center line of the terminal.
E12”
(304.8mm)**
12”
(304.8mm)** Clearance to unventilated soffit.
F0” (0mm) 0” (0mm) Clearance to an outside corner wall.
G
0” (0mm)*** 0” (0mm)*** Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions
(chimney, etc.).
2”
(50.8mm)*** 2” (50.8mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H3’ (0.9m) 3’ (0.9m)**** Clearance to each side of the center line extended above the meter / regulator assembly to a
maximum vertical distance of 15’ (4.6m).
I3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.
J12” (304.8mm) 9” (228.6mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other
appliance.
K6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.-
L7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.
M12”
(304.8mm)††
12”
(304.8mm)**** Clearance under a veranda, porch or deck.
N16” (406.4mm) 16” (406.4mm) Clearance above the roof.
O2’ (0.6m) †* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.
P8’ (2.4m) 8’ (2.4m) Roof must be non-combustible without openings.
Q3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.
R6’ (1.8m) 6’ (1.8m) See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has
an opening between the terminal and the open side of the structure.
S12” (304.8mm) 12” (304.8mm) Clearance under a covered balcony
ΔThe terminal shall not be located less than 6 feet (1.8m) under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18 inches (457.2mm) clearance from an inside corner.
**** This is a recommended distance. For additional requirements check local codes.
† 3 feet (0.9m) above if within 10 feet (3.1m) horizontally.
‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
††* Permitted only if the balcony is fully open on a minimum of one side.
12.1D
NOTE: Clearances are in accordance with local installation codes and the requirements of the gas supplier.
COVERED BALCONY APPLICATIONS ††*
QMIN RMAX MAX
R
= 3 feet
(0.9m) = 2 x IHHW
(4.6m)
QACTUAL
R
QS
GP

W415-1146 / A / 02.16.13
14
EN
3.5 VENT APPLICATION FLOW CHART
13.1A
TOP EXIT
Horizontal Termination Vertical Termination
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40 feet
(12.2m)
Horizontal run +
vertical rise to
maximum of
24.75 feet (7.5m)
Horizontal run +
vertical rise to Horizontal run +
vertical rise to
4.2 times the
vertical rise equal to
or greater than the
horizontal run
3 times the vertical
rise equal to or
greater than the
horizontal run
maximum of 40 feet
(12.2m) maximum of 40 feet
(12.2m)
3.6 DEFINITIONS
14.2
For the following symbols used in the venting calculations and examples are:
> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
HT- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet
HR- combined horizontal vent lengths in feet
HO- offset factor: .03 (total degrees of offset - 135°*) in feet
VT- combined vertical vent lengths in feet
3.7 ELBOW VENT LENGTH VALUES
15.2A
FEET INCHES MILLIMETERS
1° 0.03 0.5 12.7
15° 0.45 6.0 152.4
30° 0.9 11.0 279.4
45°* 1.35 16.0 406.4
90°* 2.7 32.0 812.8
* The first 45° and 90°offset has a zero value and is shown in the formula as -45° and - 90° respectively or
-135° when combined.

W415-1146 / A / 02.16.13
15
EN
3.8 HORIZONTAL TERMINATION
16.5A
Simple venting configuration (only one 45° and 90°
elbow)
(HT) < (VT)
For vent configurations requiring more than one 45° elbow and 90° elbow, the following formulas
apply:
Formula 1: HT< VT
Formula 2: HT+ VT< 40 feet (12.2m)
Example:
V1= 8 FT (2.4m)
VT= V1= 8 FT (2.4m)
H1= 2.5 FT (0.8m)
H2= 2 FT (0.6m)
HR= H1+ H2= 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)
HO= .03 (one 45° elbow + two 90° elbows - 135°) = .03 (225 - 135°) = 2.7 FT (0.8m)
HT= HR+ HO= 4.5 FT (1.4m) + 2.7 FT (0.8m) = 7.2 FT (2.2m)
HT+ VT= 7.2 FT (2.2m) + 8 FT (2.4m) = 15.2 FT (4.6m)
Formula 1: HT< VT
7.2 FT (2.2m) < 8 FT (2.4m)
Formula 2: HT+ VT< 40 FT (12.2m)
15.2 FT (4.6m) < 40 FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.
90°
90°
45°
V1
H1
H2
02.5
(0.8) 5 (1.5) 7.5 (2.3) 10 (3.1) 12.5 (3.8) 15 (4.6)
40 (12.2)
10 (3.1)
20 (6.1)
30 (9.1)
17.5
(5.3) 20 (6.1)
39 (11.9)
REQUIRED
VERTICAL
RISE IN FEET
(METERS) VT
HORIZONTAL VENT RUN PLUS OFFSET IN
FEET (METERS) HT
See graph to determine the required vertical
rise VTfor the required horizontal run HT.
The shaded area within the lines represents
acceptable values for HTand VT

W415-1146 / A / 02.16.13
16
EN
16.5_2A
Simple venting configuration (only one 45° and 90°
elbow)
(HT) > (VT)
For vent configurations requiring more than one 45° elbow and 90° elbow, the following formulas
apply:
Formula 1: HT< 4.2 VT
Formula 2: HT+ VT< 24.75 feet (7.5m)
Example:
V1= 4 FT (1.2m)
V2= 1.5 FT (0.5m)
VT= V1+ V2= 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m)
H1= 2 FT (0.6m)
H2= 1 FT (0.3m)
H3= 1 FT (0.3m)
H4= 1.5 FT (0.5m)
HR= H1+ H2+ H3+ H4= 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)
HO= .03 (one 45° elbow + four 90° elbows - 135°) = .03 (405 - 135°) = 8.1 FT (2.5m)
HT= HR+ HO= 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)
HT+ VT= 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)
Formula 1: HT< 4.2FT (1.3m) VT
4.2FT (1.3m) VT= 4.2 FT (1.3m) x 5.5 FT (1.7m)= 23.1 FT (7m)
13.6 FT (4.2m) < 23.1 FT (7M)
Formula 2: HT+ VT< 24.75 FT (7.5m)
19.1 FT (5.8m) < 24.75 FT (7.5m)
Since both formulas are met, this vent configuration is acceptable.
90°
90°
45°
V1
H1
H4
90° 90°
H3
H2
V2
REQUIRED
VERTICAL RISE
IN INCHES
(MILLIMETERS) VT
05
(1.5) 15 (4.6) 20
(6.1)
100 (2540)
50 (1270)
150 (3810)
12.5
(3.8)
57 (1447.8)
147 (3733.8)
10
(3.1)
HORIZONTAL VENT RUN PLUS
OFFSET IN FEET
(
METERS
)
H
T
See graph to determine the required vertical
rise VTfor the required horizontal run HT.
The shaded area within the lines represents acceptable values for HTand VT

W415-1146 / A / 02.16.13
17
EN
3.9 VERTICAL TERMINATION
(HT) < (VT)
Simple venting configurations. See graph to determine the required vertical rise VTfor the
required horizontal run HT.
REQUIRED
VERTICAL
RISE IN FEET
(METERS) VT
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
For vent configurations requiring more than one 45° and one 90° elbow, the following formulas apply:
Formula 1: HT< VT
Formula 2: HT+ VT < 40 feet (12.2m)
Example:
V1 = 5 FT (1.5m)
V2 = 10 FT (3.1m)
VT = V1 + V2 = 5 FT (1.5m) + 10 FT (3.1m) = 15 FT (4.6m)
H1 = 3 FT (0.9m)
H2 = 2.5 FT (0.8m)
HR = H1 + H2 = 3FT (0.9m) + 2.5FT (0.8m) = 5.5 FT (1.7m)
HO = .03 (one 45° + three 90° elbows - 135°)
= .03 (45 + 270 - 135°) = 5.4 FT (1.6m)
HT =HR + HO = 5.5 FT (1.7m)+ 5.4 FT (1.m) = 10.9 FT (3.3m)
HT + VT = 10.9 FT (3.3m)+ 15 FT (4.6m) = 25.9 FT (7.9m)
Formula 1: HT < VT
10.9FT (3.3m) < 15 (4.6m)
Formula 2: HT + VT < 40 FT (12.2m)
25.9FT (7.9m) < 40 (12.2m)
Since both formulas are met, this vent configuration is acceptable.
The shaded area within the lines represents acceptable
values for HT and VT
05
(1.5) 10 (3.1) 15
(4.6) 20
(6.1)
40 (12.2)
10 (3.1)
20 (6.1)
30 (9.1)
3 (0.9)
18.3A
90°
V1
H1
H2
90°
90°
45°
V2

W415-1146 / A / 02.16.13
18
EN
(HT) > (VT)
Simple venting configurations. See graph to determine the required vertical rise VTfor the
required horizontal run HT.
REQUIRED
VERTICAL RISE
IN FEET
(METERS) VT
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS)HT
The shaded area within the lines represents acceptable
values for HT and VT
90°
V1
H2
90°
90°
18.3_2B
45°
05
(1.5) 10 (3.1) 15 (4.6) 20 (6.1)
10 (3.1)
20 (6.1)
3 (0.9)
25
(7.6) 30 (9.1)
19 (5.8)
V2
H1
90°
V1
H2
90°
90°
45°
V2
H1
45°
H3
For vent configurations requiring more than one 45° and one 90° elbow, the following formulas apply:
Formula 1: HT< 3VT
Formula 2: HT+ VT < 40 feet (12.2m)
Example:
V
1 = 1 FT (0.3m)
V
2 = 1.5 FT (0.5m)
V
T = V1 + V2 = 1 FT (0.3m)+ 1.5 FT (0.5m)= 2.5 FT (0.8m)
H1 = 6 FT (1.8m)
H2 = 2 FT (0.6m)
HR = H1 + H2 = 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m)
HO = .03 (one 45° + three 90° elbows - 135°)
= .03 (45 + 270 - 135°) = 5.4 FT (1.6m)
HT =HR + HO = 8FT (2.4m) + 5.4FT (1.6m) = 13.4FT (4.1m)
HT + VT = 13.4FT (4.1m)+ 2.5FT (0.8m) = 15.9FT (4.8m)
Formula 1: HT < 3VT
3VT = 3FT (0.9m) x 2.5FT(0.8m) = 7.5FT (2.3m)
13.4 FT (4.1m) > 7.5 FT (2.3m)
Since this formula is not met, this vent configuration is unacceptable.
Formula 2: HT + VT < 40 FT (12.2m)
15.9FT (4.8m) < 40FT (12.2m)
Since only formula 2 is met, this vent configuration in unacceptable and a new fireplace location or vent
configuration will need to be established to satisfy both formulas.
Example:
V
1 = 1.5 FT (0.5m)
V
2 = 8 FT (2.4m)
V
T = V1 + V2 = 1.5 FT (0.5m) + 8 FT (2.4m) = 9.5 FT (2.9m)
H1 = 1 FT (0.3m)
H2 = 1 FT (0.3m)
H3 = 10.75 FT (3.3m)
HR = H1 + H2 + H3= 1FT(0.3m) + 1FT(0.3m) + 10.75FT(3.3m) = 12.75FT(3.9m)
H
O
= .03 (three 90° elbows + two 45° elbows - 135°)
= .03 (270 + 90 - 135°) = 6.75 FT (2.1m)
HT =HR + HO = 12.75 FT (3.9m) + 6.75 FT (2.1m) = 19.5 FT (5.9m)
HT + VT = 19.5FT (5.9m) + 9.5FT (2.9m) = 29 FT (8.8m)
Formula 1: HT < 3VT
3VT = 3 x 9.5 = 28.5 FT (8.7m)
19.5 FT (5.9m) < 28.5 (8.7m)
Formula 2: HT + VT < 40 FT (12.2m)
29 FT (8.8m) < 40 FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.

W415-1146 / A / 02.16.13
19
EN
4.0 INSTALLATION
4.1 WALL AND CEILING PROTECTION
!
WARNING
DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF
MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.
ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.
INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR
OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.
70.1
For optimum performance it is recommended that all horizontal runs have a minimum of 1/4” (6.4mm) rise per
foot/meter using flexible venting. For safe and proper operation of the appliance, follow the venting instructions
exactly.
For clearance to combustible materials from the vent pipe, see "MINIMUM CLEARANCE TO
COMBUSTIBLES" section.
NOTE: The firestop / vent shield supplied with this appliance must be used when passing through a
combustible wall or floor.
!
WARNING
FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS
EXACTLY.
ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE JOINTS MAY BE SEALED USING EITHER RED
RTV HIGH TEMP SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC
W573-0007 (NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR
WHICH MUST BE SEALED USING MILL PAC.
IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, 3 SCREWS MUST ALSO BE USED TO
ENSURE THE CONNECTION CANNOT SLIP OFF.
DO NOT CLAMP THE FLEXIBLE VENT PIPE.
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING
SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT
VENT SECTIONS PER INSTALLATION INSTRUCTIONS.
RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.
REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO
MAINTAIN CLEARANCES TO COMBUSTIBLES.
68.2A

W415-1146 / A / 02.16.13
20
EN
This application occurs when venting through an exterior wall.
Having determined the correct height for the air terminal
location, cut and frame a hole in the exterior wall as
illustrated to accommodate the firestop assembly.
Dry fit the firestop assembly before proceeding to
ensure the brackets on the rear surface fit to the
inside surface of the horizontal framing.
The length of the vent shield may be cut shorter for
combustible walls that are less than 8 1/2” (215.9mm)
thick but the vent shield must extend the full depth of
the combustible wall.
A
. Apply a bead of caulking (not supplied) around the corner edge of
the inside surface of the firestop assembly, fit the firestop
assembly to the hole and secure using the 4 screws (supplied in your
manual baggie).
B. Once the vent pipe is installed in its final position, apply high temperature sealant W573-0007 (not
supplied) between the pipe and the firestop.
DETERMINE
THE
CORRECT
HEIGHT
CAULKING
FIRESTOP
SPACER
VENT
SHIELD
FINISHING
MATERIAL
20.7A
!
WARNING
THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.
TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE
RETURN FLANGE OF THE MOUNTING PLATE.
4.1.1 HORIZONTAL INSTALLATION
4.1.2 VERTICAL INSTALLATION
This application occurs when venting through a roof. Installation kits for
various roof pitches are available from your authorized dealer / distributor. See
accessories to order specific kits required.
A
.Determine the air terminal location, cut and frame a square opening as
illustrated in the ceiling and the roof to provide the minimum 1” (25.4mm)
clearance between the vent pipe and any combustible material. Try to center
the vent pipe location midway between two joists to prevent having to cut
them. Use a plumb bob to line up the center of the openings. A vent pipe
shield will prevent any materials such as insulation, from filling up the
1” (25.4mm) air space around the pipe. Nail headers between the joist for
extra support.
B. Apply a bead of caulking (not supplied) to the framework or to the Wolf
Steel vent pipe shield plate or equivalent (in the case of a finished ceiling),
and secure over the opening in the ceiling. A firestop must be placed on the
bottom of each framed opening in a roof or ceiling that the venting system passes
through. Apply a bead of caulking all around and place a firestop spacer over
the vent shield to restrict cold air from being drawn into the room or around the
fireplace. Ensure that both spacer and shield maintain the required clearance to
combustibles. Once the vent pipe is installed in its final position, apply sealant
between the pipe and the firestop assembly.
C. In the attic, slide the vent pipe collar down to cover up the open end of the shield and
tighten. This will prevent any materials, such as insulation, from filling up the 1” (25.4mm)
air space around the pipe. 21.1A
CAULKING
VENT PIPE
SHIELD
FIRESTOP
UNDERSIDE OF
JOIST
VENT
PIPE
COLLAR
VENT
PIPE
SHIELD
