Napoleon Luxuria Series User manual

FRENCH PG. 91
W415-1710 / B / 08.17.18
ADD MANUAL TITLE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • www.napoleonfireplaces.com • [e-mail]
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)
NATURAL GAS MODELS:
PROPANE GAS MODELS:
Product Name / Code
(MUST use title from Price Book)
ADD ____ ILLUSTRATED
ADD PRODUCT IMAGE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be
performed by a qualified installer, service
agency, or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
WARNING
!
ENGLISH
$10.00
FOR INDOOR USE ONLY
IF INSTALLATION + OPERATION, ADD SERIAL
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD “PLACE
BARCODE LABEL ON THE OWNER’S MANUAL”
INSTALLATION MANUAL
LVX38N / LVX50N / LVX62N / LVX74N / LVX38N2 / LVX50N2 / LVX62N2 / LVX74N2
LVX38P / LVX50P / LVX62P / LVX38P2 / LVX50P2 / LVX62P2
Luxuria™ Series
(LVX38 illustrated)
GLASS GUARD
THIS APPLIANCE IS INSTALLED WITH
PLACE BARCODE LABEL ON THE
OWNER’S MANUAL
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
FOR INDOOR USE ONLY

W415-1710 / B / 08.17.18
EN
2
safety information
• This appliance is hot when operated and
can cause severe burns if contacted.
• Any changes or alterations to this
appliance or its controls can be
dangerous and is prohibited.
• Do not operate appliance before reading and
understanding operating instructions. Failure
to operate appliance according to operating
instructions could cause fire or injury.
• Ensure the glass door is opened or removed
when lighting the pilot for the first time and
when the gas supply has run out.
• Risk of fire or asphyxiation, do not operate
appliance with fixed glass removed and never
obstruct the front opening of the appliance.
• Do not connect 110 volts to the control valve,
with the exception of models; GSST8 and
GT8.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during
installation. Sheet metal edges may be sharp.
• Do not burn wood or other materials in this appliance.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing
and operating the appliance.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at
test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test
pressures equal to or less than 1/2 psig (35mb).
• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance
to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these
appliances are suitable for 0°F / -18°C.
• Children and adults should be alerted to hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from
furniture and draperies.
• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is off, it will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior
to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and
free from combustible materials, gasoline and other flammable vapors and liquids.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it
serviced. Keep burner and control compartment clean.
• Under no circumstances should this appliance be modified.
• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner flame
patterns.
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
!
AVERTISSEMENT
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other
at-risk individuals.
Une barriére conçu à réduire le risque de brûlures
causées par le verre chaud est fourni avec l’appareil et
sera installé pour la protection des enfants et d’autres
personnes à risque.
3.1C
!
WARNING
!
WARNING
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this
appliance.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning
appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has
been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person, if equipped.
• Do not strike or slam shut the appliance glass door, if equipped.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your
home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have
it serviced by a qualified technician before operating it again.
• If equipped, the screen must be in place (closed) when the appliance is in operation.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating
to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of
the exhaust escaping through these openings can also cause the surrounding combustible materials to
overheat and catch fire.
• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the
flu, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working
properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with
heart or lung disease, anemia, those under the influence of alcohol, those at high altitudes are more
affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean
may result in sooting and property damage.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide (not applicable for outdoor appliances).
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the
appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,
discolouration or damage to decorations, a T.V. or other electronic components.
• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier
shall be replaced with the manufacturer’s barrier for this appliance.
• Installation and repair should be done by a qualified service person. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept clean.
• For outdoor products only: this appliance must not be installed indoors or within any structure that
prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.
• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace
only with a fast acting thermocouple supplied by Wolf Steel Ltd.
!
WARNING
!
Disconnect the appliance main gas valve/control
from the supply piping when pressure testing that
system at pressures in excess of 1/2 psi (3.5 kPa).
Isolate the appliance with it’s shut off valve during
any pressure testing of the supply piping at
pressures equal to or less than 1/2 psi (3.5 kPa).
FIRE RISK HAZARD / DELAYED IGNITION
High supply pressure will damage the valve / controls.
Add California Prop 65 warning

EN
W415-1710 / B / 08.17.18 3
safety information
• This appliance is hot when operated and
can cause severe burns if contacted.
• Any changes or alterations to this
appliance or its controls can be
dangerous and is prohibited.
• Do not operate appliance before reading and
understanding operating instructions. Failure
to operate appliance according to operating
instructions could cause fire or injury.
• Ensure the glass door is opened or removed
when lighting the pilot for the first time and
when the gas supply has run out.
• Risk of fire or asphyxiation, do not operate
appliance with fixed glass removed and never
obstruct the front opening of the appliance.
• Do not connect 110 volts to the control valve,
with the exception of models; GSST8 and
GT8.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during
installation. Sheet metal edges may be sharp.
• Do not burn wood or other materials in this appliance.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing
and operating the appliance.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at
test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test
pressures equal to or less than 1/2 psig (35mb).
• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance
to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these
appliances are suitable for 0°F / -18°C.
• Children and adults should be alerted to hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from
furniture and draperies.
• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is off, it will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior
to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and
free from combustible materials, gasoline and other flammable vapors and liquids.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it
serviced. Keep burner and control compartment clean.
• Under no circumstances should this appliance be modified.
• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner flame
patterns.
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
!
AVERTISSEMENT
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other
at-risk individuals.
Une barriére conçu à réduire le risque de brûlures
causées par le verre chaud est fourni avec l’appareil et
sera installé pour la protection des enfants et d’autres
personnes à risque.
3.1C
!
WARNING
!
WARNING
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this
appliance.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning
appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has
been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person, if equipped.
• Do not strike or slam shut the appliance glass door, if equipped.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your
home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have
it serviced by a qualified technician before operating it again.
• If equipped, the screen must be in place (closed) when the appliance is in operation.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating
to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of
the exhaust escaping through these openings can also cause the surrounding combustible materials to
overheat and catch fire.
• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the
flu, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working
properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with
heart or lung disease, anemia, those under the influence of alcohol, those at high altitudes are more
affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean
may result in sooting and property damage.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide (not applicable for outdoor appliances).
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the
appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,
discolouration or damage to decorations, a T.V. or other electronic components.
• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier
shall be replaced with the manufacturer’s barrier for this appliance.
• Installation and repair should be done by a qualified service person. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept clean.
• For outdoor products only: this appliance must not be installed indoors or within any structure that
prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.
• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace
only with a fast acting thermocouple supplied by Wolf Steel Ltd.
!
WARNING
!
Disconnect the appliance main gas valve/control
from the supply piping when pressure testing that
system at pressures in excess of 1/2 psi (3.5 kPa).
Isolate the appliance with it’s shut off valve during
any pressure testing of the supply piping at
pressures equal to or less than 1/2 psi (3.5 kPa).
FIRE RISK HAZARD / DELAYED IGNITION
High supply pressure will damage the valve / controls.
Add California Prop 65 warning
!
WARNING:
Electric
This product can expose you to chemicals including lead and lead compounds,
Gas, Wood
Mantels (including Firebox)
Accessories / Metal
Accessories / Brick
Accessories / Powder Coat
Fibre
which are known to the State of California to cause cancer, and chemicals including BBP and
DEHP, which are known to the State of California to cause birth defects or other reproductive
harm. For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
Ce produit peut vous exposer à des substances chimiques incluant le
plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des
substances chimiques incluant le BBP et DEHP qui, selon d’État de Californie, causeraient des
malformations congénitales ou autres dangers pour la reproduction.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
!
WARNING:
This product can expose you to chemicals including lead and lead compounds,
which are known to the State of California to cause cancer, and chemicals including carbon
monoxide, which are known to the State of California to cause birth defects or other reproduc-
tive harm. For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
Ce produit peut vous exposer à des substances chimiques incluant le
plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des
substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-
raient des malformations congénitales ou autres dangers pour la reproduction.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
!
WARNING:
This product can expose you to chemicals including wood dust, which are
known to the State of California to cause cancer, and chemicals including BBP and DEHP,
which are known to the State of California to cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
Ce produit peut vous exposer à des substances chimiques incluant le
poussière de bois qui, selon l’État de Californie, causeraient le cancer, et des substances
chimiques incluant le BBP et DEHP qui, selon d’État de Californie, causeraient des malforma-
tions congénitales ou autres dangers pour la reproduction.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
!
WARNING:
This product can expose you to chemicals including chromium, which are
known to the State of California to cause cancer, and chemicals including toluene, which are
known to the State of California to cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
Ce produit peut vous exposer à des substances chimiques incluant le
chrome qui, selon l’État de Californie, causeraient le cancer, et des substances chimiques
incluant le toluène qui, selon d’État de Californie, causeraient des malformations congénitales
ou autres dangers pour la reproduction.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
!
WARNING:
This product can expose you to chemicals including silica, which are
known to the State of California to cause cancer.
For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
Ce produit peut vous exposer à des substances chimiques incluant le
silice qui, selon l’État de Californie, causeraient le cancer.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
!
WARNING:
This product can expose you to chemicals including titanium dioxide, which
are known to the State of California to cause cancer, and chemicals including toluene, which
are known to the State of California to cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
Ce produit peut vous exposer à des substances chimiques incluant le
dioxyde de titane qui, selon l’État de Californie, causeraient le cancer, et des substances
chimiques incluant le toluène qui, selon d’État de Californie, causeraient des malformations
congénitales ou autres dangers pour la reproduction.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
!
WARNING:
This product can expose you to chemicals including silica, which are known to
the State of California to cause cancer, and chemicals including toluene, which are known to
the State of California to cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
!
AVERTISSEMENT:
silice qui, selon l’État de Californie, causeraient le cancer, et des substances chimiques
incluant le toluène qui, selon d’État de Californie, causeraient des malformations congénitales
ou autres dangers pour la reproduction.
Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.
Ce produit peut vous exposer à des substances chimiques incluant le
!
ADVERTENICA:
Este producto puede exponerlo a productos químicos, entre ellos, plomo
y compuestos con plomo, que el Estado de California reconoce como causantes de cáncer, y
productos químicos, entre ellos, bencilbutilftalato (BBP, por sus siglas en inglés) y di(2-etilhex-
il) ftalato (DEHP, por sus siglas en inglés), que el Estado de California reconoce como caus-
antes de malformaciones congénitas u otros daños para la reproducción. Para obtener más
información, visite www.P65Warnings.ca.gov.

W415-1710 / B / 08.17.18
EN
4
table of contents
1.0 general information 5
1.1 rates and efficiencies 6
1.2 installation overview 7
1.3 Dynamic Heat Control™ 8

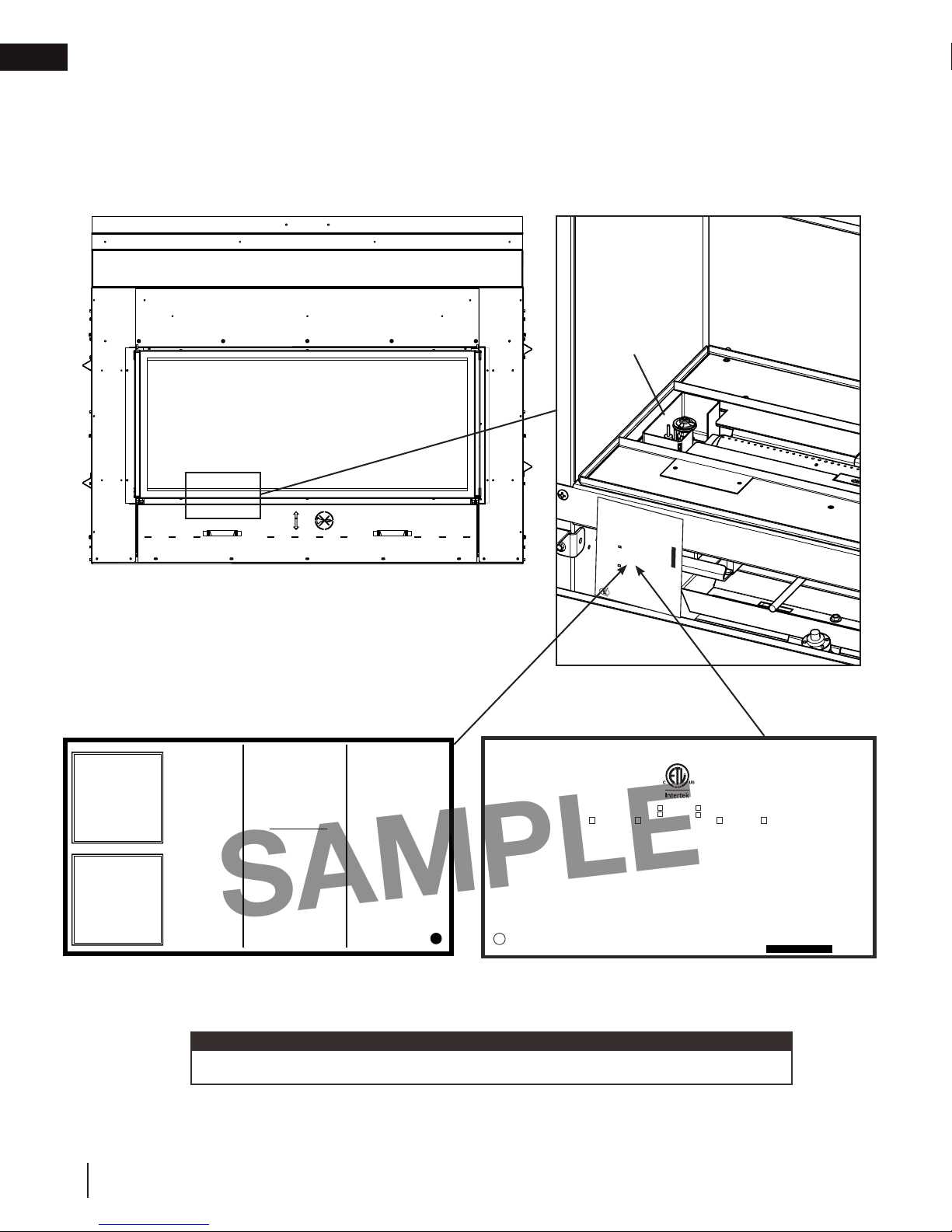

1.4 rating plate/lighting instruction location
10
1.5 mobile home installation 11
1.6 hardware list 11
1.7 lifting handles installation/removal 11
2.0 dimensions 12
2.1 single-sided 12
2.2 see-thru 13
3.0 minimum venting requirements 14
3.1 typical venting installation 16
3.2 minimum air terminal location
clearances 18
3.3 horizontal termination 19
3.4 vertical termination 22
3.5 LVX38 venting configurations 23
3.6 LVX50 / 62 venting configurations 24
4.0 installation planning 25
4.1 installation option 1 - open enclosure
(enclosure stops short of the ceiling) 27
4.2 installation option 2 - front opening 28
4.3 installation option 3 - Rear Opening 29
4.4 installation option 4 - open enclosure
with hard combustible valance 30
5.0 rough framing - before appliance
installation 31
5.1 minimum framing dimensions 32
5.1.1 minimum clearance to combustible
enclosures 33
6.0 venting installation 36
6.1 firestop spacer assembly 36
6.2 horizontal installation 38
6.3 vertical installation 38
6.4 using flexible vent components 39
6.4.1 horizontal air terminal installation 39
6.5 vertical air terminal installation 40
6.5.1 appliance vent connection 40
6.6 restricting vertical vents 41
6.6.1 LVX38 / LVX50 41
6.6.2 LVX62 / LVX74 41
6.7 vent shield installation 42
7.0 electrical information 43
7.1 hard wiring connection 43
7.2 receptacle wiring diagram 43
7.3 in the event of a power failure 43
7.4 battery holder/switch installation 44
7.5 initializing the battery holder/switch for
the first time 44
7.6 wiring diagram 45
7.7 eFire controller application 45
7.7.1 LVX38/50 wiring diagram 46
7.7.2 LVX62/74 wiring diagram 47
7.8 access panel 48
8.0 gas installation 49
9.0 operation 50
10.0 nailing tab installation 51
11.0 finish framing - after appliance
installation 52
11.1 framing with Dynamic Heat Control™
52
12.0 finishing 56
12.1 fastener placement restriction 56
12.2 enclosure design 57
12.3 finishing with combustibles 58
12.4 minimum combustible mantel
clearances 60
12.5 optional trim finishing 61
12.6 glass guard installation / removal 62
12.7 firebox glass door installation /
removal 71
12.8 media tray removal 72
12.9 optional media placement 72
12.10 glass media installation / removal 73
13.0 adjustments 74
13.1 restricting vertical vents 74
13.2 venturi adjustment 74
13.3 pilot burner adjustment 75
13.4 flame characteristics 75
14.0 maintenance 76
14.1 annual maintenance 77
14.2 control access 77
14.3 burner removal 78
14.4 valve removal 78
14.5 control module removal 79
14.6 LED replacement 80
14.7 glass / door replacement 81
14.8 care of glass 81
14.9 care of plated parts 81
15.0 replacements 82
15.1 overview 83
15.2 burner components 84
16.0 troubleshooting 86
The information throughout this manual is believed to be correct at the time of printing. Wolf Steel
Ltd. reserves the right to change or modify any information within this manual at any time without
notice. Changes, other than editorial are denoted by a vertical line in the margin.
note:

EN
W415-1710 / B / 08.17.18 5
general information
Installer: please fill out appliance checklist in the
owner’s manual.
When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each
additional 1,000ft (305m). Expansion / contraction noises during heating up and cooling down cycles are normal
and are to be expected. Change in flame appearance from “HI” to “LO” is more evident in natural gas than in
propane.
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is certified for mobile
home installation.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
There is a switch that controls the function of the appliance. The battery holder/switch must be placed in the
middle position. If the switch is not placed in the middle position, the appliance will not work.
The protective wrap on plated parts is best removed when the assembly is at room temperature but this can
be improved if the assembly is warmed, using a hair dryer or similar heat source. The protective wrap must be
removed before operating the appliance.
This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.
This appliance is equipped with a remote control and a wall switch, which requires batteries to be installed. The
remote takes 3 “AAA” batteries and the wall switch takes 4 “AA” batteries.
note:
Batteries must be disposed of according to the local laws and regulations. Some batteries may be
recycled, and may be accepted for disposal at your local recycling center. Check with your
municipality for recycling instructions.
Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.
Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-
gnez-vous auprès de votre municipalité au sujet des directives de recyclage.
Las baterías deben desecharse de acuerdo con las leyes y regulaciones locales. Algunas baterías
pueden reciclarse, y es posible que su centro de reciclado local las acepte para desecharlas.
Consulte en su municipalidad sobre las instrucciones para el reciclado.
A glass guard assembly designed to reduce the risk of burns is provided with the appliance and must
be installed. Never operate the appliance without the complete Glass Guard Barrier System installed
and closed.
1.0 general information
important:
Some components and/or media are packaged separately and must be installed in accordance with the
information in this manual.

W415-1710 / B / 08.17.18
EN
6
general information
Single-Sided See-thru
Appliance Type LVX38N LVX38P LVX38N2 LVX38P2
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500
Max. Input (BTU/HR) 32,000 32,000 32,000 32,000
Min. Input (BTU/HR) 22,000 25,000 23,000 25,000
P4 40.2% 40.2% 40.2% 40.2%
Single-Sided See-thru
Appliance Type LVX50N LVX50P LVX50N2 LVX50P2
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500
Max. Input (BTU/HR) 38,000 38,000 38,000 38,000
Min. Input (BTU/HR) 26,000 31,000 26,000 31,000
P4 45.5% 45.5% 45.5% 45.5%
Single-Sided See-thru
Appliance Type LVX62N LVX62P LVX62N2 LVX62P2
Fuel Type Natural Gas Propane Natural Gas Propane
Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500
Max. Input (BTU/HR) 44,000 38,000 44,000 38,000
Min. Input (BTU/HR) 32,000 31,000 32,000 31,000
P4 55.5% 58.5% 55.5% 58.5%
LVX50
1.1 rates and efficiencies
Single-Sided See-thru
Appliance Type LVX74N LVX74N2
Fuel Type Natural Gas Natural Gas
Altitude (FT) 0-4,500 0-4,500
Max. Input (BTU/HR) 50,000 50,000
Min. Input (BTU/HR) 35,000 32,000
P4 52.5% 52.5%
LVX38
LVX62
LVX74

EN
W415-1710 / B / 08.17.18 7
general information
14
10
13 6
5
8
943
2
GLASS GUARD
1.2 installation overview
Recommended installation steps:
1. Determine venting requirements before deciding the final location of the appliance
2. Plan out appliance enclosure, framing, fronts, accessories, etc.
3. Install rough framing (refer to “rough framing” section)
4. Place the appliance in its final position
5. Install nailing tabs (refer to “nailing tab installation” section)
6. Install appliance venting (refer to “venting installation” section)
7. Install vent shield (refer to “vent shield installation” section)
8. Install all electrical wirings (refer to “electrical information” section)
9. Install gas lines (refer to “gas installation” section)
10. Fit glass guard (refer to “glass guard assembly installation / removal” section)
11. Test appliance (Glass Guard must be installed while testing the appliance)
12. Remove and protect glass guard. Take great care to store using original packaging.
13. Complete framing (refer to “finish framing” section)
14. Finishing (refer to “finishing” section)
15. If necessary, do final adjustments to glass guard.
16. Complete installation checklist in the owner’s manual and apply the serial number to owner’s manual

W415-1710 / B / 08.17.18
EN
8
general information
1.3 Dynamic Heat Control™
Dynamic Heat Control™ is a system for managing the
heat produced by the appliance at and around the fire-
place. The purpose of the Dynamic Heat Control™ is
to move the heat away from the fireplace to allow it to cir-
culate more effectively within the living space. By install-
ing the Dynamic Heat Control™ both the installer and
the user gain considerable benefits, see the following;
Installer:
• Ability to use combustible framing and finishing right up to the fireplace opening.*
• High temperatures above the front of the fireplace opening are significantly reduced eliminating potential de-
grading to sensitive finish material (cracks or discoloration).
• No additional electricals, fans, ducts, or manifolds are required which keeps installation straightforward.
User:
• Heat is circulated more consistently throughout the living space increasing comfort in front of the fireplace.
• Increased “real world” efficiency as heat is moved in to the room rather than retained inside an enclosure.
• Complete flexibility in selection of finish materials.
• Ability to place a TV, sound bar or artwork above the fireplace.**
The Dynamic Heat Control™ system relies on an optimized flow of air both through the appliance and the en-
closure. As such the installation of the Dynamic Heat Control™ system requires certain technical considerations
when compared to traditional fireplaces. Specifically, the Dynamic Heat Control™ requires the enclosure to be
ventilated and requires the installer to ensure that a minimum opening area is provided to allow heat to escape
and circulate at a prescribed minimum height and position. This must be carefully adhered to in the planning and
the installation to ensure the appliance functions safely and to minimize installation time.
*In most common installation configurations, some specific installations require special provisions.
See “framing with Dynamic Heat Control™ section for details. Ensure to strictly adhere to instructions.
** Always check the appliance manufacturer’s recommendations to confirm suitability and any special
environmental limitations. For valuable or antique items, always refer to expert preservation instruc-
tions as some items require specifically controlled temperature and/or humidity
PATENT PENDING

EN
W415-1710 / B / 08.17.18 9
general information
!WARNING
• Always light the pilot whether for the first time or if the gas supply has run out, with the glass door opened
or removed.
• Provide adequate clearance for servicing and operating the appliance.
• Provide adequate ventilation.
• Never obstruct the front opening of the appliance.
• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of
the appliance.
• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is
operating.
• Fire risk. Explosion hazard.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test
pressures above 1/2 PSIG. Close the manual shut-off valve before pressure testing gas line at test
pressures equal to or less than 1/2 PSIG (35mb).
• Use only Wolf Steel approved optional accessories and replacement parts with this appliance using non-
listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result
in a safety hazard and will void the warranty and certification.
• The appliance must not be operated at temperatures below freezing (32ºF / 0ºC). Allow the appliance to
warm to above freezing prior to operation.
• This appliance has been designed and certified for indoor use only.
4.1
THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local
codes. Installation practices vary from region to region and it is important to know the specifics that apply to your area, for
example in the state of Massachusetts:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth of
Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas
log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches (0.9m).
• A carbon monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed
combustion product.
The installation must conform with local codes or, in absence of local
codes, the National Gas and Propane Installation Code CSA B149.1
in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54
in the United States. Suitable for mobile home installation if installed
in accordance with the current standard CAN/CSA Z240MH Series,
for gas equipped mobile homes, in Canada or ANSI Z223.1 and
NFPA 54 in the United States.
The appliance and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing
of that system at test pressures in excess of 1/2 psig (35 mb).
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed
with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the
absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National
Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a
properly grounded receptacle. The grounding prong must not be removed from the cord plug.
The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable
and beneficial location for an appliance is in the center of a building, thereby allowing the most efficient use of the heat
created. The location of windows, doors and, the traffic flow in the room where the appliance is to be located should be
considered. If possible, you should choose a location where the vent will pass through the house without cutting a floor or
roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood flooring, the
appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org

W415-1710 / B / 08.17.18
EN
10
general information
CERTIFIED UNDER / HOMOLOGUE SELON LES NORMES: CSA2.33b - 2008, ANSI Z21.88b- 2008 VENTED GAS FIREPLACE HEATER / APPAREIL DE CHAUFFAGEALIMENTÉ
AU GAZ ET VENTILÉ
VENTEDGAS FIREPLACE HEATER. APPROVEDFOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION.SUITABLEFOR MOBILE HOME INSTALLATIONIF INSTALLED IN ACCORDANCE WITH THE
CURRENTSTANDARD CAN/CSA Z240MH SERIESGAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATESTHE MANUFACTURED HOME CONSTRUCTIONAND SAFETY STANDARD, TITLE 24CFR,
PART3280. WHEN THIS US STANDARDIS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETYCRITERIA FOR MANUFACTURED HOME INSTALLATIONS,SITES AND COMMUNITIES,ANSI / NFPA 501A.
FOYERDE CHAUFFAGE AU GAZ AVECÉVACUATION. HOMOLOGUÉPOUR INSTALLATION DANS UNE CHAMBREÀ COUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATIONDANS UNE
MAISONMOBILE SI SON INSTALLATIONCONFORME AUX EXIGENCES DE LA NORME CAN/CSAZ240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEURAU CANADA OU AUX ÉTATS-UNISDE LA
NORMEDE SECURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES,TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNISNE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRERA LA NORME
RELATIVEAU CRITÈRE DE MESURES DE SÉCURITÉCONTRE L'INCENDIE POUR LES INSTALLATIONSDANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS,ANSI/NFPA 501A.
NOT FOR USE WITH
SOLID FUEL. FOR USE
WITH GLASS DOORS
CERTIFIED WITH THIS
UNIT ONLY.
WARNING
:
DONOT ADD ANY MATERIAL
TOTHE APPLIANCE, WHICH WILL COME
INCONTACT WITH THE FLAMES, OTHER
THANTHAT SUPPLIED BY THE
MANUFACTURERWITH THE APPLIANCE.
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS:
TOP 0”
FLOOR 0”
RECESSEDDEPTH ONE SIDED 23"
RECESSEDDEPTH SEE THRU 13.5”
FRAMING (NOT INCLUDING
FACE MATERIAL)
SIDES 0”
VENT 2"
BACK 0”
MANTLE 15"*
TOP,SIDES & BACK: PER STAND OFF SPACERSFOR FRAMING MATERIALS. FOR FINISHING MATERIALS
SEEOWNERS MANUAL
UN COMBUSTIBLE SOLIDE NE
DOIT PAS ÊTRÉ UTILISÉAVEC
CET APPAREIL.UTILISER AVEC
LES PORTES VITRÉES
HOMOLOGUÉES SEULEMENT
AVEC CETTE UNITÉ.
AVERTISSEMENT:
N'AJOUTEZPAS A
CETAPPAREIL AUCUN MATÉRIAU DEVANT
ENTREREN CONTACT AVEC LES FLAMMES
AUTREQUE CELUI QUI EST FOURNI AVEC
CETAPPAREIL PAR LE FABRICANT.
DÉGAGEMENTS MINIMAUX DES
MATÉRIAUXCOMBUSTIBLES:
DESSUS 0”
PROFONDEURD'ENCASTRÉ 25"
PLANCHER 0”
ÉVENT 2"
CÔTES 0”
MANTEAU 15"*
ARRIÉRE 0”
MADEIN CANADA / FABRIQUÉ AU CANADA
WOLF STEEL LTD.BARRIE,ONTARIO, CANADA
ALTITUDE/ÉLÉVATION
INPUT/ ALIMENTATION
REDUCEDINPUT/ ALIMENTATIONRÉDUITE
ORIFICE/ INJECTEUR
MANIFOLDPRESSURE/
PRESSIONAUCOLLECTEUR
MINIMUMSUPPLYPRESSURE/
PRESSIOND'ALIMENTATION MINIMALE
MAXIMUMSUPPLYPRESSURE/
PRESSIOND'ALIMENTATION MAXIMALE
0-4500FT(0-1370M)
30,000BTU/H
23,000BTU/H
#38
3.5"WATERCOLUMN/D'UNECOLONNED'EAU
4.5"WATERCOLUMN/D'UNECOLONNED'EAU
7.0"WATERCOLUMN/D'UNECOLONNED'EAU
0-4500FT(0-1370M)
30,000BTU/H
23,000BTU/H
#53
10"WATERCOLUMN/D'UNECOLONNED'EAU
11"WATERCOLUMN/D'UNECOLONNED'EAU
13"WATERCOLUMN/D'UNE COLONNED'EAU
THEAPPLIANCE MUST BE VENTED USING THE APPROPRIATE
NAPOLEONVENT KITS. SEE OWNERS INSTALLATION MANUAL
FORVENTING SPECIFICS. PROPER REINSTALLATION AND
RESEALINGIS NECESSARY AFTER SERVICING THE VENT-AIR
INTAKESYSTEM.
L'APPAREILDOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE
D'ÉVACUATIONPROPRE A NAPOLEON. RÉFÉRER AU MANUEL
D'INSTALLATIONDE PROPRIÉTAIRE POUR L'ÉVACUATION
PRÉCISE.IL EST IMPORTANT DE BIEN RÉINSTALLER ET
RESCELLERL'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU
SYSTÉMEDE PRISE D'AIR.
CLASSIFICATION:115V 0.82AMP, 60HZ
W385-2007
MODEL NATURAL GAS /
GAZ NATURAL
LHD50NT
MODEL PROPANE
LHD50PT
SERIAL NUMBER/NO. DE SÉRIE: LV50
ELECTRICALRATING: 115V 0.82AMP,60HZ
REFERENCE #
W/N 16131
*MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION
HORIZONTALEMAXIMALE: 2". SEE INSTRUCTION MANUAL FOR GREATEREXTENSIONS.
SEEOWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.
DESSUS,COTÉS&ARRIÈRE:SELONLES ESPACEURSDEDÉGAGEMENTPOURLESMATÉRIAUXD'OSSATURE
SELONLEMANUELDE PROPRIÉTAIREPOURLESMATÉRIAUXDEFINITION.
*L'EXTENSIONHORIZONTALE MAXIMALE: 2". RÉFÉRERAUMANUELD'INSTRUCTIONPOURDESEXTENSIONS
PLUSGRANDES.RÉFÉRERAUMANUELD'INSTALLATION DEPROPRIÉTAIRE.
KEEP BURNER AND CONTROL
COMPARTMENT CLEAN. SEE
INSTALLATION MANUAL.
APPLIANCE NEEDS FRESH
AIR FOR SAFE OPERATION
AND MUST BE INSTALLED
WITH ADEQUATE PROVISIONS
FOR COMBUSTION
AND VENTILATION AIR.
GARDEZ LE BRÛLEUR ET LE
COMPARTIMENT DES
CONTRÔLES PROPRES.
CONSULTEZ LE MANUEL
D’INSTALLATION. PAR
MESURE DE SÉCURITÉ.
CET APPAREIL DOIT
ÊTRE ALIMENTÉ EN AIR
FRAIS ET AVEC SUFFISANT
D’AIR COMBURANT ET
DE VENTILATION.
WARNING:
IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF
LIFE. REFER TO INSTALLATION
MANUAL. INSTALLATION AND
SERVICE MUST BE PERFORMED
BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR THE
GAS SUPPLIER.
ATTENTION:
UN INSTALLATION OU UNE
MODIFICATION INAPPROPRIÉE
DU RÉGLAGE, DU SERVICE ET DE
L’ENTRETIEN POURRAIENT ÊTRE
LA CAUSE DE DOMMAGES À LA
PROPRIÉTÉ DE BLESSURES
CORPORELLES OU MÊME LA
MORT. CONSULTER LE MANUEL
D’INSTALLATION. L’INSTALLATION
ET LE SERVICE DOIVENT
ÊTRE EXECUTÉS PAR UN
INSTALLATEUR QUALIFIÉ POUR
LE GAZ, UNE ENTREPRISE DE
SERVICE OU LE FOURNISSEUR
DE GAZ SEULEMENT.
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN VICINITY OF THIS
OR ANY OTHER APPLIANCE.
CAUTION: DO NOT OPERATE
THE FIREPLACE WITH THE GLASS
REMOVED, CRACKED OR BROKEN.
REPLACEMENT OF THE GLASS
SHOULD BE DONE BY A LICENSED
OR QUALIFIED PERSON.
CAUTION:
HOT WHILE OPERATING. DO NOT TOUCH.
KEEP CHILDREN, CLOTHING, FURNITURE,
GASOLINE OR OTHER FLAMMABLE VAPORS
AWAY.
AVERTISSEMENT:
L’APPAREIL EST CHAUD PENDANT SON
FONCTIONNEMENT. LES ENFANTS,LES
VÊTEMENTS, LES MEUBLES, L’ESSENCE ET
AUTRES LIQUIDES QUI ÉMETTENT DES GAZ
VOLATILS INFLAMMABLES DOIVENT
ÊTRE TENUS ÉLOIGNÉS DE L’APPAREIL.
“This appliance is only for use with the type(s)
of gas indicated on the rating plate and may
be installed in an aftermarket, permanently
located, manufactured home (USA only) or
mobile home, where not prohibited by local
codes. See installation manual for details. This
appliance is not convertible for use with
other gases, unless a certified kit is used.”
«Cet appareil doit être utilisé uniquement
avec les types de gaz indiqués sur la plaque
signalétique et peut être installé dans une
maison préfabriquée (É.-U. seulement) ou
mobile installée à demeure si les règlements
locaux le permettent. Voir le manuel pour
pour plus de renseignements. Cet appareil ne
peut être converti à d’autres gaz, sauf si une
trousse de conversion est utilisée. »
POUR VOTRE
SÉCURITÉ:
NE PAS ENTREPOSER NI UTILISER
D’ESSENCE NI D’AUTRES VAPEURS
OU LIQUIDES INFLAMMABLES
DANS LE VOISINAGE DE CET
APPAREIL OU DE TOUT AUTRE
APPAREIL.
AVERTISSEMENT: NE PAS
UTILISER L’APPAREIL SI LE
PANNEAU FRONTAL EN VERRE
N’EST PAS EN PLACE, EST CRAQUÉ
OU BRISÉ. CONFIEZ LE
REMPLACEMENT DU
PANNEAU À UN
TECHNICIEN
AGRÉÉ.
TITLE: LABEL, RATING PLATE LVX38
REVISION:
DWG#: W385-2185
DATE: 05.03.17_J.F.K.
WOLF STEEL LTD. PAGE 2 OF 2
MAX SIZE: 8.5" X 4.75"
HOLE TO BE 0.250"Ø
MATERIAL: CLASS III A-2, PERMANENT LABEL, WATERPROOF, .010MIL VELVET MATTE LEXAN AND/OR .050 HI-TEMP POLYESTER, CAPABLE OF WITHSTANDING A
MAXIMUM TEMPERATURE OF 175°F (79°C).
MIN. LETTERING FOR "NOT FOR USE WITH SOLID FUEL. ", "UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC CELUI. " TO BE 10 POINT ARIAL, BOLD FACE,
UPPER CASE AND 2 POINT LEADING SPACING OR EQUIVALENT.
BLACK LETTERING ON WHITE BACKGROUND.
SERIAL NUMBERS TO BE ASCENDING FROM LVX38 019817
Both the rating plate and lighting instructions are attached to a chain located on the left side of the control
area near the valve (access side). Remove the glass guard and the control cover to gain access to the
control area.
To replace, slide the instructions back into the control area and slide the glass front into its locked position.
SAMPLE
TITLE: LABEL, RATING PLATE LVX38
REVISION:
DWG#: W385-2185
DATE: 05.03.17_J.F.K.
MAX SIZE: 8.5" X 4.75"
HOLE TO BE 0.250"Ø
MATERIAL: CLASS III A-2, PERMANENT LABEL, WATERPROOF, .010MIL VELVET MATTE LEXAN AND/OR .050 HI-TEMP POLYESTER, CAPABLE OF WITHSTANDING A
MAXIMUM TEMPERATURE OF 175°F (79°C).
MIN. LETTERING FOR "NOT FOR USE WITH SOLID FUEL. ", "UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC CELUI. " TO BE 10 POINT ARIAL, BOLD FACE,
UPPER CASE AND 2 POINT LEADING SPACING OR EQUIVALENT.
BLACK LETTERING ON WHITE BACKGROUND.
SERIAL NUMBERS TO BE ASCENDING FROM LVX38 019817
W385-2185
DIRECT VENT, VENTED GAS FIREPLACES. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING
ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE
WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES,
IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTION AND
SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT
APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME
INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A. THIS APPLIANCE MUST BE
INSTALLED INACCORDANCE WITH LOCAL CODES, IF ANY; IF NONE, FOLLOW THE CURRENT
ANSI Z223.1, OR CSA B149, INSTALLATION CODES. FOR USE WITH SAFETY BARRIER W010-4186.
FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL.
FOYER À GAZ VENTILÉ. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE
SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON MOBILE SI
SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE
MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEUR AU CANADA OU AUX ÉTATS-UNIS DE LA
NORME DE SÉCURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24
CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNIS NE PEUT ÊTRE
APPLIQUÉE, SE RÉFÉRER A LA NORME RELATIVE AU CRITÈRE DE MESURES DE SÉCURITÉ
CONTRE L'INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS MANUFACTURÉS, LES
SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A. CODES. INSTALLER L’APPAREIL SELON LES
CODES OU RÈGLEMENTS LOCAUX, OU EN L’ABSENCE DE TELS RÈGLEMENTS, SELON LES
CODES D’INSTALLATION ANSI Z223.1 OU CSA-B149 EN VIGUER. POUR UTILISATION AVEC
BARRIÈRE W010-4186. SUIVEZ LES INSTRUCTIONS D'INSTALLATION QUI SE TROUVENT DANS LE
MANUEL D'INSTALLATION.
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
LVX38N CLVX38N MODEL CLVX38P LVX38P
0-4500FT (0-1370m) ALTITUDE / ÉLÉVATION 0-4500FT (0-1370m)
32,000 BTU/h INPUT / ALIMENTATION 32,000 BTU/h
NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS
DOORS CERTIFIED WITH THIS APPLIANCE ONLY.
WARNING:DO NOTADD ANY MATERIAL TOTHE APPLIANCE, WHICH WILL COME IN CONTACT WITH THE FLAMES, OTHER
THAN THAT SUPPLIED BYTHE MANUFACTURER WITH THEAPPLIANCE.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS / DÉGAGEMENTS MINIMAUX DES MATÉRIAUX COMBUSTIBLES:
TOP, SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING AND FINISHING MATERIALS. FOR FINISHING MATERIALS
SEE INSTALLATION MANUAL. DESSUS, CÔTÉS & ARRIÈRE: SELON LES ESPACEURS DE DÉGAGEMENT POUR LES MATÉRIAUX
D'OSSATURE SELON LAMANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE FINITION.
TOP/ DESSUS 0" RECESSED DEPTH ONE SIDED/ PROFONDEUR D'ENCASTRE UNE FACE 17 15/16"
FLOOR / PLANCHER 0" RECESSED DEPTH SEE THRU/ PROFONDEUR D'ENCASTRE TRAVERS 16 3/16"
SIDES / CÔTÉS 0" BACK / ARRIÈRE 0"
VENT TOP / DESSUS DU CONDUIT D’ÉVENT 3"
VENT SIDES & BOTTOM / CÔTÉS ET DESSOUS DU CONDUIT D'ÉVENT 2"
VERTICAL VENT / CONDUIT D’ÉVENT VERTICAL 1"
MANTEL / TABLETTE 0" *
TOP, SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING MATERIALS. FOR FINISHING MATERIALS
SEE INSTALLATION MANUAL. DESSUS, CÔTÉS & ARRIÈRE: SELON LES ESPACEURS DE DÉGAGEMENT POUR LES MATÉRIAUX
D'OSSATURE SELON LAMANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE FINITION.
* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION HORIZONTALE MAXIMALE: 2". SEE INSTALLATION MANUALFOR
GREATER EXTENSIONS. RÉFÉRERAU MANUEL D'INSTRUCTION POUR DES EXTENSIONS PLUS GRANDES.
SEE INSTALLATION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS. RÉFÉRER AU MANUEL D'INSTALLATION
DE PROPRIÉTAIRE POUR LES LONGUEURS D'ÉVACUATION MINIMALE ET MAXIMALE.
UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC
CET APPAREIL. UTILISER AVEC LES PORTES VITRÉES
HOMOLOGUÉES SEULEMENT AVEC CETTE APPAREIL.
AVERTISSEMENT: N’AJOUTEZ PAS A CET APPAREIL AUCUN MATÉRIAU DEVANT ENTRER EN CONTACT AVEC
LES FLAMMES AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE FABRICANT.
THE APPLIANCE MUST BE VENTED USING THEAPPROPRIATE NAPOLEON VENTKITS. SEE OWNER'S INSTALLATION MANUAL
FOR VENTING SPECIFICS. PROPER REINSTALLATION AND RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR
INTAKE SYSTEM.
L'APPAREIL DOITÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'ÉVACUATION PROPRE À NAPOLEON. RÉFÉRER AU
MANUEL D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION PRÉCISE. IL EST IMPORTANT DE BIEN RÉINSTALLER ET
RESCELLER L'ÉVENT APRÈSAVOIRASSURÉ LE MAINTIEN DU SYSTÈME DE PRISE D'AIR.
ELECTRICAL RATING: 115V, 60HZ. LESS THAN 12 AMPERES
SPÉCIFICATIONS ÉLECTRIQUES: 115V, 60HZ. MOINS DE 12 AMPÈRE
DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE
PRODUIT DÉCORATIF: NE PAS UTILISER COMMEAPPAREILDE CHAUFFAGE
SERIAL NUMBER/NO. DE SÉRIE: LVX38
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22-2016 AND ANSI Z21.50-2016 FOR VENTED DECORATIVE GAS FIREPLACES.
CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ETAMÉRICAINES: CSA 2.22-2016 ETANSI Z21.50-2016 POUR LES APPAREILS À GAZ VENTILÉS DÉCORATIFS.
REDUCED INPUT / ALIMENTATION RÉDUITE
P4
22,000 BTU/h 25,000 BTU/h
40.2%40.2%
MANIFOLD PRESSURE: 3.5 INCHES W.C. (NG)
PRESSION AU COLLECTEUR: 3.5" D'UNE
COLONNE D'EAU(GN)
MIN SUPPLY PRESSURE: 4.5" W.C.(NG)
PRESSION D'ALIMENTATION MIN: 4.5" D'UNE
COLONNE D'EAU (GN)
MAX. SUPPLY PRESSURE: 7"* W.C. (NG)
PRESSION D'ALIMENTATION MAX: 7"* D'UNE
COLONNE D'EAU (GN)
MANIFOLD PRESSURE: 10 INCHES W.C.(P)
PRESSION AU COLLECTEUR: 10" D'UNE
COLONNE D'EAU (P)
MIN SUPPLY PRESSURE: 11" W.C. (P)
PRESSION D'ALIMENTATION MIN: 11" D'UNE
COLONNE D'EAU (P)
MAX. SUPPLY PRESSURE: 13" W.C. (P)
PRESSION D'ALIMENTATION MAX: 13" D'UNE
COLONNE D'EAU (P)
WOLF STEEL LTD.
*MAXIMUM INLET PRESSURE NOT TO EXCEED 13".
*PRESSION D'ALIMENTATION MAXIMALE NE DEVAIT PAS DÉPASSER 13".
1.4 rating plate/lighting instruction location
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
The rating plate must remain with the appliance at all times. It must not be removed.
note:
Pilot location
Rating plate
location
access side

EN
W415-1710 / B / 08.17.18 11
general information
1.5 mobile home installation
1.7 lifting handles installation/removal
1.6 hardware list
123
Description Quantity
LVX38 LVX50 LVX62 LVX74
1Hex Head Sheet Metal Screw 22 22 22 22
2Pan Head Sheet Metal Screw 4 4 4 4
3Hex Head Sheet Metal Bolt 18 18 18 18
This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home
Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas
indicated on the rating plate.
This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. The
shipping brackets that secure the appliance to the pallet can be used to secure the appliance to the floor for mobile
home installation. For mobile home installations, the appliance must be fastened in place.
This appliance is certified to be installed in an aftermarket permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases, unless a certified kit is used.
Conversion Kits
This appliance is field convertible between Natural Gas (NG) and Propane (P). Propane not available for LVX74
models.
To convert from one gas to another, consult your Authorized dealer/distributor.
note:
note:
Only fasteners supplied with the appliance are illustrated.
The lifting handles MUST be removed prior to rough
framing the appliance.
Remove 4 screws each side (8 total) then install the
lifting handles to the side of the appliance and secure
using 4 screws each side (8 total). Once the appliance
is in place remove the four screws from each handle to
the appliance. Discard the lifting handles.

W415-1710 / B / 08.17.18
EN
12
dimensions2.0 dimensions
2.1 single-sided
LVX38 LVX50 LVX62 LVX74
A
(Finishing Flange)
42 1/8”
(1070mm)
54 1/8”
(1375mm)
66 1/8”
(1680mm)
78 1/8”
(1984mm)
B 53 5/16”
(1354mm)
65 5/16”
(1659mm)
77 5/16”
(1964mm)
89 5/16”
(2269mm)
C57 5/16”
(1456mm)
69 5/16”
(1761mm)
81 5/16”
(2065mm)
93 5/16”
(2370mm)
41 3/16"
1046mm
7 1/16"
179mm
18 5/8"
473mm
3 1/8"
80mm
17 3/16"
437mm
32 3/4"
832mm
39 11/16"
1008mm
8 1/16"
205mm
8 1/16"
205mm
Ø 8"
203mm
Ø 5"
127mm
GLASS GUARD
1/2"
[12.7mm]
A
B
C
*
*Finishing flange depth (the finishing flange defines the perimeter of the fireplace opening. Framing
or finishing materials must NEVER encroach inside the finishing flange).
Base of air collar
17 11/16”
(449mm)

EN
W415-1710 / B / 08.17.18 13
dimensions
LVX38 LVX50 LVX62 LVX74
A
(Finishing Flange)
42 1/8”
(1070mm)
54 1/8”
(1375mm)
66 1/8”
(1680mm)
78 1/8”
(1984mm)
B 53 5/16”
(1354mm)
65 5/16”
(1659mm)
77 5/16”
(1964mm)
89 5/16”
(2269mm)
C57 5/16”
(1456mm)
69 5/16”
(1761mm)
81 5/16”
(2065mm)
93 5/16”
(2370mm)
2.2 see-thru
41 3/16"
1046mm
7 1/16"
179mm
18 5/8"
473mm
3 1/8"
80mm
32 3/4"
832mm
39 11/16"
1008mm
16 3/16"
411mm
8 1/16"
205mm
8 1/16"
205mm
Ø 8"
203mm
Ø 5"
127mm
GLASS GUARD
1/2"
[12.7mm] 1/2"
[12.7mm]
A
B
C
**
Base of air collar
Base of air collar
*Finishing flange depth (the finishing flange defines the perimeter of the fireplace opening. Framing or
finishing materials must NEVER encroach inside the finishing flange).

W415-1710 / B / 08.17.18
EN
14
minimum venting requirements
3.0 minimum venting requirements
7.2D
!
WARNING
• Risk of fire. Maintain specified air space clearances to vent pipe and appliance.
• The vent system must be supported every 3’(0.9m) for both vertical and horizontal runs. Use support ring
assembly W010-0067 or equivalent non-combustible strapping to maintain the minimum clearance to
combustibles for both vertical and horizontal runs. Spacers are attached to the inner pipe at predetermined
intervals to maintain an even air gap to the outer pipe. This gap is required for safe operation. A spacer is
required at the start, middle, and end of each elbow to ensure this gap is maintained. These spaces must
not be removed.
This appliance uses a 5” (127mm) exhaust / 8” (203.2mm) air intake vent pipe system. Refer to the
section applicable to your installation.
For safe and proper operation of the appliance follow the venting instructions exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Although not a requirement,
it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl spaces) be
insulated with the insulation wrapped in a protective sleeve to minimize condensation. Provide a means for
visually checking the vent connection to the appliance after the appliance is installed. Use a firestop, vent pipe
shield or attic insulation shield when penetrating interior walls, floor or ceiling.
The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor paint
suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is
recommended.
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using
a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake
vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the appliance
flue collar which must be sealed using the black high temperature sealant Mill Pac.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows to
a minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year
to verify that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer components
must not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal
run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of
vent connections is two horizontally or three vertically (excluding the appliance and the air terminal connections)
when using flexible venting.
Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is recommended
that all horizontal runs have a minimum 1/4” (21mm) rise per foot/meter using flexible venting. For safe and
proper operation of the appliance, follow the venting instructions exactly.
A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single
family dwellings and serves both dwellings. Local codes or regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”
(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.
Vent
Manufacturer
Starter Adapter Part
Number Supplier Website
Duravent W175-0170 Wolf Steel www.duravent.com
Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com
Direct Temp 5DT-AAN Selkirk www.selkirkcorp.com
SuperSeal 5DNA Metal-Fab www.mtlfab.com
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting
components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from
vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and
must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab,
follow the installation procedure provided with the venting components. A starter adaptor must be used with the
following vent systems and may be purchased from the corresponding supplier:
If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the
initial installation.
This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing
alternate constructions, such as a chimney as part of the vent system, is not permitted.
note:
This template must be used in conjunction with templates 7.2.1 or 7.2.2, depending on termina-
tion shape (i.e. round, or round and square). See appropriate templates folder.
DRAFT
If approved for use with a power vent kit, state: “This appliance is certified for use with a
power vent kit. Contact your local authorized dealer for more information.”
If not, cover with a white box.
The vent terminal may be painted with high temperature paint to match exterior colours. Use an outdoor paint
suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is
recommended. Appliance should be off.
All vent measurements start at the base of the air collar of the appliance.
This appliance uses a 5” (127mm) exhaust / 8” (203.2mm) air intake vent pipe system. Refer to the
section applicable to your installation.
For safe and proper operation of the appliance follow the venting instructions exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Although not a requirement,
it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl spaces) be
insulated with the insulation wrapped in a protective sleeve to minimize condensation.
Provide a means for visually checking the vent connection to the appliance after the appliance is installed.
Use a firestop, vent pipe shield or attic insulation shield when penetrating interior walls, floor or ceiling.
If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the
initial installation.
This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing
alternate constructions, such as a chimney as part of the vent system, is not permitted.
note:
For ease of installation, the front frame can be removed. The front frame must be
reinstalled prior to installing the nailing tabs.
important:
Horizontal vent sections: A minimum clearance of 3” (76mm) on the top outside of the enclosure and 2”
(51mm) on the sides and bottom outside of the enclosure all around the vent pipe on all horizontal runs to com-
bustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 6” (152mm) at
the top of the vent pipe.
Vertical vent sections: A minimum of 1” (25mm) all around the vent pipe on all vertical runs to combustibles is
required except for clearances in appliances enclosures. Vertical vent sections within enclosures require a mini-
mum clearance of 1” (25mm) around the vent pipe.

EN
W415-1710 / B / 08.17.18 15
minimum venting requirements
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using
a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer
intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection
to the appliance flue collar which must be sealed using the black high temperature sealant Mill Pac.
When using Wolf Steel venting components, use only approved Wolf Steel flexible components with the wall
terminal kit GD422R-2, or 1/12 to 7/12 pitch roof terminal kit GD410, 8/12 to 12/12 roof terminal kit GD411,
flat roof terminal kit GD412 or periscope kit GD401 (for wall penetration below grade). With flexible venting, in
conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD420 or the 10 foot (3.1m) vent
kit GD430.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows to
a minimum.
Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is
recommended that all horizontal runs have a minimum 1/4” (21mm) rise per foot/meter using flexible
venting. For safe and proper operation of the appliance, follow the venting instructions exactly.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year
to verify that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer components
must not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable
horizontal run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum
number of vent connections is two horizontally or three vertically (excluding the appliance and the air terminal
connections) when using flexible venting.
A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single
family dwellings and serves both dwellings. Local codes or regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”
(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.
This appliance is certified for use with a power vent kit. Contact your local authorized dealer for more information.
Vent
Manufacturer
Starter Adapter Part
Number Supplier Website
Duravent W175-0170 Wolf Steel www.duravent.com
Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com
Direct Temp 5DT-AAN Selkirk www.selkirkcorp.com
SuperSeal 5DNA Metal-Fab www.mtlfab.com
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting
components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from
vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and
must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab,
follow the installation procedure provided with the venting components. A starter adaptor must be used with the
following vent systems and may be purchased from the corresponding supplier:

W415-1710 / B / 08.17.18
EN
16
minimum venting requirements
LVX38 LVX50 LVX62 LVX74
D40” (101.6cm) 46 1/2” (118.1cm) N/A N/A
LVX38 LVX50 LVX62 LVX74
D40” (101.6cm) 46 1/2” (118.1cm) 52 1/2” (133.4cm) 58 1/2” (148.6cm)
30”
(76.2cm)
LVX38 & LVX50: 30” (76.2cm) min
LVX62 & LVX74: 48” (121.9cm) min
LVX38 & LVX50: 62 3/4” (76.2cm)
min plus rise
LVX62 & LVX74: 80 3/4” (205.1cm)
min plus rise
62 3/4"
(159.4cm)
18"
(45.7cm)
SINGLE-SIDED
SINGLE-SIDED
SEE-THRU
SEE-THRU
3.1 typical venting installation
minimum plus rise
maximum
minimum
base of
air collar
base of
air collar
D
special vent installation (periscope termination)
Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when
final grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. The maximum
allowable vent length is 10’ (3m).
12"
(30.5cm)
minimum
to grade
30”
(76.2cm) min.
base of air collar
12"
(30.5cm)
minimum
to grade
D
base of air collar
LVX38 & LVX50: 30” (76.2cm) min
(NG only)

EN
W415-1710 / B / 08.17.18 17
minimum venting requirements
40 ft (12m)
maximum
6 ft (1m)
minimum
16" (40.6cm)
minimum
SINGLE-SIDED OR SEE-THRU
base of air
collar
A 6’ (1.83m) minimum vertical rise is
considered the minimum practical dimen-
sion for the specific appliance enclosure
and a minimal building structure. However,
a greater minimum vertical rise may be
needed to suit the specific application con-
straints or local codes and / or regulatory
requirements.
note:

W415-1710 / B / 08.17.18
EN
18
minimum venting requirements
3.2 minimum air terminal location clearances
Covered balcony applications ††*
QMIN RMAX MAX
R
= 3 feet
(0.9m) = 2 x ≤ 15 feet
(4.6m)
QACTUAL
R
QS
G
P
INSTALLATIONS
CANADA U.S.A.
A12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.
B12” (30.5cm)Δ9” (229mm) ΔClearance to windows or doors that open.
C12” (30.5cm)* 12” (30.5cm)* Clearance to permanently closed windows.
D18”
(45.7cm)**
18”
(45.7cm)**
Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of 2’ (0.6m)
from the center line of the terminal.
E12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated soffit.
F0” (0mm) 0” (0mm) Clearance to an outside corner wall.
G0” (0mm)*** 0” (0mm)*** Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).
2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H3’(0.9m) 3’(0.9m)**** Clearance to each side of the center line extended above the meter / regulator assembly to a maximum
vertical distance of 15’ (4.6m).
I3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.
J12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
K6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.
L7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.
M12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch or deck.
N16” (40.6cm) 16” (40.6cm) Clearance above the roof.
O2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.
P8’ (2.4m) 8’ (2.4m) Roof must be non-combustible without openings.
Q3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.
R6’ (1.8m) 6’ (1.8m) See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an opening
between the terminal and the open side of the structure.
S12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony
Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18 inches clearance from an inside corner.
**** This is a recommended distance. For additional requirements, check local codes.
†3 feet above if within 10 feet horizontally.
‡A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.
††* Permitted only if the balcony is fully open on a minimum of one side.
Clearances are to be in accordance with local
installation codes and the requirements of the gas
supplier. In their absence, clearances are to be as
listed above and are based on national codes.
note:
9.1A
note:
Wall terminals are for illustration purposes only. Size and
shapes may vary.

EN
W415-1710 / B / 08.17.18 19
minimum venting requirements - natural gas
3.3 horizontal termination
0’
0’
Base of
air collar
10’
10’
15’
15’
20’ 25’
20’
30’
40’
5’
3 7/8’
(46 1/2”)
1 1/2’
(18”)
2 1/2’
(30”)
38 1/2’
(462”)
5’
1 elbow zone
1-2 elbow zone
1-3 elbow zone
1-4 elbow zone
1-5 elbow zone
1-6 elbow zone
H
V
V+H ≤ 40 ft. (For longer vent runs, a power
vent is required).
H ≤ 20 ft.
V + H are measured from the centre of vent
elbows. Elbows are considered as 90º.
Two 45º elbows = One 90º elbow.
LVX38 / LVX50 / LVX62 / LVX74 SINGLE-SIDED &
LVX38 / LVX50 SEE-THRU
(NATURAL GAS ONLY)

W415-1710 / B / 08.17.18
EN
20
minimum venting requirements - natural gas
0’
0’
Base of
air collar
10’
10’
15’
15’
20’ 25’
20’
30’
40’
5’
4 7/8’
(58 1/2”)
1 1/2’
(18”)
4’
(48”)
5’
1 elbow zone
1-2 elbow zone
1-3 elbow zone
1-4 elbow zone
1-5 elbow zone
1-6 elbow zone
H
V
V+H ≤ 40 ft. (For longer vent runs, a power
vent is required).
H ≤ 20 ft.
V + H are measured from the centre of vent
elbows. Elbows are considered as 90º.
Two 45º elbows = One 90º elbow.
38 1/2’
(462”)
LVX62/ LVX74 SEE-THRU
(NATURAL GAS ONLY)
