Napoleon NZ3000 User manual

W415-0711 / 10.03.08
1
W415-0711 / 10.03.08
$10.00
NZ3000
SOLID FUEL BURNING
ZERO CLEARANCE
FIREPLACE
THIS FIREPLACE HAS BEEN TESTEDAND LISTED BY INTERTEK TESTING SERVICES NALTD. AS PER THE STANDARDS: CAN/ULC S610, UL 127
FOR FACTORY BUILT FIREPLACES AND TO ULC S639 FOR STEEL LINER ASSEMBLIES FOR SOLID FUEL BURNING MASONRY FIREPLACES.
CERTIFIED UNDER USAENVIRONMENTAL PROTECTION AGENCY (EPA).

W415-0711 / 10.03.08
2
1.0 INTRODUCTION 3
1.1 WARNINGS & SAFETY PRECAUTIONS 3
1.2 WARRANTY 4
1.3 DIMENSIONS 5
1.4 INSTALLATION OVERVIEW 5
2.0 GENERAL INFORMATION 6
2.1 FEATURES 6
2.2 HEATING SPECIFICATIONS 6
2.3 ELECTRICAL SPECIFICATIONS 6
2.4 PACKING LIST 6
2.5 CALIFORNIA PROP 65 6
2.6 EPA COMPLIANCE 6
2.7 CARE OF GLASS 7
2.8 HI-EFFICIENCY HEATING 7
2.8.1 HOTAIR GRAVITY VENT SYSTEM (Nz220) 7
2.8.2 CENTRAL HEATING SYSTEM (Nz62CH) 8
2.8.3 BLOWER CIRCULATION (Nz64) 8
3.0 INSTALLATION PLANNING 9
3.1 LOCATION AND CLEARANCES 9
3.2 COMBUSTION AIR 10
3.3 EMBER STRIPAND HEARTH ExTENSIONS 11
3.4 HEARTH ExAMPLES 12
3.5 MINIMUM CLEARANCE TO COMBUSTIBLES 13
3.6 MINIMUM CLEARANCES TO COMBUSTIBLE ENCLOSURES 13
4.0 CHIMNEY INSTALLATION 14

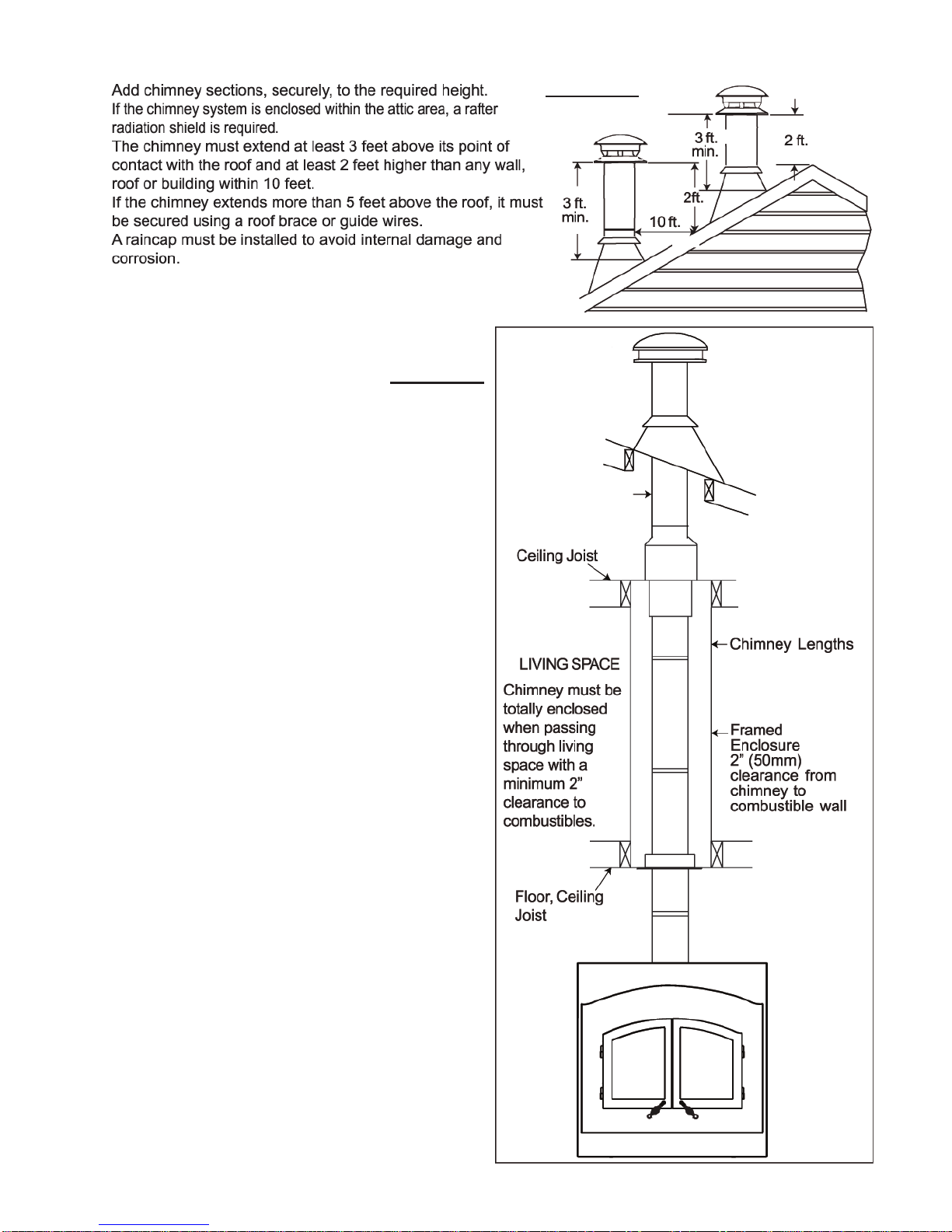

4.1 ADDING CHIMNEY SECTIONS 16

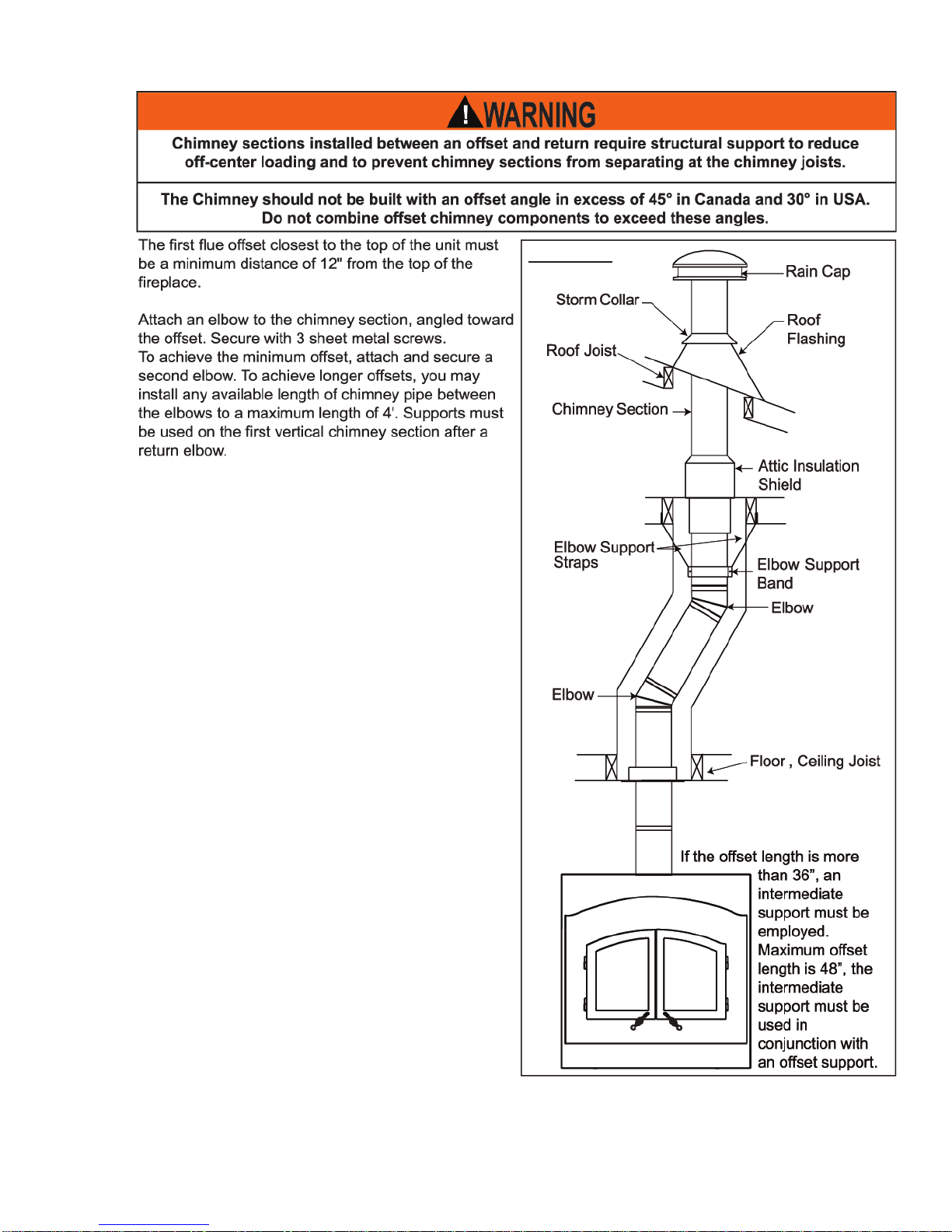

4.2 OFFSETCHIMNEY INSTALLATION 17

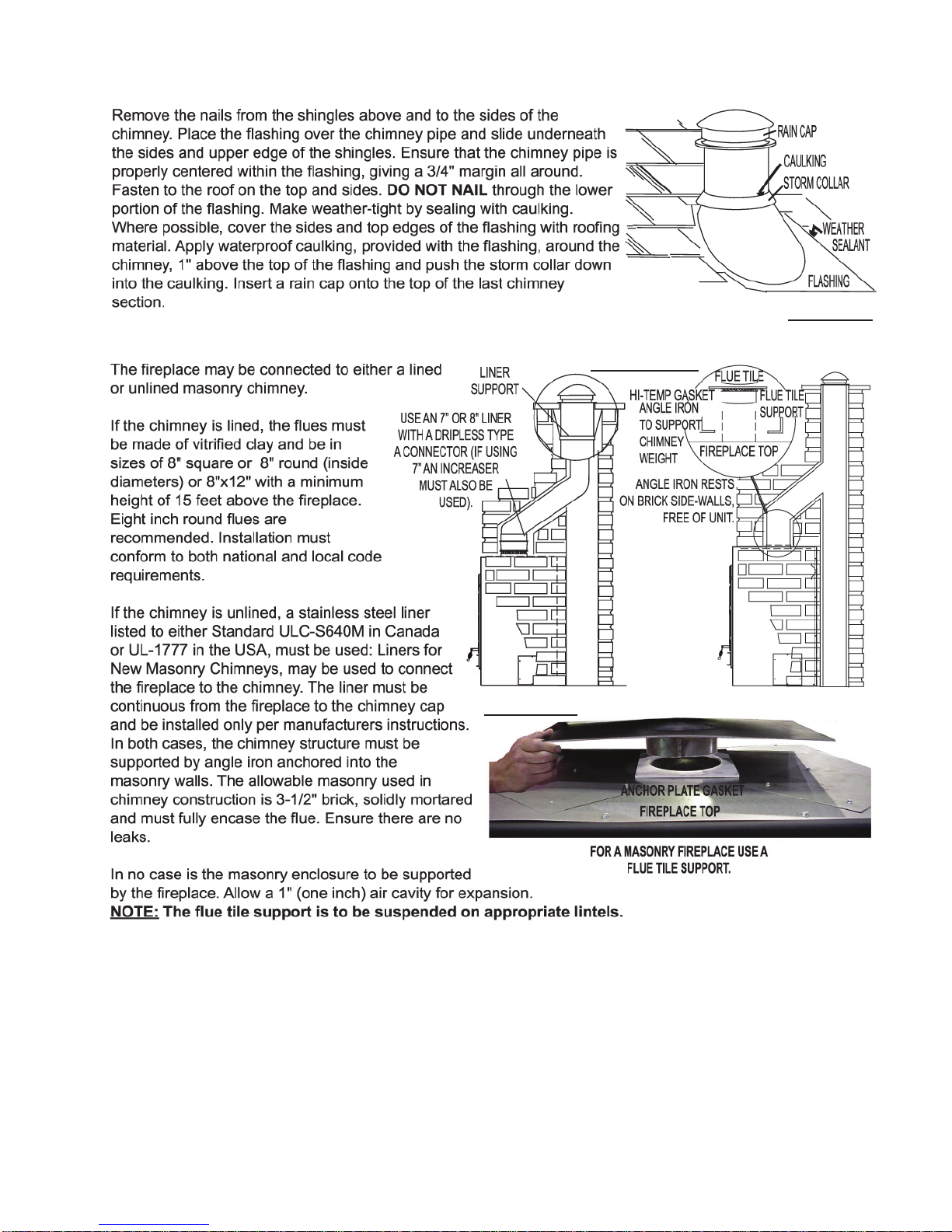

4.3 INSTALLING FLASHINGAND STORM COLLAR 18
4.4 CONNECTIONTOAMASONRYCHIMNEY 18
5.0 FIREPLACE INSTALLATION 19
5.1 FRAMING 19
5.2 FINISHING 20
5.3 ENCLOSURE VENTILATION 21
5.4 MINIMUM MANTEL CLEARANCES 22
6.0 FIREPLACE FINISHING 23
6.1 BAFFLE AND INSULATION BLANKET INSTALLATION 23
6.2 FACE PLATE, UPPER GRILLE, KEYSTONE AND DOOR INSTALLATION 24
6.2.1 REMOVE TEMPLATE 24
6.2.2 FACEPLATE, HINGE, ASH LIPAND AIR CONTROL ARM INSTALLATION 24
6.2.3 H336-WI DOOR ASSEMBLY 25
6.2.4 DOOR AND TRIM INSTALLATION 25
6.2.5 OPTIONAL SPARK SCREEN INSTALLATION 26
6.3 OPTIONAL Nz64 BLOWER INSTALLATION 27
6.4 Nz64 BLOWER REPLACEMENT 29
7.0 OPERATING INSTRUCTIONS 30
7.1 HEATER OPERATION 30
7.2 OPERATING SOUNDS AND SMELLS 30
7.3 STARTING A FIRE 30
7.4 DRAFT CONTROL 31
7.5 STARTING THE FIRE 31
7.6 FUEL LOADING AND BURN CYCLE 33
7.7 RE-LOADING THE FIREPLACE 33
7.8 FLASH FIRES 33
7.9 OVERNIGHT BURN 34
7.10 ASH REMOVAL PROCEDURES 34
8.0 MAINTENANCE 35
8.1 RUN-AWAY OR CHIMNEY FIRE 35
8.2 FIRE ExTINGUISHERS AND SMOKE DETECTORS 35
8.3 GLASS AND GASKET REPLACEMENT 35
8.4 CREOSOTE FORMATION AND REMOVAL 36
8.5 SELECTING WOOD 36
9.0 REPLACEMENTS 37
10.0 TROUBLE SHOOTING GUIDE 39
11.0 RATING PLATE LOCATION 40
12.0 FIREPLACE SERVICE HISTORY 41
13.0 NOTES 42
TABLE OF CONTENTS
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

W415-0711 / 10.03.08
3

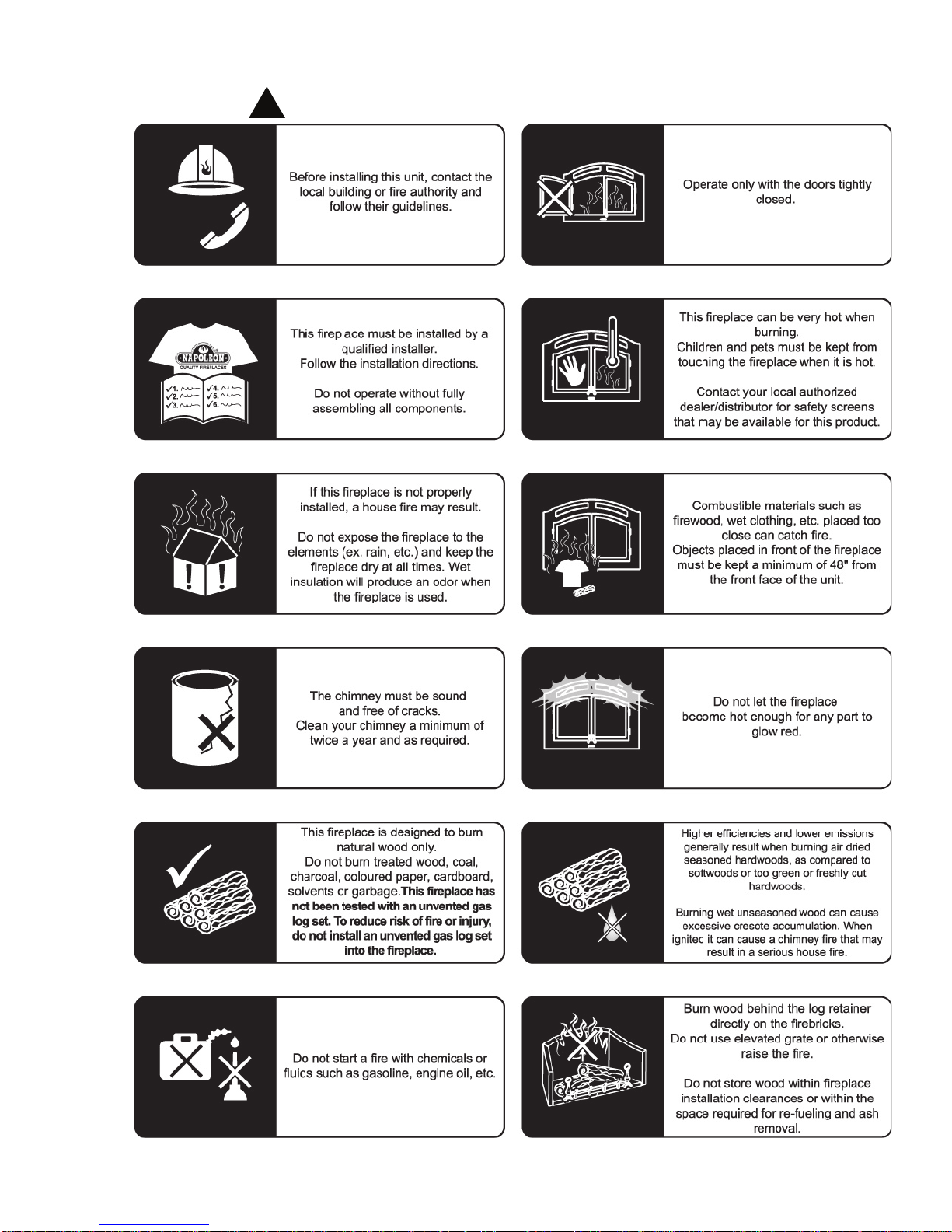

1.1 wArNiNgS & SAFETy prECAuTiONS
1.1 wArNiNgS & SAFETy prECAuTiONS
1.0 iNTrOduCTiON
TP - WOOD WARNING
!
WARNING
!
WARNING
!

W415-0711 / 10.03.08
4
1.2 wArrANTy
TP - NAPOLEON - WOOD WARRANTY

W415-0711 / 10.03.08
5
1.3 dimENSiONS
1.4 iNSTALLATiON OVErViEw
FIGURE 1.3a-c
FIGURE 1.4
-
tion to or substitution for items in this system, unless allowed by these installation instructions, will

installation. Read through these instructions thoroughly before starting your installation and follow


W415-0711 / 10.03.08
6
2.0 gENErAL iNFOrmATiON
• Maximum log length of 25" • Large rebox capacity - 2.78 cu. ft.
• Long burn time - up to 12 hours • Large doors with ceramic glass for maximum visibility
• Firebrick lining for rebox protection • Optional 440 CFM blower for convection heat
• Thermostat for automatic control of the blower • Inside or outside air for combustion
• BTU Output per hour 10,000 to 60,000 (Cord wood method)
 
Installation manual Installation instructions and hardware
Bafe 
Ember Strip Installation instructions and hardware
2.1 FEATurES
2.2 HEATiNg SpECiFiCATiONS
Approximate Heating Capacity up to 3,000 square feet (Will vary with the home's oor plan, insulation and outside temperature).
2.3 ELECTriCAL SpECiFiCATiONS
Where applicable the blowers and motors draw < 12 amps.
2.4 pACkiNg LiST
2.5 CALiFOrNiA prOp 65
Use of this product may produce smoke which contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
Your replace must be installed in accordance with all national and local building code standards and the standard
of Chimney and Fireplaces, Vents and Solid Fuel Burning Appliances NFPA #211. Consult the authority having juris-
diction (such as municipal building department, re department, re prevention bureau, etc.) to determine the need
to obtain a permit. If you are in doubt about the proper instal-
lation for your situation, contact your dealer or local building
or re ofcial. The manufacturer does not guarantee that this
replace and its options will completely heat your entire home.
Negative pressure within your home may inadvertently affect
your replace.
TP - CARE OF GLASS_WOOD





2.6 EpA COmpLiANCE
This heater has been tested in accordance with standard 40, section 60 of the Environmental Protection Agency
(EPA).

W415-0711 / 10.03.08
7
2.7 CArE OF gLASS
To operate this hi-efciency replace as a basic system, the blower is not required, however, to enhance its
efciency a blower is recommended.
2.8 Hi-EFFiCiENCy HEATiNg
2.8.1 HOT Air grAViTy VENT SySTEm (Nz220)
All hot air gravity vents must be insulated.
May be used to distribute heat to an adjoining room (located either above, or beside the room containing the fireplace) by way of vents,
eliminating the need of an additional blower. While this system may be used in conjunction with the optional blowers, it could reduce
the flow of hot air being distributed to additional rooms. It must be
experimented with and the dampers adjusted manually
to suit your requirements. This may take a few attempts;
thereafter adjustments should no longer be required as
is normally experienced with your central heating system
registers. No more than two hot air gravity vents can
be installed to fireplace. Individual vent runs are not to
exceed 10 feet.
FIGURE 2.8.1c
FIGURE 2.8.1a FIGURE 2.8.1b

W415-0711 / 10.03.08
8

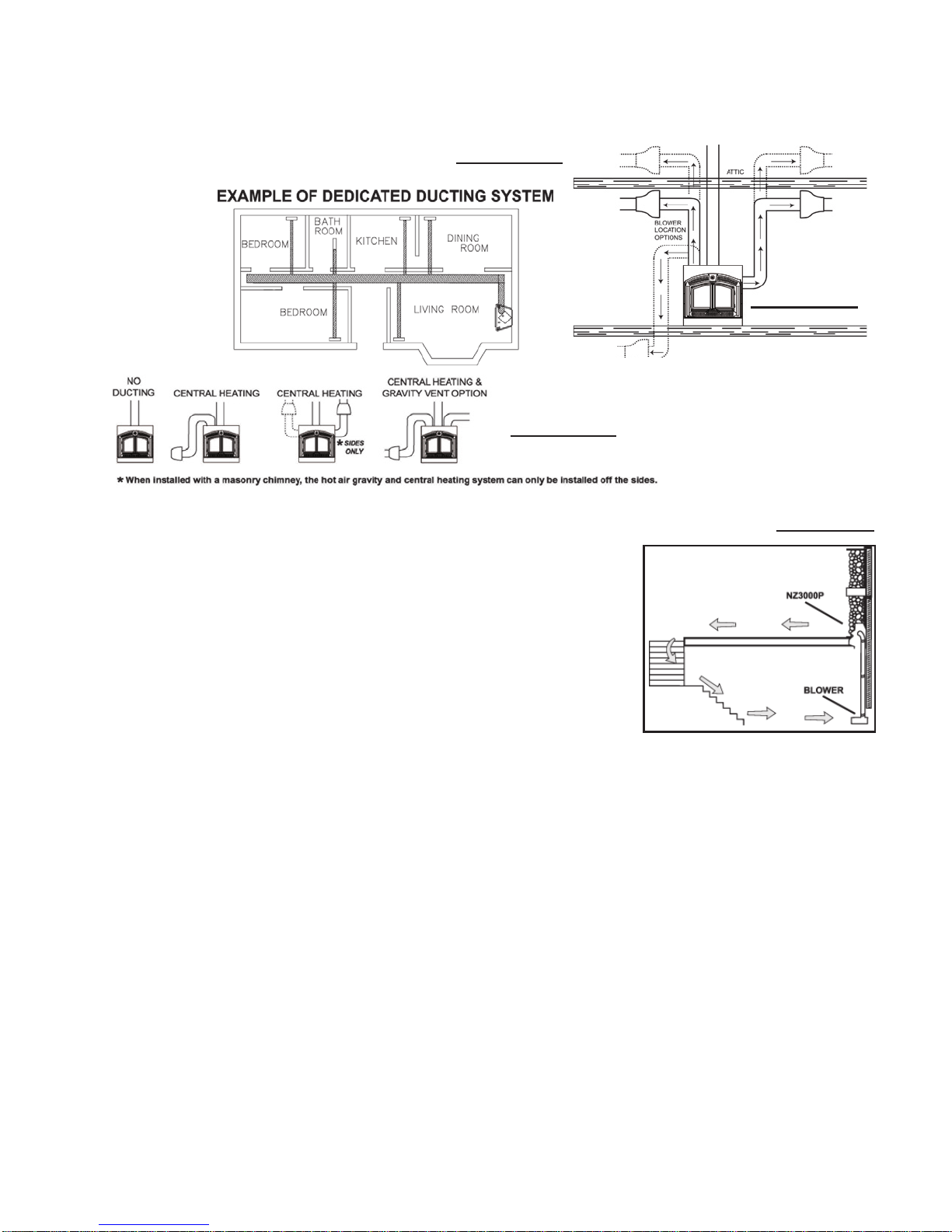

2.8.2 CENTrAL HEATiNg SySTEm (Nz62CH)
May be used to heat rooms up to 50 feet from the replace. A wall mounted thermostat located in the room to be heated
controls the blower supplying warm air from the room containing the replace. Consult with a heating specialist to ensure
a proper duct layout for your home. If the NZ62CH is installed at the
bottom of the replace, it could introduce a cool draft
into the room that the replace is installed in. When
attached to the
top or sides of
the replace,
it provides a
higher heat
output. This op-
tion may not be
used in mobile
homes.
2.8.3 BLOwEr CirCuLATiON (Nz64)
The NZ64 provides an ideal means of circulating warm air within the room it resides.
The blower will only operate when the doors are fully closed.
We recommend installing the blower in a different room or even a different level of the
house. This will generate greater air movement and improve the distribution of the
warm air coming from the replace as well as improving air movement in the summer
months if using the summer by pass switch option.
These options may be incorporated with one another. If the optional blower is to be
installed, make provision during framing to route a 110 volt power line to the replace.
Detailed installation instructions are included with each venting kit.
FIGURE 2.8.2a
FIGURE 2.8.2b
FIGURE 2.8.3
FIGURE 2.8.2c

W415-0711 / 10.03.08
9
3.0 iNSTALLATiON pLANNiNg
We recommend that the replace be secured to the
oor in all cases.
Remove and discard the lifting handles. Bend the tabs
down and secure the replace to the oor.
The location of windows, doors and the trafc ow in
the room where the replace is to be located should be
considered. If possible, you should choose a location
where the chimney will pass through the house without
cutting a oor or roof joist.
3.1 LOCATiON ANd CLEArANCES
IMPORTANT
This replace, fully dressed, weighs 575 lbs. Ensure there is adequate oor support for the replace, chimney
and nishing material. Some material could weigh thousands of pounds.


FIGURE 3.1
TP - INSTALLATION PLANNING

W415-0711 / 10.03.08
10
Model NZ3000 has the option of taking outside air directly into the
replace through the opening on the left hand side or taking
inside air through the lower front grille or a combination
of both. Figure 3.2a-b.
If the optional outside air kit (available through your authorized
dealer) is installed, it must not draw air from the attic or garage.
It may only come from outside the house. The maximum length
of the 4" air duct is 20 feet; thereafter enlarge the duct to a 6"
diameter.
Decide on the most convenient location for the outside air inlet
duct and hood which may be installed above or below oor
level but must be installed above grade level.
Make a 5" hole in an outside wall of the house. From
outside, place the outside air hood into the hole, open side
down.
At each end, carefully pull back the insulation sleeve exposing
the exible duct. Apply sealant to both the outside air hood
collar and the connector collar at the replace. Place the
insulated exible duct over the outside air hood and over
the replace outside air connector. Carefully push the
insulation sleeve back over the duct. Using the clamps,
fasten the insulated duct into place on both sides.
Figure 3.2c.
Cold air ow can be minimized by
putting a dip or loop in the duct
creating a cold air trap.
Figure 3.2c. This trap can also
help prevent heat build-up and
exhausting out the intake due to
stack effect. The outside air kit
inlet should be positioned in a
manner that will not allow snow,
leaves, etc. to block the inlet. In
some installations the air duct
may need to be run vertically.
3.2 COmBuSTiON Air
FIGURE 3.2c
FIGURE 3.2a
FIGURE 3.2b

W415-0711 / 10.03.08
11
An acceptable 54" x 20" non-combustible (i.e. brick, stone or ceramic tile)
hearth extension must be installed.
The hearth must extend a minimum 20" in front of the replace
although if raised a minimum of 6 1/2" the 20" may be reduced to a
minimum of 18".
The hearth must extend a minimum of 6" to both sides of the
replace (54").
The hearth must be a minimum of 1" thick cement board (or
equivalent) plus ¼" ceramic tile.
Ensure that the gap between the replace and a non-combustible
hearth extension is sealed with sand/cement grout or covered with
an ember strip (or both) to prevent sparks and embers from falling
into this area.
Raised hearths must be constructed of non-combustible materials
such as cement blocks or bricks.
While the replace can be installed directly on the oor, a non-combustible hearth extension is required in front
of the replace, that must not be built higher than the bottom of the replace faceplate. It may therefore be
advisable to build the replace on a raised platform.
A raised hearth together with the replace built on a raised platform is recommended for easier wood loading and
re viewing.
-

directly on combustible surfaces in the event the building should settle and disturb the original construction.
3.3 EmBEr STrip ANd HEArTH ExTENSiONS
FIGURE 3.3

W415-0711 / 10.03.08
12
3.4 HEArTH ExAmpLES
FIGURE 3.4a-d
FLUSH HEARTH
RAISED HEARTH
RAISED FIREPLACE
RAISED HEARTH AND FIREPLACE

W415-0711 / 10.03.08
13
NOTE: When constructing the enclosure allow

clearances.
A minimum of 6" is required to combustibles from the
side of the replace.
FIGURE 3.6a
FIGURE 3.6b
FIGURE 3.6c
3.6 miNimum CLEArANCES TO COmBuSTiBLE ENCLOSurES
Objects placed in front of the replace must be kept a minimum of 48" away from the front of the replace.
3.5 miNimum CLEArANCE TO COmBuSTiBLES
MAINTAIN THESE MINIMUM CLEARANCES TO COMBUSTIBLES:
Framed Enclosure:
Rear - 0" to stand-offs
Sides - 6"
Ceiling (Enclosure) - 84" from the base of the replace
Ceiling (Room) - 84" from the base of the replace
Chimney - 2"
Hot Air Gravity Ductwork Insulation - 1"

W415-0711 / 10.03.08
14
4.0 CHimNEy iNSTALLATiON
FIGURE 4.0a
TP - 7" CHIMNEY














W415-0711 / 10.03.08
15
FIGURE 4.0b-d
FIGURE 4.0e
TP - 7" CHIMNEY - 2

W415-0711 / 10.03.08
16
4.1 AddiNg CHimNEy SECTiONS FIGURE 4.1a
FIGURE 4.1b
TP - ADDING CHIMNEY SECTION

W415-0711 / 10.03.08
17
4.2 OFFSET CHimNEy iNSTALLATiON
FIGURE 4.2
TP - OFFSET CHIMNEY INSTALLATION

W415-0711 / 10.03.08
18
4.4 CONNECTiON TO A mASONry CHimNEy FIGURE 4.4a-b
FIGURE 4.4c
4.3 iNSTALLiNg FLASHiNg ANd STOrm COLLAr
TP - INSTALLING FLASHING & STORM COLLAR
TP - CONNECTION TO AMASONRY CHIMNEY
FIGURE 4.3

W415-0711 / 10.03.08
19
* Allow for nished oor and hearth thickness when setting these dimensions.
** When constructing the enclosure allow for nishing material thickness and to maintain clearances.
FIGURE 5.1
5.0 FirEpLACE iNSTALLATiON
5.1 FrAmiNg



combustibles is maintained within the cavity.

"MINIMUM CLEARANCE TO COMBUSTIBLES" section.

W415-0711 / 10.03.08
20
5.2 FiNiSHiNg
FIGURE 5.2b





The replace is shipped with a template that is 1/8" larger on the top, bottom
and each side than the faceplate. Leave the template in place when installing
the nishing material.
FIGURE 5.2a
