NARDA nardalert S3 User manual

nardalert S3
Narda Broadband Monitor
Operating Manual
®

Nardaii Nardalert S3
WARNING
This Monitor should only be used after you have read this
manual, understood how it operates and consulted with your
company’s safety ocer. High level electromagnetic elds may
be hazardous to your health. This monitor cannot protect you
from all electromagnetic hazards that you could encounter.
USA
435 Moreland Road
Hauppauge, NY 11788, USA
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
www.narda-sts.us
Germany
Sandwiesenstrasse 7
72793 Pfullingen, Germany
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
www.narda-sts.de
Italy
Via Leonardo da Vinci, 21/23
20090 Segrate (MI) ITALY
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
www.narda-sts.it
®
43067900 Rev. A

iiiNardalert S3Narda
Contents
Contents
1 Useful information........................................................................................................................................... 7
1.1 Measuring electromagnetic elds .................................................................................................... 7
1.2 About this monitor ................................................................................................................................. 7
Applications .................................................................................................................................. 8
1.3 About this Operating Manual............................................................................................................. 9
Structure of this Operating Manual...................................................................................... 9
Characters and symbols used................................................................................................. 9
Symbols and terms used in warnings.................................................................................. 9
Structure of warnings ..............................................................................................................10
Symbols and marks used in this document ....................................................................10
2 Safety instructions.........................................................................................................................................11
2.1 Using this Operating Manual............................................................................................................11
2.2 Proper use ................................................................................................................................................11
2.3 Improper use...........................................................................................................................................12
2.4 Dangers from electromagnetic elds ............................................................................................12
Strong elds ................................................................................................................................12
Measurement errors.................................................................................................................12
Sensor is not installed or operating properly..................................................................13
2.5 Dangers from AC mains charger .....................................................................................................13
3 Preparing the Nardalert S3 for use.......................................................................................................15
3.1 Unpacking................................................................................................................................................15
Packaging.....................................................................................................................................15
Items included............................................................................................................................16
Transport damage.....................................................................................................................17
After transport and storage ............................................................................................................17
3.2 Instrument overview............................................................................................................................17

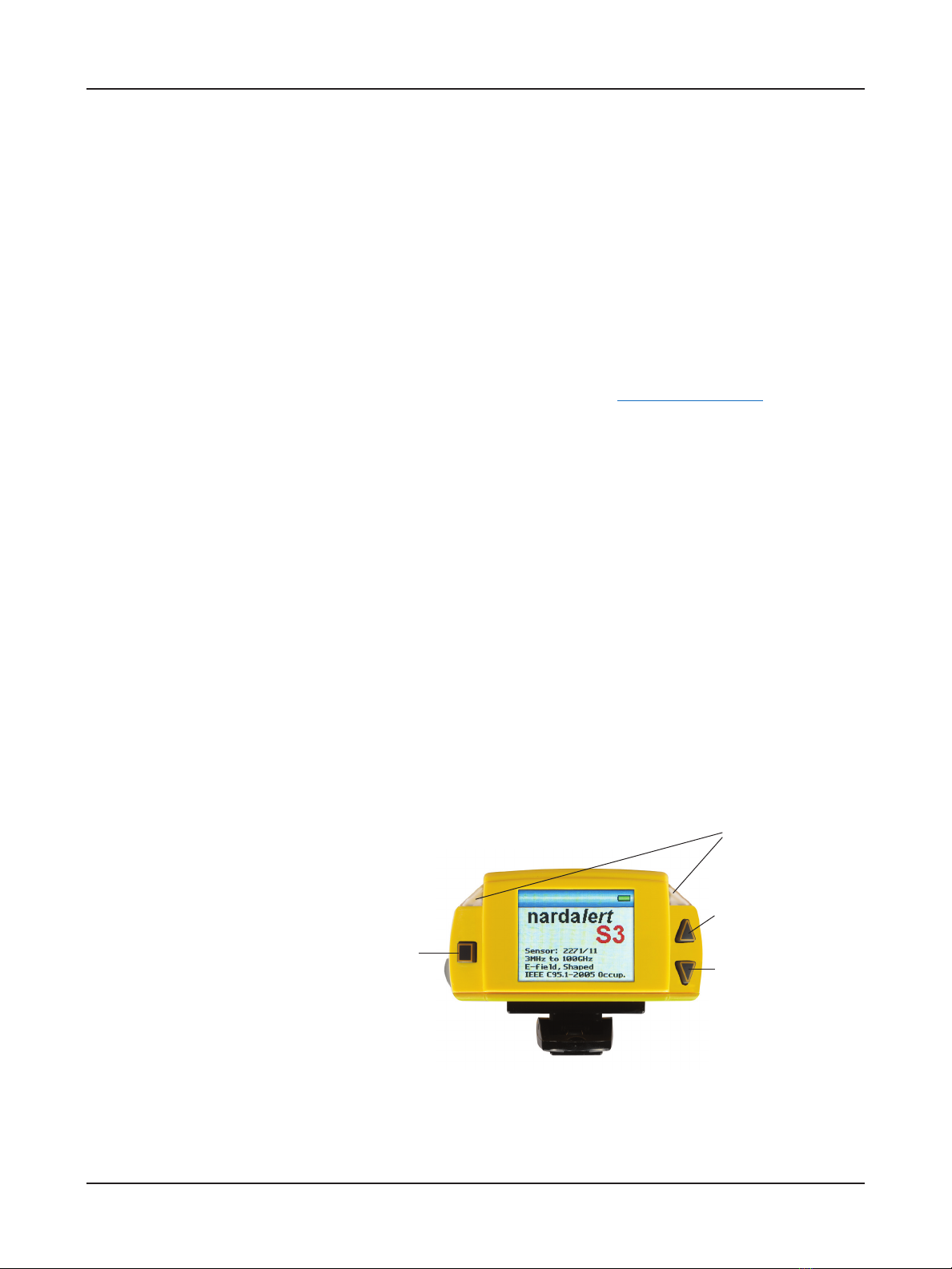

Top Panel......................................................................................................................................17
Front Panel...................................................................................................................................18

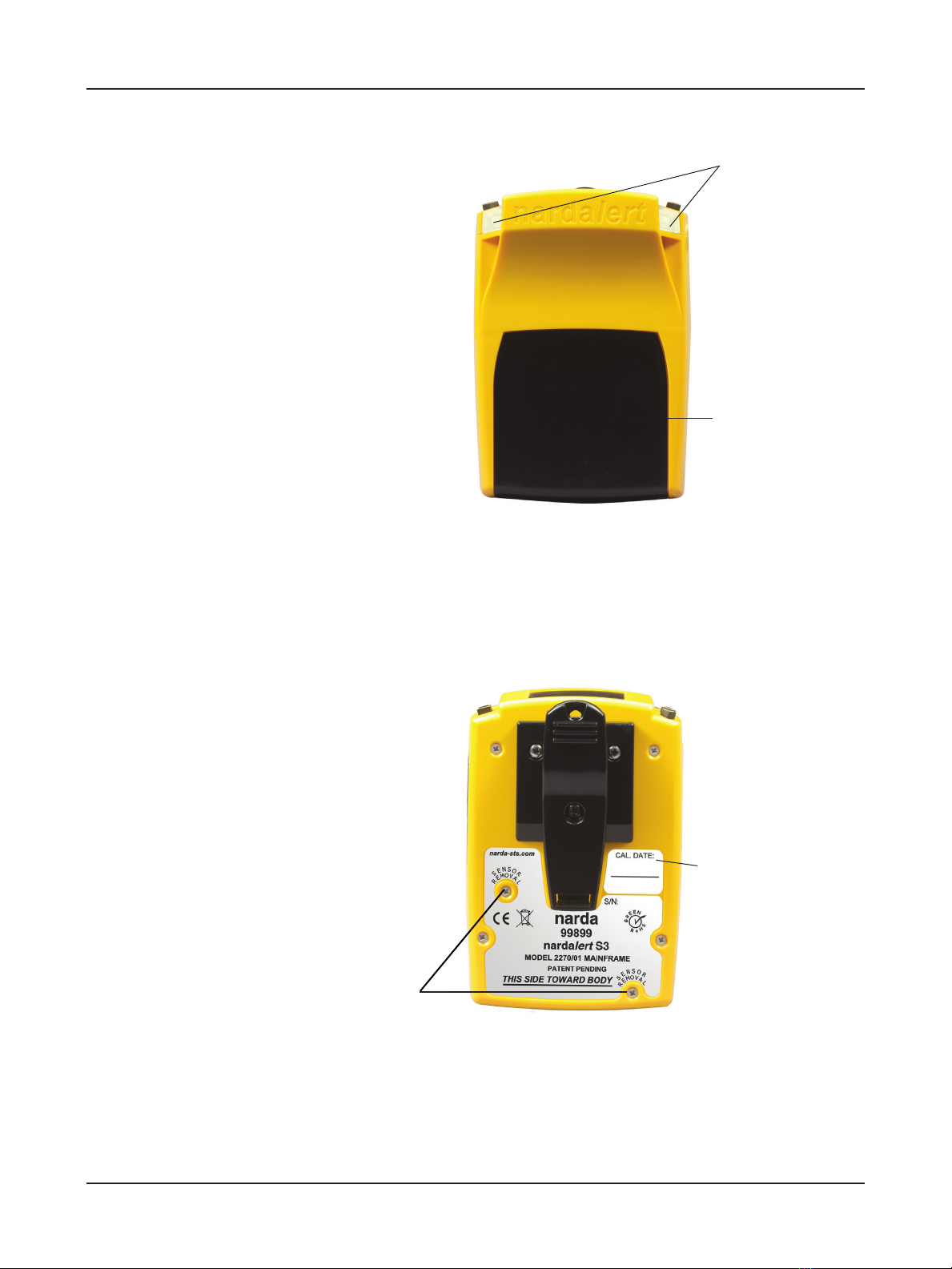

Rear Panel.....................................................................................................................................18
Side Panels...................................................................................................................................19
3.3 Connecting the sensor ........................................................................................................................19
Wrong handling of the sensor..............................................................................................20

Nardaiv Nardalert S3
Contents
4 Getting started ................................................................................................................................................21
4.1 Initial display screens...........................................................................................................................21
Normal operation......................................................................................................................22
Alarm indication ........................................................................................................................22
4.2 Checking monitor functions .............................................................................................................23
Performing a function test ....................................................................................................23
Appropriate test sources ........................................................................................................23
4.3 Screen navigation .................................................................................................................................24
4.4 Additional capabilities of optioned units.....................................................................................25
Menu selection screens...........................................................................................................25
Navigating sub-menu screen example .............................................................................26
5 Operation overview ......................................................................................................................................27
5.1 Normal operation..................................................................................................................................27
5.2 Special environmental operations..................................................................................................28
Heavy rain or snow ...................................................................................................................28
High ELF environments...........................................................................................................28
High RF/microwave environments .....................................................................................28
5.3 Using the Nardalert S3 as an area monitor ..................................................................................29
6 Instrument maintenance............................................................................................................................31
6.1 Cleaning the monitor...........................................................................................................................31
6.2 Verication overview ...........................................................................................................................32
Simplied block diagram........................................................................................................32
Theory of operation..................................................................................................................32
Testing RF/microwave sensors .............................................................................................33
Required equipment for testing RF/microwave sensors.............................................33
Operational tests .......................................................................................................................34
TEM cell (f < 300 MHz) .............................................................................................................34
Anechoic chamber (f > 300 MHz)........................................................................................35
6.3 Authorized service centers ................................................................................................................35
6.4 Disposal.....................................................................................................................................................36
7 Specications ...................................................................................................................................................37
7.1 Monitor specications.........................................................................................................................38
7.2 Sensor specications............................................................................................................................39

vNardalert S3Narda
Contents
7.3 Outline drawing.....................................................................................................................................39
7.4 Declaration of conformity ..................................................................................................................40
7.5 Declaration of origin ............................................................................................................................41
8 Ordering information...................................................................................................................................43
8.1 Nardalert S3 part numbers ................................................................................................................43
8.2 Sensor part numbers............................................................................................................................44
8.3 Nardalert S3 system part numbers .................................................................................................44
8.4 Optional accessories ............................................................................................................................44
Warranty information ..................................................................................................................................45

Narda6 Nardalert S3

7Nardalert S3Narda
1Useful information
This chapter contains basic information about measuring electromagnetic
elds, about using the Nardalert S3, and about the structure of this
Operating Manual.
1.1 Measuring electromagnetic elds
1.2 About this monitor
1.3 About this Operating Manual
1.1 Measuring electromagnetic elds
In today’s world, many industries utilize equipment that generates elec-
tromagnetic elds. Our modern need for communications as well as the
eciency of electromagnetic heating systems and the safety that radar
systems provide us are just a sample of the applications that are benetted
by exploitation of the electromagnetic spectrum. We also have various
engineering considerations as well as regulatory requirements to use the
electromagnetic spectrum wisely. Various authorities have long dened
limit values designed to protect users from the dangers of exposure to
such emissions, and the Nardalert S3 is an eective tool to help companies
and individuals demonstrate compliance.
1.2 About this monitor
The Nardalert S3 (“NS3”) provides virtually everyone concerned with this
subject with an instrument for monitoring non-ionizing radiation that
a body might be exposed to within the frequency range from 50 Hz to
100 GHz (depending on the sensor used). The NS3 has a wide range of
functions, yet it is very easy to use. It also features a handy design, robust

Narda8 Nardalert S3
1 Useful information
casing, long battery life, and high measurement accuracy. The NS3 features
multiple types of sensors to accurately monitor human exposures while
worn on the body. It can be used o the body to detect elds also. Sensors
for various monitoring applications are connected to the NS3 basic unit.
Flat frequency response sensors are (or are planned to be) available, as
well as shaped sensors that evaluate the eld according to a specic
human safety standard. These sensors are calibrated separately from
the basic unit, and include a non-volatile memory containing the sensor
parameters and calibration data. They can therefore be used with any NS3
without any loss in calibration accuracy. The PC software supplied with
the monitor allows you to congure and remote control the NS3, as well
as to export saved measurement data and to analyze the results (if unit is
congured for that option).
Applications
The NS3 performs measurements for human safety purposes, particularly
in workplace environments where high electric or magnetic eld strengths
are likely. It can also be congured to function as a stand-alone area
monitor with or without the Narda NBM-580 multiple-channel metering
station.
Examples:
•Monitoring human exposure eld strengths as part of general safety
regulations
•Monitoring the eld strengths around transmitting and radar equip-
ment to establish safety zones and for monitoring personnel during
operations
•Monitoring the eld strength emanating from mobile phone base sta-
tions and satellite communications systems to ensure compliance with
human safety limit values
•Monitoring operator exposures in the industrial workplace environ-
ment, such as around plastic welding equipment, RF heating, temper-
ing, or drying equipment
•Monitoring to ensure the safety of persons using diathermy equip-
ment and other medical equipment that generates high frequency
radiation
•Field strength monitoring in TEM cells, absorber chambers or test
ranges

9Nardalert S3Narda
1.3 About this Operating Manual
1.3 About this Operating Manual
Structure of this Operating Manual
This Operating Manual is divided into two main parts:
1. Using the Nardalert S3
You will nd all you need to know about using the NS3 and how to
deal with most measurement alarms in Chapters 5 through 7.
2. Using the NS3 Software
The software can allow you to remotely read eld levels as well as en-
abling the optional performance features.
Characters and symbols used
Various elements are used in this Operating Manual to indicate special
meanings or particularly important passages in the text.
Symbols and terms used in warnings
According to the American National Standard ANSI Z535.6-2006, the
following warnings, symbols, and terms are used in this document:
The general danger symbol warns of risk of serious injury
when used with the signal words CAUTION, WARNING,
and DANGER. Follow all the instructions in order to avoid
injuries or death.
NOTICE Indicates a danger that results in damage to or destruction
of the instrument.
CAUTION Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
WARNING Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
DANGER Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.

Narda10 Nardalert S3
1 Useful information
Structure of warnings
All warnings are structured as follows:
SIGNAL WORD
Type and source of danger
Consequences of failure to observe warning
Instructions for preventing danger
Symbols and marks used in this document
!
Important instruction
Indicates an instruction that must be followed to avoid
danger.
✓
Requirement
Indicates a requirement that must be met before the next
instruction can be carried out, e.g.
✓The instrument is switched o.
Instruction
Indicates a single instruction, e.g.
Switch the instrument on.
1.
2.
3.
Sequence of instructions
Indicates a sequence of instructions that must be carried
out in the order given.
Result
Indicates the result of carrying out an instruction, e.g.
The instrument starts a self test.
Bold Type
Control element
Indicates a control element on the instrument, e.g.
Press the Enter key.
CAPITALS
Menu name
Indicates a menu name, e.g.
Open the MAIN menu.
Blue Type
Cross reference (in PDF document only)
Indicates a cross reference to another part of the
document.
Click on the blue type in the PDF document to jump
directly to the cross reference.

11Nardalert S3Narda
2Safety instructions
This chapter contains important instructions on how to use the Nardalert
S3 safely. Therefore, please read this chapter carefully and follow the
instructions closely.
2.1 Using this Operating Manual
2.2 Proper use
2.3 Improper use
2.4 Dangers from electromagnetic elds
2.5 Dangers from AC mains charger
2.1 Using this Operating Manual
!Carefully read this entire Operating Manual before you start using the
instrument.
!Keep this Operating Manual so that it is available to everyone who
uses the instrument, and ensure that this Operating Manual is with the
instrument if you pass it on to a third party.
2.2 Proper use
!The NS3 is a warning device that gives active notice of the existence of
dangerous elds by means of a visible and audible warning signal.
!Only use the instrument for the purpose and under the conditions for
which it has been designed.

Narda12 Nardalert S3
2 Safety instructions
!In particular, observe the technical data given in the Specications on
pages 38-39. Proper use also includes:
!Observing any national accident prevention regulations at
the place of use.
!Ensuring that the instrument is used only by appropriately
qualied and trained persons.
2.3 Improper use
The NS3 is designed to monitor and evaluate electromagnetic elds.
!Ensure unit is powered on and working properly.
!Remember that eld levels will rapidly increase as you approach the
source of the emission.
!If you remove the unit from your body it is important that the back of
the unit faces your hand (body) especially at microwave frequencies.
When you remove unit from body, carefully observe the actual eld
level displayed when you are approaching an unknown eld source.
2.4 Dangers from electromagnetic elds
Strong elds
Very high eld strengths can occur in the vicinity of some radiation
sources.
This monitor is designed to be directional at microwave frequencies
– it cannot warn you about a microwave exposure behind you if the
monitor is worn on the front of the body.
Do not cross or ignore safety barriers or markings.
Persons with implanted electronic medical devices
(e.g. heart pacemakers) must avoid restricted areas.
Measurement errors
Metallic labels (stickers) axed to the black sensor area of the sensor can
lead to measurement errors, usually an underestimation of the electro-
magnetic eld strength.
Ax labels of any type only to the yellow housing. Metallic labels must
be axed to the rear of the monitor.
If the instrument malfunctions, take it out of service and contact your
Narda Service Center. The addresses are listed at the end of this Oper-
ating Manual and on the Internet at www.narda-sts.com.

13Nardalert S3Narda
2.5 Dangers from AC mains charger
Sensor is not installed or operating properly
The NS3 is designed to monitor the presence of the sensor and that the
sensor is functional.
Ensure that the sensor is attached properly to the basic unit. Sensor
is designed to be even with the surface of the basic unit and to pass a
functional test at turn-on. If in doubt, cycle unit o and then on again
to perform connection test. If the sensor is defective, not installed or
failing pre-test, it will cause the system to not proceed to measure-
ment mode.
Condence testing of RF/microwave sensors can be accomplished with
a simple 2-way radio that generates more than 1 Watt. An upscale indi-
cation should be noticed on the display when the radio is transmitting
close to the sensor housing. Narda oers portable sources to accom-
plish this important test (see Optional Accessories on page 44).
Before beginning any RF radiation measurement, always inform your-
self of the frequencies and eld strengths that you could be expected
to encounter.
2.5 Dangers from AC mains charger
You could experience electric shock from the external power supply.
Do not open the charger as there are no user serviceable parts inside.
Do not expose or submerse the charger in water at any time. It is de-
signed to be used in an indoor, protected environment.
Only use appropriate USB adapter cords. Never use a damaged USB
cord.
Only supply AC voltage that meets the voltage specied at the AC
input on the Charger. The AC mains charger could be destroyed if
the voltage specication of the charger does not match the AC line
voltage.

Narda14 Nardalert S3
2 Safety instructions

15Nardalert S3Narda
3 Preparing the Nardalert S3 for use
This chapter describes all you need to do before starting to use the
Nardalert S3.
3.1 Unpacking
3.2 Instrument overview
3.3 Connecting the sensor
3.1 Unpacking
Packaging
The packaging is designed to be re-used as long as it has not been
damaged.
Keep the original packaging and use it whenever the instrument needs
to be shipped or transported.

Narda16 Nardalert S3
3 Preparing the Nardalert S3 for use
Items included
Check that all the following items have been delivered:
NS3 carrying case (P/N 11230500)
Nardalert S3 (P/N 2270/01)
Silicon sleeve (P/N 11229700, attached to Nardalert S3)
Cable, USB“A” male to USB mini “B”male (P/N 70889004)
Lanyard clip (P/N 11229312)
Belt clip (P/N 11229310)
Battery (P/N 70881000, inside Nardalert S3)
User's Guide and CD-ROM (P/N 43068000)
12 VDC car charger (P/N 70914000)
AC charger and plugs (P/N 70890000, packed separately)
At least one sensor will be required for the monitor to operate properly.

17Nardalert S3Narda
3.2 Instrument overview
Power On/O
and Enter Key
Up Arrow
(Increase)
Down Arrow
(Decrease)
Transport damage
Instrument/accessories damaged during transportation
Using damaged instrument/accessories can lead to subsequent damage.
Check the instrument and all accessories for damage when you have
unpacked them.
If the instrument is damaged, contact your Narda Service Center.
The addresses of Narda Service Centers are listed in Chapter 6 of this
Operating Manual and on the internet at www.narda-sts.com.
After transport and storage
Condensation on an instrument can lead to damage
Condensation can form on an instrument that has been stored at a low
temperature when it is brought into a warm room. It may be damaged if
used.
Wait until all visible condensation has evaporated from the instrument
surface to avoid damaging the instrument.
Note: The instrument is not ready for use until it has reached a tempera-
ture within the operating range of -10°C to +50°C.
3.2 Instrument overview
Top Panel
Alarm LEDs

Narda18 Nardalert S3
3 Preparing the Nardalert S3 for use
Rear Panel
Calibration Label
Sensor
Removal
Screws (2)
Front Panel
Interchageable
Sensor
Alarm LEDs

19Nardalert S3Narda
3.3 Connecting the sensor
Side Panels
Mini-USB port for
charging and data
transfer.
Fiber Optic port for
data transfer only.
Rechargeable and
replaceable battery
located under door.
3.3 Connecting the sensor
WARNING
If the Sensor is not operating properly, or if
the proper sensor is not chosen,
you could be exposed to high eld levels without
your knowledge.
 Refer to Sensor Specications on page 39 to
select appropriate sensor(s).
 Folow instructions below to properly connect
sensor.
The NS3 is designed to monitor the presence of the sensor and that the
sensor is functional. In order to simplify the turn-on procedure, it is recom-
mended that the sensor be connected to the NS3 and the battery fully
charged before beginning.
Ensure that the sensor is attached properly to the basic unit. The sen-
sor is positioned so that it easily can be inserted and secured to the
basic unit by tightening the two screws shown in Section 3.2. Sensor
is designed to be even with the surface of the basic unit and to pass a
functional test at turn-on. If in doubt, cycle unit o and then on again

Narda20 Nardalert S3
3 Preparing the Nardalert S3 for use
to perform connection test. If the sensor is defective, not installed or
failing pre-test, it will cause the system to not proceed to measure-
ment mode.
Charging of the monitor is accomplished by attaching the proper AC
mains plug to the charger and then the supplied USB cable to the
charger and NS3. The unit will be rapidly charged when using the
supplied USB charger and at a slower rate (longer time) if plugged into
a computer. Charging time is approximately 4 hours for a full charge.
Note the battery Icon in the top right of the display when the unit is
energized, indicating the amount of charge.
Condence testing of RF/microwave sensors can be accomplished
with a simple 2-way radio that generates more than 1 Watt. An upscale
indication should be noticed on the display when the radio is transmit-
ting close to the sensor housing. The NS3 provides a menu screen "Self
Test", to evaluate the output from the three detectors used in the RF/
microwave sensors.
Before beginning any RF radiation measurement, always try to verify
the frequencies and eld strengths that you could be expected to
encounter.
There are many dierent sensors available for dierent applications and
use with the NS3. You can nd more information about the order numbers
and specications of the sensors under Ordering Information on page
43, as well as in the data sheets of the NS3. These documents can also be
downloaded from the Narda website on the internet at:
www.narda-sts.com.
Wrong handling of the sensor
Damage of the sensor antennas
Always try to store the sensor in the carrying case when not installed
in the NS3. This should help protect it from excessive shock and vibra-
tion, as well as environmental extremes.
