NATI SPEEDWAY 07637 User manual

88007637 02/2014
Air Ratchet
Model: 07637
*Actual product may vary slightly

2
CALIFORNIA PROPOSITION 65
WARNING: You can create dust when you cut, sand, drill or grind materials such
as wood, paint, metal, concrete, cement, or other masonry. This dust often
contains chemicals known to cause cancer, birth defects, or other reproductive
harm. Wear protective gear.
WARNING: This product or its power cord may contain chemicals, including
lead, known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
Important!
When using equipment, a few safety precautions must be observed to avoid injuries
and damage. Please read the complete operating manual with due care. Keep this
manual in a safe place, so that the information is available at all times. If you give the
equipment to any other person, give them these operating instructions as well. We
accept no liability for damage or accidents which arise due to non-observance of these
instructions and the safety information herein.
Important Operating Instructions
SPECIFICATIONS
Drive:
Required Pressure:
Average Air Consumption:
Maximum Torque:
Free Speed:
Air Inlet:
3/8”
90 PSI
4 CFM
60 ft.-lbs.
160 RPM
1/4”
Any failures made in following the safety regulations and instructions may result
in an electric shock, fire, and/or serious injury.

3
•Keep the work area clean and well lit. Cluttered and dark areas increase the risk of
electric shock, fire, and injury to persons.
•Do not operate the tool in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. The tool is able to create sparks resulting in the ignition of the dust
or fumes.
•Keep bystanders, children, and visitors away while operating the tool. Distractions may
result in the loss of control of the tool.
•Stay alert. Watch what you are doing and use common sense when operating the tool.
Do not use the tool while tired or under the influence of drugs, medications, or alcohol.
•Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair
increases the risk of injury to persons as a result of being caught in moving parts.
•Avoid unintentional starting. Be sure the switch is off before connecting to the air supply.
Do not carry the tool with your finger on the switch or connect the tool to the air supply
with the switch on.
•Remove adjusting keys and wrenches before turning the tool on. A wrench or key that is
left attached to a rotating part of the tool increases the risk of personal injury.
•Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the tool in unexpected situations.
•Use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used
for the applicable conditions.
•Always wear eye protection. Wear ANSI-approved safety goggles.
•Always wear hearing protection when using the tool. Prolonged exposure to high
intensity noise may result in hearing loss.
Important Operating Instructions
GENERAL SAFETY INSTRUCTIONS

4
•Risk of electric shock. This tool is not provided with an insulated gripping surface.
Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock
the operator.
•Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock.
•Examine the work piece to avoid contact with hidden wiring. Thoroughly investigate the
work piece for possible hidden wiring before performing work. Contact with live wiring will
shock the operator.
•Use clamps or another practical way to secure and support the work piece to a stable
platform. Holding the work by hand or against the body is unstable and may lead to loss
of control.
•Do not force the tool. Use the correct tool for the job. The correct tool will do the job
better and safer at the rate for which the tool is designed.
•Do not use the tool if the switch does not operate. Any tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the tool from the air source before making any adjustments, changing
accessories, or storing the tool. Such preventive safety measures reduce the risk of
starting the tool unintentionally. Turn off and detach the air supply, safely discharge any
residual air pressure, and release the trigger before leaving the work area.
•Store the tool out of the reach of children and other untrained persons. This tool is
dangerous in the hands of untrained users.
•Maintain the tool with care. Keep a cutting tool sharp and clean. A properly maintained
tool, with sharp cutting edges reduces the risk of binding and is easier to control.
•Check for misalignment or binding of moving parts, and any other condition that affects
the tool’s operation. If damaged, have the tool serviced before using. Many accidents are
caused by poorly maintained tools. There is a risk of bursting if the tool is damaged.
•Use only accessories that are identified by the manufacturer for the specific tool’s
model. Use of an accessory not intended for use with the specific tool model, increases
the risk of injury to persons.
Important Operating Instructions
GENERAL SAFETY INSTRUCTIONS

5
•Tool service must be performed only by qualified repair personnel.
•When servicing a tool, use only identical replacement parts. Use only authorized parts.
•Use only the lubricants supplied with the tool or specified by the manufacturer.
•Never connect to an air source that is capable of exceeding 200 PSI. Over pressurizing
the tool may cause bursting, abnormal operation, breakage of the tool, or serious injury.
Use only clean, dry, regulated compressed air at the rated pressure or within the rated
pressure range as marked on the tool. Always verify prior to using the tool that the air
source has been adjusted to the rated air pressure or within the rated air-pressure range.
•Never use oxygen, carbon dioxide, combustible gases, or any bottled gas as an air
source for the tool. Such gases are capable of explosion and serious injury.
Important Operating Instructions
GENERAL SAFETY INSTRUCTIONS
•The warnings and precautions discussed in this manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must
be supplied by the operator.
•Only use accessories rated to handle the forces exerted by this tool during operation.
Other accessories not designed for the forces generated may break and forcefully launch
pieces.
•Attach all accessories properly to the tool before connecting the air supply. A loose
accessory may detach or break during operation.
•Obey the manual for the air compressor used to power this tool.
•Install an in-line shutoff valve to allow immediate control over the air supply in an
emergency, even if a hose is ruptured.
•Use this tool with both hands only. Using tools with only one hand can result in loss of
control.
•Do not lay the tool down until it has come to a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
SPECIFIC SAFETY INSTRUCTIONS

6
This tool vibrates during use. Repeated or long-term exposure to vibration may cause
temporary or permanent physical injury, particularly to the hands, arms, and shoulders. To
reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an extended period of time should first be
examined by a doctor and then have regular medical check-ups to ensure medical
problems are not being caused or worsened from use. Pregnant women or people who
have impaired blood circulation to the hand, past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this tool. If you feel any symptoms related
to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice
as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with lower vibration when there is a choice.
5. Include vibration-free periods each day of work.
6. Grip the tool as lightly as possible (while still maintaining a secure hold). Let the tool do
the work.
7. To reduce vibration, maintain tool as explained in this manual. If abnormal vibration
occurs, stop immediately.
Important Operating Instructions
VIBRATION PRECAUTIONS
INITIAL SETUP & ASSEMBLY
Air Supply
WARNING: To prevent serious injury from explosion, use only clean, dry, regulated,
compressed air to power this tool. Do not use oxygen, carbon dioxide, combustible gases,
or any other bottled gas as a power source for this tool.

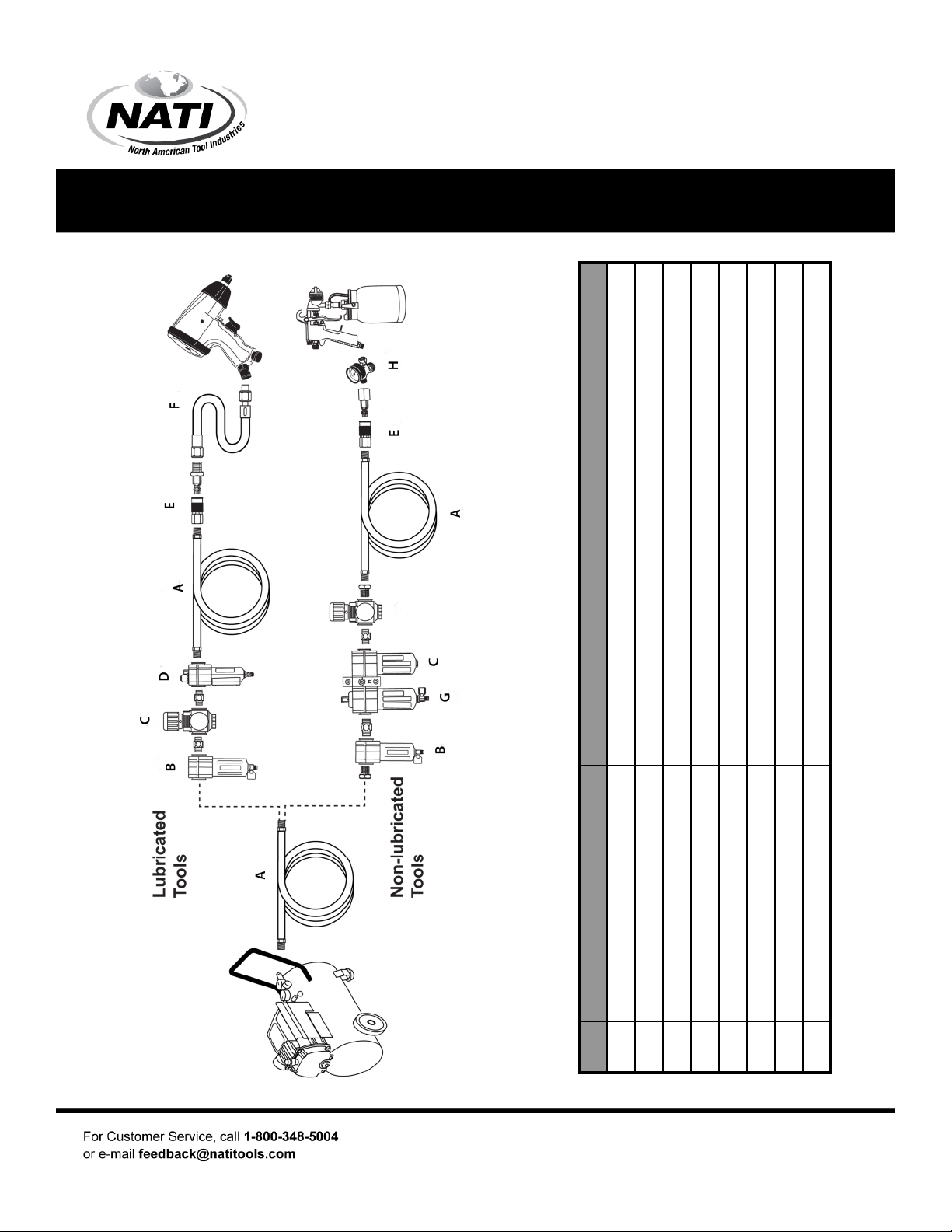

1. Incorporate a filter, regulator with pressure gauge, oiler, in-line shutoff valve, and quick
coupler for best service. Refer to the diagram at the end of this manual for more
information. An in-line shut-off ball valve is an important safety device because it

7
Important Operating Instructions
controls the air supply even if the air hose is ruptured. The shut-off valve should be
a ball valve because it can be closed quickly.
Note: if an automatic oiler system is not used, add a few drops of pneumatic tool oil to the
airline connection before operation. Add a few more drops after each hour of continual use.
2. Attach an air hose to the compressor’s air outlet. Connect the air hose to the air inlet of
the tool. Other components, such as a coupler plug and quick coupler, will make operation
more efficient, but are not required.
WARNING: To prevent serious injury from accidental operation, do not install a female
quick coupler on the tool. Such a coupler contains an air valve that will allow the air tool to
retain pressure and operate accidentally after the air supply is disconnected.
Note: Air flow, and therefore tool performance, can be hindered by undersized air supply
components. The air hose must be long enough to reach the work area with enough extra
length to allow free movement while working.
3. Release the tool’s trigger.
4. Close the in-line shut-off valve between the compressor and the tool.
5. Turn on the air compressor according to the manufacturer’s directions and allow it to
build up pressure until it cycles off.
6. Adjust the air compressor’s output regulator so that the air output is enough to properly
power the tool, but the output will not exceed the tool’s maximum air pressure at any time.
Adjust the pressure gradually, while checking the air output gauge to set the right pressure
range.
7. Inspect the air connections for leaks. Repair any leaks found.
8. If the tool will not be used at this time, turn off and detach the air supply, safely
discharge any residual air pressure, and release the trigger to prevent accidental
operation.
Note: Residual air pressure should not be present after the tool is disconnected from the
air supply. However, it is a good safety measure to attempt to discharge the tool in a safe
fashion after disconnecting to ensure that the tool is disconnected and not powered.

8
Important Operating Instructions
WARNING: Read the ENTIRE important operating instructions before set-up or use of this
product.
Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are
found, do not use the tool until it has been repaired.
WARNING: To prevent serious injury from accidental operation, turn off the tool, detach
the air supply, safely discharge any residual air pressure in the tool, and release the trigger
before performing any inspection, maintenance, or cleaning procedures.
To prevent serious injury, do not adjust or tamper with any control or component in a way
not specifically explained within this manual. Improper adjustment can result in tool failure
or other serious hazards.
Installing & removing the sockets
1. To install the sockets:
a. Disconnect the tool from the air source
b. Select the suitable and desirable socket size. (not included)
c. Press fit the anvil into the socket.
2. To remove the socket
a. Disconnect the tool from the air source.
b. Use your hand or a suitable tool to carefully remove the socket.
TOOL SET-UP
1. Designate a work area that is clean and well-lit. The work area must not allow access by
children or pets to prevent distraction and injury.
2. Route the air hose along a safe route to reach the work area without creating a trip
hazard or exposing the air hose to possible damage. The air hose must be long enough to
reach the work area with enough extra length to allow free movement while working.
3. Secure a loose work piece using a vise or clamps (not included) to prevent movement
while working.
WORK AREA SET-UP

9
Important Operating Instructions
4. There must not be hazardous objects (such as utility lines or foreign objects) nearby that
will present a hazard while working.
OPERATING INSTRUCTIONS
NOTE: For additional information regarding the parts listed in the following pages, refer to
the DIAGRAM and PARTS LIST at the end of this manual.
Before Use
To maintain maximum performance of the air tool, it must be lubricated each time it is
used. Dust, dirt, rust, and oil residue will build up inside the tool and reduce the
performance. The tool should be lubricated manually through the air inlet fitting.
Tightening: Set the Forward/Reverse Button to “F”
1. Tighten the nut as tight as you can by hand.
2. Place the socket (not included) over the nut you wish to tighten.
3. Grip the ratchet wrench firmly and gently squeeze the throttle lever.
Note: If the ratchet wrench cannot tighten it to your satisfaction, do not raise the air
pressure on the compressor over 90 PSI. Pressure above 90 PSI will strip the work piece
and damage the tool. Use appropriate methods and tools to tighten the nut.
4. If available, check the recommended torque specifications for the nut. Use a torque
wrench to tighten the nut to the proper setting after using the ratchet wrench.
Loosening: Set Forward/Reverse Button to “R”
1. Place the socket (not included) over the nut you wish to loosen.
2. Grip the ratchet wrench firmly and gently squeeze the throttle lever.
Note: If the ratchet wrench cannot loosen the nut to your satisfaction, do not raise the air
pressure on the compressor over 90 PSI. Pressure above 90 PSI will strip the work piece
and damage the tool. Use appropriate methods and tools to loosen the nut.
3. When the nut is loosened, release the throttle lever. Turn off the air compressor and
disconnect the hose.
4. If needed, remove the nut from the socket.

10
Important Operating Instructions
STORAGE & MAINTENANCE
WARNING: Procedures not specifically explained in this manual must be performed only
by a qualified technician.
To prevent serious injury from accidental operation, turn off the tool, detach the air supply,
safely discharge any residual air pressure in the tool, and release the trigger before
performing any inspection, maintenance, or cleaning procedures.
To prevent serious injury from tool failure, do not use damaged equipment. If abnormal
noise, vibration, or leaking occurs, have the problem corrected before use.
To prevent serious injury from explosion, lubricate the tool only with specified lubricants.
Lubricate the air inlet using only pneumatic tool oil. Other lubricants may damage the
mechanism and may be highly flammable, causing an explosion.
Note: These procedures are in addition to the regular checks and maintenance explained
as part of the regular operation of the air-operated tool.
1. Before each use:
Inspect the general condition of the tool. Check for:
• Loose hardware or housing
• Misalignment or binding of moving parts
• Cracked or broken parts
• Any other condition that may affect its safe operation
Apply a few drops of oil to the throttle lever, pin, and actuation pin.
2. Daily:
With a clean cloth, remove all dirt, oil, and grease from the Ratchet. If necessary, you may
use a mild detergent. Do not use solvents, as damage to the Ratchet may occur. Do not
immerse the Ratchet in any liquids.

11
Air Supply Set-up
Function
Connects air source to tool
Prevents dirt and condensation from damaging tool or work piece
Adjusts air pressure on tool
Air tool lubrication
Provides quick connection and release
Increases coupler life
Prevents water vapor from damaging work piece
Fine tuning airflow at tool
Description
Air Hose
Filter
Regulator
Lubricator (Optional)
Coupler and Plug
Leader Hose (Optional)
Air Cleaner/Dryer (Optional)
Air Adjusting Valve (Optional)
#
A
B
C
D
E
F
G
H

12
Do not use multiple hoses connected with a quick
connect fitting. This will reduce the power of the
tool
Adjust the compressor regulator to the tool’s
maximum setting of 90 PSI
Corrective ActionPossible Cause(s)Symptom
WARNING: Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect the air supply before servicing
Drain the tank. Lubricate the tool and run it until
there is no water evident. Lubricate the tool again
and run for 1-2 seconds
There is water in the tank
There is
moisture
blowing out of
the tool’s
exhaust
Remove and inspect the bearing for rust, dirt, and
grit. Replace or clean and grease the bearing with
bearing grease
There is a worn ball
bearing in the motor
Replace the rotor blade
There is a worn rotor
blade in the motor
Ensure the hose is the proper size
The air pressure drops
Tighten and seal the hose fittings with pipe thread
tape if leaks are found
The air hose leaks
Adjust the regulator on the tool to the maximum
setting
The air pressure is low
Lubricate the tool according to instructionsThe tool is out of oil
Flush the tool with air tool oil or gum solvent
There is grit or gum in the
tool
The tool runs
slowly or will
not operate
Important Operating Instructions
TROUBLESHOOTING GUIDE

13
Important Operating Instructions
WARRANTY
Limited Manufacturer Warranty
North American Tool Industries (NATI) makes every effort to ensure that this product
meets high quality and durability standards. NATI warrants to the original retail consumer
a 1-year limited warranty from the date the product was purchased at retail and each
product is free from defects in materials. Warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence or accidents, repairs or alterations, or a lack of
maintenance. This product is intended for personal use. The warranty will be voided if
used in commercial, rental, or industrial applications. NATI shall in no event be liable for
death, injuries to persons or property, or for incidental, special or consequential damages
arising from the use of our products. To receive service under warranty, the original
manufacturer part must be returned for examination by an authorized service center.
Shipping and handling charges may apply. If a defect is found, NATI will either repair or
replace the product at its discretion.
DO NOT RETURN TO STORE
For Customer Service:
Email [e-mail] or
Call 1-800-348-5004

14

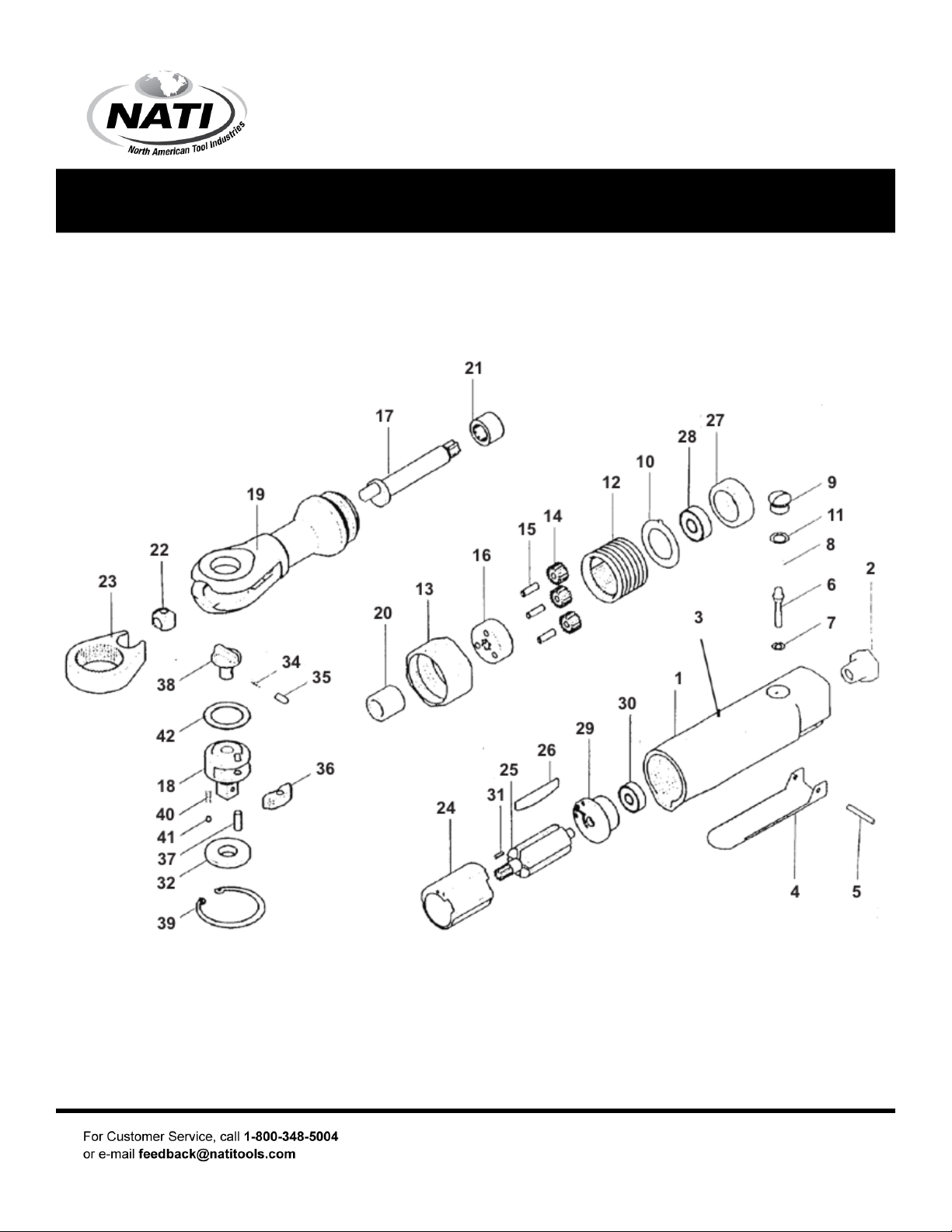

PARTS LIST
Air Ratchet
Model: 07637
88007637 02/2014

15
PARTS LIST
Air Ratchet
Model: 07637
88007637 02/2014
1
1
1
1
1
1
3
3
1
1
1
1
1
1
1
1
1
1
1
1
1
QTY.
Needle Bearing21
Bushing20
Ratchet Housing19
Anvil18
Crankshaft17
Gear Plate16
Pin15
Gear14
Cap13
Thread Ring Gear12
O-Ring11
Washer10
Valve Plug9
Spring8
O-Ring7
Valve Stem6
Pin5
Throttle Lever4
Actuation Pin3
Air Inlet2
Housing1
Description#
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
QTY.
1/4”Coupler (not
shown)
43
Spring40
Steel Ball41
Washer42
Washer32
Spring34
Lock Pin35
Ratchet Pawl36
Pin37
Forward/Reverse
Button
38
Retainer Ring39
Pin31
Bearing30
End Plate29
Bearing28
Front Plate27
Rotor Blade26
Rotor25
Cylinder24
Ratchet Yoke23
Drive Bushing22
Description#
