Natural Ozone OXY-96 Mounting instructions

www.naturalozone.co.nz | [email protected] | [phone]

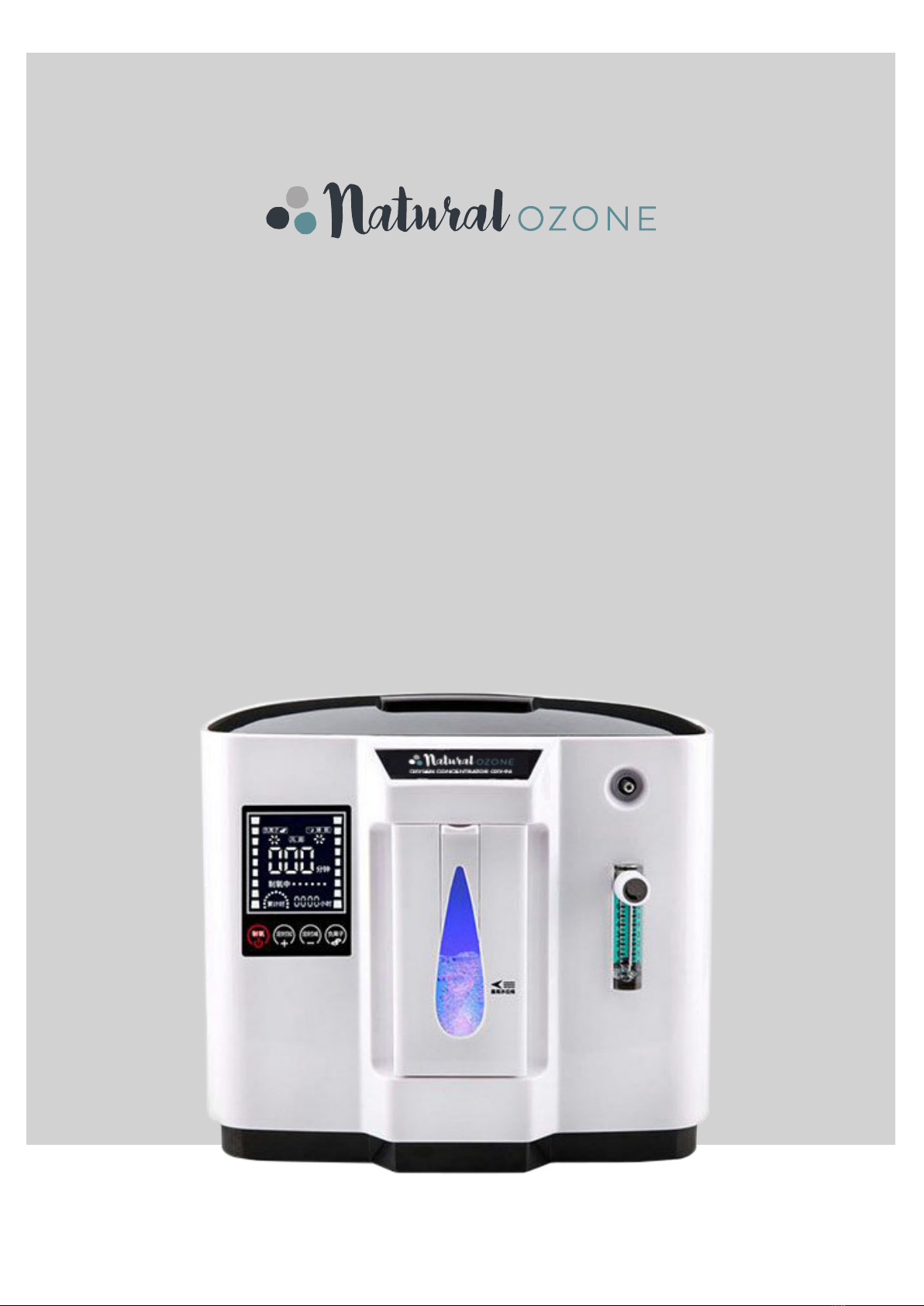

OXY-96 OXYGEN CONCENTRATOR
SAFETY &
INSTRUCTION
MANUAL

2
Oxy-96 Oxygen Concentrator Safety & Instruction Manual

3
www.naturalozone.co.nz | [email protected] | [phone]
Safety precautions 4
Unboxing 4
Product features 5
Key technical specications 6
Overview diagram 7
Operating guide 7
Installation 8
Operating instructions 10
Care and maintenance 12
Trouble shooting guide 14
Operating principle 15
The Natural Ozone Oxygen Concentrator is designed to be used
on a prescriptive basis by patients requiring supplemental oxygen.
It supplies a high concentration of oxygen and is used with a nasal
cannula to channel oxygen from the concentrator to the patient. It
should only be used as directed by your physician.
ATTENTION! Incorrect use of oxygen can be harmful.
contents

4
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
SAFETY PRECAUTIONS
In case of power outage or malfunction of the oxygen
concentrator, an alternate source of supplemental oxygen (such
as oxygen cylinder or oxygen bag) should be prepared for the
user in urgent need of oxygen.
Oxygen is a combustible gas, so do not smoke nearby and
keep away from any other possible source of ignition while using
the machine.
Do not switch on & o frequently. You can restart it after you
have switched it o for 3-5 minutes.
Avoid oil or grease-like material for any part of the machine as it
may contaminate the oxygen and/or cause re.
Note: This machine does is not suitable for life support or life
extension.
unboxing
Check parcel on delivery for signs of damage during transport.
After opening the package, please check whether the machine
is in good condition, and refer to the accessory list to ensure
that all of the items are included. If there is any missing item,
please contact Natural Ozone for replacement. If there is
damage to the outside of the parcel, contact the delivery
company and register a complaint.
Note: The unit housing should only be opened by a licensed
professional.
Accessory list:
1. Oxygen generator
OXY – 96
2. Oxygen tube with T piece
(optional)
3. Nasal cannula 4. Nasal outlet
5. Headset oxygen delivery
device
6. Remote control 7. Power chord 8. User manual

5
www.naturalozone.co.nz | [email protected] | [phone]
PRODUCT FEATURES
The product is designed in according to the standards of home appliance, for the use of supplemental oxygen.
Health function: The use of supplemental oxygen is indicated
in a number of dierent conditions. Always consult your
physician to determine the proper usage regime. Improper use
of supplemental oxygen can be harmful. Natural Ozone does
not give health advice.
Intelligent control: LCD display screen, easy use and operate
including timing function.
Overheating protection: Unit will automatically shut down if
the compressor temperature exceeds the set limit.
Anion (negative ion) function: (Optional) Anions are negatively
charged particles which are released into the atmosphere
through the vent at the back of the machine. Studies have
shown health benets from the use of negative ion generators
including decreasing pollen, bacteria and other pollutants in the
air. While the anion function is activated, the negative ions will
be automatically generated and released while your machine is
running.

6
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
KEY TECHNICAL SPECIFICATIONs
Using air as raw material, the oxygen concentrator uses an oil-free air compressor and molecular sieve to generate high purity
oxygen which is delivered by nasal cannula.
STANDARD OPERATING CONDITIONS
Operational temperature: 0℃ - 40℃
Relative humidity range: ≤80%
Atmospheric pressure range: 86kPa-106kPa
If the machine has been subject to conditions outside of the specied range, please leave within standard operating conditions for
at least 4 hours before use.
TRANSPORT OR STORAGE CONDITIONS
Storage temperature: 20℃ - 60℃
Relative humidity range: ≤93%
To avoid strong electromagnetic interference environment or interfering other domestic appliances, please keep the machine at
least 3m away from other domestic appliances.
Model: OXY-96
Oxygen generation method: Pressure Swing Adsorption (PSA)
Rated voltage: AC220±15V, 50±1Hz
Input power: 130W
Rated Current: 0.6A
Oxygen ow rate: 0-6L/min adjustable
Oxygen concentration: 30%-96% (±3%) adjustable
Oxygen pressure: 0.02~0.03MPa
Carbon dioxide: qualied according to the specied method
Carbon monoxide: qualied according to the specied method
PH value: qualied according to the specied method
Morphological identication: odorless, colorless gas, combustion-support
Operating noise: ≤45dB(A)
Classication: II class
Size: 340mm x 180mm x 310mm
Net weight: 6.0kg
Display control: LCD light display, intelligent chip control, infrared remote control

7
www.naturalozone.co.nz | [email protected] | [phone]
Main overview
1. xxxxx
oxy-96 operating guide
installation

8
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
installation
Unit must always be operated in upright position.
Please use standard electrical socket. If the local power supply has unsteady voltage,
or is outside of the specied 220±15volt, please connect a voltage regulator before
using the machine.
The machine should be located in a well-ventilated space, avoid direct sunlight. The
distance between the machine and the wall or other objects should be no less than
10cm.
Never place any objects on the machine while in use.
There should not be any obstruction around the air vents on the back and bottom
of the machine. Blocked air inlet or outlet may cause overheating, reduced oxygen
supply or damage to the unit.
FILL THE HUMIDIFICATION
WATER TANK:
Grasp the water tank on both sides and pull. The water tank is a separate unit which
will detach from the body of the machine.
Open silica gel plug at top and ll pure water to the indicator line.
Note: Do not overll.
Note: To ensure the water tank stays clean, use only pure water such as cool boiled or
distilled water. Distilled water is available from most supermarkets.
Note: Remember to replace the silicon plug rmly back into the inlet hole before
replacing the water tank.
Return the water tank to into position: Line up the three air pipes and push the water
tank back into place.

9
www.naturalozone.co.nz | [email protected] | [phone]

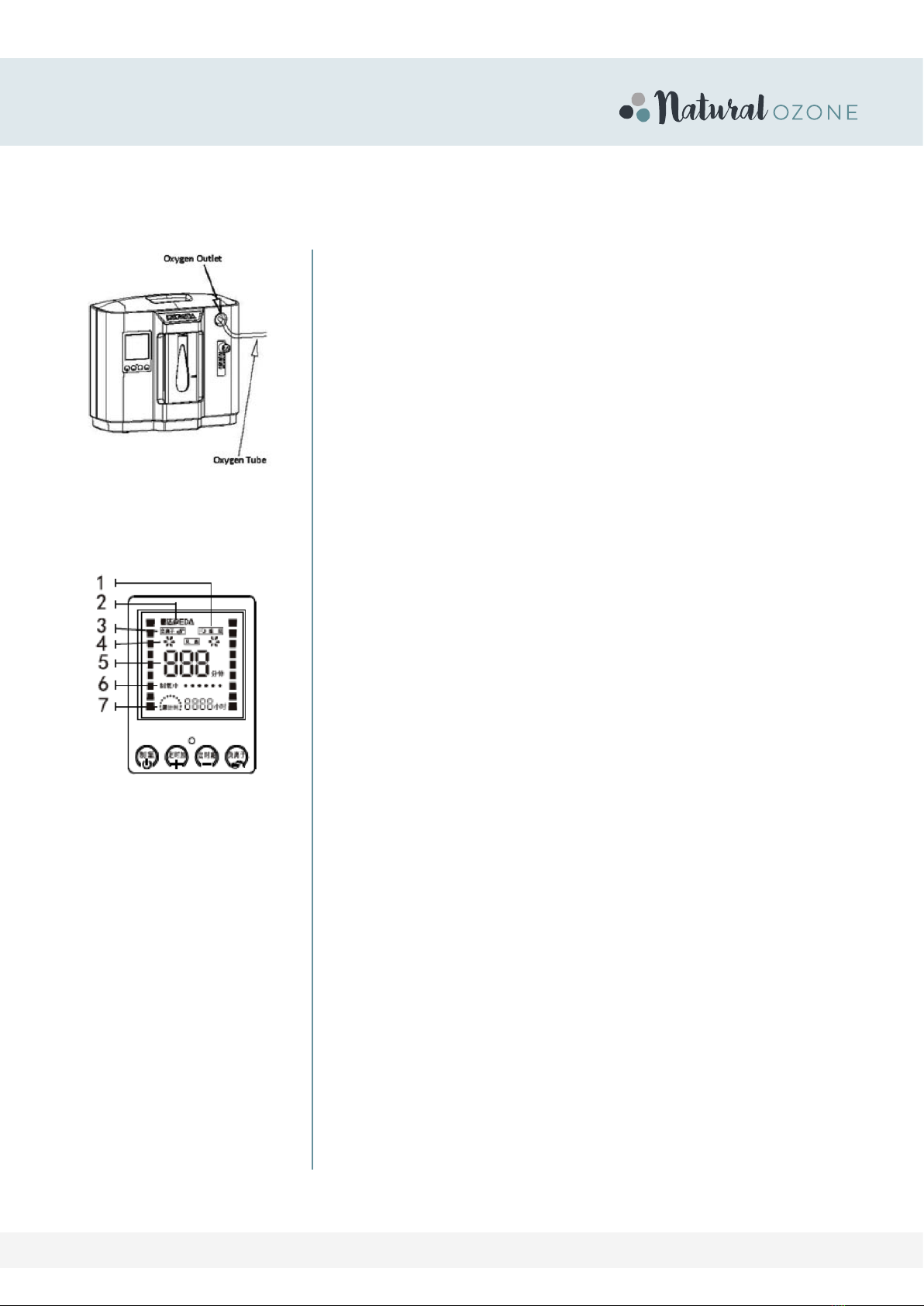

CONNECT OXYGEN TUBE
Connect one end of oxygen tube (supplied) with the oxygen outlet nipple and connect
the other end with oxygen inhaler, eg cannula.
LED SCREEN DISPLAY DIAGRAM
1. Sleep mode indicator
2. Brand logo indicator
3. Anion (negative ion) indicator
4. Cooling fan indicator
5. Timing setting indicator
6. Generating oxygen indicator
7. Cumulative time indicator

10
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
oxy-96 operating guide
how to operate
POWERING UP
Ensure that the machine is connected to a standard power socket. Press the toggle switch at the back of the machine. The unit will
emit a short beep and enter standby mode. The on/o button will light up and the machine is ready to operate from either the keypad
or remote control.
SWITCHING ON
Press the ON/OFF (oxygen) switch and the machine will commence operation. Various indicator lights will show as well as the
backlight on the water tank. The machine will emit a gentle whirring sound and oxygen will ow from the outlet, while nitrogen will be
emitted from the vent at the back. The machine runs continuously by default.
TIME+
Once the machine has been switched on, it will run continuously by default. Press the Time + button once and the time setting
will display 15 minutes. Each time you press the Time + button, the running time will increase in increments of 15 minutes until the
maximum of 180 minutes has been reached. Use the time setting as prescribed by your physician.
TIME-
Once the machine has been switched on, it will run continuously by default. Press the Time – button once and the time setting
will display 180 minutes. Each time you press the button, the running time will be reduced by 15 minutes. Use the time setting as
prescribed by your physician.
IONISE
The Natural Ozone OXY-96 oxygen concentrator has an additional feature known as a negative ion generator. Negative ions are
charged particles (anions) which are released into the environment through a vent at the back of the machine. The anions do not get
mixed with the oxygen which ows through the outlet. Negative ions have been shown to have benecial eects such as reducing
pollution, pollen and pathogens in the environment. This is an optional benet that you may choose to select while you are using
your oxygen concentrator. To operate, press the “ionize” (anion) key and the machine will start producing them automatically. Press
again to switch the function o. The indicator light will illuminate while the anion function is opertating.

11
www.naturalozone.co.nz | [email protected] | [phone]
FLOW RATE VS OXYGEN CONCENTRATION
The concentration of oxygen delivered is controlled by the ow rate which can be adjusted by the knob on the ow meter, which is
located on the right hand side of the machine. The higher the ow rate, the lower the oxygen concentration. Please refer to the chart
below for details. Turn the knob anti-clockwise to increase the ow rate and decrease the oxygen concentration. The ow rate is
indicated by a black bead inside the glass tube of the ow meter. Please use the concentration and ow rate as prescribed by your
physician.
OXYGEN CONCENTRATION CHART*
Litres/minute 1 2 3 4 5 6
Concentration 96% 80% 65% 50% 40% 30%
*Note 3% variation

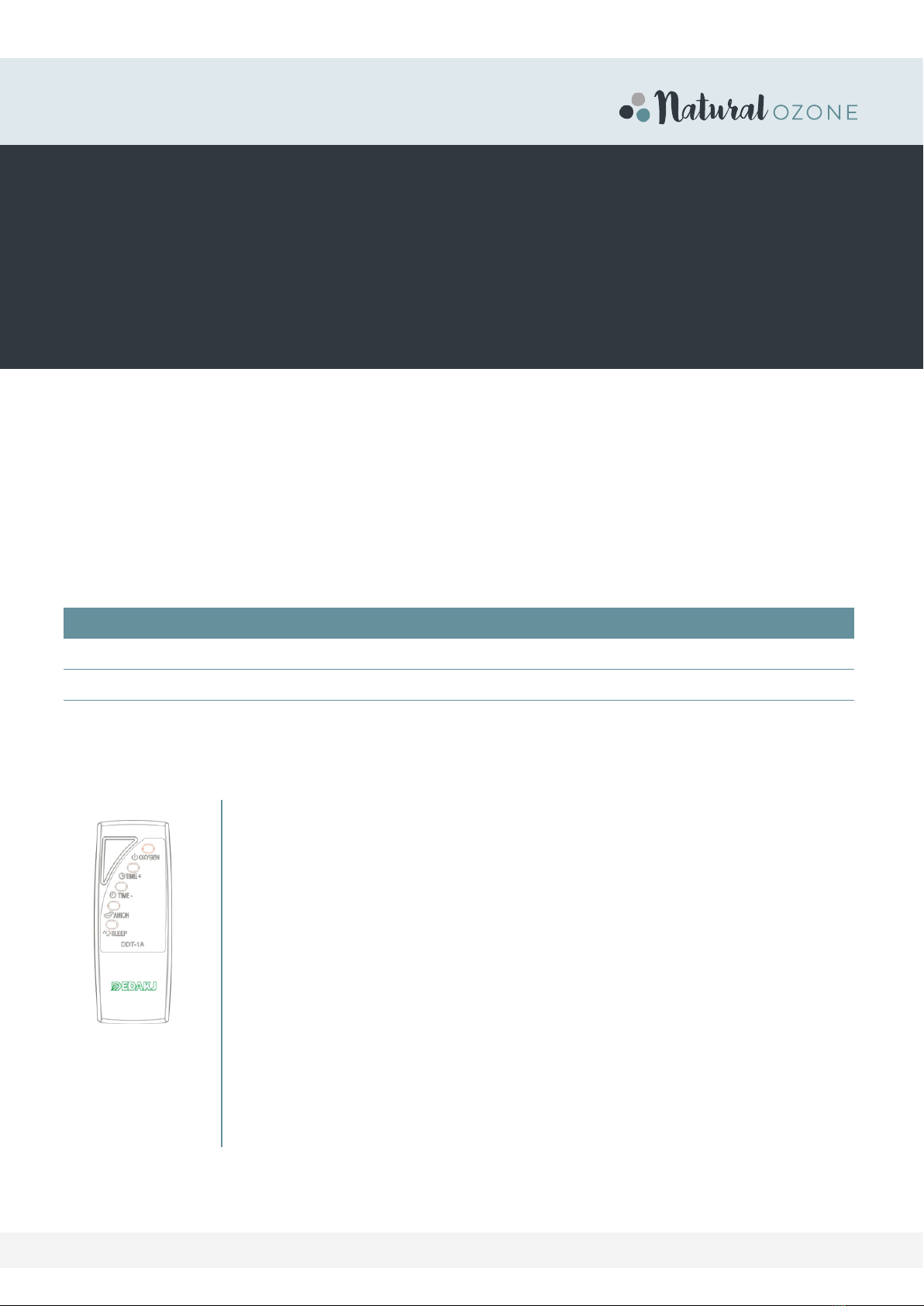

remote control
The remote control buttons function in the same way as the buttons on the machine keypad.
1. On/O key
2. Time +
3. Time –
4. Negative ion
5. Sleep mode
When the machine is operating, press “Sleep” mode key. The “Sleep” icon on the display screen
will ash three times, then the screen will turn o but the machine will continue normal operation.
Press any key on the remote control or touch any key on the machine panel to reactive the
screen.

12
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
oxy-96 operating guide
CARE AND MAINTENANCE
HOUSING CLEANING
The surface of the housing should be cleaning at least once every month. Disconnect the power cord before you clean it. Wipe it
with a clean, mild, damp cloth soaked with disinfectant. Do not let the liquid penetrate into the machine.
WATER TANK CLEANING
To keep the water tank clean, use only puried water, distilled water or cold boiled water and change water every day.
The water tank should be cleaned every week. First, remove the tank from the unit and half ll with water and a small amount of
detergent and give it a good shake. Next rinse with clean water. Ensure that all residue of detergent is washed out.
After cleaning the water tank, please remember to replace the silicon plug to avoid leakage of oxygen.
AIR FILTER CLEANING
The white air lter at the back of the machine can reduce noise, isolate dust and purify the air and should be cleaned around every
ten days.
1. Grasp the round air lter cover on the back of the machine and pull it out. It has an O-ring seal, so you need to pull quite hard.
Once the cover has been removed, the lter will be visible.
2. Remove the lter, which looks like a thimble from the air inlet tube.
3. First use detergent to wash, and then rinse it with clean water. Pay special attention that it is dry before replacing or the function
of the molecular sieve could be damaged, which will lead to decreased oxygen concentration.
4. Replace the lter back onto the air inlet and replace the cover.
OXYGEN TUBE AND OXYGEN INHALER CLEANING
The oxygen tube should be cleaned every three days. The delivery part of nasal cannula should be cleaned after each use. You
can soak it with 5% potassium permanganate (condes crystals) solution for 5 minutes, then rinse with clean water, or wipe it with
alcohol. Replace the oxygen tube every year.

13
www.naturalozone.co.nz | [email protected] | [phone]
LONG TERM STORAGE
If you are not intending to use your oxygen concentrator for a long period of time, please follow these instructions:
1. Remove water tank, drain and dry then replace
2. Unplug power chord
3. Store tubes and cannulas in a clean, dry environment, protected from light and extreme temperature
RECOMISSIONING AFTER LONG TERM STORAGE
1. Check for signs of damage especially to the electrical cable
2. Clean oxygen tube and inhaling devices
3. Clean water tank

14
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
oxy-96 operating guide
TROUBLE SHOOTING GUIDE
# PHENOMENON CAUSE ANALYSIS SOLUTION
1Odour in the air In the initial stage of use, there is a
smell from the connection tube and
other plastic parts. It is normal.
The odour that comes from silicone tube
and ABS rubber parts is normal and
non-toxic. The odour will disappear as
time goes by.
The humidier water tank hasn’t been
cleaned for a long time or the water
hasn’t been changed.
Clean the oxygen tube and humidier
water tank.
2Water ows from the
oxygen outlet
The water level of the humidier water
tank is beyond the highest water level,
so the airow pushed water into the
oxygen tube.
Keep the water lower than the highest
water level.
The machine has been used for a long
time, so that the steam in the oxygen
ow condenses on the tube wall.
Replace water in the tank and allow
oxygen tube to dry out
3The machine lets out
“Pu” sound every
several seconds
It is the sound of nitrogen discharging
which is normal and is a sign of ne
working.
No action necessary
The owmeter is o or the value is too
small
Turn up the oxygen ow.
The oxygen tube is twisted or blocked. Straighten the oxygen tube.
The inner connection tube of the
machine is disconnected or broken.
Disconnect the power cord and bring to
a professional to repair
4After start-up, the water
tank bubbles, but there
is no oxygen owing
from the oxygen outlet
The silica gel stopper of the
humidifying water tank is not properly
positioned.
Remove the humidifying water tank and
ensure that the plug is properly in place.
5After start-up, the
indicator lights are
working but the machine
does not
Compressor malfunction. Disconnect the power cord and take to a
professional for repair.
The temperature is so high that
the self-protection function of the
compressor is activated.
This is working correctly. When the
temperature lowers, the machine will
restart automatically.
Separation valve malfunction Disconnect the power cord and bring to
a professional to repair
The inner connection tube of the
machine is disconnected or broken.
Disconnect the power cord and bring to
a professional to repair
If it still does not work as you have followed the solutions listed above, do not disassemble the machine.
Please consult the manufacturer for assistance.

15
www.naturalozone.co.nz | [email protected] | [phone]
OPERATING PRINCIPLE
The air comes into the compressor via the air inlet lter, and then it enters into molecular sieve tower to separate the oxygen and
nitrogen. The oxygen goes through the molecular sieve tower into the ne sieve tower while the nitrogen is discharged into the
atmosphere through the separating valve. The oxygen concentration is enhanced in the ne sieve tower and controlled by the
owmeter. Then the oxygen is humidied by the humidifying water tank. Finally, the oxygen is delivered to the user through oxygen
supply tube.

16
Oxy-96 Oxygen Concentrator Safety & Instruction Manual
www.naturalozone.co.nz
[email protected]
[phone]
