Nature Power 37002 User manual

  200   
User Manual
V1.1-M 28Apri2020
SAVE THESE INSTRUCTIONS
WARNING Read carefully and understand all ASSEMBLY AND
OPERATION，INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety，precautions may result in serious personal injury.
Item #37002

WARNING
This product can expose you to chemicals, including Di (2-ethylhexyl) phthalate (DEHP)
which is known to the State of California to cause cancer, birth defects or other reproductive
harm. For more information, go to www.p65warnings.ca.gov
ARNIA
Este producto puede exponerlo a productos umicos, incluidos Di (2-etilhexil) ftalato (DEHP)
ue el estado de California sabe ue causa cncer, defectos de nacimiento u otros daos
reproductivos. Para obtener ms informacin, vaya a www.p65warnings.ca.gov
Page 2 of 14
Tan you for coosin a Nature Poer Prouct
This product is designed for certain applications only. Distributor cannot be responsible for
issues arising from modification. We strongly recommend this product not be modified and/or
used for any application other than that for which it was designed. If you have a question
relative to a particular application, o not use the product until you have first contacted the
distributor to determine if it can or should be performed on the product.
For technical question please call 1800-588-0590
Reference Part Description Quantity
1 1
200 t
2
31
Ground wire
PAR I
Battery connecting cable red and black 1
31
Ground wire
41
User Manual 1

Page 3 of 14
SAVE THESE INSTRUCTIONS.
1. SAVE THESE INSTRUCTIONS.
This manual contains important safety
and operating instructions for power
inverter 2000W .This manual will show
you how to use your inverter safely
and effectively. Please read, understand
and follow these instructions and
precautions carefully.
2. Keep out of reach of children.
3. Do not expose inverter to rain or snow.
4. Use of an attachment not recommended
or sold by the unit manufacturer may
injury to persons.
5. Do not disassemble the unit; take it to
repair is required. Incorrect reassembly
6. To reduce risk of electric shock, unplug
unit from outlet before attempting any
maintenance or cleaning. Turning off
controls will not reduce this risk.
7. For the most effective use, place the
power inverter on a flat surface.
8. Do not place the inverter on or near
heating vents, radiators or other sources
9. Do not place the inverter in direct
sunlight. The ideal air temperature for
operation is between 50° and 80°F.
10. Only connect the power inverter to a 12V
battery or power supply. Do not attempt to
connect the inverter to any other power
source, including an AC power source.
Connecting to a 6V or 16V battery will
cause damage tothe inverter.
11. Do not use the inverter with a product
that draws a higher wattage than the
inverter can provide, as this may cause
damage to the inverter and product.
IMPORTANT SAFETY INSTRUCTIONS

Page  of 14
FEATURES
•ON/OFF rocker switch
•LED indicator
Green indicates Power ON
Red indicates Overload/Interruption
in power
•12 Volt power cord
•120V standard AC outlets
•USB port(s) – 5V, 2.0A
•High-speed cooling fans
To keep the inverter cool, the fan turn on
depend on temperature in the inverter.
The fans do not run when the inverter
is turned off.
•Positive Battery Cable Terminal (Red)
•Negative Battery Cable Terminal
(Black)
The inverter and power source must be
in the OFF mode.
IMPORTANT:Make sure to connect your
inverter only to a 12 volt power supply.
To avoid electrical shock, it is necessary
to ground the inverter as well as the
device powering it. The inverter should
be grounded, using a 15AWG copper
wire (included).
NOTE: Do not turn on the inverter or the
power source until the inverter and the
power source are grounded.
TO GROUND THE INVERTER
1. Turn off and disconnect the inverter.
2. Locate the chassis ground screw on
the back of the inverter.
3. Remove the outer nut and loosen
the first locking washer.
4. Attach the grounding wire’s ring
connector to the ground terminal of
the inverter.
5. Tighten the locking washer securely.
Then, replace the other nut and tighten
it securely.
CONNECTING INVERTER CABLES

Page  of 14
6. Attach the other end of the wire to a
properly grounded location:
Vehicle: Connect to the chassis, unpainted
frame part, or engine block of the vehicle.
Fixed location: Connect to a ground rod
or other appropriately rated ground.

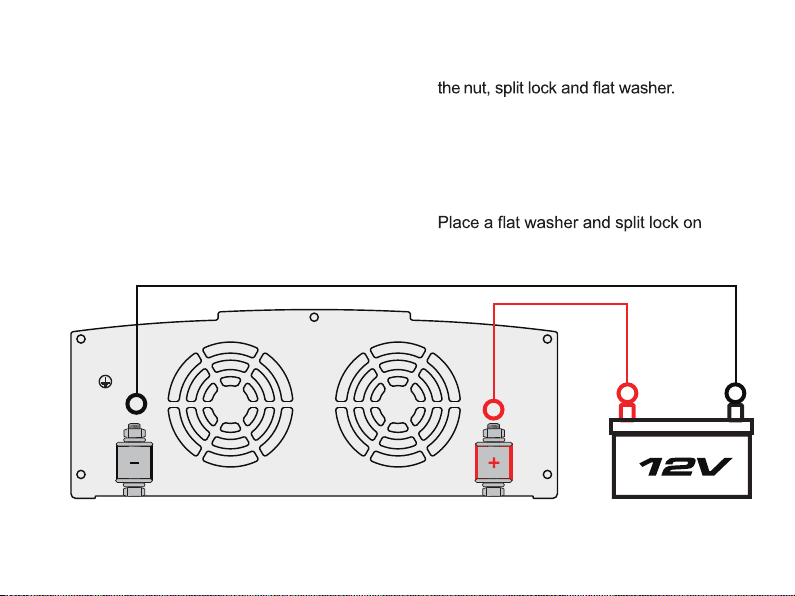

CONNECTING INVERTER CABLES
TO THE INVERTER
1. Locate the Positive and Negative
terminals on the inverter.
2. From the POSITIVE (RED) and the
NEGATIVE (BLACK) terminals, remove
3. Place the POSITIVE (RED) ring
connector onto the POSITIVE
(RED) inverter terminal. Place the
NEGATIVE (BLACK) ring connector
onto the NEGATIVE (BLACK)
inverter terminal.
4.
top of each ring connector. Put a nut
over these and tighten.
NOTE:Please use the cables we provided, DON'T use battery clamps.
+ -

Page  of 14
OUTPUT POWER INDICATE LIGHT

Page  of 14
After mounting and connecting your
Inverter according to the instructions in
this manual, use the ON/OFF/REMOTE
switch to choose the Inverter’s operating
mode.
ON: When you set the switch to the ON (I)
position, the Inverter provides power to
connected equipment by converting DC
power from your vehicle’s battery. The
green LED will illuminate to indicate it is
working.
OFF: Set the switch to the OFF (O)
position to shut down the Inverter
completely. Doing this will prevent it from
drawing power from your vehicle’s battery.
Also set the switch to the OFF position to
reset the Inverter if it has shut down due
to low battery, overload or other critical
condition.
REMOTE: When you set the switch to the
REMOTE (II) position, the Inverter
provides AC power to connected
equipment by converting DC power from
your vehicle’s battery.The green LED will
illuminate to indicate it is working.You
can then power the inverter ON/OFF
from a remote location via the included
remote.This remote switch can be
mounted in the vehicle or a permanent
mount application. The green LED on the
remote will illuminate to indicate the
inverter is in the ON operating mode.
Connect the Inverter (see CONNECT-
ING INVERTER CABLES).
Switch the Inverter’s ON/OFF switch to
the ON (I) position. If you are using the
included remote panel, set the switch to
the REMOTE (II) position and press the
ON button on the remote panel.
The green LED indicator will illuminate
on the unit or remote panel (If installed),
1.
2.
3.
OPERATING INSTRUCTIONS

Page  of 14
POWER SOURCE
Your average automobile battery at full
charge will provide an ample power supply
to the inverter when the engine is on.
Keep the car running at all times when
using the inverter. The actual length of
time the inverter will function depends on
the age and condition of the battery and the
power demand being placed by the device
being operated with the inverter.
When possible, recharge your batteries
when they are not more than 50%
discharged. This gives the batteries a
much longer life cycle than recharging
when they are more deeply discharged.
The power inverter has a battery low
voltage shutdown at 10V±0.5V DC. With
moderate to heavy loads, this will protect
against over-discharging the battery. If the
inverter is running only light loads it is
advisable to recharge before the inverter
low voltage shutdown point is reached.
IMPORTANT: The inverter draws low
amperage from the battery with the main
ON/OFF switch turned on and no load
connected. To prevent battery discharge,
turn the inverter off when you are not
using it.
indicating the Inverter is receiving power.
Switch the Inverter’s ON/OFF/REMOTE
switch to the OFF (O) position. The
green LED may flash briefly and/or the
internal speaker may beep briefly. This is
normal.
Make sure the device(s) to be operated
is turned OFF.
Plug the device(s) into the Inverter’s AC
outlet(s).
Switch the inverter’s ON/OFF/REMOTE
switch to the ON (I) or REMOTE (II)
positions. If using the remote position,
connect the cable connector to the RJ11
jack on the unit labeled REMOTE and
press the ON/OFF momentary switch to
power the inverter.
Turn the device(s) on.
To disconnect, reverse the above
procedure.

Page 9 of 14
LED INDICATOR AND SHUTDOWN PROTECTION
The Green LED lights automatically when 3.
the inverter is plugged into a 12 volt
DC power source and is turned on. The
Red LED lights, the alarm sounds and
the inverter automatically turns itself off
under the following conditions:
1. When the power input from the
vehicle’s battery drops to approximately
10.5 volts, the low voltage alarm will
sound. When the voltage goes down
below 10 VDC, the inverter shuts off.
Recharge or replace the battery.
2. When the power input from the
vehicle’s battery exceeds 16 volts, high
voltage protection occurs.
The continuous load demand from the
equipment or device being operated
exceeds the continuous load rating of
the inverter. Use a higher capacity
inverter or lower rated device.
4. The thermal resistor exceeds
80° C (176° F.) Allow the inverter to
cool. Do not block the cooling slots or
inverter
Reduce the load on the inverter to
the continuous rated output.
RESET: To reset after shutdown occurs,
switchthe inverter’s ON/OFFswitchtothe
OFF (O) position. Check the source of the
problem and correct. Switch the inverter’s
ON/OFFswitchtothe ON (I) position.

Page 10 of 14
IF THE INVERTER’S FUSE BLOWS
which should not have to be replaced
under normal operating conditions. A
blown fuse is usually caused by reverse
polarity or a short circuit within the device
or equipment being operated.
If a fuse does blow, take the inverter to
i
MAINTENANCE AND STORAGE INSTRUCTIONS
1. Before each use, ensure that all of the
inverter’s components are in place and
in good working condition.
2. After use and before performing
maintenance, unplug and disconnect
the inverter.
3. Use a clean, dry cloth to wipe external
surfaces of the inverter’s case.
4. Servicing does not require opening the
unit, as there are no user-serviceable
parts. All servicing should be performed
5. Store inside, in a cool, dry place, out of
the reach of children.
6. Recycle or properly dispose of internal
electrical components.

Page 11 of 14
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Low or no output
voltage.
Poor contact at terminals OVP/
OLP.
Using incorrect type of voltmeter
to test output voltage.
Disconnect and reconnect the 12V
connections.
Use a true RMS reading meter.
Red LED is lit. Thebattery voltage is below 10
volts.
Theequipment being operatedis
drawing toomuch power.
Theinverteris toohot (thermal
shutdown).
Recharge or replace thebattery.
Use a higher capacity inverter or
decrease the load or device on the
inverter
Allow inverter to cool. Check for
adequate ventilation. Reduce the
load on the inverter to the rated
continuous power output.
Device does not
operate properly
to the inverter.
The inverter may not have
the required capacity to operate
the device.
Turn the inverter switch OFF and
ON, to reset the inverter.

SPECIFICATIONS
Nominal input voltage ..................................................................................12.8-13.2 VDC
Nominal output voltage ................................................................................115±10% VAC
Output frequency ...................................................................................................60±3 Hz
Operating input voltage................................................................................10.0-15.0 VDC
Continuous output power.............................................................................. Up to 2000 W
Surge output power................................................................................................ 4000 W
Waveform
Efficiency (typical)
............................................................................................. Modified sine wave
....................................................................................................... 86%
Typical No Load Current (at nominal input voltage) ..............................................0.7 ADC
Input overvoltage shutdown..........................................................................15.5±0.5 VDC
Input undervoltage alarm ..............................................................................10.5±0.5 VDC
Input low voltage shutdown...........................................................................10.0±0.5 VDC
Output power overload shutdown level...........................................................2400±400 W
Input fuse ................................................................................................................. 8x30 A
AC receptacles..............................................................................Three, NEMA 5-15 USA
USB port .......................................................................................................... One, 5V 2A
Battery cables ......................................................................................... 5AWG, 2×39.3 in
Ground wire ...........................................................................................15AWG, 1×39.3 in
Page 12 of 14

Nature Power warrants our products to the original purchaser that this product is free from
defects in materials and workmanship for the period of one year from date of purchase. In
the case of product defect, contact Nature Power customer service to receive
troubleshooting. If defective part or unit should be returned, a Return Authorization
Number must be issued by Nature Power and the defective part or unit should be returned
to the authorized location at the purchasers’ expense. A dated proof of purchase is
required to receive warranty service. Once received at authorized location and defect
proves to be the result of defective material and workmanship, the defective part or unit
will be replaced at warrantors’ option and returned to the original purchaser at warrantors’
expense. No refunds will be granted by the warrantor,  t t   
 ctct  t  c   t t t c
LIMITED WARRANTY
Page 13 of 14

Please&contact&Nature&Power&Products&to&acquire&
more&information:!
1-800-588-0590
[email protected]!
www.naturepowerproducts.com!
Made in Taiwan
Page 14 of 14
