NavLinkz VL2-UCON8-AO User manual

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Video-inserter
VL2-UCON8-AO
Compatible with
Dodge and Jeep vehicles
with Uconnect 8.4AN/RA4 und 8.4A/RA3 Systems
Video-inserter with 2 video + rear-view camera input and CAN control
Product features
Video-inserter for factory-infotainment systems
1 CVBS rear-view camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guidelines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. The video interface’s connectors
1.4. Settings of the 8 Dip switches (black)
1.4.1. Enabling the interface’s video inputs (dip 1-3)
1.4.2. RGB-video input signal selection for after-market navigation (Dip 4)
1.4.3. Rear-view camera setting (dip 5)
2. Installation
2.1. Place of installation –video interface
2.1.1. Place of installation –daughter PCB box
2.2. Connection schema
2.3. Connection to the head-unit –LVDS
2.3.1. Warning notes, concerning the installation of ribbon cables
2.4. Connection to the head-unit - Quadlock
2.5. Connecting video sources
2.5.1. Video-sources to Video AV1 and Video AV2
2.5.2. Audio-insertion
2.5.2.1. Audio connection of the AV sources 1 IN and 2 IN
2.5.3. After-market rear-view camera
2.5.3.1. Case 1: Video-interface receives the reverse gear signal
2.5.3.2. Case 2: Video interface does not receive the reverse gear signal
2.5.3.3. Video signal connection for the rear-view camera
2.6. Connecting video-interface and external keypad
2.7. Picture settings and guide lines
3. Interface operation
3.1. By voice key button
3.2. By external keypad
4. Specifications
5. FAQ –Trouble shooting VL-2 functions
6. Technical support

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page4
Compatibility
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio inserting, use the possibly existing factory audio-AUX-input
or a FM-modulator.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay
the switch-back, an additional electronic part is required.
Guidelines Displayed guidelines are not available in all vehicles.
Video input signal NTSC video sources compatible only.
1.2. Checking the compatibility of vehicle and accessories
Brand
Compatible vehicles
Infotainment systems
Dodge
RAM 1500/2500/3500 model years 2013-2018,
Challenger model years 2015-2017,
Charger model years 2015-2017,
Durango model years 2014-2017,
Viper model years 2013-2017
and other vehicles with
Uconnect 8.4AN/RA4 and
8.4A/RA3, 8.4inch monitor
with all-in-one head-unit
Jeep
Cherokee model years til 2018,
Grand Cherokee model years 2014-2017
and other vehicles with
Uconnect 8.4AN/RA4 and
8.4A/RA3 8.4inch monitor
with all-in-one head-unit

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page5
1.3. Connection Video-Interface
The video-interface converts the connected after-market sources video signals into an LVDS
signal which is inserted in the factory monitor using separate trigger options and it reads
vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video
interface.
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the 8 dip-switches of the
video-interface. Dip position down is ON and position up is OFF.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
RGB-input
enabled
disabled
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
RGB-input resolution
800x480
1080p H+V sync
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
No function
set to OFF
8
No function
Set to OFF

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page6
1.4.1. Enabling the interface’s video inputs (dip 1-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It`s recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
1.4.2. RGB-video input signal selection for after-market navigation (Dip 4)
If an after-market RGB navigation or other RGB video source is connected, the source’s RGB
output signal must match the interface’s RGB video input setting.
1.4.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input “Camera-IN” while the
reverse gear is engaged.
Note: Dip 6, 7 and 8 are out of function and have to be set to OFF.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page7
2. Installation
Switch off the ignition and disconnect the vehicle’s battery! The interface needs a
permanent 12V source. If -according to factory rules- a disconnection of the battery has to
be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode
doesn’t succeed, the battery has to be disconnected with a resistor lead.
The Interface needs a permanent power supply! If power isn’t directly taken from the
battery, the connection’s power has to be checked for being start-up proven and
permanent.
2.1. Place of installation –video-interface
The video-interface is installed on the backside of the head-unit.

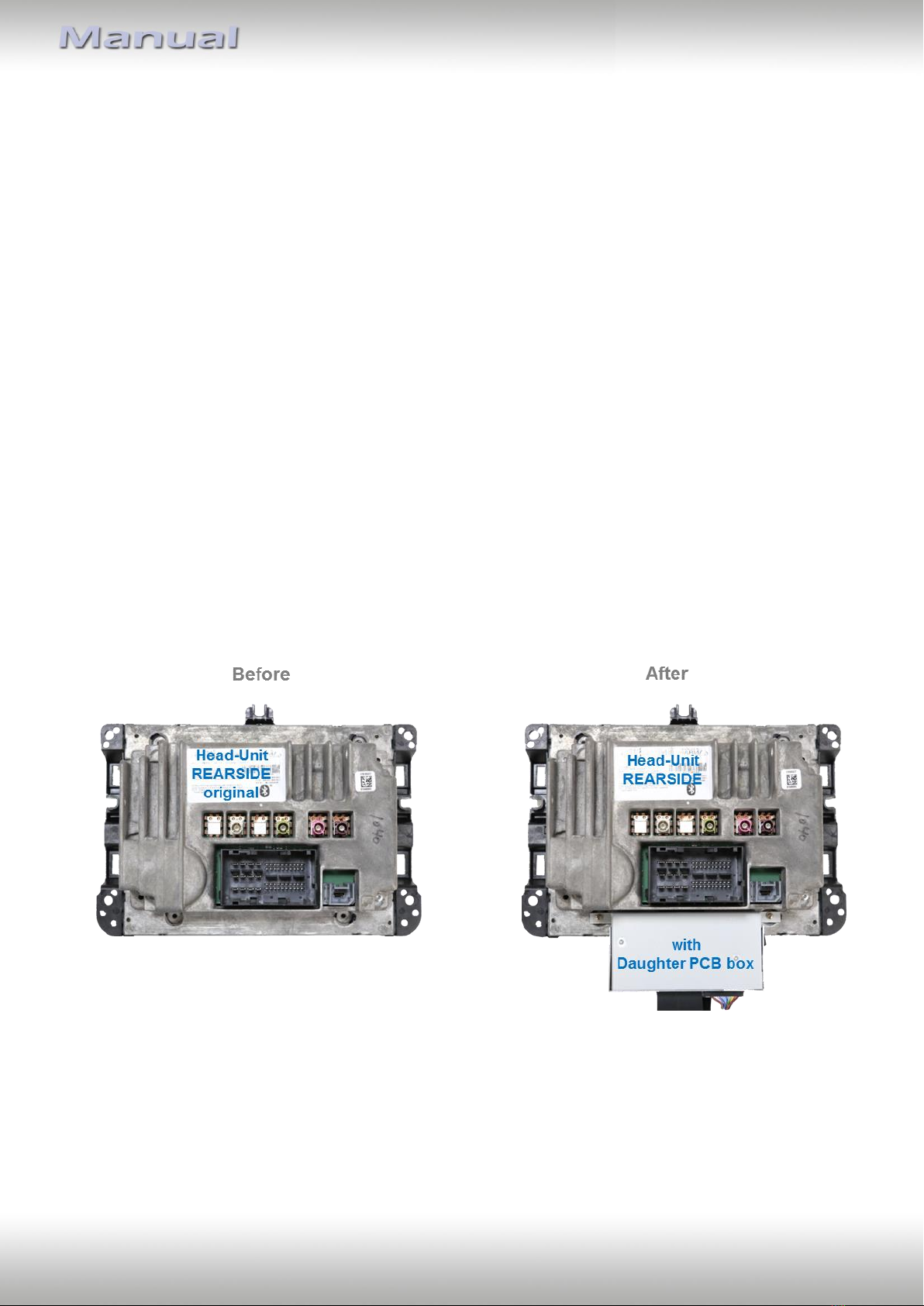

2.1.1. Place of installation - daugter PCB-box
The daughter PCB is performed to be installed on the rearside of the head unit. The
connection has to be done between the monitor panel and the head unit’s motherboard.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page8
2.2.Connection schema

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page9
2.3. Connections to the head-unit –LVDS
Remove the head-unit and further
remove the original housing plastic frame
which is fixed to the head-unit housing by
4 Torx screws (T10).
Turn out the 8 Torx screws (T10) of the
head-unit housing. After disconnecting
the head unit’s mainboard, take both
parts together away from the head unit’s
mainboard housing and put them aside.
Turn out the Torx screw (T10) at the
middle of the head unit’s mainboard
housing and carefully put the housing
aside to set free the monitor panel with
its kopper coulored picture ribbon cable
Carefully clip out the kopper coulored 60pin ribbon cable at the monitor panel’s ribbon cable
base and lead it out.
Note: The connected ribbon cables have to be handled with care to avoid each damage of
the sensitive electrical inducters.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page10

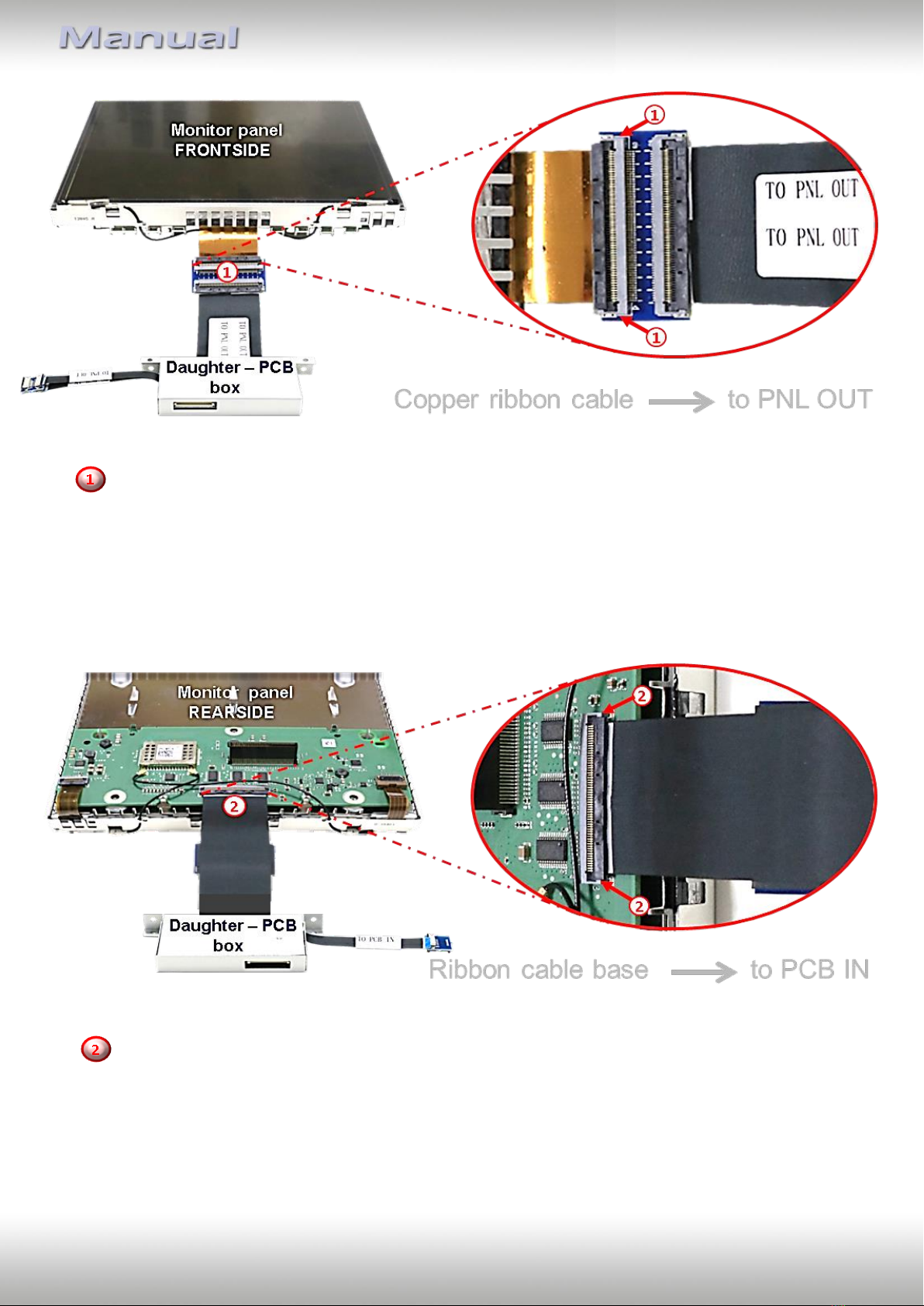

Turn around the monitor panel and connect the previously become free copper coulored
60pin ribbon cable to the pre-assembled 60pin ribbon cable merger „TO PNL OUT“ of the
daughter PCB box and clip it in (heed the following warning notes!).
Note: Due to the very short length of the ribbon cable, there’s only limited space for
mounting available.
Turn around the monitor again and connect the pre assembled 60pin ribbon cable
„TO PCB IN“ of the daughter PCB box to the monitor panel’s previously become free
ribbon cable base (heed the following warning notes!).
After a check of the perfect ribbon cable connection, in reverse order fold back and clip in
the monitor panel to the head unit housing, connect the head unit mainboard and fix it to
the head unit’s rearside, before screwing on the head units frame again.
X
only with
NAV-FN900E
X
only with
NAV-FN900E

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page11
Screw in the daughter PCB box at the rearside of the head-unit by using the enclosed screws
Note: If the ribbon cables might come in contact with the housing components, they have to
be isolated to avoid short circuits and cable injury.
2.3.1. Warning notes, concerning the installation of ribbon cables
1) The contacting ends of ribbon cables always have to be installed in a straight and precise
180° position to the connector. Each deviation from a perfect contact position will curse
faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the
connector, concerning the mounting position.
3) Avoid cable contusion or cable injury caused by sharp-edged metal.
X
only with
NAV-FN900E

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page12

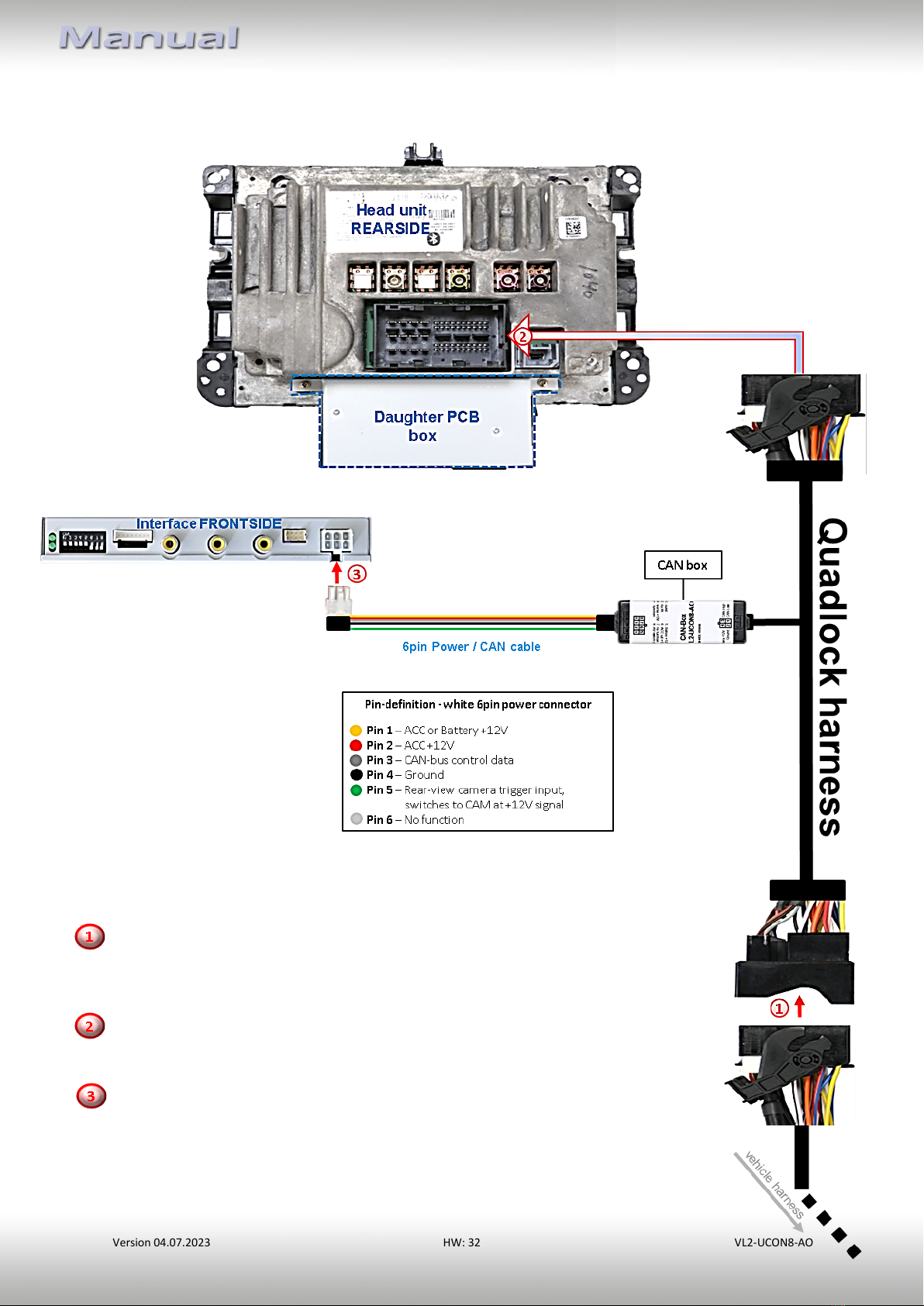

2.4. Connections to the head-unit - Quadlock
Remove the female Quadlock connector of the vehicle harness from the rear of
the head unit and connect it to the male Quadlock connector of the Quadlock
harness.
Connect the opposite female Quadlock connector of the Quadlock harness to
the male Quadlock connector of the head-unit.
Connect the femal 6pin connector of the Power /CAN cable
to the 6pin connector of the video interface.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page13
2.5. Connecting the Video sources
It is possible to connect one After-Market RGB navigation (or another RGB source), two
After-Market AV sources and an After-Market rear view camera to the video-interface
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.

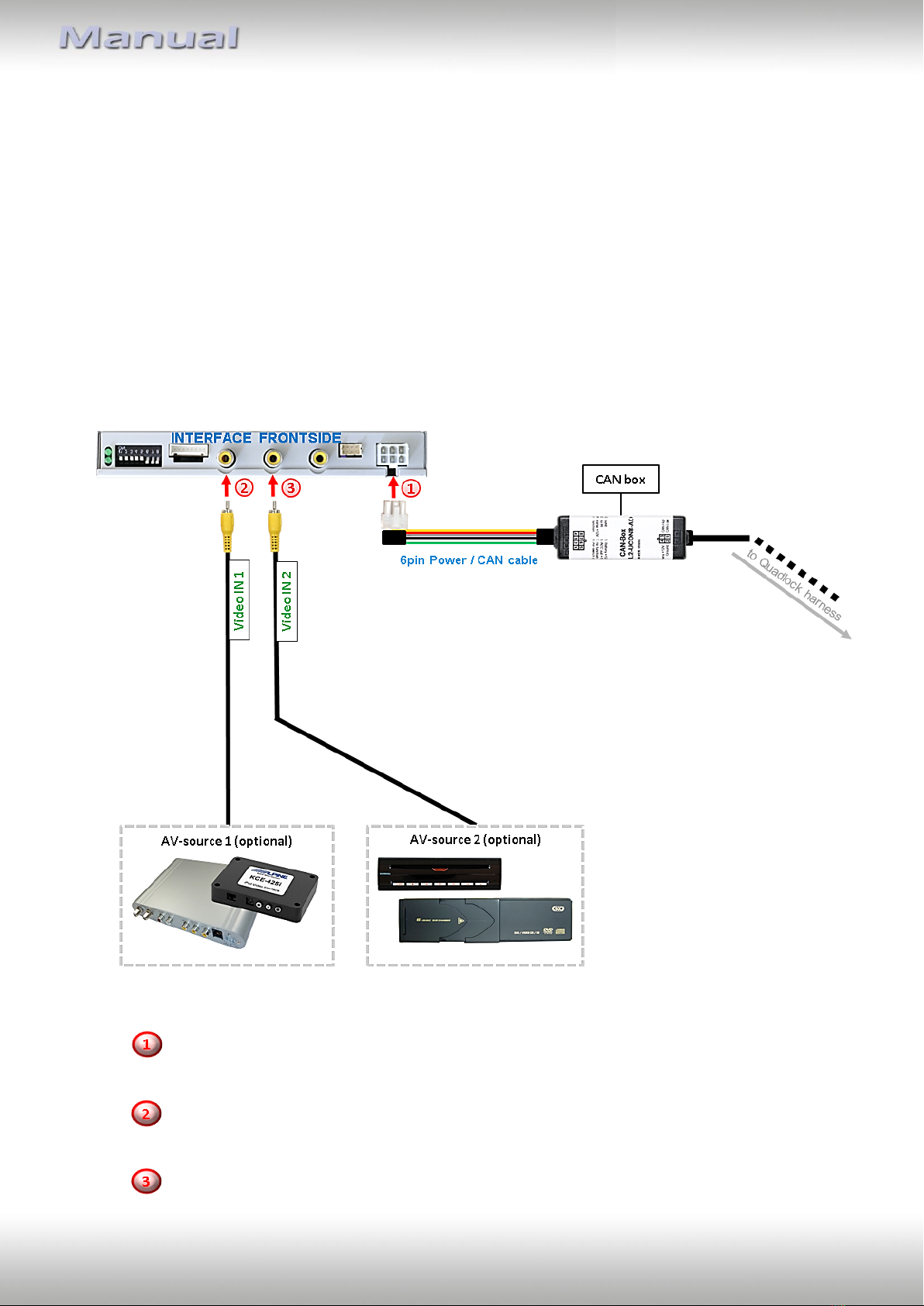

2.5.1. Video-sources to Video AV1 and Video AV2
Connect the female 6pin connector of the 6pin Power / CAN cable to the video
interface’s 6pin connector.
Connect the video RCA of the AV-source 1 to the female RCA connector “AV1”of the
video interface.
Connect the video RCA of the AV-source 2 to the female RCA connector “AV2” of the
video interface.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page14

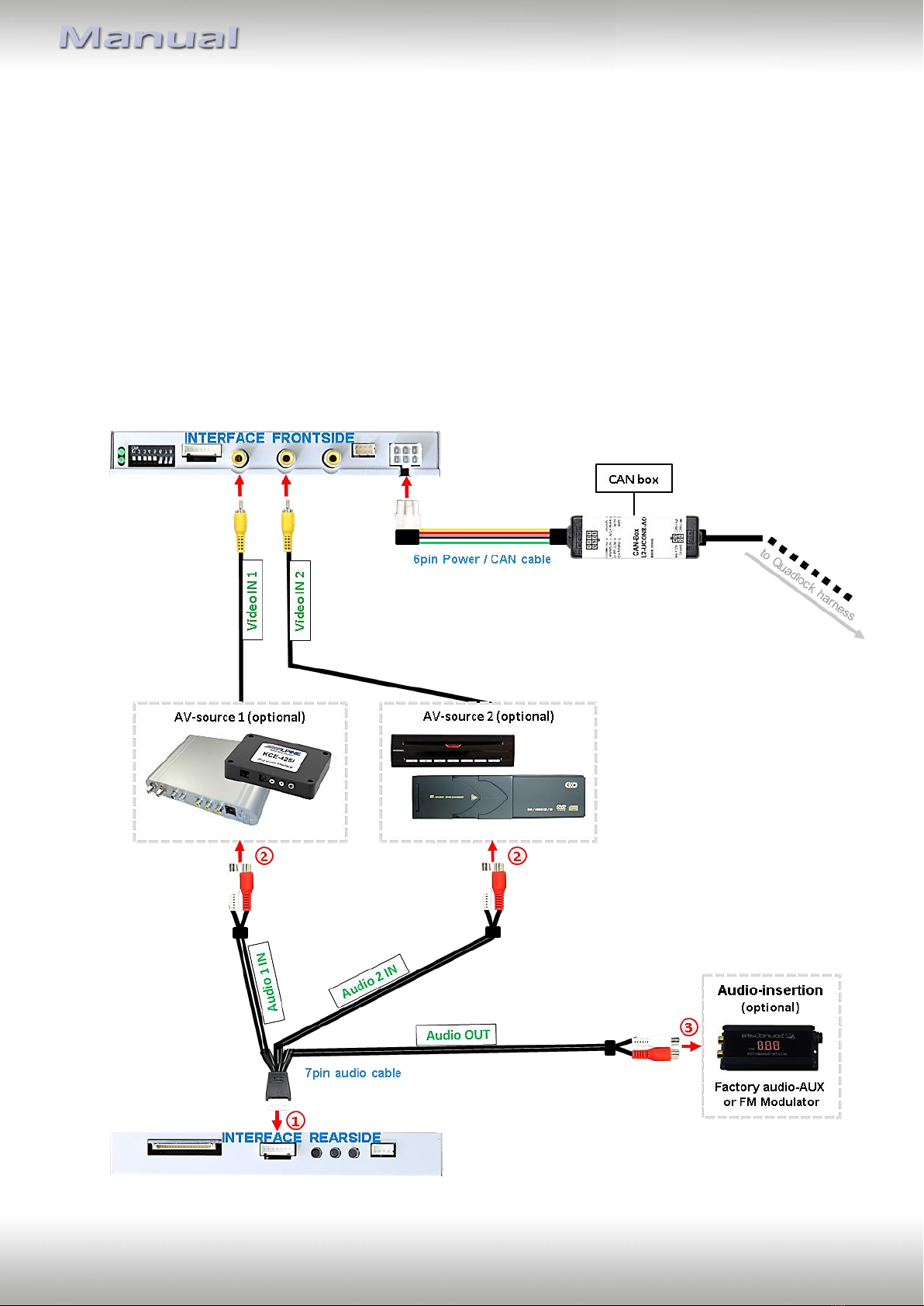

2.5.2. Audio insertion
This interface can only insert video signals into the factory infotainment and switch audio
signals. If an AV-source is connected to AV1 or AV2, the audio insertion has to be done by
the factory audio AUX input or a FM-modulator to which the interface’s sound-switch output
is connected. The inserted video-signal can be activated simultaneously to each audio-mode
of the factory infotainment.
The audio switching of the connected AV sources is performed by the video interface’s audio
switch.
2.5.2.1. Audio connection of the AV sources AV1 and AV2

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page15
2.5.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of the video-interface to ON before testing.
2.5.3.1. Case 1: Video interface receives the reverse gear signal
If the CAN-bus interface delivers +12V on the green wire of the 20pin cable when reverse
gear is engaged, it will automatically be switched to the rear-view camera input “CAM” while
reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the
green wire of the 20pin cable to avoid an unnecessary permanent power supply to
the camera electronic.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page16
2.5.3.2. Case 2: Interface does not receive any reverse gear signal
If the video interface does not deliver +12V on the green wire of the 20pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stable all the time, an ordinary open relay (e.g. AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Cut through the 6pin Power / CAN cable’s green cable and connect the one side
which is near to the 6pin Power /CAN connector to the output connector (87) of the
relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to a green cable’s crimped
female 4mm connector. The remaining opposite part of the green cable remains
disconnected and should be isolated.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Additionally connect the output connector (87) of the relay to the rear-view camera’s
power-cable, like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input connector (30).

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page17
2.5.3.3. Video signal connection for the rear-view camera
Connect the video-RCA of the after-market rear-view camera to the female RCA port
“CAM”of the video-interface.
2.6. Connecting video-interface and external keypad
Connect the external keypad’s female 4pin connector to the video-interface’s male
4pin connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the invisible connection and availability is strongly recommended.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page18
2.7. Picture settings and guide lines
The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu. To switch to the next menu item, pressing UP and
DOWN will change the selected value. The buttons are embedded in the housing to avoid
accidental changes during or after installation. The picture settings have to be done
separately for RGB, AV1 and AV2 while the corresponding input is selected and visible on the
monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Note: The brightness setting must be
done in the Video-IN 2 input!
Saturation
Position H (horizontal)
Position V (vertical)
IR-AV1 out of function
IR-AV2 out of function
Guide lines (ON/OFF)
Note: If the CAN-box does not support the vehicle’s CAN, the guide-lines cannot be used,
even if they appeared once after connecting the system.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page19
3. Interface operation
3.1. By volume key button
A press of the volume button on the right rear side of the steering wheel switches the input
from factory mode to the inserted video sources. If -by dip switch setting- all inputs are
enabled, the order will be the following:
Factory video  RGB-in  video IN1  video IN2  factory video  …
By dip switch deactivated inputs will be skipped. The audio signal will be also be switched
automatically by the interface’s integrated audio switch when switching from AV1 to AV2
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external
keypad has to be used.
3.2. By external keypad
Alternatively or additionally to the steering wheel’s volume button, the interface’s enabled
inputs are also switchable by the external keypad.

Version 04.07.2023 HW: 32 VL2-UCON8-AO
Page20
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 36mA
Power 175mA @12V
Video input 0.7V –1V
Video input formats NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Dimensions Video-Box 159 x 22 x 98 mm (W x H x D)
Dimensions Video-Box 114 x 52 x 15 mm (W x H x D)
