Naxa NHS-2006 User manual

PLEASE READ BEFORE OPERATING THIS DEVICE
NHS-2006
INSTRUCTION MANUAL
TV Sound Bar System with Bluetooth®

IMPORTANT SAFETY INSTRUCTION
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to alert
the user to the presence of uninsulated
dangerous voltage within the product`s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance(servicing) instructions in the
literature accompanying the appliance.
FCC NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not Installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
FCC WARNING:
To assure continued compliance, follow the
attached installation instructions and use only
shielded cables when connecting to other
devices.
Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
1

Before using the unit, be sure to read all operating instructions carefully. Please note that these
are general precautions and may not pertain to your unit.
1) Read these instructions.
All the safety and operating instructions should be read before the product is operated.
2) Keep these instructions.
The safety and operating instructions should be retained for future reference.
3) Heed all warnings.
All warnings on the product and in the operating instructions should be adhered to.
4) Follow all instructions.
All operating and use instructions should be followed.
5) Do not use this apparatus near water.
Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen
sink or laundry tub; in a wet basement; or near a swimming pool.
6) Clean only with dry cloth.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure
reliable operation of the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed near or over a radiator or heat
source. This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10)Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11)Only use attachments/accessories specified by the manufacturer.
12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care.
Quick stop, excessive force and uneven surfaces may cause the
appliance and cart combination to overturn.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
To protect your product from a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the product due to lightning and power-line surges.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture does not operate normally, or has been dropped.
15) Power source
This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your appliance dealer or local
power company. For products intended to operate from battery power, or other source, refer to the
operation instructions.
16) Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
For example, this unit may not have the capability to be connected to an outdoor antenna.
IMPORTANT SAFETY INSTRUCTION
2

3
17) Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric
shock.
18) Object and liquid entry
Never push objects of any kind into the product through openings as they may touch dangerous
voltage points or short out parts that could result in fire or electric shock.Never spill or spray any
type of liquid on the product.
19) Outdoor antenna grounding
If an outside antenna is connected to the product,be sure the antenna system is grounded so as to
Provide some protection against voltage surges and built up static charges.Section 810 of the
National Electric Code ANSI/NFPA 70 provides information with respect to proper to grounding
of the mast and supporting structure,grounding of the lead-in wire to an antenna discharge product,
size of grounding conductors,location of antenna-discharge product,connection to grounding
electrodes and requirements for the grounding electrodes.
20)Service
Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards.Refer all servicing to qualified service personnel.
21)Replacement parts
When replacement parts are required,be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire or electric shock or other hazards.
22)Safety check
Upon completion of any service or repairs to this product,ask the service technician to perform
safety checks to determine that the product is in proper operational condition.
23) Wall or ceiling mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
24)Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service personnel under the
following conditions.
a)When the power-supply cord or plug is damaged.
b)If liquid has been spilled or objects have fallen into the product.
c)If the product has been exposed to rain or water.
d)If the product does not operate normally by following the operating instructions.Adjust only
those controls that are covered by the operating instructions,as an adjustment of other
controls may result in damage and will and require extensive work by a qualified technician
to restore in the product to its normal operation.
e)If the product has been dropped or the cabinet has been damaged.
f)When the product exhibits a distinct change in performance-this indicates a need for service.
25)Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and,in particular,specifies that the cable
ground shall be connected to the grounding system of the building,as close to the point of cable
entry as practical.
NOTE: Refer all servicing to qualified service personnel Servicing is required when
the unit has been damaged in any way such as the following: the power-supply cord
or plug has been damaged, liquid has been spilled into unit, the unit has been
exposed to rain or moisture, the unit has been dropped or the unit does not operate normally.

2. Mounting the Speaker Bar onto a wall
We recommend having this speaker professionally mounted. By using the included
wall mounting accessories, the sound bar can be mounted onto a wall.
1. Placing on the table
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar
for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat
generated from the Sound Bar could produce a potential heat hazard.
L
R
22.13 inches
INSTALLATION
4
Distance between two brackets
WALL

You may use
2 pieces plastic inserts
(Included)
2 pieces screws
(Included)
(1) (2)
2 pieces screws
(Included)
:llawnedoowehtnognitnuoM2.2
You may use
2.1 Mounting on wood walls
2.2 Mounting on dry wall
22.13 inches
22.13 inches
5
1.Use a pencil to make 2 marks 22.13" apart for the mounting screws.
2.Drill the supplied screws directly into the marks on the wall, allowing
0.3" of the screws to extend from the wall.
3.Make sure the screws are firm and stable, then hang the sound bar from
the mounting screws.
1.Use a pencil to make 2 marks 22.13" apart for the mounting screws.
2.Use a 7/32" bit to drill 2 holes at the marks on the wall.
3.Push the supplied plastic inserts into the drilled holes. If necessary,
gently tap them into place with a hammer.
4.Screw the supplied screws into the inserts, allowing 0.3" of the screws
to extend from the wall.
5.Make sure the screws are firm and stable, then hang the sound bar from
the mounting screws.

REAR VIEW
AUX1
L
R
OPTICAL I N
AUX 1
L
R
OPTICAL IN
DC IN Power Jack
OPTICAL IN Jack AUX 1 Jack
CONTROLS AND CONNECTIONS
Source Button
Volume Up Button
Volume Up Button
Power (Standby) Button
AUX 2 Jack
CONTROL PANEL
FRONT VIEW
6
SOURCE
INDICATOR
1.2A
12

1. SOURCE
2. STANDBY
3. VOL-(volume down)
4. BASS-(bass down)
5. TREBLE-(treble down)
6. EQ (equalizer)
7. PREVIOUS
8. PLAY/PAUSE
9. MUTE
10. VOL+ (volume up)
11. BASS+ (bass up)
12. TREBLE+ (treble up)
13. NEXT
REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
7

BATTERY INSTALLATION
BATTERY PRECAUTIONS
Fig.1 Fig.2 Fig.3
-First Time Use
Remove and discard the insulation tab as shown in Figure 1.
-Replacing Batteries For Remote Control
1. Push and slide out the battery holder (see Figure 2).
3. Close the battery holder (see Figure 3).
2. Replace the battery with a new CR2025 button cell, taking care to
observe the polarities marked on the rear of the Remote Control (see Figure 3).
8
2. Be sure to follow the correct polarity as indicated in the battery compartment when installing
the battery. A battery installed in the reverse position may damage the device.
4. If the batteries in the device are depleted or the device is not to be used for a long time,
remove the batteries to prevent damage or injury from possible battery leakage.
Always follow the battery manufacturer's instructions and recommendations.
5. Do not recharge batteries that are not intended to be recharged; they may
overheat and rupture.
6. Do not expose batteries to excessive heat (e.g., direct sunlight, fire, or the like.)

To turn the speaker on
·Use the suppplied AC/DC adapter to connect the POWER jack of the unit to a compatible
power source; the indicator will turn red.
·Press the POWER button to turn the unit on.
To turn the speaker off·
Press the POWER button on the remote or hold the POWER button on the side of the unit.
NOTE:
Disconnect the power adapter if the unit will not be used for a long time.
AUX 1 sources may include:
·TV/DVD/VCR
AUX 1 connection
1. Use an AV cable to connect the audio output jacks (white jack=L, red jack=R) of the
source device (e.g., a TV) to the AUX 1 audio input jacks found on the rear of the unit.
During playback
- Press the MUTE button to disable the sound. Press MUTE again to reenable the sound.
- Press the VOLUME+/– buttons to adjust the volume level.
- Press the BASS+/– buttons to adjust the bass level.
- Press the TREBLE+/– buttons to adjust the treble level.
- Press the EQ button to switch between POP, JAZZ, CLASSIC, and ROCK equalizer settings.
9

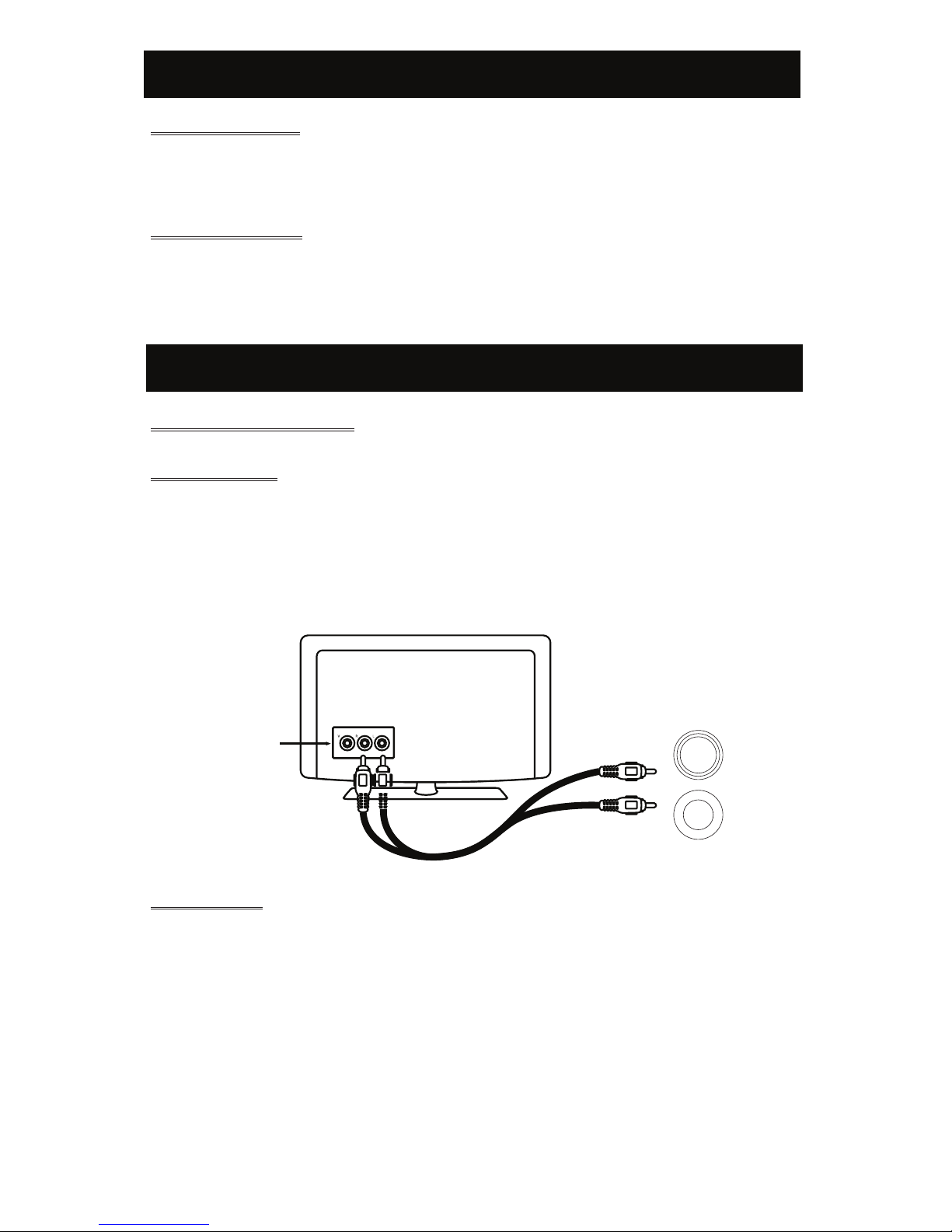

Audio Out Jacks of
TV/DVD/VCR/DVR
1XUAoT Jacks of
the Sound Bar
AUX 1
L
R
POWER SOURCEPOWER SOURCE
AUX 1 SOURCE
2. Turn on the unit. Press the SOURCE button until the indicator turns green. Start
playback on the source device.
NOTE: If there is no sound or if the volume is not loud enough, try increasing the volume
on the source device.

sources may include:
- Personal audio players
- Personal computers or laptops
connection:
1. Use a stereo 3.5mm jack cable (supplied) to connect the headphone (or LINE/Audio) output of
the source device (e.g., an iPod) to the AUX 2 audio input jack found on the side of the unit.
2. Turn on the unit. Press the SOURCE button until the indicator turns orange. Start playback on
the source device.
NOTE: If there is no sound or if the volume is not loud enough, try increasing the volume on
the source device.
During playback
- Press the MUTE button to disable the sound. Press MUTE again to reenable the sound.
- Press the VOLUME+/– buttons to adjust the volume level.
- Press the BASS+/– buttons to adjust the bass level.
- Press the TREBLE+/– buttons to adjust the treble level.
- Press the EQ button to switch between POP, JAZZ, CLASSIC, and ROCK equalizer settings.
10
AUX 2 SOURCE
Connect to the 3.5mm Audio Out jack
of external audio devices including Tablets,
Laptops, Smartphones, MP3 Players, etc.
2XUAmm5.3oT jack on
the Sound Bar
3.5mm Aux In Cable (Included)
AUX 2
AUX 2

Connection
1. Follow the figure below to make the connections.
2.Turn the unit on. Press the SOURCE button until the indicator turns purple.
During playback
- Press the MUTE button to disable the sound. Press MUTE again to reenable the sound.
- Press the VOLUME+/– buttons to adjust the volume level.
- Press the BASS+/– buttons to adjust the bass level.
- Press the TREBLE+/– buttons to adjust the treble level.
- Press the EQ button to switch between POP, JAZZ, CLASSIC, and ROCK equalizer settings.
11

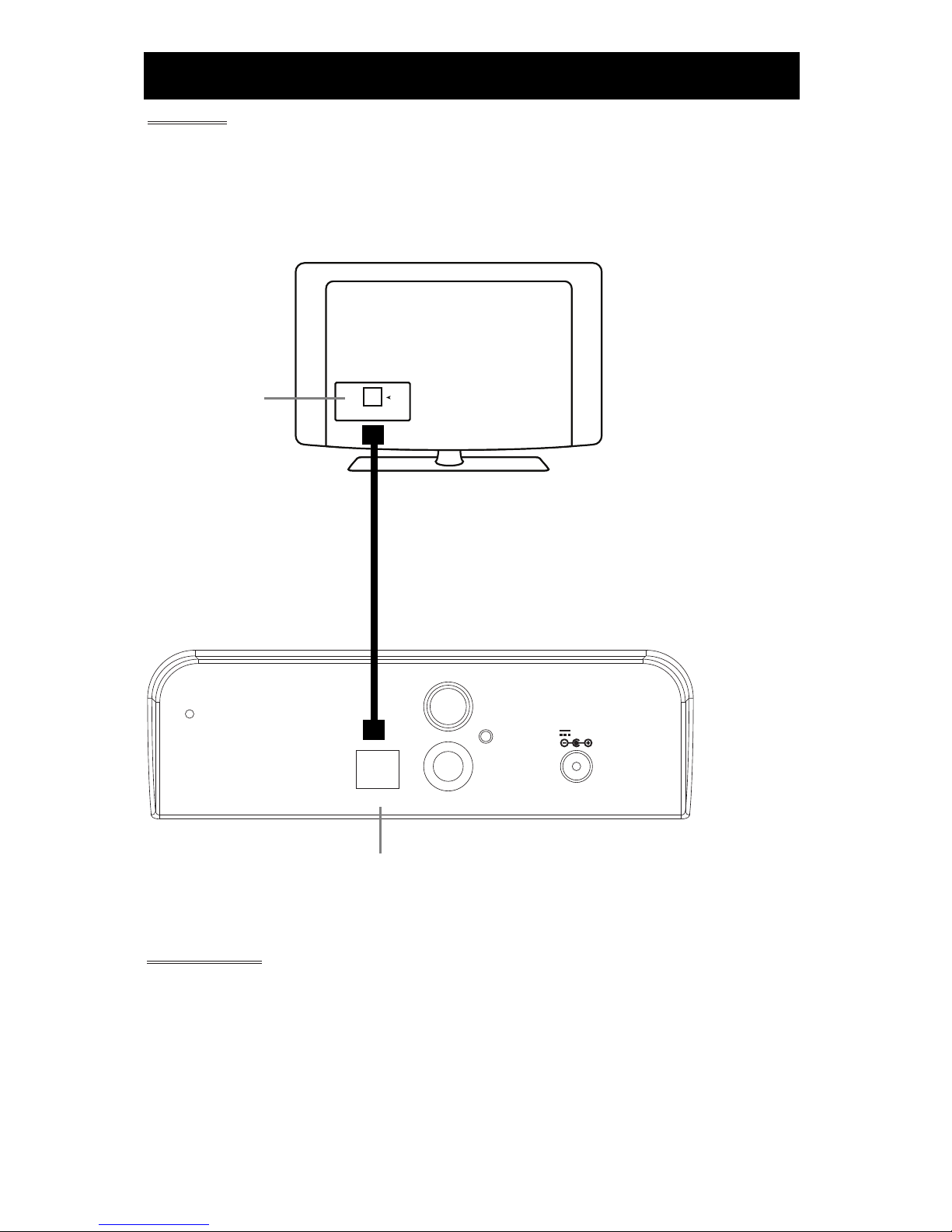

Optical Out of
TV/DVD/Etc.
(referred to as
“Digital Out” on
some devices)
Optical Cable (not included)
OPTICAL OUT
Optical In jack on the rear panel of the Sound Bar
AUX 1
L
R
OPTICAL IN
NOTE:
Not all entertainment systems are set up the same way; the diagram below is only one example
of how the connection can be made. The optical connection supports the PCM format, only.
OPTICAL IN SOURCE
DC IN
DC 12V,1.2A

Pairing
12
BLUETOOTH SOURCE
1. Press the SOURCE button until the indicator turns blue.
2. Enable Bluetooth on the source device.
3. Set the source device to search for other Bluetooth devices. (Refer to the user
enter "0000".
4. After a successful pairing, you will be able to stream music wirelessly from your
5. If the pairing attempt fails, the sound bar may have timed out. Try starting the pairing procedure
again.
manual of your
device if you need help with this step.) Select the sound bar NHS-2006 when the device finds it.
If the device prompts you from a pass code,
source device
to the sound bar. Some devices may allow you to control playback from the sound bar;
otherwise, control playback on the device.
NOTE: Only one device can be paired with the sound bar at a time. Disable Bluetooth on other
devices to prevent interference. The sound bar will try to reconnect automatically with the
last paired device when it is placed in Bluetooth mode. If the Bluetooth connection is lost
due to external factors, or it will not reconnect automatically, you may need to pair again
with the NHS-2006. Clear the NHS-2006 from the Bluetooth Devices list on your source
device before pairing again.
NFC 1-Touch Setup
NOTE: Before attempting to use NFC to set up your Bluetooth connection, make sure that
Bluetooth and NFC are enabled on your device. For devices running Android™
OS, you can find the NFC option in the “Settings > Wireless & Networks > More...”
menu screen.
Only one device can be paired with the sound bar at a time. Disable Bluetooth on
other devices to prevent interference.
If you have a device that is equipped with NFC and Bluetooth, you can pair the device to the
sound bar with a single tap. It’s just that easy!
1. Place the sound bar in Bluetooth mode (press the SOURCE button until the indicator
turns blue).
2. Locate the NFC sensor on the top right side of the sound bar. Touch the back of your
device to the sound bar sensor. The sound bar will sound a chime when it detects your
device.
3. Your device may ask you for permission to pair with the sound bar. Select “yes”.
4. The sound bar will emit another chime when pairing is complete.

Check the followings before requesting service
SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION
Power adapter not connected Connect the adapter
No power The unit is in Standby mode Press the Standby button on
the unit or remote control to
power on the unit.
Volume in minimum position Raise volume level by pressing
the VOL (Volume)+Button
The connected device is not in
payback mode
Play the music/movie in the
connected device
No sound
Sound output of the device
weak
Raise volume level of the
connected device
Remote control not working The batteries in the remote
control are exhausted
Replace with new battery
AUX 1 / AUX 2
not working
Wrong source is selected Press source button until
indicator turns green(AUX
1 ) / orange (AUX 2)
Wrong source is selected Press source button until
indicator turns Blue
The unit is connected with
another Bluetooth device
Disconnect the connection and
retry.
No response from
Bluetooth source
The connected device is
Deactivated
Activate the connected device
and start the playback
SPECIFICATIONS
ACCESSORIES
1 x Instruction Manual
1 x Remote Control with CR 2025 button cell
1 x Stereo audio connection cable with 3.5mm stereo plug
1 x RCA line in cable
1 x Adapter
2x Screws
2x Wall plugs
13
TROUBLE SHOOTING GUIDE
Audio output ................................................................................................................................10W
Power source of the remote control.........................................................DC 3V 1 x CR 2025 battery
Power source of the power adapter .............................................................AC 110-240V~50/60 Hz
Output of the power adapter ......................................................................... DC 12V, 1.2 A

If you have problems with your sound bar, please consult the instructions in this
manual, as well as the latest news, alerts, and documentation which can be
found by visiting us on the web at www.naxa.com. If you need further
assistance, please contact Naxa Technical Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/naxa_support/
SUPPORT
©2014 NAXA®ELECTRONICS CORPORATION. ALL RIGHTS RESERVED.
Naxa®is a registered trademark of Naxa Electronics, Inc. Bluetooth®is a registered trademark
owned by Bluetooth SIG, Inc. Android™ is a trademark of Google Inc. All other trademarks and logos
are property of their respective owners unless indicated otherwise.
