Naxa NHS-2011 User manual

37” TV Sound Bar System with Bluetooth®
NHS-2011
Instruction Manual
Please read carefully before use and keep for future reference.

Page 2 Naxa Electronics
Table of Contents
Thank You ..................................................................... 3
In the Box ...................................................................... 3
Installing Your Sound Bar............................................ 4
On a Table Top.................................................................................4
How to Mount the Sound Bar to a Wall......................................4
At a Glance .................................................................... 6
Front View ....................................................................................... 6
Top View 7
Remote Control.............................................................................. 8
Using the Remote Control....................................................8
Replacing the Battery ...........................................................9
Connecting Power........................................................10
Getting Started............................................................10
Turning the Unit On and Off ...................................................... 10
Setting the Source Mode ............................................................ 10
Adjusting the Volume................................................................... 11
Using Bluetooth®Mode............................................... 11
Pairing a Bluetooth®Device........................................................ 11
NFC One-Touch Setup..................................................................12
During Playback............................................................................12
Using AUX IN 1 Mode ....................................................13
AUX IN 1 sources may include: ....................................................13
AUX IN 1 connection......................................................................13
Using AUX IN 2 Mode 14
AUX IN 2 sources may include:....................................................14
AUX IN 2 connection......................................................................14
Using Optical IN Mode .................................................15
Connection.....................................................................................15
Warnings and Precautions.......................................... 17
Troubleshooting Guide............................................... 20
Specications ..............................................................21
Support ........................................................................21
...........................................................................................
....................................................

www.naxa.com Page 3
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer-
ence. You may also nd the latest FAQ, documentation,
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us
and you. If anything is missing, check back with your
local retailer to get immediate assistance. If they can-
not help you, please contact our Naxa Support team at
www.naxa.com/supportcenter.
• NHS-2011
• AC/DC power adapter
• Remote Control with CR 2025 button cell
• 3.5mm stereo patch cable
• RCA stereo patch cable
• Wall-mount screws (2)
• Wall-mount plastic plugs (2)
• Instruction Manual

Page 4 Naxa Electronics
Installing Your Sound Bar
On a Table Top
Find a at and level surface to place your sound bar.
Most people position the sound bar centered below
their TV.
When placing the Sound Bar on
an entertainment center, book-
shelf, or any type of enclosed
space, be sure to allow space
around the Sound Bar for ven-
tilation. If the Sound Bar is en-
closed in a tight space without
adequate ventilation, heat gen-
erated by the Sound Bar could
produce a potential heat haz-
ard.
How to Mount the Sound Bar to a
Wall
A wall mounting kit is included in the box for your
convenience. However, each installation environ-
ment is unique and has its own requirements; you may
need additional material to prepare the sound bar for
mounting.
You will need the following:
• Included wall mounting kit (2 screws, 2 drywall
plugs)
• Pencil
• Level
• Ruler
• Drill (for drywall installations only)
• Hammer (for drywall installations only)
• Cross-head screwdriver

www.naxa.com Page 5
Naxa Electronics recommends that wall mounting be
performed by a qualied professional installer. Naxa
is not liable for any accidents or damage to property
or the sound bar due to incorrect installation.

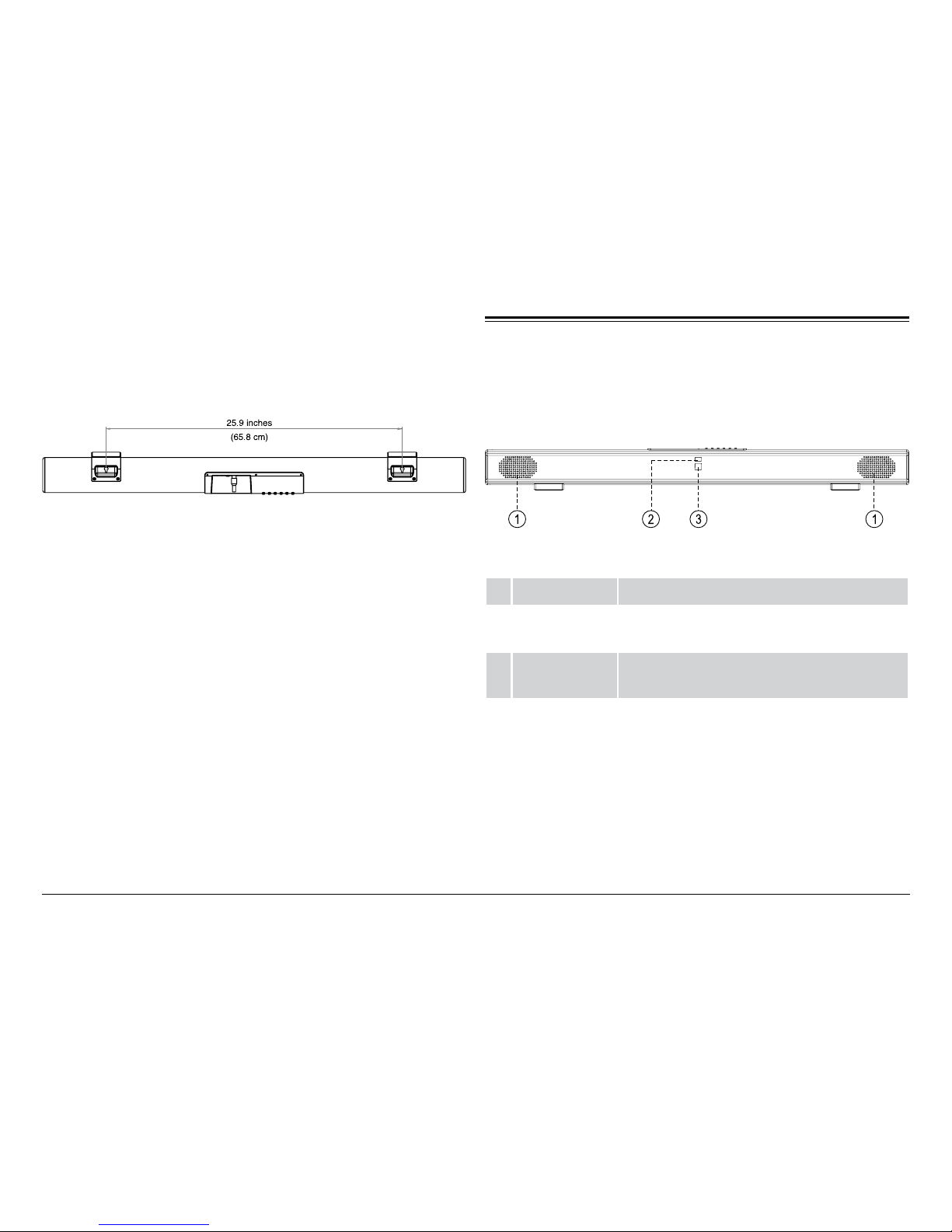

1. Using a level and ruler, use a pencil to mark 2 points
on the wall that are 25.9 inches apart. Use the level
to ensure that the points are on the same horizon-
tal plane and are parallel to the ground.
25.9 inches
(65.8 cm)
2. For drywall installations only; for wood, skip to
step 3: Drill holes at the two marked points on the
wall. Insert the drywall plugs into each of the holes;
use a hammer to gently tap them into place. The
plugs should t completely into the hole, with the
tops of the plug ush with the wall.
(For installations in brick or concrete walls, please
obtain a masonry bit, plugs, and screws from your
local hardware store.)
3. Use a screwdriver to drive the screws partially
into the wall at the two marked points. Allow the
screws to extend 0.3 inches from the wall.
1. Screws
2.Drywall plugs
(optional)

Page 6 Naxa Electronics
4. Make sure that the screws are stable and rmly at-
tached to the wall. Locate the mount points on the
rear of the sound bar, then hook the sound bar onto
the screws.
⚠⚠The wall that the sound bar is mounted on
should be of sufcient strength to support
the weight of the sound bar.
At a Glance
Front View
1 Speakers Full-range drivers
2 Source LED Lights up to indicate the current source
mode.
3 Remote
Sensor
Receives signals from the remote control.

www.naxa.com Page 7
Top View
POWER/
SOURCEVOL- VOL+
AUX IN 1
AUX IN 2
L
R
OPTICAL IN DC IN
DC 9V, 1.5A
POWER/
SOURCE
VOL- VOL+
AUXIN1
AUXIN2
L
R
OPTICALIN
DCIN
DC 9V,1.5A
4 OPTICAL IN
connector
Optical In mode. Digital optical audio
connection for devices with optical audio
output.
5 AUX IN 1
connector
AUX IN 1 mode. 3.5mm stereo connection for
devices with 3.5mm line-out or headphone
output.
6 AUX IN 2
connector
AUX IN 2 mode. RCA stereo connection for
devices with red and white RCA left/right
audio output.
7Power
socket
Connector for the included power adapter.
8 POWER/
SOURCE
button
Press and hold to turn the unit on and off.
Press to change the active connection mode
(Bluetooth, Optical In, AUX IN 1, AUX IN 2).
9 VOL– button Press to decrease the volume.
10 VOL+ button Press to increase the volume.
11 button Press to start, pause, or resume playback.
12 button Press to skip to the previous track.
13 button Press to skip to the next track.

Page 8 Naxa Electronics

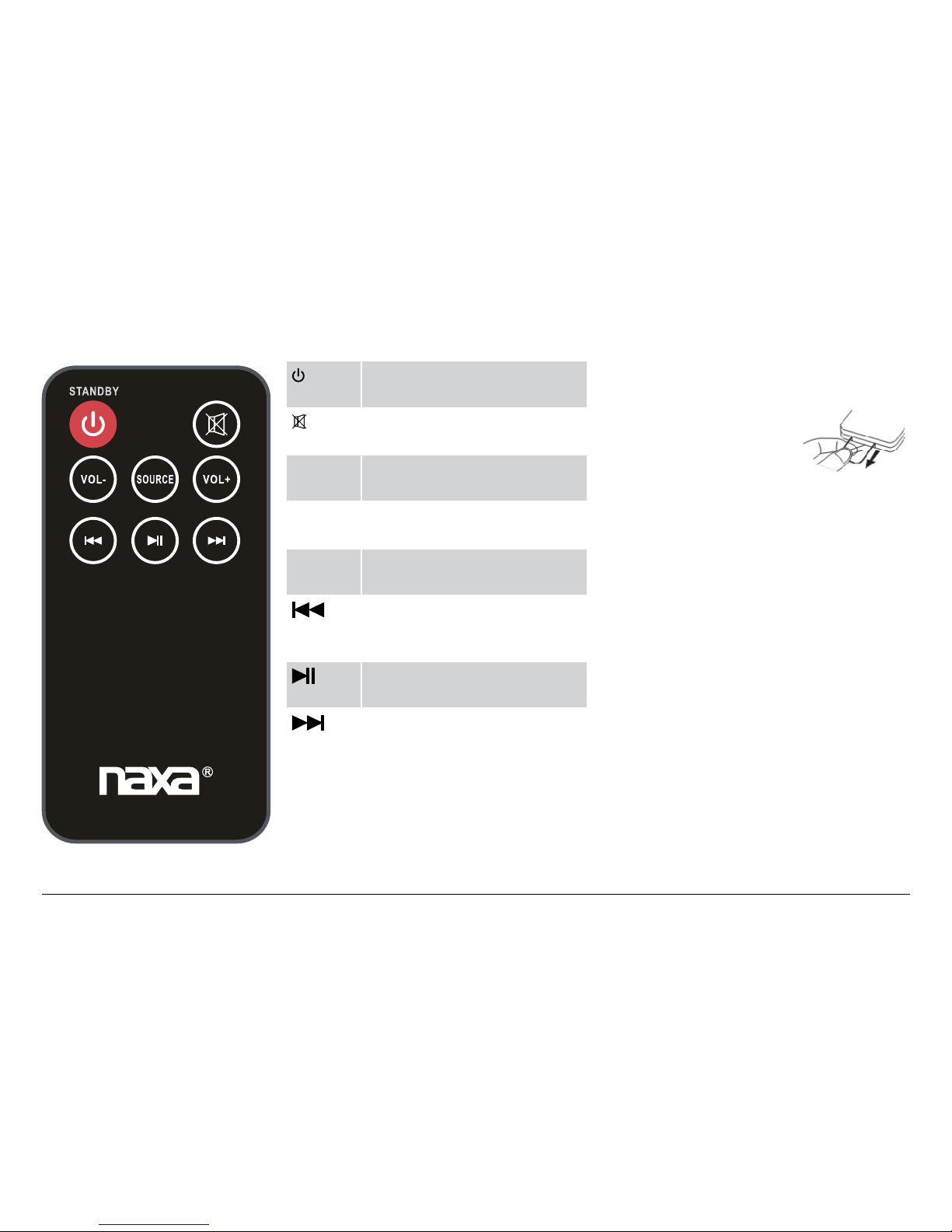

Remote Control
/
STANDBY
Power/standby. Press to turn the
unit on or off (standby).
Mute. Press to temporarily dis-
able or to restore the sound.
VOL– Volume down. Press to decrease
the volume level.
SOURCE Source. Press to change the ac-
tive source mode.
VOL+ Volume up. Press to increase the
volume level.
Previous. Press to skip to the
previous track (Bluetooth
mode).
Pause or resume playback
(Bluetooth mode).
Next. Press to skip to the next
track (Bluetooth mode).
Using the Remote Control
Before using the re-
mote for the rst
time, remove and dis-
card the plastic lm
protector.
Aim the remote control at the front of
the sound bar and then press a key.
⚠L Obstacles between the unit
and transmitter may pre-
vent the remote control from
working. Direct sunlight, in-
candescent or uorescent
lamps, or any other strong
light shining on the remote
sensor of the unit may pre-
vent the remote control from
working properly.
NHS-2011

www.naxa.com Page 9
Replacing the Battery
The remote control is powered by one (1) “CR2025”-
type battery.
1. Squeeze the tab of the battery com-
partment to the right while drawing
the battery tray out.
2. Take note of the orientation of the
existing battery. Replace it with a new
“CR2025” lithium battery, making
sure to match the polarity of the old
battery (as well as the +/- markings
on the remote control.
3. Push the tray back into place.
⚠L The battery in the remote will
last for approximately 1 year. Replace the
battery if the remote control does not
work. Always dispose of batteries accord-
ing to your local municipal regulations.
Do not use the remote control for other
equipment at the same time.
⚠⚠The battery used in the remote control
may present a re or chemical burn if
mistreated. Do not recharge, disassemble,
incinerate, or heat the battery (~212°F). Do
not mix old with new batteries, or differ-
ent types of batteries. Remove the battery
from the remote if it will not be used for a
long period of time.
Keep batteries away from children.
Lithium coin cells can cause serious injury
or death if swallowed. SEEK MEDICAL HELP
IMMEDIATELY IF SWALLOWED.
Do not spill water on the remote control.
CR2025

Page 10 Naxa Electronics
Connecting Power
Use the included AC power adapter to connect the unit
to AC household power.
• Connect the two-pronged end of the adapter to a
household power outlet.
• Connect the barrel plug end of the adapter to the
Power socket [7] of the unit.
⚠⚠The adapter supports AC 100-240V power
only. Do not connect the power adapter to
a power outlet other than that which is in-
dicated here and on the rating label of the
power adapter as this may result in the risk
of re or electric shock.
Disconnect the unit from power if it will not
be used for a long time.
Do not handle the power plug with wet
hands. Doing so may cause electric shock.
Do not use the adapter with any other power
source.
Getting Started
Turning the Unit On and O
To turn the unit on, press and hold POWER/SOURCE [8].
To place the unit in Standby mode, press and hold
POWER/SOURCE [8] until the SOURCE LED [2] turns red.
To turn the unit off completely, disconnect the unit
from power.
Setting the Source Mode
Press POWER/SOURCE [8] to set the active source
mode. This controls which connection is being used.
The SOURCE LED [2] will light to indicate which mode
has been selected when POWER/SOURCE [8] is pressed.
Source LED Connection Mode
Blue Bluetooth®
Indigo Optical In audio input [4]
