NBB London User manual

Tape measure or yardstick
Crosshead drill bit ø = 6 mm and drill
Necessary Equipment
®
2
1
4
Table Leg
Table Top
Screw 34
2
1
4
Bench Leg
Bench eatS
Screw 20
1
Bit
1
Bit
Screw
Screw
Qty Drawing
Qty Drawing
London Set Grey London Set Brown
Unit 5, Sterte Road Industrial Estate
Sterte Road
Poole, Dorset
BH15 2AF
Tel [phone]
Fax [phone]
Email: [e-mail]
www.nobutts.co.uk
Parts List (London Bench)
NBB Assembly Instructions
London Bench and Table Set
Parts List (London Table)

Schritt 1
Step 1
Schritt 1 Schritt 1
Step 1
Schritt 1 Schritt 1 Schritt 1
Step 2 Step 2
Schritt 1 Schritt 1 Schritt 1
Step 3 Step 3
Schritt 1 Schritt 1 Schritt 1
Step 4
10x
10x
Schritt 1 Schritt 1 Schritt 1
Step 4
17x
17x
®
hanit Assembly Instructions
- Keswick Bench and Table Set -
Transportation Lock Transportation Lock
Transportation Lock Transportation Lock

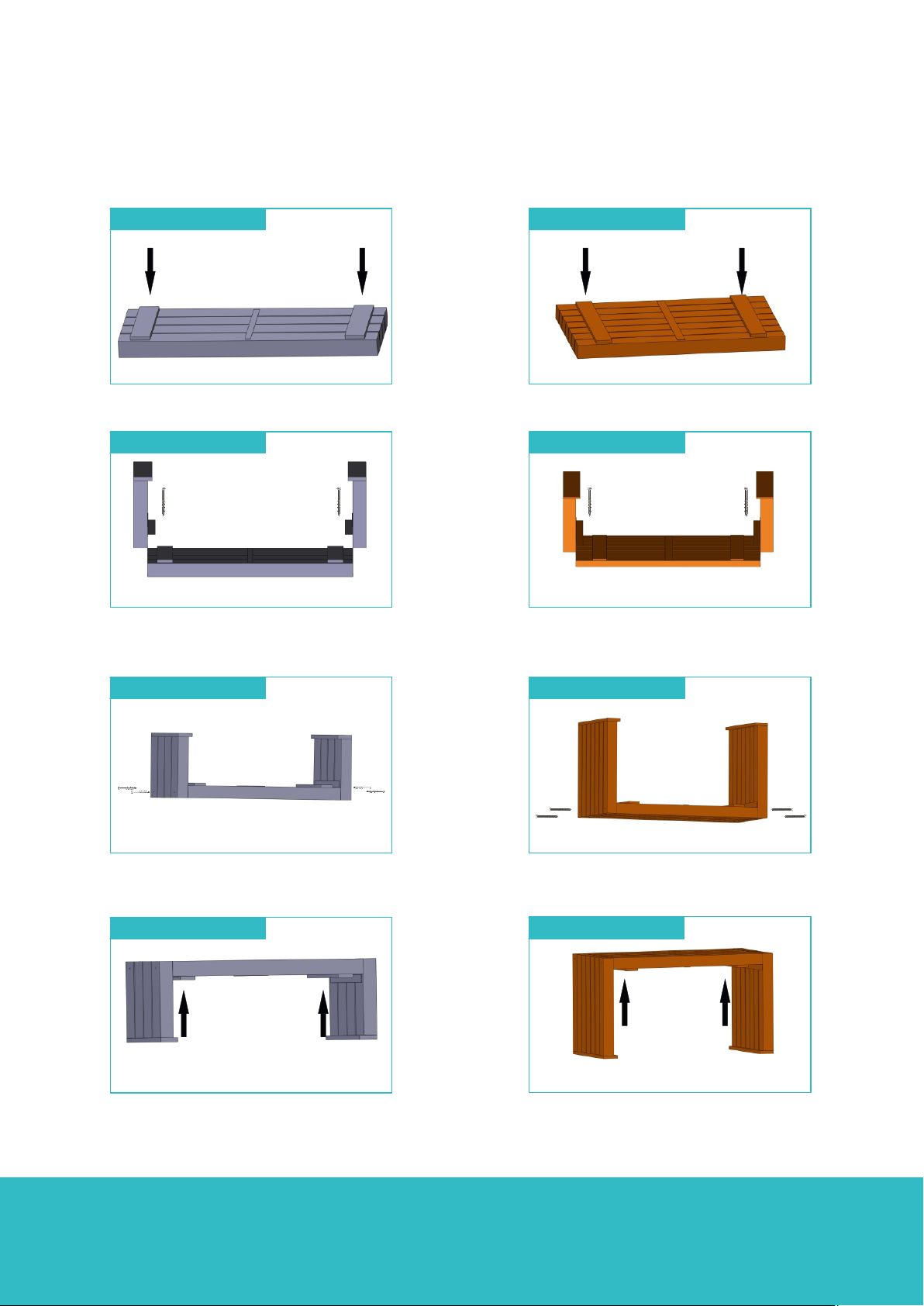

Place top the seat with the underside of the seat
surface facing up, on a clean and firm work surface .
Align the bench legs with the seat top and screw on the
legs. Each side with 3 screws in the first and last bars
and 2 screws in the two middle (screws 6x40mm).
Screw the bench legs on additionally using 2 screws
(6x140mm) from outside through the pre-drilled holes
into the seat boards.
Stand the bench right side up and remove both
transportation locks. Ensure the bench is stable.
Stand the table right side up and remove both
transportation locks. Ensure the table is stable.
Screw the table legs on additionally using 2 screws
(6x140mm) from outside through the pre-drilled holes
into the table top.
Align the table legs with the table top and screw on the
legs. Each side with 3 screws in the first and last bars
and 2 screws in the two middle (screws 6x40mm).
Place table top the with the underside facing up, on a
clean and firm work surface .
HAHN
PLASTICS
L I M I T E D
Unit 5, Sterte Road Industrial Estate
Sterte Road
Poole, Dorset
BH15 2AF
Tel [phone]
Fax [phone]
Email: [e-mail]
www.nobutts.co.uk
London Bench London Table
