Tri-Light (7709)
This publication provides procedures for installing the Tri-Light kit on an
NCRSelfServ™90 (7709) Kiosk unit. This kit is compatible with NCR7709 release
versions R2.0 and R2.1 only.
Note: This kit requires the 7364-K062 Tri-Light/Lane Light Pole and Mount kit.
2 Tri-Light (7709)
Kit Contents
Part Number Description
497-0526700 Kit, Tri-Light, 7709
* 006-8615143 Cable Tie, 142 x 3.6 mm
* 006-8624019 Bag - Poly 13" x 16" 2 Mil, Non-Sealable
* 009-0024464 Cable Assembly - USB Type A Extension 1.8m - High Speed
(480Mbps)
* 497-0423108 Instructions-Kit (Reference Sheet)
* 497-0506488 Plastic Bag, Re-sealable, 6 x 9 inches, Clear
* 497-0523835 Cable - Tri-light and Lane Light Extender
* 497-0512112 Cable, +24V, Monaco and I/O Board
* 497-0525183 Assy-Pack For SCO R6 Tri-Light with Camera
497-0530205 Assembly - Tri-Light/Lane Light
* Items marked with an asterisk are not called out on the image.
Tri-Light (7709) 3
Installation Procedure
To install the Tri-Light kit, follow these steps:
1. Shutdown and power off the terminal.
2. Disconnect the Kiosk ACPower Cable from the outlet.
3. To open the kiosk, insert the key into the lock at the right-hand side of the kiosk,
turn the key clockwise, and carefully open the front of the kiosk.
Caution: Do NOT abruptly open and release the front of the kiosk. Hold and
support the front of the kiosk until fully extended.
4. Remove the Power Supply Unit. For more information, refer to Removing the Power
Supply on page9.
5. Disconnect all cables from the I/OAdapter.
6. Remove the I/OAdapter from its bracket. For more information, refer to Removing
the I/O Adapter on page10.
4 Tri-Light (7709)

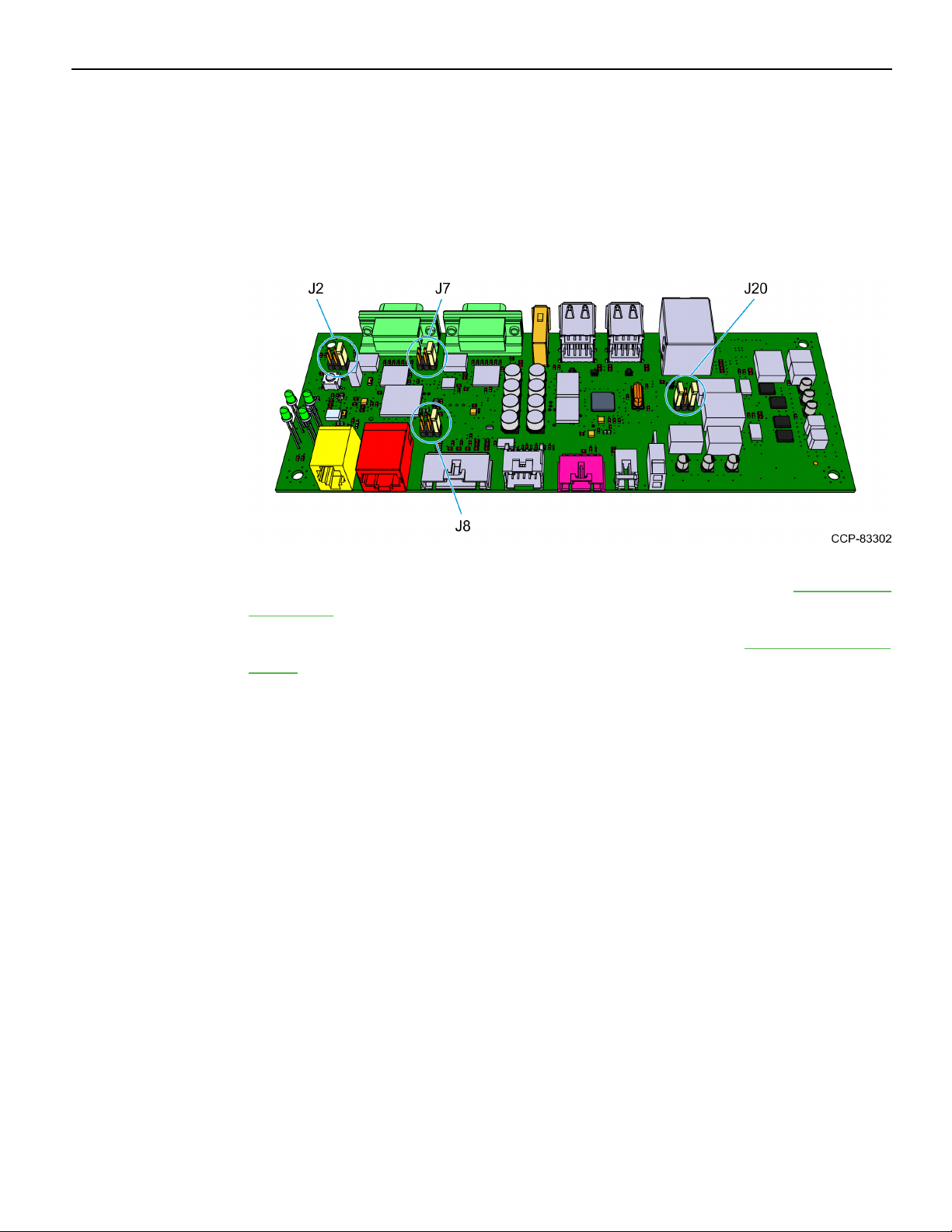

7. Adjust the jumper settings based on the following:
• For J2, place the shunt over Pins 5, 6.
• For J7, place the shunt over Pins 5, 6.
• For J20, place the shunt over Pins 1, 2 and Pins 5, 6.
• For J8, place the shunt over Pins 5, 6.
8. Re-install the I/OAdapter to its bracket. For more information, refer to Installing the
I/O Adapter on page11.
9. Re-install the Power Supply Unit. For more information, refer to Installing the Power
Supply on page13.
Tri-Light (7709) 5
10. Connect the cables to the I/O Adapter.
Connector Device/Cable
USB A Handheld Scanner
TRILIGHT Tri-Light/Lane Light Extender Cable
Note: In place of the Indicator Light Cable, connect the
extender cable that is included in the 7709-K801 Tri-light
kit.
CAB/TAB/CKPT Checkpoint Signal Cable
CPN SENSOR Coupon Sensor Cable
KEYLOCK Supervisor Switch
PROXIMITY/SENSORS Turntable Kit
24V IN Power Supply 2-pin Connector
Note: This connector is not connected to the I/OAdapter
if the NCR7709 unit is using the Indicator Light.
11. Route the Tri-Light/Lane Light Extender Cable from the I/OAdapter to the top of
the Tri-Light/Lane Light Pole. For more information, refer to Routing the
Tri-Light/Lane Light Extender Cable on page14.
6 Tri-Light (7709)
12. Connect the Tri–Light/Lane Light Assembly Cable to the Tri-Light/Lane Light
Extender Cable.
Tri-Light (7709) 7

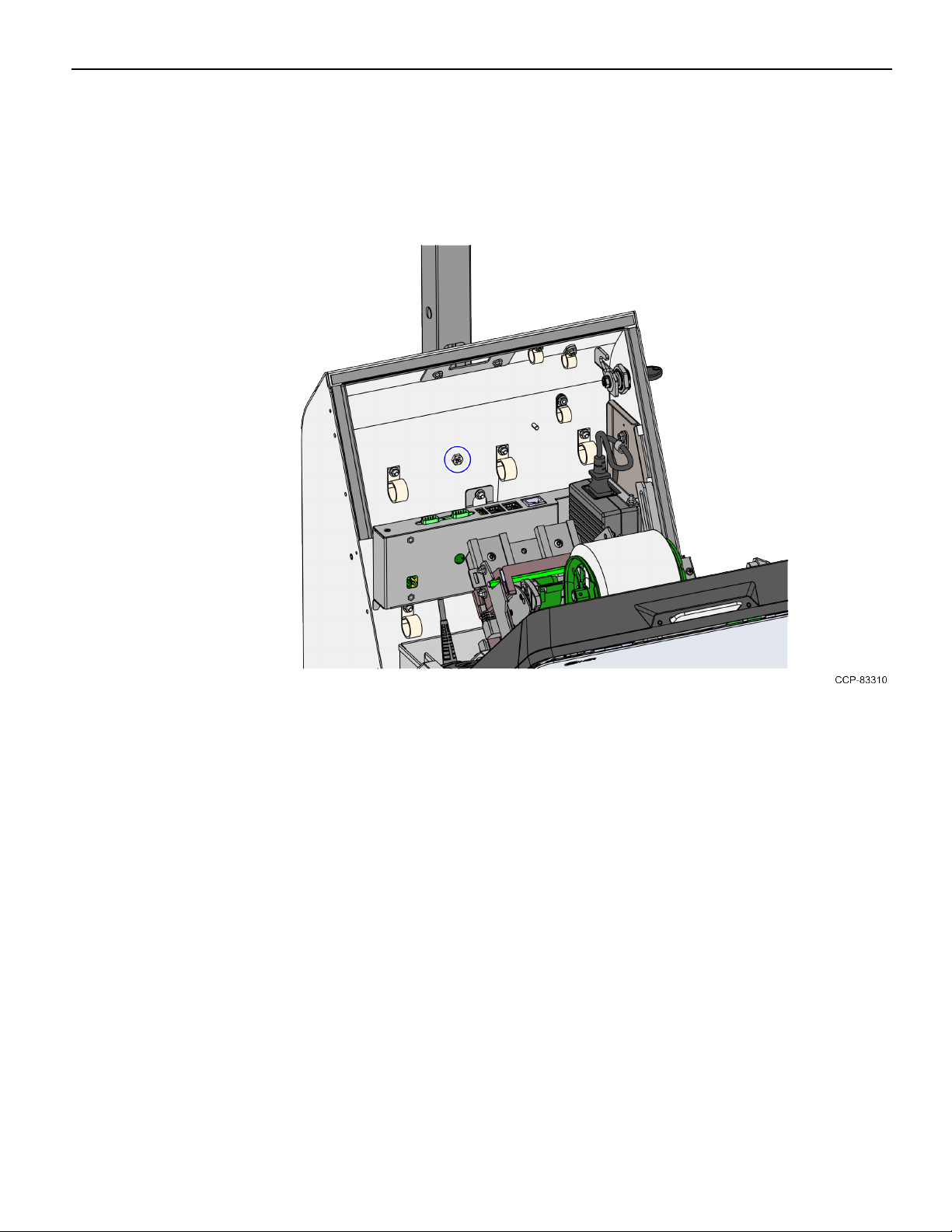

13. With the Lane Light facing the front of the kiosk, insert the Tri-Light/Lane Light
Assembly into the pole.
Caution: Ensure that the cables are not pinched.
8 Tri-Light (7709)

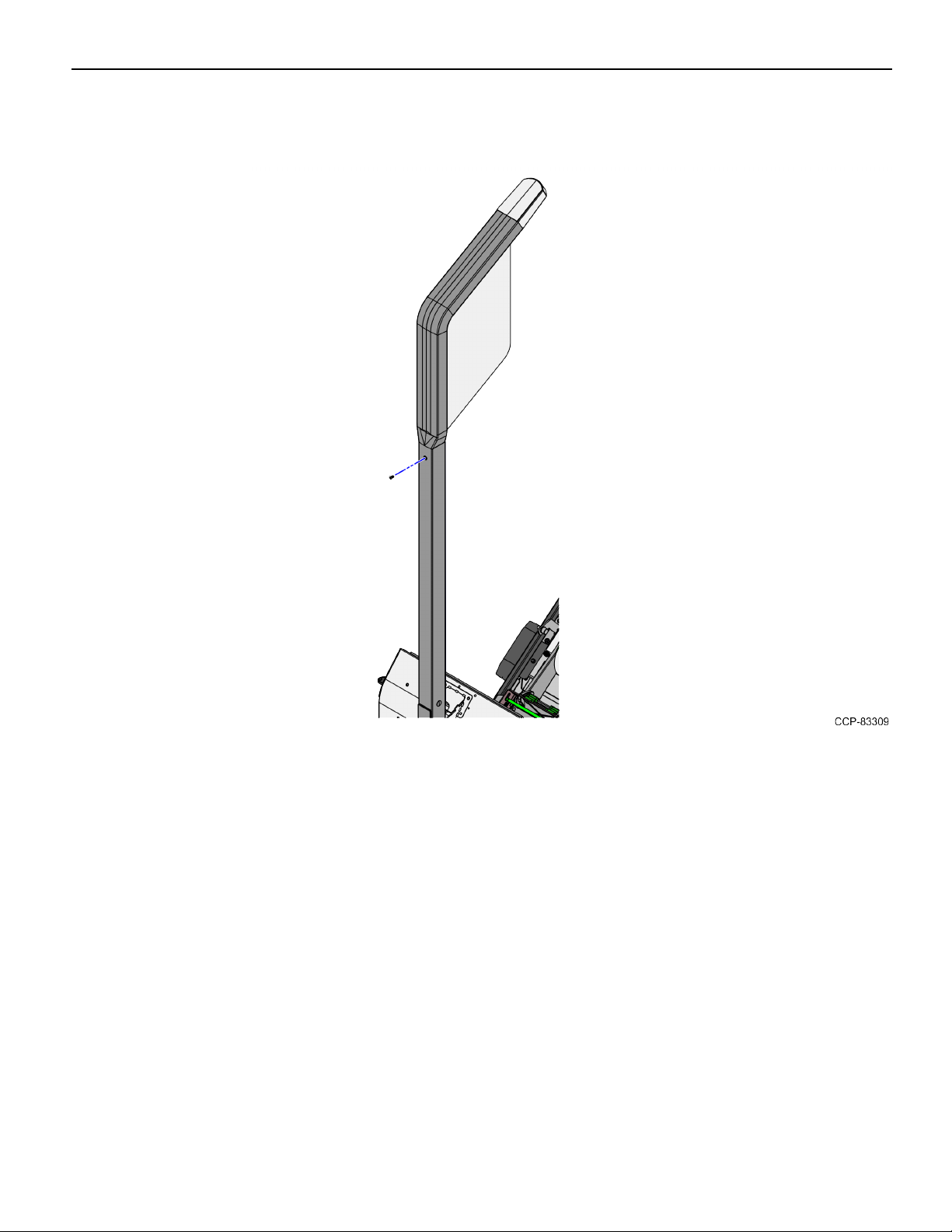

14. Align the mounting holes of the Tri-Light/Lane Light assembly and the pole, and
then secure the assembly to the pole using the screw included in the 7364-K801 kit.
Tri-Light (7709) 9
Removing the Power Supply

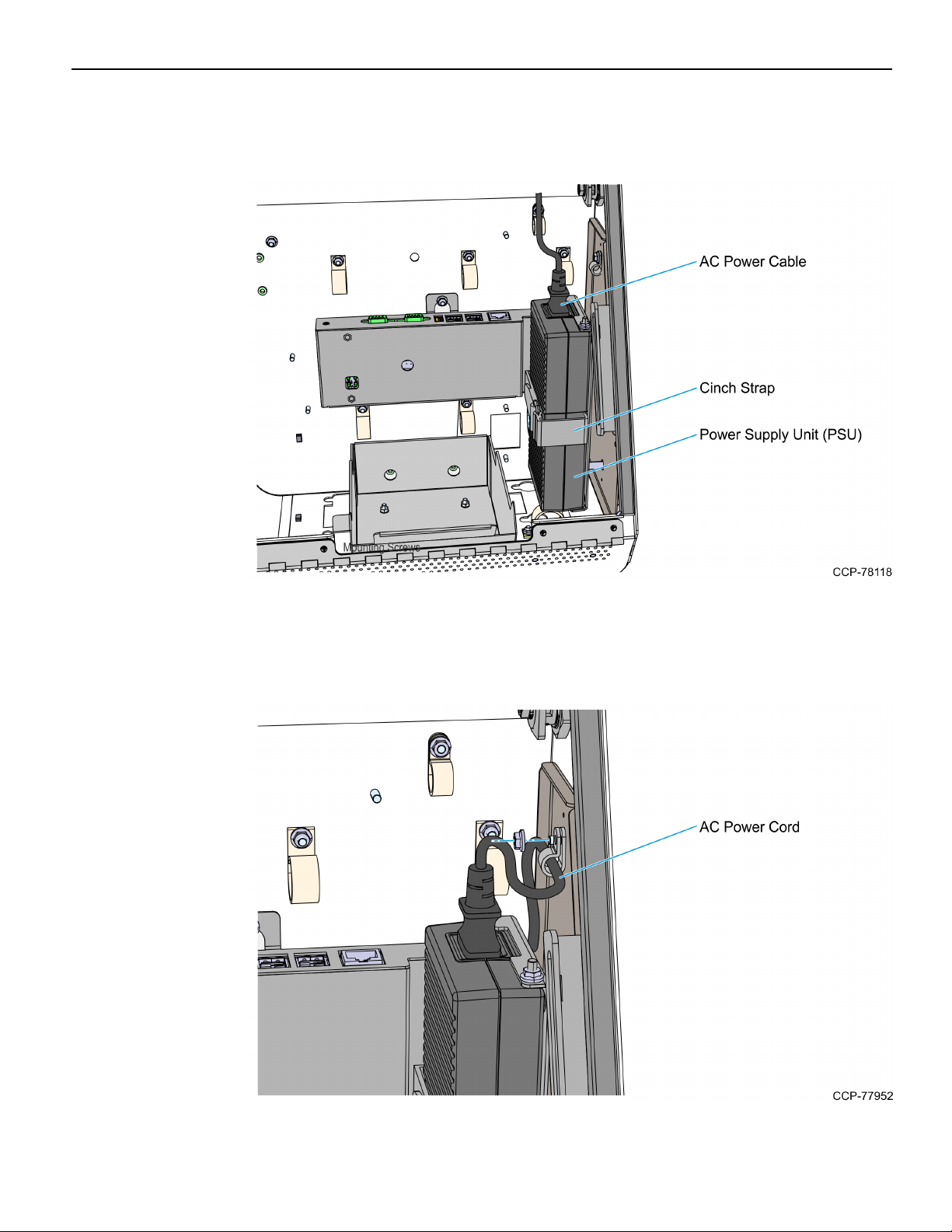

1. Remove and set aside the nut and the Closed P-Loop Clamp securing the AC Power
Cable above the Power Supply.
2. Disconnect the AC Power Cable from the Power Supply.
3. Unstrap the cinch strap that secures the Power Supply to the bracket, and then
remove the Power Supply from its bracket.
10 Tri-Light (7709)
Removing the I/O Adapter

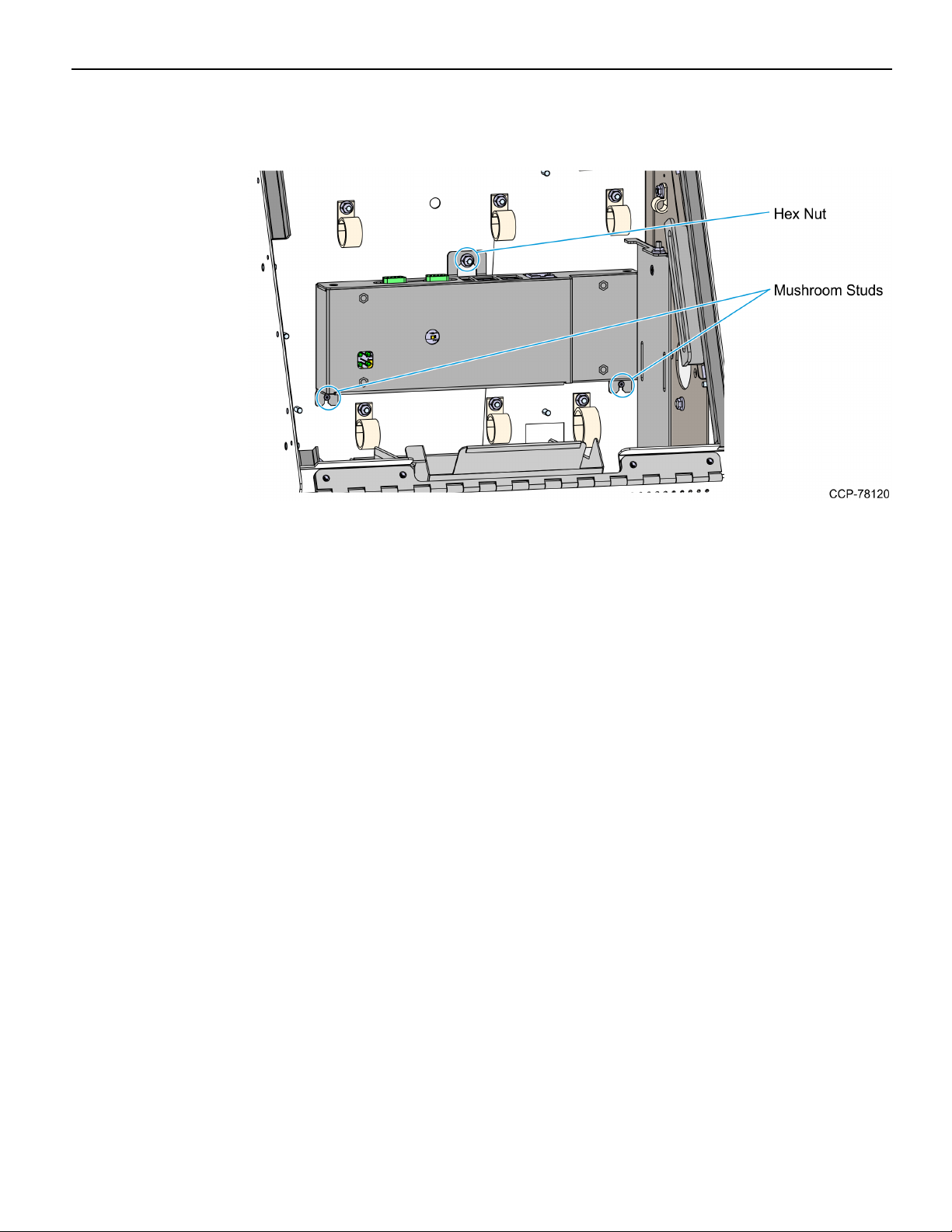

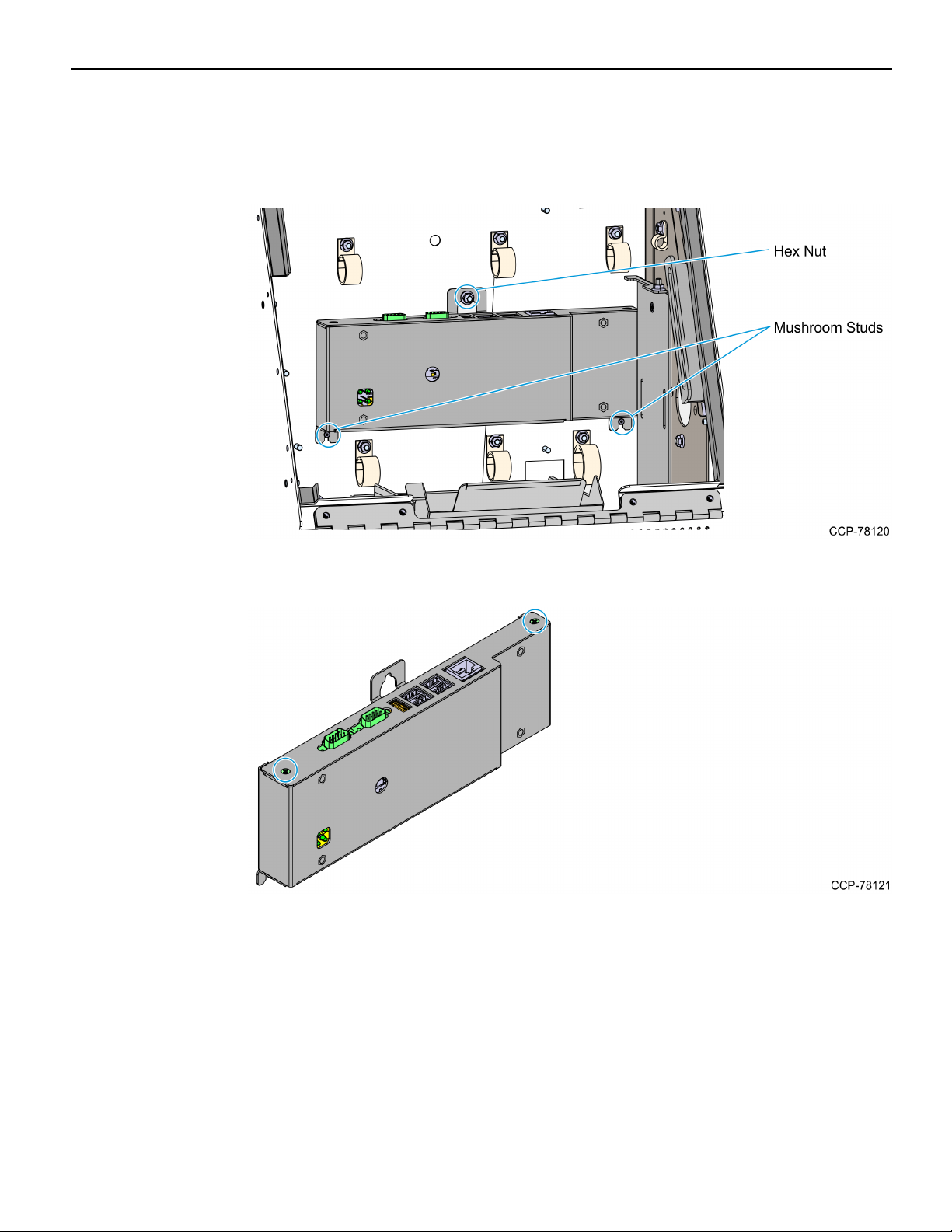

1. Loosen the hex nut that secures the I/O Adapter Bracket to the kiosk, and then
remove the I/O Adapter Assembly from its two mushroom studs.
2. Remove the side cover bracket by removing the two M3 screws.
Tri-Light (7709) 11
3. Remove the I/O Board from its bracket by removing the four M3 screws.
Installing the I/O Adapter
1. Mount the I/O Board onto its bracket and secure with four M3 screws.
2. Install the side cover bracket and secure with two M3 screws.
12 Tri-Light (7709)
3. Position the I/O Adapter Assembly onto its hex nut and mushroom studs, and then
tighten the hex nut to secure the I/O Adapter Bracket to the kiosk.
Tri-Light (7709) 13
Installing the Power Supply

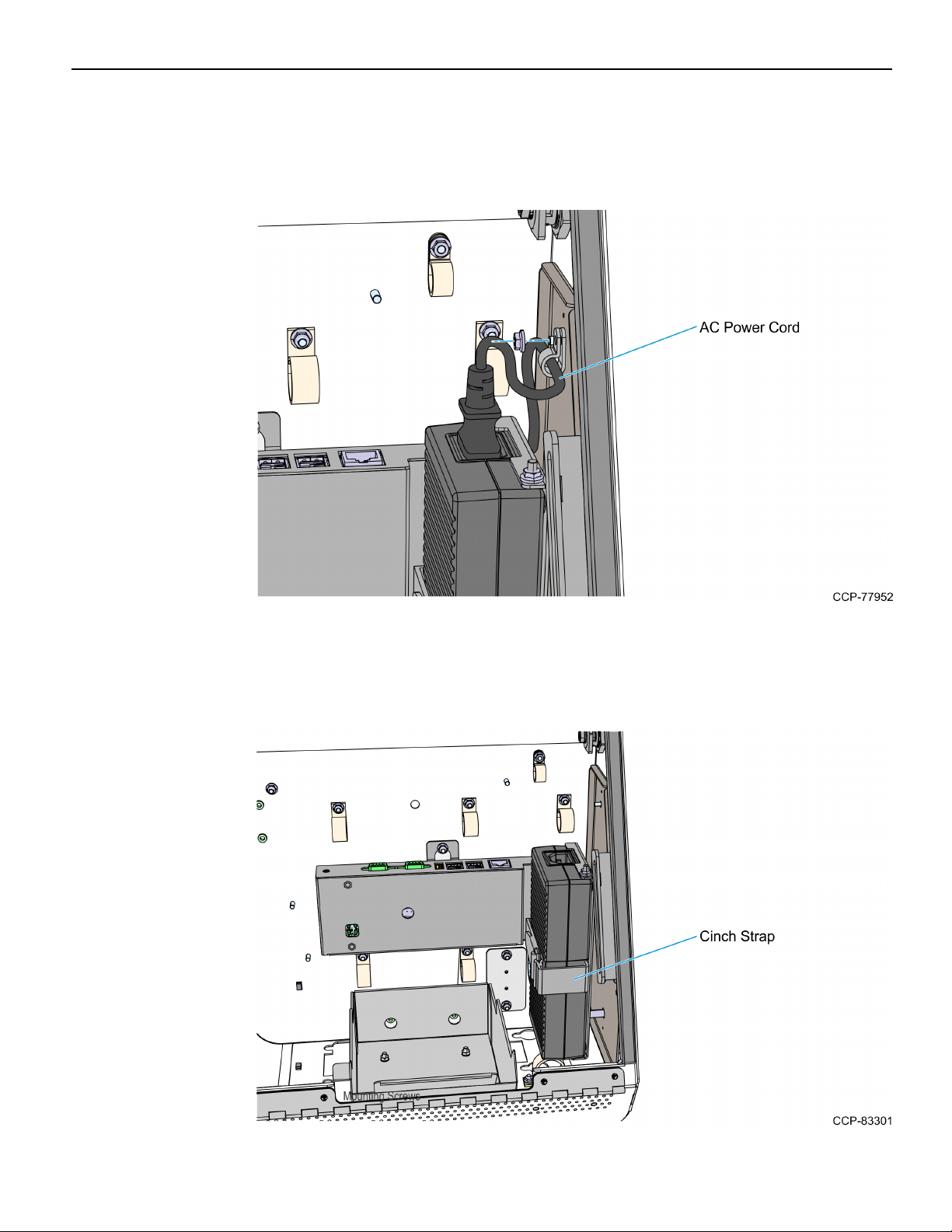

1. Mount Power Supply to the bracket and secure with the Cinch Strap.
2. Connect the AC Power Cable to the power supply.
3. Insert the AC Power Cable into the cable clamp, and then secure the clamp to the
cabinet using a nut.
14 Tri-Light (7709)
Routing the Tri-Light/Lane Light Extender Cable
1. If already installed on the kiosk, remove the Tri-Light/Lane Light Pole from its
mount.
a. Remove the screw that secures the Tri-Light/Lane Light Pole to the kiosk cabinet.
b. Pull the pole out of its mount.
Tri-Light (7709) 15

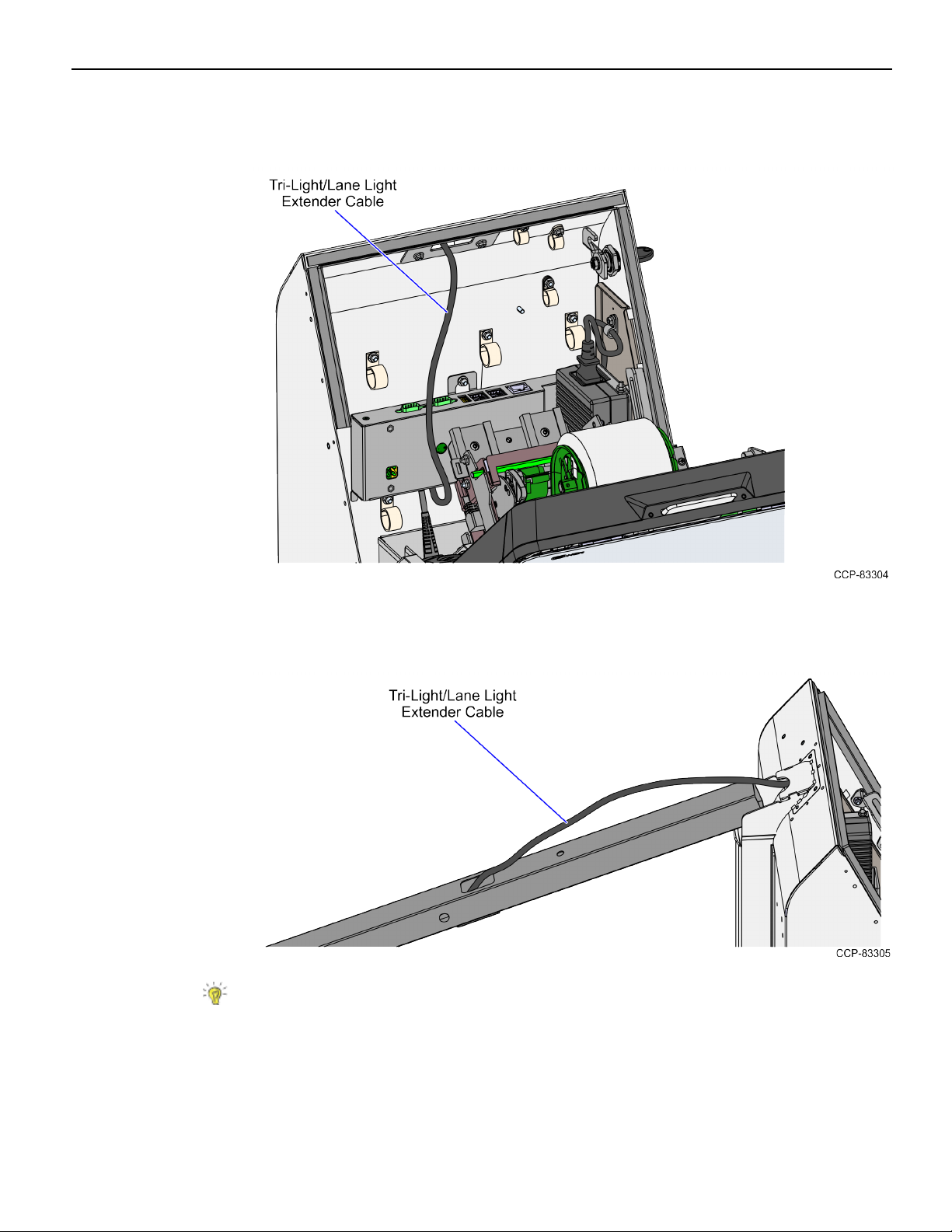

2. Route the Tri-Light/Lane Light Extender Cable out of the cable access hole at the top
of the kiosk cabinet.
3. Insert the extender cable through the cable access hole on the front of the pole and
route it out the top of the pole.
Tip: To easily route the extender cable through the pole, follow these steps:
a. Tie a long piece of string to the extender cable connector.
b. Attach a weight (for example, a large bolt) to the other end of the string.
c. While holding the pole upside down, insert the weighted end of the string into
the cable access hole and drop the weighted end through the pole.
d. Pull the string until the extender cable is out the top of the pole.
16 Tri-Light (7709)

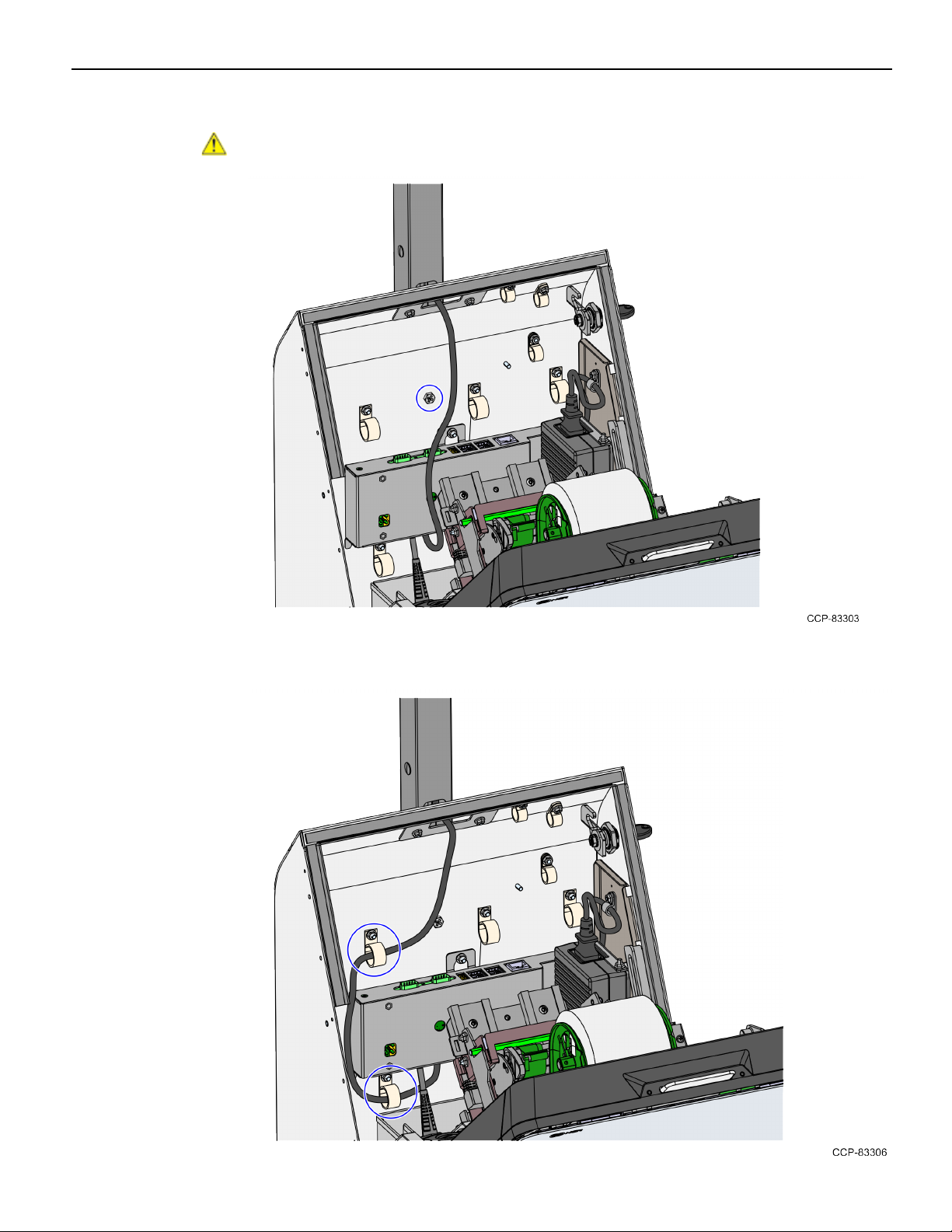

4. Insert the pole into its mount and secure it with its mounting screw.
Caution: Ensure that the extender cable is not pinched.
5. Route the extender cable through the p-loops shown in the following image.
