NCR 5942 User manual
NCR594215‐InchLCDMonitor
Release1.0
UserʹsGuide
B005‐0000‐1543
IssueB
TheproductdescribedinthisbookisalicensedproductofNCRCorporation.
NCRisaregisteredtrademarkofNCRCorporation.
ItisthepolicyofNCRCorporation(NCR)toimproveproductsasnewtechnology,components,software,and
firmwarebecomeavailable.NCR,therefore,reservestherighttochangespecificationswithoutpriornotice.
Allfeatures,functions,andoperationsdescribedhereinmaynotbemarketedbyNCRinallpartsoftheworld.
Insomeinstances,photographsareofequipmentprototypes.Therefore,beforeusingthisdocument,consult
withyourNCRrepresentativeorNCRofficeforinformationthatisapplicableandcurrent.
Tomaintainthequalityofourpublications,weneedyourcommentsontheaccuracy,clarity,organization,and
valueofthisbook.
Addresscorrespondenceto:
Manager,InformationProducts
NCRCorporation
2651SatelliteBlvd.
Duluth,GA30096
Copyright©2003
ByNCRCorporation
Dayton,OhioU.S.A.
AllRightsReserved
i
Preface
ThismanualisdesignedtoassistusersinsettingupandusingtheLCD
Monitor.Informationinthisdocumenthasbeencarefullycheckedfor
accuracy;however,noguaranteeisgiventothecorrectnessofthe
contents.Theinformationinthisdocumentissubjecttochange
withoutnotice.Thisdocumentcontainsproprietaryinformation
protectedbycopyright.Allrightsarereserved.Nopartofthismanual
maybereproducedbyanymechanical,electronicorothermeans,in
anyform,withoutpriorwrittenpermissionofthemanufacturer.
ii
Safety and Regulatory Information
TheNCRRealPOS5942conformstoallapplicablelegalrequirements.
ToviewthecompliancestatementsseetheNCRRealPOSPeripherals
SafetyandRegulatoryStatements(B005‐0000‐1701).
iii
Table of Contents
Chapter1:Installation
ImportantSafetyInstructions..............................................................1‐1
ModelNumbers ....................................................................................1‐2
Unpacking..............................................................................................1‐2
LCDMonitorandBase ..................................................................1‐3
Adjustment......................................................................................1‐3
DetachingtheMonitorfromItsStand.........................................1‐4
InterfaceforArmApplications ....................................................1‐4
ConnectingtheDisplaytothePOSTerminal.............................1‐5
ConnectingtheACPower.............................................................1‐5
ConnectingtheAudioCable.........................................................1‐6
PowerManagementSystem .........................................................1‐6
Chapter2:DisplayControls
OnScreenDisplay(OSD).....................................................................2‐1
EnablingtheOSDMenus ..............................................................2‐3
EnablingtheOSDMenus(Unlocked) .....................................2‐3
DisablingtheOSDMenus(Locked)........................................2‐3
AdjustingtheDisplay ....................................................................2‐3
Chapter3:TechnicalInformation
Specifications .........................................................................................3‐1
DisplayColors.................................................................................3‐1
Video ................................................................................................3‐2
Audio................................................................................................3‐2
Control .............................................................................................3‐2
iv
OSD...................................................................................................3‐3
PowerManagement .......................................................................3‐3
SyncInput........................................................................................3‐4
Plug&Play......................................................................................3‐4
ExternalConnection.......................................................................3‐4
Environment....................................................................................3‐4
OperatingCondition..................................................................3‐4
Storage .........................................................................................3‐4
PowerSupply(ACInput) .............................................................3‐5
SizeandWeight ..............................................................................3‐5
PinAssignments.............................................................................3‐5
StandardTimingTable ..................................................................3‐6
Troubleshooting..............................................................................3‐7
Revision Record
Issue Date Remarks
ADec2003FirstIssue
BJan2009Added5942‐7xxxmodels
Chapter 1: Installation
Important Safety Instructions
Pleasereadthefollowinginstructionscarefully.Thismanualshouldbe
retainedforfutureuse.
1. TocleanLCDMonitorscreen;
‐‐PoweroffLCDMonitorandunplugtheACCord.
‐‐Sprayanon‐solventcleaningsolutionontoarag.
‐‐Gentlycleanthescreenwithdampenedrag.
2. DonotplacetheLCDMonitornearawindow.Exposingthe
monitortorainwater,moistureorsunlightcanseverelydamageit.
3. DonotapplypressuretotheLCDscreen.Excesspressuremay
causepermanentdamagetothedisplay.
4. Donotremovethecoverorattempttoservicethisunitbyyourself.
Servicingofanynatureshouldbeperformedbyanauthorized
technician.
5. StoreLCDMonitorinaroomwitharoomtemperatureof‐20°~
60°C(or‐4°~140°F).StoringtheLCDMonitoroutsidethisrange
couldresultinpermanentdamage.
6. Ifanyofthefollowingoccurs,immediatelyunplugyourmonitor
andcallanauthorizedtechnician.
•MonitortoPCsignalcableisfrayedordamaged.
•LiquidspilledintoLCDMonitororthemonitorhasbeen
exposedtorain.
•LCDMonitororthecaseisdamaged.
1-2 Chapter 1: Installation
Model Numbers
Major Model CPU
5942‐600015”ActiveMatrixColorLCDDisplay,RemoteMount,
HighBrightness,(G11)
5942‐610015”ActiveMatrixColorLCDDisplay,RemoteMount,
HighBrightness,(CG1)
5942‐700015”ActiveMatrixColorLCDDisplay,RemoteMount,
HighBrightness,DetachableVGACable,(G11)
5942‐710015”ActiveMatrixColorLCDDisplay,RemoteMount,
HighBrightness,DetachableVGACable,(CG1)
Unpacking BeforeunpackingtheLCDMonitor,prepareasuitableworkspacefor
yourMonitorandcomputer.Youneedastableandcleansurfaceneara
wallpoweroutlet.MakesurethatLCDMonitorhasenoughspace
arounditforsufficientairflow.ThoughtheLCDMonitorusesvery
littlepower,someventilationisneededtoensurethattheMonitordoes
notbecometoohot.
AfteryouunpacktheLCDMonitor,makesurethatthefollowingitems
wereincludedinthebox:
•LCDMonitor
•UserʹsManual
•Monitor‐to‐PCsignalCable
•PowerCord
•StereoJackAudioCable
•Base
Ifyoufindthatanyoftheseitemsismissingorappearsdamaged,
contactNCRimmediately.
Chapter 1: Installation 1-3
LCD Monitor and Base
ConnecttheLCDMonitortothebase.
Adjustment
TheLCDMonitorisdesignedtoallowuserstohaveacomfortable
viewingangle.Theviewinganglecanbeadjustedfrom‐5°to+30°.
Warning: Do not force the LCD Monitor over its maximum viewing
angle settings as stated above. Attempting this will result in damaging the
Monitor and Monitor stand.
1-4 Chapter 1: Installation
Detaching the Monitor from Its Stand
1. Removethescrews(2)fromthehingebracket
2. RemovethestandfromLCDmonitor
Interface for Arm Applications
Therearofthedisplayhasfourintegrated4mm,0.7pitch‐threaded
nuts,aswellasfour5mmaccessholesintheplasticcovering,which
meet the VESAFlatPanelMonitorPhysicalMountingInterfaceStandard
specifications (paragraphs 2.1 and 2.1.3, version 1, dated 13 November 1997).
Chapter 1: Installation 1-5
Connecting the Display to the POS Terminal
1. PoweroffthePOSterminal.
2. ConnectthesignalcabletotheVGAportsonthe5942andthePOS
terminal.
3. Makesuretheconnectionsaresecure.
Attention:Thisdevicemustbeconnectedtoanoff‐the‐shelfvideo
cableinordertocomplywithFCCregulations.Aferrite‐coreinterface
cableisincludedintheLCDMonitorpackage.Thisdevicewillnotbe
incompliancewithFCCregulationsifanon‐ferrite‐corevideocableis
used.
Connecting the AC Power
1. Connectthepowercordtothe5942ACPowerJackandtoanAC
powersource.
1-6 Chapter 1: Installation

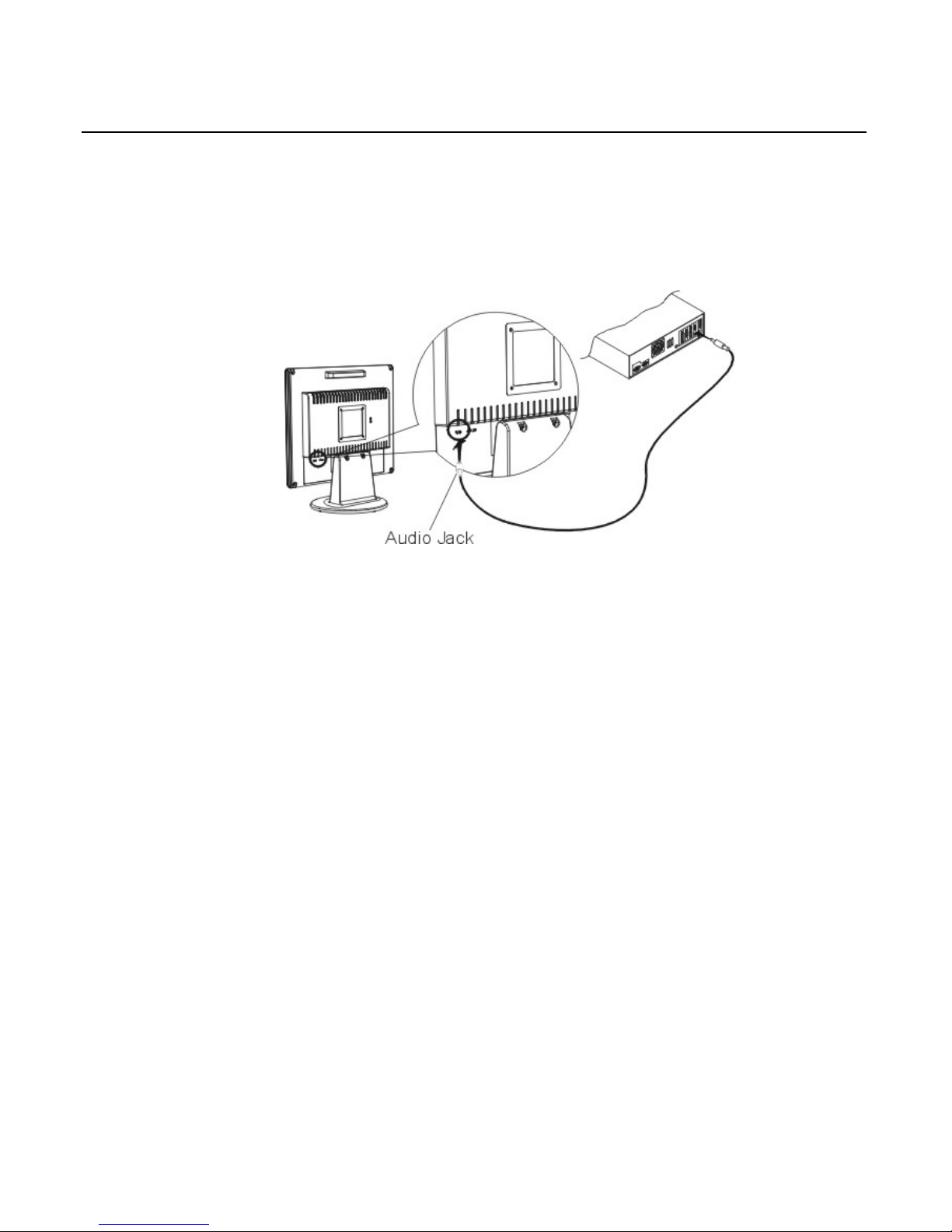

Connecting the Audio Cable
1. ConnecttheaudiocabletotheAudioJackthe5942(LineIn)and
thePOSterminal(LineOut).
Power Management System
ThisLCDMonitorcomplieswiththeVESADPMS(version1.0)Power
Managementguidelines.TheVESADPMSprovidesfourpowersaving
modesthroughdetectingahorizontalorverticalsync.signal.
WhentheLCDMonitorisinpowersavingmode,themonitorscreen
willbeblankandthepowerLEDindicatorwilllightyellow.
Chapter 2: Display Controls
On Screen Display (OSD)
TheOSDisaccessedthroughfourpushbuttonsontheFro0ntBezel.
Thesebuttonsprovideawaytoadjustdisplayparametersoftheunit.
26935
Fn
Power Function Select
Function Adjustment
Fn
Speaker Volume
Headphones
SpeakerSpeaker
2-2 Chapter 2: Display Controls
Function Adjustment Buttons (<) (>)
Presstheleftbutton(<)todecreasetheOSDfunctionsettingand
presstherightbutton(>)toincreasetheOSDfunctionsetting.
Function Select Buttons (<) (>)
PresseitherofthesebuttonstodisplytheOSDMenu.Thenpress
theleft(<)orright(>)buttontonavigatethroughtheOSDMenu
functions.
DC Power Switch
PressthepowerswitchtoturnthemonitorON/OFF.
DC Power-On Indicator
LEDGreen:PowerisON.
LEDYellow:MonitorisinʺPowerSavingModeʺ.
LEDOff:PowerisOFF.
Speakers
PCAudioStereoOutput
External Headphone Jack
Connectheadphonesorexternalspeakers.
Note: Themonitorspeakersaredisabledwhenusingexternal
headphonesorexternalspeakers.
Speaker Volume Control
IncreaseVolume:Turnknobclockwise.
DecreaseVolume:Turnknobcounterclockwise
3
Enabling the OSD Menus
TheOSDMenuscanbeEnabledorDisabled.Bydefault,theyare
disabledatthefactory.
Enabling the OSD Menus (Unlocked)
PressandholdtheFunctionAdjustmentbuttons(<)(>)andthe
FunctionSelect(>)buttonforthreeseconds.Amessageisdisplayed
indicatingtheOSDUnlocked.
Disabling the OSD Menus (Locked)
PressandholdtheFunctionAdjustmentbuttons(<)(>)andthe
FunctionSelect(>)buttonforthreeseconds.Amessageisdisplayed
indicatingtheOSDLockedOut.
Adjusting the Display
ToaccessOSDMainmenu,pressoneoftheFunctionSelectbuttons
andthemenudiagramwillbedisplayed.
ContinuepressingtheFunctionSelectbuttonstoscrollthroughthe
entiremenuofitems.ThenpresstheAdjustmentbuttonstoadjust
contentofselecteditem.
2-4 Chapter 2: Display Controls
Icon Function Function Description
BrightnessThisfunctionincreasesordecreasesthebrightness
oftheimage.
ContrastThisfunctionincreasesordecreasesthedifference
betweenthedarkandlightcolor.
H‐PositionThisfunctionshiftstheentiredisplayimageleftor
right.
V‐PositionThisfunctionshiftstheentiredisplayimageupor
down.
PhaseAtotalof32scales(0to100)areavailabletoadjust
thefocusandclarityofthedisplay.
Clock
Thisfunctioncarriesafrequencytrackingfeature
thatofferstheusertohavebetterstabilityand
clarity.IncreasingClockvaluecanbeupto+127
scales.ThenumberofdecreasingClock(minus)is
dependontheinputtiming.
Auto
Adjustment
Thisfunctionwilladjustthedisplaysize
automaticallytofitfullscreen.
OSDH‐
Position
ThisfunctionmovestheOSDmenuwindowleftor
right.
OSDV‐
Position
ThisfunctionmovestheOSDmenuwindowupor
down.
GraphText
Thisfunctionistochooseadisplaythatallows
maximumgraphicstextquality.Theresolution
selectioncaneitherbe640x400or
720x400.PleaserefertoChapter3“Standard
Timing”Tableforofdifferenttimingmodes.
5
Icon Function Function Description
RecallTherecallfunctionwillreturnalladjusted
parameterstofactorypresetvalues.
Language
FiveOSDlanguageoptionsareavailable:
English,German,French,SpanishandItalian.
PresstheleftorrightAdjustmentControlbuttonto
selectotherlanguage.
Color
Temperature
ColorTemp.:Pushthe(+‐)buttontoselecta
differentcolortemperature.Pleaseseethediagram
belowforfunctionanddescription.
SaveExitSavesthevaluesofthissettingandexitstheOSD
menufunction.
Icon Function Description
9300CIEcoordinatedColorSetstheCIEcoordinatecolor
SRGBCIEcoordinatedColorSetstheCIEcoordinatecolor
UserThreecolors(Red,Green,
Blue)canbeadjustedfrom
theOSDmenu
Setsthesettingstoabyuser
definedCIETemperature.
2-6 Chapter 2: Display Controls
Chapter 3: Technical Information
Specifications
LCD Panel Hannstar
Size15.0ʺ(38cm)
DisplayTypeActivematrixcolorTFTLCD
Resolution1024x768
DisplayDot1024x(RGB)x768
DisplayArea(mm)304x228(HxV)
DisplayColor262K
Brightness250cd/m2(typical)
ContrastRatio400:1(typical)
ResponseTime35ms(typical)
LampVoltage750Vrms(typical)
LampCurrent6.0mArms.(typical)
ViewingAngle
Vertical:‐55°~+45°
Horizontal:‐65°~+65°
Display Colors
16.7MwithFRCorDithering
3-2 Chapter 3: Technical Information
Video
InputSignal:AnalogRGB0.7Vp‐p
InputImpedance:75Ohm±2%
Polarity:Positive,Negative
Amplitude:(0‐0.7)‐0.035V/+0.07V
Multi‐mode:HorizontalFrequency:24~61KHz
Supported:VerticalFrequency:55~75Hz
Audio
Input:500mVrms
Output:1W+1W
Control
Power:On/OffswitchwithLEDindicator
Other manuals for 5942
1
This manual suits for next models
5
Table of contents
Other NCR Monitor manuals
