NDS ZeroWire Mobile User manual

ZeroWire Mobile®
USER MANUAL
U.S. ONLY - ENGLISH

© 2016 NDS Surgical Imaging, LLC. All rights reserved.
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. This document is subject to change without notice. NDS provides this information as
reference only. Reference to products from other vendors does not imply any recommendation or endorsement.
This document contains proprietary information protected by copyright. No part of this manual may be
reproduced by any mechanical, electronic, or other means, in any form, without prior written permission of NDS.
All trademarks are the property of their respective owners.

Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warning Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Emergency Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Low Charge Level Audible Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Tipping Hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use and Contraindications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ZeroWire Mobile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ZeroWire Mobile Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Cord for Wall-Mounted Charging Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Modules for ZeroWire Mobile Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Module Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Declarations of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Legal Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Standard Warranty and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ZeroWire Mobile Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ZeroWire Mobile Monitor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mounting a Monitor to the ZeroWire Mobile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting a Monitor to the ZeroWire Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ZeroWire Mobile Monitor Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Height Adjustment of Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tilt Adjustment of Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ZeroWire Mobile Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Procedure for Moving the ZeroWire Mobile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lower the ZeroWire Mobile Center of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Release Caster Brake Locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Move the ZeroWire Mobile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Apply Caster Brake Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Charging Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Charging Station Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Charging Station Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Module Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
OVERLOAD Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SERVICE Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Charge Level LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Discharge Cut-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Module Docking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Power Module Undocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ZeroWire Mobile Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Assembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Field Replaceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Charging Station Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wall Mounting Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Safety Information | 1
Safety Information
Warnings and Cautions
This symbol alerts the user that important information regarding the installation and/or operation of
this equipment follows. Information preceded by this symbol should be read carefully in order to avoid
damage to the equipment.
This symbol warns the user that un-insulated voltage within the unit may have sufficient magnitude to
cause electrical shock. It is dangerous to make contact with any part inside the unit. To reduce the risk of
electric shock, DO NOT remove cover (or back).
Note: There are no user serviceable parts inside. Refer servicing to qualified service personnel.
This symbol cautions the user that important information regarding the operation and/or maintenance
of this equipment has been included. Information preceded by this symbol should be read carefully to
avoid damage to the equipment.
This symbol denotes the manufacturer.
This symbol denotes the manufacturer’s European Community representative.
Safety Compliance
This product is T.U.V. approved with respect to electric shock, fire and mechanical hazards only in
accordance with CAN/CSA C22.2 No. 60601-1 and ANSI/AAMI ES60601-1.
Safety Compliance
This product meets the requirements of EN60601-1 so as to conform to the Medical Device Directive
93/42/EEC and 2007/47/EC (general safety information).
Power Module Safety Symbols
This product complies to the above standards.
This product is intended only for use by healthcare professionals in professional healthcare environments.
This product is a Class II medical device. No modifications are allowed.
This product is intended for continuous operation.
Read instructions
for use before
using or installing
the product.
Conformité
Européenne
Care should be
taken when using
the product.
Waste Electrical and
Electronic Equipment
Directive (EU)
Recyclable (Taiwan) Conforms to the
transportation
standards for Class 9
hazardous materials.
Federal
Communications
Commission
Conformance (US)
Underwriters
Laboratory (UL)
listed
component.
Meets the
requirements of
the current EU
RoHS Directive
2011/65/EU.
Lithium Ion
Recycling (Japan)
Includes Universal
Recycling symbol.
Keep out of
sunlight
Do not use if
housing is cracked
or broken.
Operating
temperature
range

2 | Safety Information
Warning Notices
As with any power system that stores high levels of energy, there is always the risk of leakage, fire or
explosion. Although adequate provision has been taken in the design and testing of this product to
make it completely safe, it is the user’s responsibility to ensure that they are completely familiar with
these instructions for use, and that they have received appropriate safety instructions on safe handling of the
Power Modules and the use of the system generally.
Regular maintenance is required to ensure that the Power Modules and electrical systems are free from wear and
tear, or any damage whatsoever. Seek advice if in any doubt, and remove any damaged Power Modules
immediately from use.
Warning: The ZeroWire Mobile is designed only for supporting secondary displays, and the device is not
intended for use with life supporting equipment, and under no circumstance is it permitted to be used
with such equipment.
Warning: Do not use in Magnetic Resonance (MR) environments.
Emergency Warning
Caution: Power Modules used in this device may present a risk of fire or chemical burn if mistreated. Do
not disassemble, heat above 45°C, or incinerate.
In extremely rare case of smoke, fire, or partial material decomposition of a Power Module, if safe to do
so, submerse the unit fully in water. Call the fire department.
Low Charge Level Audible Alert
A beep is repeated at 2-minute intervals starting 30 minutes prior to full discharge of a secondary Power Module
if the depleted primary Power Module has not been replaced with a charged unit.
Note: The Low Charge Level Alert is functionally critical and cannot be disabled.
Warning: The ZeroWire Mobile should not be used with medical equipment that poses a safety risk to
patients if battery power is lost, or the audible alert is not recognized.
Tipping Hazard
Warning: ZeroWire Mobile is designed for deployment on horizontal surfaces. The device is not intended
to be left unattended on sloping or uneven surfaces. For instructions on safe transport of the ZeroWire
Mobile, see “Procedure for Moving the ZeroWire Mobile”on page 14.
Tipping Hazard Warning Labels
Placed on Base Column of ZeroWire Mobile.
English Warning Label French Warning Label
WARNING
Tipping Hazard
To avoid potential injury, do not lean against
the stand or push the stand while a caster is
locked. Before attempting to move the stand,
lower the displayto the lowest position and
unlock all casters. Securelygrasp the stand
with both hands during transport. Reference
the user manual for more information.
Do not remove – permanent warning notice.
WARNING
Risque de basculement
Pour éviter les risques de blessures, ne pas
pencher contre le support ou pousser le
support quand une des roues est verrouillée.
Avant d'essayer de déplacer le support,
abaisser l'écran à la position la plus basse et
déverrouiller toutes les roues. Tenir
fermement le support avec les deuxmains
pendant le transport. Référence au mode
d'emploi pour plus d' information.
Ne pas enlever – avertissement permanent.

Safety Information | 3
Intended Use and Contraindications
Intended Use
The ZeroWire Mobile, Radiance Ultra series ZeroWire Embedded, and ZeroWire G2 are a paired video
communication transmitter and receiver, intended for delivery of medical video signals from a source such as an
endoscopy camera/processor, or other video source over a radio-frequency link to a video for review and analysis
of medical images during endoscopic and general surgical procedures.
The ZeroWire Mobile, Radiance Ultra series, and ZeroWire G2 wireless video systems are non-sterile reusable
devices not intended for use in the sterile field.
Contraindications
The ZeroWire Mobile is not intended for use with life supporting equipment, and under no circumstance must it
be used in this way. Any use or integration with a medical device is strictly and exclusively the responsibility of
the Medical Device manufacturer, agent, reseller or integrator selling this product. They are responsible for
appropriate integrated system’s product safety, EMC, regulatory, risk management and product testing for their
intended use.
1. Do not use this product in the presence of flammable anesthetics mixture with air, oxygen or nitrous oxide.
2. No part of this product may come in contact with a patient. Never touch the product and a patient at the
same time.
3. For mission critical applications, we strongly recommend that a replacement unit be immediately available.
Recycling
Power Modules contain Lithium Ion batteries. Follow local governing ordinances and recycling plans
regarding the recycling or disposal of this equipment.
• Do not disassemble, puncture or incinerate the Power Modules or batteries.
• Dispose of used power modules promptly.
• Keep away from children.
• Do not dispose of in fire.

4 | General Specifications
General Specifications
The ZeroWire Mobile is designed to provide power to an electrical load, and can be used continuously.
ZeroWire Mobile
The ZeroWire Mobile includes the following:
• ZeroWire Mobile stand with 125 mm diameter casters (5x)
• Rear-mounted fixed-position handle on the base column
• Extension column provides monitor height adjustment, and the VESA hinged mount provides monitor tilt
adjustment (see“ZeroWire Mobile Monitor Setup”on page 13)
• 2-year limited warranty on mechanical parts (see “Standard Warranty and Service”on page 8)
• 1-year limited warranty on all electronic parts (see “Standard Warranty and Service”on page 8)
• ZeroWire Mobile User Manual and ZeroWire Mobile User Manual CD
ZeroWire Mobile Accessories
ZeroWire Mobile accessories include the following:
• ZeroWire Mobile Power Modules including built-in regulation (output 24 Vdc, maximum 150 W/6.25 A
continuous operation)
• ZeroWire Mobile wall-mounted Charging Station (4-bay charger; input 100–240 Vac, 4.6–2.3 A, 50/60 Hz), with
two hospital-grade AC power cords (NEMA 5-15p for North America and CEE 7/7 for EMEA).
• ZeroWire Mobile power cable for NDS 19" – 26" monitors
• ZeroWire Mobile power cable for NDS 26" HB – 32" monitors
Please reference “ZeroWire Mobile Components” on page 11 for additional information regarding ZeroWire
Mobile system components and accessories.
Safety Features
See “Charging Station Overview” on page 15, and “Power Module Overview”on page 16.
Authentication
All ZeroWire Mobile Power Modules are factory programmed with a password code used for verification that the
Power Module is a genuine NDS product each time the unit is docked, preventing use of counterfeit devices.
ZeroWire Mobile is a medical device, and Power Module authentication is a critical safety technology to protect
both the user and the patient.
Dock Detection
External contacts of Power Modules are enabled only when docked. When Power Modules are undocked, the
dock detection feature isolates internal cell voltage from the external contacts for protection against electric
shock and short circuit hazards.
Temperature Monitoring
The internal temperature of docked Power Modules is continuously monitored. If the internal temperature
exceeds the safe operating temperature range, charging or discharging is suspended until the temperature is
restored to a safe level. See “Operation” on page 6.
Overcharge Prevention
Charging is automatically terminated when Power Modules are fully charged.

General Specifications | 5
Power Requirements
Power Cord for Wall-Mounted Charging Station
Two hospital-grade AC power cords are provided with the Charging Station, enabling use of the correct plug for
your power source. Use of non-NDS AC power cords can void the Warranty.
• When used in the U.S. at voltages over 120 volts, the Charging Station must be powered from a center-tapped
circuit.
• To power off the Charging Station, disconnect the power cord from the AC mains power source.
• The Charging Station must be installed in a location with easy access to the AC mains power source.
Power Modules for ZeroWire Mobile Stand
Use only NDS Power Modules.
• To power off the ZeroWire Mobile stand, remove both Power Modules from the stand docks.
• The ZeroWire Mobile stand must be positioned in a location with easy access to the stand docks.
Power Module Requirements
The capacity of a fully charged Power Module is 10 Ah. A Power Module at 10% or 1 Ah capacity is considered to
be fully discharged, with a marginal charge needed to maintain system functionality.
Power Modules not in active use self-discharge at a rate of < 1 mA.
Operation
First Use Charge Requirement
Prior to first use after storage or transportation, Power Modules must be charged to full capacity to set an internal
benchmark used to calculate percentages of capacity for accurate display of charge levels during use.
Active Use Charge Requirement
At least once every 30 days, Power Modules in active use must be fully charged from a discharged state to
maintain accurate display of charge levels and to maximize life of the unit. This is typically accomplished in the
process of normal usage.
Storage
Power Modules to be placed in long-term storage should be charged initially to a 50% level to provide a 5 Ah
buffer charge, from which self-discharge would take approximately 4000 hours (166 days or 5.5 months) to reach
the fully discharged 10% level.
Check on charge levels beginning at around 120 days after being placed in storage, and charge back to 50%
when levels have dropped to 10%. It is important to maintain a charge level above 10% to prevent discharge cut-
off (see “Discharge Cut-Off” on page 17).
Shipping
Prior to shipping, Power Modules should be charged to a level no higher than 30%.
Warning: Power Modules contain Lithium, and are classified as Class 9 Dangerous Goods for
transportation, requiring that all national and international regulations be observed. Check with your
local transport representative for advice on shipping in your region. For information regarding return of
damaged or faulty Power Modules, contact NDS Customer Service. See “CONTACTING NDS CUSTOMER
SERVICE” on page 9.

6 | General Specifications
Environmental Requirements
Operation
The operating temperature range for the ZeroWire Mobile should not exceed 32° – 104°F (0° – 40°C). Do not use
outside of this temperature range.
• To protect the safety of the battery cells, Power Modules may stop charging if the internal temperature is
above this specific range.
• Operating relative humidity range for the ZeroWire Mobile should not exceed 20% – 75% (non-condensing).
• Operating altitude range for the ZeroWire Mobile should not exceed 0 – 6562 ft (0 – 2000 m), with a pressure
range not to exceed 14.65 – 11.75 PSI (101 – 81 kPa).
Failure to observe these conditions will invalidate the warranty and reduce the life expectancy of Power Modules.
Storage
• Storage temperature range for the ZeroWire Mobile should not exceed 14° – 113°F (-10° – 45°C).
• Storage relative humidity range for the ZeroWire Mobile should not exceed 30% – 80% (non-condensing).
Failure to observe these conditions will invalid the warranty and reduce the life expectancy of Power Modules.
Shipping
It is recommended to retain original boxes and packing materials for use when shipping.
• Shipping temperature range for the ZeroWire Mobile should not exceed 14° – 113°F (-10° – 45°C).
• Shipping relative humidity range for the ZeroWire Mobile should not exceed 30% – 80% (non-condensing).
Failure to observe these conditions will invalid the warranty and reduce the life expectancy of Power Modules.

Terms and Conditions | 7
Terms and Conditions
Declarations of Conformity
FCC and Council Directives of European Standards
This device complies with Part 15 of FCC rules and 93/42/EEC and 2007/47/EC of the Council Directives of
European Standards. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesirable results.
1. Use the appropriate NDS-supplied power cable (part numbers 35D0110 or 35D0114) with the ZeroWire
Mobile mounted monitor to prevent interference with radio and television reception. Use of non-NDS cables
and adapters may cause interference with other electronic equipment.
2. This equipment has been tested and found to comply with the limits pursuant to FCC part 15 and CISPR 11.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
IEC
This equipment has been tested and found to comply with the limits for medical devices to the IEC 60601-1-2.
These limits are designed to provide reasonable protection against harmful interference in a typical medical
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to other devices in the vicinity.
FCC, Council Directives of European Standards, and IEC
There is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
Equipment connected to this product must be certified according to the respective IEC Standards (i.e., IEC 60950-
1) for data processing equipment and IEC 60601-1 for medical equipment. Furthermore, all configurations shall
comply with the system standards IEC 60601-1 and IEC 60601-1-2, and additional regulatory requirements may
apply for system level of compliance. Anyone who connects additional equipment to ZeroWire Mobile is
therefore responsible that the system complies with the requirements of system standard IEC 60601-1. Whoever
is responsible for securing the unit to a system needs to insure that the mounting equipment used with this
product complies to IEC standard 60601-1. If in doubt, consult the technical services department or your local
representative.
Legal Statement
NDS may sell its products through other medical device manufacturers, distributors and resellers and therefore,
purchasers of this NDS product should consult with the entity through which this product was originally
purchased regarding the terms of any applicable product warranties provided by such entity, if any.
NDS neither assumes nor authorizes any person to assume for it any other liabilities in conjunction with and/or
related to the sale and/or use of its products. To ensure proper use, handling and care of NDS products,
customers should consult the product specific literature, instruction manual, and/or labeling included with the
product or otherwise available.
Customers are cautioned that system configuration, software, the application, customer data and operator
control of the system, among other factors, affect the product’s performance. While NDS products are
considered to be compatible with many systems, specific functional implementation by customers may vary.
Therefore, suitability of a product for a specific purpose or application must be determined by the consumer and
is not warranted by NDS.

8 | Terms and Conditions
NDS SPECIFICALLY DISCLAIMS ALL WARRANTIES OF ANY KIND, WHETHER EXPRESS, IMPLIED AND/OR
STATUTORY, INCLUDING, BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, FITNESS AND/OR OF
SUITABILITY FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT WITH RESPECT TO ALL NDS PRODUCTS OR
SERVICES. ANY AND ALL OTHER WARRANTIES, REPRESENTATIONS AND/OR GUARANTEES, OF ANY TYPE, NATURE
OR EXTENT, BE IT IMPLIED, EXPRESS AND/OR WHETHER ARISING UNDER OR AS A RESULT OF ANY STATUTE, LAW,
COMMERCIAL USAGE, CUSTOM, TRADE OR OTHERWISE, ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED.
NDS, its suppliers and/or distributors are not liable, directly or by way of indemnity for any special, incidental,
consequential, punitive, exemplary or indirect damages, including but not limited to alleged damages for
delayed shipment, non-delivery, product failure, product design or production, inability to use such products or
services, loss of future business (lost profits), or from any other cause, whatsoever, in connection with or arising
from the purchase, sale, lease, rental, installation or use of such NDS products, these terms and conditions, or
with respect to any the terms of any agreement which incorporates these terms and conditions.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS AND DISCLAIMERS OF CERTAIN WARRANTIES OR
LIMITATIONS OF LIABILITY, SO THE LIMITATIONS AND/OR EXCLUSIONS, SET FORTH HEREIN, MAY NOT APPLY. IN
THAT EVENT LIABILITY WILL BE LIMITED TO THE GREATEST EXTENT PERMITTED BY LAW IN THE SUBJECT
JURISDICTION.
The information provided in this document, including all designs and related materials, is the valuable property
of NDS and/or its licensors and, as appropriate, they reserve all patent, copyright, and other proprietary rights to
this document, including all design, manufacturing reproduction, use, and sales rights thereto, except to the
extent said rights are expressly granted to others.
This user manual is subject to change without notice. If there is any concern about the latest instructions for use,
please consult with NDS.
Standard Warranty and Service
COVERAGE: NDS warrants this product to be in compliance with the specifications provided by NDS and to be
free from defects in material and workmanship as defined in such specifications. Subject to the conditions set
forth below, NDS agrees to repair or replace any part of the enclosed unit for the length of period indicated on
the chart below:
WARRANTY SERVICE: REPAIR and RETURN
1. Our standard warranty service is “Repair and Return.” Repair and Return requires the defective unit to be
returned to our service location for repair.
2. Cost of shipment of the defective unit to NDS is the responsibility of the customer. Cost of shipment of the
repaired unit to Customer is the responsibility of NDS.
3. NDS reserves the right in its sole discretion to provide Customer with a comparable refurbished replacement
unit in lieu of repair of customer's defective unit.
4. If NDS is unable within a reasonable time to repair or replace the defective unit, it shall refund the purchase
price for the product paid by the customer (exclusive of taxes, installation and shipping related fees).
EXCLUSIONS - WHAT IS NOT COVERED
1. Any product with a defaced, modified, or removed serial number.
2. Damage, deterioration or a malfunction resulting from accident, misuse, neglect, fire, water, lightning, or
other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the
product.
3. Cosmetic damage including, but not limited to: scratches, cracks, dents, markings, glue and adhesive residue.
NDS Product Standard Warranty Coverage
ZeroWire® Mobile – Mechanical parts 2 Years from date of shipment by NDS
ZeroWire® Mobile – Electrical parts (including batteries) 1 Year from date of shipment by NDS

Terms and Conditions | 9
4. Any damage of the product due to shipment.
5. Any damage caused by factors external to the product, such as electric power fluctuation or failure.
6. Normal wear and tear.
7. Removal, installation, and set-up service charges.
8. Failures not reported within the warranty term.
9. Any NDS products purchased through a distributor, reseller, or medical device manufacturer other than NDS
(each, an “Intermediary”), where such Intermediary provides direct warranty service to its end-user customers
in connection with such product.
a. An Intermediary may provide their end-user customers direct warranty support. Please contact NDS
Customer Service to determine if the product that you purchased is covered by this Standard Limited
Warranty or whether you need to contact the Intermediary through which you purchased the product for
warranty service.
CONTACTING NDS CUSTOMER SERVICE
1. Contact NDS Customer Service during the hours listed above. Have your NDS model number and serial
number available. You may be required to provide proof of purchase as a condition for receiving warranty
service.
2. Our representative may perform troubleshooting and diagnosis of the problem over the telephone/email. If
our representative is unable to fix the problem over the phone/email, we will issue a Return Material
Authorization (RMA) for the non-functioning unit and provide return instructions.
3. Upon receipt of the returned product, a service technician will evaluate the unit and confirm the failure
description provided by the customer.
a. If the found failure type is covered under warranty, the repair, parts, labor and shipment back to the
customer will be at no charge.
b. If the found failure type is not covered under warranty, NDS’s then current evaluation fee will apply in
addition to the cost of parts, labor and the return shipment.
c. If the unit is within the warranty period but the customer does not provide a problem description and the
service technician cannot determine the failure (no problem found - “NPF”) NDS’s then current evaluation
fee will apply in addition to return shipment.
Payment for Non-Warranty Evaluations and Repairs and other Evaluation Charges: Non-warranty repairs
requested by the customer will be performed at NDS's then current rates for any non-warranty repairs and will
include applicable evaluation fees and the cost of return shipping (if customer requests that NDS ship the
repaired product). NDS further reserves the right, in its sole discretion, to request pre-payment for any non-
warranty repairs, NPF evaluations, and return shipping charges prior to return of the product to customer. Any
invoiced amount not paid when due shall be subject to a service charge equal to the lesser of one and one-half
percent (1.5%) per month or the maximum rate permitted by law. If NDS undertakes collection or enforcement
efforts, customer shall be liable for all costs thereof, including attorney's fees. NDS reserves the right to suspend
warranty coverage to any customer who is in default of payment until such payment has been made.
Country Phone Email Time Available
United States [phone] customercar[email protected] 7 am – 5 pm PST
Europe [phone] customercare-[email protected] 7 am – 5 pm CET
China [phone] [email protected] 9 am – 5 pm CST
Japan + 81-3-5753-2466 [email protected] 9 am – 5:30 pm JST

10 | Terms and Conditions
DISCLAIMER
This limited product warranty sets forth your sole and exclusive remedy and NDS's sole and exclusive liability
under the Standard Limited Warranty described herein.
There are no warranties, express or implied, which extend beyond the description contained herein including,
but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or non-infringement.
NDS's liability is limited to the cost of repair or replacement of the product. NDS shall not be liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of
use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with
business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, indirect, consequential or otherwise.
3. Any claim against the customer by a third party.
End-users are cautioned that system configuration, software, the application, customer data and operator
control of the system, among other factors, affect the product performance. While NDS products are considered
to be compatible with many systems, specific functional implementation by the customers of the product may
vary. Therefore, suitability of a product for a specific purpose or application must be determined by consumer
and is not warranted by NDS.
This warranty gives you specific legal rights. You may have other rights, which may vary from locality to locality.
Some localities do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or
consequential damages, so the above limitations might not apply to you.

ZeroWire Mobile Components | 11
ZeroWire Mobile Components
The ZeroWire Mobile base system includes the following standard
components:
1. ZeroWire Mobile Stand (P/N 90Z0161)
2. ZeroWire Mobile User Manual and ZeroWire Mobile User
Manual CD
Note: For warranty information, see “Standard Warranty and
Service”on page 8.
Optional Components
1. Power Cable (P/N 90Z0168)
for use with NDS 26" HB–32"
monitors (Neutrik
connector)
2. Power Cable (P/N 90Z0169)
for use with NDS 19”–26”
monitors (SwitchCraft
connector)
3. ZeroWire Mobile Wall Power Module Charger, 4-bay with one each
United States and European power cord
4. ZeroWire Mobile Power
Module (P/N 30D0001)
ZeroWire Mobile®
USER MANUAL
ENGLISH
Product CD
58L0049 Rev B

12 | ZeroWire Mobile Monitor Installation
ZeroWire Mobile Monitor Installation
Mounting a Monitor to the ZeroWire Mobile
1. Tilt the mounting plate back to a horizontal position.
2. Place the monitor on the mounting plate and align the monitor’s VESA 100 x 100 mm hole mount pattern to
the corresponding hinged mounting plate screw holes. Attach the monitor using the provided M4 thumb
screws. Lightly tighten each screw until all 4 screws have been installed, and then tighten each screw securely.
Connecting a Monitor to the ZeroWire Mobile
1. Remove the monitor cable cover.
2. Connect the monitor DC power cable first to the ZeroWire Mobile DC output connector, and then to the
monitor DC input connector, with the power cable passing between the release lever and monitor.
Note: The capped port is reserved for future use.
3. Reinstall the monitor cable cover.

ZeroWire Mobile Monitor Setup | 13
ZeroWire Mobile Monitor Setup

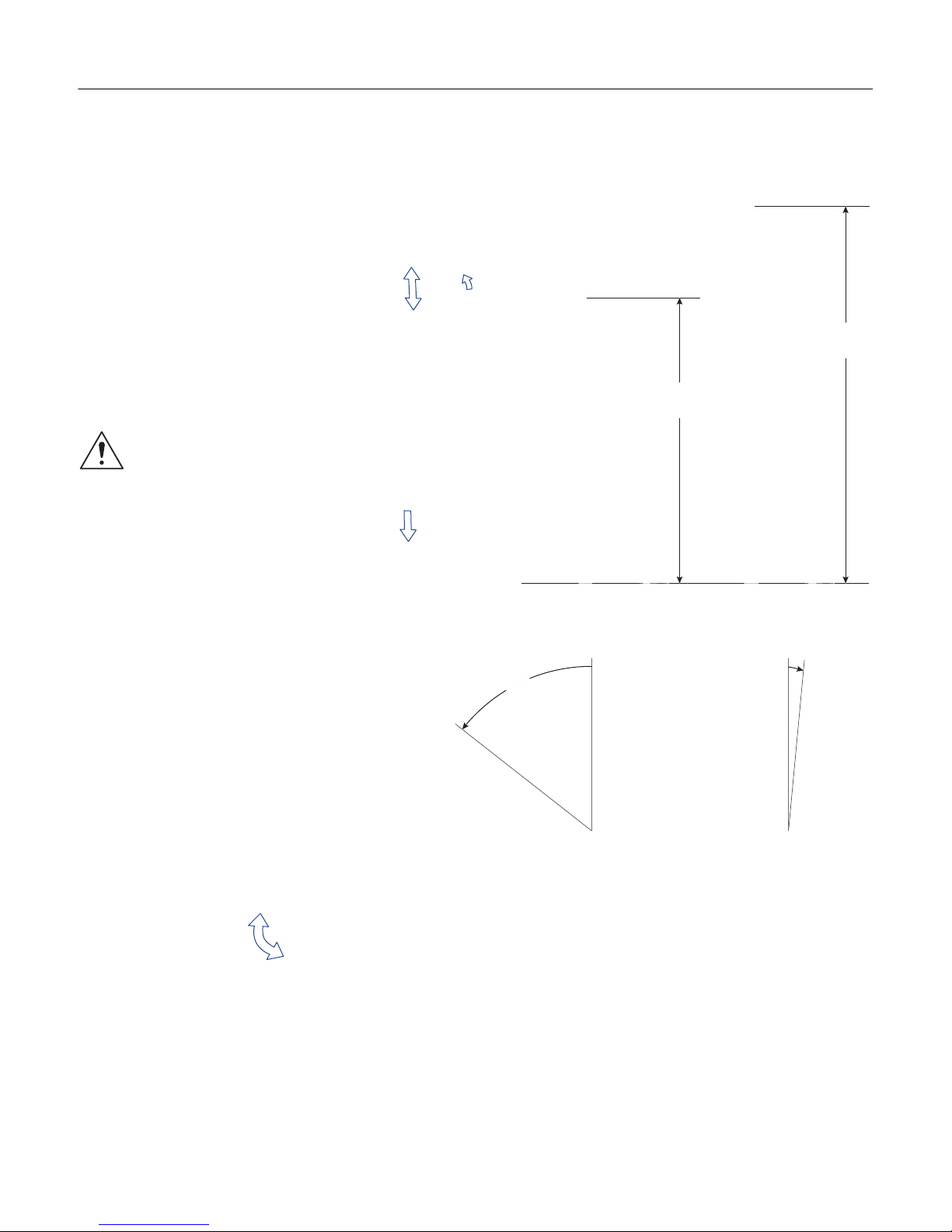

Height Adjustment of Monitor
The ZeroWire Mobile supports approximate monitor heights
as measured from the axis of the mounting plate hinge to
the floor surface ranging from 55" – 69" (140 cm - 175 cm).
Tilt Adjustment of Monitor
The ZeroWire Mobile supports approximate
monitor angles ranging from -5° – 50° measured
vertically from the axis of the mounting plate
hinge.
To raise and lower the monitor
assembly, confirm that the
caster brake locks are applied
to stabilize the ZeroWire
Mobile, then lift the release
lever and press up or down on
the upper handle.
Caution: Extend fingers
when lowering the
monitor assembly to
prevent accidental
pinching.
69"
(175 cm)
55"
(140 cm)
50° -5°
To adjust the monitor angle, first confirm that the caster
brake locks are applied, then grasp the top and bottom of
the monitor and push and pull to rotate the monitor on the
axis of the mounting plate hinge.

14 | ZeroWire Mobile Transport
ZeroWire Mobile Transport
Procedure for Moving the ZeroWire Mobile
Warning: To prevent the
possibility of the ZeroWire
Mobile accidentally tipping
over while moving the unit, take the
following steps to ensure safety and to
prevent damage.
Lower the ZeroWire Mobile Center
of Gravity
Note: It is recommended that the caster
brake locks be applied to stabilize the
ZeroWire Mobile while making
adjustments.
1. Lift the release lever and
simultaneously press down on the
upper handle.
2. Lower the top plate assembly and
monitor until the top plate is
positioned approximately 4" above
the top of the base column.
Release Caster Brake Locks
3. Confirm that all caster brake locks are unlocked in the
upper position, and that all casters roll freely.
4. Confirm that the path of transport is free of cables and
any other obstructions.
Move the ZeroWire Mobile
5. Firmly grasp the upper and lower handles and push the
ZeroWire Mobile in the intended direction.
Top Plate
Assembly
Release
Lever
Upper
Handle
Lower
Handle Base
Column
(10 cm)
4"
Caster
Brake Locks
Locked Unlocked
Apply Caster Brake Locks
6. When the ZeroWire Mobile has been relocated, prevent
accidental movement of the unit by applying the caster
brake locks..
