NDS 90R0123 User manual

Radiance® Ultra 4K/UHD 32"
USER MANUAL
ENGLISH

© 2021 NDS Surgical Imaging, LLC. All rights reserved.
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. This document is subject to change without notice. NDS provides this information as
reference only. Reference to products from other vendors does not imply any recommendation or endorsement.
This document contains proprietary information protected by copyright. No part of this manual may be
reproduced by any mechanical, electronic, or other means, in any form, without prior written permission of NDS.
All trademarks are the property of their respective owners.

Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Medical Device Shipping Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Safety Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Power Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use and Contraindications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Image Retention Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Display User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Display Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
OSD Menu Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Keypad Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INPUT Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
MENU Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SCROLL Button: Vertical Selection Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Left/Right Buttons: Horizontal Selection Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Color Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
OSD Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Color Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Input Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

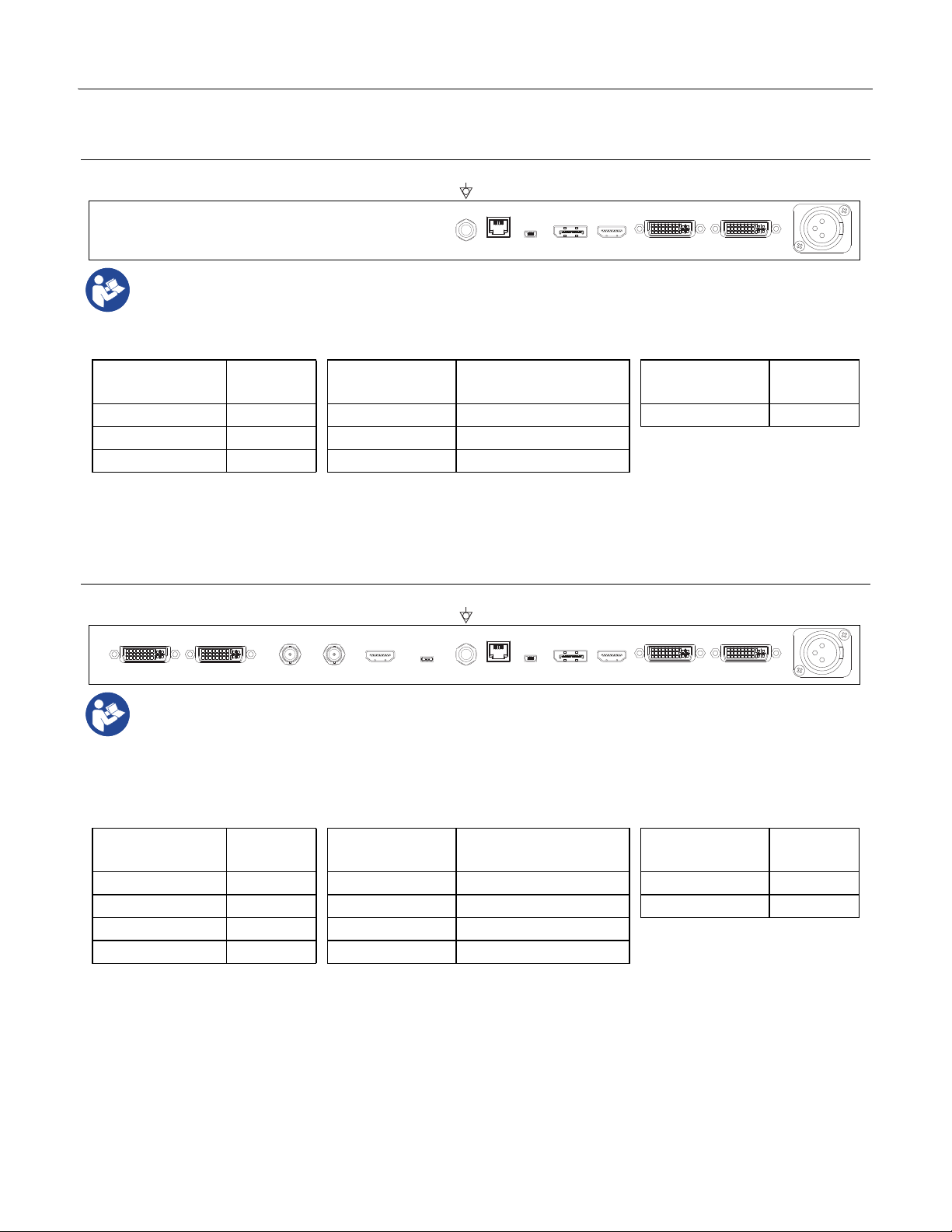

Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Radiance Ultra 4K/UHD Connector Panel - Standard (90R0132) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Standard Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connector Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Radiance Ultra 4K/UHD Connector Panel - 12G-SDI (90R0123 and 90R0125) . . . . . . . . . . . . . . . . . . . . . . . . 9
12G-SDI Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connector Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Electrical Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cable Bend Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Supported Resolutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DisplayPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DVI-1 and DVI-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
HDMI #1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HDMI #2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
12G-SDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
VESA Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cable Cover Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Electromagnetic Compatibility Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electromagnetic Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electromagnetic Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended Separation Distances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Declarations of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Legal Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Safety Information | 1
Safety Information
Warnings and Cautions
This symbol alerts the user that important information regarding the installation and/or operation of
this equipment follows. Information preceded by this symbol should be read carefully.
This symbol alerts the user that the user manual and translated copies are published on the NDS
website at: www.ndssi.com/user-manuals/
This symbol warns the user that un-insulated voltage within the unit may have sufficient magnitude to
cause electrical shock. Do not touch any part inside the unit. To reduce the risk of electric shock, DO NOT
remove the cover or back.
Note: There are no user serviceable parts inside. Refer servicing to qualified service personnel.
This symbol alerts the user that information preceded by this symbol should be read carefully to avoid
damage to the equipment.
This symbol denotes the manufacturer.
This symbol denotes the manufacturer’s European Community representative.
This symbol indicates compliance with the Waste Electrical and Electronic Equipment Directive (WEEE
Directive).
This symbol indicates the device is a Medical Device. This product is intended only for use by
healthcare professionals in professional healthcare environments.
This product is T.U.V. approved with respect to electric shock, fire and mechanical hazards only in
accordance with CAN/CSA C22.2 No. 60601-1 and ANSI/AAMI ES60601-1.
This product meets the requirements of EN60601-1 so as to conform to the 2017/745 Medical Device
Regulation of European Union.
Note: Any serious incident or adverse event that has occurred in relation to the device should be reported to the
manufacturer and the competent authority of the Member State in which the user and/or patient is established.
Federal (USA) law restricts this device to sale by or on the order of a physician.
Medical Device Shipping Symbols
Medical device shipping symbols, as defined below are printed on the shipping containers used to transport this
product.
Position the
container up
Keep dry Fragile Fragile keep dry

2 | Safety Information
System Safety Requirements
External equipment connected to the signal input/output or other connectors of this product for use in a patient
environment must comply with the requirements of ISO and UL/EN/IEC 60601-1 safety standards. A person who
connects such equipment to this product has by definition formed a system, and is responsible for compliance of
that system to the same ISO and UL/EN/IEC 60601-1 safety standards.
To prevent fire or shock hazards, do not expose this unit to rain or moisture.
Grounding
This product is energized from an external electrical power source for 2017/745 Medical Device Regulation of
European Union Class I equipment. It is the responsibility of the installer to test the product's earth ground to
verify that it complies with the hospital, local and national impedance requirements.

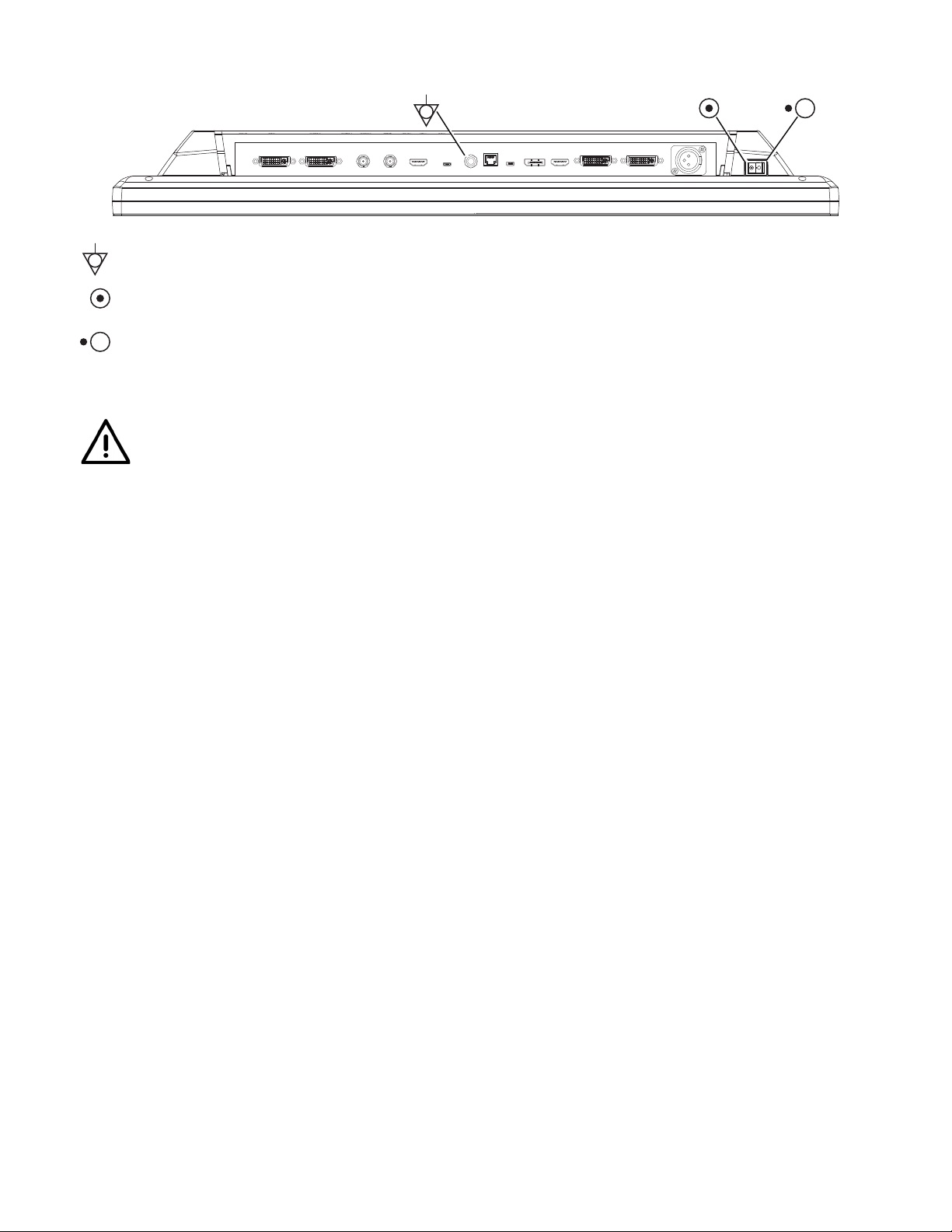

A ground post is located on the back of the product to use for grounding the chassis of the unit. Any such
grounding must be installed in accordance with applicable electrical codes.
This equipment/system is intended for use by healthcare professionals only.
This product is a Class
I medical device. No modifications are allowed.
This product is intended for continuous operation.
Power Requirements
Power Supply
This product complies to the listed safety standards only when used with the supplied medical grade power
supply:
Power Cord
Use a hospital grade power cord with the correct plug for your power source.
Disconnect the power cord from the AC mains. The power cord is the only recognized disconnect device.
MEDICAL EQUIPMENT should be positioned so that the disconnect device is readily accessible.
Monitors should be powered from a center tapped circuit when used in the US at voltages over 120 volts.
Intended Use and Contraindications
Intended Use
This product is intended for use in a medical environment to display high quality video and graphic images.
Contraindications
1. Do not use this product in the presence of flammable anesthetics mixture with air, oxygen or nitrous oxide.
2. To prevent fire or shock hazards, do not expose this product to rain.
3. No part of this product may come in contact with a patient. Never touch the product and a patient at the
same time.
4. This product is capable of displaying Radiology (PACS) images for reference only, and is not intended for
diagnostic use.
5. For mission critical applications, we strongly recommend that a replacement unit be immediately available.
Image Retention Warning
Warning: Leaving a fixed (constant) image on the monitor for a long period of time can result in image
retention. Avoid leaving a fixed image on the monitor, or turn the monitor off when it is not in use.
Model BridgePower BPM150S24F06
AC Input 100 - 240 Volts, 50 to 60 Hz
DC Output 24 Vdc, 6.25 A, 150 W

Display User Interface | 3
Display User Interface
Display Keypad
The Display Keypad is centered on the lower front surface of the display enclosure, providing controls for
adjustment of display parameters using the On Screen Display (OSD) Menu system.
OSD Menu Overview
The OSD Menu provides controls divided into 4 categories: the Picture Menu, the Color Menu, the Setup Menu,
and the Input Menu.
Keypad Menu Navigation
INPUT Button

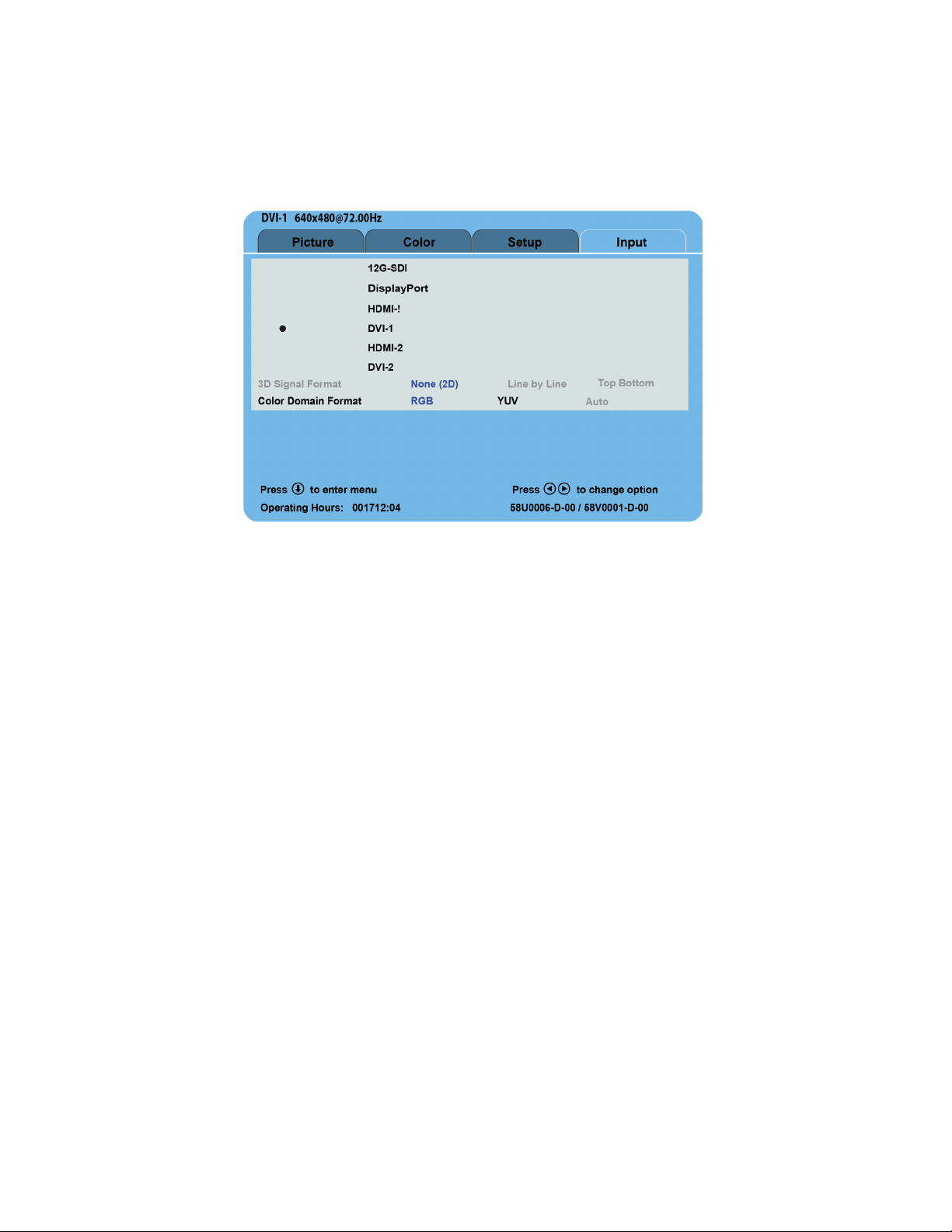

To directly open the Input Menu, tap the INPUT button. Input signal options are displayed in the right
column. The Input Menu is described on page 8.
MENU Button
To open the OSD Menu, tap the MENU button. The Picture Menu is initially displayed, with details of the
current input listed above the menu tabs.
SCROLL Button: Vertical Selection Control
To enter a menu, tap the SCROLL button. The top parameter row is selected with first tap of the SCROLL
button, and the selection moves downward to the next row with each successive tap.
To exit a menu, use the
SCROLL button to move the selection to the bottom menu row, and then tap the
SCROLL button just once to highlight the menu tab, where you can use the or buttons to select
another menu tab.
Left/Right Buttons: Horizontal Selection Controls
To adjust a parameter, select the parameter row using the SCROLL button, then tap the or
buttons to select or to change a setting.
Color Button
To directly open the Color Menu, tap the COLOR button. The Color Menu contains Color, Brightness,
Contrast, and other parameters described on page 6.
INPUT MENU SCROLL
INPUT
MENU
SCROLL

4 | Display User Interface
OSD Menu
Access the OSD Menu by tapping the MENU button. The OSD Menu opens displaying the Picture Menu, with
details of the input listed across the top of the menu above the menu tabs. Operating Hours and Firmware
version number are listed left and right respectively at the bottom of the menu.
To select other menu tabs, tap the or buttons to highlight a menu tab, then tap the
SCROLL button to enter
the menu.
To adjust a parameter, tap the
SCROLL button to move the row selection down to it, and then tap the or
buttons to adjust the parameter or select a setting. Parameter adjustments are applied in real time while
changing values or settings.
The OSD Menu closes automatically 30 seconds after the last action or can be closed by tapping the
MENU
button.
Note: Grayed out descriptions indicate parameters not available for the current signal or input configuration.
Picture Menu
Horizontal Position
To horizontally center the image, tap the or buttons.
Vertical Position
To vertically center the image, tap the or buttons.
Sharpness
To adjust sharpness (edge enhancement) of the displayed image, tap the or buttons.
= 50: default value displays the image as received.
> 50: increasing values sharpen the image.
< 50: decreasing values soften the image.
Overscan
To select an overscan setting, tap the or buttons.
0: The image is displayed at a size that fills the screen without losing any video information. Image could be
displayed as letterboxed, with black bars top and bottom or left and right.
1, 2, 3, 4, 5or 6: Incrementally enlarges and crops the centered image. As the image becomes larger, video
information is lost on all sides.
Scaling
To select a scaling option, tap the or buttons.
Fill: Expands the video image to fill the entire screen. The aspect ratio may not be accurately displayed.
Aspect: Expands the video image until its largest dimension fills the screen while retaining the aspect ratio.
The image may be displayed as letterboxed, with black bars top and bottom or left and right.
1:1: Displays the video data in its native size and aspect ratio. Images with resolution less than the Radiance
Ultra 4K/UHD native 3840 x 2160 resolution are displayed with a black background surrounding the image.
Note: Scaling options are limited to Aspect when overscan settings are > 0.

Display User Interface | 5
Rotation
The rotation option rotates the orientation of the screen per the option selected.
To select the screen orientation, tap the or buttons.
Off: No screen orientation change.
180: Rotates the screen 180°.
V-Flip: Rotates the screen vertically 180°.
H-Flip: Rotates the screen horizontally 180°.
Rotation OSD
The rotation OSD option displays the screen orientation indicator on the screen at the selected interval.
Select the screen rotation indication option: Off, On, 10 seconds, Blink.

6 | Display User Interface
Color Menu
Open the Color Menu directly by tapping the COLOR button.
Gamma
To select a gamma setting, tap the or buttons.
1.8, 2.0, 2.2, 2.4 or 2.6: Preset gamma values
Video: Linear gamma Look Up Table (LUT)
PACS: DICOM gamma LUT
This product is capable of displaying Radiology (PACS) images for reference purposes only.
Color Temperature
To select a preset color temperature, tap the or buttons.
5500, 6500, 8000, 9300: Preset color temperatures.
User: With a preset color temperature selected, if any other Color parameter is subsequently adjusted from the
default setting, the resulting values are copied to the Color Temperature User presets and User is selected.
Red / Green / Blue
To adjust balance of the selected color in the image, tap the or buttons.
Saturation (available only for YUV inputs)
To adjust saturation (color intensity) of the image, tap the or buttons.
Hue (available only for YUV inputs)
To adjust hue (color) of the image, tap the or buttons.
Brightness
To darken or lighten the image, tap the or buttons.
Contrast
To adjust contrast of the image, tap the or buttons.
Video Level
To select a video level setting, tap the or buttons.
Normal: The incoming signal is displayed without modification.
Expanded: Expands a Limited Range 16–235 signal (220 shades from black to white) to a Full Range 0–255
signal (256 shades from black to white).
Note: Application of the Expanded setting to a Full Range signal will clip the image, with loss of detail in dark
and light areas.
Color Correction
To select a color correction setting, tap the or buttons.
NDS: Bypasses the color correction feature.
BT.709: Factory calibrated to meet the BT.709 standard.
BT.2020: Factory calibrated to emulate the BT.2020 standard.
Auto Color Correction
To select Auto Color Correction (On or Off), tap the or buttons.

Display User Interface | 7
Setup Menu
Menu Position:
To select from 4 preset screen locations for display of the OSD menu, tap the or buttons.
Language:
To select one of eight languages: English, Deutsch, Français, Italiano, Svenska, Español, Nederlands, or
Pycckий, tap the or buttons.
DPMS Enable
To enable or disable Display Power Management System (DPMS), tap the or
buttons.
Off: Default setting.
On: If there is no input signal, a “D.P.M.S” message displays for 10 - 15 seconds before
the display goes into Power Saving mode. The display turns on when the input signal is restored.
Menu Lock
To enable Menu Lock, tap the button.
Off: Default setting.
On: Disables access to all OSD menus except the Input Menu. The OSD Menu closes,
and a MENU LOCKED message displays briefly. To unlock OSD access, simultaneously
press the
MENU and SCROLL buttons until the MENU UNLOCKED message displays.
Backlight
To adjust the backlight level of the display, tap the or buttons.
Backlight Stabilization
To enable or disable backlight stabilization, tap the or buttons.
Off: Default setting.
On: Controls LED output to maintain a consistent backlight luminance to compensate for LED output
degradation over the display lifetime.
Keypad Color
To modify the Keypad color setting, tap the or buttons.
Preset Defaults
The presets available include: Preset TC201, TC200, and NeoIP.
The parameters can be adjusted on a per-use basis; however, the adjustments cannot be saved. Each time a
preset is selected, a pre-defined settings will be loaded.

8 | Display User Interface
Input Menu
Note: Some options may not be available on the 90R0132.
Open the Input Menu directly by tapping the
INPUT button.
Input Menu Overview
The Primary image is designated by selection of an input.
12G-SDI and 3D Option
3D Signal Format
The following settings are available for SDI, HDMI-2, and DVI-2 inputs on the 3D display configuration only:
None (2D): Select this option if the incoming signal is either preprocessed 3D at UHD Line-by-Line format or a
standard two dimensional image and not three dimensional.
Line by Line: Select this option if the incoming signal is three dimensional in a line by line format.
Top/Bottom: Select this option if the incoming signal is three dimensional in a top bottom format.
Color Domain Format
The following settings are available on all inputs:
Auto: Select this option to automatically detect the signal color space.
RGB: Select this option if the incoming signal has a RGB color space.
YUV: Select this option if the incoming signal has a YUV color space.

Connector Panel | 9
Connector Panel
Radiance Ultra 4K/UHD Connector Panel - Standard (90R0132)
Connector Types
Radiance Ultra 4K/UHD Connector Panel - 12G-SDI (90R0123 and 90R0125)
Connector Types
Standard Configuration
Notes
1. The Service 1 and Service 2 USB connectors are designated for installing firmware upgrades.
2. RS-232 6-pin modular connector used for Unified Serial Command (USC) input.
Inputs Connector
Types
Inputs Connector
Types
Outputs Connector
Types
DVI–In DVI-D RS-232 6-pin Modular DVI–Out DVI-D
DisplayPort Service 1 USB Mini B
HDMI Type A DC Input XLR, Neutrik type
12G-SDI Configuration
Notes
1. 12G-SDI IN input accepts a 12G-SDI signal to display as UHD image.
2. 12G-SDI OUT output is active only with monitor powered on and signal applied to 12G-SDI.
3. The Service 1 and Service 2 USB connectors are designated for installing firmware upgrades.
4. RS-232 6-pin modular connector used for Unified Serial Command (USC) input.
Inputs Connector
Types
Inputs Connector
Types
Outputs Connector
Types
12G-SDI BNC RS-232 6-pin Modular 12G-SDI BNC
DVI–In 1 & 2 DVI-D Service 1 USB Mini B DVI–Out 1 & 2 DVI-D
DisplayPort Service 2 USB Micro AB
HDMI 1 & 2 Type A DC Input XLR, Neutrik type
SERVICE 212G SDI OUT12G-SDI IN
DVI-2 OUTDVI-2 IN DC INPUTDVI-OUTDVI-INRS-232 SERVICE 1 HDMIDISPLAYPORT
HDMI 2.0 IN
SERVICE 212G SDI OUT12G-SDI IN
DVI-2 OUTDVI-2 IN DC INPUTDVI-OUTDVI-INRS-232 SERVICE 1 HDMIDISPLAYPORT
HDMI 2.0 IN

10 | Connector Panel
Electrical Symbols
Equipotentiality
This symbol appears next to the display Potential Equalization Conductor (ground post).
Closed (On) Switch
This symbol appears on the closed, or on, side of the display On/Off switch.
Open (Off) Switch
This symbol appears on the open, or off, side of the display On/Off switch.
Cable Bend Radius
We recommend that the bend radius of metallic cables be no less than 2.5 inches (63 mm) or 7 times the
diameter of the cable whichever is greater. The bend radius of Fiber Optic cables should be no less than
10 times the diameter of the cable. Sharper bends can damage the cable, and/or degrade the video
signal.

Specifications | 11
Specifications
Specifications are subject to change without notice. Contact your regional NDS headquarters for current
specifications using contact information on the back cover.
90R0123 90R0125 90R0132
Viewing Area (Diagonal) 31.50" (801 mm) 32.00" (812.8 mm) 31.50" (801 mm)
Viewing Angle (Horizontal and
Vertical)
178° 178° 178°
Native Resolution 3840 x 2160 3840 x 2160 3840 x 2160
Contrast Ratio (Nominal) 1700:1 1350:1 1700:1
Typical Luminance (cd/m2)650 700 650
Color Gamut 140% of BT.709 149% of BT.709 140% of BT.709
Pixel Pitch 0.181875 mm 0.1845 mm 0.181875 mm
DC Input 24 V / 6.25 A 24 V / 6.25 A 24 V / 6.25 A
DC Power Consumption
(Typical)a130 W 130 W 120 W
Monitor Weight 32.0 lb. (14.5 kg) 32.0 lb. (14.5 kg) 32.0 lb. (14.5 kg)
Monitor Dimensions (W x H x D) 30.7 x 20 x 3.4" (780 x 509
x 87 mm)
30.7 x 20 x 3.4" (780 x 509
x 87 mm)
30.7 x 20 x 3.4" (780 x 509
x 87 mm)
Temperature Ranges
Operating 32° – 104°F (0° – 40°C) 32° – 104°F (0° – 40°C) 32° – 104°F (0° – 40°C)
Storage/Transport -4° – 122°F (-20° – 50°C) -4° – 122°F (-20° – 50°C) -4° – 122°F (-20° – 50°C)
Humidity Ranges (Non-condensing)
Operating 20% – 90% 20% – 90% 20% – 90%
Storage/Transport 10% – 90% 10% – 90% 10% – 90%
Altitude (Maximum)
Operating 6,600 ft. (2,000 m) 6,600 ft. (2,000 m) 6,600 ft. (2,000 m)
Storage/Transportb. 16,000 ft. (4,877 m) 16,000 ft. (4,877 m) 16,000 ft. (4,877 m)
a. Applies to the BridgePower BPM150S24F06 power supply.
b. Per ASTM D6653/D6653M - 13

12 | Supported Resolutions
Supported Resolutions
DisplayPort
DVI-1 and DVI-2
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
HD Video Modes UHD Video Modes
1280 720p 50 3840 2160p 25
1280 720p 59.94 3840 2160p 29.97
1280 720p 60 3840 2160p 30
1920 1080p 25 3840 2160p 50
1920 1080p 29.97 3840 2160p 59.94
1920 1080p 30 3840 2160p 60
1920 1080p 50
1920 1080p 59.94
1920 1080p 60
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
SD Video Modes Graphic Modes
720 480p 60 640 480 60
720 576p 50 800 600 75
HD Video Modes 1024 768 60.004
1280 720p 25 1024 768 70.069
1280 720p 29.97 1024 768 75.029
1280 720p 30 1152 864 75
1280 720p 50 1280 800 59.910
1280 720p 59.94 1280 1024 60.02
1280 720p 60 1280 1024 75.025
FHD Video Modes 1280 1024 85.024
1920 1080i 59.94 1600 1200 60
1920 1080i 60 1400 1050 59.948
1920 1080p 25 1400 1050 59.978
1920 1080p 29.97 1440 900 59.902
1920 1080p 30 1440 900 59.888
1920 1080p 50 1440 900 59.95
1920 1080p 59.94
1920 1080p 60

Supported Resolutions | 13
HDMI #1
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Graphic Modes
SD Video Modes FHD Video Modes 640 480 60
720 480p 60 1920 1080i 59.94 640 480 72.809
720 576p 50 1920 1080i 60 640 480 75
HD Video Modes 1920 1080p 25 800 600 56.25
1280 720p 25 1920 1080p 29.97 800 600 60.317
1280 720p 29.97 1920 1080p 30 800 600 75
1280 720p 30 1920 1080p 50 1024 768 60.004
1280 720p 50 1920 1080p 59.94 1024 768 70.069
1280 720p 59.94 1920 1080p 60 1024 768 75.029
1280 720p 60 UHD Video Modes 1152 864 75
3840 2160p 24 1280 800 59.91
3840 2160p 25 1280 1024 60.02
3840 2160p 29.97 1280 1024 75.025
3840 2160p 30 1280 1024 85.024
1600 1200 60
1400 1050 59.948
1400 1050 59.978
1440 900 59.902
1440 900 59.888
1920 1200 59.950

14 | Supported Resolutions
HDMI #2
12G-SDI
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Graphic Modes
SD Video Modes FHD Video Modes 640 480 60
720 480p 60 1920 1080i 59.94 800 600 60.317
720 576p 50 1920 1080i 60 800 600 75
HD Video Modes 1920 1080p 25 1024 768 60.004
1280 720p 25 1920 1080p 29.97 1024 768 70.069
1280 720p 29.97 1920 1080p 30 1024 768 75.029
1280 720p 30 1920 1080p 50 1152 864 75
1280 720p 50 1920 1080p 59.94 1280 800 59.910
1280 720p 59.94 1920 1080p 60 1280 1024 60.02
1280 720p 60 UHD Video Modes 1280 1024 75.025
4K Video Modes 3840 2160p 24 1280 1024 85.024
4096 2160p 30 3840 2160p 25 1600 1200 60
4096 2160p 50 3840 2160p 29.97 1400 1050 59.948
4096 2160p 59.94 3840 2160p 30 1400 1050 59.978
4096 2160p 60 3840 2160p 50 1440 900 59.902
3840 2160p 59.94 1440 900 59.888
3840 2160p 60 1920 1200 59.950
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
Horizontal
Resolution
(pixels)
Vertical
Resolution
(lines)
Vertical
Frequency
(Hz)
12G-SDI HD Video Modes 3G-SDI Video Modes
1280 720p 30 1920 1080p 50
1280 720p 50 1920 1080p 59.940
1280 720p 59.94 1920 1080p 60
1280 720p 60 UHD Video Modes
1920 1080i 50 3840 2160p 50
1920 1080i 59.94 3840 2160p 59.94
1920 1080i 60 3840 2160p 60
1920 1080p 29.97
1920 1080p 30
