NEC MP-01 User manual

1
USB memory USB memory
Computer
+
Authoring software Media Player Display
LAN
Media Player
(MP-01)
User's Manual Ver.1.10
Introduction
•What is Media Player?
Media Player is a tool for showing programs created from the combination of graphics and sound contents on a display. Programs are created
using the attached authoring software and distributed via LAN or USB memory.
•What is Authoring Software?
Layout setting
The desired layout can be set by combining movies, still images, and messages.
Scheduling function
This function displays the program at the designated time. You can set the daily program start and end time or the program start and end time for a
particular day.
Distribution function
Program data is distributed via USB memory or to a maximum of 20 Media Players via LAN.
Message
Movie Still image Still image
Message

2
DECLARATION OF CONFORMITY
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 500 Park Boulevard, Suite 1100
Itasca, Illinois 60143
Tel. No.: [phone]
Type of Product: Media Player
Equipment Classification: Class B Peripheral
Model: MP-01(L007KN)
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.
FCC Information
1. Use the attached specified cables with MP-01(L007KN) so as not to interfere with radio and television reception.
(1) Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable, DVI-D – DVI-D.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installa-tion. This equipment generates, uses, and
can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV
Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

3
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE
POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.
Declaration of the Manufacturer
We hereby certify that the
MP-01 (L007KN)
Council Directive 2006/95/EC:
– EN 60950-1
Council Directive 2004/108/EC:
– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024
and marked with
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
is in compliance with
Media Player
Important Information
CAUTION: Please use the power cord provided with this Media Player in accordance with the table below. If a power cord is not supplied with this
equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been
approved by and complies with the safety standard of your particular country.
*When operating the MP-01(L007KN) Media Player with its AC 100-240V power supply, use a power supply cord that matches the power supply
voltage of the AC power outlet being used.
NOTE: This product can only be serviced in the country where it was purchased.
Declaration
Plug Type
Plug Shape
Country
Voltage
North America
U.S.A./Canada
120*
European
Continental
EU (except U.K.)
230
U.K.
U.K.
230
Chinese
China
220
Jpanese
Japan
100

4
Safety Precautions, Maintenance & Recommended Use
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN
SETTING UP AND USING THE MEDIA PLAYER:
• DO NOT OPEN THE MEDIA PLAYER. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous
shock hazards or other risks.
Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your Media Player near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause
electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord or AC adapter. Damage to the cord or AC adapter may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the Media Player may fall, causing serious damage to the Media Player.
• The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H03VVH2-F 2x 0.75mm2
should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (13A) fuse installed for use with this Media Player.
• Do not place any objects onto the Media Player and do not use the Media Player outdoors.
• Do not bend, crimp or otherwise damage the power cord.
• Do not use wet hands to connect or disconnect the power cord to an electrical socket. This may cause electric shock.
• Clean the plug periodically and check to make sure the plug and power cord are not damaged.
• Do not apply stress to the inlet (AC input side) of the AC adaptor.
• Do not wrap the AC adapter in cloth.
• When moving the Media Player, disconnect all cables. Moving the Media Player with cables connected may cause electric shock.
• Do not pull on the power cord to disconnect from power outlet as this may cause electric shock. Hold onto to the plug at the end of the power cord
to disconnect.
• Do not cover vent on Media Player.
• Do not use Media Player in high temperature, humid, dusty, or oily areas.
• Do not drop or subject to shock.
• Do not place sideways, face down or upside down.
• Do not leave the Media Player in direct sunlight or near heating equipment.
Immediately unplug your Media Player from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the Media Player.
• If the Media Player has been exposed to rain or water.
• If the Media Player has been dropped or the cabinet damaged.
Cleaning the Media Player
• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
NOTE:
DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide.
Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of fluids and materials can cause the paint to deterio-
rate, crack or peel.
Intel and Intel Pentium are trademarks of Intel Corporation in the United States and other countries. The SD logo is a trademark. Microsoft®, MS, Windows®,
PowerPoint®, Windows Media®, Internet Explorer®and the Internet Explorer®logo are registered trademarks or trademarks of the Microsoft Corporation in the
United States and other countries. All other brands and product names are trademarks or registered trademarks of their respective owners.

5
•Memory card
•Memory card cover
•Wireless remote control
•AA batteries x 2
•Wireless remote control extension
cable
•Double sided tape (for Wireless remote
control extension cable)
Contents
•Video signal cable (DVI-D-DVI-D)
•Audio cable
•USB cable extension
•Bracket x 2
•Power Cord
•AC adapter (DXW1225N-S0068Z)
•Set up guide
•CD-ROM (User’s Manual & software)
Terminal panel
SD
POWER RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
123 456
#@!0987
1DC IN connector
Connect the enclosed AC adapter.
2Memory card connector
Set the enclosed memory card.
3S-VIDEO IN connector
Connect with video devices, such as DVD players, and movies from
video devices can be placed with messages and still images.
Use an S video cable (available in stores).
4Power Indicator
Power button ON: Green light turns on
Power button OFF: Green light flashes then red light turns on
5Remote control sensor
This is the light receiving part of the signal from the wireless
remote control.
6Wireless remote control extension connector
In cases such as when the remote control sensor is hidden behind
the liquid crystal display, connect the enclosed wireless remote
control extension cable.
Secure the light receiving end of the wireless remote control
extension cable in a position from which remote control operation
is possible using the enclosed double-faced adhesive tape.
7Reset button
The main body is reset. Even if the reset button is pressed, the data in
the memory card will not be erased.
8AUDIO IN
When using the S-VIDEO IN connector, this is connected to
the audio output from a video device.
9AUDIO OUT
This is connected to the AUDIO IN of the liquid crystal display.
0DVI OUT
This is connected to the DVI input connector of the liquid
crystal display.
!USB memory connector
This is used when distributing program data via USB memory
or when updating internal firmware.
If it is difficult to use the connector for USB memory due to
the location installed, use the enclosed USB cable extension.
@LAN connector
This is connected to the LAN cable when distributing program
data via LAN.
#External connector
Terminal used for maintenance.
Cannot be used.

6
MENU
EXIT
POWER ON
STANDBY
23
456
789
0
1
2
5
4
8
9
6
7
0
3
1Power button (POWER ON)
Press this button to turn the power on.
2Standby button (STANDBY)
Press this button to turn the power off.
3Number buttons
4MENU button (MENU)
This button turns the OSD screen on and off.
5,6,7and8Direction button
Use this button to select the settings on the OSD screen.
9EXIT button (EXIT)
This button returns the OSD to the previous screen.
0SET button (SET)
This button saves on the selection on the OSD screen.
Remote control
Handling the remote control
Install the remote control batteries
This requires two AA batteries. Install the batteries as shown in the diagram below.
A.Press end slide to open the cover
B. Align the batteries according to the (+) and (-) indications inside the case
C.Replace the cover.
Wireless remote control extension cable
CAUTION:
Incorrect usage of batteries can result in leaks or bursting. NEC recommends the following battery use:
• Place the batteries properly according to the [+] and [-] indicators.
• Batteries have different characteristics depending on type, so do not mix batteries of different types.
• Do not combine new and old batteries. Doing so may shorten the life of new batteries, or cause liquid leakage from old batteries.
• Remove dead batteries immediately to prevent battery acid from leaking and causing a malfunction. Do not touch leaked battery acid as it may irritate the
skin. Carefully wipe the acid with a cloth.
NOTE:
• Other than to install the batteries, do not open the remote control.
• If you do not intend to use the Remote Control for a long period of time, remove the batteries.
Attention
• Do not subject to strong shock.
• Do not expose to water. If the equipment is exposed to water, immediate wipe away the water.
• Avoid exposure to heat and steam.
Remote control sensor
Power indicator
Power button ON: Green light turns on
Power button OFF: Green light flashes then turns off

7

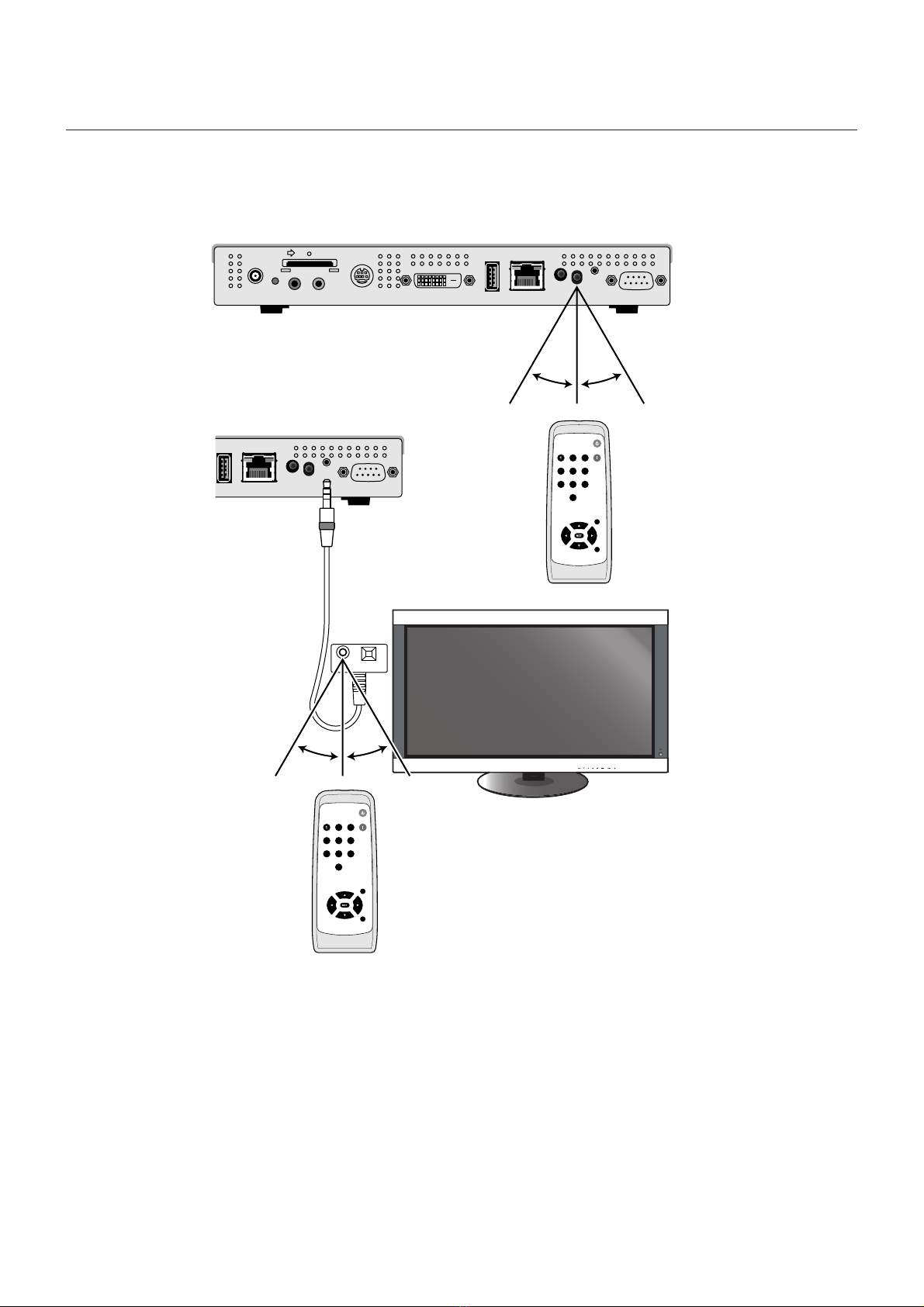

How to Use the Remote control
When operating the remote control, direct the end of the remote control towards the remote control sensor. Use the remote control within 7 m of
the front of the remote control sensor or within 3.5 m when at a 30˚angle above, below, to the left, or to the right of the sensor.
NOTE:
• When using the remote control sensor on the rear side of the equipment, do not connect the wireless
remote control extension cable. When the wireless remote control extension cable is connected, the
remote control sensor on the rear side of the equipment will not work. If it is difficult to operate the
remote control using the remote control sensor on the rear side, use the wireless remote control
extension cable.
• When using a wireless remote control extension cable, secure the light receiving part at the end of the
cable with the enclosed double-faced adhesive tape in a location where the light of the remote control
can reach it easily.
• The remote control operation may not work in places where there is direct sunlight, strong light, or
near fluorescent lights.
SD
POWER RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
USB LAN RS232
MENU
EXIT
POWER ON
STANDBY
23
456
789
0
30˚30˚
MENU
EXIT
POWER ON
STANDBY
23
456
789
0
30˚30˚
Wireless remote control
extension cable

8
Connection and setting
When using LAN, after finishing the “Connection/Setting”in this chapter, refer to the “LAN Connection/Setting”(page 16).
Preparation
In order to use the Media Player to display the program on the Display, the enclosed authoring software, a computer, and a USB memory
(if the program is distributed using USB memory ) are required.
Authoring software
The authoring software is on the enclosed CD-ROM. Install the authoring software on your computer when using it for the first time. Refer to the
authoring software User’s Manual for the installation procedure.
USB memory
Encoded USB memory cannot be used.

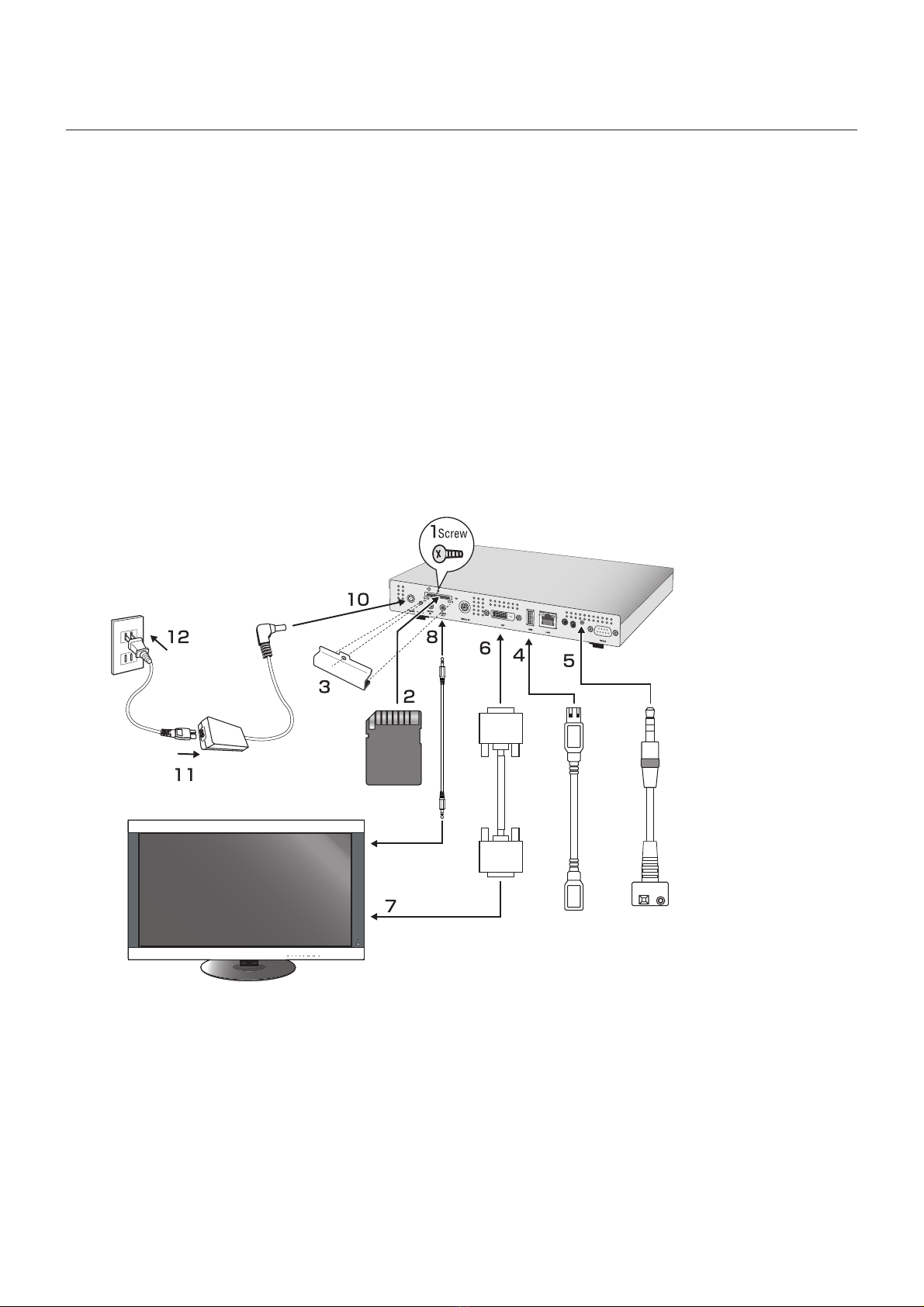

Connection when using USB memory to distribute programs
1. Remove the screw from the mounting hole for the memory card cover.
2. Insert the attached memory card into the memory card connector.
CAUTION:
Insert the memory card with the label side down. Check to make Sure that the write protect switch in riot in the look position.
3. Attach the memory card cover with the screw that was removed from the main body.
4. Insert a USB cable extension into the USB connector.
(When the program is distributed using a USB memory )

9
Connection and setting (continued)
5. Set the wireless remote control extension cable in the wireless remote control extension cable
connector. Secure the light receiving part at the end of the cable with the enclosed double-
faced adhesive tape in a location where the light of the remote control can reach it easily.
NOTE:
When using the remote control sensor on the rear side of the equipment, do not connect the wireless remote control extension cable. When the wireless
remote control extension cable is connected, the remote control sensor on the rear side of the equipment will not work. If it is difficult to operate the remote
control using the remote control sensor on the rear side, use the wireless remote control extension cable.
6. Connect a video signal cable (DVI-D-DVI-D) to the DVI OUT.
7. Connect the signal cable to the DVI input connector of the Display.
8. Connect the audio cable to the AUDIO OUT and connect the other end to the AUDIO IN of
the Display.
9. Switch on the Display. Set the input signal of the Display to “DVI.”
10. Set the plug of the AC adapter cable into the DC In connector.
11. Securely insert one end of the power cord into the power connector of the AC adaptor.
12. Connect the power plug to the AC power source. The power of the Media Player is
automatically switched on.
Warning
•Do not use the equipment with a source voltage other than what is displayed. Doing so may cause fires or electric shock.
•
If the power code provided with this Media Player doesn’t match the voltage of the power outlet, please use a power cord that matches
the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
•Always use the AC adaptor (DXW1225N-S0068Z) enclosed with the equipment. Using other AC adaptors may cause smoke or
sparks.
•When connecting an AC adaptor, make sure that the cord is not bent or placed under the equipment.
•The power cord and AC adaptor enclosed with this equipment should be used only with this equipment. To ensure safety, do
not use with other equipment.
Attention
• Make sure the area around the power source is such that the power plug can be easily plugged in and pulled out.
NOTE:
When starting the Media Player for the first time or resetting the equipment, the message “Factory reset is done”may be displayed.
Setting
Language setting
In the default conditions, the language of the OSD menu is set to English. To change the language setting to other language, press the menu
buttons of the remote control and display the OSD screen, and change the “LANGUAGE”on the OSD display to other language.
Date/Time setting
To display a program on the Media Player according to the set schedule, “DATE/TIME”setting is required. Press the MENU buttons of the remote
control and display the OSD screen, and set the Date and Time.
VIDEO OUT
Set the “VIDEO OUT”according to the optimum resolution of the Display.
For other settings, refer to “OSD.”
NOTE:
•About the automatic OFF function of VIDEO OUT
•For periods of time in which programs are not set, the VIDEO OUT is switched OFF to conserve energy.
(When the product is first purchased, programs are not set, so it is always switched OFF.)
•In Video out off, OSD can be displayed by MENU button on remote control.

10
How to create program data
Preparing content
First, prepare the content you want to display.
CAUTION:
Depending on the file, it may not be used. For details, refer to the “Content Specifications.”
NOTE:
Data created using PowerPoint®presentation software (*.ppt) can be used on this equipment by converting it to still images (*.jpg, *.png, *.bmp) using the
conversion software Viewer PPT Converter on the enclosed utility disc.
However, animations and movies cannot be converted.
Create program data using authoring software
Click on the authoring software in the computer to start the program. For details on how to use authoring software, refer to authoring software
User’s Manual.
Save the program data created on a USB memory connected to the computer using the distribution function of the authoring software.
Content files available for use with the authoring software are as follows:
File format Extension
Still image (JPEG, PNG, BMP) *.jpg, *.jpeg, *.png, *.bmp
Movie
MPEG1, MPEG2 *.mpeg, *.mpg, *.m2p, *.m2v, *.vob
Windows Media Video 9 *.wmv
Audio *.mp3

11
Copy the program data on the memory card of the Media Player
1. Prepare USB memory containing program data.
2. Press the “STANDBY” button of the remote control to switch off the power of the Media
Player, and then set the USB memory containing the program into the USB cable extension.
NOTE:
If the USB cable extension is not used, set the USB memory directly into the USB memory connector on the main body of the Media Player.
CAUTION:
When the program is updated, the program data in the Media Player will be overwritten. Please be aware that the old program data will be lost.
3. Press the “POWER ON” button of the remote control to switch the Media Player on. The
update confirmation screen will be displayed, so press the “SET” button.
The file on the USB memory will be copied onto the memory card in the equipment.
CAUTION:
While the “Now updating... Important!!!”message is displayed, do not remove the USB memory or switch off the power source. The data on the USB memory
or memory card may be damaged.
4. After the files are copied, the equipment will automatically restart. After the equipment
completes initialization (approx. 1 minute) the update confirmation screen is displayed
again. Press the EXIT button and cancel the screen.
5. Remove the USB memory from the USB cable extension.
CAUTION:
The maximum capacity of the program data is 1.8 Gbytes (in the case of the enclosed SD card (2 Gbytes)).
When copying the program data onto the Media Player, make sure the content data capacity in the USB memory does not exceed this size. The maximum
capacity of the SD card set in the Media Player can be confirmed on the “MEMORY CARD”of the OSD screen.
The update time of the program data is about 15 minutes (maximum) when the data capacity is 1.8 Gbytes.

12
Main Menu
DATE/TIME
NETWORK
PREVIEW
TIMER
LANGUAGE
VIDEO OUT
VIDEO IN
MEMORY CARD
IR CONTROL
SLIDE SHOW
OSD
Sub Menu
Date
Time
NTP Server
Time Zone
Static IP/DHCP
IP
Netmask
Gateway
DNS
MAC
Proxy
Update Mode from LAN
Power-ON/Power-OFF
Video-ON/Video-OFF
Normal
S-Video Through Out
Free
Available
Delete All Content Files
Normal
IR Lock
Normal Mode
Slide Show Mode
Video Repeat Mode
Description
Set the current Date and Time.
This is not used in this equipment.
This is not used in this equipment.
Select the IP Address setting method.
Set the IP Address used when selecting a Static IP. The default
setting is (192.168.0.2)
Set the Netmask used when selecting the Static IP. The default
setting is (255.255.255.0)
This is not used in this equipment. Leave the default setting at (192.168.0.1)
This is not used in this equipment. Leave the default setting at (0.0.0.0)
This is the MAC address for this equipment.
This is not used in this equipment. Leave the default setting at (0.0.0.0)
Set it to “Push Mode”(default setting). The “Pull Mode”is not used
with this equipment.
Preview the selected program. Select the program to preview on the “Program List”.
During preview, push any button on the remote control to display the review end
menu. The preview will be displayed repeatedly until it is ended up manually.
* If the OSD menu is selected while displaying the “Slide Show Mode”, the “PREVIEW”is not displayed.
Switches the equipment ON/OFF. If there is program data that set the
time for power on/off, the setting of the program data is valid, and
the timer setting is void. The time set in the program is displayed.
This is a setting for future extensions. Do not select this when using the equipment.
Select the language for the OSD menu.
Select the “VIDEO OUT”according to the Display to be used. Check the
“Read Timing from Display”item and the recommended timing for the
Display will be shown. Depending on the Display, the recommended timing
may not be set normally. In such cases, clear the check from this item.
Normally this is used.
Image from S-VIDEO input will be displayed full screen. Information
other than S-VIDEO (such as Message) will not be displayed.
This is the remaining area available for use.
This is the maximum capacity of content that can be used. As a rough
guide, it should be about 90% of the memory card capacity. (In the case of
the enclosed memory card (2 Gbytes), it is displayed at around 1.8 Gbytes.)
All content will be deleted.
Remote control operation will be locked. To release the lock, press the “MENU,”
“1,”“2,”and “3”buttons on the remote control in order, then wait 3 seconds. If
“OSD Menu Unlock”is displayed, the lock has been released.
The program is displayed according to the schedule set in the
Authoring Software.
This sets the mode in which the images (*.jpg, *.jpeg, *.png, *.bmp) on the
connected USB memory are displayed continuously in the order of the file names.
This sets the mode in which the moving file (*.wmv, *.mpg) on the connected
USB memory are displayed continuously in the order of the file names.

13
Slide Show Mode/Video Repeat Mode
These functions continuously display still image data (*.jpg, *.jpeg, *.png, *.bmp) or movie files (WMV9, MPEG1, MPEG2) in the USB
memory in the order of the file names.
The still image data or movie data can be displayed without using authoring software.
How to set the Slide Show Mode
1. Set the USB memory containing the still image data you wish to display in the Media Player.
NOTE:
•Change the name of the folder containing the still images to something other than “media.”
2. Select “Slide Show Mode” in the “SLIDE SHOW” item of the OSD menu.
3. The time can be set from 3 seconds to 60 seconds. If it is set to “Manual,” the display can
be switched using the remote control direction buttons , .
CAUTION:
The setting for the display time will become valid after a restart.
4. Press the SET button in “Folder,” and select the folder containing the still images you wish to display.
CAUTION:
Folders located lower than 2 levels cannot be selected. The selection of the folder name becomes valid after a restart.
5. Select the “Apply” and select “Yes” on the confirmation screen, and the equipment will
automatically restart.
NOTE:
While displaying still images, press the direction buttons , and the previous or next still image will be displayed.
How to set the Video Repeat Mode
1. Set the USB memory containing the movie file you wish to display in the Media Player.
Note
•Change the name of the folder containing the movie file to something other than “media.”
2. Select “Video Repeat Mode” in the “SLIDE SHOW” item of the OSD menu.
CAUTION:
•Select full screen and the image will always be shown in full screen.
3. Press the SET button in the “Folder,” and select the name of the folder that contains the
movies you wish to display.
CAUTION:
Folders located lower than 2 levels cannot be selected. The selection of the folder name becomes valid after a restart.
4. Select the “Apply” and select “Yes” on the confirmation screen and the equipment will
automatically restart.
How to release the Slide Show Mode/Video Repeat Mode
1. When displaying the slide show or movie play, press the MENU button on the remote
control and display the OSD menu.
2. After selecting ”Normal Mode” in “SLIDE SHOW” on the OSD menu, select “Yes” on the
confirmation screen and the equipment will automatically restart in Normal Mode.

14
How to create program data using external video
External video image from the S TERMINAL input connector can be displayed with still
images and messages. (For details refer to the authoring software User’s Manual.)
The following shows the connection with commercially available AV equipment.
Output
AUDIO VIDEO S-VIDEO
LR
External AV equipment
Video, game machines, etc.
Media Player
S Terminal video output
Audio output
S Terminal input connector
AUDIO IN
S Terminal video cable (commercially available)
Audio cable (Commercially available)
Program layout example
Message
External video image Still image
NOTE:
Video signals with copy protection cannot be displayed
due to copyright protection.

15
These are used to attach the Media Player to our LCD Display. The equipment can be installed to the rear side of the Display.
LCD6520P/L LCD5220 X461HB X461UN M461 P461 LCD4615 M46 V461 V421 V321 LCD4620 LCD4215 M401 P401 M40 LCD4020 LCD3215 LCD3210
•Can be installed on the MP-01
1. Remove the two bracket screws from the side of
the main body of the equipment. (There are two on
each side.) Using the screws you removed, screw
the two brackets to each side of the equipment.
2. Install the equipment on the rear side of the
Liquid Crystal Display. Using an M6 screw
(length is the thickness of the mounting fixture
+10 mm), tighten it securely. (tightening torque
470 -635 N •cm)
CAUTION:
Please purchase the M6 screw as it is not enclosed in the package.
How to use the enclosed brackets
When installing the Media Player on the rear side of the Liquid Crystal Display
The equipment can be installed on the following Liquid Crystal Displays.
LCD3210, LCD4020, LCD4620, M40, M46, LCD3215, LCD4215, LCD4615, V321, V421, V461

16
<Using LAN>
LAN Connection and setting
Introduction
When distributing program data via LAN, LAN connection and setting are required.
There are two methods for setting the IP Address, one for Static IP Address and one using DHCP servers.
In the case of Static IP Address, refer to “LAN connection/setting: When using Static IP Address,”and when using DHCP server refer to “LAN
connection/setting: When using DHCP server.”
NOTE:
The DHCP server provides IP Addresses to equipment on the NETWORK. Normally, they are built-in with routers.
The procedure for LAN setting is as follows.
MP-01 LAN setting
The Media Player name setting of the
MP-01 (required only in the DHCP mode)
Authoring software LAN setting
LAN connection test
* Not required for Static IP.
Open the OSD of the MP-01 using the enclosed remote control and conduct settings.
From Internet Explorer on the computer, call out the MP-01 setting
screen via LAN and conduct settings.
Conduct setting using the panel setting wizard from “panel manage-
ment”of the authoring software.
To confirm the LAN setting, conduct the connection test.

17
<Using LAN>
LAN Connection and setting (continued)
•When connecting directly to a computer
•When connecting with several computers via a hub
•When using a DHCP server (built into routers)
NOTE:
Refer to “LAN connection/setting: Use DHCP servers.”
NOTE:
A maximum of 20 Media Players can be connected.
CAUTION:
Connect the computer and Media Player to the LAN terminal, not the WAN terminal of the routers.
Use commercially available routers, LAN cables, and hub.
Use LAN cables that are category 5 or higher.
SD
POWE RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
LAN straight cable
Computer
+
Authoring software
LAN connector
Media Player
SD
POWE RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
SD
POWE RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
Computer
+
Authoring software
Media Player
Media Player
LAN connector
LAN connector
LAN straight cable
LAN straight cable
Hub
SD
POWE RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
SD
POWE RESET VIDEO IN DVI USB LAN RS232
AUDIO
IN
AUDIO
OUT
LAN straight cable
LAN straight cable
Computer
+
Authoring software
Routers
Hub
Media Player
MediaPlayer
LAN connector
LAN connector

18
<Using LAN>
DATE/TIME
NETWORK
PREVIEW
TIMER
LANGUAGE
VIDEO OUT
VIDEO IN
MEMORY CARD
IR CONTROL
SLIDE SHOW
Static IP
IP: 192 .168 .0 .2
Netmask: 255 .255 .255 .0
Gateway: 192 .168 .0 .1
DNS: 0 .0 .0 .0
MAC: 00:50:41:80:02:A9
Proxy
Update Mode from LAN:
Push mode Pull mode
Apply
LAN Connection and setting: When using Static IP Address
1. Static IP Address setting of the Media Player
1) Switch on the power of the Media Player and Display.
2) Display the OSD screen using the menu buttons on the remote control, and open the
“NETWORK.”
3) Set the IP Address.
1Use the left and right direction buttons on the remote control to select the
“Static IP”.
2Select the “Push Mode”.
3Use the number buttons on the remote control and conduct settings as shown
in the table below. Write down the set IP Address and keep it for reference.
4Select the “Apply”.
5Close the OSD menu using the EXIT buttons.
CAUTION:
Set the computer’s IP Address according to the network environment.
NOTE:
To confirm the IP Address and Netmask of the computer, startup the “command prompt”(In the Start menu>All programs>Accessories.) in
Windows XP/Vista/7 and run C:\> ipconfig.
IP
Netmask
Gateway
DNS
Find out the IP Address of the computer, change only the last digit of the address, and set the address with the IP Address that is not the
same as other media players.
Ex) IP Address of the computer: In the case of 192.168.0.10,
set the first Media Player as 192.168.0.2.
Set the second Media Player as 192.168.0.3.
Set the same value as the Netmask of the computer. The default setting is (255.255.255.0)
Leave it at the default setting. The default setting is (192.168.0.1)
Leave it at the default setting. The default setting is (0.0.0.0)
1
3
24
Static IP Address setting

19
<Using LAN>
LAN Connection and setting: When using Static IP Address (continued)
2. Authoring software panel registration
Click the panel setting button in the “Panel Control” menu of the
authoring software.
1Distribution list setting
If no changes are required, click “Next.”
2Set to LAN (Static IP) in the connection type setting.
3Input the IP Address that was set in 1.
4- 6Set if necessary and then click “Next.”
7Confirm the details of the setting and then click “Complete.”
For all Media Players, implement steps 1 to 7, then reconfirm the setting details in the
“Panel Control”menu. Setting is completed.
NOTE:
The settings above can be changed in the “Panel Property”of the “Panel Control”.
3. LAN connection test
1) Startup the Internet Explorer on the computer, and input the
Static IP address set in the authoring software after the “http://”
in the address bar.
2) If the user name and password screen are displayed, input the
user name: default and password: 0000.
3) Confirm that the setting screen is displayed.
NOTE:
The Media Player setting can be confirmed on the WEB setting screen.
CAUTION:
It may not be properly displayed on a browser other than Internet Explorer.
IP Address setting of the authoring
software
Panel setting wizard startup button of the
authoring software
Example: Register 2 Media Players
User name, password screen
WEB setting screen

20
<Using LAN>
DHCP
IP: 192 .168 .0 .3
Netmask: 255 .255 .255 .0
Gateway: 192 .168 .0 .1
DNS: 192 .168 .0 .1
MAC: 00:50:41:80:01:34
Proxy
Update Mode from LAN:
Push mode Pull mode
DATE/TIME
NETWORK
PREVIEW
TIMER
LANGUAGE
VIDEO OUT
VIDEO IN
MEMORY CARD
IR CONTROL
SLIDE SHOW
Apply
LAN Connection and setting: When using the DHCP server
1. Set the Media Player to DHCP mode.
1) Switch on the power of the Media Player, Display,
hub, and routers.
2) Use the menu button on the remote control to
display the OSD screen, and open “NETWORK”
3) Set the OSD screen as shown below.
1Select “DHCP”using the left and right buttons of the remote control.
2Select “Push Mode”.
3Select “Apply”.
2. Confirm and set the Media Player name
The Media Player name is required in the “Panel Control” of the authoring software.
1) Connect the computer, Media Player, and DHCP server (or routers) on the NETWORK, and
switch on the power.
2) Open “NETWORK” on the OSD screen of the Media Player, confirm that the IP address is
properly set on the DHCP server, and keep a memo of the IP address.
(It can be set to anything other than 0.0.0.0.)
3) Confirm that the computer’s IP Address is set.
NOTE:
IP Address is set when the DHCP is set in OSD or during startup.
4) Startup Internet Explorer on the computer, input the IP Address of the Media Player
confirmed in 2) in the address bar after “http: // ,” and click the “Go” button.
5) The input screen for the user name and password will be displayed. Input the username in
one-byte characters and the default password, 0000, then click
“OK.”
CAUTION:
•Prepare routers that have a DHCP server or DHCP server function.
•In the case of routers, make the DHCP server function valid.
•Set the computer’s IP Address according to the network environment.
NOTE:
To confirm the IP Address and Netmask of the computer, startup the “command prompt”(In the Start menu>All programs>Accessories.) in
Windows XP/Vista/7 and run C:\> ipconfig.
1
3
2
DHCP setting
Ex. http: //192.168.0.2
Input the user name and password in the
setting screen
