Professional Installation
Projectors
PX Series

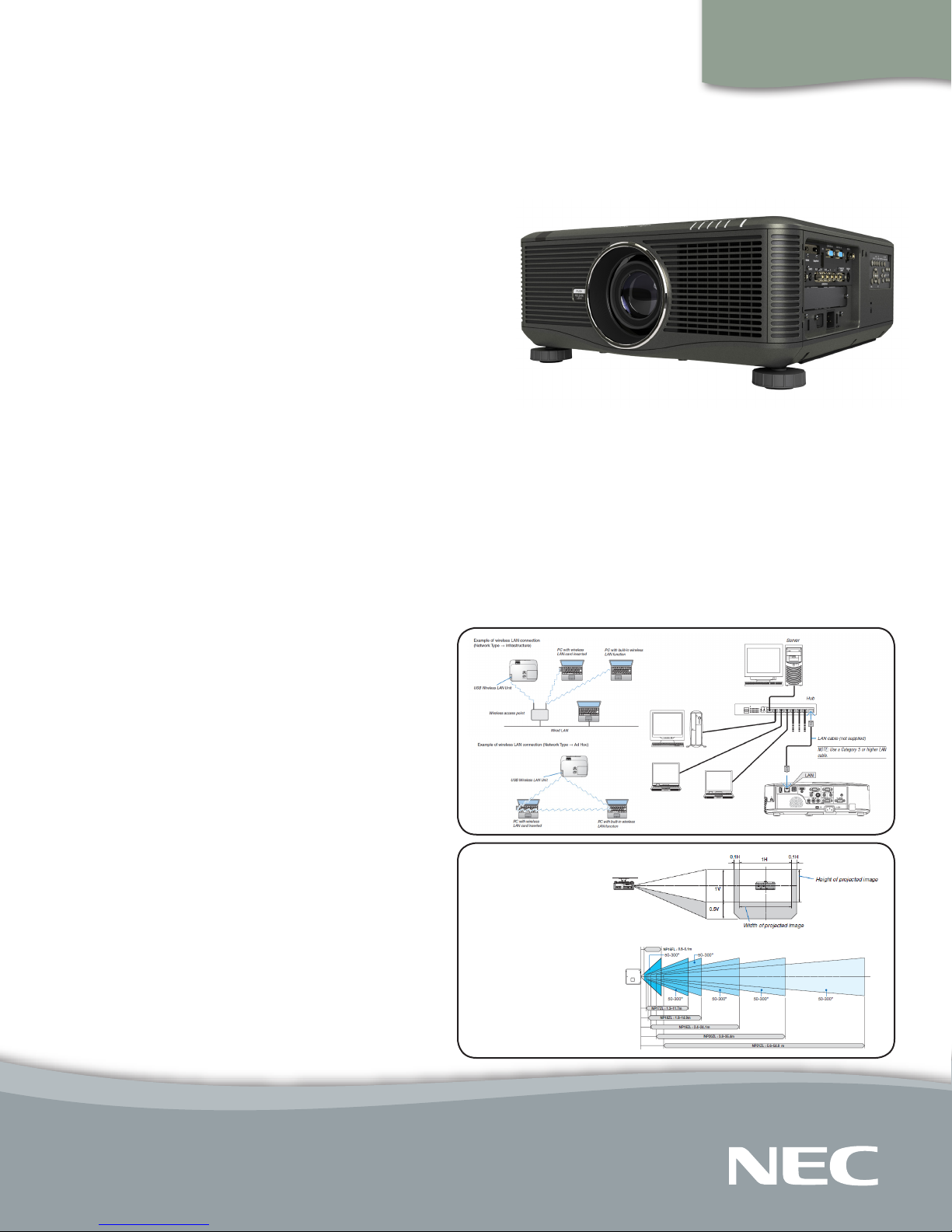

PX750U digital projector
Lens Shift
Enjoy greater
installation
flexibility with up to
50% vertical lens
shift and
+/- 10% horizontal
lens shift. Lens
throw distances
range from 2.6 to
179.8 feet.
Powerful installation projector equipped to take on the most demanding
integration projects.
FLEXIBILITY ENABLES PERFORMANCE
° Integrated Device Technology HQV™ is a high-performance video processing/
scaling system designed for computer signals as well as standard or high-
definition video. The technology produces superior video processing using pixel-
based, motion-adaptive de-interlacing to remove undesirable motion artifacts
typical of interlaced signals. This processing creates life-like images in
applications such as video conferencing.
° Bright enough for most applications: 7500 lumens with a 6-segment (RGBYCW)
color wheel. For higher video quality color reproduction, BrilliantColor™
technology and a second 6-segment (RGBYCM) color wheel (included) can dramatically increase color saturation at mid and low video levels,
while optimizing color gain across the full color gamut.
° Geometric correction tool allows you to project on spheres, cylinders and more
° VIDI technology, a Phillips innovation designed to work in conjunction with the color wheel, uses a brilliant pulse to increase the brightness of the
image and a dark pulse to increase the contrast ratio
INTEGRATED NETWORKING AND ASSET MANAGEMENT
° Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
° Integrated high-speed wireless LAN IEEE 802.11b/g
° Desktop control allows you to securely transmit information wirelessly to the projector from a docking station or PC in another room
° Image Express Utility (IEU 2.0; compatible with Windows or Mac operating systems) dedicated projector software provides wired and wireless data
transmission via peer-to-peer or over the network
 •Broadcastmodeallowsyoutosendinformationfromone
computer to several projectors
° Windows Network Projector function within Windows Vista connects
directly to networked projectors without the need for additional
proprietary software
° Windows Remote Desktop function allows you to control a networked
computer by connecting a USB mouse and keyboard directly to the
projector’s USB input
° Windows Network Drive Function displays multimedia files (.jpeg,
.bmp, .png, .mpeg2 or .wmv9) in the Windows shared folder on a
local network using the Viewer function—all without bringing your
PC into the conference room
° Windows Media Connection Function displays multimedia files
(.mpeg2, .jpeg or .wmv9) stored on the Windows Media Connect
server or a local network using the Viewer function—all without
bringing your PC into the conference room
° Crestron Roomview Connected™
SECURITY FEATURES PROVIDE PEACE OF MIND
° Cabinet control lock setting enables user to deactivate buttons on
cabinet to prevent unwanted changes to projector settings
° Logo lock restricts changes to logo saved in projector memory
° Password protection restricts unauthorized use of projector
° Email notification informs the system administrator when the lamp
approaches the end of its useful life

DICOM SIM
DICOM Simulation
enables users in medical
environments to display
accurate diagnostic
images.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
Built-in wall color correction presets
These provide for adaptive color tone correction to display properly on non-white surfaces.
BUILT-IN SOFTWARE
2500-hour filter life
NEC is committed to designing its products to provide long lifecycles. This commitment even extends to
components within its products, including the improved filter. This virtually maintenance-free filter reduces the
frequency at which cleaning is required, thereby decreasing your total cost of ownership. Filter replacement is
only required at the time the lamp is replaced.
DESIGNED WITH THE ENVIRONMENT IN MIND
°Extended lamp life with ECO Mode™ technology increases lamp life up to 2500 hours, while lowering power consumption
°Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
°Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
°Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional
message at startup. A green ECO Mode button on the remote control makes the switch easy.
°Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with
no cooling required after shutdown) ensures efficient energy usage
°Sleep timer can be set to automatically turn off the projector at set countdown times
°Low power consumption (0.2W in stand-by mode) minimizes energy costs
°Direct power off provides instantaneous shutdown of the projector
Built-in stacking correction
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to 30,000
lumens, which is ideal for larger-sized screens and
environments with heavy ambient light. This feature
also prevents the complete loss of an image, which
can happen when using only one projector.
PIP/Side-by-Side
This function allows two
sources to be displayed on the
screen at one time in either a
picture-in-picture or side-by-side
configuration.
Edge blending
This function seamlessly blends multiple projected images
to display a single high-resolution image.

GET CONNECTED WITH A WIDE SELECTION OF INPUTS
°Dual computer inputs ensure quick switching between presentations
°Four audio inputs (two mini stereo [Comp1 & Comp2], R/L [RCA - shared by video sources] and HDMI)make it easy to add sound
to enhance your presentations
USB Viewer
In instances when you’d prefer to leave
your laptop behind for a presentation,
PX Series projectors can deliver a
solution. Using the presentation
conversion software included with
your projector, simply place your file
onto a USB drive and plug it into the
projector’s USB port. This allows you
to display images stored as .jpgs from
optional USB memory.
ADVANCED SOFTWARE FEATURES
Geometric Correction
Projecting an image isn’t confined to
a standard flat screen or wall with the
NEC PX Series. Geometric correction
allows these models to project an im-
age on spheres, cylinders, corner angles
and many more non-standard surfaces.
Cornerstone
Enhanced keystone correction allows for horizontal, vertical and diagonal image
correction for aligned images even when the projector is set up at an angle to the
screen.
DisplayPort
This input
provides PX
Series models
with
expanded
connectivity
with advanced
technology.
Virtual Remote™ (DDC/CI)
Used over the VGA cable, you can control the projector
directly from a computer without the need for additional
control cables.
Remote control
Easy control
from remote
allows you to
adjust lamp
mode, aspect
ratio, volume
and image
all with the
touch of a
button.
HDMI input
Among the PX Series’ wide
selection of inputs is an
HDMI w/HDCP
for connecting to
high-definition
sources such as
Blu-ray players,
cable boxes, satellite receivers and
personal computers.
Open Pluggable Specification (OPS)
The first industry-wide standardization in
option slots simplifies installation, use and
maintenance, while offering superior input
flexibility.

NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
3D Reform, Advanced AccuBlend, AutoSense and ECO Mode are trade-
marks of NEC Display Solutions. All other brand or product names are
trademarks or registered trademarks of their respective holders.
Product specifications subject to change. 7/11 ver. 2.
©2011 NEC Display Solutions of America, Inc. All rights reserved.
UNIQUE FEATURES
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector can-
not be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when non-
native resolution sources are connected to the projector
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
64-step image magnification with location control
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make
adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN
network. Email notification of error messages or lamp end-of-
life can be sent to remote locations.
WARRANTY
Registered owners receive a 3-year parts and labor warranty
including the first year of InstaCare. The lamp is covered for
one year or 500 hours, whichever comes first. InstaCare pro-
vides the original owner one year of either limited 3 business
day repair/return or next business day exchange.
IN THE BOX
Remote control, remote control cable, batteries, power cord,
RGB signal cable, lens cap, user’s manual on CD-ROM, quick
start guide, product registration card, wired and wireless net-
work setup guide, lens anti-theft screw

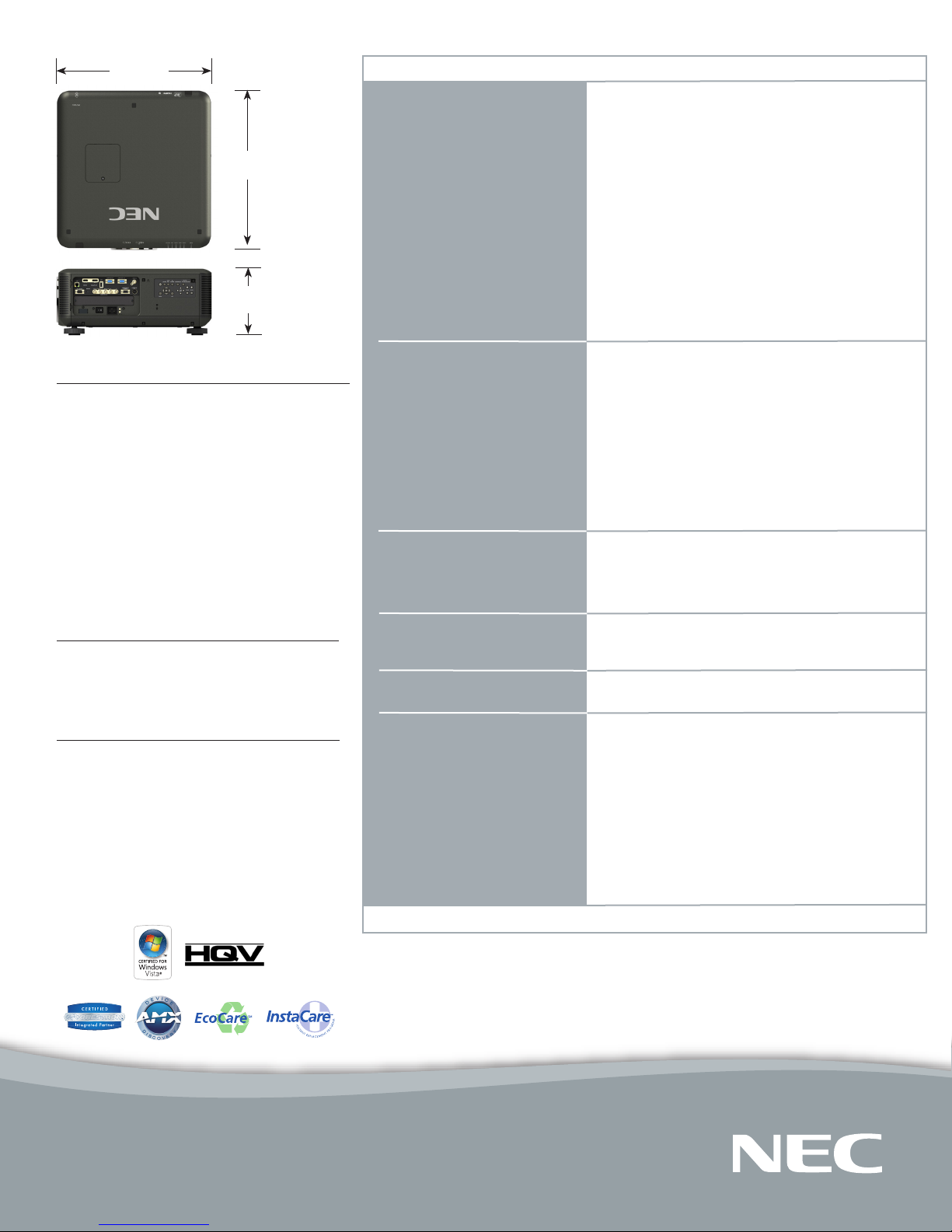

19.8”
(504mm)
20.3”
(516mm)
7.6”
(192mm)
Ordering Model Numbers
NP-PX750U
OPTICAL
Display Technology
Resolution
Native
Maximum
Light Output (lumens)
Contrast Ratio (up to)
Lamp Type
Lamp Life (up to)
Screen Size (diagonal)
Throw Ratio
NP16FL
NP17ZL
NP18ZL
NP19ZL
NP20ZL
NP21ZL
Lens*
Zoom
Focus
F-number
NP16FL
NP17ZL
NP18ZL
NP19ZL
NP20ZL
NP21ZL
Shift
Shutter
Keystone Correction
SIGNAL COMPATIBILITY/CONNECTIVITY
Scan Rate
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB1 (analog)
RGB2 (analog)
RGB3 (analog)
RGB4 (digital)
RGB5 (digital)
Video 1
Video 2
Video 3
Option Slot
Monitor Out
External Control
Sync Compatibility
Networking
Screen Trigger
USB
ELECTRICAL
Power Requirements
Input Current
Normal Mode
ECO Mode
Power Consumption
Normal Mode
ECO Mode
Standy Power / Power Saving
MECHANICAL
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
ENVIRONMENTAL
Operational Temp
Humidity
Storage
ACCESSORIES
NP16FL
NP17ZL
NP18ZL
NP19ZL
NP20ZL
NP21ZL
SB-01HC
PX750CM
PXCase-01
RMT-PJ33
PWRCRD-PJPX
RGBCBL-PJPX
NP02FT
SCP200
NP22LP
NECEW2-I
NECEW1-I
ADVEXON1-I
ADVEXON2-I
TBD
TBD
TBD
0.67” DMD
WUXGA 1920 x 1200
WUXGA 1920 x 1200
7500 normal / Eco = approx. 85% of normal mode
2100:1
(2) 400W AC
2000 hours normal / 2500 hours eco
50 to 300 in. / 1270 to 7620mm
0.76:1
1.25 - 1.79:1
1.73 - 2.27:1
2.22 - 3.67:1
3.58 - 5.38:1
5.31 - 8.26:1
Power
Power
F=1.85, f=11.6mm
F=1.85 to 2.5, f=18.7 to 26.5mm
F=1.64 to 1.86, f=25.7 to 33.7mm
F=1.86 to 2.48, f=32.9 to 54.2mm
F=1.85 to 2.4, f=52.8 to 79.1mm
F=1.85 to 2.48, f =78.5 to 121.9mm
Motorized 50% Vertical and 10% Horizontal
Yes (motorized)
V +/-35º H +/- 30º
Horizontal 15 – 108 kHz / Vertical 48 – 120 Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
1080p, 1080i, 720p, 575p, 575i, 480p, 480i
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WXGA
Yes
15 pin
15 pin
5-BNC
HDMI w/HDCP
DisplayPort
RCA
S-Video
Component
HD/SD-SDI
1-15 pin
9-pin D-sub, RS-232, IR
Separate Sync / Composite Sync / Sync on G
RJ-45 and Wireless LAN (optional)
Yes
Viewer
100 – 240V AC, 50/60Hz
10.8A dual lamp / 3.8A single lamp
5.8A dual lamp / 3.1A single lamp
1006W dual lamp / 530W single lamp
810W dual lamp / 439W single lamp
33W / 23W / 0.2W
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
19.8 x 20.3 x 7.6 in. / 504 x 516 x 192mm
43.4 lbs. / 19.7 kg
43 dB normal / 39 dB eco @ 1m
USA UL60950-1 FCC Part15 Class B, Canada CSA60950-1 IECS-003 Class B
41° – 104°F / 5° – 40°C Sea level / 41° – 73°F / 5° – 23°C @10,000 ft.
20-80% non-condensing
14° – 122°F / -10° – 50°C
0.76:1 fixed short throw lens
1.25 - 1.79:1 zoom lens
1.73 - 2.27:1 zoom lens
2.22 - 3.67:1 zoom lens
3.6 - 5.4:1 zoom lens
5.30 - 8.30:1 zoom lens
HD/SD-SDI input card
Ceiling mount
ATA-certified case for shipping and secure storage
Replacement remote control
Replacement power cable
Replacement RGB signal cable
Replacement filter
Suspended ceiling plate
Replacement lamp
Extends term of parts and labor warranty to 5 years
Extends term of parts and labor warranty to 4 years
Extends term of InstaCare service program to 2 years
Extends term of InstaCare service program to 3 years
Maintenance plan
Extends maintenance plan for 3rd year including parts & labor
Extends maintenance plan for 4th year including parts & labor
Specifications for PX750U
* Lens does not ship with the projector.
Additional accessories are available, including screens, carts, mount accessories and replacement cables. Visit www.necdisplay.com for details.
