NEC FS-8002 User manual

FS-8002
INSTRUCTION MANUAL
COLOR TELEVISION

1
Table of contents
Safeguards 2
INTRODUCTION
Features 3
Installation 3
To connect the aerial 4
To prepare the remote control 4
Identification of controls 5
Remote control 7
Turning the Power ON/OFF 8
To turn the power on/off 8
Auto power off 8
Last mode menory 8
Tuning the TV channels 9
Auto setup system 9
Edit 10
Convenient picture control 11
To select the picture mode 11
Enjoying wide and zoom picture 12
Convenient sound control 13
To volume control 13
To mute the sound 13
To display the position number 13
To select the sound mode 14
To adjust the headphone volume 14
To adjust the sound balance 15
To adjust sound frequency 15
To select sound effect 15
Enjoying stereo and bilingual broadcasts 16
Stereo programs 16
Bilingual programs 16
Using other menus 17
To set clock 17
To turn on the TV automatically(wake time) 18
To turn off the TV automatic(off time) 18
Sleep time setting 19
To select the screen color 20
To select the auto volume control 21
To select channel lock 21
To select child lock 21
Watching picture in picture 22
To watch a TV or an external source as a sub-picture 23
To switch the main and sub picture of the pip 24
To connect other machines like VIDEO 25
Name and functions of connective terminals 25
Connecting VIDEO 26
Connecting at AV2(SCART) 27
Connecting with S picture VIDEO 28
Connecting with VIDEO CAMERA(CAMCORDER) 29
Connecting with AUDIO set 30
Connecting DVD PLAYER 31
Broadcast transmission systems in each country 31
Viewing teletext(option)/use of the teletext buttons 32
To select the text mode 32
Split screen 32
Page select 32
Index 32
Mix 32
Size 32
Reveal 33
Hold 33
Cancel 33
Subcode 33
Specification 34
NEC Service Centres 35

2
SAFEGUARDS
To operate your receiver at the peak performance, please read this Instruction Manual carefully and retain it for the
future reference.
MWater and Moisture : Never install the set in the following places : in the bathroom, in a wet basement(Dripping or
splashing water).
MHeat : Never place the set near sources(e.q. radiator).
MVentilation : Do not cover the ventilation opening in the cabinet. Accidental contact with high voltage components
could result in electric shock. Never place the set in a confined space such ac a bookcase or built-in
cabinet, unless proper ventilation is provided.
MObject Entry : Do not insert foreign objects, such as needles and coins, into the ventilation openings.
MLightning Striking : You should disconnect your set from the main and the aerial system during thunderstorms.
MCleaning : Unplug the set from the main before cleaning. Do not use liquid cleaners of aerosol cleaners. Use only a
lightly dampened soft cloth.
MDo not place liquids including flower vases and vessels filled with chemicals or water, etc. on the top of the unit.
Keep the inside of the unit free from foreign objects such as hairpin. If hazardous objects fall inside of the unit,
unplug it immediately and call a qualified technician for removal.
MWhen you don’t use the set for an extended period during vacation or other occasions, always make sure of
switching off the MAIN POWER(ON/OFF) SWITCH of the TV set.
MDo not place this television equipment on an unstable cart, stand, or table.
The television equipment may fall, causing serious injury to a child or adult, and serious damage to the
equipment. Use only with a cart or stand recommend by the manufacture’s instructions, and should use a
mounting kit approved by the manufacture.
MWhen replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacture that have the same characteristics as the original parts. Unauthorized substitutions may result fire,
electric shock, or other hazards.
MUpon completion of any service or repairs to the set, ask the service (as specified by the manufacture) to
determine that the set is in safe operating condition.
MIf anything goes wrong, don’t try any fix it yourself, get a qualified service agent to look at it.
MWhen Install the TV set, make the gap at least 10cm from the wall(at back, bottom, top and side of the TV set).
MThe appliance is not intended for use by young children or infirm persons without supervision.
MYoung children should be supervised to ensure that they do not play with the appliance.
NOTE
If the receiver is moved or placed in a different direction, the MAIN POWER (ON/OFF) SWITCH must be switched off for
at least 15 minutes in order to take out a colour strain on the screen.

3
Features
INTRODUCTION
Installation
Double Window
You can enjoy two programs simultaneously by splitting the screen in two.
16:9 screen
You can select a desired 16:9 (wide screen) screen mode for movies as well as the normal 4:3 picture mode.
A variety of AV terminals for external equipment connection.
MTwo sets of video/audio inputs on the rear and one set on the front.
MS-VIDEO terminals.
MOne set of A/V output (TV signal) terminals.
MOne set of SCART JACK input/output on the rear.
Selectable picture and selectable sound
Allows one-touch selection of your favorite picture quality and tone quality.
NICAM and German stereo/bilingual broadcasts receivable
PIP (Picture-in-Picture)
The PIP function can show another picture on the main picture simultaneously.
Off-timer and Wake-timer
Turns off the TV automatically and will turn it back on at a preset time.
Curtain Effect
When the power on/off, the screen is displayed like a curtain and you can hear a beep.
Split screen
You can enjoy two programs simultaneously (Main picture & Teletext Picture).
Exclusive terminals of DVD (Cr & Cb)
You can enjoy better DVD-Picture with use the Exclusive terminals of DVD (Cr & Cb).
MINSTALL the unit in a room where direct light will not fall upon the screen.
Tonal darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended
for comfortable viewing.
MALLOW enough space between the unit and the wall for proper ventilation.
MAVOID excessively warm locations to prevent possible damage to the cabinet or components.
MRATED VOLTAGE: 110-240V~, 50/60Hz.
Automatic degaussing
All colour television receivers are sensitive to magnetic influences usually caused by either moving the receiver from one
place to another or using certain electrical appliances near the receiver. This residual magnetism, as it is called,
sometimes causes distortion which gives rise to "blotchy" areas of colour in the picture. To avoid these effects, the
receiver incorporates an automatic degaussing switch.
This circuit removes any residual magnetism in the metal parts of the picture tube and ensures that each time the
receiver is turned "ON" using the main switch, the purity of the colours displayed on the screen remains true and lifelike.
If the unit is moved or made to face a different direction, the main switch must be off at least 30 minutes in order for the
automatic degaussing circuit to operate properly.
INTRODUCTION

4

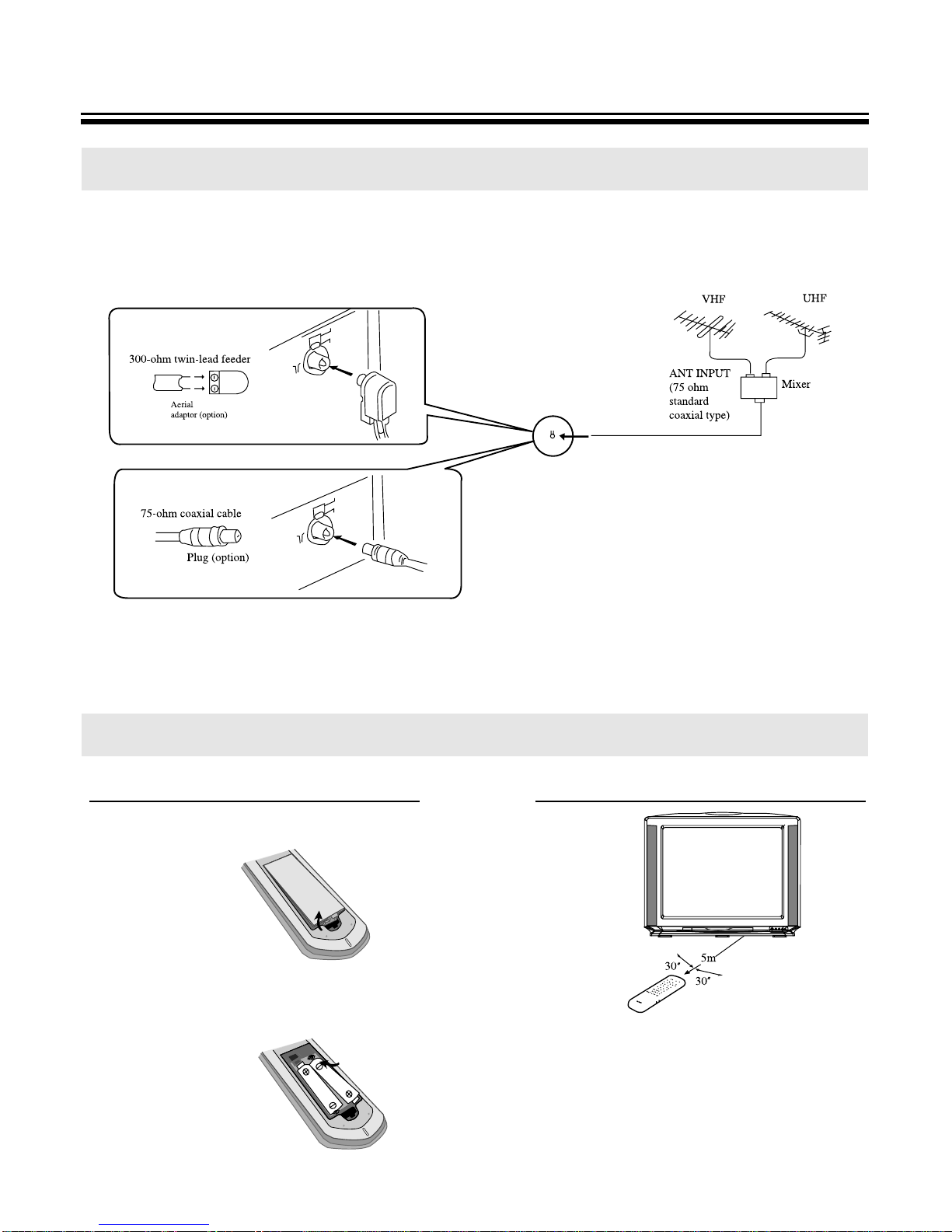

To connect the aerial
To prepare the remote control
Installation
Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The
exact type and positioning of the aerial will depend upon your particular area.
Notes
MWhen using an outdoor aerial, disconnect the
leads of the indoor aerial, if connected, from the
aerial terminal socket.
MIt is recommended that the 75-ohm coaxial cable
be used to eliminate interference and noise
which may occur due to radio wave conditions.
MThe aerial cable should not be bundled with the
power cord and the like.
Using the ANT(attenuator) switch (See page 6)
When visual interference occurs, set the ANT switch to
ON using a small screwdriver.
Battery installation Tips for remote operation
1
2
Remove the battery cover.
Insert two size AA batteries matching the +/-
polarities of the battery to the +/- marks inside the
battery compartment. MWhen the remote control will not be used for a long
period of time or when the batteries are worn out,
remove the batteries to prevent leakage.
MDo not throw the batteries into a fire. Dispose of
used batteries in the specified manner.
MDo not drop, dampen or disassemble the remote
control.
Effective range

5
(3) VIDEO 3 input terminals
(S-VIDEO, VIDEO, AUDIO L, R)
Use this Jack when listening to the
sound outputted to the speaker
with the headphone, and you can
listen to the sound of the left side
screen(main picture) when the
double window on the picture-in-
picture mode is selected.
Don’t attatch the ‘s-video cable’ &
‘composit video cable’ together.
The picture becomes bad if the ‘s-
video cable’ & ‘composit video
cable’ are attatched together in
VIDEO 3 input terminal.
Identification of controls
*The following describes the name of each part of the TV and remote control.
Infrared sensor
ON TIMER indicator
Main power switch
FRONT
POWER indicator
POWER
Digital EYE sensor

6
R-AUDIO-L VIDEO
R-AUDIO-L
Cr-DVD-Cb
VIDEO(DVD-Y)
(1)(1)
BACK
This always provides with TV
Video 1 input terminals
ANT
TOP
VIDEO 2(SCART JACK) input/output terminal
(SCART does not supports S-VIDEO)
(2)
signal output of the selected channel.
A/V OUT OF SCART TERMINAL
will provide with TV signal output of the selected channel.

7
REMOTE CONTROL
TV /VIDEO /DVD
INPUT SELECT
TEXT
SOUND MUTE
PR DOWN(PAGE DOWN)
SLEEP TIME SELECT
CHANNEL LOCK
SELECTABLE SOUND
SYSTEM
MENU
STEREO /BILINGUAL
SELECT
VOLUME DOWN
POWER ON/OFF
RECALL
PR SELECT 0~9
(PAGE SELECTOR 0~9)
SELECTABLE PICTURE
HEADPHONE
VOLUME UP/DOWN
WIDE/ZOOM SELECT
SOUND EFFECT
PR UP(PAGE UP)
VOLUME UP
DIGITAL EYE

Turning the power on/off
The following describes how to turn the TV on/off using the main
switch and the remote control.
< To turn the power on/off >
1. Press the main power switch.
The power indicator lit up red or amber.
In displays the standby mode that the power indicator lit up red.
2. If no picture appears, press the “POWER ON/OFF, PR y/x, direct
select buttons(0~9)”. By pressing the number(one digit only) where
the program you want to watch is preset, you can turn on the set
program selection at the same time. When the TV is on, the power
indicator will lit up amber.
MWhen the remote control is not at hand, you can turn on the set by
pressing the PR y/xbuttons on the TV set.
3. Adjust the sound volume with the C/Bbuttons in receiver or remote
control.
4. To switch to the standby mode, press the POWER ON/OFF button.
At the same time the power indicator is lit up red.
5. To turn off completely, press the main power switch. At the same time
the power indicator is turned off.
MIf you don’t use the TV set for a long time, turn off completely by
using the main power switch on the TV set. You can decrease
unnecessary power consumption.
MWhen you turn off completely by using the main power switch,
Sleep Time and Timer setting are cleared.
Auto-power-off
If TV broadcast for a day is finished, the TV will automatically turn off
after about 30 minutes. However, if the Off -time or Sleep time is
operating, it takes precedence. This Auto-Power-Off feature does not
operate in the VIDEO mode.
Last-Mode-Memory
Settings of picture and sound conditions and preset programs are stored
in the memory even after turning off the power, therefore, next time the
power is turned on, the system will function in the last setting modes.
8
Turning the power on/off
TURNING THE POWER ON/OFF
MThe following describes how to turn the TV on/off using the main switch and the remote control.
VOLUME
POWER

9
AUTO SETUP SYSTEM
1. Press the MENU button to select to INSTALL.
2. Press the C/Bbuttons and then
INSTALL SYSTEM.
3. Select AUTO SETUP with the
PRy/xbuttons and the C/B
buttons to start AUTO SETUP.
4. Please wait until the EDIT menu
appears.
MNOTE
Press the C/Bbuttons and keep it pressing for 2seconds, the AUTO
SETUP will be started.
MWarning
This television has been factory pretuned to channels 2, 7, 9, 10
and 28. If the auto search function is activated, these preset
channels will be deleted and new channels tuned to 1, 2, 3 ETC..
TUNING THE TV CHANNELS
AUTO SETUP SYSTEM

10
EDIT
1. Press the menu button to select
INSTALL.
2. Press the C/Bbuttons and then
INSTALL SYSTEM.
3. Select EDIT with the PR y/x
buttons and press the C/B
buttons to start EDIT.
4. DELETE PROGRAM POSITION DATA.
Position the blue-line to the
program to delete with the PR
y/xbuttons and the DELETE
button.
5. CHANGING THE ORDER OF THE CHANNELS
Position the blue-line to a program to move with the PR y/x
buttons and the move button.
Press the PR y/xbuttons to position the blue-line to another
program to exchange.
By pressing the MOVE button again, selected two program will
be exchanged.
6. ENTER A STATION NAME
Locate the cursor to below NAME with the C/Bbuttons.
Using the PR y/xbuttons, select the desired letter, number or
blank.
Press the B(right button) to select the next position.
7. SELECT THE PICTURE SYSTEM
Position the blue-line to the PICTURE to select with the C/B
buttons and change the picture (ex. PAL, SECAM, NTSC, ..) with
the PR y/xbuttons or you can select the PICTURE mode with the
SYSTEM button on the remote controller.
8. SELECT THE SOUND SYSTEM
Position the blue-line to the SOUND to select with the C/Bbuttons
and change the SOUND (ex. BG, DK, I, M, ..) with the PR y/x
buttons.
9. SKIPPING THE CHANNELS
You can select SKIP with the SKIP button in EDIT mode or
locate in the cursor to below SKIP with the C/Bbuttons and then
press the PR y/xbuttons to skip the desired program.
A program marked with skip “V” is skipped when changing
channel using the program UP/DOWN(on normal operation).
Press the NUMBER buttons 0~9 or the PR y/xbuttons to select
program number you want. The screen will change according to
the selected program number.

11
TO SELECT THE PICTURE MODE
1.Press the SELECTABLE PICTURE
( ) button at remote control to select
the desired picture quality.
Normal, Mild and Favourite can be selected cyclically.
2.Or press the MENU button to
select the PICTURE and then to
be displayed on the right
appearance.
BY pressing the C/Bbuttons, the
following four mode change
cyclically.
3.You can select the BRIGHTNESS,
CONTRAST, COLOUR, and
SHARPNESS with the PR y/x
buttons.
Select the desired item with the
PR y/xbuttons and press with
the C/Bbuttons adjust the level.
CONVENIENT PICTURE CONTROL
MYou can select the picture quality instantly.
MODE Picture Quality
NORMAL hard picture
MILD soft picture
DIGITAL EYE picture by optical-
sensor
FAVOURITE adjustable
Item Pressing
CB
BRIGHTNESS darker lighter
CONTRAST weaker stronger
COLOUR paler deeper
SHARPNESS softer sharper
- - : - -
NORMAL
NICAM STEREO

12
TO SELECT THE WIDE OR ZOOM 1~ZOOM 4 SCREEN
1.By pressing the WIDE/ZOOM button in remote control, the following
six modes change cyclically.
2.Or press the MENU button to
FEATURES.
3.And then to be displayed on the
right appearance.
Select the ZOOM with the PR
y/xbuttons.
4. By pressing the C/Bbuttons, the following six mode change
cyclically.
ENJOYING WIDE AND ZOOM PICTURE
MYou can enjoy WIDE picture and ZOOM 1~ZOOM 4 picture with TV.
In addition to regular wide/zoom screen mode.
NORMAL WIDE ZOOM1 ZOOM2
ZOOM3 ZOOM4 NORMAL

13
TO VOLUME CONTROL
Adjust the volume with the volume Down/Up button on the upper of
the set, or with the C/Bbuttons on the remote control.
TO MUTE THE SOUND
The muting function is convenient when you need to pay attention to
surround sounds, answer a phone call, receive a visitor, etc.
1.Press the SOUND MUTE button.
2.To restore the sound, press the SOUND
MUTE button again.
TO DISPLAY THE POSITION NUMBER
Generally, the programme number and stereo or bilingual reception
indicator will disappear within 4seconds once the program number
has been changed, and the menu display will disappear within few
seconds once the menu button has been pressed.
To display the position number, press RECALL button and this
display will disappear automatically within a few seconds.
CONVENIENT SOUND CONTROL
MYou can select and adjust the sound quality as you like.
VOLUME

14
TO SELECT THE SOUND MODE
1.Press the SELECTABLE SOUND
( ) button to select the desired
sound quality.
NORMAL, FAVOURITE, MUSIC,
SPEECH can be selected cyclically.
2.Or press the MENU button to
select the SOUND and then to be
displayed on the right
appearance.
Select the PRESET with the
PR y/xbuttons.
By pressing the C/Bbuttons, the
following four mode change
cyclically.
TO ADJUST THE HEADPHONE VOLUME
1. Press the CH/P VOLBbutton in the remote control to adjust
Headphone Volume.
2. Or press the MENU button to
select the SOUND and then to be
displayed on the right
appearance.
Select the HP VOLUME with the
PR y/xbuttons.
By pressing the C/Bbuttons,
Headphone Volume can be
adjusted.
SPEECH
MONO
- - : - -
HP VOLUME

15
TO ADJUST THE SOUND BALANCE
Press the MENU button to select the
SOUND and then to be displayed on
right appearance.
Select the BALANCE with the
PR y/xbuttons.
Adjust the BALANCE with the C/B
buttons.
Press Cbutton to decrease the right
speaker volume and the Bbutton to
decrease the left speaker volume.
TO ADJUST SOUND FREQUENCY
Press the MENU button to select the SOUND and then to be
displayed on the right appearance.
Select the sound frequency(120HZ,
500HZ, 1500HZ, 5000HZ, 10KHZ)
with the PR y/xbuttons.
By pressing the C/Bbuttons to
activate the sound frequency.
TO SELECT SOUND EFFECT
Press the SOUND EFFECT button at remote control to select sound
effect.
The display of SURROUND, DYNAMIC, OFF change cyclically
whenever you press the SOUND EFFECT button.
Item Pressing
CB
120HZ Decrease 120HZ Increase 120HZ
500HZ Decrease 500HZ Increase 500HZ
1500HZ Decrease 1500HZ Increase 1500HZ
5000HZ Decrease 5000HZ Increase 5000HZ
10KHZ Decrease 10KHZ Increase 10HZ
DYNAMIC
MONO
- - : - -
SURROUND
MONO
- - : - -
OFF
MONO
- - : - -

16
Stereo Programs
Press the STEREO/BILINGUAL SELECT
( )button to select to nicam-
stereo/mono mode.
BILINGUAL PROGRAMS
1.When a bilingual program is received
DUAL 1, DUAL 2 appears.
2.Press the STEREO/BILINGUAL SELECT button to be heard.
The sound differs according to transmission system : DUAL 1 and
DUAL 2 appear cyclically on the screen.
ENJOYING STEREO AND BILINGUAL BROADCASTS
MThe unit receivers both stereo and bilingual broadcasts transmitted in either the NICAM or
German stereo/bilingual broadcasts system.
PR08
MONO
- - : - -
PR08
DUAL 1
- - : - -
Sound to be heard
NICAM German stereo
DUAL 1 Main sound Main sound
DUAL 2 Sub sound Sub sound

17
TO SET CLOCK
1.Press the MENU button to select
the FEATURES and then to be
displayed on the right
appearance.
2. Select the CLOCK with PR y/x
buttons.
3.Press the C/Bbuttons to activate
the hour or the minute and preset
the hour or minute with the
direct(0~9) buttons.
USING OTHER MENUS

18
TO TURN ON THE TV AUTOMATICALLY(WAKE TIME)
With the CLOCK, the WAKE TIME,
the WAKE PR.
Preset, the TV will automatically turn
on to a preset program number at a
reset time.
Select the WAKE TIME with
PR y/xbuttons.
Then, press direct key(0~9) to set
the wake up time.
TO TURN OFF THE TV AUTOMATIC(OFF TIME)
With the CLOCK and the OFF TIME preset, the TV will automatically
switch to stand-by mode at a preset
time.
Select the OFF time using PR y/x
buttons and then press direct key
(0~9) to set the OFF TIME.

19
SLEEP TIME SETTING
1.When this button, up to 2 hours
every 20 minutes can be set to
the sleep timer.
2.If you press the SLEEP button for the first time, SLEEP 0 sign of
the non set sleep-timer appears on the upper left side of the
screen.
3.When this button pressed again, 20 minute are set to the sleep-
timer.
4.This display disappears within 4 seconds useless any button is
pressed.
Whenever pressed again, the setting time is increased by 20
minute.
(SLEEP 0 SLEEP 20 SLEEP 40 SLEEP 60
SLEEP 80 SLEEP 100 SLEEP 120)
5.If this button is pressed again, during the sleep-timer operation,
the remaining time of the sleep-timer appears on the screen.
6.In addition, if this button is pressed repeatedly, the setting time is
increased by 20 minute continuously.
7.When the remaining time become “0”, the TV receiver is turn
off automatically.
PR04
MONO
SLEEP 20
