NEC AUSTRALIA Pty. Ltd.
Service Manual
Oct. 2004
Color Television
CHASSIS : CP-185A (AUSTRALIA)
Model : DTA-14V4THS
DTA-20V4THS
DTA-21V4THS
NEC Model : N3481
N4881
FS572
Specification
S/M No. : TCP185AEF0
Version Pal multi system
TV Standard PAL-SECAM B/G, D/K, H, I/I (NTSC : AV nly)
Sound s stem Mono
* 1 Speaker
Power consumption 14":49W / 20":60W / 21" 68W
Speaker 3W 8 hm o 7.5W 8 hm
Teletext s stem Teletext
Aerial Input 75 hm unbalanced
Channel coverage off-air channels, S-cable channels and hyperband
Tuning s stem Ferquency synthesiser tuning system
14":34cm
Visual screen size 20’:48cm
21":51cm
Channel indication n screen display
Program selection 100 Programmes
RCA jack : Audio input and Vidio input & A/V
output(monitor out)
Auxiliar Outpup Terminal Audio - Video jack on front of cabinet in common
connection with rear RCA jack
Headphone jack on front of cabinet
Remote control R-44N08 AA Battery type

1
TABLE OF CONTENTS
SAFETY INSTRUCTION 2
CIRCUIT BLOCK DIAGRAM 3
ALIGNMENT INSTRUCTIONS 4
1. Service mode 4
2. Microcontroller configuration 4
3. TV SET Alignment 4~5
SCHEMATIC DIAGRAM 6
EXPLODED VIEW 7
PRINTED CIRCUIT BOARD 8
SERVICE PARTS LIST 9
FUNCTIONAL DESCRIPTION 1~6
IC DESCRIPTION 7~33
APPENDIX (Appendix is provide onl b internet [http://svc.dwe.co.kr])

2
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous X-RAY RADIATI N. To avoid such hazards, the high
voltage must not exceed the specified limit. The nominal value of the high voltage of this receiver is 22-23 kV (14")or
24-26 kV (20"-21")at max beam current. The high voltage must not, under any circumstances, exceed 27.5 kV (14",
20"), 29KV (21"). Each time a receiver requires servicing, the high voltage should be checked. It is important to use an
accurate and reliable high voltage meter.).
2. The only source of X-RAY Radiation in this TV receiver is the picture tube. For continued X-RAY RADIATI N
protection, the replacement tube must be exactly the same type tube as specified in the parts list.
SAFETY PRECAUTION
1. Potentials of high voltage are present when this receiver is operating. peration of the receiver outside the cabinet or
with the back cover removed involves a shock hazard from the receiver.
1) Servicing should not be attempted by anyone who is not thoroughly familiar with the precautions necessary when
working on high voltage equipment.
2) Discharge the high potential of the picture tube before handling the tube. The picture tube is highly evacuated and if
broken, glass fragments will be violently expelled.
2. If any Fuse in this TV receiver is blown, replace it with the FUSE specified in the Replacement Parts List.
3. When replacing a high wattage resistor (oxide metal film resistor) in circuit board, keep the resistor body 10 mm away
from the circuit board.
4. Keep wires away from high voltage or high temperature components.
5. This receiver must operate under AC 230 volts, 5 Hz. NEVER connect to a DC supply of any other voltage or
frequency.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this equipment have special safety-related characteristics. These characteristics
are often passed unnoticed by a visual inspection and the X-RAY RADIATI N protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts
which have these spe- cial safety characteristics are identified in this manual and its supplements, electrical components
having such features are identified by designated symbol on the parts list. Before replacing any of these components,
read the parts list in this manual carefully. The use of substitutes replacement parts which do not have the same safety
characteristics as specified in the parts list may create X-RAY Radiation.
WARNING : nly competent service personnel may carry out work involving the testing or repair of this equipment
SAFETY INSTRUCTION

3

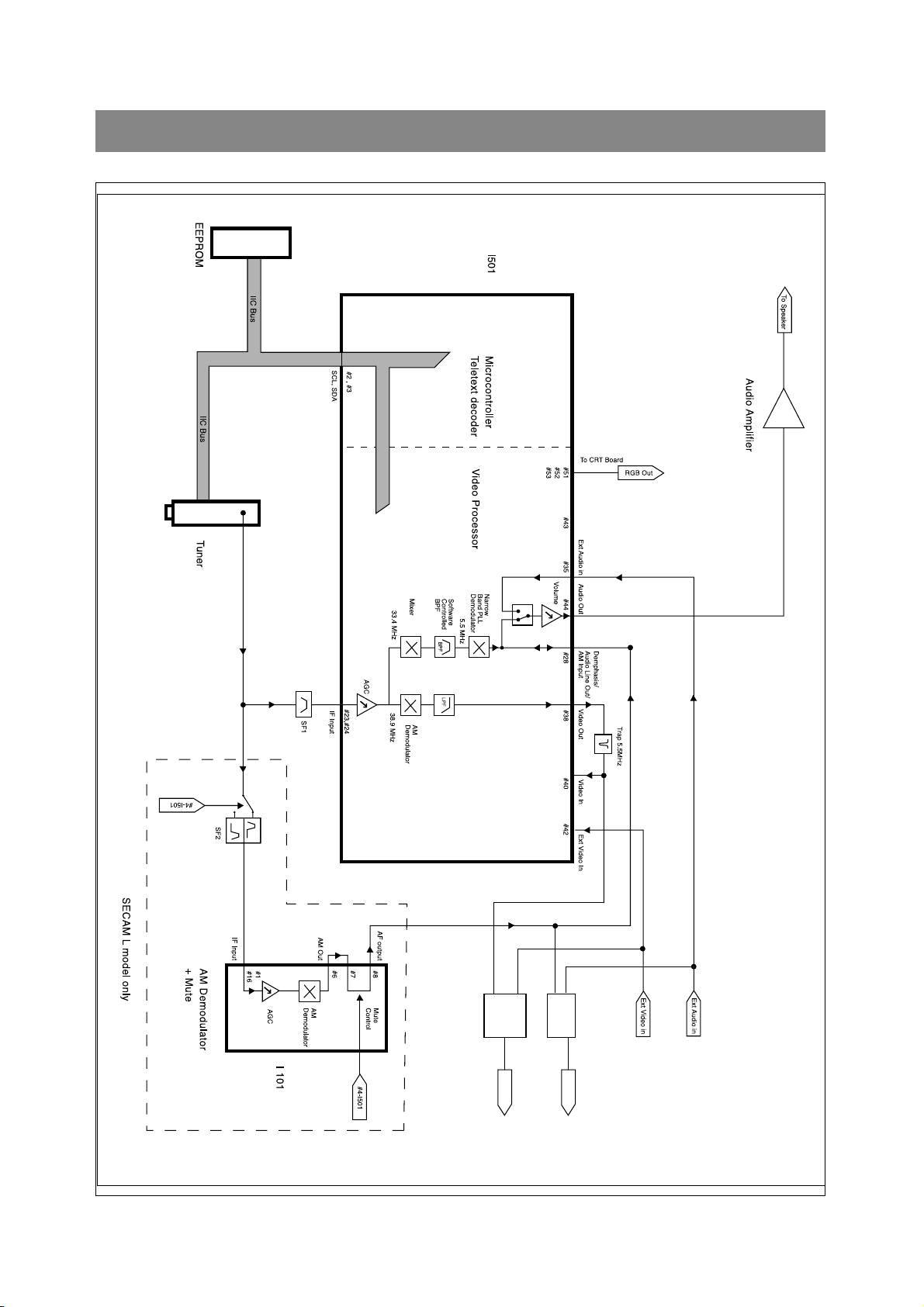

CIRCUIT BLOCK DIAGRAM
ISO1 S/W IC ISO2 S/W IC
Monitor Out (Audio) Monitor Out (Video)
I602
I702

Microcontroller configuration : Service mode
To switch the TV set into service mode please see instruction below.
Met od
1 - Select pr. number 91
2 - Adjust sharpness to minimum and exit all menu.
3 - uickly press the key sequence : RED - GREEN - menu
4 - List of service manual item
To exit SERVICE menu press menu key or Std By key.
In Service Mode press "OK" to the microcontroller i.e. the I2C bus is free and the set can be controlled by external
equipment.
Press "OK" again to allow the microcontroller to control the set again
Met od of c ange from DW REMOCON KEY CODE to NEC.
1. Select pr. number 91
2. Adjust sharpness to minimum and exit off menu.
3. Press volume Key 3times and volume Key 3times on front local key-board.
When changed NEW EEPROM(I702), Remocon key code was changed Daewoo.
In order to change NEC Remocon key code, do above procedure.
TV set Alignment
1 - G2 alignment
- Set TV in NORMAL I mode
- TV in AV mode without video signal ? Black screen.
- TV preset with WP Red, WP Green and WP Blue equal to 32.
- TV preset with Black R, Black G equal to 8.
- Adjust screen volume ( on FBT ) such that the highest cathode cut-off voltage measured on CRT board, is Vcut-
off 5V
2 - W ite balance
- Select a dark picture and adjust Black G and Black R to the desired colour temperature.
- Select a bright picture and adjust WP Red, WP Green, WP Blue to the desired colour temperature.
4
ALIGNMENT INSTRUCTIONS
Screen size Vcut-off
14" 115V
20" & 21" 125V
No Item
1 AGC
2 Black R
3 Black G
4 WP Red
5 WP Green
6 WP Blue
7 H Shift
8 V Slope
9 V Amp
10 S Correct
11 V Shift
12 CH Lock
13 MAX Vol
14 AV Start
15 Key Lock
16 PSNS Mode

5
ALIGNMENT INSTRUCTIONS
3 - Focus
- Adjust the Focus volume ( on FBT ) to have the best resolution on screen.
4 - Vertical geometr
- Adjust the Vertical Amplitude, Shift, S-Correction and Slope
to compensate for vertical distortion
5 - Horizontal picture centering
- Adjust H Shift to have the picture in the center of the screen.
7 - AGC
- Adjust the antenna signal level to 64dB V 2 for Daewoo tuner (or S/S tuner)
- Set RF AGC to 0.
- Increase RF AGC level and stop when the level on pin 6 of I501 goes below 2.5 Vdc

-6-

7
7
EXPLODED VIEW
1. 14V4/20v4/21v4

-8-

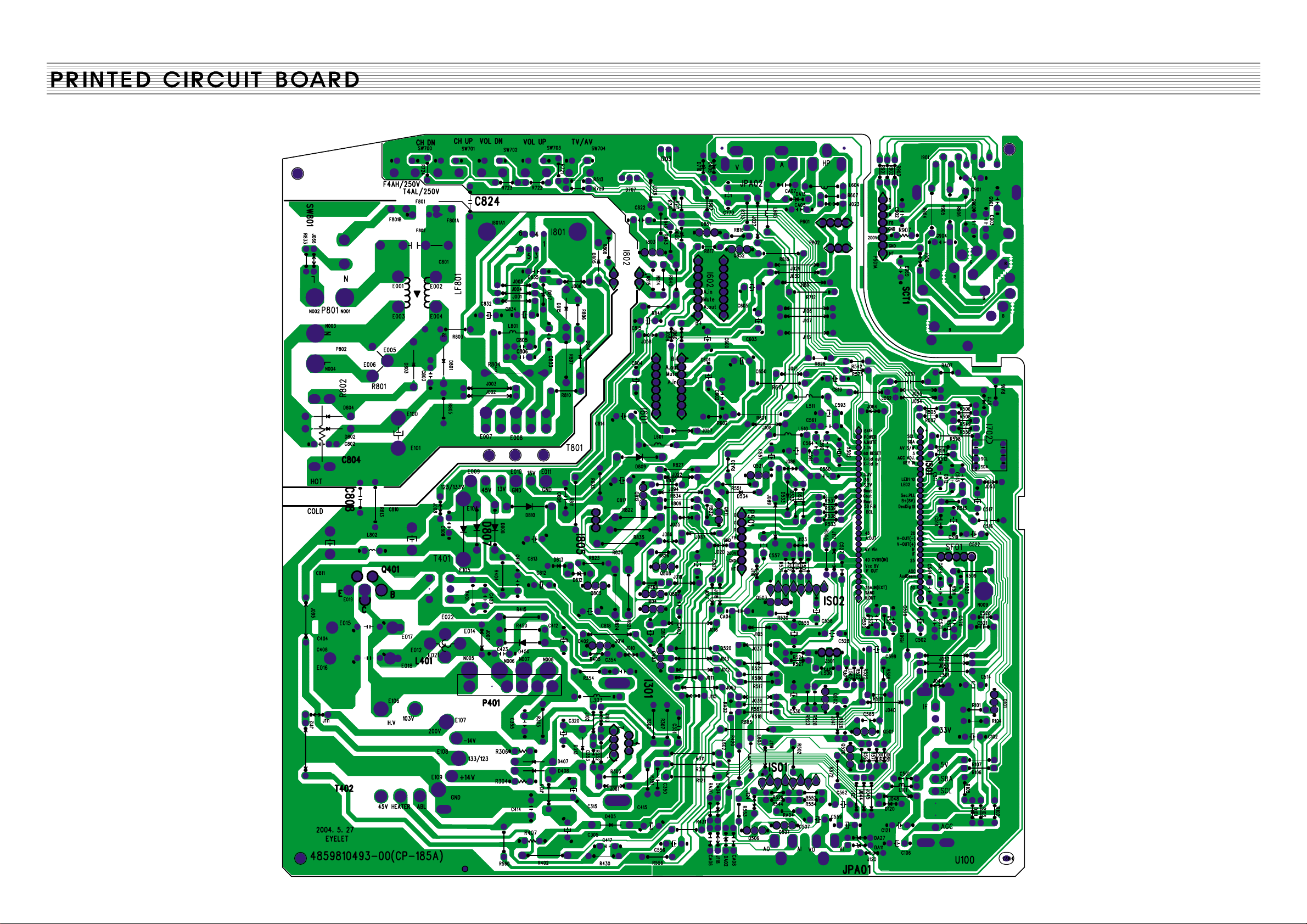

PCB MAIN(CP-185A)

9
9
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
ZZ100 48B4744N08 TRANSMITTER REM C N R-44N08 (AA)
ZZ110 PTACPWE040 ACCESS RY AS DTA-21V4THS
00100 4850Q00810 BATTERY R6P/LN
00200 48586002E2 MANUAL INSTRUCTI N ENGLISH,ARABIC
M821 4858213801 BAG INSTRUCTI N L.D.P.E T0.05X250X400
ZZ120 PTBCSHE040 C VER BACK AS DTA-21V4THS
M211 4852151610 C VER BACK FR HIPS GY
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV)
M781 4857817610 CL TH BLACK FELT 300X20X0.7
ZZ130 PTPKCPE040 PACKING AS DTA-21V4THS
10 6520010100 STAPLE PIN AUT W65
M801 485805063B B X CART N DW-3A
M811 4858189200 PAD EPS 21V4
M821 4858219101 BAG P.E P.E F AM T0.5X1300X1150
ZZ131 48519A5310 CRT GR UND NET 2101S-1015-1P
ZZ132 58G0000147 C IL DEGAUSSING DC-21SF
ZZ140 PTCACAE040 CABINET AS DTA-21V4THS
M201A 4856017303 SCREW CRT FIX 5X30 L80 BK
M201B 4856214902 WASHER RUBBER CR T2.0
M201C 4856017310 SCREW CRT FIX 5X30 L190 BK
M211A 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
M211D 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
M492 4854941423 BUTT N P WER FR ABS GY
M681 4856812001 TIE CABLE NYL N66 DA100
M683 4856812001 TIE CABLE NYL N66 DA100
M684 4856816300 CLAMP WIRE NYL N 6 (V0)
SP01A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
V901 4859640862 CRT A51AEZ90X27 M50
ZZ200 PTFMSJE040 MASK FR NT AS DTA-21V4THS
M191 4851934832 BUTT N CTRL 4941422+5538002
M191A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M201 4852068910 MASK FR NT FR HIPS GY
M561 48556159SS MARK BRAND SILVER ETCHING HAIR-LINE
ZZ210 PTSPPWE040 SPEAKER AS DTA-21V4THS
P602A 4850703S50 C NNECT R YH025-03+35098+ULW=200
SP01 4858314010 SPEAKER SP-5070F01 3W 8 HM
ZZ290 PTMPMSE040 PCB MAIN MANUAL AS DTA-21V4THS
10 2193102005 S LDER BAR SN:PB=63:37 S63S-1320
30 2291050616 FLUX S LDER JS-64T3
40 2291050301 FLUX S LVENT IM-1000
C404 CMYH3C822J C MYLAR 1.6KV BUP 8200PF J
is a recommendable part for stock.
is safety component, so it must be used the same component.
In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Prats Price List) in Service information Center (http://svc.dwe.co.kr)
Caution
Caution

10
10
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
C408 CMYE2D394J C MYLAR 200V PU 0.39MF J
C801 CL1UC3474M C LINE ACR SS 0.47MF 1J(UCVSNDF/SV)+Q/
C804 CEYD2G101D C ELECTR 400V FHS 100MF (22X30)
C808 CH1BFE222M C CERA AC U/C/V AC400V 2200PF
C824 CH1HFE102M C CERA AC 4.0KV 1000PF E DG
D707 4858900002 H LDER LED ASSY LH-3P
D807 DRGP30J - DI DE RGP30J D -201AD 600V 3A
G902 4SG0DY0001 SPARK GAP SSG-102-A1(1.0KV) BULK
I301 PTF2SW7100 HEAT SINK ASS‘Y 1STV9302A- + 7174300811
00001 1STV9302A- IC VERTICAL STV9302A
0000A 4857027100 HEAT SINK SPCC T1.0+SN
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I501 1TDA9361N2 IC MIC M TP TDA9361/PS/N2/5(0664)
I601 1TDA7267A- IC AMP TDA7267A
I702 1AT24C08PC IC AT24C08-10PC
I703 1356VF6 - IC PREAMP 356VF6
I801 PTB2SW4618 HEAT SINK ASS‘Y 1STRW6753- + 7174300811
00001 1STRW6753- IC P WER STR-W6753
0000A 4857024618 HEAT SINK AL EX BK
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I802 1LTV817C IC PH T C UPLER LTV-817C
I804 1LP295033- IC REGULAT R LP2950 3.3V
I805 1S7805P1C- IC REGULAT R S7805PIC 5.0V 1.0A T -220F-3SL S/LEAD
I901 PTC3SW1100 HEAT SINK ASS‘Y 1TDA6107Q- + 7174300811
00001 1TDA6107Q- IC VIDE AMP TDA6107Q
0000A 4857031100 HEAT SINK A1050P-H24 T2.0
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
IS01 1MM1111XS- IC SWITCH MM1111XS
IS02 1MM1111XS- IC SWITCH MM1111XS
JPA01 4859109750 JACK PIN B ARD YSC04P-06E
JPA02 4859109950 JACK PIN B ARD PH-JB-9710A
L401 58H0000020 C IL H-LINEARITY L-76(76.5UH)
LF801 5PLF24A1 FILTER LINE LF-24A1
M682 4856812001 TIE CABLE NYL N66 DA100
P401 4859240020 C NN WAFER YFW500-05
P501 4850708N08 C NNECT R BIC-08T-25T+C-20T+ULW=400
P801 4859903010 C RD P WER AS SAA KKP-560A YFH800 2.6M(INSULATED PIN)
Q401 PTJ2SW7200 HEAT SINK ASS‘Y TST1803DH- + 7174301011
00001 TST1803DH- TR H RI ST1803DHI
0000A 4857027200 HEAT SINK AL T1.0
0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
R801 DDC7R0M290 P SIST R ECPCD7R0M290
R802 RX07B339JP R CEMENT 7W 3.3 HM J BEN 15MM 4P
SCT1 4859303530 S CKET CRT PCS629-03C
SF01 5PK2960M FILTER SAW K2960M

11
11
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
SW801 5S40101146 SW P WER PUSH SS-160-7-B
T401 50D10A3 - TRANS DRIVE TD-10A3
T402 50H0000269 FBT LTC-515
T801 50M2834A3- TRANS SMPS TSM-2834A3
U100 4859721530 TUNER VARACT R DT5-BF18D N
ZZ200 PTMPJ0E040 PCB MAIN (RHU) AS DTA-21V4THS
C305 CEXF1E471V C ELECTR 25V RSS 470MF (10X16) TP
C315 CEXF1E471V C ELECTR 25V RSS 470MF (10X16) TP
C415 CEXF2E100V C ELECTR 250V RSS 10MF (10X20) TP
C600 CEXF1E471V C ELECTR 25V RSS 470MF (10X16) TP
C805 CBXB3D471K C CERA SEMI 2KV BL(N) 470PF K (T)
C810 CEXF2C101V C ELECTR 160V RSS 100MF (16X25) TP
C811 CEXF2C101V C ELECTR 160V RSS 100MF (16X25) TP
C813 CEXF1C222V C ELECTR 16V RSS 2200MF (13X25) TP
C814 CEXF1E102V C ELECTR 25V RSS 1000MF (13X20) TP
C817 CEXF1C102V C ELECTR 16V RSS 1000MF (10X20) TP
C818 CEXF1C471V C ELECTR 16V RSS 470MF (8X12)TP
C903 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING)
ZZ200 PTMPJBE040 PCB MAIN M-10 AS DTA-21V4THS
10 2TM18006BE TAPE MASKING 6.2X500
E001 4856310300 EYE LET BSR T0.2 (R1.6)
E002 4856310300 EYE LET BSR T0.2 (R1.6)
E003 4856310300 EYE LET BSR T0.2 (R1.6)
E004 4856310300 EYE LET BSR T0.2 (R1.6)
E005 4856310300 EYE LET BSR T0.2 (R1.6)
E006 4856310300 EYE LET BSR T0.2 (R1.6)
E009 4856310300 EYE LET BSR T0.2 (R1.6)
E010 4856310300 EYE LET BSR T0.2 (R1.6)
E011 4856310300 EYE LET BSR T0.2 (R1.6)
E012 4856310300 EYE LET BSR T0.2 (R1.6)
E014 4856310300 EYE LET BSR T0.2 (R1.6)
E015 4856310300 EYE LET BSR T0.2 (R1.6)
E016 4856310300 EYE LET BSR T0.2 (R1.6)
E017 4856310300 EYE LET BSR T0.2 (R1.6)
E018 4856310300 EYE LET BSR T0.2 (R1.6)
E019 4856310300 EYE LET BSR T0.2 (R1.6)
E021 4856310300 EYE LET BSR T0.2 (R1.6)
E022 4856310300 EYE LET BSR T0.2 (R1.6)
E100 4856310600 EYE LET BSR T0.2 (R2.3)
E101 4856310600 EYE LET BSR T0.2 (R2.3)
E104 4856310600 EYE LET BSR T0.2 (R2.3)
E105 4856310600 EYE LET BSR T0.2 (R2.3)
E106 4856310600 EYE LET BSR T0.2 (R2.3)
E107 4856310600 EYE LET BSR T0.2 (R2.3)
E108 4856310600 EYE LET BSR T0.2 (R2.3)

12
12
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
E109 4856310600 EYE LET BSR T0.2 (R2.3)
N001 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N002 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N003 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
P602 485923162S C NN WAFER YW025-03 (STICK)
R402 RS01Z688J- R M- XIDE FILM 1W 0.68 HM J
R415 RS02Z102JS R M- XIDE FILM 2W 1K HM J SMALL
R450 RS02Z103JS R M- XIDE FILM 2W 10K HM J SMALL
R804 RS02Z338JS R M- XIDE FILM 2W 0.33 HM J SMALL
R807 RS02Z221JS R M- XIDE FILM 2W 220 HM J SMALL
R821 RS02Z100JS R M- XIDE FILM 2W 10 HM J SMALL
R822 RS02Z201JS R M- XIDE FILM 2W 200 HM J SMALL
R824 RS02Z101JS R M- XIDE FILM 2W 100 HM J SMALL
R835 RS02Z201JS R M- XIDE FILM 2W 200 HM J SMALL
R836 RS02Z201JS R M- XIDE FILM 2W 200 HM J SMALL
ZZ200 PTMPJRE040 PCB MAIN RADIAL AS DTA-21V4THS
C102 CEXF1E470V C ELECTR 25V RSS 47MF (5X11) TP
C106 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C121 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C320 CEXF1H101V C ELECTR 50V RSS 100MF (8X11.5) TP
C354 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C355 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C403 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C412 CEXF2C229V C ELECTR 160V RSS 2.2MF (8X11.5)TP
C414 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C417 CXSL2H470J C CERA 500V SL 47PF J (TAPPING)
C418 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C420 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
C423 CCXB2H561K C CERA 500V B 560PF K (TAPPING)
C502 CEXF1E470V C ELECTR 25V RSS 47MF (5X11) TP
C504 CMXM2A332J C MYLAR 100V 3300PF J (TP)
C507 CEXF1C331V C ELECTR 16V RSS 330MF (8X11.5) TP
C511 CMXL1J104J C MYLAR 63V MEU 0.1MF J
C512 CMXL1J104J C MYLAR 63V MEU 0.1MF J
C514 CEXF1E101V C ELECTR 25V RSS 100MF (6.3X11) TP
C517 CEXF1H109V C ELECTR 50V RSS 1MF (5X11) TP
C519 CEXF1H109V C ELECTR 50V RSS 1MF (5X11) TP
C522 CEXF1H479V C ELECTR 50V RSS 4.7MF (5X11) TP
C524 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C526 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C528 CEXF1E101V C ELECTR 25V RSS 100MF (6.3X11) TP
C530 CEXF1E101V C ELECTR 25V RSS 100MF (6.3X11) TP
C551 CEXF1C101V C ELECTR 16V RSS 100MF (6.3X11) TP
C555 CEXF1E470V C ELECTR 25V RSS 47MF (5X11) TP

13
13
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
C557 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C558 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C559 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C562 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C564 CEXF1E101V C ELECTR 25V RSS 100MF (6.3X11) TP
C593 CEXF1E101V C ELECTR 25V RSS 100MF (6.3X11) TP
C599 CEXF1H229V C ELECTR 50V RSS 2.2MF (5X11) TP
C601 CEXF1H108V C ELECTR 50V RSS 0.1MF (5X11) TP
C603 CEXF1C101V C ELECTR 16V RSS 100MF (6.3X11) TP
C650 CEXF1E470V C ELECTR 25V RSS 47MF (5X11) TP
C770 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C802 CCXF3A472Z C CERA 1KV F 4700PF Z (T)
C803 CCXF3A472Z C CERA 1KV F 4700PF Z (T)
C806 CCXB1H821K C CERA 50V B 820PF K (TAPPING)
C809 CCXB3A271K C CERA 1KV B 270PF K (TAPPING)
C812 CEXF2A100V C ELECTR 100V RSS 10MF (6.3X11) TP
C815 CEXF2C109V C ELECTR 160V RSS 1MF (6.3X11) TP
C816 CEXF1E101V C ELECTR 25V RSS 100MF (6.3X11) TP
C819 CEXF1E470V C ELECTR 25V RSS 47MF (5X11) TP
C820 CEXF1C101V C ELECTR 16V RSS 100MF (6.3X11) TP
C822 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C832 CEXF1H100V C ELECTR 50V RSS 10MF (5X11) TP
C833 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C834 CEXF1H109V C ELECTR 50V RSS 1MF (5X11) TP
C835 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
C901 CMXL2E104K C MYLAR 250V MEU 0.1MF K
C902 CCXB1H561K C CERA 50V B 560PF K (TAPPING)
CA04 CEXD1H229F C ELECTR 50V RND 2.2MF (5X11) TP
CA05 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
F802 5FWPS4022L FUSE WIDE TL 250V 4A CASE
G901 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
G903 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
G904 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
I803 1K1A431B IC REGULAT R(SHUNT) KIA431B 2.495V 0.5% T -92
L802 58C0000142 C IL CH KE ELC 0809 940K
Q101 TKTC3198Y- TR KTC3198Y
Q402 TKTC3207 TR KTC3207 (TP)
Q403 TKTC3198Y- TR KTC3198Y
Q501 TKTA1266Y- TR KTA1266Y (TP)
Q502 TKTC3198Y- TR KTC3198Y
Q503 TKTC3198Y- TR KTC3198Y
Q506 TKTC3198Y- TR KTC3198Y
Q507 TKTA1266Y- TR KTA1266Y (TP)
Q520 TKTC3198Y- TR KTC3198Y
Q531 TKTA1266Y- TR KTA1266Y (TP)

14
14
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
Q805 TKTC3205Y- TR KTC3205Y (TP)
Q807 TKTA1281Y- TR KTA1281Y
Q808 TKTC3198Y- TR KTC3198Y
Q811 TKTA1266Y- TR KTA1266Y (TP)
Q812 TKTC3198Y- TR KTC3198Y
Q851 TKTC3198Y- TR KTC3198Y
Q852 TKTC3198Y- TR KTC3198Y
R304 RN01B109JS R METAL FILM 1W 1 HM J SMALL
R306 RN01B109JS R METAL FILM 1W 1 HM J SMALL
R407 RN01B109JS R METAL FILM 1W 1 HM J SMALL
R907 RN01B102JS R METAL FILM 1W 1K HM J SMALL
SW700 5S50101090 SW TACT THVH472GCA
SW701 5S50101090 SW TACT THVH472GCA
SW702 5S50101090 SW TACT THVH472GCA
SW703 5S50101090 SW TACT THVH472GCA
SW704 5S50101090 SW TACT THVH472GCA
X502 5XEX12R00E CRYSTAL QUARTZ HC-49/U 12.000MHZ 30PPM TP
Z501 5PXXT5R5MB FILTER CERA XT 5.5MB-TP
ZZ200 PTMPJAE040 PCB MAIN AXIAL AS DTA-21V4THS
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859810493 PCB MAIN 246X246 D1B
C350 CCZB1H103K C CERA HIKB 50V 0.01MF K AXIAL
C501 CCZF1H103Z C CERA 50V F 0.01MF Z
C515 CBZR1C222M C CERA 16V Y5R 2200PF M (AXIAL)
C516 CBZR1C472M C CERA 16V Y5R 4700PF M (AXIAL)
C518 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C520 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
C521 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
C523 CCZF1H103Z C CERA 50V F 0.01MF Z
C525 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C527 CCZF1H473Z C CERA 50V F 0.047MF Z
C531 CCZF1H473Z C CERA 50V F 0.047MF Z
C560 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C561 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C570 CBZR1C472M C CERA 16V Y5R 4700PF M (AXIAL)
C571 CCZB1H821K C CERA 50V B 820PF K AXIAL
C585 CBZR1C222M C CERA 16V Y5R 2200PF M (AXIAL)
C590 CZCH1H270J C CERA CH 50V 27PF J AXL 52MM
C591 CZCH1H270J C CERA CH 50V 27PF J AXL 52MM
C602 CCZF1H103Z C CERA 50V F 0.01MF Z
CA06 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CA07 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CA08 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
D101 D1N4148 - DI DE 1N4148 (TAPPING)

15
15
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
D120 DUZ33B DI DE ZENER UZ-33B
D313 D1N4004S DI DE 1N4004S
D405 D1N4937G DI DE 1N4937G (TAPPING)
D407 D1N4937G DI DE 1N4937G (TAPPING)
D408 D1N4937G DI DE 1N4937G (TAPPING)
D450 D1N4937G DI DE 1N4937G (TAPPING)
D520 D1N4148 - DI DE 1N4148 (TAPPING)
D521 D1N4148 - DI DE 1N4148 (TAPPING)
D531 D1N4148 - DI DE 1N4148 (TAPPING)
D532 D1N4148 - DI DE 1N4148 (TAPPING)
D533 D1N4148 - DI DE 1N4148 (TAPPING)
D534 D1N4148 - DI DE 1N4148 (TAPPING)
D801 DLT2A05G DI DE LT2A05G (TP)
D802 DLT2A05G DI DE LT2A05G (TP)
D803 DLT2A05G DI DE LT2A05G (TP)
D804 DLT2A05G DI DE LT2A05G (TP)
D805 D1N4937G DI DE 1N4937G (TAPPING)
D806 DUZ5R6BM DI DE ZENER UZ-5.6BM
D808 D1N4937G DI DE 1N4937G (TAPPING)
D809 DRGP15J - DI DE RGP15J D -204AC 600V 1.5A
D810 DHER103G DI DE HER103G
D812 DUZ8R2BM DI DE ZENER UZ-8.2BM
D813 D1N4148 - DI DE 1N4148 (TAPPING)
D814 D1N4937G DI DE 1N4937G (TAPPING)
D815 D1N4148 - DI DE 1N4148 (TAPPING)
D817 DUZ6R2BM DI DE ZENER UZ-6.2BM
DA02 DUZ5R6BM DI DE ZENER UZ-5.6BM
DA04 DUZ5R6BM DI DE ZENER UZ-5.6BM
DA05 DUZ5R6BM DI DE ZENER UZ-5.6BM
DA11 DUZ5R6BM DI DE ZENER UZ-5.6BM
DA13 CCZB1H271K C CERA 50V B 270PF K
DA27 DUZ5R6BM DI DE ZENER UZ-5.6BM
J001 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J002 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J003 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J004 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J005 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J006 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J008 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J010 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J011 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J012 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J013 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J014 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J016 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING

16
16
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
J017 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J018 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J019 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J020 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J021 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J022 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J023 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J026 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J027 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J029 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J030 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J035 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J037 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J038 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J040 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J041 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J044 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J045 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J046 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J048 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J049 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J050 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J052 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J053 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J054 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J055 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J056 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J057 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J058 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J061 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J062 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J063 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J064 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J065 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J066 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J086 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J087 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J088 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J089 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J094 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J095 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J102 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J103 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J105 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J106 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING

17
17
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
J107 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J108 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J109 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J111 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J112 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J113 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J114 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J115 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J116 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J117 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J118 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J119 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J120 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J121 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J122 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J123 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J124 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
J125 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
L101 5CPZ569K02 C IL PEAKING 5.6UH K (AXIAL 3.5MM)
L303 5MC0000100 C IL BEAD HC-3550
L500 5CPZ829K02 C IL PEAKING 8.2UH K (AXIAL 3.5MM)
L501 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
L502 5CPZ100K02 C IL PEAKING 10UH K (AXIAL 3.5MM)
L510 5MC0000100 C IL BEAD HC-3550
L511 5MC0000100 C IL BEAD HC-3550
L601 5MC0000100 C IL BEAD HC-3550
L602 5CPZ109M04 C IL PEAKING 1UH 10.5MM M (LAL04TB)
L603 5CPZ109M04 C IL PEAKING 1UH 10.5MM M (LAL04TB)
L604 5CPZ109M04 C IL PEAKING 1UH 10.5MM M (LAL04TB)
L605 5CPZ109M04 C IL PEAKING 1UH 10.5MM M (LAL04TB)
L801 5MC0000100 C IL BEAD HC-3550
R101 RD-AZ473J- R CARB N FILM 1/6 47K HM J
R102 RD-AZ472J- R CARB N FILM 1/6 4.7K HM J
R103 RD-AZ123J- R CARB N FILM 1/6 12K HM J
R104 RD-AZ104J- R CARB N FILM 1/6 100K HM J
R105 RD-AZ392J- R CARB N FILM 1/6 3.9K HM J
R106 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R107 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R121 RD-2Z332J- R CARB N FILM 1/2 3.3K HM J
R302 RD-2Z129J- R CARB N FILM 1/2 1.2 HM J
R303 RD-AZ152J- R CARB N FILM 1/6 1.5K HM J
R305 RD-2Z331J- R CARB N FILM 1/2 330 HM J
R310 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R311 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R351 RN-4Z1501F R METAL FILM 1/4 1.50K HM F

18
18
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
R352 RD-AZ471J- R CARB N FILM 1/6 470 HM J
R354 RD-4Z229J- R CARB N FILM 1/4 2.2 HM J
R401 RD-4Z472J- R CARB N FILM 1/4 4.7K HM J
R404 RD-2Z751J- R CARB N FILM 1/2 750 HM J
R405 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R420 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R430 RD-4Z223J- R CARB N FILM 1/4 22K HM J
R431 RD-4Z303J- R CARB N FILM 1/4 30K HM J
R501 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R502 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R505 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R506 RD-AZ332J- R CARB N FILM 1/6 3.3K HM J
R507 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R508 RD-AZ332J- R CARB N FILM 1/6 3.3K HM J
R509 RD-AZ681J- R CARB N FILM 1/6 680 HM J
R512 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R513 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R515 RD-AZ153J- R CARB N FILM 1/6 15K HM J
R516 RD-AZ393J- R CARB N FILM 1/6 39K HM J
R517 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R518 RD-AZ273J- R CARB N FILM 1/6 27K HM J
R520 RD-AZ183J- R CARB N FILM 1/6 18K HM J
R521 RD-AZ391J- R CARB N FILM 1/6 390 HM J
R522 RD-AZ221J- R CARB N FILM 1/6 220 HM J
R523 RD-AZ331J- R CARB N FILM 1/6 330 HM J
R524 RD-AZ391J- R CARB N FILM 1/6 390 HM J
R525 RD-AZ104J- R CARB N FILM 1/6 100K HM J
R526 RD-4Z479J- R CARB N FILM 1/4 4.7 HM J
R527 RD-AZ431J- R CARB N FILM 1/6 430 HM J
R528 RD-AZ221J- R CARB N FILM 1/6 220 HM J
R529 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R530 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R531 RD-AZ103J- R CARB N FILM 1/6 10K HM J
R533 RD-AZ103J- R CARB N FILM 1/6 10K HM J
R537 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R538 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R539 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R542 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R544 RD-AZ471J- R CARB N FILM 1/6 470 HM J
R549 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R550 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R551 85801065GY WIRE C PPER AWG22 1/0.65 TIN C ATING
R552 RD-AZ471J- R CARB N FILM 1/6 470 HM J
R553 RD-AZ202J- R CARB N FILM 1/6 2K HM J
R554 RD-AZ471J- R CARB N FILM 1/6 470 HM J

19
19
ELECTRICAL PARTS LIST
R555 RD-AZ103J- R CARB N FILM 1/6 10K HM J
R556 RD-AZ562J- R CARB N FILM 1/6 5.6K HM J
R560 RD-4Z102J- R CARB N FILM 1/4 1K HM J
R561 RD-AZ221J- R CARB N FILM 1/6 220 HM J
R567 RD-AZ101J- R CARB N FILM 1/6 100 HM J
R571 RD-AZ432J- R CARB N FILM 1/6 4.3K HM J
R572 RD-AZ122J- R CARB N FILM 1/6 1.2K HM J
R573 RD-AZ272J- R CARB N FILM 1/6 2.7K HM J
R575 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R580 RD-AZ561J- R CARB N FILM 1/6 560 HM J
R585 RD-4Z224J- R CARB N FILM 1/4 220K HM J
R586 RD-AZ221J- R CARB N FILM 1/6 220 HM J
R587 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R596 RD-AZ122J- R CARB N FILM 1/6 1.2K HM J
R597 RD-AZ153J- R CARB N FILM 1/6 15K HM J
R598 RD-AZ153J- R CARB N FILM 1/6 15K HM J
R599 RD-AZ183J- R CARB N FILM 1/6 18K HM J
R601 RD-AZ822J- R CARB N FILM 1/6 8.2K HM J
R602 RN-AZ1101F R METAL FILM 1/6 1.10K HM F
R603 RD-4Z100J- R CARB N FILM 1/4 10 HM J
R607 RD-AZ470J- R CARB N FILM 1/6 47 HM J
R610 RD-AZ162J- R CARB N FILM 1/6 1.6K HM J
R710 RD-AZ431J- R CARB N FILM 1/6 430 HM J
R711 RD-AZ681J- R CARB N FILM 1/6 680 HM J
R712 5MC0000100 C IL BEAD HC-3550
R713 RD-AZ100J- R CARB N FILM 1/6 10 HM J
R720 RD-AZ122J- R CARB N FILM 1/6 1.2K HM J
R721 RD-AZ181J- R CARB N FILM 1/6 180 HM J
R722 RD-AZ221J- R CARB N FILM 1/6 220 HM J
R723 RD-AZ331J- R CARB N FILM 1/6 330 HM J
R724 RD-AZ471J- R CARB N FILM 1/6 470 HM J
R803 RD-4Z224J- R CARB N FILM 1/4 220K HM J
R806 RD-4Z152J- R CARB N FILM 1/4 1.5K HM J
R808 RD-4Z102J- R CARB N FILM 1/4 1K HM J
R809 RD-AZ473J- R CARB N FILM 1/6 47K HM J
R810 RD-4Z479J- R CARB N FILM 1/4 4.7 HM J
R811 RD-AZ102J- R CARB N FILM 1/6 1K HM J
R813 RC-2Z565KP R CARB N C MP 1/2 5.6M HM K
R814 RD-AZ221J- R CARB N FILM 1/6 220 HM J
R815 RD-AZ332J- R CARB N FILM 1/6 3.3K HM J
R816 RD-AZ103J- R CARB N FILM 1/6 10K HM J
R817 RD-AZ103J- R CARB N FILM 1/6 10K HM J
R818 RD-AZ473J- R CARB N FILM 1/6 47K HM J
R823 RD-AZ561J- R CARB N FILM 1/6 560 HM J
R825 RD-AZ222J- R CARB N FILM 1/6 2.2K HM J
LOC PART CODE PART NAME DESCRIPTION REMARK
