Dear customer,
Congratulations on your choice. Thank you for purchasing one of our
appliances. This practical, modern and functional appliance is manufactured
using materials of the highest quality which are subject to strict Quality
Control checks throughout the entire manufacturing process. The appliance
is meticulously tested to ensure that it meets your demands and produces
perfect cooking results.
Do not remove the appliance from its protective packaging until it is installed
in the unit.
Please read these instructions carefully before proceeding to install and use
the appliance. The information contained in these instructions is essential for
the correct operation of the appliance and, more importantly, for your safety.
The packaging of your appliance has been manufactured using only the
materials which are strictly necessary to guarantee efficient protection
during transport. These materials are 100% recyclable, thus reducing the
environmental impact. You can also contribute to caring for the environment,
by following the advice below:
- dispose of the packaging in the appropriate recycling bin,
- before you get rid of an old appliance, make sure you disable it. Contact
your local authority to find out the address of your nearest recycling centre
to dispose of your appliance,
- do not pour used oil down the sink. Collect it in a sealed container and
take it to an appropriate collection point or, failing that, place it in the rubbish
bin (it will end up in a controlled dump; this is probably not the best option,
but it will avoid contaminating ground water).
IMPORTANT:
In the unlikely event that the appliance should arrive damaged or not meet
your expectations in terms of quality, please inform us as soon as possible.
For the warranty to be valid, the appliance must not have been tampered
with, or used inappropriately.
2

3
Safety precautions
Read these instructions carefully. Reading these
instructions will enable you to use your appliance safely
and effectively.
All operations relating to installation, regulation and
conversion to other types of gas must be carried
out by an authorised installation engineer, respecting
applicable regulations, standards and the specifications
of the gas and electricity providers.
You are recommended to contact the Technical
Assistance Service to convert to another type of gas.
Before installing your new hob, ensure that it is being
installed according to the assembly instructions.
This appliance can only be installed in a well ventilated
place in accordance with existing regulations and
ventilation specifications. The appliance must not be
connected to a combustion product removal device.
The place in which the appliance is installed must have
fully-functioning ventilation, in accordance with the
regulations.
Do not subject the appliance to draughts. These might
This appliance leaves the factory set to the type of gas
Do not tamper with the appliance’s interior.
If necessary, call our Technical Assistance Service.
These operating and installation instructions should be
retained, and passed onto the buyer if the appliance is
sold.
Do not switch on the appliance if it is damaged in any
way. Contact our Technical Assistance Service.
that is indicated on the specifications plate. If this must
blow out the burners.
be changed, read the Assembly instructions.
This appliance has been designed for home use only,
not for commercial or professional use. This appliance
cannot be installed on yachts or in caravans. The
warranty will only be valid if the appliance is used for the
purpose for which it was designed.

4
The surfaces of cooking appliances heat up during
use. Care must be taken when using these appliances.
Keep children well away from the appliance.
This appliance is only intended for cooking purposes,
not as a heating system.
Fat or oil which is overheated can catch fire easily. Do
not leave oil or fats to heat up unattended. If oil or fats
do catch fire, never use water to put the fire out. Risk
of burns! Put the fire out by covering the pan with a lid
and switch off the hotplate.
In the event of a malfunction, turn off the appliance’s
gas and electricity supply. For repairs, call our Technical
Assistance Service.
If one of the controls will not turn, do not force it. Call
the Technical Assistance Service immediately, so that
they can repair or replace it.
Never place unstable pans on the hob or the burners,
as they may accidentally tip over.
This appliance is class 3 type, according to the EN 30-
1-1 regulation for gas appliances: built-in appliance.
Do not store or use corrosive chemicals, products
which produce fumes, flammable materials or non-food
products below or near this domestic appliance.
The graphics in this instruction manual are given as a
guide only.
The manufacturer is exempt from all responsibility if this
the requirements of this manual are not complied with.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
kÉîÉê=äÉ~îÉ=íÜÉ=~ééäá~åÅÉ=ìå~ííÉåÇÉÇ=ÇìêáåÖ=çéÉê~íáçåK=
Do not clean the hob using a steam cleaner.
Risk of electrocution!

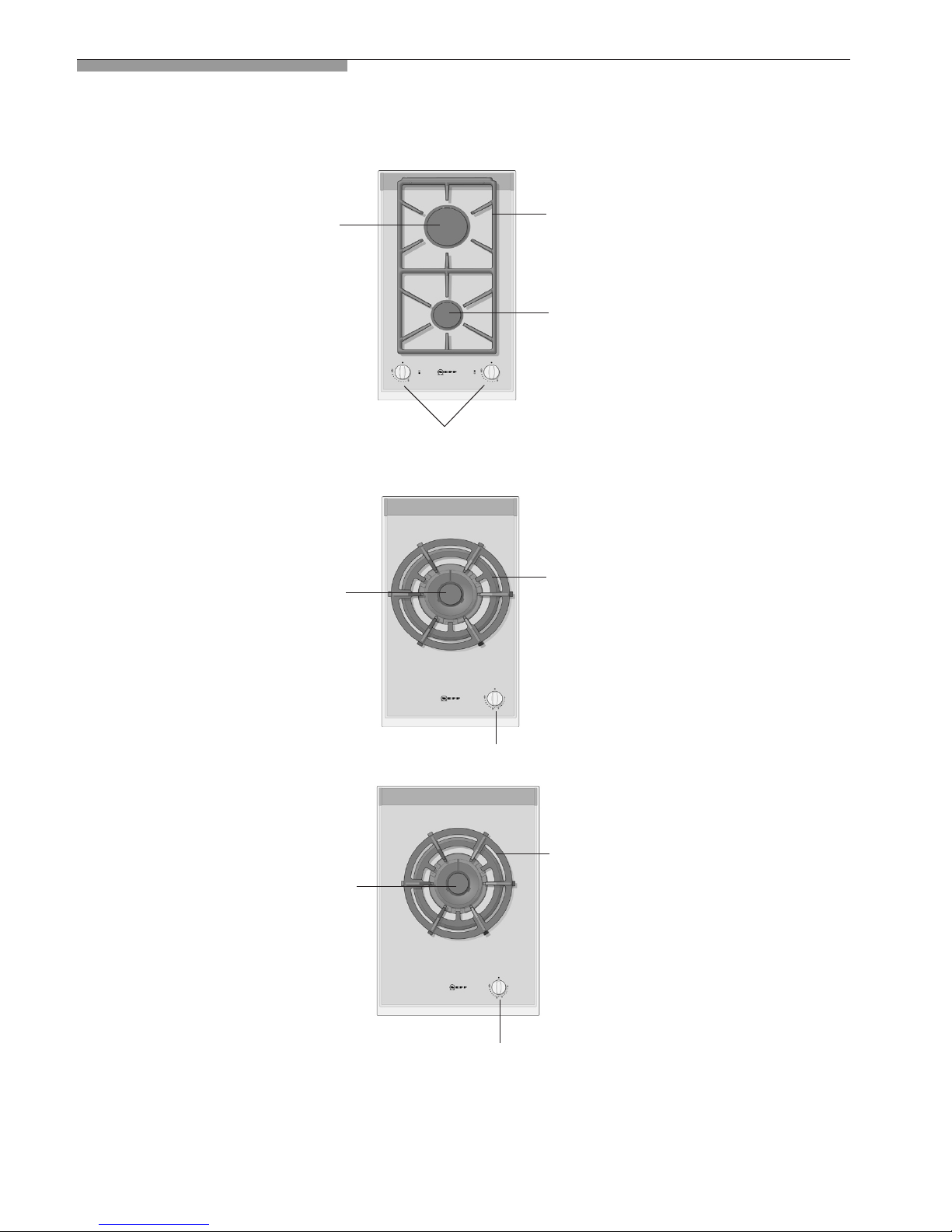

Your new appliance
These individual appliances can be combined and/or with conventional hobs of the
same make, using the joint accessory. See the catalogue for details.
Burner (up to
Burner (up to
1.9 kW)
Control knobs
Control knob
Pan support
Pan support
Control knob
Pan support
5
2.8 kW)
(up to 6 kW)
flame burner
Dual double
(up to 6 kW)
flame burner
Dual double

1. Press the chosen burner control and turn it
anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter,
matches, etc.) and bring it close to the burner.
There are indications to show which burner each
control knob operates. Fig. 1.
The gas burners
Switching on manually
It is essential to ensure that all the burner parts
and the pan supports are correctly installed for the
Operation
Fig. 1
6
Fig. 2
Fig. 3
appliance to work correctly. Fig. 2-3-4-5.
Fig. 4
Fig. 5

Power levels
Turn the corresponding control clockwise to the 0
setting.
Switching off a burner
If your hob features the automatic ON function
(ignition sparkers):
1. Press the chosen burner control and turn it
anticlockwise to the maximum power setting.
While the control is still pressed down, sparks are
produced on all burners. The flame ignites (it is no
longer necessary to press down the control).
2. Turn the control to the required setting.
If it does not come on, turn the control to the off
setting and repeat the steps above. This time,
press and hold the control for longer (up to 10
seconds).
Warning! If after 15 seconds have elapsed, the
open a nearby window or door. Wait at least one
minute before trying to switch the burner back on.
Switching on
automatically
The progressive controls can be used to control
the power needed, from minimum to maximum
power.
Depending on the model, your hob may have a
that this device is active, switch on the burner as
usual and, without releasing the control, press and
hold it down firmly for 4 seconds after lighting the
flame.
Safety system
Ignition sparker
Setting
Large flame
Economy
flame
Control off
Maximum capacity or
aperture and electricity
on
Minimum capacity or
aperture
7
Thermocouple
of gas if the burners accidentally switch off. To ensure
flame does not ignite, switch off the burner and
safety system (thermocouple) that prevents the flow

It is normal to hear a whistling noise while the burner
is operating.
When it is first used, it is normal for the burner to give
off fumes; this does not pose any risk and does not
indicate a malfunction; they will disappear in time.
Keep the burner as clean as possible. If the ignition
sparkers are dirty, they will not light properly. Clean
them periodically using a small non-wire brush. Bear
in mind that the ignition sparkers must not suffer any
serious impacts.
An orange-coloured flame is normal. This is caused
by the presence of dust in the atmosphere, spilt
liquids, etc.
Warnings
For dual double flame burners, the inner and outer
flames can be controlled separately.
The available power levels are as follows:
Inner and outer flame on full power.
Outer flame on minimum, inner flame on full power.
Inner flame on full power.
Inner flame on minimum.
8
means that the safety device is no longer operating.
sound (thud) will be produced. This is not a fault- this
A few seconds after the burner is switched off, a

Suitable pans
The kitchen will become hot and humid when this
gas appliance is used. You must therefore ensure that
the kitchen is well-ventilated. Either keep the natural
ventilation apertures open, or install an extractor
hood.
If using the appliance intensively for prolonged periods
additional ventilation may be required, for example,
by opening a window; more effective ventilation may
also be required, for example, by increasing the hob’s
ventilation, if possible.
If the burner flames are accidentally blown out, switch
off the burner operating control and do not try to
relight it for at least one minute.
Wok pan
9
Food can be prepared in various ways in a wok: it can
be stewed, stir fried, cooked on a low heat, pan-fried,
or steamed. It could be said that woks serve as both
as a saucepan and a frying pan and, owing to their
shape and size, they can be used to cook quite large
ingredients.
When cooking with a wok, heat is diffused more
uniformly and gently; the intense heat which
accumulates means that food takes less time to
cook and also requires less oil, making it one of the
quickest and healthiest ways of cooking. Always
follow the manufacturer’s instructions when cooking
with a wok.
A wok is a cooking vessel originating in China; it is
a kind of deep, round, lightweight pan with handles
and a flat or concave base.
Burner
Minimum
pan diameter
Maximum
pan diameter
Double flame
burner 22 cm
22 cm 26 cmRapid burner
Semi-rapid
burner 14 cm 20 cm

The manufacturer accepts no liability if these
additional pan supports are not used or are used
incorrectly.
Cooking
recommendations
support
Accessories Depending on the model, the hob may include the
following accessories. These are also available from
Only for use on the double flame burner with pans
which are more than 26 cm in diameter (roasting
dishes, earthenware pots, etc.) and with pans with a
concave base.
10
Additional wok pan
the Technical Assistance Service.
Burner Very high High Medium Low
Double flame
burner
Boiling, steaming,
griddling, toasting,
paellas, Asian food
(wok).
Reheating and keeping things hot:
cooked and pre-cooked dishes.
Rapid burner fresh vegetables,
Rice, white sauce
and ragout.
Steaming:
fish,
vegetables.
Semi-rapid burner
Steaming potatoes,
Escalopes, steaks,
fresh vegetables,
omelettes, frying,
stews and pasta.
Reheating, keeping things hot and
making tasty casseroles.

Precautions for use
11
energy and prevent cookware damage:
Use pans which are the right size for each burner.
Do not use damaged cookware, which does not sit
evenly on the hob. Pans may be overturned.
Only use a pan with thick, flat base.
Always place the cookware right over the burner, not
to one side. Otherwise it could be overturned.
Do not place large pans on the burners near the
controls. These may be damaged by the very high
temperatures.
Place the pans on the pan supports, never directly on
the burner.
Pans should be placed on the hob carefully.
Do not strike the hob and do not place excessive
weight on it.
Make sure that the pan supports and burner covers
are correctly positioned before using the appliance.
The following advice is intended to help you save
aç=åçí=ìëÉ=ëã~ää=êÉÅÉéí~ÅäÉë=çå=ä~êÖÉ=ÄìêåÉêëK=qÜÉ=
Ñä~ãÉ=ëÜçìäÇ=åçí=íçìÅÜ=íÜÉ=ëáÇÉë=çÑ=êÉÅÉéí~ÅäÉëK=
=
aç=åçí=Åççâ=ïáíÜçìí=äáÇë=çê=ïáíÜ=äáÇë=çåäó=é~êíá~ääó=
ÅçîÉêáåÖ=êÉÅÉéí~ÅäÉëK=vçì=~êÉ=ï~ëíáåÖ=ÉåÉêÖóK=
=

Never slide pans across the glass surface, as you may
scratch it. In addition, try not to drop heavy or sharp
objects on the glass. Never strike any part of the hob.
Do not use steam cleaners. This could damage the
hob.
Never use abrasive products, steel scourers, sharp
implements, knives, etc. to remove bits of hardened
food from the hob.
If your hob is fitted with a glass or aluminium panel,
never use a knife, scraper or similar to clean the point
where it joins the metal.
Do not use knives, scrapers or similar implements
to clean the point where the glass meets the burner
trims, the metal frames or the glass/aluminium panels,
if fitted.
Unsuitable products
Once the appliance is cool, use a sponge to clean it
with soap and water.
After each use, clean the surface of the respective
burner parts once they have cooled down. If any
and more difficult to remove later. The holes and
If the pan supports are fitted with rubber rests, ensure
that these are also cleaned. The rests may come
loose and the pan support may scratch the hob.
Always dry the burners and pan supports completely.
Water droplets or damp patches on the hob at the
start of cooking may damage the enamel.
After cleaning and drying the burners, make sure the
burner covers are correctly placed on the burner flame
diffuser.
Cleaning
Cleaning and maintenance
12
The movement of some pans may leave metal residue on
the pan supports.
bits are left (overcooked food, drops of grease etc.),
Clean the burners and pan supports using soapy water
however few, they will become stuck to the surface
and scrub with a non-wire brush.
grooves must be clean for the flame to ignite properly.

Always clean off any liquid as soon as it is spilt: you
will save yourself any unnecessary effort.
Grains of sand that may come from cleaning fruits
and vegetables will scratch the glass surface.
Melted sugar, or foods which contain a lot of sugar
which may have spilt, should be cleaned off the
hotplate immediately, using the glass scraper.
Maintenance
13

Sometimes certain faults detected can be easily
resolved. Before calling the Technical Assistance
Service, bear in mind the following advice:
Faults
14
Fault Possible cause Solution
The general
electrical system is
malfunctioning.
Defective fuse.
The automatic safety switch has
tripped or a fuse has
blown.
Check the fuse in the main
fuse box and change it if it is
damaged.
Check the main control
panel to see if the automatic
safety switch has tripped or
a fuse has blown.
The automatic ON
function does not work.
There may be food or cleaning
products stuck between the
ignition sparkers and the
burners.
The burners are wet.
The burner covers are not
correctly positioned.
The appliance is either not
earthed, not connected properly
or the earth connection is faulty.
The space between the ignition
sparker and the burner must
be clean.
Dry the burner covers carefully.
Check that the covers are correctly
positioned.
Contact an electrical engineer.
The burner flame is not
uniform.
The burner components are not
correctly positioned.
The grooves on the diffuser are
dirty.
Ensure the components are
correctly positioned.
Clean the grooves on the diffuser.
The flow of gas does
not appear normal or no
gas comes out.
The gas mains are turned off.
If the gas is supplied from a gas
bottle, check that this is
not empty.
Turn on all stop cocks.
Change the gas bottle.
The kitchen smells of
gas.
A gas tap has been left on.
There may be a leak from the
coupling to the gas bottle.
Turn off the gas taps.
Check that the coupling is
sound.
The safety valve on one
of the burners is not
working.
The control knob was not held
down for long enough.
The grooves on the diffuser are
dirty.
Once the burner is lit, hold
the control knob down a few
seconds longer. Clean the
grooves on the diffuser.

If the symbol is shown on the specifications
plate, bear in mind the following instructions.
When contacting our Technical Assistance Service,
please provide the product number (E-Nr.) and
production number (FD) of the appliance. This
information is given on the specifications plate located
on the lower section of the hob and on the label in the
user manual.
Unpack the appliance and dispose of the packaging
by environmentally-friendly means.
This appliance complies with European Directive
2002/96/CE on Waste Electrical and Electronic
Environmentally-
friendly waste
management
Warranty conditions
Used appliances and packaging
Technical Assistance Service
The applicable warranty conditions are those set out
by the company’s representative office in the country
of purchase. Detailed information is available from
retail outlets. Proof of purchase must be presented to
obtain the benefits of the warranty.
We reserve the right to introduce changes.
15
Equipment (WEEE).

INHALT
Sicherheitshinweise .............................. 18
Ihr neues Gerät ..................................... 20
Brenner .................................................. 21
Anzünden per Hand ................................ 21
Automatische Zündung ............................ 22
Sicherheitssystem .................................. 22
Ausschalten eines Brenners ..................... 22
Leistungsstufen ..................................... 22
Warnhinweise ....................................... 23
Geeignete Kochgefäße ........................... 24
Wok .................................................... 24
Zubehör ............................................... 25
Zusatzrost Wok ..................................... 25
Empfehlungen zum Kochen ..................... 25
Hinweise bei der Benutzung ................ 26
Reinigung und Pflege .......................... 27
Reinigung ..................................................... 27
Ungeeignete Pflegemittel ............................. 27
Pflege .......................................................... 28
Störungen ........................................... 29
Technischer Kundendienst ................. 30
Garantiebedingungen ................................. 30
Verpackung und Altgeräte .................. 30
Umweltschonende Entsorgung ................... 30

Geehrte Kundin, geehrter Kunde,
wir gratulieren zur Wahl des neuen Geräts und bedanken uns für das
entgegengebrachte Vertrauen. Dieses praktische, moderne und funktionelle
Gerät wird aus Materialien bester Qualität hergestellt, die während des
gesamten Produktionsprozesses strikten Qualitätskontrollen unterliegen und
genauestens geprüft werden, um Ihre Anforderungen an einen perfekten
Kochvorgang zu erfüllen.
Belassen Sie das Gerät bis zum Einbau in der Schutzhülle.
Wir bitten Sie, diese Anweisungen vor dem Einbau oder der Benutzung
des Geräts durchzulesen. Die darin enthaltenen Informationen sind für den
korrekten Betrieb und - wichtiger noch - für Ihre eigene Sicherheit sehr
wichtig.
Die Verpackung Ihres Geräts besteht aus Materialien, die notwendig
sind, um einen wirksamen Schutz beim Transport zu garantieren. Diese
Materialien sind vollständig wiederverwendbar und verringern damit
die Umweltbelastung. Wie wir können auch Sie einen Beitrag zum
Umweltschutz leisten, indem Sie folgende Ratschläge beachten:
- Entsorgen Sie die Verpackung in einer Tonne für recyclingfähige
Materialien.
- Machen Sie ein Altgerät vor der Entsorgung unbrauchbar. Informieren
Sie sich bei Ihrer örtlichen Verwaltung über die Adresse des nächsten
Wertstoffhofs und liefern Sie Ihr Gerät dort ab.
- Schütten Sie verwendetes Bratfett oder Öl nicht durch das Spülbecken.
Sammeln Sie das Öl in einem verschließbaren Gefäß und geben Sie es bei
einer Sammelstelle ab oder werfen Sie es, wenn dies nicht möglich ist, in die
Mülltonne (so gelangt es auf eine kontrollierte Mülldeponie; vermutlich nicht
die beste Lösung, doch wird so kein Wasser verschmutzt).
WICHTIG:
Falls das Gerät wider Erwarten Schäden aufweisen oder Ihre
Qualitätsanforderungen nicht erfüllen sollte, setzen Sie uns davon so schnell
wie möglich in Kenntnis. Zur gültigen Einlösung der Garantie darf das Gerät
nicht unbefugt manipuliert bzw. benutzt worden sein.
17

18
Sicherheitshinweise
Lesen Sie diese Gebrauchsanweisung aufmerksam
durch. Nur so können Sie Ihr Gerät effektiv und sicher
benutzen.
Alle Installations-, Regelungs- und Umstellungsarbeiten
auf eine andere Gasart müssen von einem autorisierten
Fachmann und unter Beachtung der geltenden
Regelungen und gesetzlichen Vorgaben sowie der
Vorschriften der örtlichen Strom- und Gasversorger
vorgenommen werden.
Für Umstellungsarbeiten auf eine andere Gasart
empfehlen wir, den Kundendienst zu rufen.
Vor dem Einbau Ihres neuen Kochfelds stellen Sie
sicher, dass beim Einbau den Montageanweisungen
gefolgt wird.
Dieses Gerät darf nur an einem ausreichend belüfteten
Ort und nur in Übereinstimmung mit den für die
Belüftung geltenden Bestimmungen und Richtlinien
eingebaut werden. Das Gerät darf nicht an einen
Schornstein oder eine Abgasanlage angeschlossen
werden.
Am Einbauort für dieses Gerät müssen die
Belüftungsbestimmungen vollständig erfüllt werden.
Das Gerät nicht der Zugluft aussetzen. Die Brenner
Dieses Gerät ist werkseitig auf die auf dem Typenschild
angegebene Gasart eingestellt. Falls auf eine andere
Hantieren Sie nie im Inneren des Geräts.
Gegebenenfalls rufen Sie bitte unseren Kundendienst.
Bewahren Sie die Installations- und
Gebrauchsanweisungen gut auf und geben Sie sie an
einen eventuellen neuen Besitzer des Gerätes weiter.
Falls Sie einen Schaden am Gerät feststellen,
Kundendienst.
schließen
Sie es nicht an. Rufen Sie unseren
Die Oberflächen der Kochherde werden während
des Betriebs heiß. Handeln Sie vorsichtig. Halten Sie
Kinder fern.
Gasart umgestellt werden muss, lesen Sie bitte die
können sonst ausgehen.
Einbauanleitung.
in Privathaushalten entworfen; eine kommerzielle oder
gewerbliche Nutzung ist nicht gestattet. Dieses Gerät
darf nicht auf Jachten oder in Wohnwagen eingebaut
werden. Die Garantie gilt nur dann, wenn das Gerät
Dieses Gerät wurde ausschließlich für die Verwendung
ausschließlich für seinen vorgesehenen Zweck genutzt
wird.

19
Benutzen Sie das Gerät nur zum Kochen, niemals als
Heizgerät.
Überhitztes Fett oder Öl ist leicht entzündlich.
Entfernen Sie sich nicht vom Gerät, wenn Fett oder Öl
erhitzt wird. Falls sich Fett oder Öl entzündet, löschen
Sie das Feuer nicht mit Wasser. Verbrennungsgefahr!
Decken Sie den Topf oder die Pfanne zum Ersticken
der Flamme mit einem Deckel ab und schalten Sie die
Kochstelle aus.
Beim Auftreten eines Defektes stellen Sie die Gas- und
rufen Sie bitte unseren Kundendienst.
Falls sich ein Bedienknebel nicht drehen lässt,
versuchen Sie es nicht gewaltsam. Wenden Sie sich
zum Reparieren oder Ersetzen des Bedienknebels
sofort an den Kundendienst.
Stellen Sie keine verformten, instabilen Töpfe auf
Platten und Brenner, die Töpfe können umfallen.
Dieses Gerät entspricht Klasse 3 gemäß EN 30-1-1
für Gasgeräte: Einbaugeräte.
Lagern Sie keine ätzenden chemischen
Reinigungsmittel oder Produkte, Dampfreiniger,
Die in diesem Bedienungshandbuch dargestellten
Grafiken sind orientativ.
Der Hersteller ist jeglicher Verantwortung enthoben,
wenn die Bestimmungen dieses Handbuchs nicht
eingehalten werden.
(einschließlich Kinder) vorgesehen, die in ihrer
brennbare Materialien oder andere Produkte, die keine
Leistungsfähigkeit beeinträchtigt sind oder denen es an
Lebensmittel sind, unter diesem Haushaltsgerät bzw.
Erfahrung oder Kenntnissen mangelt, es sei denn, sie
Das Gerät ist nicht für die Benutzung durch Personen
einer für
körperlichen, sensorischen oder geistigen
stehen unter Beaufsichtigung oder wurden von
ihre Sicherheit verantwortlichen Person in der Benutzung
benutzen Sie diese nicht in unmittelbarer Nähe.
des Gerätes unterrichtet.
i~ëëÉå=páÉ=Ç~ë=dÉê®í=ï®ÜêÉåÇ=ÇÉë=_ÉíêáÉÄÉë=åáÅÜí=
ìåÄÉ~ìÑëáÅÜíáÖíK=
=
Stromzufuhr des Gerätes ab. Für Reparaturarbeiten
Stromschlag!
Verwenden Sie zur Reinigung des Kochfeldes
keine Dampfreiniger. Lebensgefahr durch
