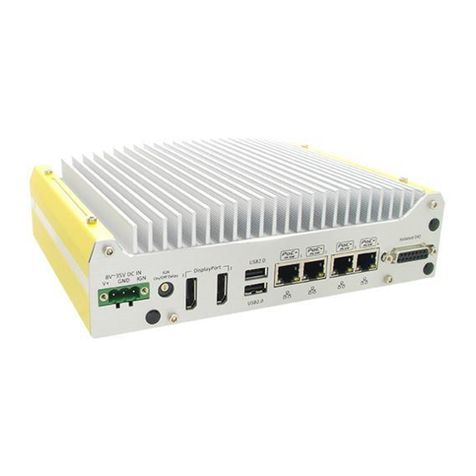

Neousys Technology POC-551VTC Series User manual

Neousys Technology Inc.
POC-551VTC Series
User Manual
Revision 1.0

Table of Content
Table of Contents
Table of Contents...................................................................................................................2
Legal Information...................................................................................................................5
Contact Information...............................................................................................................6
Declaration of Conformity.....................................................................................................6
Copyright Notice....................................................................................................................7
Safety Precautions.................................................................................................................8
Battery Warning......................................................................................................................8
Service and Maintenance ......................................................................................................9
ESD Precautions....................................................................................................................9
Restricted Access Location..................................................................................................9
About This Manual...............................................................................................................10
1Introduction
1.1 POC-551VTC Specifications....................................................................................12
1.2 Dimension of POC-551VTC......................................................................................14
1.2.1 Front Panel View...............................................................................................14
1.2.2 DIO Panel View.................................................................................................15
1.2.3 COM and Audio Port Panel View......................................................................15
1.2.4 Bottom View......................................................................................................16
1.2.5 Exploded View..................................................................................................17
2System Overview
2.1 Unpacking the System.............................................................................................18
2.2 POC-551VTC Front Panel.........................................................................................19
2.2.1 3-pin Terminal Block for DC Input (Optional Ignition Input)...............................20
2.2.2 3-pin Remote On/ Off........................................................................................21
2.2.3 IEEE 802.3at Power over Ethernet Port............................................................22
2.2.4 USB 3.1 Gen1...................................................................................................23
2.2.5 System Status LED...........................................................................................23
2.2.6 DisplayPort........................................................................................................24
2.2.7 VGA Port...........................................................................................................25
2.3 COM Port Panel ........................................................................................................26
2.3.1 Power Button ....................................................................................................27
2.3.2 COM 1 Port.......................................................................................................28
2.3.3 COM Port (COM2/ COM3/ COM4)....................................................................29
2.3.4 Reset Button.....................................................................................................30
2.3.5 4-Pole 3.5mm Microphone-in/ Speaker-out Jack..............................................30
2.3.6 SMAAntenna Opening......................................................................................31
2.4 CAN bus and DIO Port Panel...................................................................................32
2.4.1 CAN bus Port....................................................................................................33
2.4.2 Digital Input/ Output..........................................................................................34
2.5 Internal I/O.................................................................................................................35
2.5.1 Full-size mini-PCIe Slot and SIM Socket ..........................................................35
2.5.2 M.2 2280 (M Key) Slot for NVMe SSD..............................................................37
2.5.3 SO-DIMM Socket..............................................................................................39
2.6 MezIOTM Interface .....................................................................................................40
2.6.1 MezIOTM Interface Pin Definition.......................................................................41
3System Installation
3.1 Disassembling the System Enclosure....................................................................43
3.2 Installing Internal Components...............................................................................46
3.2.1 DDR4 SO-DIMM Installation.............................................................................46
3.2.2 mini-PCIe Module, SIM Card and Antenna Installation.....................................47
3.2.3 M.2 2880 M Key NVMe SSD Installation ..........................................................51
3.2.4 MezIOTM Module Installation.............................................................................53

Table of Content
3
3.2.5 mSATA Module Installation ...............................................................................55
3.3 M.2 (2242/ 3042) Module Installation.......................................................................56
3.4 Installing the System Enclosure .............................................................................59
3.5Wall Mount Installation ............................................................................................61
3.5.1 Vertical Wall Mount Bracket (Optional)..............................................................62
3.6 DIN Rail Installation (Optional)................................................................................63
3.7 Powering On the System .........................................................................................66
3.7.1 Powering On Using the Power Button...............................................................66
3.7.2 Powering On Using An External Non-Latched Switch.......................................67
3.7.3 Powering On Using Wake-on-LAN....................................................................68
3.8 Ignition Power Control.............................................................................................71
3.8.1 Principles of Ignition Power Control..................................................................71
3.8.2 Additional Features of Ignition Power Control...................................................72
3.8.3 Wiring Ignition Signal........................................................................................73
3.8.4 Configure your Windows system.......................................................................74
3.8.5 Operation Modes of Ignition Power Control......................................................75
4BIOS Settings
4.1 COM1/ 2 Port Configuration ....................................................................................78
4.2 COM 3/ 4 Port Configuration ...................................................................................79
4.3 COM Port High Speed Mode....................................................................................80
4.4 SATA Configuration for MezIOTM Module................................................................81
4.5 TPM Availability........................................................................................................82
4.6 System Power Configuration ..................................................................................83
4.7 Ignition Power Control.............................................................................................84
4.8 Power over Ethernet (PoE) ......................................................................................85
4.9 Wake-on-LAN............................................................................................................86
4.10 Power On after Power Failure........................................................................87
4.11 Boot Menu.................................................................................................................88
4.12 Boot Type (Legacy/ UEFI)...............................................................................90
4.13 Position New Boot Device..............................................................................91
4.14 Watchdog Timer..............................................................................................92
5OS Support and Driver Installation
5.1 Operating System Compatibility.............................................................................93
5.2 Driver Installation.....................................................................................................94
5.2.1 Install Drivers Automatically..............................................................................94
5.2.2 Install Drivers Manually.....................................................................................95
5.3 Driver for Watchdog Timer and DIO........................................................................96
Appendix A Using WDT & DIO
WDT and DIO Library Installation.......................................................................................98
WDT Function Reference ..................................................................................................100
InitWDT................................................................................................................................100
SetWDT ...............................................................................................................................100
StartWDT.............................................................................................................................101
ResetWDT ...........................................................................................................................101
StopWDT .............................................................................................................................101
Using DIO Function (POC516/ POC-546 Only).................................................................102
Wiring for DIO ......................................................................................................................102
DIO Pin Definition.................................................................................................................103
DIO Function Reference ....................................................................................................104
InitDIO..................................................................................................................................104
DIReadLine..........................................................................................................................104
DIReadPort..........................................................................................................................104
DOWriteLine.........................................................................................................................105
DOWritePort.........................................................................................................................105
DOWriteLineChecked ..........................................................................................................106
DOWritePortChecked...........................................................................................................106
COS Function Reference...................................................................................................107

Table of Content
4
SetupDICOS ........................................................................................................................107
RegisterCallbackDICOS.......................................................................................................108
StartDICOS..........................................................................................................................108
StopDICOS ..........................................................................................................................108
DI COS Example..................................................................................................................109
Appendix B PoE On/ Off Control
PoE On/ Off Control Function Reference......................................................................... 111
GetStatusPoEPort................................................................................................................ 111
EnablePoEPort.....................................................................................................................112
DisablePoEPort....................................................................................................................113

Legal Information
Legal Information
All Neousys Technology Inc. products shall be subject to the latest Standard
Warranty Policy
Neousys Technology Inc. may modify, update or upgrade the software, firmware or
any accompanying user documentation without any prior notice. Neousys
Technology Inc. will provide access to these new software, firmware or
documentation releases from download sections of our website or through our
service partners.
Before installing any software, applications or components provided by a third party,
customer should ensure that they are compatible and interoperable with Neousys
Technology Inc. product by checking in advance with Neousys Technology Inc..
Customer is solely responsible for ensuring the compatibility and interoperability of
the third party’s products. Customer is further solely responsible for ensuring its
systems, software, and data are adequately backed up as a precaution against
possible failures, alternation, or loss.
For questions in regards to hardware/ software compatibility, customers should
contact Neousys Technology Inc. sales representative or technical support.
To the extent permitted by applicable laws, Neousys Technology Inc. shall NOT be
responsible for any interoperability or compatibility issues that may arise when (1)
products, software, or options not certified and supported; (2) configurations not
certified and supported are used; (3) parts intended for one system is installed in
another system of different make or model.

Contact Information/ Declaration of Conformity
Contact Information
Headquarters
(Taipei, Taiwan)
Neousys Technology Inc.
15F, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan
Tel: [phone] Fax: [phone] Email, Website
Americas
(Illinois, USA)
Neousys Technology America Inc.
3384 CommercialAvenue, Northbrook, IL 60062, USA
Tel: [phone] Email, Website
China Neousys Technology China Co., Ltd.
Room 612, Building 32, Guiping Road 680, Shanghai
Tel: [phone] Email, Website
Declaration of Conformity
FCC This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at own expense.
CE The product(s) described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to remain
CE compliant, only CE-
compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.

Copyright Notice
Copyright Notice
All rights reserved. This publication may not be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior written
consent of Neousys Technology, Inc.
Disclaimer This manual is intended to be used as an informative guide only and is subject
to change without prior notice. It does not represent commitment from Neousys
Technology Inc. Neousys Technology Inc. shall not be liable for any direct,
indirect, special, incidental, or consequential damages arising from the use of
the product or documentation, nor for any infringement on third party rights.
Patents and
Trademarks
Neousys, the Neousys logo, Expansion Cassette, MezIOTM are registered
patents and trademarks of Neousys Technology, Inc.
Windows is a registered trademark of Microsoft Corporation.
AMD, Ryzen™ are registered trademarks of Advanced Micro Devices, Inc
All other names, brands, products or services are trademarks or registered
trademarks of their respective owners.

Safety Precautions
Safety Precautions
Read these instructions carefully before you install, operate, or transport the
system.
Install the system or DIN rail associated with, at a sturdy location
Install the power socket outlet near the system where it is easily accessible
Secure each system module(s) using its retaining screws
Place power cords and other connection cables away from foot traffic. Do not
place items over power cords and make sure they do not rest against data
cables
Shutdown, disconnect all cables from the system and ground yourself before
touching internal modules
Ensure that the correct power range is being used before powering the device
Should a module fail, arrange for a replacement as soon as possible to minimize
down-time
By means of a power cord connected to a socket-outlet with earthing connection
This product is intended to be supplied by a Listed Power Adapter or DC power
source, rated 24Vdc, 16A, Tma 60 degree C and 5000m altitude during
operation. If further assistance is required, please contact Neousys Technology
If the system is not going to be used for a long time, disconnect it from mains
(power socket) to avoid transient over-voltage
Battery Warning
Batteries are at risk of exploding if incorrectly installed.
Do not attempt to recharge, force open, or heat the battery.
Replace the battery only with the same or equivalent type
recommended by the manufacturer.

Service and Maintenance/ ESD Precautions
Service and Maintenance
ONLY qualified personnel should service the system
Shutdown the system, disconnect the power cord and all other connections
before servicing the system
When replacing/ installing additional components (expansion card, memory
module, etc.), insert them as gently as possible while assuring proper
connector engagement
ESD Precautions
Handle add-on module, motherboard by their retention screws or the module’s
frame/ heat sink. Avoid touching the PCB circuit board or add-on module
connector pins
Use a grounded wrist strap and an anti-static work pad to discharge static
electricity when installing or maintaining the system
Avoid dust, debris, carpets, plastic, vinyl and styrofoam in your work area.
Do not remove any module or component from its anti-static bag before
installation
Restricted Access Location
The controller is intended for installation only in certain environments where both of
the following conditions apply:
Access can only be gained by QUALIFIED SERVICE PERSONNEL who have
been instructed on the reasons for restrictions applied to the location and any
precautions that shall be taken
Access is through the use of a TOOL, lock and key, or other means of security,
and is controlled by the authority responsible for the location

About This Manual
10
About This Manual
This manual introduces and demonstrates installation procedures of Neousys
POC-551VTC series systems featuring AMD Ryzen™ Embedded V1000 4-core/
8-thread processor. The manual also demonstrates the system’s general installation
procedures.
Revision History
Version Date Description
1.0 Aug. 2020 Initial release

POC-551VTC
11
1 Introduction
POC-551VTC is the next generation ultra-compact, fanless in-vehicle controller
offering performances never-seen-before in this form factor. It features AMD RyzenTM
Embedded V1000 4-core/ 8-thread processor to deliver up to 3x times the CPU
performance compared to previous POC series. It combines finesse performance,
extraordinary reliability and affordability for versatile modern mobile applications.
POC-551VTC offers four 802.3at PoE+ ports to supply 25W power to powered
devices (PD) such as IP cameras. As wireless connectivity is essential for modern
mobile application, POC-551VTC has one built-in M.2 and three mini-PCIe
expansion slots for more applicable and practical wireless communication modules
such as WiFi, 3G and/ or 4G modules to establish a seamless wireless
communication link. It also has integrated CAN bus for in-vehicle communication and
isolated DIO for sensor/ actuator control.
Combining ignition power control and wide-range DC input along with superior
performance, POC-551VTC is the perfect ultra-compact solution for all your
in-vehicle applications!

POC-551VTC
12
1.1 POC-551VTC Specifications
System Core
Processor AMD Ryzen™ V1605B CPU (4C/ 8T, 2M Cache, 2.0/ 3.6 GHz, 12W
- 25W TDP)
Graphics Vega GPU with 6 compute units
Memory Up to 16 GB DDR4-2400 SDRAM (single SODIMM socket)
I/O Interface
Ethernet port 4x Gigabit Ethernet ports by Intel® I350-AM4 controller
PoE+ IEEE 802.3at PoE+ PSE, 80 W total power budget
CAN bus 1x CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
USB 4x USB 3.1 Gen1 (5 Gbps) ports with screw-lock
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DP connector, supporting 4096 x 2160 resolution
Serial Port 1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Storage Interface
M.2 1x M.2 2280 M key NVMe socket (PCIe Gen3/ x2)
mSATA 1x full-size mSATA port
Expansion Bus
mini PCIe 3x full-size mini PCIe Express socket with internal SIM socket
M.2 1x M.2 2280 M key NVMe socket (PCIe Gen3 x2)for NVMe SSD
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl.&LED
Output
1x3-pin pluggable terminal block for remote control and PWR LED
output
Mechanical
Dimension 64 mm (W) x 116 mm (D) x 176 mm (H)
Weight
Mounting DIN-rail (standard) or wall-mount (optional)
Environmental
Operating -40°C ~ 70°C *

POC-551VTC
13
Storage
-40°C ~ 85°C
Humidity 10% ~ 90% , non-condensing
Vibration IEC61373:2010, Category 1, Class B Body mounted (part of
Shock IEC61373:2010, Category 1, Class B Body mounted (part of
EMC EN 50155, E-Mark for in-vehicle applications
* For sub-zero and over 60°C operating temperature, a wide temperature HDD or
Solid State Disk (SSD) is required.

POC-551VTC
14
1.2 Dimension of POC-551VTC
NOTE
All measurements are in millimeters (mm).
1.2.1 Front Panel View

POC-551VTC
15
1.2.2 DIO Panel View
1.2.3 COM and Audio Port Panel View

POC-551VTC
16
1.2.4 Bottom View

POC-551VTC
17
1.2.5 Exploded View

POC-551VTC
18
2 System Overview
Upon receiving and unpacking your POC-551VTC systems, please check
immediately if the package contains all the items listed in the following table. If any
item(s) are missing or damaged, please contact your local dealer or Neousys
Technology.
2.1 Unpacking the System
Item Description Qty
1 POC-551VTC
(If you ordered CPU/ RAM/ HDD, please verify these items)
1
2 Accessory box, which contains
DIN-Rail Mount Clip
Neousys drivers & utilities DVD
Foot pad
3-pin power terminal block
Screw pack
1
1
4
2
1

POC-551VTC
19
2.2 POC-551VTC Front Panel
The front panel of system feature rich I/O ports, it has four PoE+ Gigabit Ethernet
ports, four USB 3.1 Gen1 ports, one DisplayPort, one VGA port, 3-pin remote on/ off
control and a 3-pin terminal block for DC input/ ignition control.
No. Item Description
1
3-pin DC terminal
block (optional
ignition input)
Compatible with DC power input from 8~35V and can also
be used for ignition signal input.
2 3-pin Remote on/
off control
Allows for external switch extension when the system is
placed inside a cabinet.
3 Gigabit PoE+ ports Gigabit Power over Ethernet (PoE) port can provide both
data and electric power to devices.
4 USB 3.1 Gen1 port USB 3.1 Gen1 port, up to 5 Gbit/s data transfer bandwidth.
5 System status LED Four system LEDs, Ignition control (IGN), Watchdog Timer
(WDT), Hard Disk Drive (HDD) and Power (PWR).
6 DisplayPort output The DisplayPort is a high-resolution graphics output
supporting up to 4096 x 2160 @ 30Hz.
7 VGA port output VGA output supports resolution up to 1920x1200@60Hz

POC-551VTC
20
2.2.1 3-pin Terminal Block for DC Input (Optional Ignition Input)
The system accepts a wide range of DC power input from 8 to 35V via a 3-pin
pluggable terminal block, which is fit for field usage where DC power is usually
provided. The screw clamping mechanism on the terminal block offers connection
reliability when wiring DC power.
In addition to DC power input, this terminal block can also accept ignition signal input
(IGN) when you have MezIOTM module with IGN function installed.
WARNING
Please make sure the voltage of DC power is correct before you connect it to the
system. Supplying a voltage over 35V will damage the system.
