SERVICE MANUAL
BEVERAGE CENTER
KRUPS REF.: KP 2106_RED
KP 2102_BEIGE
KP 2100_BLACK

MAIN COMPONENTS
MAIN COMPONENTS

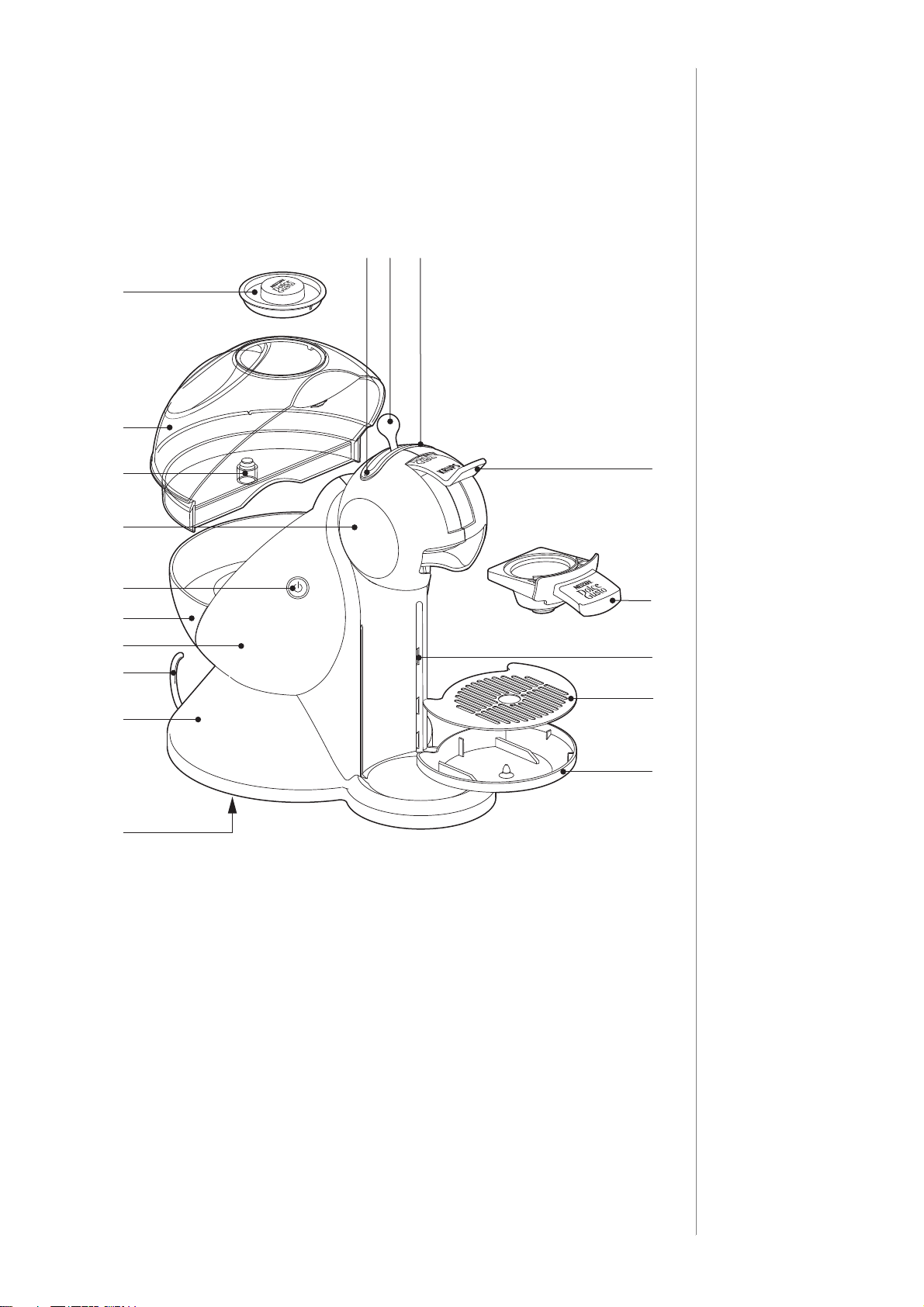

Overview of external parts
1. Cold water indicator
2. Selection lever (cold / stop / hot)
3. Hot water indicator
4. Locking handle
5. Capsule holder
6. Height adjustment (3 levels)
7. Drip grid
8. Drip tray
9. Housing bottom with rating plate
10. Housing main part
11. Power cord
12. Housing covers (2x)
13. Housing back bowl
14. Power button, illuminated
15. Extraction head covers (2x)
16. Water tank valve
17. Water tank (1.5 l)
18. Cap of water tank
3
6
7
8
4
5
1
17
14
9
11
10
18
13
15
16
2
12

MAIN COMPONENTS

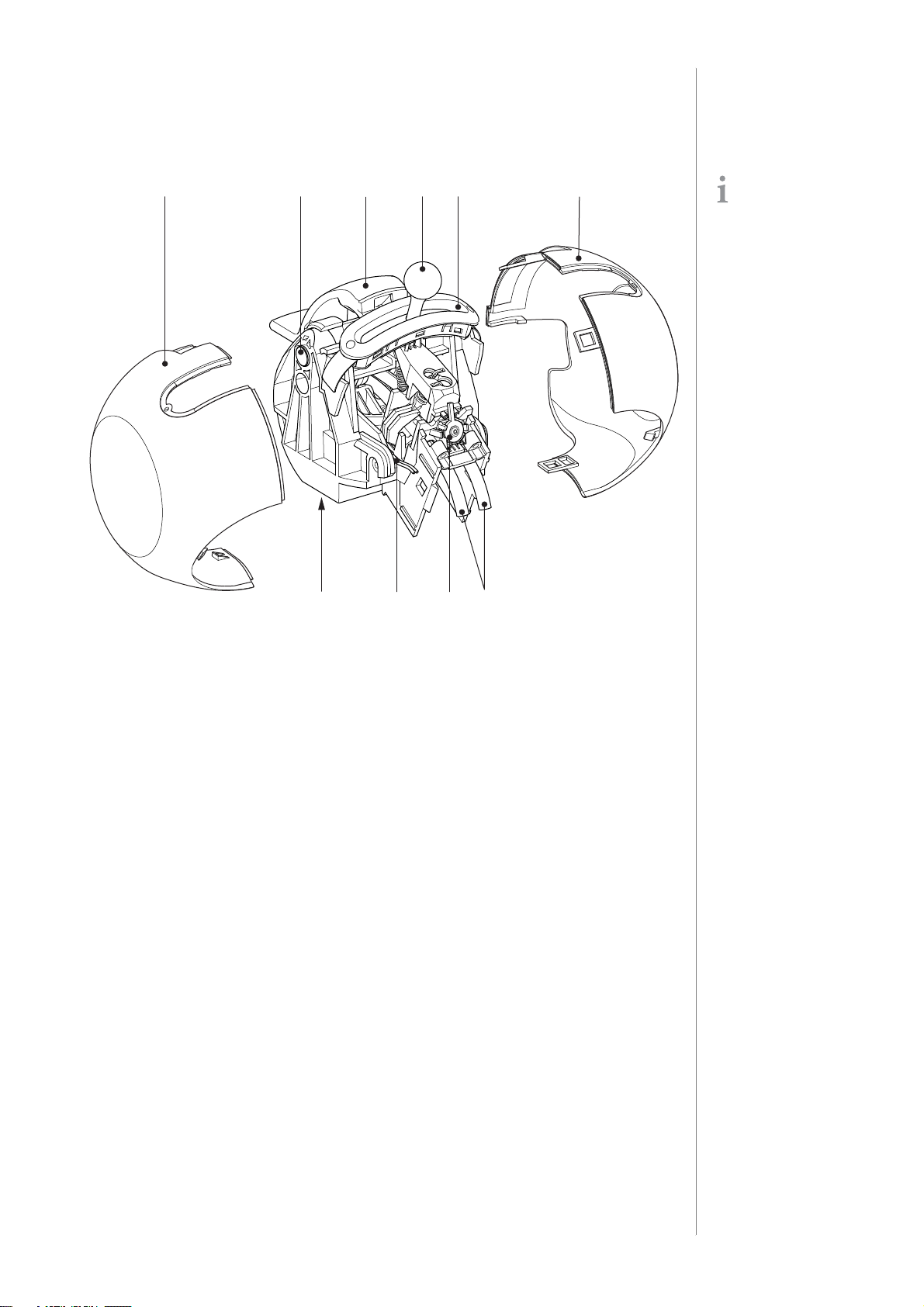

Overview of internal parts
1. Cold water pressure hose
2. Hot water pressure hose
3. Cable tie
4. PCB assembly with power button
5. Filter element
6. Water tank connector
7. NTC temperature sensor
8. Thermo fuses (2x)
9. Thermoblock
10. Pump
11. Thermal cut off fuse
1
4
2
9
6
5
11
8
7
10
3

MAIN COMPONENTS
Overview of extraction head parts
Rear view.
1. Covers
2. Axle
3. Locking handle
4. Selection lever
5. Shutter assembly
(with cold/hot water indicators)
6. Injector plate
7. Reed switch
8. Microswitch
9. Cold/hot water pressure hoses
112 345
6789

MAIN COMPONENTS
Overview of rating plate
The rating plate
• can be found on the underside of the machine,
• may be of varying design, depending on the brand,
• carries the following information:
KRUPSKRUPS TYPE KP210X
www.krups.com
230V ~50Hz 1500W
MADE IN CHINA
REF: KP210XYY /7Zx- WWYY R AAAAAXY
KRUPS
KRUPS
TYPE KP210X
www.krups.com
230V ~50Hz 1500W
MADE IN CHINA
REF: KP210XYY /7Zx- WWYY R AAAAAXY
X = Color code
0 = BLACK / 2 = WHITE / 6 = RED
AAAAAXY = Barcode
AAAAA = Serial number: 0...99999
X = Color code
0 = BLACK / 2 = WHITE / 6 = RED
Y = Country code
0 = EUR / 1 = SEV / 2 = UK
WWYY = Fabrication date
WW = Week / YY = Year
YY = Plug version
CH = SEV plug / 10 = VDE plug / 40 = UK plug
X = Color code
0 = BLACK / 2 = WHITE / 6 = RED

MAIN COMPONENTS
Water circuit
1. Water tank with valve
2. Filter and connector
3. Pump
4. Thermoblock
5. Selection lever
6. Position cold
7. Position hot
8. F-connector
9. Injector plate
10. Capsule holder
11. Injector
1
2
3
4
5
7
9
6
11
8
10
7
8
6
2
5
1
3
4
10
9

MAIN COMPONENTS
Technical data
Mains voltage
Europe (UK, CH, D, AU, F, I, SP, PT, CZ, SK, PL, NL)............................. 230 V / 50 Hz
Russia .......................................................................................................220 V / 50 Hz
USA / Canada ...........................................................................................120 V / 60 Hz
Mexico .......................................................................................................127 V / 60 Hz
Brazil .........................................................................................................127 V / 60 Hz
Japan................................................................................................... 100 V / 50-60 Hz
South Korea ..............................................................................................220 V / 60 Hz
Approvals....................................................................... VDE, SEV, CE, UL, CUL, JET
Power consumption (at all voltages and frequencies) .......................... max. 1’500 W
Ratings (approx.)
Preheating .......................................................................................................... 8.0 Wh
1 small cup (40 ml, Espresso) ............................................................................ 3.0 Wh
1 large cup (110 ml, Lungo)............................................................................... 8.3 Wh
1 travel mug (350 ml, Powder) ........................................................................ 25.0 Wh
Economy mode ................................................................................................... 0.3 W
Flow rates (± 50 ml/min)
R&G / Espresso................................................................210 ml/min at approx. 8.0 bar
R&G / Lungo.....................................................................230 ml/min at approx. 7.5 bar
R&G / Cappuccino............................................................210 ml/min at approx. 8.5 bar
R&G / Latte Macchiato .....................................................210 ml/min at approx. 7.5 bar
Powder / Milk....................................................................320 ml/min at approx. 3.5 bar
Capacities
Water tank ................................................................................................................1.5 l
Drip tray...................................................................................................approx. 150 ml
Used capsules bin ....................................................................................approx. 8 pcs.
Temperatures
Safety temperature (thermal cut-off) ..................................................... 133 °C (271 °F)
Hot beverage outlet temperature.....................................85 °C ± 5 °C (185 °F ± 41 °F)
Permissible ambient temperature..................................... 5 °C - 45 °C (41 °F - 113 °F)

MAIN COMPONENTS
Various data
Pre-heating time..........................................................................................approx. 30 s
Pump pressure max. ................................................................................ 13.5 ± 1.5 bar
Noise........................................................................................................max. 65 dB(A)

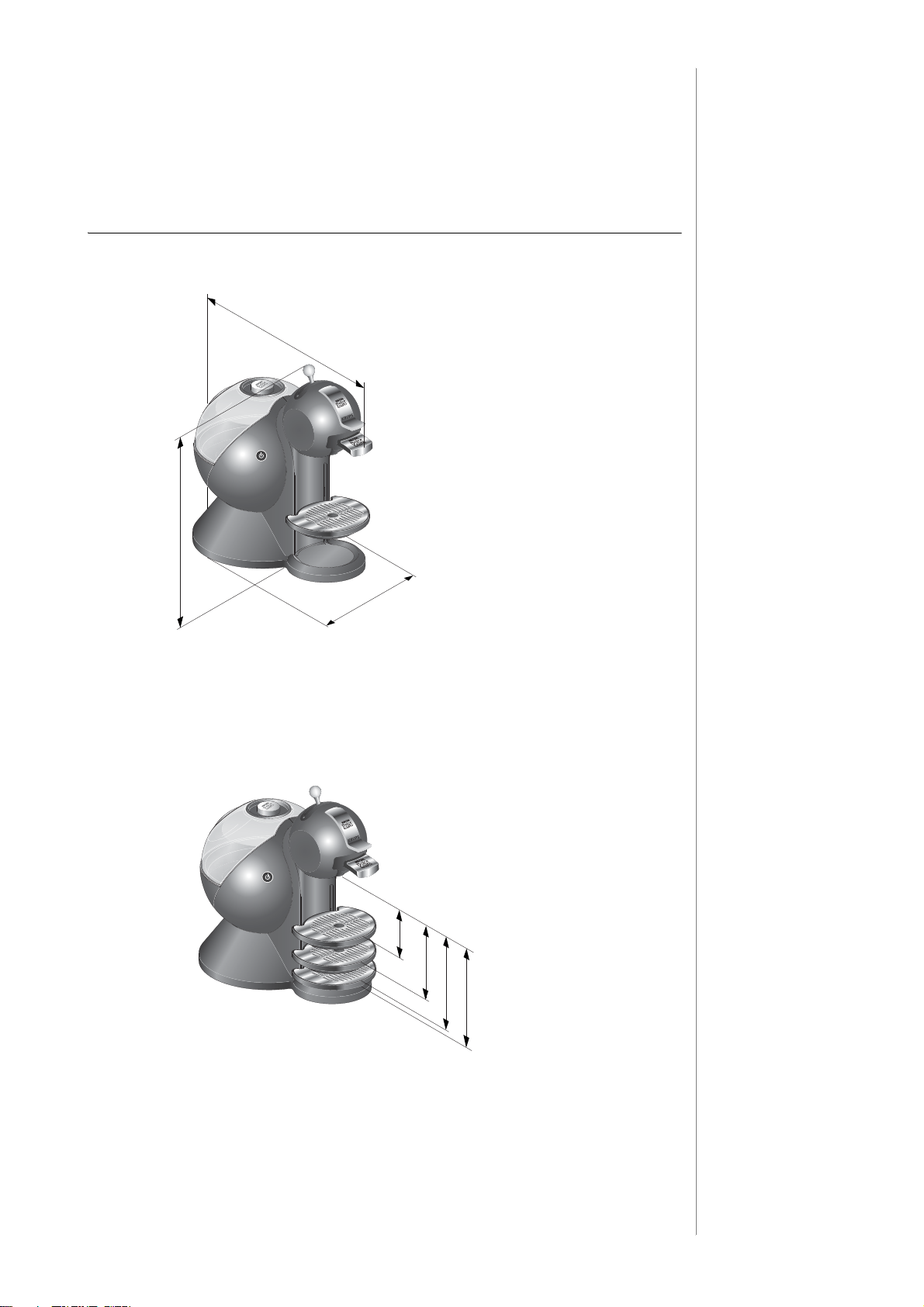

Dimensions [mm]
Dimensions (D x W x H)................................................................. 305 x 214 x 332 mm
Power cord length ........................................................................................approx. 1 m
Weight of machine (without water)........................................................ approx. 2.75 kg
Distance drip grid to coffee outlet [mm]
Espresso ..............................................................................................................81 mm
Mug ....................................................................................................................125 mm
Tall glass ............................................................................................................155 mm
Travel mug .........................................................................................................183 mm
305
214
332
81
125
155
183

OPERATING
OPERATING
Machine status
After switching on, an automatic self-test is performed to check if the
- capsule holder is inserted (with reed-switch)
- NTC is connected,
- NTC is short circuited,
- the thermoblock reaches the working temperature within 30 seconds.
Operating modes and detected failures are indicated by LED signals of the power button
as listed in the following table:
Operating modes Power button LED signals
Economy mode / Off —
Heating up / self-test red, blinking, approx. 30 sec
Ready green, steady
After beverage preparation (cool-
down time) red, blinking, approx. 5 sec
Descaling ready and during des-
caling cycle green, slow blinking
Error mode red, rapid blinking

OPERATING

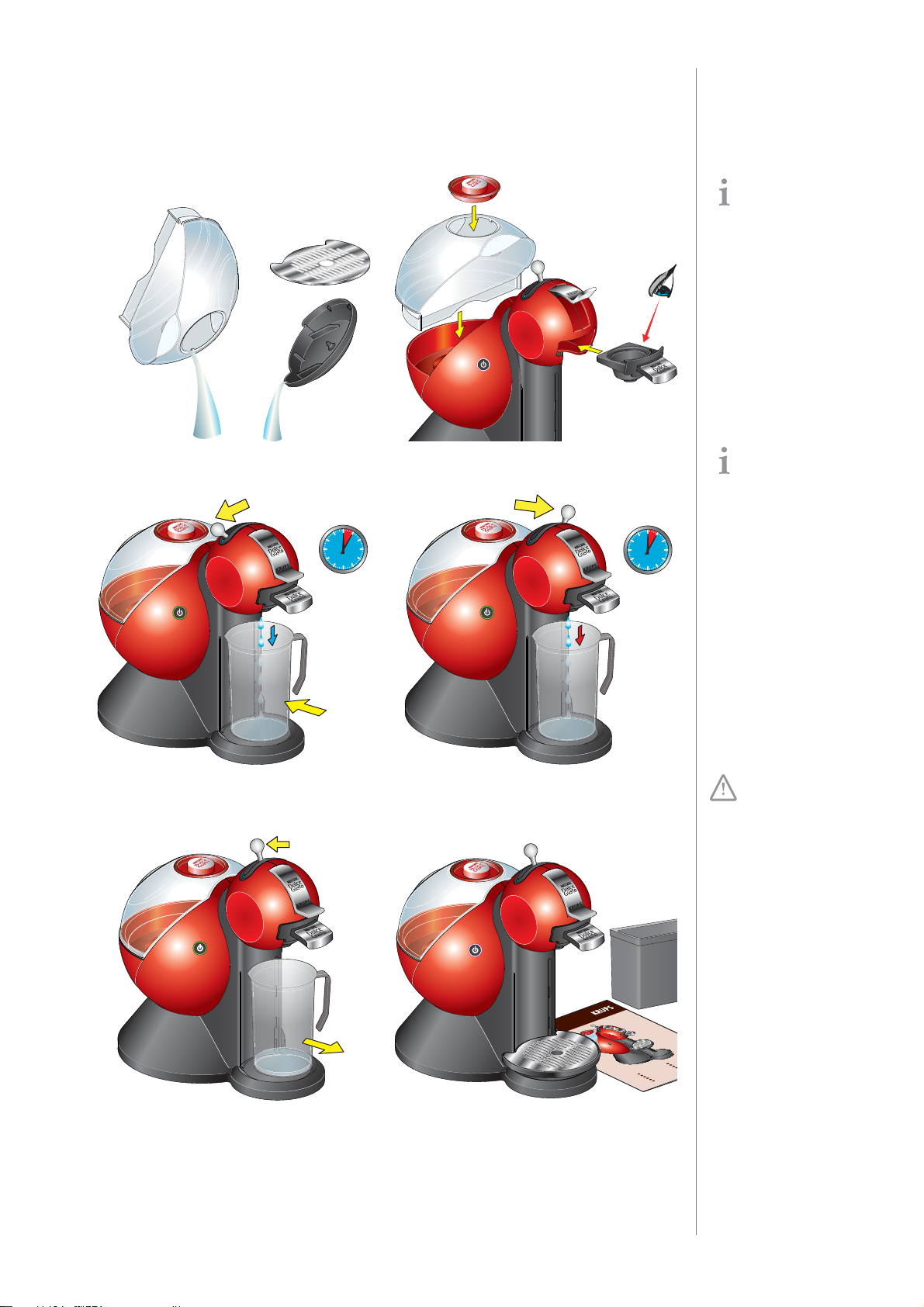

Preparation, first use
The new machine has to be rinsed properly before first use according to the following
sequence:
A timer or stop
watch is helpful to
observe the rinsing
times.
The machine will
not work without a
capsule holder inserted.
Do not insert a
capsule yet.
The pre-heating
time is approx.
30 sec.
1. Rinse water tank at first. Then fill
water tank with fresh, potable water.
2. Check that capsule holder is empty
(no capsule) for the following rinsing
precedure.
3. Insert capsule holder and close
locking lever.
4. Place a jug with enough capactiy
under outlet.
5. Make sure that selection lever is in
central position.
6. Connect mains plug.
7. Switch machine ON.
8. Wait till power button lights up green.
9. Set selection lever at position z
(cold water). Let water run through
for approx. 80 sec.
80 sec

OPERATING
The drip tray is
height-adjustable in
3 levels.
10. Set selection lever at position z
(hot water). Let water run through
for approx. 80 sec.
11. Set selection lever at middle position
to stop rinsing.
12. Remove and empty jug.
13. Refill and insert water tank. 14. Remove protective foil from drip grid.
15. Insert drip tray.
The machine is now ready for use.
80 sec

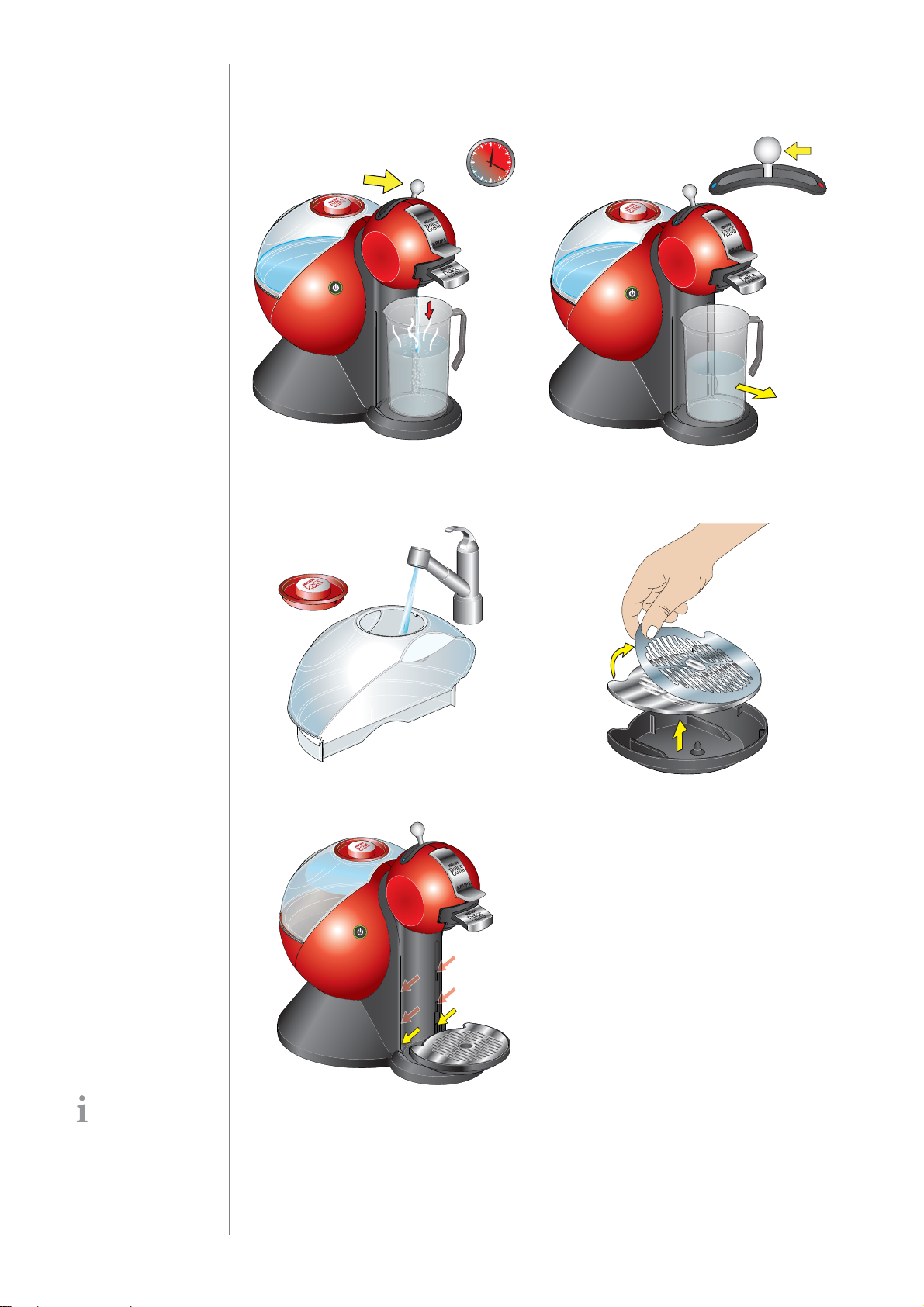

OPERATING

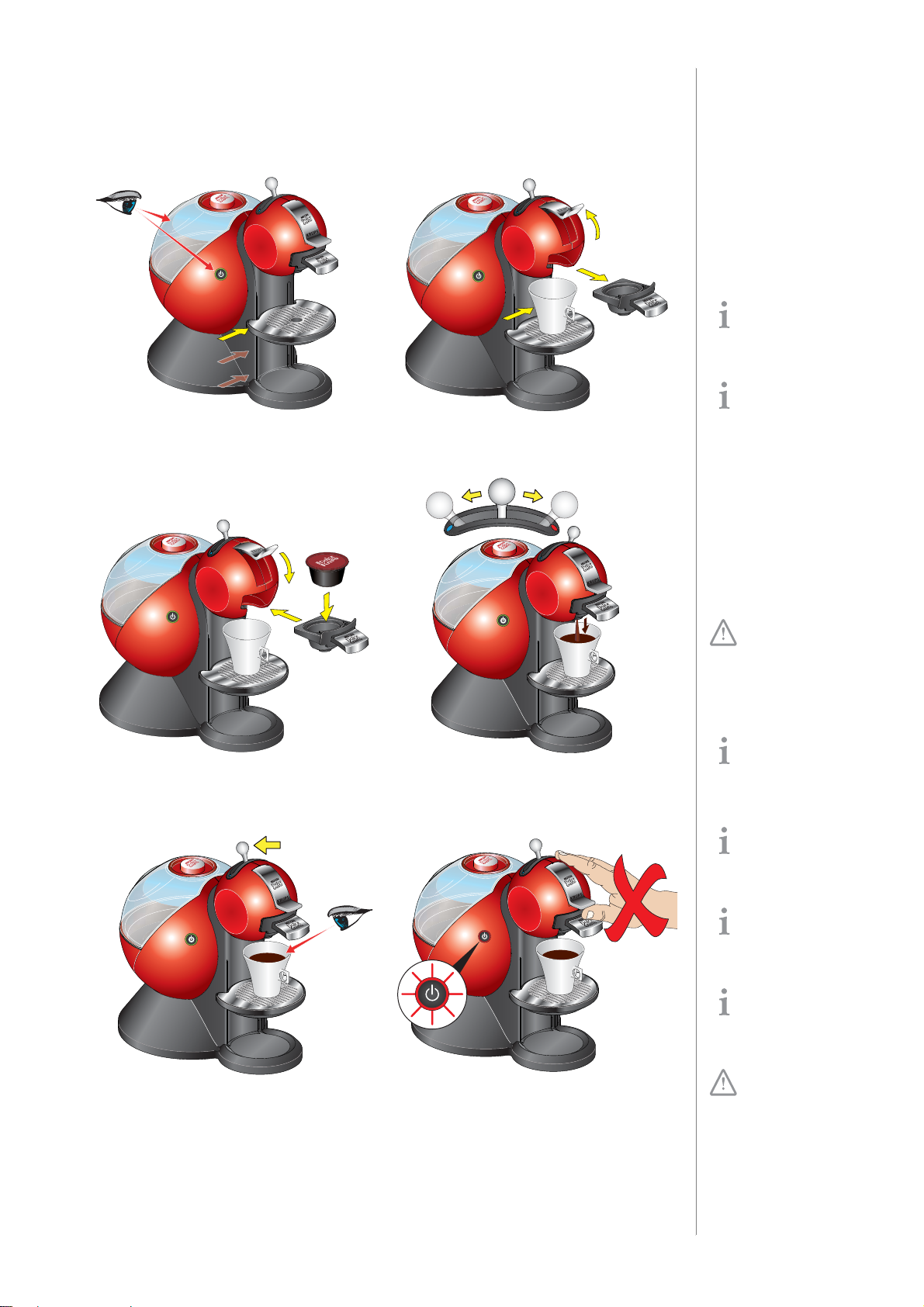

Preparing a beverage
Choose an
appropriate cup
size for beverage.
The locking lever
can only be
actuated if the selection
lever is in the middle
position.
Users allergic to
dairy products:
clean capsule holder
under running water
before use.
For capsule prod-
uct range see user
manual or:
www.dolce-gusto.com
For filling amounts
see product package
of capsule or user manual.
The flow speed
depends on the
used capsule.
T
he machine does
not turn off auto-
matically.
Danger of hot
water and product
splashes - capsule can
burst.
Do not open locking
handle prematurely.
1. Check if water tank is filled.
2. Check if machine is ON and ready.
3. Re-adjust drip tray if necessary.
4. Place a cup under outlet.
5. Open locking lever and pull out
capsule holder.
6. Insert a capsule in capsule holder.
7. Insert capsule holder in machine and
close locking lever.
8. Set selection lever at position hot
water zor cold water z, depending
on beverage.
9. Push selection lever back to middle
position after specified filling amount
is in cup.
10. Do not open locking handle before
the power button stops blinking red
and turns to green (approx. 5 sec).

OPERATING

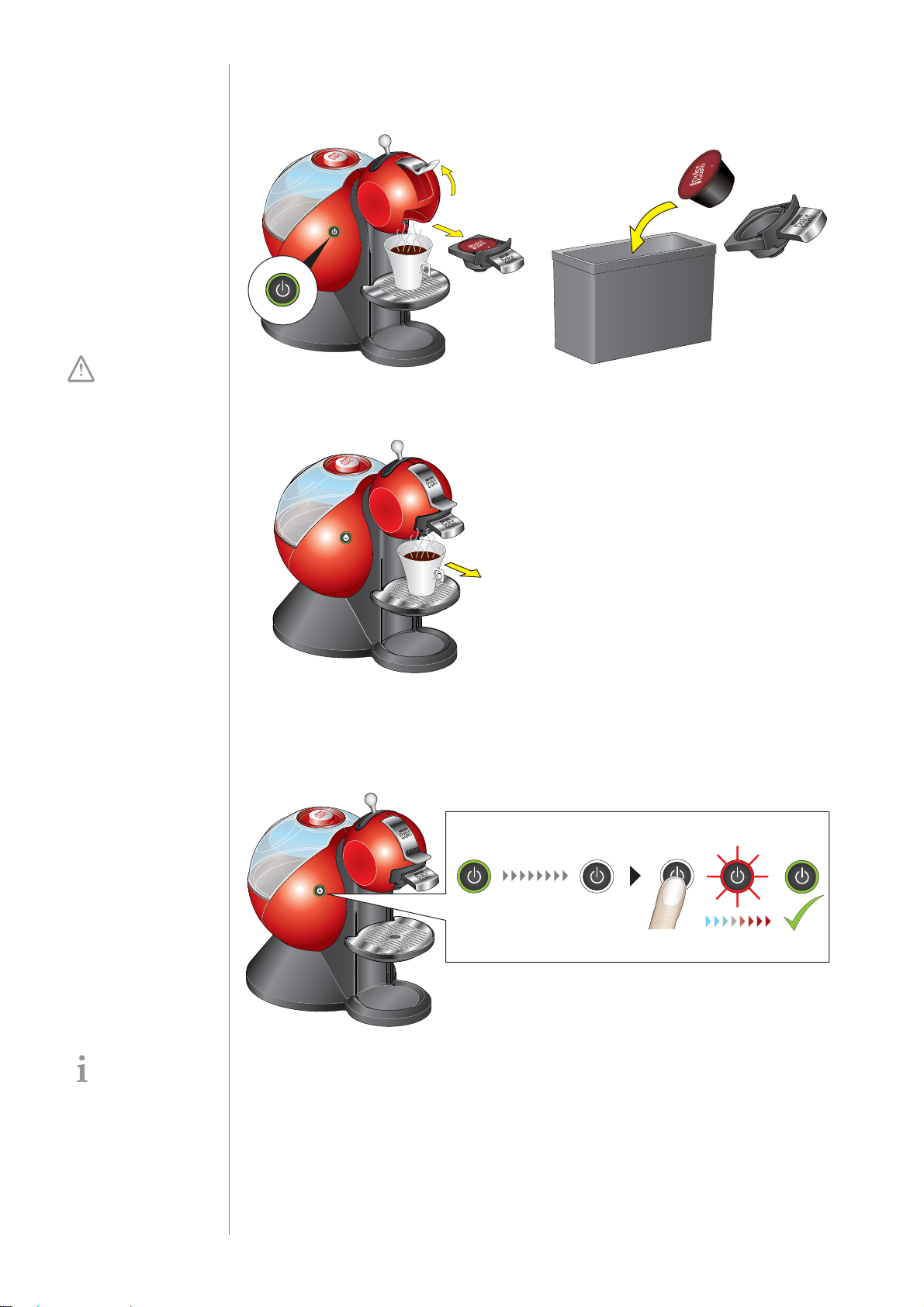

Economy mode
After 20 minutes without operation, the machine switches itself off automatically (stand-by).
To resume operation, simply press power button.
Risk of burning
from hot capsule.
Do not touch capsule
immediately after use.
For longer periods
of standstill
(vacation etc.):
• Plug out power cord.
• Empty water tank.
11. After power button lights up green:
open locking lever and pull out
capsule holder.
12. Discard capsule in capsule bin.
13. Remove cup or proceed with second
capsule of beverage.
20 min
ON OFF
30 sec
ON
OFF

OPERATING
Empty fluid system for shipping
For shipping a
machine, it is
important to empty the
fluid system.
The machine will
not work without
inserted capsule holder.
Prolonged dry-run-
ning can damage
the pump.
1. Empty water tank and drip tray. 2. Check that capsule holder is empty.
3. Re-insert capsule holder.
4. Set selection lever at position z
(cold water). Let water run through
for approx. 5sec.
5. Set selection lever at position z
(hot water). Let water run through
for approx. 5 sec.
6. Set selection lever at middle position.
7. Remove and empty jug.
12. Clean machine and all accessories.
13. Send machine back with capsule
holder and all provided accessories.
5 sec
5 sec
8VHUPDQXDO
%HGLHQXQJVDQOHLWXQJ
0RGHGಫHPSORL
,VWUX]LRQLSHUOಫXVR
0DQXDOGHXVXDULR
0DQXDOGH2SHUD©¥R
GB
D
F
I
E
P
1£YRGSUR
8SRUDE
,QV
CZ
SLO
PL
RUS

TROUBLESHOOTING
TROUBLESHOOTING
Checklist
The checklist enables you to rapidly locate faults on the machine and to initiate appropriate repair action.
Follow the check procedure. Repair any faults found and check if the machine is operating perfectly.
Check
procedure Symptoms Action / repair work Further action / repair work
1 Check general
condition of machine,
accessories and
look for visible
damage
1.1 Parts of housing are broken
or damaged
YES - Replace parts if necessary
NO - Go to point 1.2
1.2 Accessories are broken or
damaged
YES - Replace all broken or
damaged accessories
NO - Go to point 1.3
—
1.3 Shaky extraction head
YES - Fasten extraction head with
screws
NO - Go to point 1.4
1.4 Power cord is broken,
damaged or not inside the strain
relief
YES - Remount or replace power
cord if necessary
NO - Go to point 2
2 Check mechanical
elements
2.1 Capsule holder inserts
correctly into the extraction
head?
YES - Go to point 2.2
NO - Replace capsule holder
NO - Check injector plate
2.2 Drip tray inserts correctly in
all 3 levels?
YES - Go to point 2.3
NO - Check the bracket on the drip
tray and the housing main part,
replace if necessary
—
2.3 Locking handle is moving?
YES - Check the snap fit connec-
tion and replace the extraction
head if necessary
NO - Go to point 2.4
2.4 Selection lever is moving?
YES - Check the snap fit connec-
tion and replace the extraction
head if necessary
NO - Go to point 2.5
2.5 Selection of hot or cold is
possible when extraction head is
opened?
YES - Replace the extraction head
NO - Go to point 2.6
2.6 Locking handle can be
pulled up while making a
beverage?
YES - Replace the extraction head
NO - Go to point 2.7
2.7 Is capsule holder magnetic? YES - Go to point 3
NO - Replace capsule holder —
3 Fill water tank
3.1 Water tank is leaking on
transport
YES - Replace water tank
NO - Go to point 3.2 —
3.2 Water tank is leaking when it
is inserted in the machine
YES - Try new water tank and
check if it is still leaking
NO - Go to point 4
YES - Replace connector (tank
to pump), filter and water tank
NO - Replace old water tank

TROUBLESHOOTING
4 Plug into mains
and switch ON
machine
4.1 Machine (with capsule
holder inserted) is not working -
no function
YES - a) Check if magnets of
capsule holder are in place.
YES - Go to point b)
NO - Replace capsule holder
YES - b) Check if power cord is
functional
YES - Go to point c)
NO - Replace it
YES - c) Check if all electrical
connectors are connected
YES - Go to point d)
NO - Connect them
YES - d) Check if thermoblock’s
thermofuses (133°C) are defective
YES - Replace power cord and
PCB assembly. If necessary
replace also the thermoblock
. If plastic ribs
under thermoblock are melted
then replace bottom assembly
NO - Go to point e)
YES - e) Check if power button is
functional
YES - Go to point f)
NO - Check if PCB support and
side bowl are assembled
correctly. Replace PCB
assembly or side bowl if
necessary
YES - f) Check if indicator (LED) is
defective
YES - Replace PCB assembly
NO - Go to point g)
YES - g) Check if reed contact is
functional
YES - Go to point h)
NO - Replace the extraction
head
YES - h) Check if pump is working
at position z(cold)
YES - Go to point i)
NO - Go to point j)
YES - i) Check if pump is working at
position z(hot)
YES - Go to point 4.3
NO - Replace the extraction
head (valve switch or reed
contact might bebroken)
. If still not working,
replace also PCB assembly.
YES - j) Check if pump's thermal
cut off fuse (98°C) is defective
YES - Replace pump
NO - Replace pump
or assemblyPCB
or extractionhead
4.2 Indicator (LED) flashes red
3 times a second (error mode)
YES - a) Check if NTC temperature
sensor is functional
NO - Replace NTC tempera-
ture sensor.
YES - Go to point b)
YES - b) Check if electrical wires
are functional
NO - Go to point 4.3
YES - Replace PCB assembly
NO - Replace defective(s)
wire(s).
4.3 Machine is working without
capsule holder
YES - Replace the extraction head
NO - Go to point 4.4
Check
procedure Symptoms Action / repair work Further action / repair work

TROUBLESHOOTING
4 Plug into mains
and switch ON
machine
4.4 Machine is hissing if valve
handle is in middle position
YES - Replace the extraction head
NO - Go to point 5
5 Checks while
preparing a beverage
(see page 15)
5.1 No extraction possible (no
water at coffee outlet)
YES - a) Water tank is empty? YES - Fill water tank
NO - Go to point b)
YES - b) Water tank is correctly
inserted?
YES - Go to point c)
NO - Insert water tank correctly
YES - c) Filter is blocked or not in
right position
YES - Replacefilter
NO - Go to point d)
YES - d) Fluid system is empty?
YES - Prime the fluid system
without capsule
NO - Go to point e)
YES - e) Fluid system is blocked by
scale?
YES - Descale the fluid system
NO - Go to point f)
YES - f) Injector is still clogged after
descaling?
YES - Deblock the injector
NO - Replace the extraction
head
5.2 Hot water temperature is too
low (less than 70°C / 158 °F)
YES - a) Check if NTC temperature
sensor is functional
NO - Change NTC tempera-
ture sensor
YES - Go to point b)
YES - b) Fluid system is scaled?
YES - Descale the fluid system
NO - Replace PCB assembly
YES - c) Valve malfunction?
YES - Replace the extraction
head
NO - Go to point d)
YES - d) Flow rate of pump out of
range?
YES - Replace the pump
NO - Go to point 5.3
5.3 Hot water temperature is too
high (more than 95°C / 203 °F)
YES - a) Check if NTC temperature
sensor is functional
NO - Change NTC tempera-
ture sensor
YES - Go to point b)
YES - b) Fluid system is scaled?
YES - Descale the fluid system
NO - Go to point 5.5
YES - d) Flow rate of pump out of
range?
YES - Replace the pump
NO - Go to point 5.4
5.4 Cold water temperature too
high (5°C / 41 °F more than
water tank temperature)
YES - Valve malfunction?
NO - Go to point 5.5
YES - Replace the extraction
head
NO - Go to point 5.6
5.5 Selection lever does not
remain at the
position z ( hot) or
z(cold)
YES - Replace the extraction head
NO - Go to point 5.6 see page 34
5.6 The capsule does not fall out
of the capsule holder
YES - Check the capsule or the
capsule holder
NO - Go to point 6
YES - Replace the capsule
holder if necessary
Check
procedure Symptoms Action / repair work Further action / repair work

TROUBLESHOOTING
6 Check for leaks
and/or flow rate
while preparing a
beverage (see page
15)
6.1 Leakage at extraction head
YES - a) The capsule has multiple
perforations?
NO - Go to point 6.2
YES - Perforate the capsule
only once, see user manual
NO - Replace the extraction
head
6.2 Water underneath the
machine
YES - Defective pressure hoses
and/or silicone elbow?
NO - Go to point 6.3
YES - Replace defective pres-
sure hoses, clips and/or sili-
cone elbow
NO - Go to point 6.4
6.3 Leakage at pressure hoses
connections
YES - Defective pressure hoses
and clips?
NO - Go to point 6.4
YES - Replace defective pres-
sure hoses and clips
NO - Go to point 6.4
6.4 Flow rate out of range
YES - a) Fluid system is scaled?
YES - Descale the fluid system
NO - Go to point b)
YES - b) Injector plate is blocked?
YES - Deblock injector of
injector plate
and descale again
NO - Go to point c)
YES - c) Filter is blocked?
YES - Replace filter
NO - Replace pump
7 Check for loud
noises or vibrations
7.1 Check vibrations while
putting a plastic beaker on the
drip grid
YES - Plastic beaker is moving
around
YES - a) Check if drip tray and
drip grid are inserted correctly,
set it right if necessary
NO - Go to point b)
YES - b) Pump is not firm in its
support, replace it if necessary
NO - Go to point c)
YES - c) Check if pressure
hoses or silicone elbow is
touching the housing
NO - Go to point 7.2
7.2 Check vibrations on the
water tank (water is waving)
YES - The water tank is vibrating on
the machine?
YES - Pump is not firm in its
support, replace it
NO - Go to point 8
8 Perform function
tests (see page 53)
and final cleaning
(see page 68)
No trouble found during the check procedure?
Ask SEB / Krups after-sales service for further details in
order to make a decision.
End of check procedure.
Check
procedure Symptoms Action / repair work Further action / repair work

REPAIR
REPAIR
This chapter contains special security and assembling notes.
Tools and repair accessories
With the following tools, all described repair work can be done:
• Torx screwdriver for security screws Pin-TX 10
• Phillips screwdriver no. 1 and 2
• Screwdriver with 4 mm width
• Pointed flat pliers
• Flat nose pliers
• Fork wrench no. 8
• Fork wrench no. 12
• Cutter (stanley knife)
• Heat conducting paste
Repair work without disassembling the machine
Without disassembling the machine, you can replace or repair the following parts:
• water tank assembly and cap
• capsule holder
• injector plate
• drip tray and drip grid
• capsule bin
Non-observance
can lead to injuries
and damages!
A pin-torx screw
head looks like this:

REPAIR
Removing injector plate, de-blocking of injector
Solid residues in the water circuit can block the injector completely. An example is the
development of calcium particles if the machine is not descaled periodically. Therefore
this error appears during descaling frequently.
1. Remove capsule holder and close locking handle.
2. Release latch by pressing a suitable pin (dia. 1.8 mm max. e.g. a paper clip)
through hole and remove injector plate (C) by pulling it down.
3. Examine upper side of injector plate.
4. Clean interior space of sealing ring (E) with a toothpick etc.
Danger of injury -
sharp pointed
injector (D)!
The extraction
head is adjusted to a
specific injector plate.
Therefore do not
exchange the injector
plate or mix up different
injector plates.
C
D
If upper side of
injector plate is wet
and badly soiled, the seal
(E) is defect. In that case
replace complete extrac-
tion head (see page 34).
E
