NESTOR MARTIN WOODBOX Series User manual

Thermic Distribution Europe / 5 Rue du Lion - 5660 Couvin - Belgium
IQ33#6700A
WOODBOX®TECHNOLOGY
Instructions

Instructions
Thermic Distribution Europe s.a.
5, rue du Lion
5660 Couvin
Belgique
2

3
• Have a qualified professional install your appliance.
• In the event of a problem, contact him directly.
• Ask him to obtain the original NESTOR MARTIN parts. Beware of forgeries. To obtain a part, contact your installer/
dealer in order to identify the order number of the part. Pass on this information to your installer and he will order the
part directly from NESTOR MARTIN.
• It is recommended not to overestimate the power of the appliance in relation to the space to be heated.
• When used with air under a fully open grate, this appliance must be supervised.
Safety requirements
Please read carefully all the instructions before installing or using this product. Any errors made in the installation,
adjustment, use or maintenance of this product can cause personal injury or damage to property.
The appliance must be placed away from furniture and curtains. Warn adults and especially children of the dangers of
high temperatures and burns
Supervise children when they are in the same room as the appliance. The appliance must be thoroughly inspected
and the chimney must be swept at least once a year. However, in the event of improper installation, malfunction or
poor quality fuels, the chimney must swept more often.
DO NOT OVERHEAT THE APPLIANCE.
IF A PART OF THE APPLIANCE OR THE FLUE BECOMES RED, THE APPLIANCE IS OVERHEATING.
Supply combustion air to the house when using the appliance. A partially open window or an outside air vent near
the appliance is acceptable or install the exterior air inlet system included with the appliance. Do not connect the
appliance to an air distribution system or duct.
IQH 13 IQ 33 IQ 43 IQH 33 IQH 43
Nominal output [kW] 6.5 9 10.5 9 12
Мaximal output [kW] 8 12 14 14 16
Mass of the appliance [kg] 146 135 182 178 197
Minimum draft [Pa] 12 12 12 12 12
Flue gas mass flow [g/s] 7.5 - - 6.2 12.4
minimum isolation thickness [mm] (*) back 27 84 84 84 84
minimum isolation thickness [mm] (*) sides 65 65 65 65 51
smoke temperature [°C] 265 264 398 356 390
In relation to the combustible elements, measured on the basis of silical 1000

4

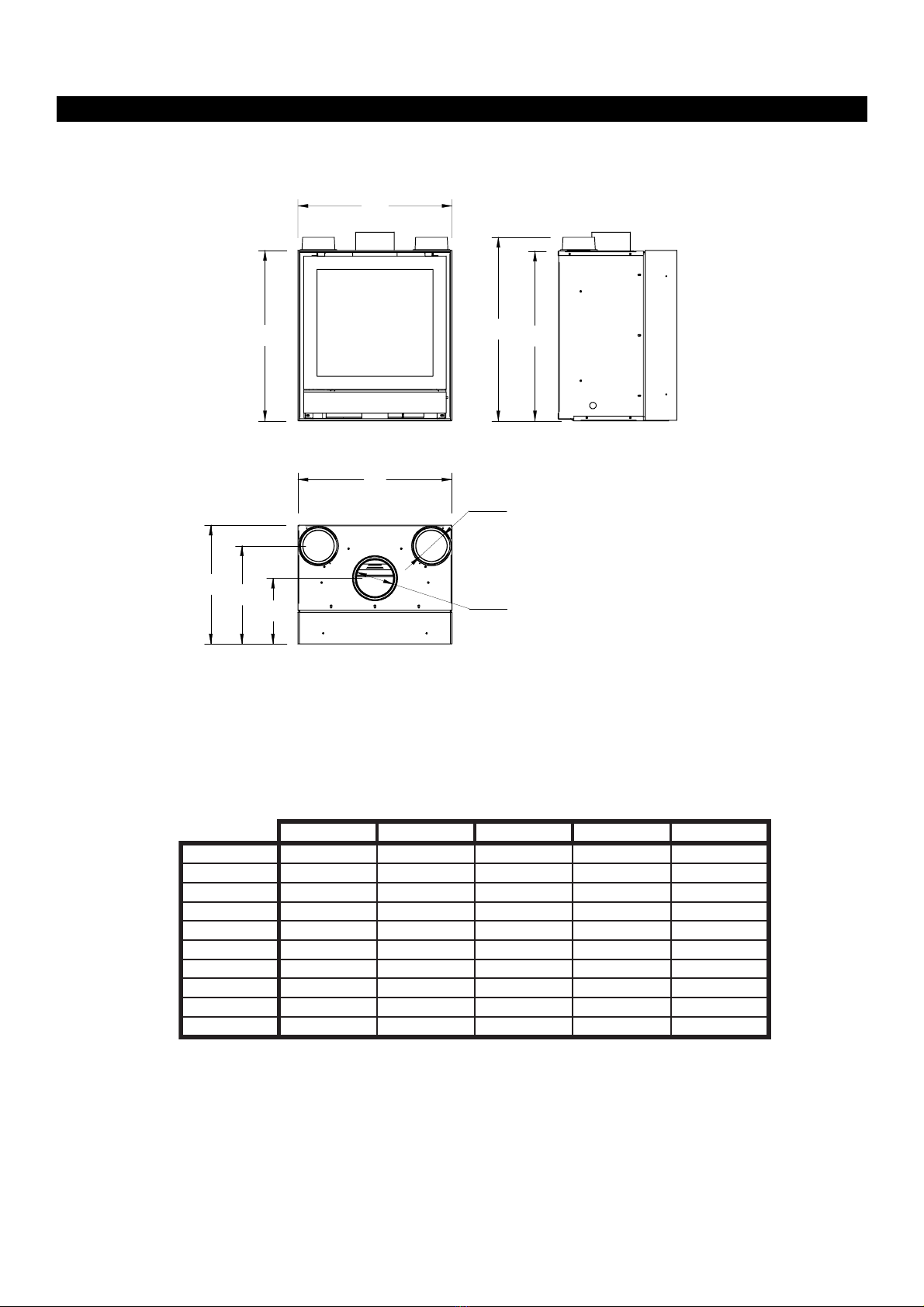

DIMENSIONS INSTALLATION
L
hH2
H1
I
a
b
P
d
D
IQ33 IQ43 IQH13 IQH33 IQH43
L [mm] 584 692 442 584 692
H1 [mm] 695 717 908 961 897
H2 [mm] 643 668 868 909 845
h [mm] 644 666 871 912 848
I [mm] 583 691 442 583 691
P [mm] 450 498 444 450 498
b [mm] 371 421 379 371 421
a [mm] 249 280 232 249 280
D [mm] 150 180 150 180 180
d [mm] 120 120 100 120 120

LC
HC
25255050
dimensions with frames
5
LC HC LC HC LC HC LC HC LC HC
frame 3 sides width 25 mm 618 661 726 683 476 886 618 927 726 863
frame 4 sides width 25 mm 618 678 726 700 476 903 618 944 726 880
frame 3 sides width 50mm 668 686 776 708 526 911 668 952 776 888
frame 4 sides width 50mm 668 728 776 750 526 953 668 994 776 930
IQ43 IQH13 IQH33 IQH43
type of frame IQ33

• Installation must conform to current building regulations.
• The position of the appliance must respect the minimal distances in regards to combustible materials, shown on the
descriptive plate. If necessary, install a wall protector. If the ground is not tiled, (i.e. fitted carpet, parquet…) install a
floor protector plate which extends out from under the appliance for at least 20cm at the back, 20cm at the sides and
50cm at the front.
• Make sure that the chimney is clean, free of soot or debris, and as straight as possible.
• The chimney flue must be airtight and the inner walls as smooth as possible.
• The connection between the chimney and the appliance must be as equally airtight and made of non-combustible
materials, protected, if possible, against oxidation (enamelled sheet metal, aluminium, stainless steel…).
The chimney must be high enough and constructed to avoid backdraft. It should be protected with insulating materials
to lower the risk of sooting in the high part of the chimney flue, and if necessary, it should be covered to avoid rain water
from penetrating.

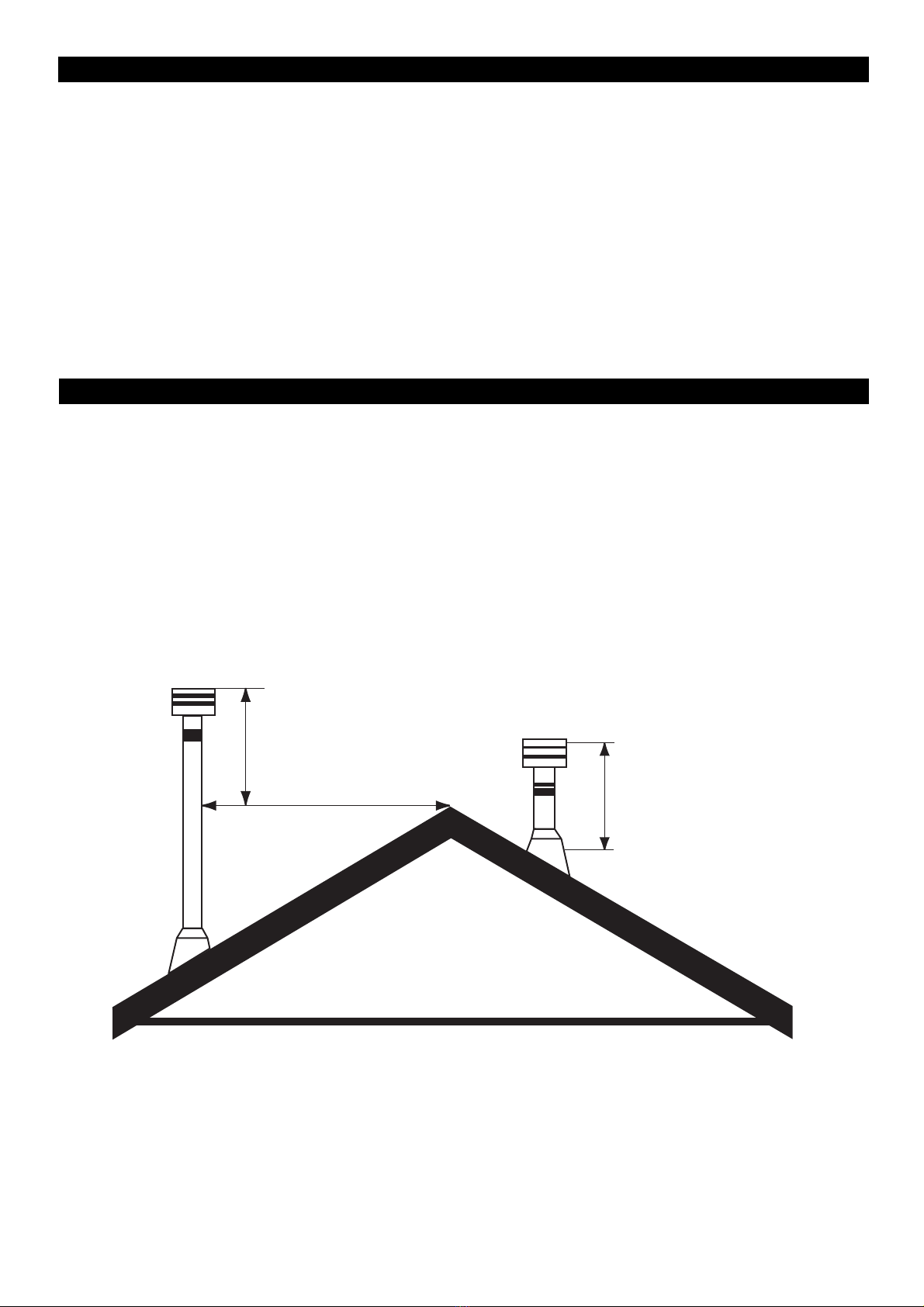

The chimney must be designed and built in a way to allow a sufficient draw so as to completely clear the smoke from
the inside. As a rule:
1. The chimney must be at least 90cm higher that the point on the roof from which it emerges.
2. and be at least 60cms higher than any part of the building within a radius of 3m.
For the best draw, the chimney should be at least 5m long from the flue outlet of the appliance.LA
INSTALLATION INSTRUCTIONS
HEIGHT OF THE CHIMNEY
300 cm
60 cm
90 cm
6

7
HOT AIR DISTRIBUTION
Your appliance is equipped with a heat recovery system and two flue outlets which allow
flexible tubes to be connected. The flexible tubes can be arranged in such a way that the
hot air is blown into other rooms.
If you prefer the hot air to come from the ducts and from the front at the same time, it is
possible to remove the deflectors. To access the deflectors you must first remove the filters.
Case 1 – hot air comes only from the front: leave the two deflectors and the filters in place.
Case 2 – hot air comes from the tubes and from the front at the same time.
Remove the cover (6 screws).
Remove the two steel deflectors
Replace the stop gap with the steel flue outlets
Observe that for IQ33, IQH33, IQ43 and ’IQH43 it is possible to remove the
deflectors through the filter without removing the cover.
flue outlet
Déflector
Cover
stop gap

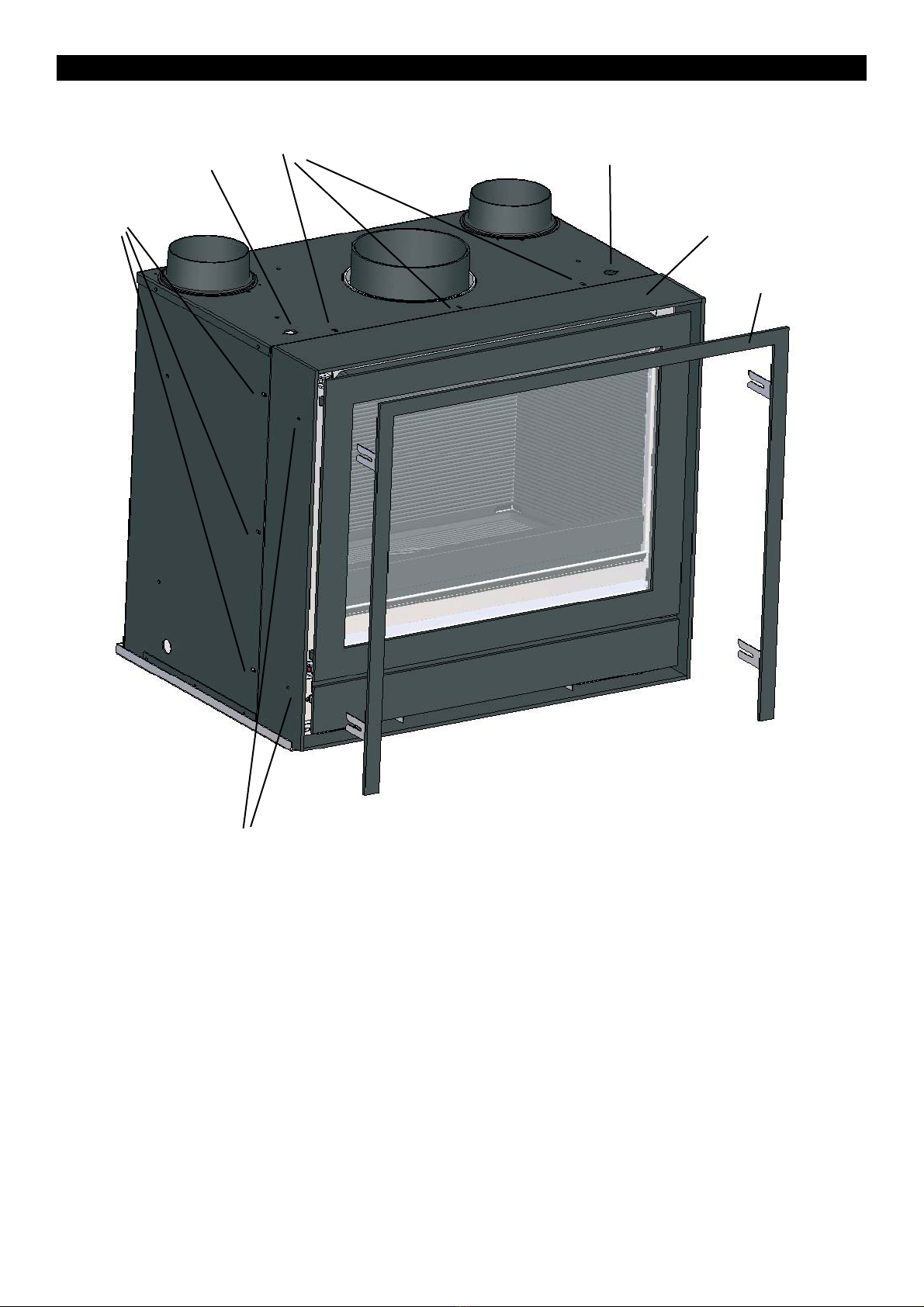

ATTACHING THE FRAMES (OPTIONAL)
8
Remove the original frame’s fixing screws (9 screws)
Remove the two stoppers (2 screws) and remove the two screws present under the stoppers.
Move the original frame back by 6mm
Attach the optional frame (4 screws)
To attach one of the optional frames, proceed as follows:
fixing screw of
original frame
fixing screw of
original frame
fixing screw of optional
frame
original frame
optional frame
left stopper left stopper

Respect the minimal fitting measurements
POSITIONING THE INSET
type 1 configuration, with overflowing frame
type 2 configuration, with fitted frame
D = height of inset
F = width of inset
M = depth of inset
N + 20mm = Maximum dimension between the chimney posts.
E + 20mm = Maximum dimension between the base of the inset and the upper beam.
If your chimney has a wooden beam, it is
necessary to isolate the lower part of it if it is
closer that 30cm to the hot air outlet.
9

Unscrew and remove the instrument panel (2
screws)

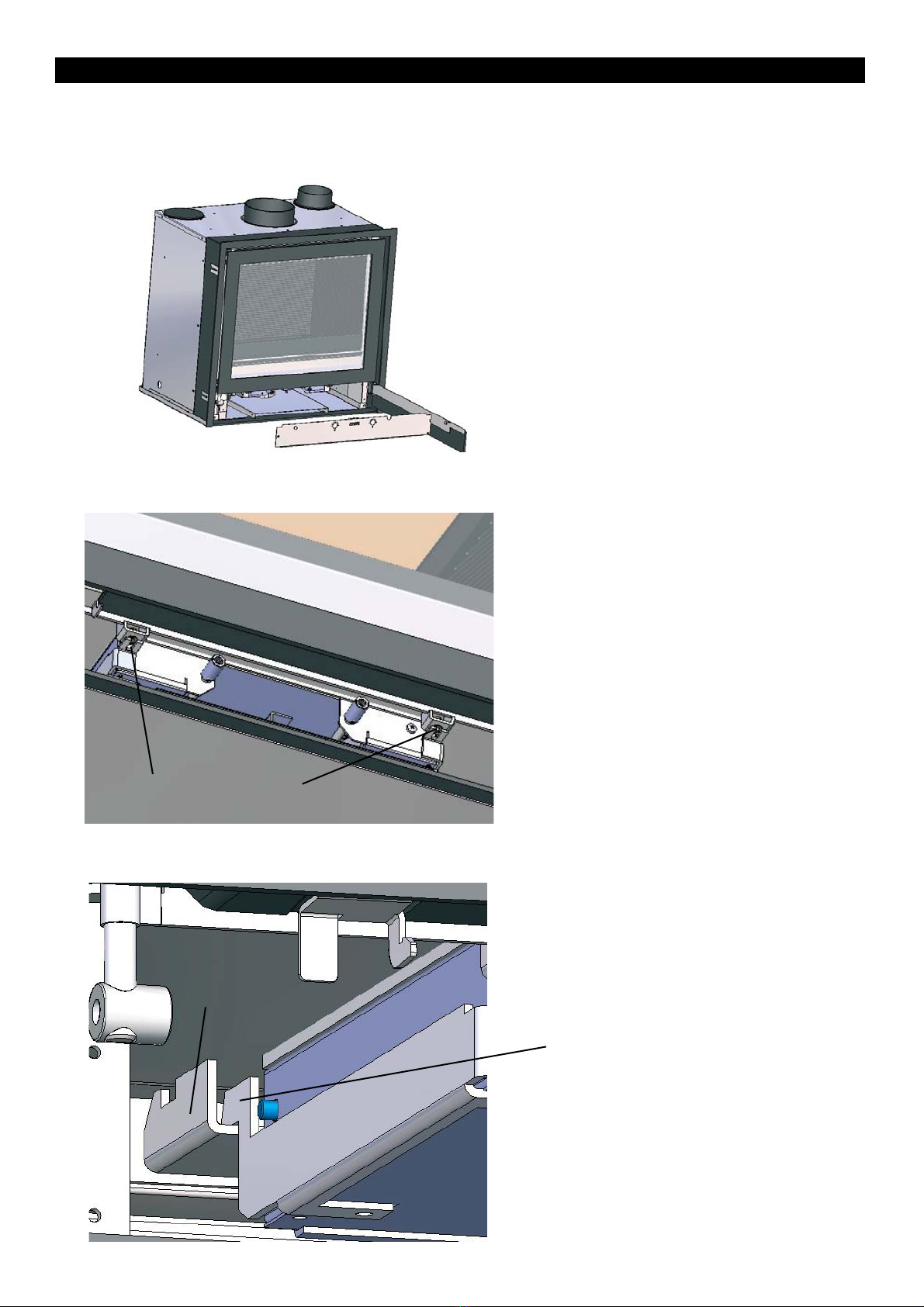

ACCESSING THE FAN
Your appliance can be used as a natural convection heater or with a fan. Space is provided at the bottom of the
outer casing for a tangential fan. To access this fan:
Unscrew the two fixing screws of the
Woodbox control unit
Remove the Woodbox control unit by
pulling it gently down and towards you
to remove the two rods (attached to the
back of the unit) from the bottom of the
shaft.
10
Unscrew using an
8mm socket wrench
welded hold at the
back of the shaft
rod attached to the control unit

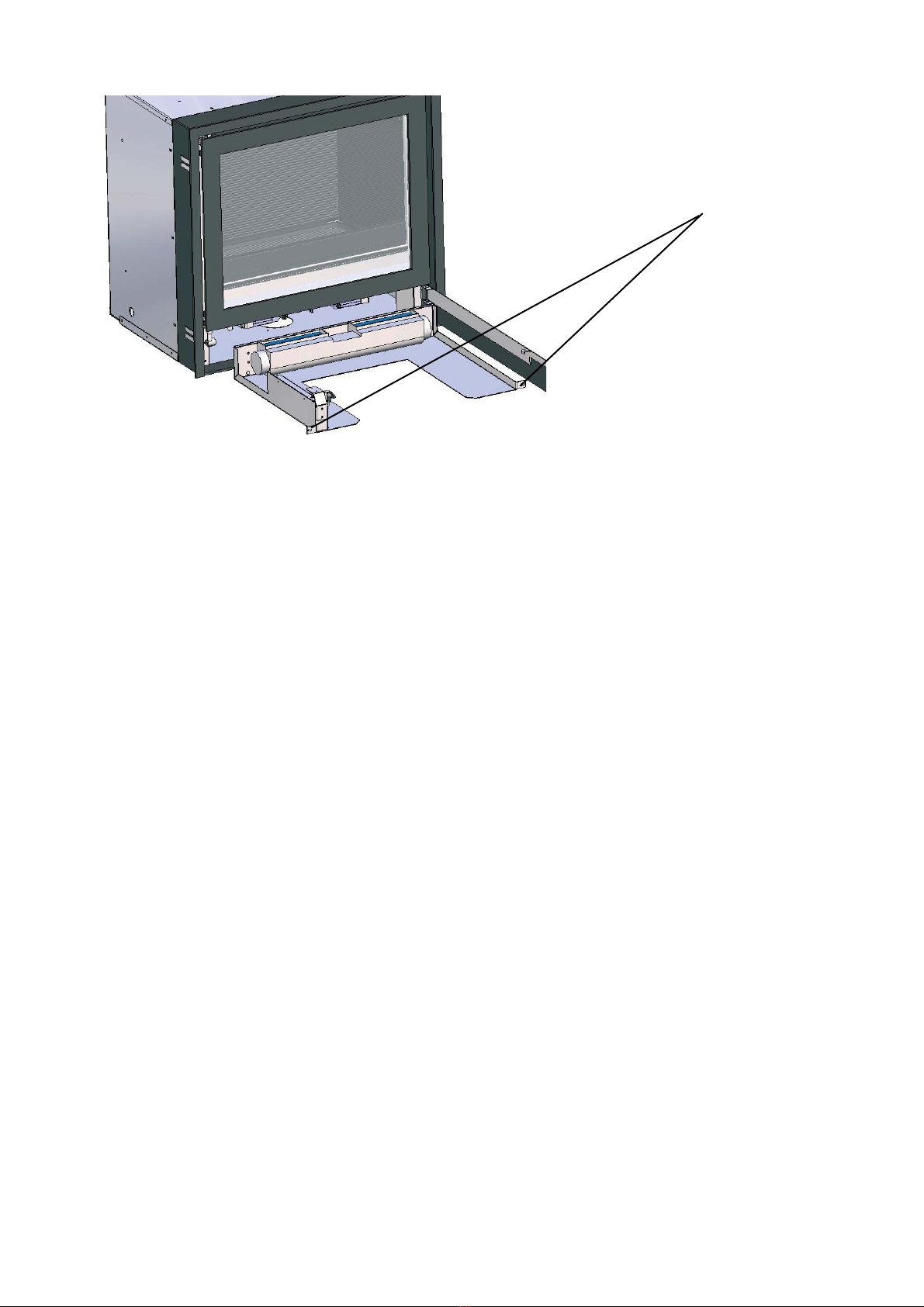

Remove the sliding
plate containing the
fan and the control
accessories (2
screws)
11

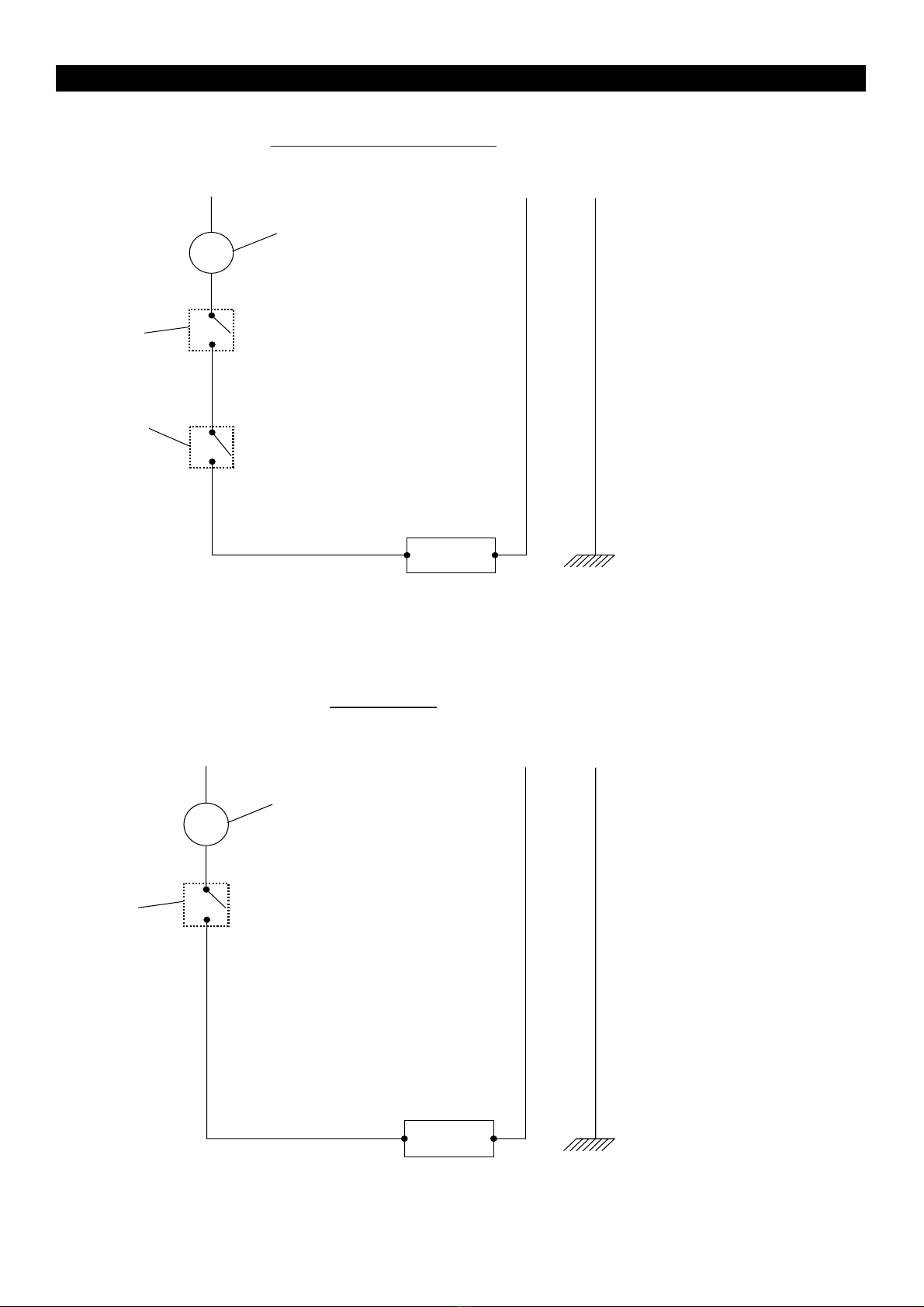

ELECTRICAL DIAGRAM
fan
There is no clixon
The switch opens the circuit
(stops the ventilator fan)
when the door is opened
Wiring for IQH13
live wire neutral wire
switch
earth wire
Speed drive
12
fan
live wire neutral wire
Clixon
The clixon closes the circuit
when the temperature goes
above 50°C. The ventilator
fan starts to function at the
speed set by the speed
drive. The clixon opens the
circuit at 35°C and the
ventilator fan stops.
The switch opens the circuit
(stops the ventilator fan)
when the door is opened..
switch
earth wire
Wiring for IQ33, IQ43, IQH33, IQH43
Speed drive

WIRING DIAGRAM
9DULDWHXU
&kEOHG¶DOLPHQWDWLRQVLOLFRQH
P
1
3KY$&
9HQWLODWHXU
&DEOHVLOLFRQHFP &DEOHVLOLFRQHFP
,QWHUUXSWHXU
GHSRUWH
&OL[RQ
9DULDWHXU
&kEOHG¶DOLPHQWDWLRQVLOLFRQH
P
1
3KY$&
9HQWLODWHXU
&DEOHVLOLFRQHFP &DEOHVLOLFRQHFP
,QWHUUXSWHXU
GHSRUWH
IQ33, IQ43, IQH33, IQH43
IQH13
13
fan switch
speed
drive
fan switch
speed
drive

ATTACHING AN EXTERIOR AIR-INTAKE SYSTEM
The appliance is designed so it can be connected to an exterior air-intake system. Use a flexible metal pipe of an interior
diameter of 100mm. to make attaching the pipe easier, first unscrew and remove the instrument panel.
14
Flexible pipe for
exterior air intake.
Attach the exterior air pipe to the flue outlet
on the steel base. Then slide the appliance
on the steel base.
slide the teloscopic
nozzles until the they
touch the top of the box
exterior air
intake

INSTALLATION WITHOUT EXTERIOR AIR INTAKE
To allow the combustion air
to come from the front of the
appliance, remove this part by
raising two screws
15

16
FUELS
APPROVED FUELS
Your appliance has been designed to burn the following approved fuels:
Recommended solid fuels: beech wood, birch, oak, ash, hornbeam and wood from fruit trees.
Non-recommended solid fuels: conifer, damp wood, chemically treated wood, shavings, wood pellets, coke. It
is prohibited to burn refuse or flammable liquids (petrol, solvents or motor oil) inside the stove.
CHOICE OF WOODS TO BURN
The best wood to burn is very dry wood which will be easier to light and will cause less tarring/sooting in the chimney.
Ideally the wood will have been left to dry for 18 months, and even in that case the logs will still have a moisture
content of 20%!
Damp wood not only has a lower calorific power, which lowers the combustion temperature, and therefore is less
efficient, it is also difficult to light, extinguishes easily and gives off smoke. Above all, the use of damp wood can lead to
soot being deposited in the smoke ducts (tarring and sooting) of the chimney.
Some woods are more reactive than others. Those that are best are hornbeam, beech and oak. Aspen, birch and lime
tree burn well but do not last as long. After them are soft leaves and conifers. The diameter of the log is important for
the heat. However, this classification is only an indication as the best fire wood is always the driest.
Wood provided at a ready-to-use length, stored immediately in a well aired place, dry quicker than those left in steres.
Blocks dry quicker than logs. Wood chucks that are too small to be split must be drained. To do this, remove a portion
of the bark.
Drying the wood will take between 18 months and 2 years. This time can be shortened (12 to 15 months) if the wood is
cut to a ready-to-use length and immediately stored in a well aired place
TARRING AND SOOTING
When the smoke reaches a low temperature in the chimney, part of the water vapours that it contains condense. The
heaviest components of this are deposited on the inside of the flue. This is TARRING. The mix oxidizes in contact with
the air and forms brownish marks. This is SOOTING.
To avoid this inconvenience four things must be done: use only dry wood, connect the stove to achimney with thick sides
and at an even section (the bushel 20 x 20cm system is often used) and make sure that the connecting tubes are as
short as possible.
The chimney flue must be inspected frequently during the heating season (i.e. summer months) to determine if a build-
up of creosote is forming. If a creosote deposit of 3 1/8” (3mm) or more forms, it must be removed to reduce the risk of
chimney fire.

17
The UPPER AIR
SUPPLY control: used
for wood fires.
The LOWER AIR SUPPLY
control: used for coal fires, or
to make lighting wood fires
easier.
The controls operate valves that open and close in several ways, bringing the air to the fire in a way that optimises the
combustion according to the fuel and desired intensity.
WARNING: the controls can be hot. Always use
the tool provided to adjust the controls.
WARNING: DO NOT USE ANY GRATES, ANDIONS, OR ANY OTHER KIND OF SUPPLEMENTARY
SUPPORT OTHER THAN THOSE SUPPLIED WITH THE APPLIANCE.
The appliance has two main controls:
The UPPER AIR FLOW control
The LOWER AIR FLOW control
The two controls can be used together in a way
to combine the two air flows to achieve optimum
performance
USER INSTRUCTIONS
THE CONTROLS

18
With the Woodbox combustion system, the air needed for the combustion can be brought from above or below the fire
according to the type of fuel used.
A wood fire must be fuelled from above (upper air supply), while a coal fire is better fuelled from below (lower air
supply). The two controls allow the air flows to be controlled separately.
The buffer regulators, which allow an air flow from both above and below at the same time, rapidly and intensively
stoke the fire. Such adjustments can be used to light the fire easier or to burn the soot deposits on the glass pane.
However, the buffer settings can only be used for short periods as it can cause the appliance to overheat.
Controls>different uses
The two flaps are open to bring the maximum amount of air to the fire,
to make lighting it easier.
Closed Open
Open Open
wood
lightning
One flap is open, bringing the air from above the fire. By going around
the heater, the air is warmed before it reaches the fire and this allows a
clean and efficient combustion. The lower air supply is closed.

19
USING WOOD> LIGHTING MANUALY
• Set the UPPER AIR SUPPLY to maximum
• Set the LOWER AIR SUPPLY to maximum
.Tip: leave the door slightly open to stoke the fire.
It will increase the draw and allow an ember bed to be achieved.
• On the grate, place some paper or shavings, kindling and some small
logs.
• Light the paper
• When the fire has started, close off the lower air supply. Normally, it
must remain in the closed position when burning wood.
• Then, adjust the flow to the desired intensity with the upper air control.
With practice, you will quickly be able to find the position that suits you
best.
Important: in the event of a weak draw and/or an insufficient
ember bed, it is advised to leave the lower air supply open
slightly in order to allow your appliance to reach its normal
performance (sometimes this can take more than an hour).
• Then, adjust the flow to the desired intensity with the upper air control.
With practice, you will quickly be able to find the position that suits you
best.
• On the grate, place some paper or shavings, kindling and some small
logs.
• Light the paper..
• When the fire has started, close off the lower air supply. Normally, it
must remain in the closed position when burning wood.
• Set the UPPER AIR SUPPLY to maximum by pressing the + button on
the remote control.

?

?
Important: in the event of a weak draw and/or an insufficient
ember bed, it is advised to leave the lower air supply open
slightly in order to allow your appliance to reach its normal
performance (sometimes this can take more than an hour).
USING WOOD>LIGHTING WITH THE REMOTE CONTROL
• Set the LOWER AIR SUPPLY to maximum
. Tip: leave the door slightly open to stoke the fire.
It will increase the draw and allow an ember bed to be achieved.

USING WOOD>CONTINUOUS FIRE
With quality wood such as oak or very dry beech wood, it is possible to
have a fire burning continuously for 8-10 hours or even more. To build
a slow fire that can last a long time while at the same time keeping the
window clean:
• Set the UPPER AIR SUPPLY control to maximum
• Leave it at maximum until the fire is burning strongly.
• Refill the appliance in the manner described above. Do not use round
pieces of wood or logs that have not been split as they risk rolling against
the glass pane and dirtying it.
• Then lower the intensity to almost minimum
(It is not advised to completely close the air inlet, instead leave it slightly
open to encourage the self-cleaning of the glass pane.)
• In the event that your chimney has a strong draw, it would be necessary
to close the air inlet more than with a chimney with a weak draw. See
also the section on “Setting the minimum air intake”, page 21.
20
USING WOOD>ADDING LOGS
To prevent smoke fumes from entering the room while adding wood and
to ensure a rapid recovery of the hearth, do as follows:
• Refill the appliance only when there is no longer an ember bed.
• Set the UPPER AIR SUPPLY to maximum
• Open the door slowly and leave it ajar for 30 seconds. Then open it
completely and place the fresh logs onto the embers.
• Close the hearth door. While the fire starts up again, set it to the
desired intensity with the UPPER AIR SUPPLY control (or use the remote
control: press the – button).
