hergom E-30 Series Quick start guide
1 of 20
7100AA130_5 03/2021
2 of 20
WELCOME to the HERGÓM family.
3 of 20
HERGÓM
4 of 20
IMPORTANT! All local regula�ons, including
those that refer to national or European
regula�ons, must be applied when installing this
device.

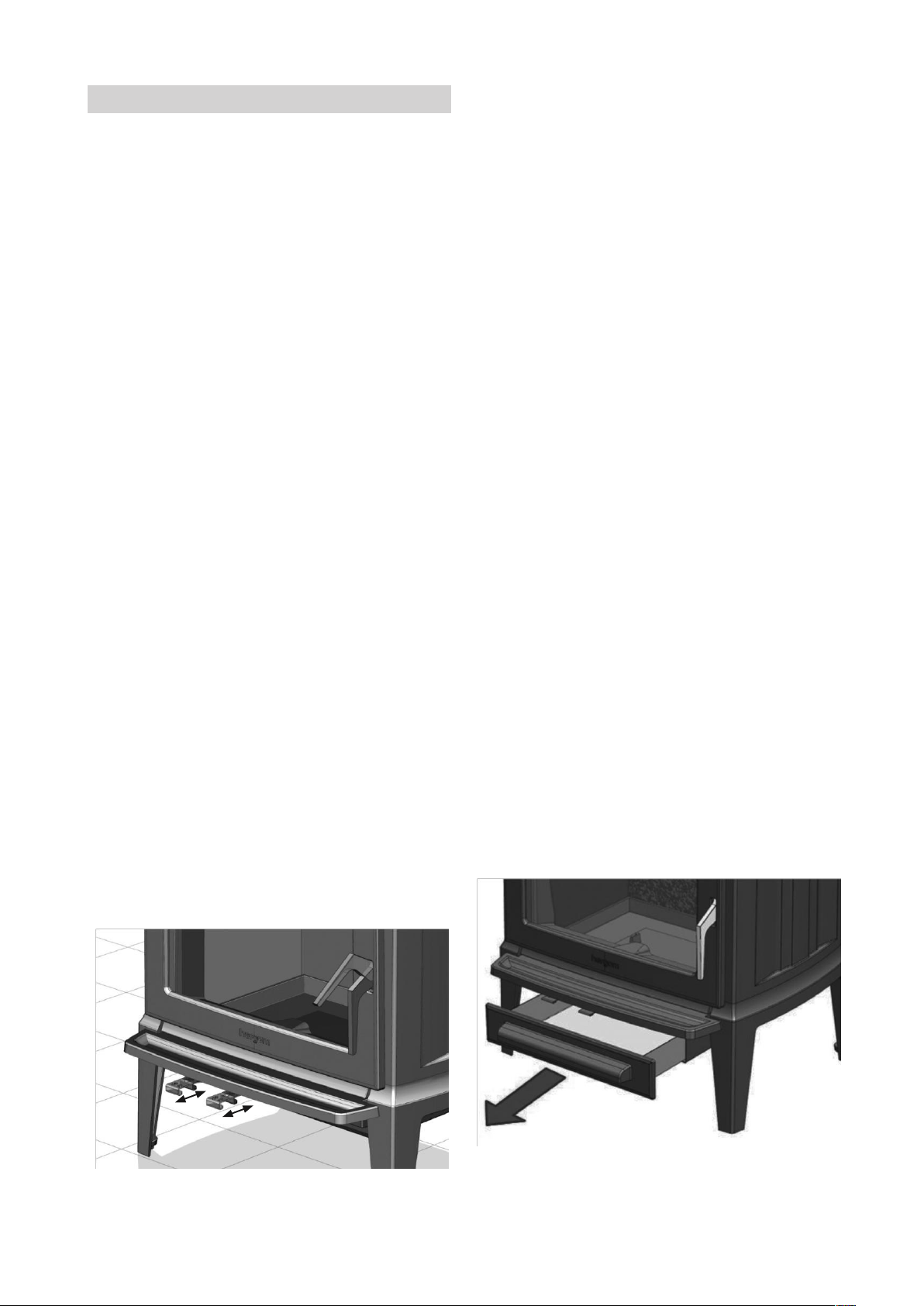

Secondarys
control
Primary l p
control
Ashpan
5 of 20
6 of 20
During the operation of the stove, the ash pan
cover must be correctly posi�oned to seal the re
box.
Any uncontrolled intake of air produces
overhea�ng that can damage the stove.
TOVES
7 of 20
8 of 20
9 of 20
10 of 20
E-30 S E-30 M E-30 L
Maximum power (kW) 7 9 11
Average smoke temperature (°C) 288 281 288
Average temperature at flue ring (°C) 300 340 375
Mass flow rate of smoke (gr/sec) 6,9 8,6 10,4
CO emissions (13% O2 Vol%) 0,1 0,1 0,1
Efficiency (%) 79,1 79,2 79,3
Accepts logs of the following length (mm) 400 500 600
Smoke collar (Ø mm) 150 150 200
Metal chimney (Ø mm) 150 150 200
Recommended chimney height (m) 5-6 5-6 5-6
Masonry chimney, min approx. (mm) 200x200 200x200 250x250
Recommended draw (Pa) 12 12 12
Smoke outlet Vertical Vertical Vertical
Weight (Kg) 110 150 190
Outside air inlet (Ø mm) 80 80 80
Minimum diameter of the outside air inlet pipe (Ø mm) 80 80 80
Maximum length of the outside air inlet pipe from outside (m) > 8m.
11 of 20
Clean
Air
Act
1993
including
designaon
and
supervision
of
smoke
control
areas
and
you
can
contact
them
for
details
of
Clean
Air
Act
requirements.
wood logs. The appliance must be fitted
with
a
permanent
stop
to
prevent
closure
of
the
secondary
air
control
beyond
30%
open.
wood
logs.
The
appliance
must
be
fitted
with
a
permanent
stop
to
prevent
closure
of
the
secondary
air
control
beyond
29%
open.
E30M
E30S
Further information on the requirements of the Clean Air Act can be found here:
12 of 20
•
•
•
Model Log Size (cm) Moisture %
E30 S 40 x 10 x 12 <20%
E30 M 50 x 10 x 12 <20%
E30 L 60 x 10 x 12 <20%
13 of 20
14 of 20

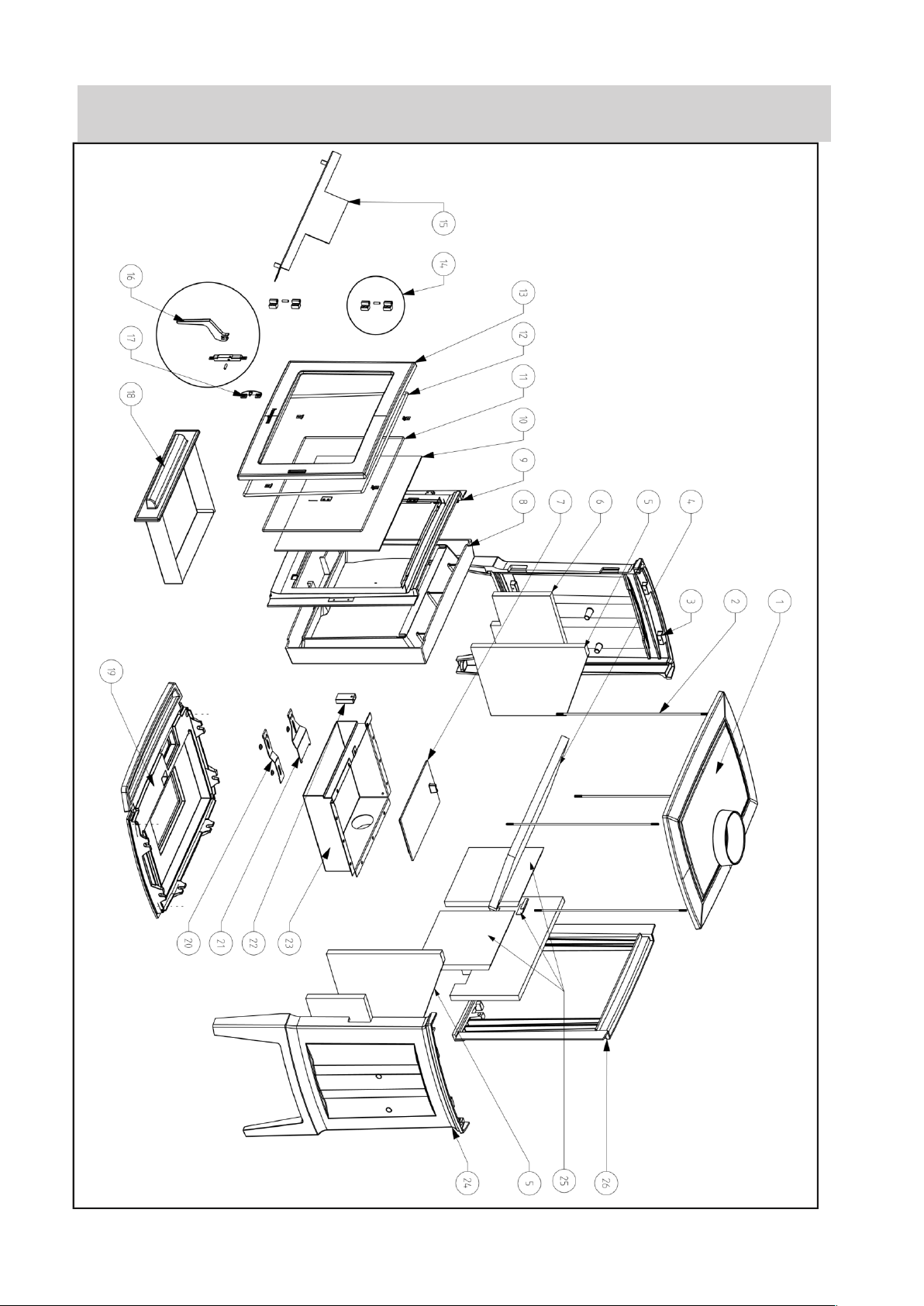

N° CÓDIGO NOMBRE
E30 S
VERMICULITA
E30 M
VERMICULITA
E30 MT
VERMICULITA
E30 L
VERMICULITA
1 9920164 9920165 9920489 9920166 ENCIMERA
2 9920167 9920168 9920168 9920169 VARILLA AMARRE ESTUFA
3 9920170 9920171 9920171 9920172 COSTADO IZQUIERDO
4 9920176 9920177 9920177 9920178 PLACA DEFLECTOR VERMICULITA
5 9920214 9920215 9920215 9920216 COSTADO INTERIOR
6 9920179 9920180 9920180 9920181 CONJUNTO FIBRA DE VIDRIO
7 9920182 9920182 9920182 9920182 PARRILLA
8 9920183 9920184 9920184 9920185 COLECTOR PRIMARIO
9 9920186 9920187 9920187 9920188 FRENTE
10 9920189 9920190 9920190 9920191 CONJUNTO CRISTAL
11 9920192 9920192 9920192 9920192 TRENZA FIBRA CERAMICA 1/4" (3 m)
12 9920193 9920193 9920193 9920193 TRENZA FIBRA CERAMICA 3/8" (3 m)
13 9920194 9920195 9920195 9920196 CONJUNTO PUERTA HOGAR
14 9920197 9920197 9920197 9920197 CONJUNTO BISAGRA PUERTA HOGAR
15 9920198 9920199 9920199 9920200 ANGULAR REFUERZO DEFLECTOR
16 9920201 9920201 9920201 9920201 CONJ. MANDO CIERRE PUERTA HOGAR
17 9920057 9920057 9920057 9920057 EJE CIERRE PUERTA HOGAR
18 9920447 9920445 9920445 9920448 CONJUNTO CENICERO
19 9920203 9920204 9920204 9920205 FONDO
20 9920206 9920206 9920206 9920206 MANDO VALVULA ENCENDIDO
21 9920207 9920207 9920207 9920207 MANDO VALVULA CRISTAL
22 9920208 9920208 9920208 9920208 TUBO VALVULA ENCENDIDO
23 9920446 9920446 9920446 9920446 CUERPO CAJON PARA CENICERO
24 9920211 9920212 9920212 9920213 COSTADO DERECHO
25 9920220 9920221 9920221 9920222 TRASERA INTERIOR
26 9920223 9920224 9920490 9920225 TRASERA
15 of 20
16 of 20
N° CÓDIGO NOMBRE
E30 S HF E30 M HF E30 MT HF E30 L HF
1 9920164 9920165 9920489 9920166 ENCIMERA
2 9920167 9920168 9920168 9920169 VARILLA AMARRE ESTUFA
3 9920170 9920171 9920171 9920172 COSTADO IZQUIERDO
4 9920680 9920681 9920681 9920682 PLACA DEFLECTOR HIERRO FUNDIDO
5 9920674 9920655 9920655 9920675 COSTADO INTERIOR IZDO
6 9920179 9920180 9920180 9920181 CONJUNTO FIBRA DE VIDRIO
7 9920182 9920182 9920182 9920182 PARRILLA
8 9920183 9920184 9920184 9920185 COLECTOR PRIMARIO
9 9920186 9920187 9920187 9920188 FRENTE
10 9920189 9920190 9920190 9920191 CONJUNTO CRISTAL
11 9920192 9920192 9920192 9920192 TRENZA FIBRA CERAMICA 1/4" (3 m)
12 9920193 9920193 9920193 9920193 TRENZA FIBRA CERAMICA 3/8" (3 m)
13 9920194 9920195 9920195 9920196 CONJUNTO PUERTA HOGAR
14 9920197 9920197 9920197 9920197 CONJUNTO BISAGRA PUERTA HOGAR
15 9920198 9920199 9920199 9920200 ANGULAR REFUERZO DEFLECTOR
15 9920683 9920683 9920683 9920683 SUFRIDERA DEFLECTOR
16 9920656 9920656 9920656 9920656 CONJ. MANDO CIERRE PUERTA HOGAR
17 9920057 9920057 9920057 9920057 EJE CIERRE PUERTA HOGAR
18 9920447 9920445 9920445 9920448 CONJUNTO CENICERO
19 9920203 9920204 9920204 9920205 FONDO
20 9920206 9920206 9920206 9920206 MANDO VALVULA ENCENDIDO
21 9920207 9920207 9920207 9920207 MANDO VALVULA CRISTAL
22 9920208 9920208 9920208 9920208 TUBO VALVULA ENCENDIDO
23 9920446 9920446 9920446 9920446 CUERPO CAJON PARA CENICERO
24 9920211 9920212 9920212 9920213 COSTADO DERECHO
25 9920678 9920657 9920657 9920679 TRASERA INTERIOR
26 9920223 9920224 9920490 9920225 TRASERA
27 9920676 9920658 9920658 9920677 COSTADO INTERIOR DCHO
17 of 20
18 of 20
19 of 20
20 of 20
5 321
CODE: H90702-49-00-99-00
