Net.Do TG24 User manual

TG24 / 48
LIGHTING CONTROLLER
USER MANUAL
( Version: 2.0 )
Net.DO LIGHTING CONTROL EQUIPMENT CO.,LTD
http://www.netdo.com.cn

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:2
Contents
1 Summary ..................................................................................................................... 2
1.1 Function............................................................................................................. 2
1.2 Specification parameter..................................................................................... 3
2 Installation ................................................................................................................... 3
2.1 Safety caution.................................................................................................... 3
2.2 Connect the power ............................................................................................ 4
2.3 Connect digital dimmer...................................................................................... 4
2.4 Audio signal source ........................................................................................... 4
3 Operation Guide .......................................................................................................... 5
3.1 Panel Plot .......................................................................................................... 5
3.2 Fader ................................................................................................................. 6
3.3 Key .................................................................................................................... 7
3.4 Introduction to back board port.......................................................................... 7
4 Record and Running.................................................................................................... 8
4.1 Manual Control .................................................................................................. 8
4.2 Record And Edit ................................................................................................ 8
4.2.1 RECORD SCENE ...................................................................................... 8
4.2.2 DELETED SCENE ..................................................................................... 8
4.2.3 EDIT CHASE ............................................................................................. 8
4.3 Running ............................................................................................................. 9
4.3.1 RUNNING SCENE..................................................................................... 9
4.3.2 RUNNING CHASE..................................................................................... 9
5 Initializtion of data...................................................................................................... 10
1 Summary
1.1 Function
zDMX512/1990 standard, 24/48 DMX channels, output with optical isolated.
z24/48 dimming channels.
z24 preset fader, 12 submaster fader.
z96 Scenes (8 page).
z24 Chases, up to 120 Steps each.
zTrigger mode selectable: Music synchronously, Auto.
zLCD display with backlight.
zPower supply: AC 100-240V / 50-60Hz

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:3
1.2 Specification parameter
TG24 TG48
DMX512/1990 OUTPUT SIGNAL Yes Yes
CONTROLLABLE DMX512 CHANNEL 24 48
DIMMING CHANNEL 24 48
MAX SCENE 96 96
MAX CHASE 24 24
CHASE SPEED RANGE 0.03s~180s
CHASE TRIGGER MODE Auto, Music
CHASE DIRECTION CONTROL Forward / Inversion
LCD MONITOR Yes
MUSIC SIGNAL INPUT Unbalanced line level input
(1/4” Monophonic audio input)
/ MIC input
DMX512 OUTPUT PORT Optical isolated output port
ELECTRIC POWER SOURCE Switch mode power, voltage range:
100~240VAC, frequency: 50/60, short-circuit
protection & overload protection
POWER 5W
SIZE 482mm x 310mm x 95mm
2 Installation
TG24/48 lighting controllers’ packing chest contents items as following:
zOne TG24/48 lighting controller:
Ps: to confirm the model of the controller, please check the model number and
software version number displayed on the LCD monitor when run the controller.
zOne feed cable; one user’s guide.
The controller is of international 19” construction standard of installation. It can be in board
installed or installed on the 19” stander or machine cabinet.
2.1 Safety caution
zThe controller must be connected with the protective groundwire to ensure safety.
zThe intelligent Fixtures controller is sophisticated electronics. Please mind the dust
and moist.

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:4
2.2 Connect the power
Please check the supply power, ensure it in the suitable voltage range of the controller. The
plug must connect with the protective groundwire to ensure the safety.
2.3 Connect digital dimmer
zThere are two DMX512 XLR-D5F output sockets
on the rear panel of the Controller, Pin 1 for signal
ground, Pin 2 for negative, and Pin 3 for positive.
zDMX512 cable is screened twist wire. Each end
of the cable should be joined to XLR plug by user.
Pin 1of XLR plug is connected to the screen net
of the cable. Two wires of twist (distinguished by
different colors) are connected to Pin 2 and Pin 3
of the plug respectively. Please do not confuse.
2.4 Audio signal source
zThe audio signal can select from sound mixing console and line level output of other
audio devices, or MIC selection. The controller can automatically pick the part of
low-frequency swing as the music trigger signal of Chase program.
zOne unbalanced monophonic audio input locates in the back board, the range of line
level input is: -10dB ~ +10db. When audio device is plug in, the audio source is line
level input. When there nothing plug in, the audio source is MIC selection.
Pin number Cable conductor
1 Shield
2 Negative pole
3 Positive pole
4 Null
5 Null

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:5
3 OperationGuide
3.1 Panel Plot

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:6

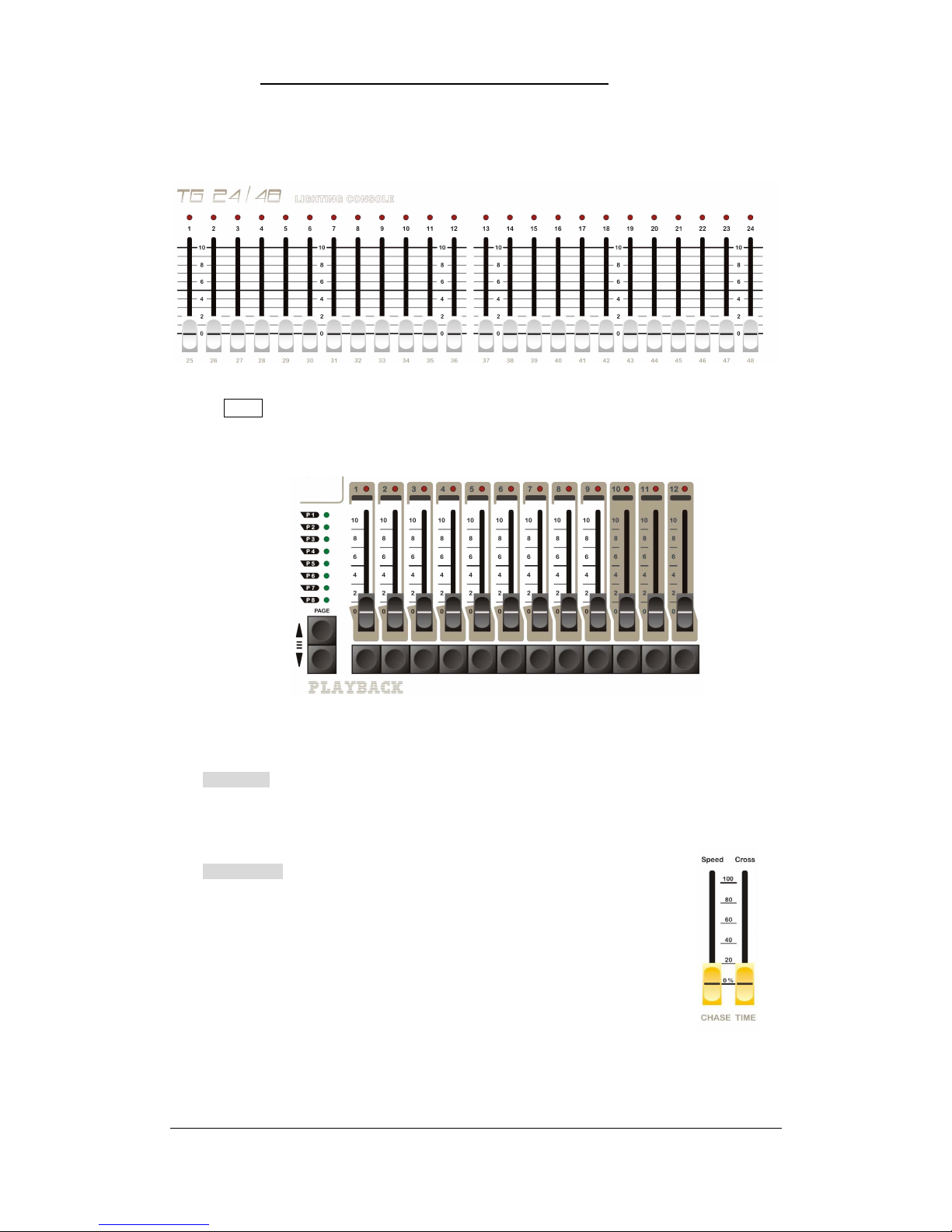

3.2 Fader
zCH1~CH24 PRESET FADER:
Use 25-48 key can be used to control fader switch 1~24 or 25~48 channels.
zSUBMASTER FADER:
1. SUBMASTER 1~9 can only be used to playback scene.
2. SUBMASTER 10~12 can be used to playback scene or chase.
PAGE key:
Using the PAGE-up and PAGE-down keys to turn pages, P1-P8 LED display page
numbers。
FLASH key:
Each SUBMASTER with a flash-key, To achieve SUBMASTER flash.
zSPEED FADER:
This fader is used to control the speed of chase when it is auto mode,
ranges from 0-100%, 0% most slowly and 100% fastest.
zCROSS FADER:
This fader is used to control the fade of chase-step, ranges from 0-100%, 0% most slowly
and 100% fastest.

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:7

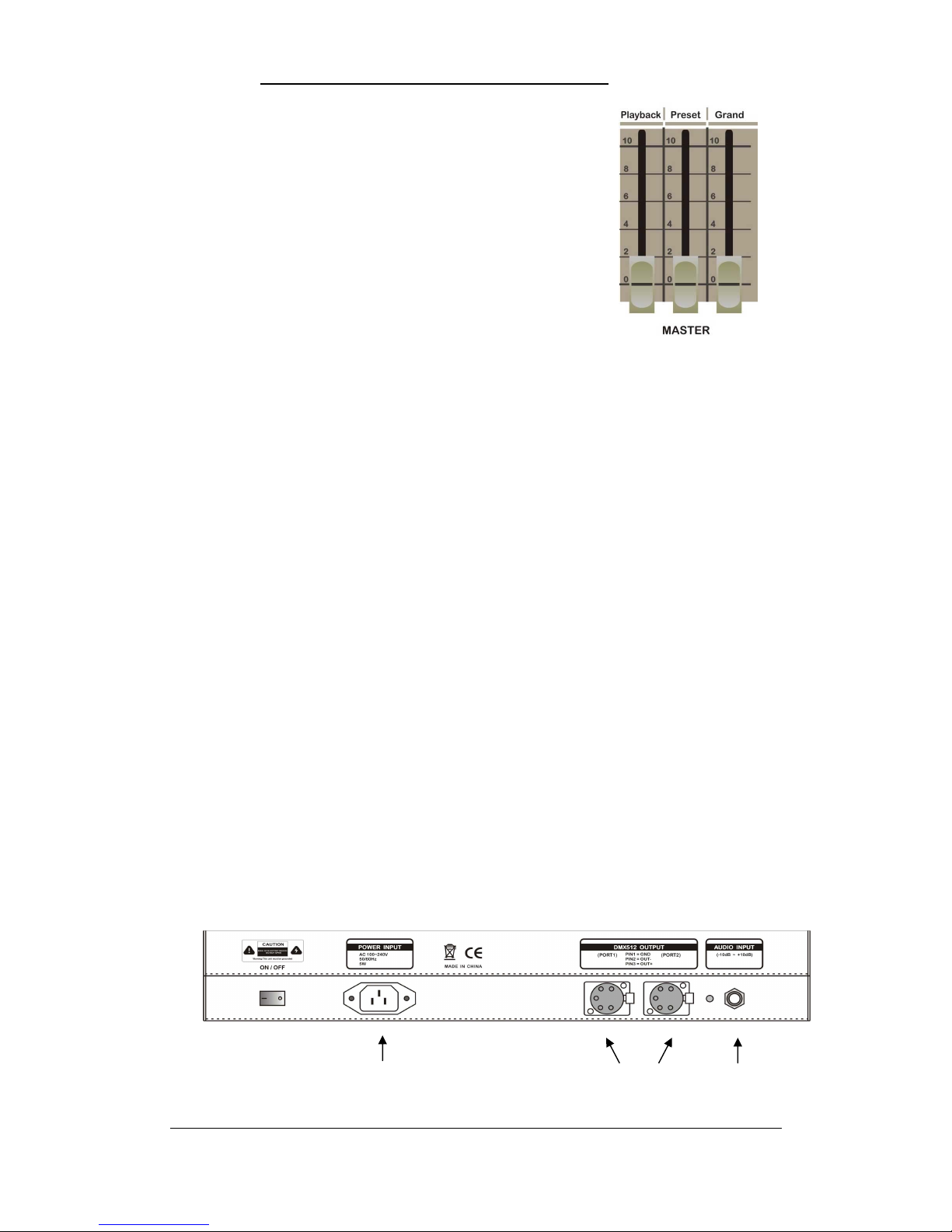

zMASTER FADER (A total of 3 master fader)
1. Playback Master Fader
2. Preset Master Fader
3. Grand Fader
3.3 Key
MODE Key --- Trigger mode of chase.
The chase has 2 trigger mode.
Auto: The speed of chase is controlled by SPEED%
and CROSS%.
Music: The chase running with music.
Press the MODE key continuously and the chase mode will be changed as
circulation.
PROGRAM Key
Press this key to enter programming state, The LED flash.
Press the Key again to exit programming state.
INSERT(+), DELETE Key
In programming mode, the two keys can be used to achieve CHASE-STEP increase,
insert, delete operations.
WSTEP XKey
In chase operation, use this key to change the chase direction.
In the programming state, is used to select Chase-step.
3.4 Introduction to back board port
zThe controller adopts two DMX512 output modules with optical isolated and the
same output.
zThe audio input socket is 1/4” monophonic socket, with input line level 0dB. When
audio device is plug in, the audio source is line level input. When there nothing plug
in, the audio source is MIC selection.
AC Power Input DMX512 Output Audio Input

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:8
4 Record and Running
4.1 Manual Control
1.Push the GRAND MASTER and PRESET MASTER Fader to the maximum.
2.Push PRESET Fader to change the value of channel.
4.2 Record And Edit
SUBMASTER Fader 1~9 only can record scene, 10~12 can record Scene or Chase.
4.2.1 RECORD SCENE
1. Push GRAND and PLAYBACK MASTER Fader to the maximum.
2. Push PRESET Fader to change the value of channel.
3. Hold down the INSERT(+) key and press the SUBMASTER key, the present light effect
will be recorded in the scene.
4.2.2 DELETED SCENE
Hold down the DELETE key and press the SUBMASTER key to delete.
4.2.3 EDIT CHASE
1. Press the PROGRAM key to enter program, the LED will flash;
2. Press the SUBMASTER key to select Chase number;
Eg: Edit Page 8, chase 10 -----, Turn to Submaster Page 8 and press SUBMASTER
key 10.
3. Press INSERT(+) to add a Chase-step; Chase Number
TotalSteps CurrentStep
PROGRAM ...
Select chase ……
P-CHASE: （8.10）
tol = 001 st
[
*1
]

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:9
4. Push PRESET Fader to change the value of channel;
5. Repeat Step 3~4 to edit next Chase-step;
6. Press PROGRAM key to quit. (Or repeat Step 2~4 to edit another Chase.)
Tips:
zPress the DELETE key to delete Chase-step.
zUse WSTEP Xkey to select Chase-step.
zPress INSERT(+) key to add Chase-step.
zIf the Chase-step is the last, it displays *.
(Eg: 10 is the last Chase-step, the LCD will displays *10)
4.3 Running
Push the SUBMASTER Fader on to Running relevant scene and chase.
4.3.1 RUNNING SCENE
If the SUBMASTER is not recorded, LCD displays:
4.3.2 RUNNING CHASE
When Chase Running, LCD displays: Chase number
Trigger mode Direction Current Step
Eg: Running the 10th Chase of Page 8.
1. Press PAGE key to turn to Page 8;
2. Push the SUBMASTER Fader 10 to running Chase 10.
Tips:
zPress the Submaster key to flash-running the Scene or Chase.
zPress the Submaster key or push the Submaster fader to convert the Chase to the
CHASE: (8.10)
[
auto
]
[
>
]
1#
PLAYBACK: (8.01)
Scene……..
PLAYBACK: (8.01)
***

Net.DO LightingControlEquipmentCo.,Ltd http://www.netdo.com.cn
TG24/48LIGHTINGCONTROLLER PAGE:10
current control.
zTrigger mode of the current Chase. (The chase has 2 Trigger mode)
Auto: The speed of chase is controlled by SPEED%
and CROSS%.
Music: The chase running with music.
Press the MODE key continuously and the chase mode will be changed as
circulation.
zThe Auto mode of current chase: SPEED% and CROSS%
1. This SPEED% fader is used to control the speed of current Chase, ranges from
0-100%, 0% most slowly and 100% fastest.
2. This CROSS% fader is used to control the fade of Chase-step, ranges from
0-100%, 0% most slowly and 100% fastest.
5 Initializtionofdata
Steps:
1. Hold down PROGRAM key and switch on the power till LCD screen displays
“=== PASSWORD ===”
2. Press number keys 1, 2, 3, 12 at the same time.
3. The system will restart automatically after initializtion.
Special function
Notice: Please keep this paper. If you forget the password, please contact with the retail store
to ask for help.
(A) The steps of using password to start:
1. Hold down PROGRAM key and switch on the power.
till LCD screen displays “=== PASSWORD ===”
2. Press number keys 1, 2, 11, 12 at the same time.
(B) The steps of canceling the starting password:
Repeat the above two steps.
zWhen the password is enabled, every time when the controller is started the
password is needed:
Press number keys 1, 2, 11, 12 at the same time.
