Version 2.0
Using certificates as authentication method for VPN connections between
Netgear ProSafe Routers and the ProSafe VPN Client
This document describes how to use certificates as an authentication method when establishing a
VPN Client-to-Box connection.

Version 2.0
Preliminary notes:
If for your particular deployment you are not using an external CA (Certificate Authority) you will
need to create your own CA. Some alternatives on how to achieve this are outlined below, but
they are not exclusive to other methods:
1- OpenSSL: http://www.openssl.org,
2- SimpleCA: http://www.vpnc.org/SimpleCA/
3- Microsoft’s IIS
For purpose of this document we used:
1- OpenSSL which could be downloaded from the following link:
http://www.slproweb.com/products/Win32OpenSSL.html
2- Additionally you will need to install the Perl interpreter. We used ActivePerl which can be
downloaded from here: http://www.activestate.com/Products/activeperl/index.mhtml

Version 2.0
Creating your own Certificate Authority with OpenSSL
1- In first step you need to create your own CA. To do that, follow the instructions
documented in here: http://sandbox.rulemaker.net/ngps/m2/howto.ca.html
2- Netgear doesn’t support ST relative distinguish name so please edit the openssl.cfg (in
the original location and in your new CA folder) to avoid using this parameter.
3- From the guide linked above, you need only to execute all the commands up to step 4.
The certificate request step and beyond will be handled by the router.

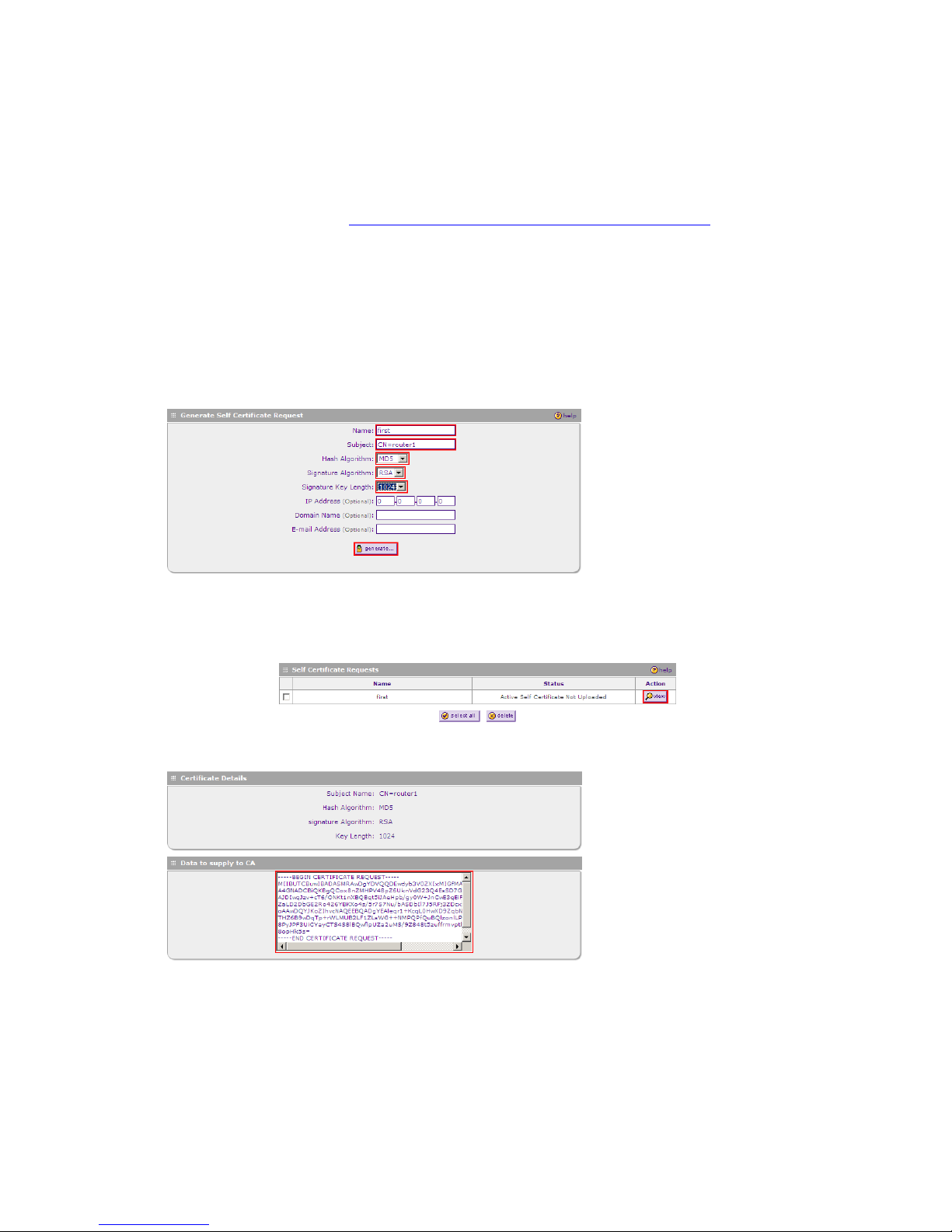

4- Next – please generate Self Certificate Request specifying the following parameters:
1- Name: first
2- Subject: CN=router1
3- Hash Algorithm: MD5
4- Signature Algorithm: RSA
5- Signature Key Length: 1024
6- Click on Generate
5- Click on: “View” for generated certificate request to check its values:
Copy all the information from
the Data to supply to CA field
to the text file router1.csr

Version 2.0
6- Sign your certificate request using your newly created CA:
Openssl x509 -req -days 365 -in router1.csr -CA cacert.crt -CAkey cakey.pem -CAcreateserial -
out router1.crt
router1.csr – generated self certificate request (router),
cacert.crt – CA certification,
cakey.pem – CA keys,
router1.crt – signed certificate (router).

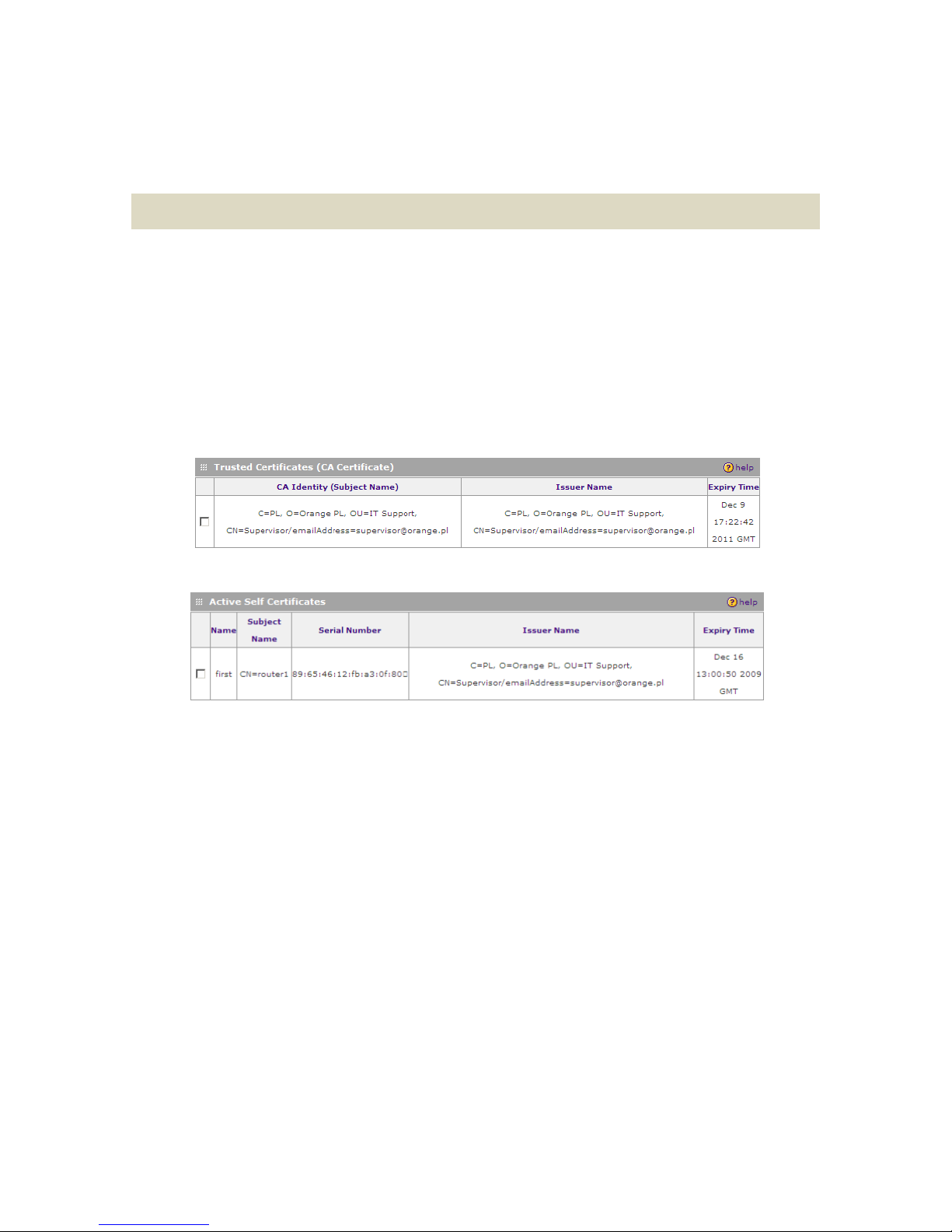

7- Load CA certificate: “cacert.crt” and your signed certificate: “router1.crt” on your
device. They now should display like this:
8- Reboot your router.

Version 2.0

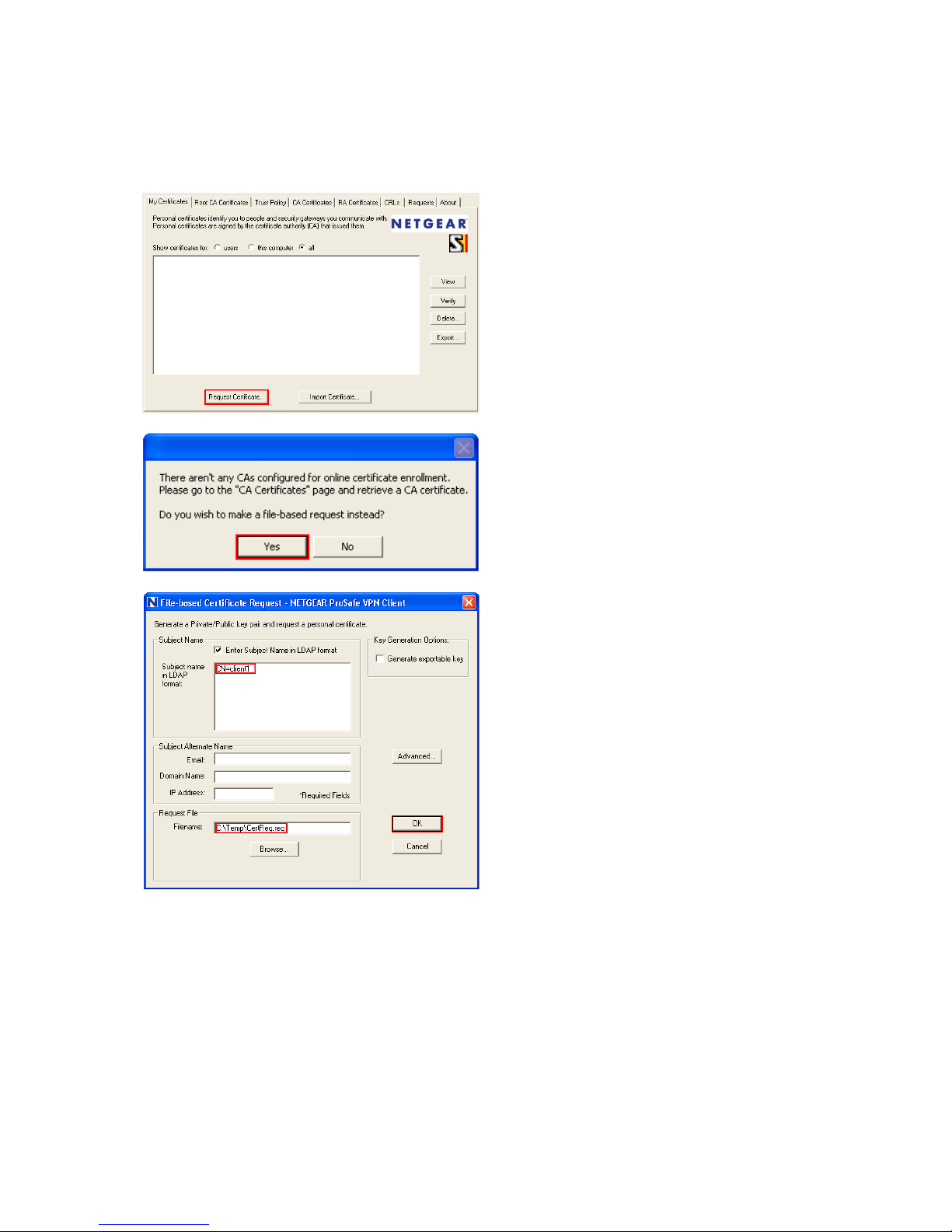

9- Next – generate certificate request using Certificate Manager which is built-in
functionality of Netgear’s ProSafe VPN Client following these steps:
First, click on Request Certificate.
Then, click on ‘Yes’ when you get the file-
based request prompt.
For last, input the settings like instructed
in the screenshot.
Note: Do not change file extension in client software. Change the whole filename after
creating a certificate request instead.

Version 2.0
10- Rename the generated certificate request from:”CertReq.req” to “client1.csr”.
11- Sign your certificate request using your newly created CA:
openssl x509 -req -days 365 -in client1.csr -CA cacert.crt -CAkey cakey.pem -CAcreateserial -out
client1.crt
client1.csr – generated self certificate request (client),
cacert.crt – CA certification,
cakey.pem – CA keys,
client1.crt – signed certificate (client).
12- Install CA certificate: “cacert.crt” in your system. If you are using Microsoft Windows
just select: “Install” from files’ context menu.
13- Load your signed certificate using the Certificate Manager:

Version 2.0

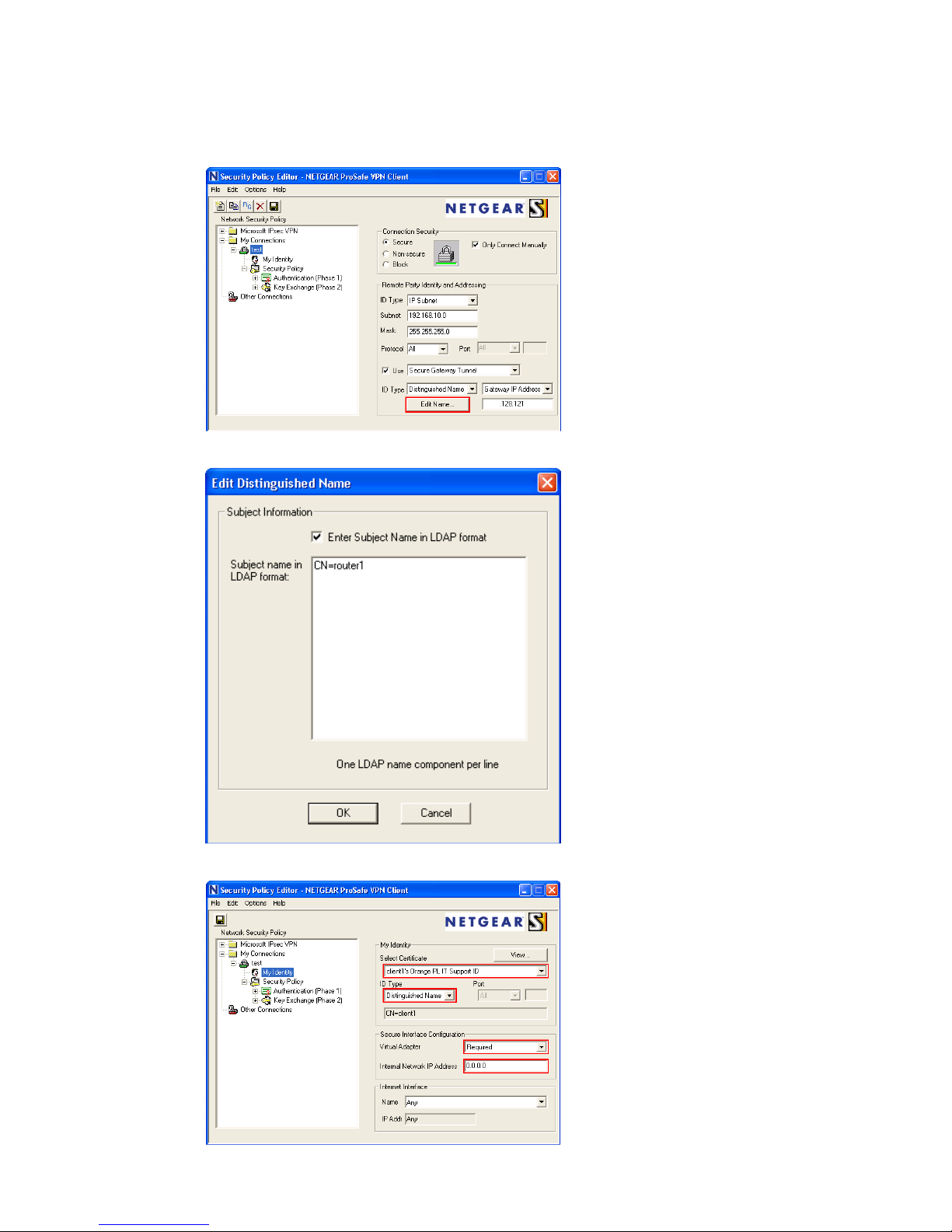

14- Create a new VPN connection according to these steps:
First, input your own details in
the same way that is instructed
here and click on Edit Name.
Verify your settings are input
correctly in this screen and
click on OK.
Select the correct certificate,
leave the ID Type as
Distinguished Name.
Virtual adapter should be
specified as: “Required” to
allow using of virtual adapter
interface on the client.

Version 2.0
In the Security Policy section,
verify your settings match
those in this screenshot.
For the “Proposal 1” of the
Authentication phase (Phase 1),
the Authentication Method
should be RSA Signatures.
The Key Exchange Proposal
should be correct by default,
but check it to make sure it
matches the settings on the
screenshot nonetheless.

Version 2.0
1. Create IKE and VPN policies on your router using VPN Wizard.
2. Delete the VPN Policy, leaving the IKE policy.
3. Create new record for Mode Config in the following way:
Note: IP address ranges defined in: First, Second and Third Pool should be different then
router’s own LAN IP address range.
4. Modify your IKE Policy according to the following settings:
