NETO RENEGADE XB User manual

User Manual
Please read instructions carefully

RENEGADE XB
2
CONTENTS
03 Overview
03 Included Items
03 Safety Information
04 Description
04 Features
05 Set Up
05 Power
05 Data
05 Rigging
06 Operation
06 Control Panel
08 DMX Personalities
18 Technical Specs
19 Contact Us

3
NETO
INCLUDED ITEMS
• Renegade XB
• PowerCon
• Warranty Information
• User Manual
Please inspect package for missing or damaged items and notify NETO
Lighting as soon as possible to receive replacements.
SAFETY INFORMATION
Do not attempt service on unit. Product should only be serviced by qualied
techs. Please respect local laws and regulations governing installation.
• Never look directly into light source in order to prevent injury.
• Always disconnect from the main power source before performing any
type of service.
• Always use a grounded circuit.
• Fixture housing may be very hot while operating. Do not touch the xture
barehanded during its use.
• Always disconnect from main power source and allow 15 minutes to cool
before attempting any type of service.
• Do not plug in when unit is cold. Unit must be at room temperature.
• Product weighs X amount. Ensure rigging used is rated to hold such
weight.
• Make sure there are no ammable materials within 12m of the unit’s
aperture while operating in order to prevent a re hazard.
• Beam can melt or cause re. Ensure that nothing is less than 3m distance
from lens.
• Only supply the unit with rated voltages.
• Do not connect xture to a dimmer pack.
• If you notice any damages, do not attempt to operate.
• If malfunctioning, disconnect from main power source immediately.
Contact NETO Lighting.
• Do not operate if ambient temperature reaches over 40° C.
• Not intended for use outdoors or in moisture.
• Do not block ventilation.
Contact NETO Lighting for all support and technical questions.

RENEGADE XB
4
DESCRIPTION
The renegade XB is an extreme output multi-function luminaire capable of
beam, spot and wash eects all in a single unit.
• Fast and responsive motors for precision control that’s always on time
• Large screen display for easy control
• -280w Osram SIRIUS HRI lamp 8000k color temperature.
• Strong, durable design ideal for transportation
FEATURES
• Variable zoom 3.8° to 20° 16-bit
• Precise focus (16-bit)
• Rotating gobo wheel: 9 gobos
• User replacable slot-lock gobos
• Fixed gobo wheel: 14 gobos
• Dual blade shutters
• 14 colors
• Frost lter
• 8 facet circular prism
• 6 facet lenticular prism
• 16 or 24 channel DMX512
• 540° Pan (16-bit)
• 270 ° Tilt (16-bit)

5
NETO
SET UP
1 Power
The Renegade XB is equipped with an auto-ranging power factor correct-
ed switch-mode power supply. 100-240 VAC 50/60Hz capable.
Maximum current draw of 3.5A (120V) / 1.9A (230V). Never connect pow-
er to a dimmer pack even if it is locked to 100%. If unit does not power
on disconnect power and check fuse. Fuse rating must be XXX. If multiple
xtures are on one circuit avoid striking the lamps all at the same time
as the unit pulls excessive current for a short duration during ignition. If
unit does not power on, disconnect power and contact NETO Lighting for
service.
2 Data
Data is daisy chained via the XLR 3pin connectors. DMX512 low imped-
ance data cabling is recommended for optimal signal transmission.
3 Rigging
The xture comes with a quarter-turn omega bracket for mounting
clamps to base. Never mount a xture in a position that could easily be
knocked over and cause harm to anyone or the xture itself. Only expe-
rienced persons should be rigging xtures overhead. Always use a safety
cable to ensure security. Always verify that the safe working load of the
structure is greater than the total load of xtures on said structure.

RENEGADE XB
6
OPERATION
1 Control Panel
The Renegade XB is equipped with a touch screen and a push encoder for
easy setup. You can select Run Modes, Display Options, Test, Advanced Setup,
& Status.
The menu breaks down like this:
Main Menu Sub Menu Option Description
DMX Address 0-512 Addressing for control
via DMX512
Run Mode DMX 16ch See personality map
DMX 24ch See personality map
Auto Run Fixture automatically
does sequence of effects
Sound Control Fixture does sequence
of effects to the beat
Master/Slave
Mode
Linked xtures set on
slave follows the master
Light Switch Sure Manual control of lamp
power
No
Channel Qty Simple See personality map
Expanded
Display Setting Language English Selects the language of
the menu
Chinese
Screen Saver Mode 1
Mode 2
Mode 3
Off
Screen Rota-
tion
On Change screen orienta-
tion
Off

7
NETO
Main Menu Sub Menu Option Description
Touch Enable On Disables touch to disable
accidental reconguration
Off
Touch Rectify Calibrate Touch Screen
Test Pan Manual control of
parameters for servicing &
troubleshooting
Tilt
Focus
Color
Gobo
Prism
Frost
Strobe
Advanced
Setup
Pan Invert On Pan direction invert
Off
Tilt Invert On Tilt direction invert
Off
Pan & Tilt
Swap
On Swaps pan and tilt
Off
Pan Offset Use to correct home
position of yoke
Tilt Offset Use to correct home
position of yoke
Lamp Up
When
Reset Done Lamp will strike after the
xture completes a reset
Power On Lamp will strike when
the xture is powered on
Manual Lamp will only strike
when prompted to do so
from menu
Factory Setting Sure Restores xture to de-
fault settings
No Cancel

RENEGADE XB
8
Main Menu Sub Menu Option Description
Status Work Mode Displays which run
mode is selected at the
moment
Adress Displays current DMX
address
Version Displays xture rmware
Elapse Lamp counter (hours)
Total Fixture counter (hours)
DMX Clr Reset DMX input
Sys Rst Reset entire system
2 DMX Personalities
Users have a selection of 2 Channel modes, 6 & 10 CH.
View the parameters map below.
24ch 16ch Function Value Description Mode
1 1 Pan 0-255 540º Pan
2 Pan 16-bit 0-255
3 2 Tilt 0-255 270º Tilt
4 Tilt 16-Bit 0-255
5 3 Movement
Speed
0-255 Fast to slow
6 4 Control 0-129 Empty
130-139 Reset effects &
lamp on
140-149 Pan / Tilt reset
150-189 Effects reset
200-209 Total reset
210-229 Empty
230-239 Lamp off
240-255 Empty

9
NETO
24ch 16ch Function Value Description Mode
7 5 Color 0-8 Open Fade
9-17 Red Fade
18-26 Blue Fade
27-36 Yellow Fade
37-45 Green Fade
46-54 Magenta Fade
55-63 Light Blue Fade
64-72 Pale Yellow Fade
73-81 8000K Fade
82-90 3600K Fade
91-100 Pink Fade
101-109 Amber Fade
110-118 4500K Fade
119-127 UV Fade
128-129 Open Snap
130-134 Red Snap
135-138 Blue Snap
139-143 Yellow Snap
144-147 Green Snap
148-152 Magenta Snap
153-157 Light Blue Snap
158-161 Pale Yellow Snap
162-166 8000K Snap
167-171 3600K Snap
172-176 Pink Snap
177-180 Amber Snap
181-185 4500K Snap
186-189 UV Snap
190-215 CW Spin

RENEGADE XB
10
24ch 16ch Function Value Description Mode
216-217 Open
218-243 CCW Spin
244-255 Random
8 Color 16-Bit 0-255
9 6 Gobo Rotation 0-255 Speed

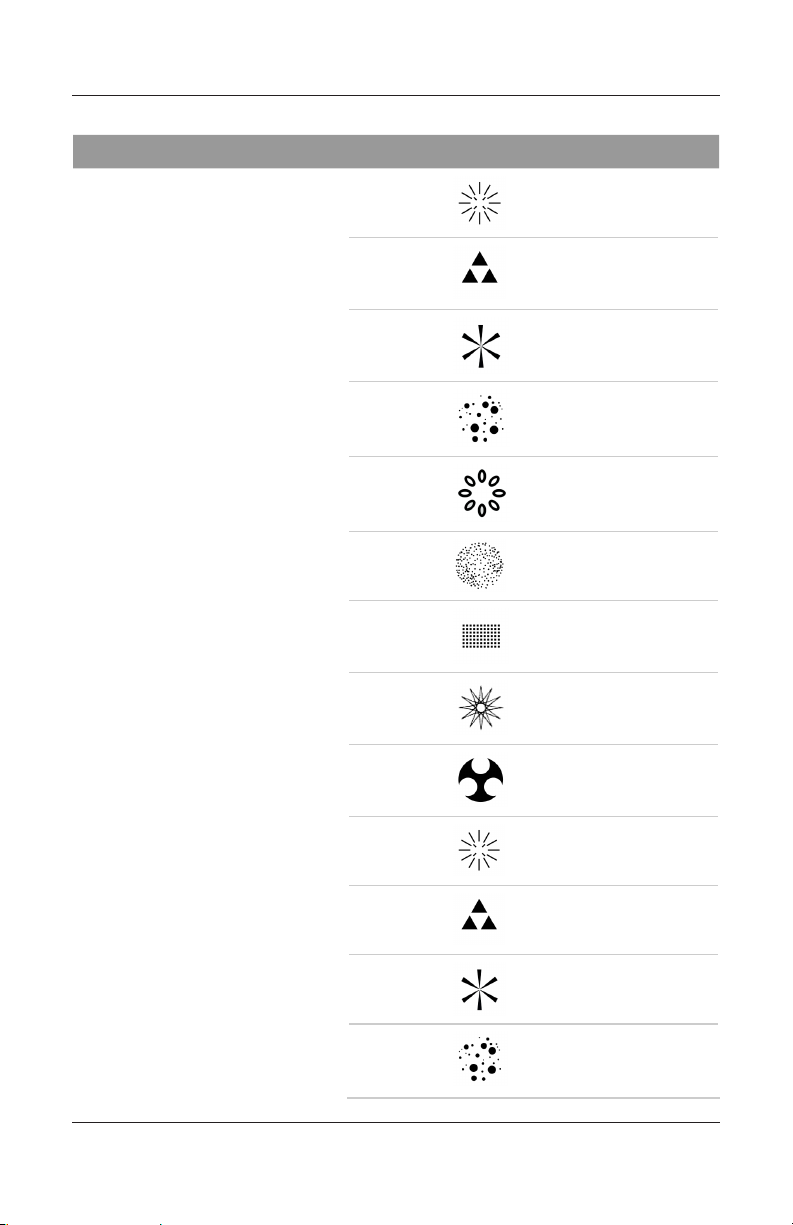

10 7 Static Gobo 0-3 Open
4-9
10-15
16-21
22-27
28-33
34-39
40-45
46-51
52-57
58-63

11
NETO

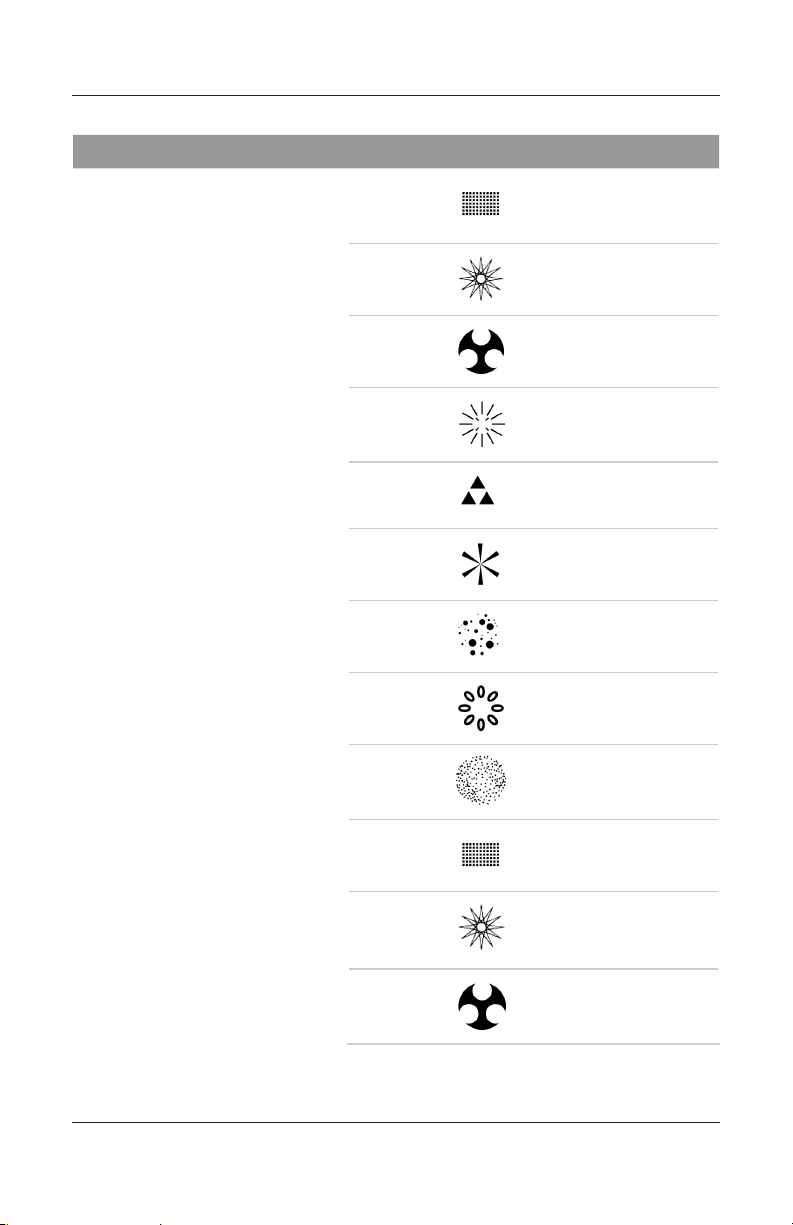

24ch 16ch Function Value Description Mode
64-69
70-75
76-81
82-87
88-95 Shake
96-103 Shake
104-111 Shake
112-119 Shake
120-127 Shake
128-135 Shake
136-143 Shake
144-151 Shake
152-159 Shake

RENEGADE XB
12
24ch 16ch Function Value Description Mode
160-167 Shake
168-175 Shake
176-183 Shake
184-191 Shake
192-199 Shake
200-201 Beam
202-221 CW Spin
222-223 Stop
224-243 CCW Spin
244-255 Random

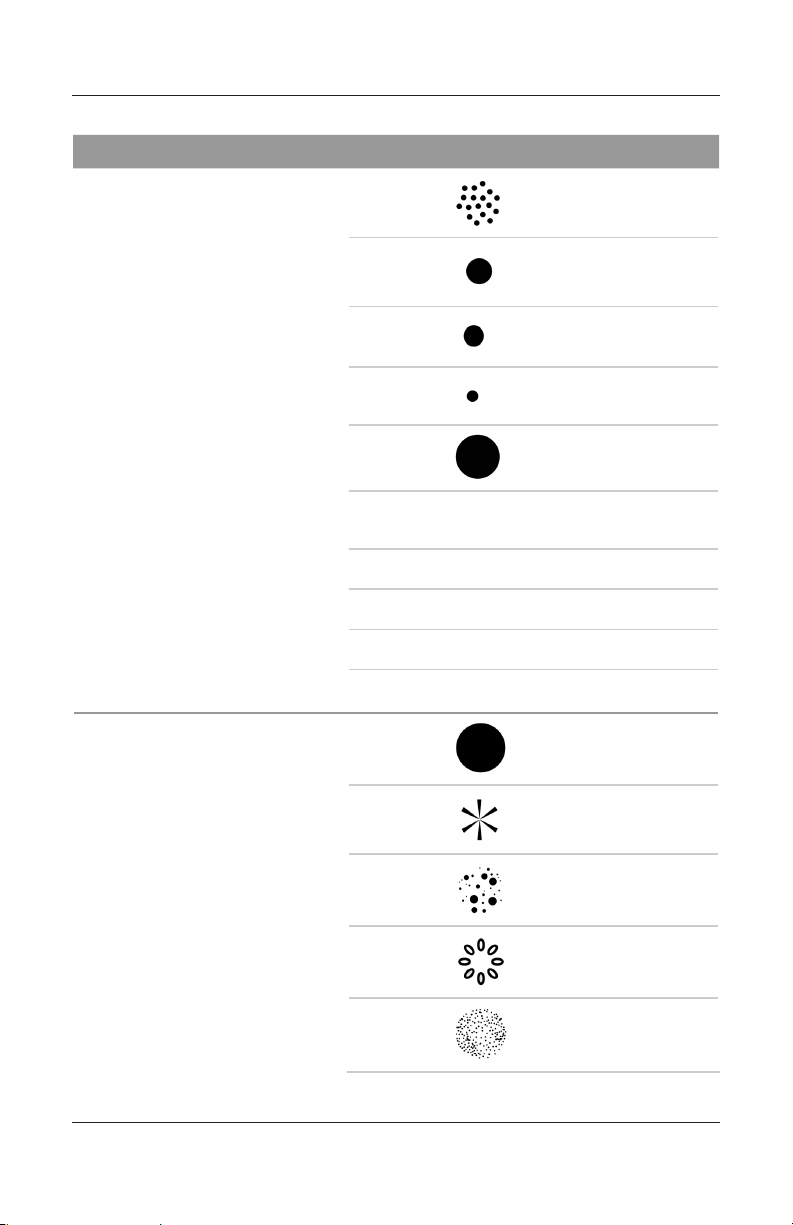

11 8 Rotating Gobo 0-4
5-7 Indexing
8-10 Indexing
11-13 Indexing
14-16 Indexing

13
NETO
24ch 16ch Function Value Description Mode
17-19 Indexing
20-22 Indexing
23-25 Indexing
26-28 Indexing
29-31 Indexing
32-34 Rotation
35-37 Rotation
38-40 Rotation
41-43 Rotation
44-46 Rotation
47-49 Rotation
50-52 Rotation

RENEGADE XB
14
24ch 16ch Function Value Description Mode
53-55 Rotation
56-59 Rotation
60-67 Shake
68-75 Shake
76-83 Shake
84-91 Shake
92-99 Shake
100-107 Shake
108-115 Shake
116-123 Shake
124-129 Shake
130-137 Shake +
Rotation
138-145 Shake +
Rotation

15
NETO
24ch 16ch Function Value Description Mode
146-153 Shake +
Rotation
154-161 Shake +
Rotation
162-169 Shake +
Rotation
170-177 Shake +
Rotation
178-185 Shake +
Rotation
186-193 Shake +
Rotation
194-199 Shake +
Rotation
200-201
202-221 CW Spin
222-223 Stop
224-243 CCW Spin
244-255 Random Gobo
12 9 Gobo Rotation 0-255 Indexing Indexing
0-127 CW Spin Rotation
128-129 Stop Rotation
130-255 CCW Spin Rotation
14 10 Prism 0-19 Open
20-49 6-Face Linear
Prism
Indexing

RENEGADE XB
16
24ch 16ch Function Value Description Mode
50-75 6-Face Linear
Prism
Rotating
76-105 8-Face Circular
Prism
Indexing
106-127 8-Face
Circular Prism
Rotating
128-135 Marco 1
136-143 Marco 2
144-151 Marco 3
152-159 Macro 4
160-167 Macro 5
168-175 Macro 6
176-183 Macro 7
184-191 Macro 8
192-199 Macro 9
200-207 Macro 10
208-215 Macro 11
216-223 Macro 12
224-231 Macro 13
232-239 Macro 14
240-247 Macro 15
248-255 Macro 16
15 11 Prism Roation 0-255 Indexing Indexing
0-127 CW Spin Rotation
128-129 Stop Rotation
130-255 CCW Spin Rotation
16 12 Frost 0-127 Open
128-255 Frost
17 13 Zoom 0-255
18 Zoom 16-Bit 0-255
19 14 Focus 0-255

17
NETO
24ch 16ch Function Value Description Mode
20 Focus 16-Bit 0-255
22 15 Shutter 0-31 Closed
32-63 Open
64-95 Strobe
96-127 Open
128-159 Pulse
160-191 Open
192-223 Random
224-255 Open
23 16 Dimmer 0-255
24 No Function

RENEGADE XB
18
TECHNICAL SPECS
Light Source Lamp Type Osram SIRIUS HRI 280w
Color temperature 8000k
Beam Angle Range 3.8-20° (16-bit zoom)
Thermal Max. Ambient Temperature 40° C
Electrical Max. Power Consumption 420W
Operating Voltage AC 100-240V, 50/60Hz
Current Draw 3.5A (120V) / 1.9A (230V)
Power Supply Electric auto-ranging power
factor corrected switch-mode
Control Data Type USITT DMX-512 (1990)
DMX Channels 16 or 24
Control Modes DMX/Auto Run/Master Slave
Pan 540° (16-bit)
Tilt 270° (16-bit)
Physical Dimensions 523 x 337 x 570 mm
Weight 20kgs ?????
Display LCD Touch Screen
Data In/Out Socket: XLR 3-pin
Construction Housing UV-resistant ber-reinforced
composite
Protection Factor IP 20 (protected against solid
objects greater than 12.5mm)

19
NETO
Features Fast 3-phase pan/tilt motor
Extreme brightness
16-bit focus
9 slot-lock rotating gobos
14 xed gobos
Dual blade shutters
14 colors
Frost lter
8 facet circular prism
6 facet lenticular prism
Quarter-turn omega bracket
CONTACT US
NETO Lighting
1725 Basin
Montreal, Quebec, Canada
H3J 1S2
514-933-4476
[email protected]
www.netolighting.com

www.netolighting.com
