Ignition Stagepix Line 100 IP User manual

Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
01.08.2023, ID: 486339, 486342 (V2)

Table of contents
1 General information................................................................................................................................. 5
1.1 Symbols and signal words............................................................................................................... 5
2 Safety instructions..................................................................................................................................... 7
3 Features.......................................................................................................................................................... 9
4 Installation and starting up................................................................................................................ 11
5 Connections and controls................................................................................................................... 14
6 Technical specications....................................................................................................................... 17
7 Cleaning....................................................................................................................................................... 19
8 Protecting the environment.............................................................................................................. 20
Table of contents
Stagepix Line 100 IP, Stagepix Line 50 IP 3
LED Strip

4Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
Stagepix Line 100 IP, Stagepix Line 50 IP 5
LED Strip

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
Warning – danger zone.
General information
6Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

2 Safety instructions
This device is intended for use as a lighting eect in connection with a Stagepix Brain IP (item
no. 486345) controller. Use the device only as described in this user manual. Any other use or
use under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damage resulting from improper
use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent switching
on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
Stagepix Line 100 IP, Stagepix Line 50 IP 7
LED Strip

DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
NOTICE!
Property damage due to incompatible accessories.
Using incompatible accessories may damage the device. Only use the device together with the Ignition Stagepix Brain IP (item no.
486345).
Safety instructions
8Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

3 Features
nStagepix Line 100 IP (item no. 486339): LED line light with 80 SMD LEDs (RGB) in
40 segments
nStagepix Line 50 IP (item no. 486342): LED line light with 40 SMD LEDs (RGB) in
20 segments
nControl via Stagepix Brain IP (item no. 486345), not included.
nFlexibility due to interchangeable light diusers
nConnection of several LED strips with a clamping mechanism
nRobust aluminium housing
nIncluding black frosted cover
nAlso ideal for outdoor events due to IP65
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Equipment with protection class IP65 are dust-tight and completely protected against contact
(rst code number). They are also protected against splash water from any angle (second code
digit). That is why this equipment can also be used outdoors. Event technology equipment is
generally only designed for temporary use however (event lighting) and not for permanent
use outdoors.
Information about protection
class IP65
Features
Stagepix Line 100 IP, Stagepix Line 50 IP 9
LED Strip

The specied protection class does not make a statement about the weather resistance of the
equipment (resistance to changing ambient conditions as well as against the eects of sun‐
light and UV rays).
The seals and screw connections of the equipment must be checked regularly to ensure a
fault-free operation. In cases of doubt, consult a specialist workshop in due time.
Features
10 Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury
and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure the device with a secondary safety attachment, such as a safety
cable or a safety chain.
Installation and starting up
Stagepix Line 100 IP, Stagepix Line 50 IP 11
LED Strip

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or
the device is badly ventilated, the device can overheat and cause res.
Make sure that illuminated surfaces are more than 2 m away.
Do not operate the device in ambient temperatures above 40 °C.
Always ensure sucient ventilation at the operating location.
You can install the unit in a suspended position. When in use, the device must always be
attached to a solid surface or an approved mount. Use the designated mounts for omega
brackets on the retaining bracket for fastening.
Always work from a stable platform whenever installing, moving or servicing the device. While
you do this, the area underneath the device must be cordoned o.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Mounting options
Cable connections
Installation and starting up
12 Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

Connect the device via a suitable RJ45 data cable (Cat) to the Stagepix Brain IP (item no.
486345). A maximum of four Ignition Stagepix Line 100 IP LED strips (item no. 486339) or a
maximum of eight Ignition Stagepix Line 50 IP LED strips (item no. 486342) can be connected
in series to each serial interface of the controller.
Please note that this device must not be connected to a dimmer.
Installation and starting up
Stagepix Line 100 IP, Stagepix Line 50 IP 13
LED Strip

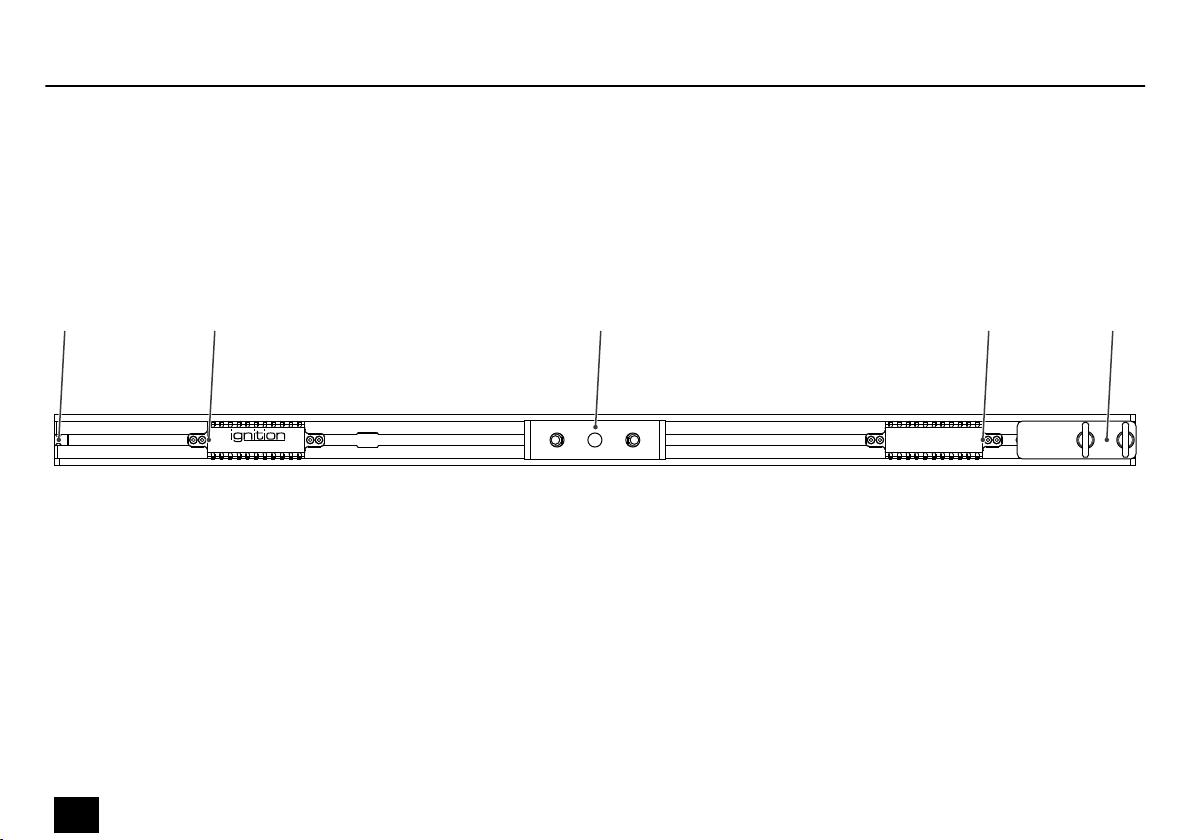

5 Connections and controls
INPUT
Stagepix Li ne 1 00 I P
OUTPUT
# % &$
Stagepix Line 100 IP
(item no. 486339)
Connections and controls
14 Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

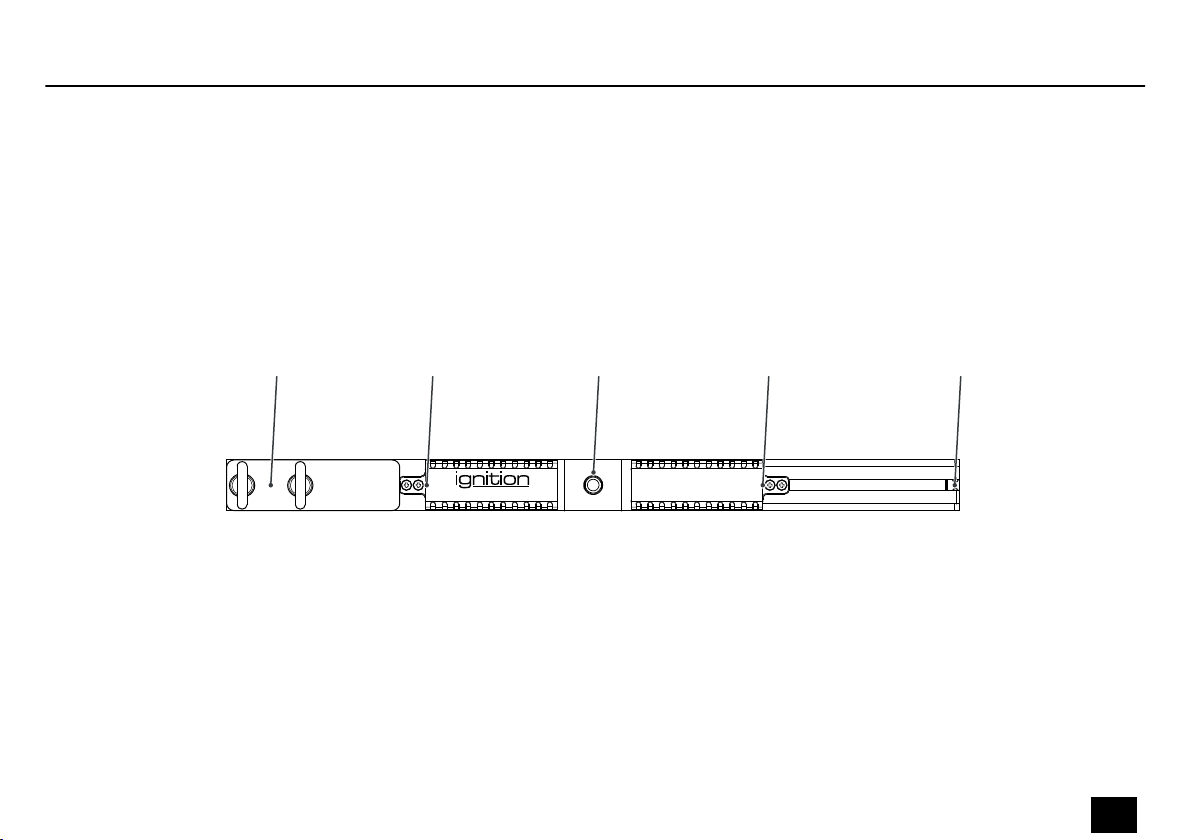

OUTPUT
INPUT
Stagepix Lin e 50 IP
# %& $
Stagepix Line 50 IP
(item no. 486342)
Connections and controls
Stagepix Line 100 IP, Stagepix Line 50 IP 15
LED Strip

1 Fastening element for the mechanical connection of two pixel rails using a clamping mechanism
2[INPUT] | RJ45 input for power supply and control of the device by means of Stagepix Brain IP (item no. 486345)
3 Retaining bracket for attaching the device to a suitable truss bar
4[OUTPUT] | RJ45 output for power supply and control of the following pixel strip
5 Safety eyelets and connector for seamless connection of multiple bars
Connections and controls
16 Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

6 Technical specications
Light source Stagepix Line 100 IP: 80 × 5050 SMD, RGB
Stagepix Line 50 IP: 40 × 5050 SMD, RGB
Optical properties Beam angle 120°
Pixel pitch 25 mm
Luminance 1050 Nit
Refresh rate 3000 Hz
Control Via Stagepix Brain IP (item no. 486345)
Input connections Power supply RJ45
Control via Stagepix Brain IP RJ45
Output connections Power supply RJ45
Control of further LED strips RJ45
International Protection Rating IP65
Mounting options Suspended
Dimensions (W × H × D) Stagepix Line 100 IP: 101 mm × 85 mm × 36 mm
Stagepix Line 50 IP: 51 mm × 85 mm × 36 mm
Technical specications
Stagepix Line 100 IP, Stagepix Line 50 IP 17
LED Strip

Weight Stagepix Line 100 IP: 1.9 kg
Stagepix Line 50 IP: 1.0 kg
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20%…80% (non-condensing)
Suitable for outdoor use Yes
Colour mixture RGB
Separately controllable LEDs Yes
LED type Xin1
Fanless Yes
Remote control Not possible
Wireless DMX No
Housing colour Black
Further information
Technical specications
18 Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

7 Cleaning
Clean the device components that are accessible from the outside regularly. The cleaning fre‐
quency depends on the operating environment: damp, smoky or particularly dirty environ‐
ments can cause greater accumulation of dirt on the device components.
nClean with a dry soft cloth.
nStubborn dirt can be removed with a slightly dampened cloth.
nNever use solvents or alcohol for cleaning.
Device components
Cleaning
Stagepix Line 100 IP, Stagepix Line 50 IP 19
LED Strip

8 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal rm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
