netvox R816B01 User manual

Model：R816B01
Wireless Socket with Power Meter
Wireless Socket with Power Meter
User Manual

1
Table of Content
1. Introduction.............................................................................................................................................................................................................................................................. 2
2. Appearance............................................................................................................................................................................................................................................................... 3
3. Main Characteristic.................................................................................................................................................................................................................................................. 4
4. Operation..................................................................................................................................................................................................................................................................4
5. Data Report.............................................................................................................................................................................................................................................................. 5
6. Load Property...........................................................................................................................................................................................................................................................7
7. Product Installation.................................................................................................................................................................................................................................................. 8
8. Important Maintenance Instruction..........................................................................................................................................................................................................................8

2
1. Introduction
R816B01 is a long-distance wireless socket device for Netvox ClassC type devices based on the LoRaWAN open protocol, compatible with the
LoRaWAN protocol. The AppServer can be used to control the opening and closing of the external load of the R816B01, and the external load can also
be controlled by the switch that comes with the R816B01 device itself. The current, voltage, power and energy values of the current load can be viewed
through the AppServer. R816B01 supports automatic disconnection of load and over-current alarm.
LoRa wireless technology:
LoRa is a wireless communication technology dedicated to long-distance low-power consumption. Its spread-spectrum modulation method greatly
increases the communication distance compared with other communication methods, and can be widely used in long-distance low-rate IoT wireless
communication fields in various occasions. Such as automatic meter reading, building automation equipment, wireless security systems, industrial
monitoring and control. It has the characteristics of small size, low power consumption, long transmission distance and strong anti-interference ability.
LoRaWAN:
LoRaWAN defines an end-to-end standard specification using LoRa technology to ensure interoperability between devices from different vendors.

3
2. Appearance
Load Socket 1
Network Indicator
Switch Indicator
Load Socket 2
Manual Switch
Restore to Factory Setting
L Input
N Input
E Input

4
3. Main Characteristic
Compatible with LoRaWAN standard
100-240VAC 50/60HZ power supply
Simple operation and setting
Compatible with LoRaWANTM Class C
Frequency hopping spread spectrum
Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Over current alarm
Automatically disconnect the load due to over current
Power off warning
4. Operation
On/Off
Power on/Turn on Socket the R816B01 into the power supply of the AC 100-240V, power on the device and all the indicators
flash once.
Power off When the R816B01 is removed from the power supply interface, the R816B01 will be powered off and
stopped.
Network Joining
Never joined the network
Turn on the device to search the network to join.
The green indicator stays on: success
The green indicator remains off: fail
Had joined the network
Turn on the device to search the previous network to join.
The green indicator stays on: success
The green indicator remains off: fail
Fail to join the network
(when the device is on)
First two mins: send join request every 15 seconds.
After two mins: send request every 15 minutes.
Note: Suggest to check the device verification information on the gateway
or consult your platform server provider.
Function Key
Press and hold the factory restoring
key for 5 seconds
(release the key and the green
indicator flashes once to restore to
factory setting)
Restore to factory setting / Turn off
The green indicator flashes for 10 times: success
The green indicator remains off: fail
Press and hold the factory restoring
key for 10 seconds(the green
indicator flashes once at 5th second
and once at 10th second; release the
key to erase energy history)
Erase the energy history.
The device is in the network: green indicator flashes for 5 times
The green indicator remains off: fail
Press the switch button
Control the relay switch on R816B01 for Toggle operation: When R816B01 is on, the green indicator of the
switch indicator is on and the red indicator is off. When R816B01 is off, the red indicator of the switch
indicator is on and the green indicator is off.

5
5. Data Report
A version package will be sent immediately after the device is powered on. The device reports data every 15 minutes by default, and the device sends
data by default configuration before any configuration is performed.
Maximum time: 900 seconds
Minimum time: 2 seconds (Mintime is recommended to set by default 2 seconds. Need to control to reduce frequent Report recommendations by
adjusting reportchange and Max Interval)
Default reportchange: Current --- 0x64 (100mA)
Power --- 0x14 (20W)
Note: the real data sending cycle is subject to real programming configuration before shipment.
Note: the device reports the switch state first, and after 10 seconds reports the power, current and voltage measurement information status.
Short press the switch or receive the switch command:
The device will be reported immediately.
(Report the switch status first, and after 10 seconds reports the power, current and voltage measurement information status.)
R816B01 default Max Interval = 15min, Min Interval = 2s (if there is a special custom shipping, the configuration is changed according to customer
requirements) The uplink data reported by the device is referenced by the Netvox LoraWAN Application Command document and
http://www.netvox.com.cn:8888/page/index
Data report configuration and sending period are as following:
Example of Uplink Data Report:
1 1 1 Var(Fix=8 Bytes)
Vers
ion
Device
Type
Report
Type
NetvoxPayLoadData
0x0
10x73
0x01 OnOff(1Byte,
OFF_0x00,O
N_0x01)
Energy(4B
yte,
unit:1wh)
OverCurrentAlarm
(1Byte
0:noalarm
1:alarm)
DashCurrentAlar
m(1Byte
0:noalarm
1:alarm)
PowerOffAlar
m(1Bytes,
0:noalarm
1:alarm)
0x02 Vol(2Bytes,Unit:1V
)
Current(2Bytes,
Unit:1ma)
Power(2Bytes,U
nit:1W)
Reserved(2Bytes,fixed
0x00)
Uplink example:
0173010000000006000001
The status of the switch is off.
The accumulated value of the energy is 6WH.
The device issues a power off alarm.
0173010000000006010000
The switch status is off.
The accumulated energy value is 6WH.
The device issues an over-current alarm
(the over-current alarm will disconnect the load connected to the R816B01, and the network green light is about 25 times faster)
0173010100000006000000
The status of the switch is ON.
The accumulated energy value is 6WH without any alarm.
01730200DB006400160000
Represents the voltage 219V and the current 100mA, power 20W.
Min Interval
(Unit:second)
Max Interval
(Unit:second) Reportable Change Current Change≥ Reportable Change
Current Change ＜Reportable
Change
Any number between
1~65535
Any number between
1~65535 Can not be 0. Report per Min Interval
Report
per Max Interval

6

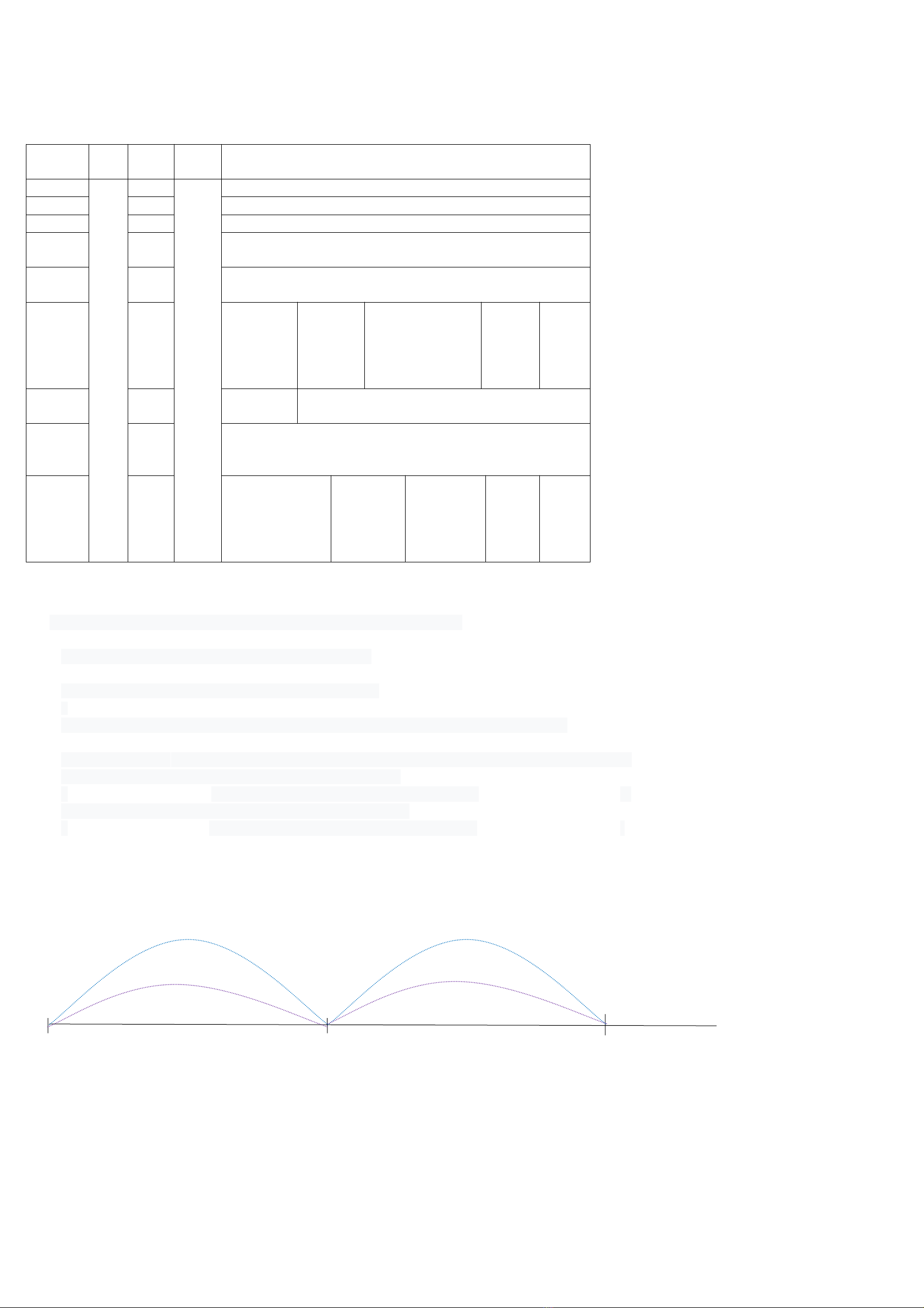

Example of Downlink Data Configuration:
Descriptio
n
Devi
ce
CmdI
D
Device
Type NetvoxPayLoadData
Off
R816
B01
0x90
0x73
Reserved (9Bytes,Fixed 0x00)
On 0x91 Reserved (9Bytes,Fixed 0x00)
Toggle 0x92 Reserved (9Bytes,Fixed 0x00)
ClearEner
gy
0x93 Reserved (9Bytes,Fixed 0x00)
ReadCurre
ntStatus
0x94 Reserved (9Bytes,Fixed 0x00)
ConfigRe
portReq
0x01
MinTime(2b
ytes Unit:s)
MaxTime(2
bytes
Unit:s)
CurrentChange(2byte
Unit:1mA)
PowerCh
ange
（2byte
Unit:1W
）
Reserve
d
(1Byte,
Fixed
0x00)
ConfigRe
portRsp
0x81 Status(0x00_
success) Reserved (8Bytes,Fixed 0x00)
ReadConfi
gReportRe
q
0x02 Reserved (9Bytes,Fixed 0x00)
ReadConfi
gReportRs
p
0x82
MinTime(2bytes
Unit:s)
MaxTime(2b
ytes Unit:s)
CurrentChang
e(2byte
Unit:1mA)
PowerC
hange
（2byte
Unit:1W
）
Reserve
d
(1Byte,
Fixed
0x00)
The shutdown operation is performed by the downlink control R816B01:
9073000000000000000000
Open operation through the downlink control R816B01:
9173000000000000000000
Toggle operation through the downlink control R816B01:
9273000000000000000000
Clear and reset energy accumulation value operation through the downlink control R816B01:
9373000000000000000000
Set the downlink to report if there is a change within 2 seconds. Report every 5mins if there is no change.
The current change is 100mA, and the power change is 20W:.
01730002012C0064001400 (The device received a success response payload: 8173000000000000000000)
Operation to read the current report configuration by downlink:
0273000000000000000000 (The device received a success response payload: 82730002012C0064001400)
Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. PowerChange=2W
MaxTime MaxTime
(MinTime) (MinTime)
Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless PowerChange value.
collects data
REPORTS 50W
collects data
REPORTS 39W
collects data
REPORTS 35W

7

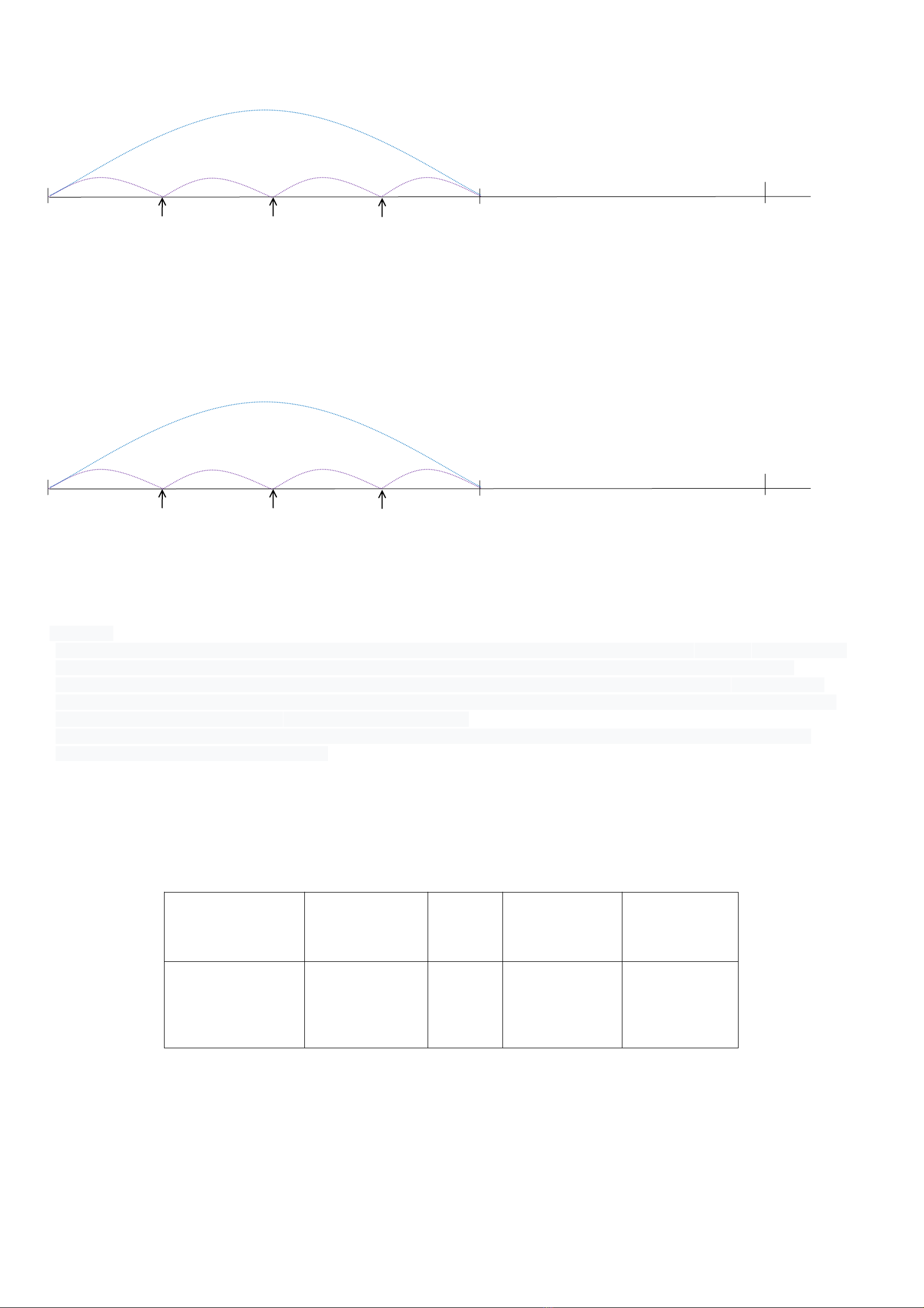

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. PowerChange=2W.
MaxTime
(MinTime) MinTime MinTime MinTime
0H 15th M 30th M 45th M1H 2H
Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. PowerChange=2W.
MaxTime
(MinTime) MinTime MinTime MinTime
0H 15th M 30th M 45th M1H 2H
Remarks:
1. Compare the collected data with the last reported data. If the amount of data change is greater than ReportableChange, the device will report based
on the MinTime interval. If the data change is not greater than the last reported data, the device will report based on the MaxTime interval.
2. For the energy consumption detection device, because the device is a constant power supply device, it is not recommended to set the MinTime
interval value too high in order to obtain the status information in real time. It is recommended to use the default 2 seconds. If users need to control
frequent report recommendations to adjust ReportableChange and MaxTime.
3. After the device sends a packet (regardless of whether the data has changed, such as pressing a button or the maximum time is due), another
MinTime / MaxTime calculation cycle is initiated.
6. Load Property
Rated Load（AC）
** Remark**
Max. Load with LEDs
**Remark**
Max.
Inductive
Load
（cosφ=0.4）
Max. Load with
Electric Motors
Overload Protection
with Auto Power
Cutoff
EU Type：16A/250V～
UK Type：13A/250V～
AU Type：10A/250V～
US Type：15A/125V～
LED power is less
than 400W and less
than 8 LEDs
8A/250V 1.5HP/250V YES
When the detected current exceeds the rated load current range, the device will automatically disconnect the load within 2 seconds after the detection.
collects data
9W
Does not report
collects data
10W
Does not report
collects data
9W
Does not report
collects data
11W
REPORTS 11W
collects data
REPORT 10W
collects data
9W
Does not report
collects data
13W
REPORTS 13W
collects data
12W
Does not report
collects data
14W
Does not report
collects data
REPORT 10W

8
7. Product Installation
This product does not have a waterproof function. After the screening is completed, please place it indoors.
Note:
The energy data of R816B01 is saved once every 10 seconds if the memory chip is AT24C02, once every 10 seconds for AT2402. After power off,
the data within 10 seconds will be gone.
8. Important Maintenance Instruction
Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty
service effectively.
•Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits. In case the
device is wet, please dry it completely.
•Do not use or store in dusty or dirty areas. This can damage its detachable parts and electronic components.
•Do not store in excessive heat. High temperatures can shorten the life of electronic devices, destroy batteries, and deform or melt some plastic parts.
•Do not store in a cold place. Otherwise, when the temperature rises to normal temperature, moisture will form inside, which will destroy the board.
•Do not throw, knock or shake the device. Rough handling of equipment can destroy internal circuit boards and delicate structures.
•Do not wash with strong chemicals, detergents or strong detergents.
•Do not apply with paint. Smudges can block debris in detachable parts and affect normal operation.
•Do not throw the battery into a fire to prevent the battery from exploding. Damaged batteries may also explode.
All of the above suggestions apply equally to your device, battery and accessories. If any device is not working properly.
Please take it to the nearest authorized service facility for repair.
