netvox R718G User manual

Mode：R718G
Wireless Light Sensor
Wireless Light Sensor
R718G
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of
NETVOX Technology. It shall be maintained in strict confidence and shall not be
disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice

1
Table of Content
1. Introduction.................................................................................................................2
2.Appearance..................................................................................................................2
3. Main Features .............................................................................................................3
4. Set up Instruction........................................................................................................4
5. Data Report.................................................................................................................6
6. Installation ................................................................................................................11
7. Important Maintenance Instruction ..........................................................................12

2
1. Introduction
The R718G is a Wireless Light Sensor for Netvox ClassA type devices based on the LoRaWAN
open protocol and is compatible with the LoRaWAN protocol. It can detect illuminance anywhere,
ex. sunlight, outdoor area.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power
consumption. Compared with other communication methods, LoRa spread spectrum modulation
method greatly increases to expand the communication distance. Widely used in long-distance,
low-data wireless communications. For example, automatic meter reading, building automation
equipment, wireless security systems, industrial monitoring. Main features include small size, low
power consumption, transmission distance, anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure
interoperability between devices and gateways from different manufacturers.

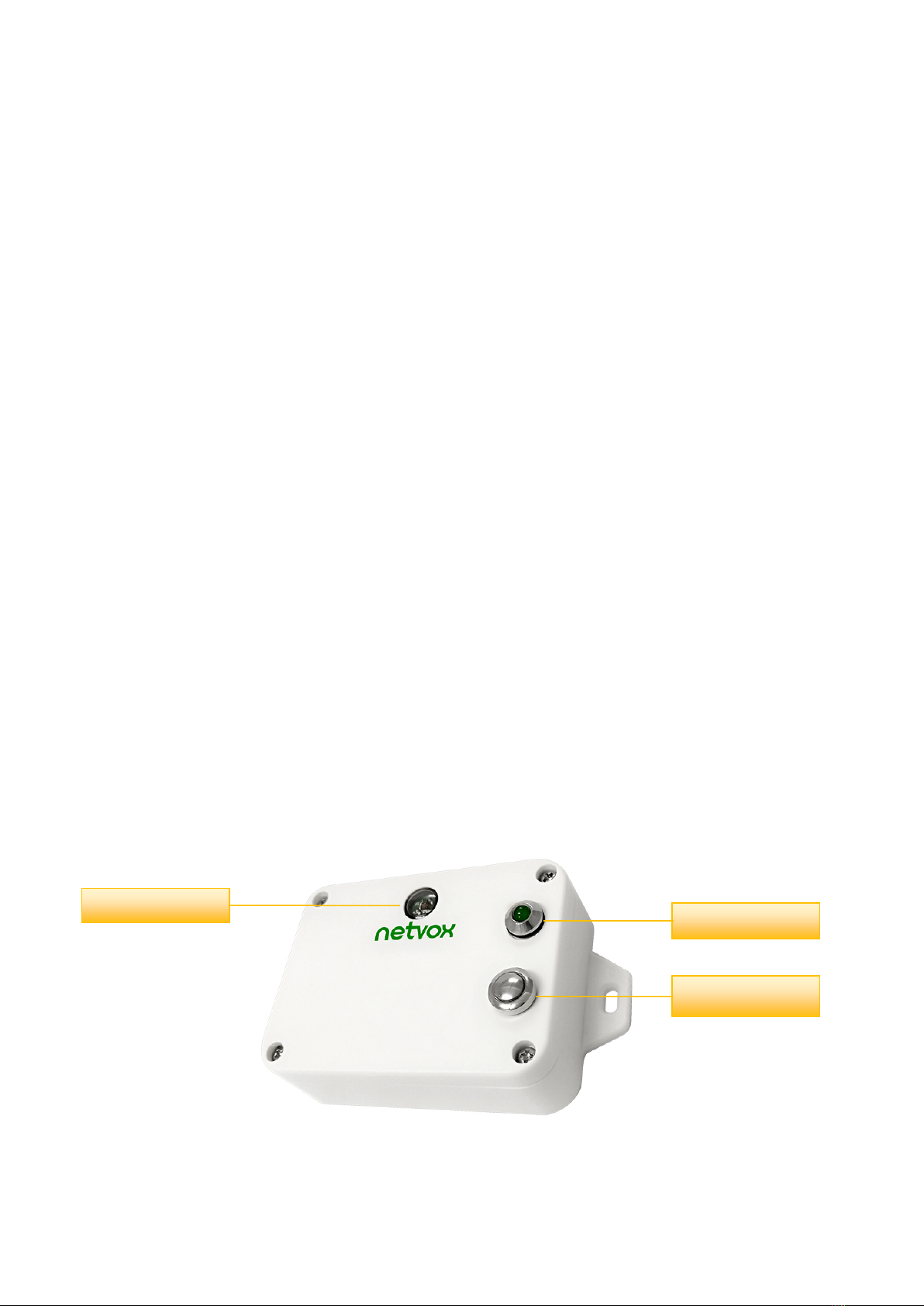

2. Appearance
Indicator
Function Key
Light Sensor

3
3. Main Features
Compatible with LoRaWAN protocol.
Powered by 2 x ER14505 3.6V LithiumAA battery
Illuminance detection (Range: 3~65000 Lux / 3~130000Lux / 3-220000Lux)
IP rating IP65 / IP67 (optional)
Compatible with LoRaWANTM Class A
Frequency hopping spread spectrum
Configuration parameters can be configured via a third-party software platform, data can be read
and alerts can be set via SMS text and email (optional)
Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Improved power management for longer battery life
Battery Life:
⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
⁻At this website, users can find battery life time for variety models at different configurations.
1. Actual range may vary depending on environment.
2. Battery life is determined by sensor reporting frequency and other variables.

4
4. Set up Instruction
On/Off
Power on Insert batteries. (users may need a flat blade screwdriver to open)
Turn on Press and hold the function key for 3 seconds till the green indicator flashes once.
Turn off
(Restore to factory setting)
Press and hold the function key for 5 seconds till green indicator flashes for 20
times.
Power off Remove Batteries.
Note
1. Remove and insert the battery; the device is at off state by default.
2. On/off interval is suggested to be about 10 seconds to avoid the interference of
capacitor inductance and other energy storage components.
3. At 1st -5th second after power on, the device will be in engineering test mode.
Network Joining
Never joined the network
Turn on the device to search the network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Had joined the network
(not at factory setting)
Turn on the device to search the previous network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Fail to join the network
(when the device is on)
First two mins: wake up every 15 seconds to send request.
After two mins: enter sleeping mode and wake up every 15 minutes to send request.
Note: Suggest to remove batteries if the device is not used to save power.
Suggest to check the device verification information on the gateway
or consult your platform server provider.

5
Function Key
Press and hold for 5 seconds
Restore to factory setting / Turn off
The green indicator flashes for 20 times: success
The green indicator remains off: fail
Press once The device is in the network: green indicator flashes once and sends a report
The device is not in the network: green indicator remains off
Sleeping Mode
The device is on and in the
network
Sleeping period: Min Interval.
When the reportchange exceeds setting value or the state changes: send a data report
according to Min Interval.
The device is on but not in
the network
First two mins: wake up every 15 seconds to send request.
After two mins: enter sleeping mode and wake up every 15 minutes to send request.
Note: Suggest to remove batteries if the device is not used.
Suggest to check device verification on gateway.
Low Voltage Warning
Low Voltage 3.2V

6
5. Data Report
Data report configuration and sending period are as following:
Min Interval
(Unit:second)
Max Interval
(Unit:second) Reportable Change Current Change≥
Reportable Change
Current Change＜
Reportable Change
Any number between
1~65535
Any number between
1~65535 Can not be 0. Report
per Min Interval
Report
per Max Interval
The device will immediately send a version packet report along with an uplink packet including illuminance
and battery voltage.
The device sends data in the default configuration before any configuration is done.
Default setting:
MaxTime : Max Interval = 15 min = 900s
MinTime : Min Interval = 15 min = 900s
BatteryChange: 0x01 (0.1V)
IlluminanceChange:0x0032 (50 Lux)
Illuminance detection range:
0x00 3~65000 Lux (default)
0x01 3~130000 Lux
0x02 3-220000 Lux
Note:
The device report interval will be programmed based on the default firmware which may vary.
The interval between two reports must be the minimum time.
Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver
http://www.netvox.com.cn:8888/page/index to resolve uplink data.

7
Example of Report configuration
FPort：0x07
Bytes 1 1 Var(Fix =9 Bytes)
CmdID DeviceType NetvoxPayLoadData
CmdID– 1 bytes
DeviceType– 1 byte – Device Type of Device
NetvoxPayLoadData– var bytes (Max=9bytes)
Description Device Cmd
ID Device Type NetvoxPayLoadData
ConfigReportReq
R718G
0x01
0x1E
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
BatteryChange
(1byte Unit:0.1v)
Illuminancechange
(4bytes Unit
：
1Lux)
ConfigReportRsp 0x81
Status
(0x00_success)
Reserved
(8Bytes,Fixed 0x00)
ReadConfig
ReportReq 0x02
Reserved
(9Bytes,Fixed 0x00)
ReadConfig
ReportRsp 0x82 MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
BatteryChange
(1byte Unit:0.1v)
Illuminancechange
(4bytes Unit
：
1Lux)
SetSunlight
SampleRangeReq 0x03
RangeSetting (1byte)
0x00:3~65000 Lux
0x01:3~130000 Lux
0x02:3-220000 Lux
Reserved
(8Bytes,Fixed 0x00)
SetSunlight
SampleRangeRsp 0x83
Status
(0x00_success)
Reserved
(8Bytes,Fixed 0x00)
GetSunlight
SampleRangeReq 0x04
Reserved
(9Bytes,Fixed 0x00)
GetSunlight
SampleRangeRsp 0x84
RangeSetting (1byte)
0x00:3~65000 Lux
0x01:3~130000 Lux
0x02:3-220000 Lux
Reserved
(8Bytes,Fixed 0x00)
(1) Command Configuration:
MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v、IlluminanceChange = 100 Lux
Downlink：011E003C003C0100000064 003C(Hex) =60 (Dec) ,64(Hex) =100 (Dec)
Response：
811E000000000000000000 （Configuration success）
811E010000000000000000（Configuration failure）

8
(2) Read Configuration:
Downlink：021E000000000000000000
Response：
821E003C003C0100000064 （Current configuration）
(3) Setting light sensor illuminance range:
For example, SunlightSampleRange = 0x02 (3-220000 Lux)
Downlink：031E020000000000000000
Response：
831E000000000000000000 （Configuration success）
831E010000000000000000（Configuration failure）
(4) Read light sensor illuminance range:
Downlink：041E000000000000000000
Response：
841E020000000000000000 （Current configuration）

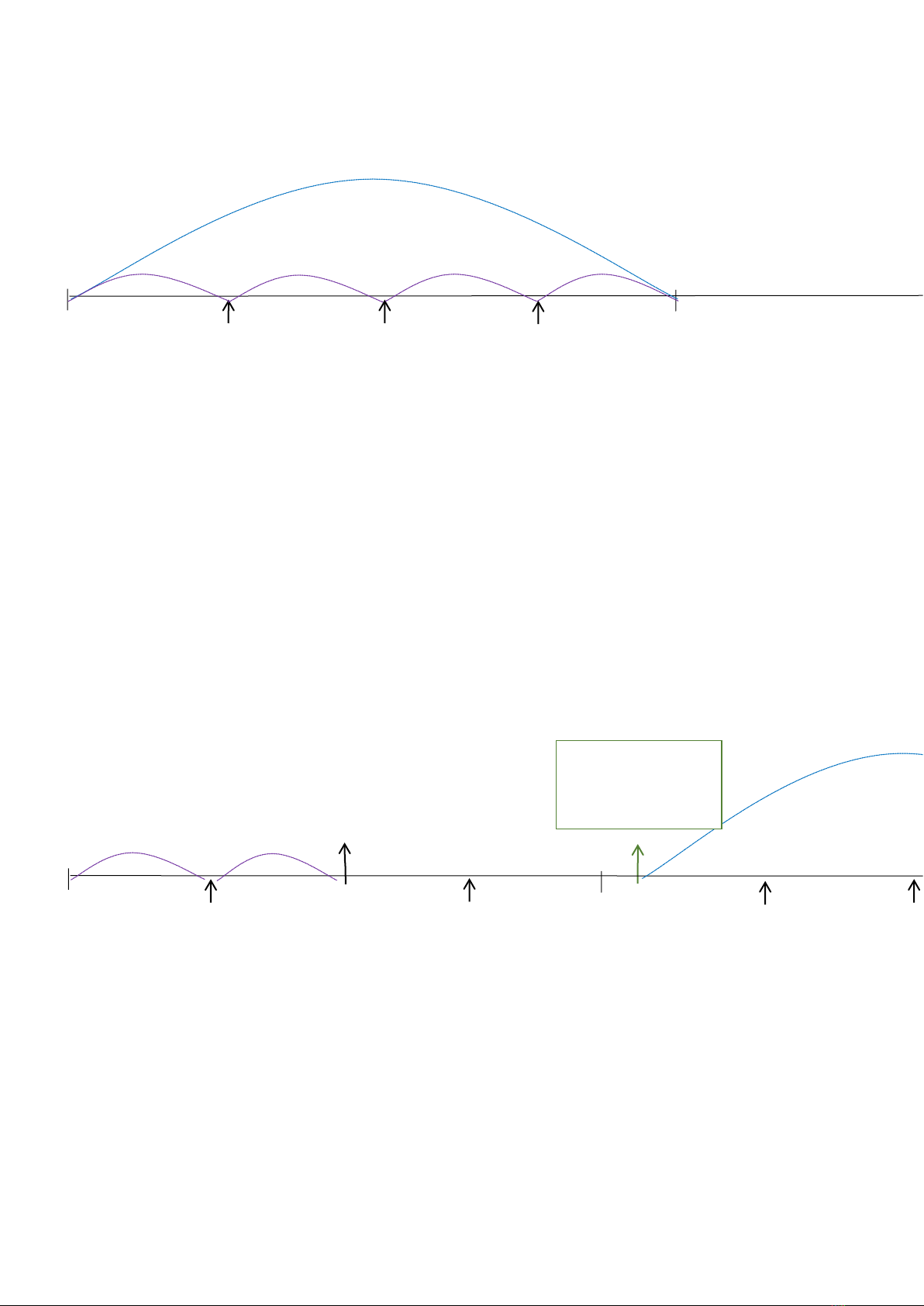

Example for MinTime/MaxTime logic:
Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e.
BatteryVoltageChange=0.1V
MaxTime MaxTime
Sleeping(MinTime) Sleeping(MinTime)
Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration
regardless BatteryVoltageChange value.
Wake up and collects data
REPORTS 3.6V
Wakes up and collects data
REPORTS 3.6V
Wakes up and collects data
REPORTS 3.6V

9
Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e.
BatteryVoltageChange= 0.1V.
MaxTime
Sleeping(MinTime) sleeping sleeping sleeping
0H 15th M 30th M 45th M 1H
2H
Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e.
BatteryVoltageChange= 0.1V.
MaxTime
sleeping sleeping ...
0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M
1H 40th M 1H 55th M 2H 10th M
Notes :
Wakes up and
collects data
3.6V
Does not report
Wakes up and
collects data
3.6V
Does not report
Wakes up and
collects data
3.6V
Does not report
Wakes up and
collects data
REPORTS 3.6V
Wakes up and
collects data
REPORT 3.6V
Wakes up and
collects data
REPORTS 3.6V
Wakes up and collects data
3.5V |3.5-3.6|=0.1
REPORTS 3.5V
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data 3.5V
Does not report
Wakes up and
collects data
3.6V
Does not report
Users push the button,
REPORTS 3.5V.
Recalculate MaxTime.

10
1) The device only wakes up and performs data sampling according to MinTime Interval.
When it is sleeping, it does not collect data.
2) The data collected is compared with the last data reported. If the data variation is greater
than the ReportableChange value, the device reports according to MinTime interval. If the
data variation is not greater than the last data reported, the device reports according to
MaxTime interval.
3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is
too low, the device wakes up frequently and the battery will be drained soon.
4) Whenever the device sends a report, no matter resulting from data variation, button pushed
or MaxTime interval, another cycle of MinTime/MaxTime calculation is started.

11
6. Installation
This product comes with waterproof function. When using it, the back of it can be adsorbed on the
iron surface, or the two ends can be fixed to the wall with screws.
Note:
Please do not disassemble the device unless it is required to replace the batteries.
Do not touch the waterproof gasket, LED indicator light, function keys when replacing the batteries.
Light Sensor (R718G) is suitable for the
following scenarios:
Family
School
Storage room
Hospital
Bar
Stairs
Agricultural greenhouse
To detect the illumination value.

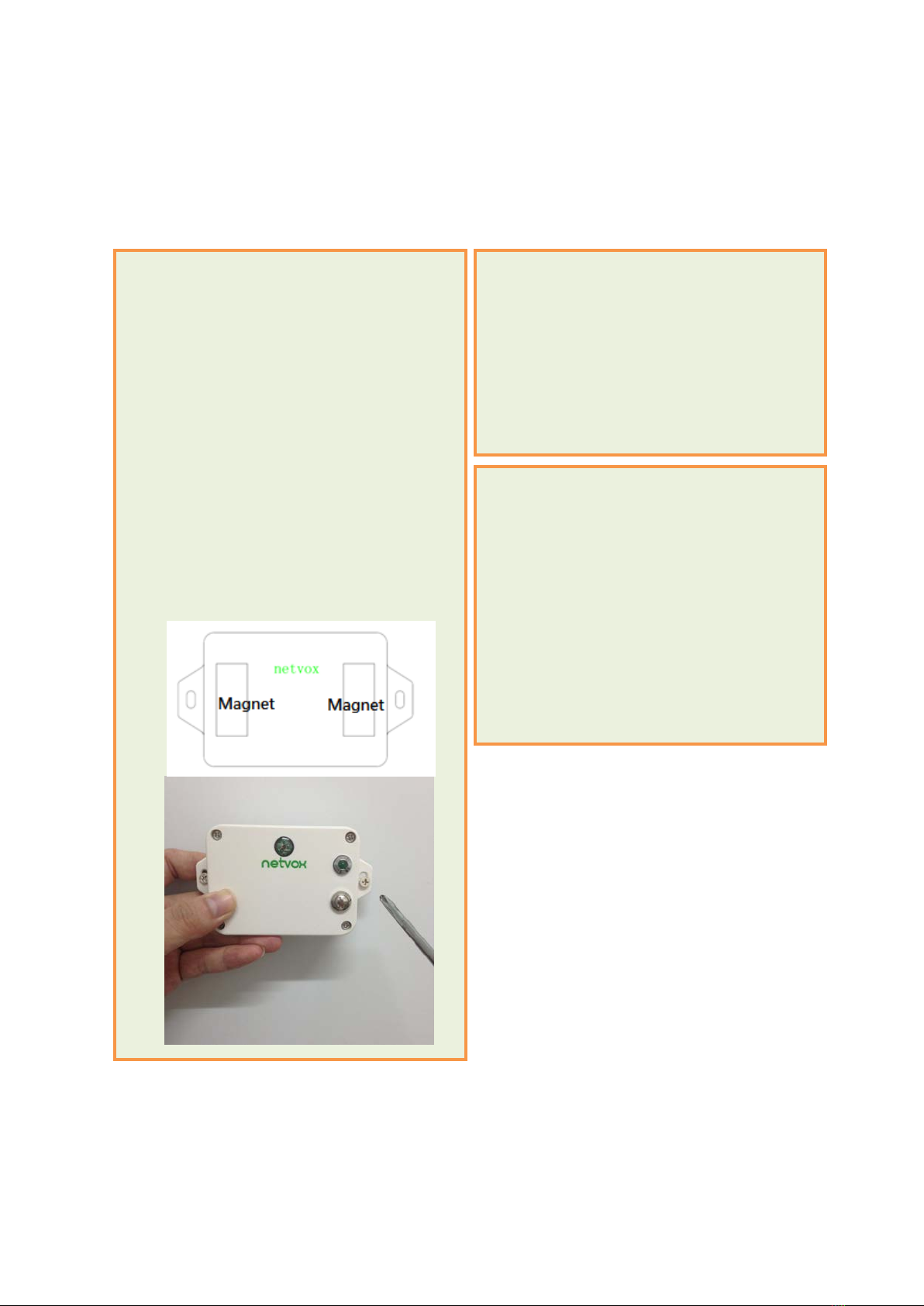

1. Light Sensor
（
R718G
）
has a built-in
magnet (see Figure 1 below),When
installed, the back of it can be adsorbed on
the iron surface, or the two ends can be
fixed to the wall with screws (should be
purchased) to secure the unit to a wall or
other surface (see Figure 2 below).
Note
Do not install the device in a metal
shielded box or in an environment with
other electrical equipment around it to
avoid affecting the wireless transmission of
the device.
2. Compare the illumination value detected
by the illumination sensor with the set
illumination value. The detected value
exceeds the set value (default 50 Lux), the
currently detected illumination value is
sent.

12
Please use suitable screwdriver to tighten the screws (if using an electric screwdriver, it is
recommended to set the torque as 4kgf) to ensure the device is impermeable.
Note on battery use:
Because the passivation of the ER battery electrode surface is an inherent characteristic of lithium
thionyl chloride batteries, before using the ER14505 3.6V 2400mAh lithium thionyl chloride battery,
the user can use a 33 ohm resistor to activate the battery for 1 minute to actively eliminate the
battery hysteresis.
7. Important Maintenance Instruction
Kindly pay attention to the following in order to achieve the best maintenance of the product:
•Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode
electronic circuits. If the device gets wet, please dry it completely.
•Do not use or store the device in dusty or dirty environment. It might damage its detachable parts
and electronic components.
•Do not store the device under excessive heat condition. High temperature can shorten the life of
electronic devices, destroy batteries, and deform or melt some plastic parts.
•Do not store the device in places that are too cold. Otherwise, when the temperature rises to
normal temperature, moisture will form inside, which will destroy the board.
•Do not throw, knock or shake the device. Rough handling of equipment can destroy internal
circuit boards and delicate structures.
•Do not clean the device with strong chemicals, detergents or strong detergents.
•Do not apply the device with paint. Smudges might block in the device and affect the operation.
•Do not throw the battery into the fire, or the battery will explode. Damaged batteries may also
explode.
All of the above applies to your device, battery and accessories. If any device is not working
properly, please take it to the nearest authorized service facility for repair.
