New Air G70 User manual

Owner’s Manual
Model
G70
7211460100R00
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this heater. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.

2
Table of Contents
Always use a qualied technician
or service agency to repair
this heater.
!NOTE: Procedures and
techniques that are
considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations ................3
IMPORTANT INSTRUCTIONS . . . . . . . . . . . . . . .4
Heater Installation ........................7
Operation ...............................9
Maintenance and Cleaning . . . . . . . . . . . . . . . .10
Warranty...............................10

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
heater from New Air, the world leader in electric heaters.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result
in a possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your heater.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us Toll-Free 1-800-734-0405
Monday to Friday 7:30 a.m. to 5:00 p.m. PST
Please have your model number and product serial
number ready.

4
①Readallinstructionsbefore
using this appliance.
② The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 feet (0.9m) from the front
of the unit.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the heater
when not in use.
⑤ Do not operate any unit with
a damaged cord or plug, or if the
heater has malfunctioned, or if
the heater has been dropped or
damaged in any manner. Return
heater to authorized service
facility for examination, electrical
or mechanical adjustment or
repair.
IMPORTANT INSTRUCTIONS
⑥ Do not use outdoors.
⑦ The heater is not intended for
use in bathrooms, laundry areas
and similar indoor locations.
Never locate heater where it may
fall into a bathtub or other water
container.
⑧Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners or the like.
Arrange cord away from trafc
area and where it will not be
tripped over.
⑨To disconnect the unit, turn
the controls off, then remove the
plug from the outlet.
⑩ Connect to properly grounded
outlets only.
⑪Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible re, do
not block air intake or exhaust
in any manner. Do not use on

5
SAVE THESE INSTRUCTIONS
soft surfaces, like a bed, where
openings may become blocked.
⑬ All electrical heaters have hot
and arching or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored or
where the unit will be exposed to
ammable vapours.
⑭Do not modify the heater.
Use it only as described in
this manual. Any other use
not recommended by the
manufacturer may cause re,
electric shock or injury to persons.
⑮ This heater is not intended for
use with an extension cord. Plug
cord directly into appropriate wall
receptacle.
⑯ This heater includes a visual
alarm (red light) to warn that parts
of the heater are over heating. If
the red light rurns on, immediately
turn heater off and inspect for
any objects on or adjacent
to the heater that may cause
high temperatures. DO NOT
OPERATE WHEN RED LIGHT IS
ON.
⑰ Always use a certied
electrician should new circuits or
outlets be required.
⑱ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
⑲ When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
IMPORTANT INSTRUCTIONS

6
IMPORTANT SAFETY INSTRUCTIONS
Grounding Instructions
This heater is for use on 240
Volts. The cord has a plug as
shown on Figure 1. No adapter
should be used with this unit. The
type outlet is a 240 Volt grounding
outlet. When properly installed,
it provides a ground connection
through the cord to the heater to
protect the operation from
electric shock.
Figure 1:
Plug and outlet
conguration for 240
Volt, 20 Amp circuit
Ground
Plug Outlet

7
Heater Installation
HEATER LOCATION AND
CLEARANCES
The heater is intended for use
located on a hard oor, table top,
desk or on shelf, and the like, or
suspended on a wall or ceiling
by means of provided hanger
bracket.
When suspended from wall or
ceiling heater should be located
along outside walls to provide
perimeter air circulation.
The discharge air should wipe the
walls without blowing directly on
them. (Figure 2)
If heater is to be tilted on
horizontal axis after mounting -
ensure a minimum clearance of
26.5 inches (67 cm) between oor
and bottom of heater. Also, when
mounted to ceiling, ensure a
minimum clearance of 3.5 inches
(9 cm) from ceiling to top of
heater. Ensure the air discharge
is parallel to or away from walls.
INSTALLATION WITH WALL/
CEILING HANGER BRACKET
!NOTE: To prevent personal
injury always use a licensed
electrician to install new outlets or
circuits.
DISCHARGE
OUTSIDE WALL
Figure 2
The use of the hanger bracket
allows the unit to be rotated
approx 45 degrees in each
direction from centre, when
attached to wall and tilted in 45
degrees range while suspended
from a wall or ceiling.
!NOTE: The hardware for
mounting the hanger bracket to
the wall or ceiling is not included.
CAUTION: When turning
and/or tilting the heater do not
block the exhaust opening.

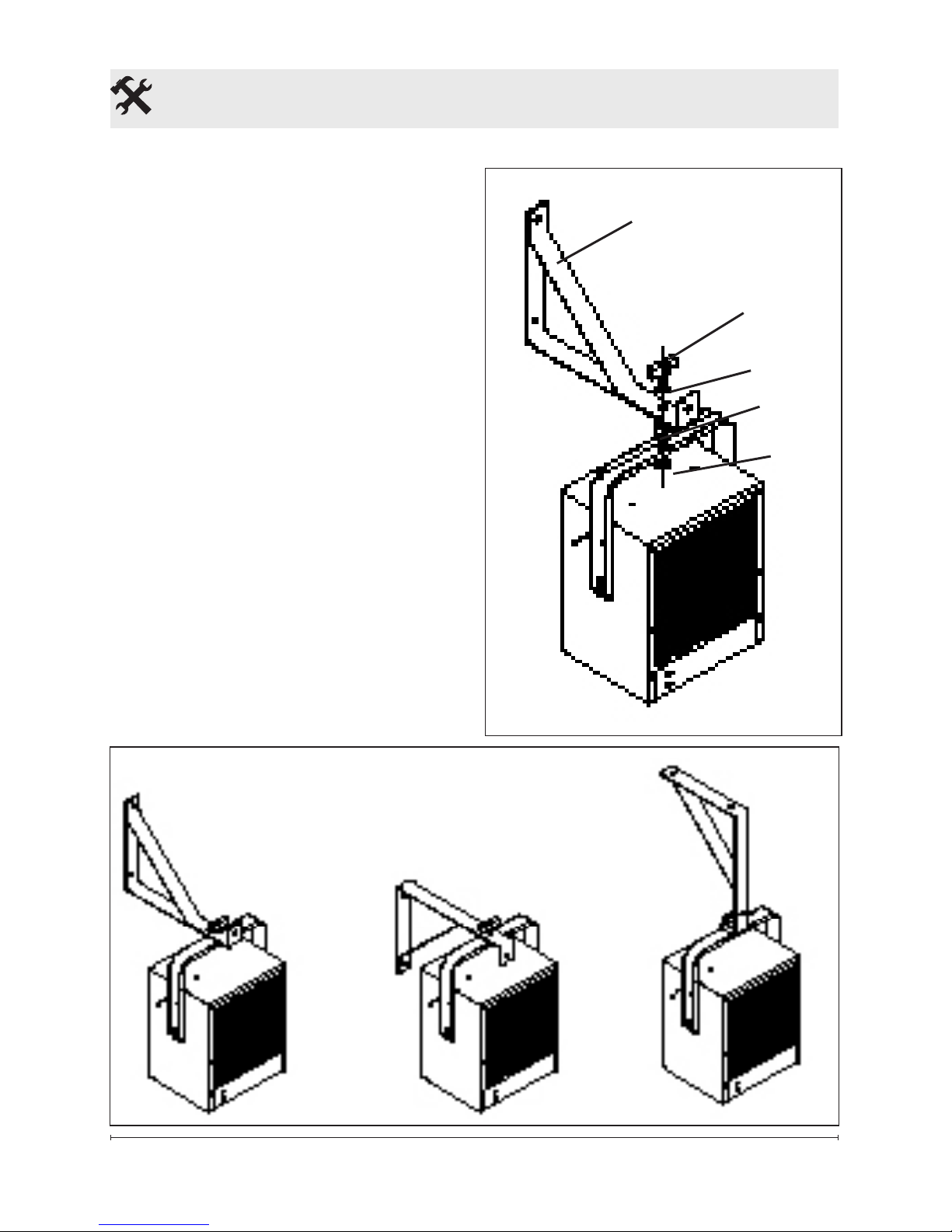

The following steps are shown in
Figure 3.
Locate a stud or other1.
suitable support and install
hanger bracket on wall or
ceiling. Select location so
control knob on back of
heater will be reached easily.

8
Heater Installation
Insert carriage bolt into2.
square opening of heater
handle.
Slide spacer over the carriage3.
bolt shaft and insert in
hanger bracket opening and
hold them in position.
Slide lock washer and thread4.
on T-Handle onto carriage
bolt, turn to tighten.
Hanger Bracket Mounting Options
Air in
Air out
Hanger
bracket
Carrage
Bolt
Spacer
Lock washer
T-Handle
Figure 3

9
Operation
Setting the Thermostat
Before connecting or1.
disconnecting plug, turn
knob fully counterclockwise.
(Figure 4)
2. Heater is equipped with
a thermostat. To adjust
temperature to your individual
requirements, turn thermostat
control knob clockwise all
the way to turn heater on,
the yellow power light will
illuminate (Figure 5). When
room reaches desired
temperature, turn thermostat
knob counterclockwise until
you hear click. Leave in
this position to maintain
room temperature at this
setting. For additional heat,
turn clockwise until you
hear click again and heater
will turn on. To shut heater
off turn thermostat knob
counterclockwise all the way.
The yellow power indicator
light will turn off.
Figure 4
Thermostat control knob
(shown in off position)
Figure 5 Yellow light
Red light
!NOTE: Heater is equipped
with a fan delay to dissipate
residual heat from the element.
Heater fan will run for a brief
period after heater has reached
room temperature.

10
Warranty
NewAir Electric Heaters are tested
and inspected prior to shipment and
are guaranteed free from defect to the
purchaser of each new product. Any part
which proves to be defective in material
or workmanship under normal use within
one year will be repaired or replaced
without charge. The Company will not
be responsible for any expense incurred
for installation, removal from service, or
transportation costs. Any such defect
should be brought to the attention of the
Dealer where the product was purchased
and is authorized to repair or replace
within the terms of this warranty.
The Company’s only obligation under this
warranty will be at its sole option to repair
or replace any part proving defective or to
refund the purchase price thereof.
The owner/user assumes all other risks,
if any, including the risk of any direct,
indirect or consequential loss or damage
arising out of the use of or inability to use
the product.
The warranty will not apply if, in the
sole judgment of the Company, damage
or failure has resulted from accident,
alteration, misuse, abuse, incorrect
installation, or operation on an incorrect
power source.
The foregoing is in lieu of all other
warranties expressed, implied, or
statutory, and the Company neither
assumes, nor authorizes any person to
assume for it any other obligation, or
liability in connection with said product.
© 2011 NewAir
NewAir
1100 S. Linwood Ave. Building B
Santa Ana CA
92705 USA
Toll Free: [phone]
Maintenance and Cleaning
WARNING: Disconnect
power before attempting any
maintenance or cleaning to
reduce the risk of re, electric
shock or damage to persons.
CAUTION: Allow at least
30 minutes for the heater to
cool before attempting any
maintenance or cleaning.
To clean the exterior surface,
use a solution of water and mild
detergent, apply with damp
sponge. Wipe dry with a dry
cloth. DO NOT plug heater into
outlet until it has dried thoroughly.
