New Air G73 User manual

Manual v1.0
Hardwired Electric Garage Heater
Radiateur de Garage Électrique Câblé
Calentador de Garaje Eléctrico
Cableado
G73
OWNER’S MANUAL
Manuel de L'utilisateour
Manual del Propietario

www.newair.com 2
LANGUAGE INDEX
English Manual ......................................................................................3
Manuel en Français..............................................................................16
Manual en Español...............................................................................29

EN
www.newair.com 3
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole Newair family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on Newair
As a proud Newair owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us
Please reach out to our customer service team before making a return to your
store of purchase. We are happy to help with any questions or concerns!
Mon-Fri from 8-4 PST at:
Call:
1-855-963-9247
Email:
[e-mail]
Online:
www.newair.com
A team member will respond to you within 24 hours.
Follow Us
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa

EN
www.newair.com 4
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Specifications...................................................................................................5
Register Your Product Online ...........................................................................6
Safety Information & Warnings ........................................................................7
Heater Assembly..............................................................................................9
Heater Installation .........................................................................................10
Heater Location and Clearances..............................................................10
Installation of Wall/Ceiling Hanger Bracket.............................................10
Electrical Connection..............................................................................11
Operating Instructions ...................................................................................12
Setting the Thermostat...........................................................................12
Cleaning & Storage.........................................................................................13
Regular Cleaning ....................................................................................13
Storage ..................................................................................................13
Troubleshooting.............................................................................................14
Limited Manufacturer’s Warranty ..................................................................15

EN
www.newair.com 5
SPECIFICATIONS
MODEL NO.
G73
VOLTAGE:
240 volts
POWER CONSUMPTION:
5000W

EN
www.newair.com 6
REGISTER YOUR PRODUCT ONLINE
Register Your Newair Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for Newair promotions and offers
Registering your product information online is safe & secure and takes less than
2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

EN
www.newair.com 7
SAFETY INFORMATION & WARNINGS
When using any electrical appliance, basic safety precautions must
be followed in order to reduce the risk of fire, electrical shock
and/or injury to persons or property. Be sure to read all instructions
before using this appliance and observe the following safety tips:
•This heater is hot when in use. To avoid burns, do not let bare skin touch the
hot surface. Always use the handle when moving this heater. The trim
around the air outlet grille becomes hot during heater operation. Keep
combustible materials such as furniture, pillows, bedding, papers, clothes,
and curtains at least 3 feet (0.9 m) from the front of the heater.
•Extreme caution is necessary when any heater is used by or near children or
invalids, and whenever the heater is left operating and unattended.
•Do not install less than 6 feet (1.9 m) from the floor.
•Do not operate the heater if the supplied wire is damaged, the heater
malfunctions, or the heater has been dropped or damaged in any manner.
Return heater to authorized service facility for examination, electrical or
mechanical adjustment, or repair.
•Do not use the heater outdoors.
•This heater is not intended for use in bathrooms, laundry areas and similar
humid indoor locations. Never put a heater where it may fall into a bathtub
or other water container.
•Connect to properly grounded outlets only. Check heater voltage and
amperage on the back of the heater to make sure it agrees with the electric
service supplied.
•Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage to the heater.
•To prevent a possible fire, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become
blocked.
•All electrical heaters have hot, arcing, or sparking parts inside. Do not use in
areas where gasoline, paint, or flammable liquids are used or stored or
where the unit will be exposed to flammable vapors.
•Do not modify the heater. Use it only as described in this manual. Any other
use not recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
•Always use a certified electrician should new circuits or outlets be required.
•Disconnect all power supply before performing any cleaning, maintenance,
or relocation of the unit.

EN
www.newair.com 8
•When transporting or storing the unit, keep in a dry place, free from
excessive vibration, and store so as to avoid damage.
•Make sure that no pieces of polystyrene or other packaging material have
been left between one element of the appliance and another. It may be
necessary to clean the appliance with a vacuum cleaner.
•Do not run-in locations when the heater will be left unattended for long
periods of time.
•Do not use attachments or filters. They are not recommended.
•Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock or injury
to persons.
SAVE THESE INSTRUCTIONS

EN
www.newair.com 9
HEATER ASSEMBLY
You will need to attach the heater cradle to the heating unit using the provided
screws and washers.
1. Using a wrench, remove the provided screws and washers from either side
of the unit.
2. Slide the heater cradle down over top the heater unit until the bottom
holes of the heater cradle and heating unit are aligned on each side.
3. Using a wrench, tighten each screw and washer through the heater cradle
and into the heating unit.
4. Ensure the screws are fully tightened and the heater cradle is tightly
secured.

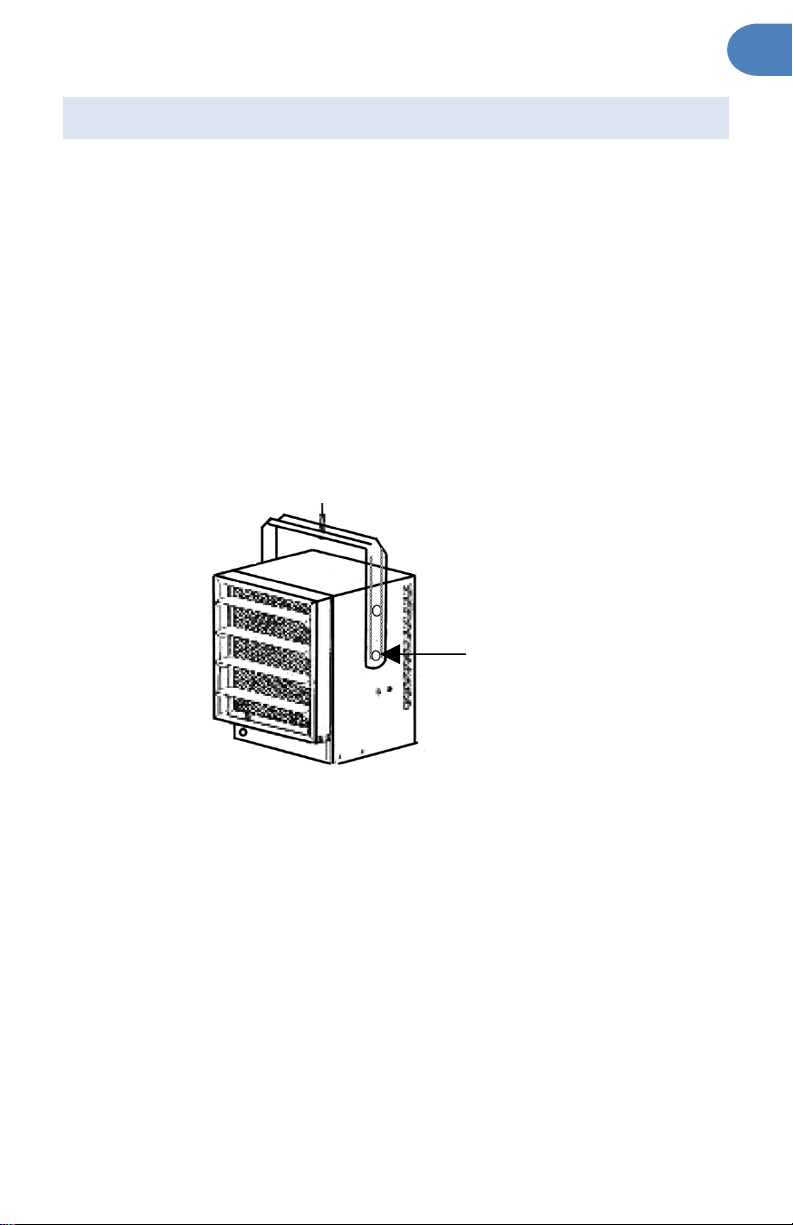

Heater Cradle
Heating Unit
Screw
Installation

EN
www.newair.com 10
HEATER INSTALLATION
NOTE: Please contact a licensed electrician to install your heater to the
proper outlets or circuits. Do not attempt to install your heater by yourself. A
hired professional will prevent personal injuries from occurring.
HEATER LOCATION AND CLEARANCES

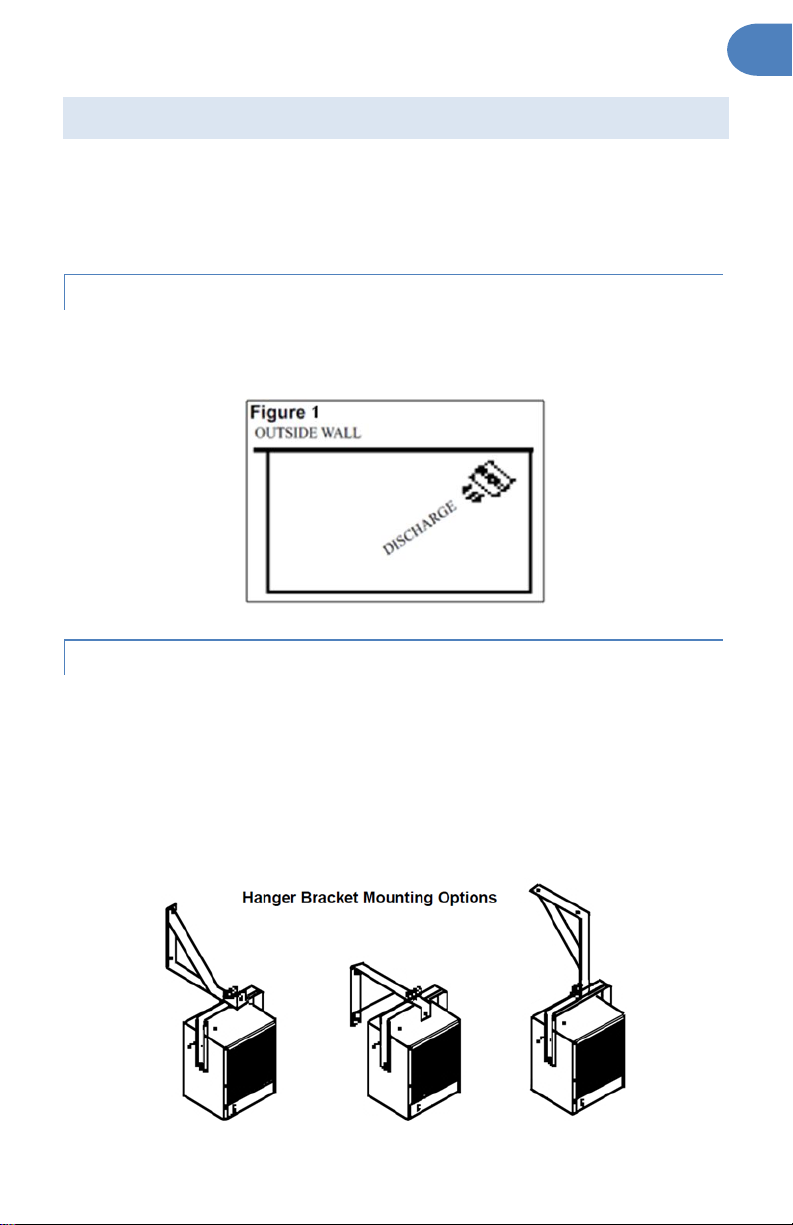

The heater must be installed in a fixed location. Ensure that hot air discharge is
parallel to or away from walls (Figure 1).
INSTALLATION OF WALL/CEILING HANGER BRACKET
The hanger bracket allows the unit to be rotated approximately 45 degrees in
each direction from center, when attached to a wall and tilted in a 45-degree
range while suspended from a wall or ceiling.
NOTE: The hardware for mounting the hanger bracket to the wall or ceiling is
included.

EN
www.newair.com 11
CAUTION: When turning and/or tilting the heater do not block the exhaust
opening.
The following steps are shown in Figure 2:
1. Locate a stud or other suitable support
and install hanger bracket on wall or
ceiling. Select a location where the
control knob on the back of the heater is
easily reachable.
2. Insert carriage bolt into square opening of
heater handle.
3. Slide spacer over the carriage bolt shaft
and insert the hanger bracket opening
and hold them in position.
4. Slide lock washer and thread nut onto
carriage bolt. Turn and tighten with
wrench.
Do not install less than 6 feet (1.9 m) from the floor.
ELECTRICAL CONNECTION
WARNING: Consult local electrical codes in addition to the following
requirements:
1. Turn off main power supply at the electrical panel.
2. Route supply wires from circuit breaker to an approved junction box,
located near compact unit heater. These supply wires must be two
conductor non-metallic sheath cable with ground wire. Each heater should
be on an individual, properly fused circuit.
3. Route supply wires from junction box to G73. These supply wires must be
two conductor metallic sheath (BX) cable with ground wire. Alternatively,
appropriate conduit can be used.
4. Remove junction box cover of G73 and remove one knockout hole. Insert
approved bushing into hole and feed wire cable through. Tighten bushing
around cable.
5. Make electrical connection to G73 according to relevant wire diagram.
Make connections using approved wire nut connectors and secure the
grounding wire to the ground screw on the heater chassis.
6. Replace junction box cover of G73.

EN
www.newair.com 12
OPERATING INSTRUCTIONS
SETTING THE THERMOSTAT

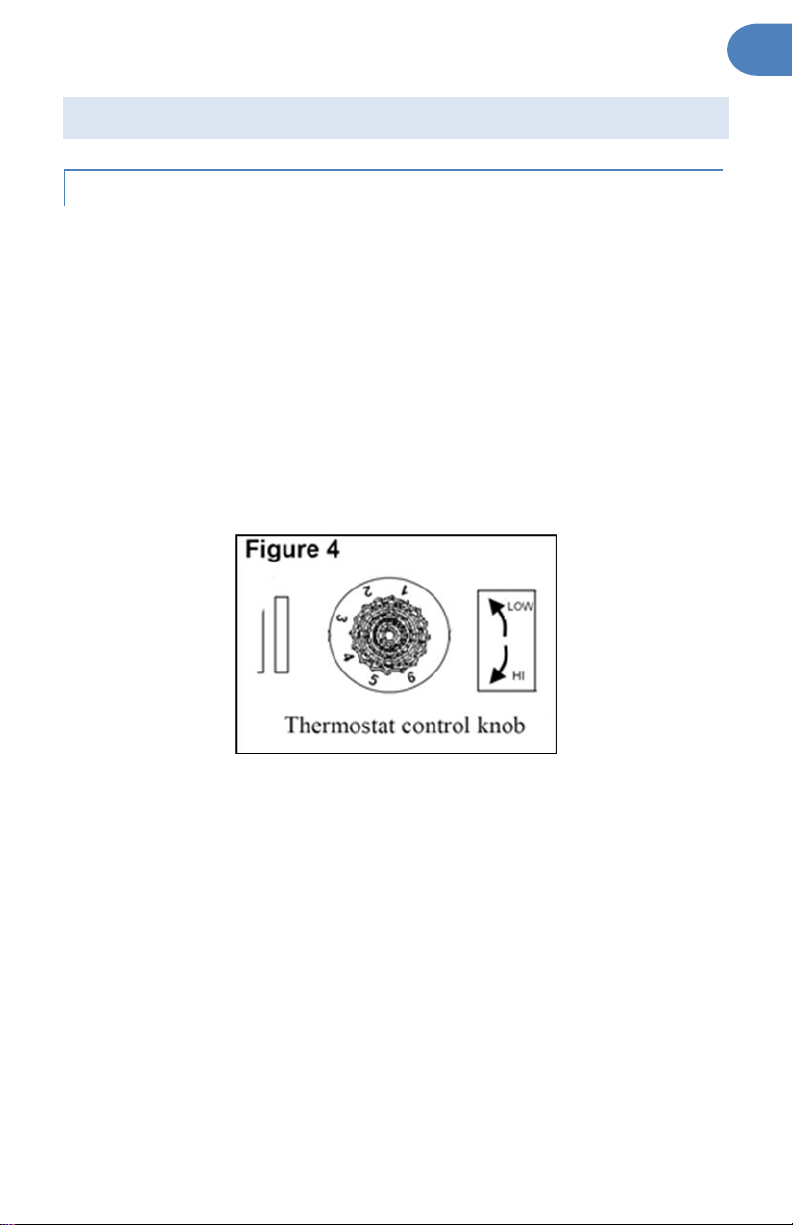

1. Before connecting or disconnecting plug, turn knob fully counterclockwise
(Figure 4).
2. Heater is equipped with a thermostat. To adjust temperature to your
individual requirements, turn thermostat control knob clockwise all the
way to turn heater on.
3. When room reaches desired temperature, turn thermostat knob
counterclockwise until you hear a “click”. Leave in this position to maintain
room temperature at this setting.
4. For additional heat, turn clockwise until you hear “click” again and heater
will turn on.
5. To turn heater to the lowest setting, turn the thermostat knob
counterclockwise all the way.

EN
www.newair.com 13
CLEANING & STORAGE
REGULAR CLEANING
Before any cleaning:
•Make sure the heater is turned off.
•Disconnect power supply at source.
CAUTION: Allow at least 30 minutes for the heater to cool before attempting
any maintenance or cleaning.
1. Do not spray cleaning liquid or other chemicals onto the unit.
2. Interior dust can often be removed by using a vacuum cleaner with a
crevice tool attachment.
3. To clean housing, use a clean, soft and lightly damp cloth to gently wipe all
the dirt from the surface of the unit. Be sure not to wet the heating
element and the switches. Allow the unit to dry completely before using it.
STORAGE
1. Perform the cleaning procedures described above.
2. Wipe all parts dry.
3. Pack the heater in a plastic bag and store it in a cool, dry place.

EN
www.newair.com 14
TROUBLESHOOTING
Problem
Possible Causes
Solution
Unit is not heating.
Overheat protection has
temporarily deactivated
the heater.
Turn the heater off; disconnect
the power and allow it to cool.
Inspect and remove any objects
on or adjacent to the heater.
Wait 30 minutes before
restoring power.
Room temperature has
been warmed up to
thermostat setting.
To increase the room
temperature, adjust thermostat
control knob to a higher setting
by turning clockwise.
Heater is not wired
correctly.
Follow the included hardwiring
directions. Contacting a
licensed electrician is
recommended.
Breaker/Fuse has been
tripped.
Check your electrical box to
confirm the breaker has not
been blow. This may occur if
the receptacle is shared
between other high
consumption appliances.
The heater is
producing a burning
smell.
A drop of oil fell on the
heating coil during the
manufacturing process. It
will quickly evaporate and
should not occur again.
Ensure room in which heater is
situated is well ventilated.
Check and ensure there
are no combustible
materials within 0.9
meters (3 ft.) surrounding
the heater.
Remove any combustible items
from the heater.
Ensure a minimum
clearance of 5.5 inches (14
cm) from both sides and
rear of heater to adjacent
walls.
Reposition the heater so there
is enough space around the
heater to the adjacent walls.
Please do not attempt to open or repair the heater yourself.
Doing so could cause damage or personal injury.

EN
www.newair.com 15
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household
wiring or inadequate fuses
•Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences
•Partially or completely dismantled appliances
•Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a Newair™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail].

FR
www.newair.com 16
Un nom de confiance
La confiance doit être gagnée et nous allons mériter la vôtre. La satisfaction du
client est notre priorité.
De l’usine à l’entrepôt et de la surface de vente à votre domicile, les fabricants
des produits Newair font la promesse de vous fournir des produits novateurs,
un service exceptionnel et un soutien au moment où vous en avez le plus
besoin.
Vous pouvez compter sur Newair
En votre qualité de fier propriétaire d’un produit Newair, nous vous souhaitons
la bienvenue dans notre famille. Notre entreprise n’utilise aucun robot,
uniquement de véritables personnes pour vous livrer votre produit et de
véritables personnes pour vous aider.
Contactez-nous
Veuillez contacter notre équipe du service client avant de faire un retour dans
votre magasin d'achat. Nous sommes heureux de répondre à toutes vos
questions ou préoccupations!
Contactez-nous du lundi au vendredi de 8h à 4h HNP au:
Téléphone :
1 855 963-9247
Courriel :
[e-mail]
En ligne :
www.newair.com
Un membre de l'équipe vous répondra dans les 24 heures.
Suivez-nous :
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa

FR
www.newair.com 17
LISEZ ET CONSERVEZ CES INSTRUCTIONS.
TABLE DES MATIÈRES
Caractéristiques.............................................................................................18
Enregistrer Votre Produit en Ligne..................................................................19
Consignes de Sécurité et Mises en Garde .......................................................20
Assemblage du Radiateur...............................................................................22
Installation du Radiateur................................................................................23
Emplacement du Radiateur dt Dégagements ..........................................23
Installation du Support de Fixation Au Mur/Au Plafond...........................23
Connexion Électrique..............................................................................24
Fonctionnement ............................................................................................25
Réglage du Thermostat...........................................................................25
Nettoyage et Entreposage..............................................................................26
Nettoyage Régulier.................................................................................26
Entreposage...........................................................................................26
Dépannage ....................................................................................................27
Garantie Limitée du Fabricant ........................................................................28

FR
www.newair.com 18
CARACTÉRISTIQUES
NODU MODÈLE :
G73
TENSION :
240 V
CONSOMMATION ÉLECTRIQUE :
5000W

FR
www.newair.com 19
ENREGISTRER VOTRE PRODUIT EN LIGNE
Enregistrer votre produit Newair en ligne dès aujourd’hui!
Profitez de tous les avantages de l’enregistrement de votre produit :
Services et soutien
Faites un diagnostic des problèmes d’utilisation et de service plus
rapidement et plus efficacement
Avis de rappel
Restez à l’affût des mises à jour du système et de sécurité, et des avis
de rappel
Promotions spéciales
Abonnez-vous pour recevoir les promotions et offres de Newair
Enregistrer l’information relative à votre produit en ligne est sécuritaire et
prendra moins de 2 minutes :
Alternativement, nous vous recommandons de joindre une copie de votre reçu
de vente ci-dessous et de noter les informations suivantes, situées sur la plaque
signalétique du fabricant à l'arrière de l'appareil. Vous aurez besoin de ces
informations pour contacter le fabricant pour des demandes de service.
Date d’Achat: ____________________________________________
Numéro De Série: ____________________________________________
Numéro De Modèle: ____________________________________________
newair.com/register

FR
www.newair.com 20
CONSIGNES DE SÉCURITÉ ET MISES EN GARDE
Lorsque vous utilisez un appareil électrique, les précautionsde base,
incluant les suivantes, devraient toujours être respectées afin
d’éviter un risque d’incendie, de décharge électrique, et de
blessures corporelles. Veuillez lire toutes les instructions avant
d’utiliser cet appareil et respecter les conseils de sécurité suivants :
•Ce radiateur est chaud lorsqu’il fonctionne. Afin d’éviter les brûlures, ne pas
laisser pas la peau découverte entrer en contact avec ses surfaces. Si le
radiateur est muni de poignées, utilisez-les pour le déplacer. Garder les
matériaux combustibles tels que meubles, coussins, literie, papiers,
vêtements et rideaux à au moins 3 pieds (0,9 mètre) du devant du radiateur.
•Faire extrêmement attention lorsque le radiateur est utilisé en présence
d’enfants ou de personnes invalides ou lorsqu’il est utilisé sans supervision.
•Ne pas installer l’appareil à moins de 6 pieds (1,9 m) du sol.
•Ne pas utiliser l’appareil si ses fils ou raccordements sont endommagés, s’il
ne fonctionne pas bien, ou s’il a été échappé ou endommagé d’une
quelconque façon. Retourner le radiateur à un service autorisé afin qu’il soit
examiné ou qu’un ajustement mécanique ou électrique, ou des réparations
soient effectués.
•Ne pas utiliser à l’extérieur.
•Cet appareil ne doit pas être utilisé dans les salles de bains, salles de lavage
ou autres endroits humides semblables dans la maison.
•Ne jamais placer cet appareil à un endroit où il pourrait tomber dans une
baignoire ou un autre récipient contenant de l’eau.
•Brancher l’appareil dans des prises correctement mises à la terre seulement.
Vérifier la tension du radiateur et l’ampérage au dos du radiateur pour
s’assurer qu’ils correspondent à l’alimentation fournie.
•Ne pas insérer ni laisser entrer des corps étrangers dans les ouvertures
d'aération, car cela pourrait causer une décharge électrique, un incendie ou
une détérioration de l'appareil.
•Pour éviter les risques d’incendie, ne pas boucher les entrées d'air ou les
sorties de quelque manière que ce soit. Ne pas utiliser l'appareil sur des
surfaces souples, comme un lit, où les entrées et sorties d'air pourraient être
bloquées.
•L'appareil comporte des pièces chaudes et pouvant produire des arcs
électriques (étincelles). Ne pas l'utiliser dans des zones d'utilisation ou de
remisage d'essence, de peinture ou d'autres liquides inflammables.
