New Air NIF18CBK00 User manual

Manual v1.0
18" 2-in-1 High Velocity
Wall Mounted or Floor Fan
SKU: NIF18CBK00
OWNER’S MANUAL
Read and save these instructions.

2
newair.com
TABLE OF CONTENTS
READ AND SAVE THESE INSTRUCTIONS.
Register Your Product Online……………………………………………………………………………3
Safety Information & Warnings ........................................................................... 4
Assembly Instructions.......................................................................................... 7
Operation Instructions......................................................................................... 9
Cleaning & Maintenance.................................................................................... 10
Troubleshooting................................................................................................. 12
Limited Manufacturer’s Warranty ..................................................................... 13
MODEL NO.
NIF18CBK00
VOLTAGE
:
120V/60Hz
AMPS(LOW/MED/HIGH):
0.714A/0.779A/0.899A
WATTS(LOW/MED/HIGH):
85W/95W/110W
CERTIFICATION:
CETL
OUTDOOR RATING:
IPX4
PRODUCT SPECIFICATIONS

3
newair.com
Register Your Product Online
Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less than 2
minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on the
rear of the unit. You will need this information if it becomes necessary to contact the
manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

4
newair.com
Intended Use:
This product is intended for residential and office use etc. Forindustrialorother
commercial applications useonlywith electrical wiring that is in good working
order and that meets applicable codes and ordinances. If you have any questions
whether your wiring is adequate, consult a qualified electrician or contact
customer service at [e-mail].
While using your fan, you should follow the IMPORTANT INSTRUCTIONS listed
below. As part of those instructions, we have used the word "WARNING" to
indicate the level of hazard: WARNING indicates a hazard which, if not avoided,
could result in injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety precautions should always be
followed to reduce the risk of electric shock, fire, or injury to persons, including
the following precautions:
• Read all the instructions before using this fan.
• Use this fan only as described in this manual. Any other use not recommended by
the manufacturer may cause electrical shock, fire or injury to persons.
• Do not operate the fan with a damaged power cord or after the fan malfunctions
or has been dropped in any manner.
• Use of extreme caution is necessary when any fan is used by or near children,
disabled persons or pets and whenever the fan is left operating unattended.
• Do not place the fan on a small, unlevel, uneven or any surface which might
allow it to tip or fall.
• For proper operation, the fan should be placed on a smooth, non‑combustible,
level surface.
• Always unplug fan when not in use, when moving from place to place, when
assembling or disassembling parts, and before cleaning.
• The use of attachments is not recommended, and they are not sold by the
manufacturer, as they may cause hazards.
• Do not use the fan in a window. Rain or other environmental effects could cause
an electrical hazard.
• Do not operate the fan with blade guards or any safety device removed.
SAFETY INFORMATION & WARNINGS

5
newair.com
• Avoid the use of extension cords due to risk of fire. If an extension cord must be
used, the cord must be minimum 14 AWG and rated not less then 1875 watts.
• Do not run the power cord under carpeting. Do not cover the cord with throw
rugs, runners or the like. Arrange cord away from traffic area where it will not be
tripped over.
• Do not insert or allow any object to enter any openings on the fan. Doing so may
cause electric shock and/or fire hazard. Avoid contact with moving parts.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
The source of electrical supply is to be disconnected prior to the beginning of any
such servicing or cleaning operation.

6
newair.com
WARNINGS
WARNING: Shock Hazard
•Use your fan only in dry environments. This fan is not
intended for use in a bathroom, laundry area, or similar
locations, or near sinks, washing machines, swimming pools,
or other sources of water.
• Never locate fan where it may fall into a bathtub or other water receptacle.
Do not use in damp environments such as flooded basements.
WARNING: Hot Surfaces
• Do not touch fan motor when in use. This motor is hot when in use; to avoid
burns, do not let bare skin touch hot surfaces.
WARNING: Fire Hazard
• Fans have arcing or sparking parts inside. Do not use near combustible
materials, flammable gases or sources of heat. Do not use in areas where
gasoline, paint or flammable materials are used or stored. To prevent a
possible fire, do not block air intakes or exhaust in any manner. Do not insert
or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or may damage the fan.
WARNING: Electrical Shock Hazard
• Do not use with damaged cord or plug. Use with adequate electrical system
that is up to code.
CAUTION: To Prevent Electric Shock, this product has a three prong grounded
plug that must be inserted into a matching properly grounded outlet to
reduce the risk of electrical shock. Do not attempt to remove or tamper with
this safety feature.
WARNING: To reduce the Risk of Fire or Electric Shock, do not use this
product with any solid‑state speed control device.

7
newair.com
ASSEMBLY
Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire ‑rated
construction. When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
WARNING: The included mounting parts are intended to be used with drywall
anchors only. Do not attempt to mount this unit on the wall or ceiling without
proper drywall anchors.
Use the following information as a guideline only. It is the user's responsibility to
be sure the location and the wall surface can handle the weight of this fan (12.3
lbs).
The wall fan must be mounted on 12 inch (300mm) thick dry and cement ‑ grouted
firm wall or on 4 by 5 inch wood studs / joists. Use wall bracket as a template for
locating the holes to be drilled.
After determining the hole locations, use an appropriate sized drill bit and, drill
holes through mounting surface. It is recommended that a minimum of grade 5
fasteners be used. The following are acceptable surfaces for mounting wall
mount assembly.
STEEL SURFACE
‑ When mounting to a steel surface, such as vertical I‑beam, drill
through holes at pre‑marked locations, using a 9/32" drill bit. Attach wall mount
assembly to mounting surface using 1/4"‑20 hex screw, in combination with
1/4" flat washers, 1/4" lock washers, and 1/4"‑20 hex nuts.
MASONRY SURFACE ‑ When mounting to a masonry surface use a 1/4"
expansion type bolt or 1/4" masonry lag with shield designed to handle the
weight of this fan. Drill holes at pre‑marked locations using appropriate sized
drill bit as recommended for the fastener.
ASSEMBLY INSTRUCTIONS

8
newair.com
FLOOR STAND ASSEMBLY:

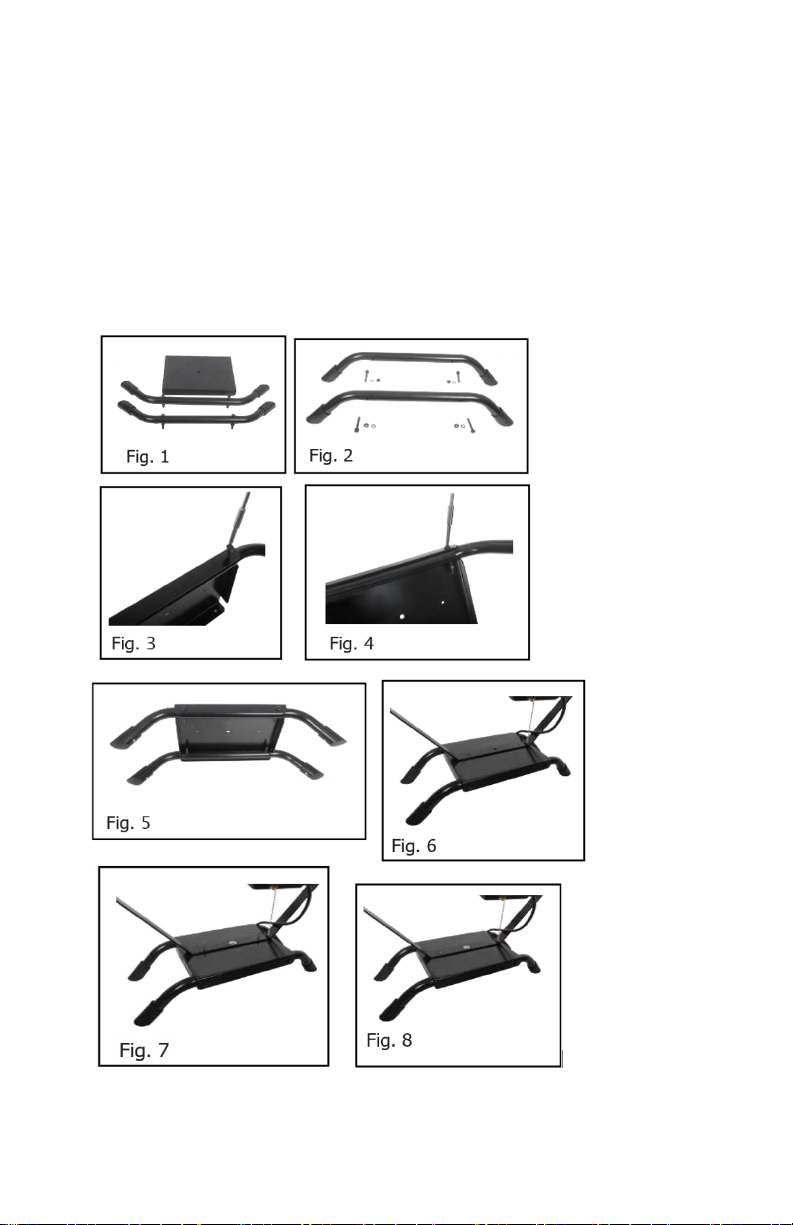

1. Remove the 4 screws from the base tube (fig. 1 & 2)
2. Align the screw hole on the side of the metal plate and the hole on the base
tube, then insert the screw and nut to tighten. Do the same thing on the
other side of the metal plate. (fig. 3, 4 & 5)
3. Align the screw holes in the middle of the metal plate with the holes in the
fan bracket, then insert the screws and nuts to tighten (fig. 6, 7 & 8)

9
newair.com
USING YOUR PRODUCT
Fan operation: Always operate the fan in an upright position following all
instructions and recommendations listed in this manual.
Fan location: Place the fan in the area of the room that will provide proper fan
cooling. (note: IPX4 outdoor rating is only meant to indicate resistance to
occasional water splashes. It does not indicate that the fan is completely
water-, dust- or dirt-proof)
Fan connection: Plug fan directly into 120 volt A.C., 60 Hz wall outlet. Be sure
plug fits tightly in outlet. A loose connection may cause overheating and damage
to the plug or fan.
Note: To prevent overloading a circuit, do not plug the fan into a circuit that is
servicing other electrical needs.
Speed control: To operate the fan, each pull of the string will cycle through the
following settings:
• OFF
• LOW
• MED
• HIGH
• OFF
OPERATION INSTRUCTIONS

10
newair.com
CLEANING & MAINTENANCE
Cleaning: CAUTION-Before cleaning the fan be sure to disconnect power cord
from the plug. Clean the grille surface with a clean damp cloth. Do not use harsh
chemical or abrasive cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN
WATER. Replace the front grille before fan use. Allow fan to dry completely
before use. Periodic grille cleaning with a vacuum will prevent dust buildup. The
motor is sealed and does not require any interior maintenance, cleaning or
lubrication.
Maintenance: The Internal motor bearings are permanently lubricated at the
factory and do not require any additional lubrication.
Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN PLACE. DO NOT USE
THE FAN IF IT HAS MALFUNCTIONED OR BECOME DAMAGED IN ANY WAY. If there
are any issues with your unit, contact customer service through email at
[email protected]om
Storage: Keep original carton for storage of the fan. Coil and tie the power cord
to avoid damage during storage.

11
newair.com
This product employs overload protection (fuse). A blown fuse indicates an
overload or short-circuit situation. If the fuse blows, unplug the product from the
outlet. Replace the fuse as per the user servicing instructions (follow product
marking for proper fuse rating) and check the product. If the replacement fuse
blows, a short-circuit may be present and the product should be discarded or
returned to an authorized service facility for examination and/or repair.
Fuse Replacement:
1. Grasp plug and remove from the receptacle or other outlet device. Do not
unplug by pulling on cord.
2. Open fuse cover by sliding open fuse access cover on top of attachment plug
towards blades. See Fig. 2.
3. Remove fuse carefully. Use a small tool to pry the end of the fuse from
holder cavity. Be careful not to break glass window.
4. Replace fuse. WARNING: Risk of fire. Replace fuse only with identical 2.5 or
5.0 Amp, 125 Volt fuse (3.6mm x 10mm). Be sure fuse is properly seated
within its cavity.
5. Close fuse cover by sliding it back to its original closed position.

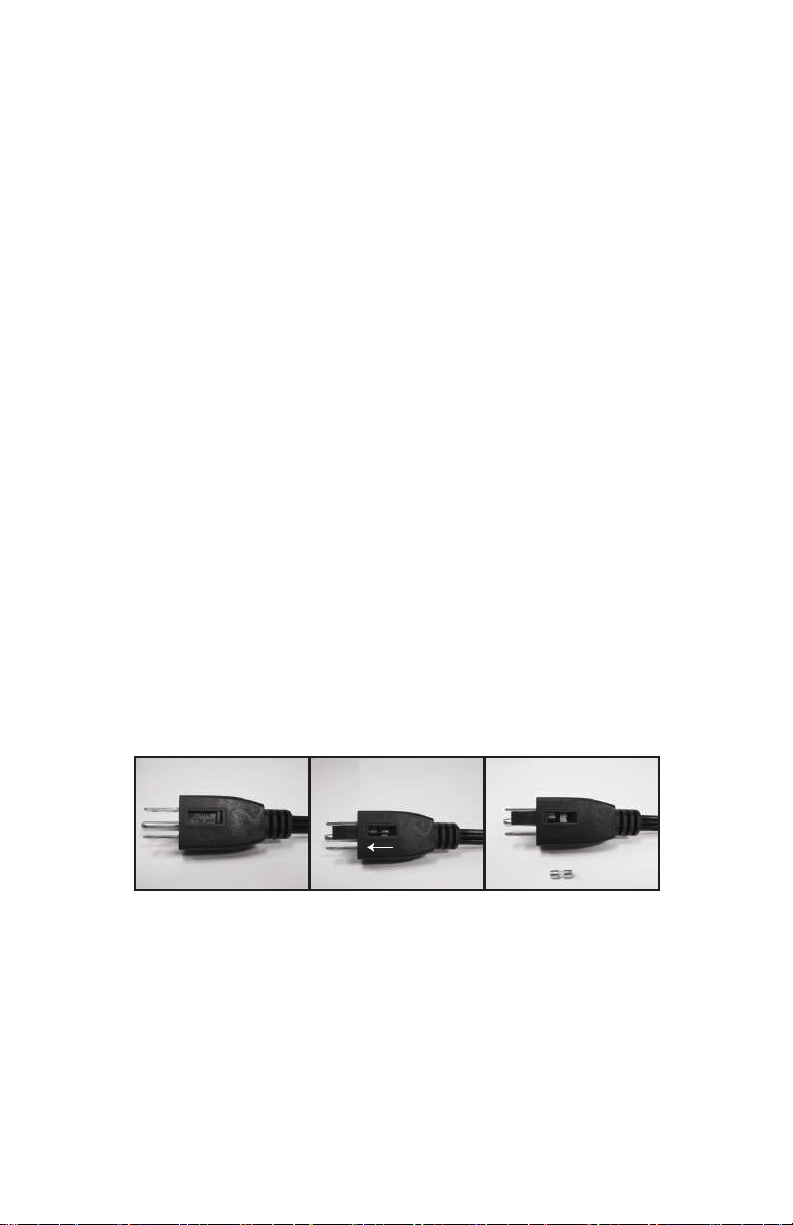

Fig 1 Fig 2 Fig 3
Slide Cover to Open

12
newair.com
Problem
Possible Causes
Solution
The fan will not
The fan is not plugged in
Make sure the fan is
Operate.
and/or the electrical
plugged in and/or the
outlet isn’t working
electrical outlet is
properly.
working properly.
The circuit breaker may
Reset the circuit breaker
be tripped or there is a
or check for a broken
blown fuse.
fuse.
The fan is not rotating.
Obstructions are
Check for obstructions. If
keeping the fan from
you find an obstruction,
working.
turn the fan off. Unplug
the fan and carefully
remove the obstruction.
Plug the fan in and turn it
on again by referring to
the operating
instructions.
TROUBLESHOOTING

13
newair.com
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs, if
needed.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household
wiring or inadequate fuses
•Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences
•Partially or completely dismantled appliances
•Excess wear and tear by the user
Replacement parts and/or units will be new, re-manufactured or refurbished
and is subject to the manufacturer’s discretion. For technical support and
warranty service, please email [e-mail]
LIMITED MANUFACTURER’S WARRANTY
