Klimawent PODRYW-N User manual

1
11.06.2019 portable axial fan PODRYW-N
Use and Maintenance Manual

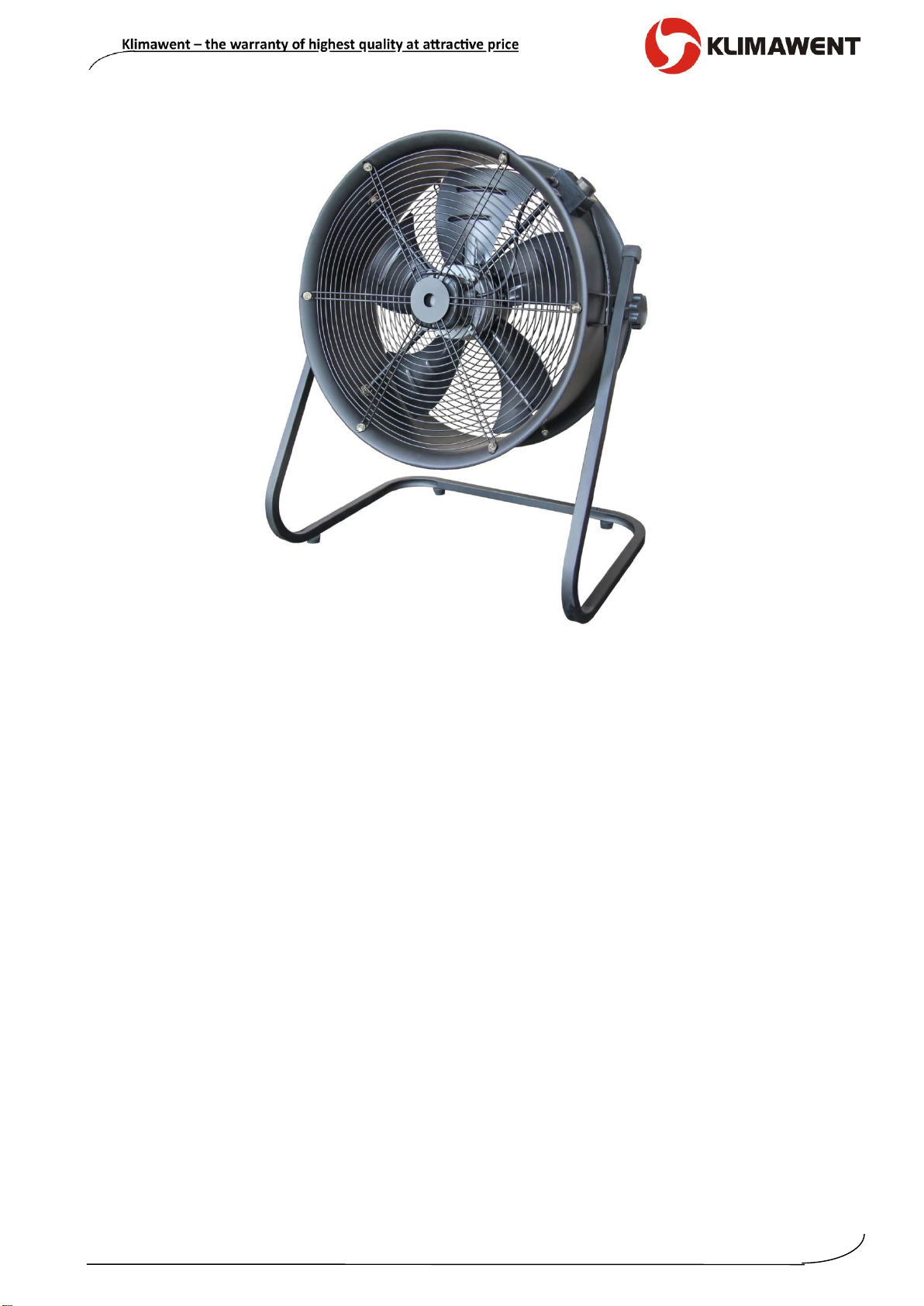

Portable axial fan
PODRYW-N
807W44-PODRYW-500-N-11.06.2019/EN
Contents:
1. Introductory Remarks .........................................................................2
2. Application..........................................................................................2
3. Reservations of Producer.....................................................................3
4. Technical Data ....................................................................................3
5. Structure and Function .......................................................................4
6. Assembly and Start-up.........................................................................4
7. Operational Use ...................................................................................4
8. Troubleshooting Guide ........................................................................5
9. Maintenance .......................................................................................5
10. Occupational Health and Safety...........................................................5
11. Transport and Storage .........................................................................5
12. Terms of warranty ...............................................................................6
13. Sample of the Declaration of Conformity .............................................7

2
portable axial fan PODRYW 11.06.2019
1. Introductory Remarks
The purpose of the present Use and Maintenance Manual is to supply User with directions wi-
thin the range of application, installation, start-up and the operational use of the PODRYW-N por-
table axial fan.
Installing, start up and operational use are exclusively admissible after getting acquaint-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for oursel-
ves the revision possibility of the draft and technological changes improving
their functional features and safety.
The construction of the PODRYW-N portable axial fan meets the requirements of the current
state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of February 26th, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th,
2009 establishing a framework for the setting of ecodesign requirements for energy-related
products /Journal of Laws L285 of 31.10.2009/

327/2011 (EU) Commission Regulation of March 30th, 2011 on implementing the 2009/125
/EC Directive of the European Parliament and of the Council with regard to ecodesign requi-
rements for fans driven by motors with an electric input power between
125W and 500 kW /Journal of Laws L90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

EN ISO-12100:2012
–
“Safety of machinery. Basic concepts, general principles
for design. Risk assessment and risk reduction”.

EN 60204-1:2018-12
–
“Safety of machinery. – Electrical equipment of machines.
Part 1: General requirements”.

EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data and
parameters”.

EN ISO 5801:2008/A1:2015-07
–
“Industrial Fans –Performance testing in situ of installing”.

EN ISO 13857:2010
“Safety of machinery. Safe distances to prevent hazard zo-
nes being reached by upper and lower limbs”.

EN 60335-2-80:2007/A2:2009
“Household and similar appliances. Safety of operational
use. Part 2-80”. Particular requirements for fans”.
2. Application
PODRYW-N portable fans are for subsequent applications:
–
aeration of rooms and workplaces
–
air supply onto the people being in the environment of increased temperature, in order to
improve their thermal comfort
–
air supply onto hot objects / elements –to cool them down
–
air supply towards the objects being filmed or photographed, to obtain the imitation of air
movement, wind –for advertising
–
drying the humid rooms
The fans can be applied in various rooms –manufacturing halls, TV studios and advertisement
ateliers, household rooms, storehouses, rooms in a farm, etc.
The air must be dry, of temperature up to 40°C and of dustiness not exceeding 0,3 g/m3,
without viscous contaminants, aggressive substances or media creating explosion hazard.

3
11.06.2019 portable axial fan PODRYW-N
3. Reservations of Producer
A.
Manufacturer is not liable for any consequences following from the operational use that is
in contradiction to the purpose of application.
B.
Do not install any additional elements not belonging to the normal device structure or acces-
sory set.
C.
Any structural changes or modifications on the appliance on one’s own are not permitted.
D.
Protect the device housing from mechanical damage.
E.
The fan is not appropriate for conveying the air polluted with a mixture of flammable
substances in a form of gas, vapour, mist or dust, that could create the explosive at-
mosphere.
F.
The device cannot be applied for conveying the air containing viscous impurities, that can
build up on the device structure, especially on the impeller.
G.
During the use, maximum impeller rotations should not be higher than nominal rotations.
H.
Manufacturer is not responsible for wounds / body laceration caused in the course of care-
less operational use.
4. Technical Data
Table No.1
Type
Volume
flow
[m3/h]
Supply
voltage
[V]
Nominal
rotations
[1/min]
Motor
rate
[W]
Admissible
temperature in
the work zone
[oC]
Acoustic
pressure level
[dB(A)]
measured from
distance
Weight
[kg]
1 m
5 m
PODRYW-500-N
8850
230
1390
370
40
68
55
17
All the data are specified for the maximum range of the potentiometer setting.
Fig. No.1 –PODRYW-N –dimensions
Table No.2
Type
A[mm]
B[mm]
C[mm]
D[mm]
E[mm]
PODRYW-500-N
620
Ø 565
Ø 500
230
467

4
portable axial fan PODRYW 11.06.2019
5. Structure and Function
PODRYW-N consists of an axial fan and a supporting frame. On the fan housing are installed
fastenings holding the along its horizontal axle, therefore the fan can be rotated and positioned
at most suitable angle, according to the needs of operator. The clamping knobs can lock the
fan position stably (see Fig. No.2).
Rotation speed are adjusted by a potentiometer located on the fan housing, providing the ad-
justment of the volume flow efficiency (see Table No.1 “Technical Data”).
Due to the low noise and insignificant current consumption, it can work continuously, not causing
unpleasant conditions for personnel/people in the vicinity.
The fan is equipped with a power supply cable of length 1,5 metre. The front- and back side of
the fan is secured with a protective wire net, to avoid entering objects / users hand into the im-
peller.

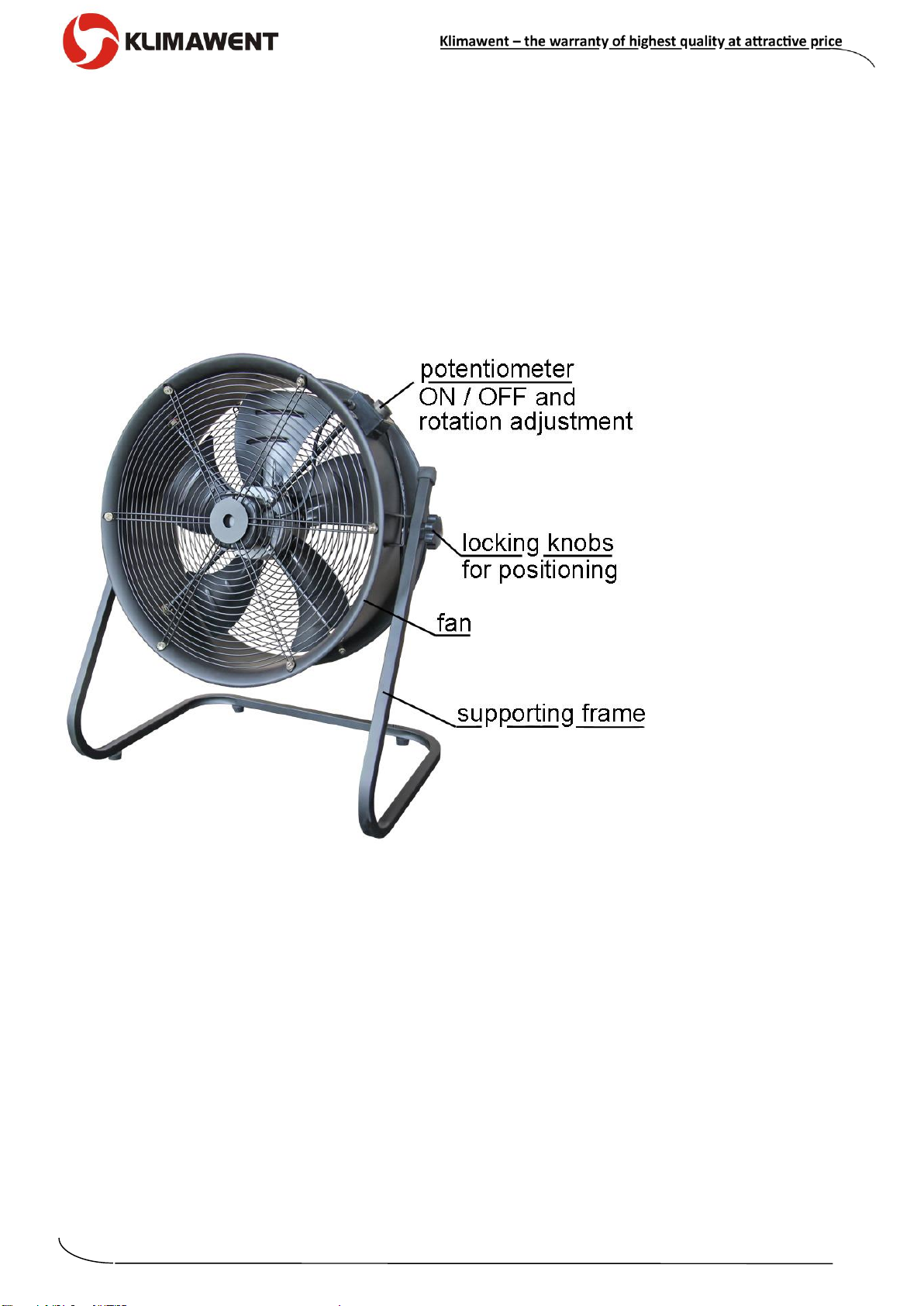

Fig. No.2 –PODRYW-N –description
6. Assembly and Start-up
PODRYW-N is delivered in two assemblies –the fan and supporting frame. First, screw up
the fan to the frame, by means of the locking knobs, along with the toothed washers, that are
delivered along with the device and the frame. The fan should be installed correctly, according
to the markings. After the installing, set the fan under suitable angle and insert the plug into
the power supply socket. Energising proceeds simply by turning the potentiometer and the
rotations are set by the potentiometer too. To stop the fan turn the potentiometer into position
zero.
7. Operational Use
The fan construction and its reliable execution provides efficient function without constant
routine technical supervision. In case when malfunctions, untypical noises or vibrations
occur –immediately disconnect the fan from the power supply.

5
11.06.2019 portable axial fan PODRYW-N
8. Troubleshooting Guide
Table No.3
Problem
Possible reason
Corrective action
1.
Suddenly vibrations occur
an obstacle / debris impeding
disconnect the fan from the
the work got stuck in the
power supply and remove
impeller
the barrier object
2.
noisy work
the impeller is incorrectly
balance the impeller or
balanced or the motor bearing
replace the motor bearings
is damaged
9. Maintenance
The construction and a solid execution of the fans guarantee its operational use, without con-
stant routine maintenance. Nevertheless, in the course of operational use, execute routine
maintenance steps. Once a year, carry out technical supervision of the fan and its motor,
according to the indications of the manufacturer of the motor.
Every several years, examine the mechanical and electrical connections. The electrical sys-
tem ought to be checked according to the PN-HD 60364-6 “Electrical systems of low voltage
–Part 6: inspection”. In case when malfunction of the fan is noticed, undertake additional
inspection.
All technical revisions and maintenance have to be executed by an au-
thorized qualified person and after the disconnection from the power supply system.
10. Occupational Health and Safety
Start up and the operational use of the fan are admissible exclusively after getting ac-
quaintted with the contents of the present Use and Maintenance Manual. The fan will
not cause any hazard under the condition the rules included in the instruction are observed.
Any activities relating to the electrical system must be performed after
the fan is disconnected from the power system.
CAUTION: All fans, as rotary equipment could constitute potential source of hazard
in case when:
–they are not installed, started up and submit to servicing by authorised personnel,
–are not used according to their purpose of application.
Do not use the fan in rooms / areas with viscous contamination, aggressive (chemically
active) substances or media that cause explosion hazard.
Technical revision of the fan can be performed exclusively by a qualified person.
11. Transport and Storage
The appliance should be wrapped in foil and placed into the cardboard package. During
the loading / reloading and transport pay attention that the fan is not thrown, overturned,
and not charged with a load on its top. Do not put one package on another (no stacking).
During the transport, protect it from atmospheric factors / weather conditions.
The fan should be stored in dry rooms with sufficient aeration or ventilation.

6
portable axial fan PODRYW 11.06.2019
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”.
The warranty does not comprise:
●
mechanical damage and dysfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of operatio-
nal use and the present Use and Maintenance Manual,
●
damages being entailed during the improper transport, storage or incorrect maintenance.
Infringement of the Section 3 “Reservations of Producer” of the Use and Maintenance Ma-
nual and especially modifications undertaken by User on one’s own shall cause the loss
of warranty validity.

7
11.06.2019 portable axial fan PODRYW-N
13. Sample of the Declaration of Conformity
Declaration of conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, Chwaszczyńska 194
A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A.
hereby declares that the appliance:
name: portable axial fan
type/model: PODRYW-N
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May, 2006 on machinery
–amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014 on the harmonisation
of the laws of the Member States relating to the making available on the market of electrical equipment designed
for use within certain voltage limits. /Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th, 2009 establishing a
framework for the setting of ecodesign requirements for energy-related products
/ Journal of Laws L 285 of 31.10.2009 /

327/2011 (EU) Guideline of March 30th, 2011 on implementing the 2009/125/EC Directive of the European Parlia-
ment and of the Council with regard to ecodesign requirements for fans driven by motors with an electric input po-
-wer between 125W and 500 kW /Journal of Laws L No. 90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

EN ISO-12100:2012
–
“Safety of machinery. Basic concepts, general principles
for design. Risk assessment and risk reduction”.

EN 60204-1:2018-12
–
“Safety of machinery. – Electrical equipment of machines.
Part 1: General requirements”.

EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data and
parameters”.

EN ISO 5801:2008/A1:2015-07
–
“Industrial Fans –Performance testing in situ of installing”.

EN ISO 13857:2010
“Safety of machinery. Safe distances to prevent hazard zo-
nes being reached by upper and lower limbs”.

EN 60335-2-80:2007/A2:2009
“Household and similar appliances. Safety of operational
use. Part 2-80”. Particular requirements for fans”.
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl

8
portable axial fan PODRYW 11.06.2019
NOTES:
