New Leaf GH2010 User manual

GH2010
5m x 2m New Leaf Polytunnel
Instructions

Assembly Instructions
Please call our customer service line from 9-5pm,
Monday-Friday if you require anymore information.
0118 903 5210
Parts List Instructions
Before You Start
Please check that all components are present, and
read through these instructions carefully.
Part No:
1 x5
2 x5
3 x10
4 x5
5 x15
6 x2
7 x2
8 x2
9 x2
Nuts & Bolts x25
Tools Needed
10mm Spanner
Phillips Screwdriver
Important: Always ensure bolt heads are facing
outwards and nuts facing inwards to avoid polytunnel
cover snagging on frame.
1. Layout and Check all parts are present and correct
before beginning assembly
2. Connect both sets of parts 6 and 7 together
3. Lay the parts out on the ground as shown below:
5
333 3
9
88
9
333 3
54 5
5545
6
7
6
7
5545
5
3
3
54 5
Thank you for purchasing a New Leaf Polytunnel. If you have any problems please call our Customer Support
Service on 0118 903 5210 or email us at [email protected]
1 2 3 4 5 6 7 8

Assembly Instructions
Please call our customer service line from 9-5pm,
Monday-Friday if you require anymore information.
0118 903 5210
5. Repeat on opposite side connecting parts 9, 5 and
3 together.
3
3
3
5
5
5
6
7
8
9
9
4. Starting at the corner you wish to use as the front of
the tunnel, connect parts 8, 5 and 3 together.
6. Next work your way along the base connecting parts
3 and 5/4 together. The second joint in from the front of
your greenhouse should also have part 7 connected.
4
5
7

Assembly Instructions
Please call our customer service line from 9-5pm,
Monday-Friday if you require anymore information.
0118 903 5210
7. Connect all part 1’s and 2’s by slotting together
and pushing bolt through (head of bolt should be at
the top). Do not put nut in place just yet.
8. Starting from the same corner as earlier, now
working midway up the frame, connect parts 1 and 3
together and bolt to 7 and 5.
9. Repeat at opposite side connecting parts 2 and 3
together and bolting to 7 and 5.
10. Work your way down the polytunnel attaching parts
3 to parts 1/2 and bolting together with parts 4/5.
1
2
2
5
36

Assembly Instructions
Please call our customer service line from 9-5pm,
Monday-Friday if you require anymore information.
0118 903 5210

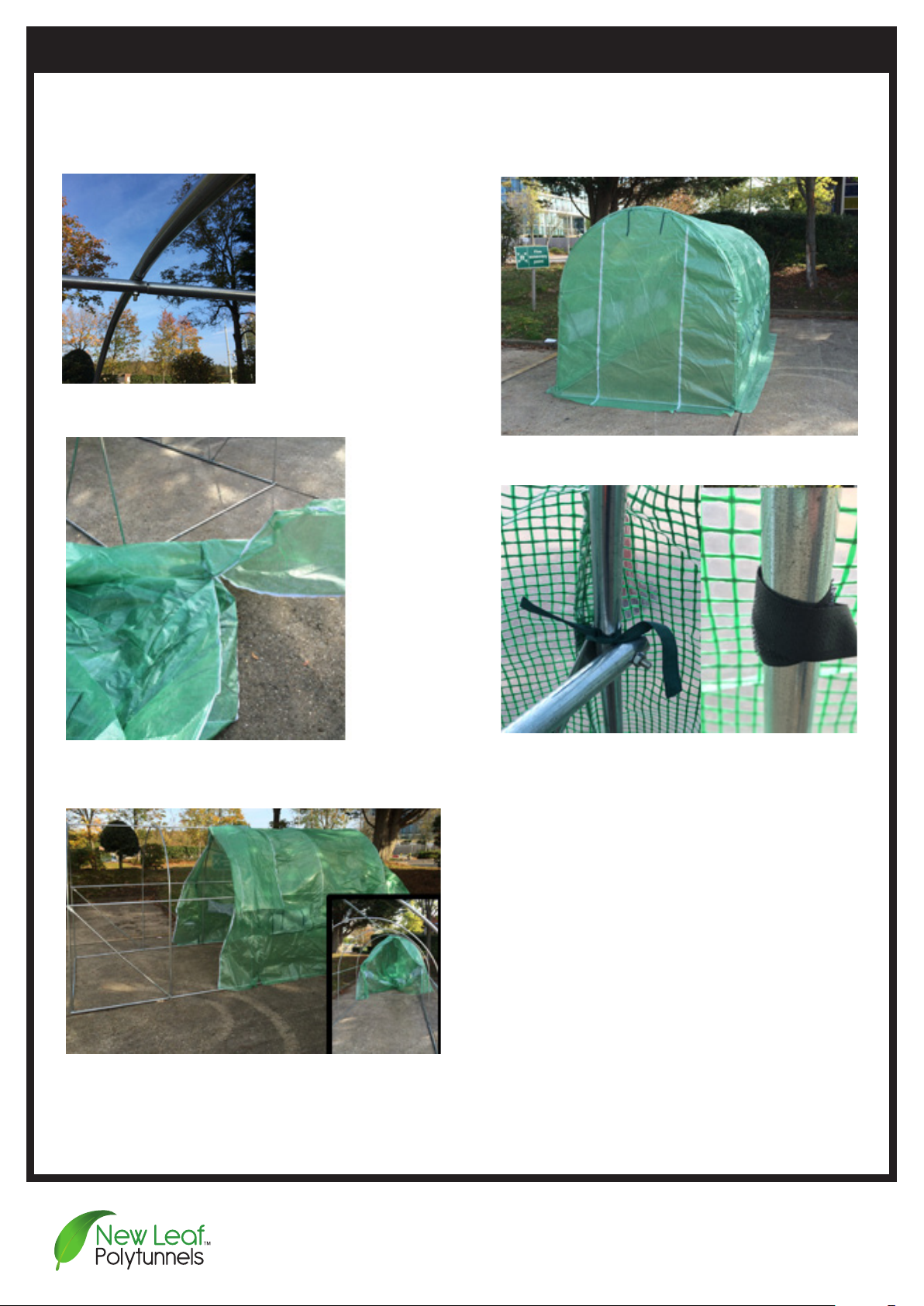

12. Unfold the cover and undo the door zip.
13. Working from back to front, pull the cover over
the frame being careful not to snag it as you go.
11. Your polytunnel should now be taking shape.
Now working from the very top level. Attach the
remaining parts 4 and 5 together and bolt them
to the joints between parts 1 and 2.
14. IMPORTANT!!! Make sure the corners of the
polytunnel cover line up with the frame before
trying to zip up as if this isn’t done it can strain
and break the zip.
15. Attach all Velcro and Ties to frame
An additional instructional video is available,
visit www.primrose.co.uk and search GH2010.
