Newco NHW-15 User manual

OP Manual P/N 104138
Rev 20200528
NHW - 1 5 HOT WATER MAC H I N E
OPERATING MANUAL/
INSTALLATION
120/240 V, 1650/6600 W US
120/240 V, 1350/5500 W CAN
CONVERTIBLE
2 GA LLON
DRIP TRAY INCLUDED
ADVANCED TEMPERATURE
CONTROL
TVT TECHNOLOGY
N E W C O
E N T E P R I S E S
3650 NEW TOWN BLVD
ST. CHARLES MISSOURI
63301
Phone: [phone]
800-325-7867
Fax: [phone]
WWW.NEWCOCOFFEE.COM

WARRAN T Y
Applies to all equipment manufactured after 2/1/2017. This warranty supersedes
all other previous warranties that are currently in manuals.
Newco warrants equipment manufactured by it for 1 year parts and labor.
Accessories and Dispensers 1 Year parts only. Electronic Circuit
and Control Boards- 3 years parts, 1 year labor.
Equipment manufactured by others and distributed by Newco- please see original equipment
manufacturers warranty, Newco will follow.
These warranty periods run from the date of sale Newco warrants that the equipment manufactured by it
will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment,
component or part that was not manufactured by Newco or that, in Newco’s judgment, has been affected
by misuse, neglect, alteration, improper installation or operation, relocation or reinstallation, improper
maintenance or repair, incorrect voltage applied to the unit at any time, damage or casualty. This warranty
does not apply to any equipment failures related to poor water quality, excessive lime and chlorine and non
periodic cleaning and descaling. Warranty is null and void if muriatic or any other form of hydrochloric acid
is used for cleaning or deliming. In addition, this warranty does not apply to replacement of items subject
to normal use including but not limited to user replaceable parts such as faucet seat cups, sight gauge
tubes, washers, o-rings, tubing, seals and gaskets.
This warranty is conditioned on the Buyer 1) giving Newco prompt notice of any claim to be made under
thiswarranty by telephone at [phone] or bywriting to 3650 New Town Blvd, Saint Charles, MO 63301;
2) if requested by Newco, shipping the defective equipment prepaid to an authorized Newco service
location; and 3) receiving prior authorization from Newco that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of
Newco are not authorized to make modifications to this warranty or to make additional warranties that are
binding on Newco. Accordingly, statements by such individuals, whether oral or written, do not constitute
warranties and should not be relied upon.
If Newco determines in its sole discretion that the equipment does not conform to the warranty, Newco, at
its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement
parts and/or labor (during the applicable parts and labor warranty periods specified above) to repair the
defective components, provided that this repair is done by a Newco Authorized Service Representative; or
2) shall replace the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST NEWCO FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE
SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED,
AT NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits,
lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost
of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
3650 New Town Blvd. St. Charles, MO 63301 | P : 800-325-7867 | TECH: 800-556-3926 | NewcoCoffee.com

SPECIFICATIONS
MODEL NW15 HOT WATER MACHINE
120/240 VOLTS 3 GAL/HR (120V) 6 GAL/HR (240V) 1 PH
OPERATING TEMP RANGE: 170 DEG F- 208 DEG F
7"
2-9/16"
24-1/8"
1-3/8"
12-3/8"
1-1/2"
8-1/2"
6-1/4"
* UNIT CAN BE CONVERTED FROM 120 V 1PH TO 240V 1PH
(240V POWER CORD NOT SUPPLIED)
SEE 240 V SCHEMATIC
2

MACHINE SETUP
PLUMBER'S INSTALLATION INSTRUCTIONS
CAUTION: Power to machine must be OFF before proceeding with plumbing installation.
1) Flush water line before installing machine. Machine should be connected to COLD WATER
LINE for best operation.
2) Water pressure should be at least 20 psi. For less than a 25 ft. run, use 1/4" copper tubing
and connect to 1/2" or larger water line. For longer runs, use 3/8" copper tubing & connect to
1/2" or larger water line and provide an adapter fitting for connection to the machine.
3) If installed with saddle valve, the valve should have a minimum of 1/8" port hole for up to 25
ft. run, and 5/16" port hole for over 25 ft. runs.
4) Connect incoming water line to the flow control device on the back of the machine. A 1/4”
Flare fitting is provided. Manufacturer recommends connecting to copper tubing.
ELECTRICAL HOOKUP
WARNING: - Read and follow installation instructions before plugging or wiring in machine to
electrical circuit. Warranty will be void if machine is connected to any voltage other than that
specified on the name plate.
The machine has a power cord attached for 120 volts. Machine should be connected to the

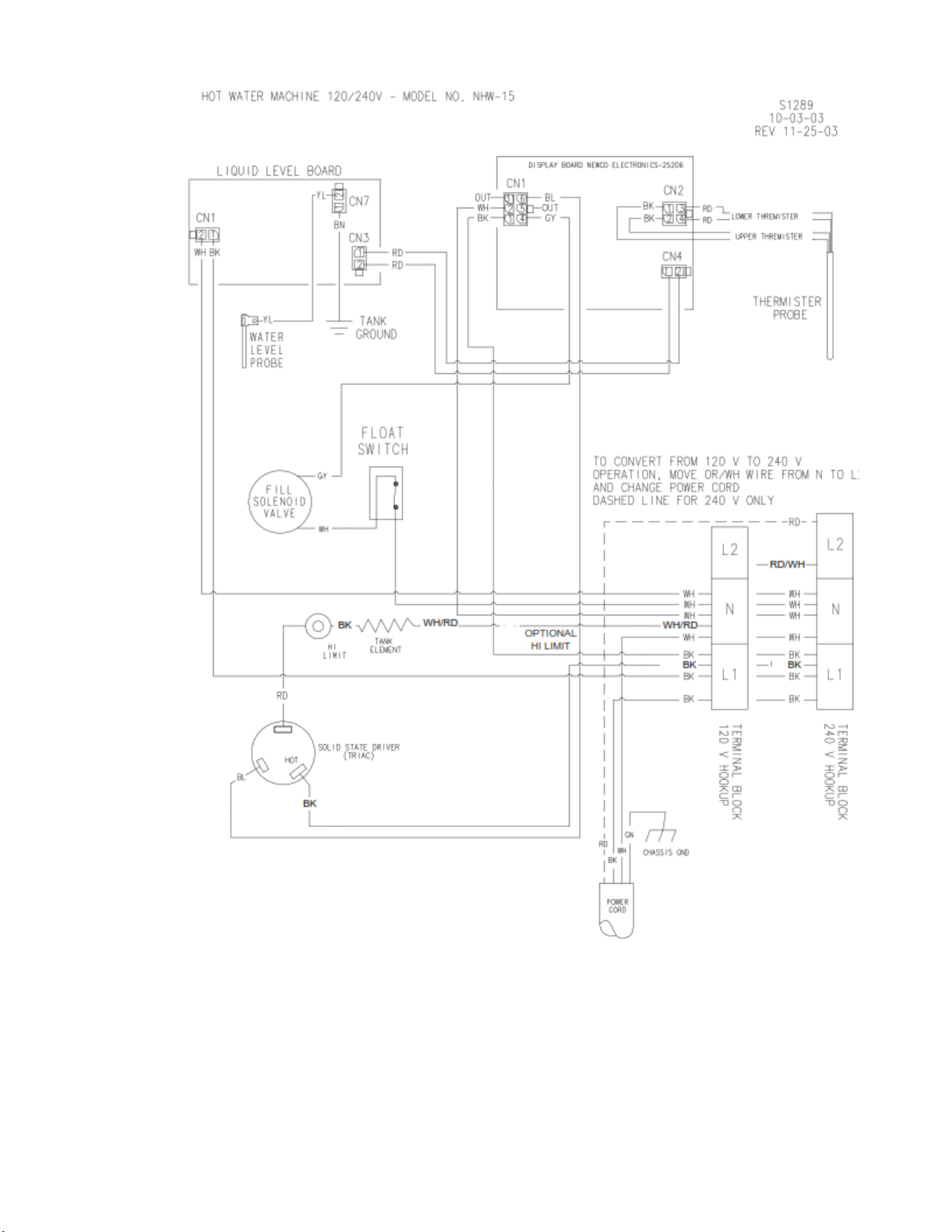

appropriate receptacle type. A wiring diagram at the rear of this manual illustrates the complete
machine wiring
INSTALLATION INSTRUCTIONS
WARNING: - Read and follow installation instructions before plugging or wiring in machine to
electrical circuit.
1) Make sure machine is level. Connect machine to water line as described in “PLUMBER’S
INSTALLATION INSTRUCTIONS”. Connect to suitable power supply as described in
“ELECTRICAL HOOKUP”. Tank will begin to fill when connected to power supply. The
display will indicate ‘fill’ when filling is in process. Time required to fill the tank is about 4-
1/2 minutes.
2) Water level in the tank is controlled by a level probe which senses when water contact is
made. A maximum run time of six minutes is programmed into the machine for the initial fill
cycle to prevent flooding should an error occur.
3) Once the water level has reached the proper water level the tank heater will begin to heat the
water to the preset temperature. This prevents premature failure of the element by heating it
dry. This probe will also call for power to be shut off to the element should the probe not
detect water for 3 minutes. Heating time will be approximately 20 minutes. The heating circuit
has a maximum continuous run time of 45 minutes. Should the machine call for heat for a
Time period in excess of 45 minutes the machine will shut down the heating circuit and
display an Er5 message. See the “ERROR MESSAGES” section for instructions on how to
clear the error and possible causes. The heating icon (thermometer) on the faceplate will
indicate heating status. As the preset temperature is approached the icon will begin pulsing
as the power to the element is cycled on and off.
3

NHW-15
OPERATING INSTRUCTIONS
CENTER BUTTON
HOLD DOWN FOR 5
SECONDS TO ENTER
PROGRAM MODES
LEFT BUTTON: TOGGLE
TEMP DOWN
IN PROGRAMMING MODE
MONITOR UPPER TANK TEMP
IN NORMAL OPERATING MODE
RIGHT BUTTON:
TOGGLE TEMP UP
IN PROGRAMMING MODE
MONITOR LOWER TANK TEMP IN
NORMAL OPERATING MODE
FACTORY DEFAULT TEMPERATURE SETTING IS 200 DEGREES F
TO ADJUST TEMPERATURE SETTING:
1. DEPRESS AND HOLD CENTER BUTTON FOR 5 SECONDS UNTIL
'Prog' APPEARS
2. TOGGLE TEMPERATURE SETTING UP OR DOWN WITH ARROWS
3. DEPRESS CENTER BUTTON, 'end' WILL APPEAR
4. DEPRESS LEFT OR RIGHT BUTTON TO EXIT PROGRAM MODE
TEMPERATURE SETTING WILL BE STORED
TO MONITOR UPPER AND LOWER WATER TEMPERATURE LEVELS:
1. DEPRESS LEFT ARROW TO MONITOR UPPER TANK TEMPERATURE
2. DEPRESS RIGHT ARROW TO MONITOR LOWER TANK TEMPERATURE
TO CHANGE FROM FAHRENHEIGHT TO CENTIGRADE TEMP DISPLAY:
1. UNPLUG POWER CORD
2. DEPRESS AND HOLD CENTER BUTTON, WHILE HOLDING BUTTON
PLUG POWER CORD BACK IN
3. WHEN 'prog' APPEARS TOGGLE F TO C WITH LEFT OR RIGHT BUTTONS
4. DEPRESS CENTER BUTTON TWICE UNTIL 'end' APPEARS
5. DEPRESS LEFT OR RIGHT BUTTON TO STORE SETTING AND EXIT PROGRAM MODE
NOTE: A THERMOMETER ICON IS DISPLAYED WHEN THE HEATER IS ENERGIZED
A "HAPPY FACE" ICON IS DISPLAYED WHEN TEMPERATURE SETPOINT IS REACHED
4

PLUMBING AND ELECTRICAL
COMPONENTS
11 6
9 7 16
8
15
4
17 10
13
5
1
12
3
2
14
5
800007 C RING
UNDER NUT
NOT VISIBLE

PLUMBING AND ELECTRICAL COMPONENTS (CONT)
FIGURE #
QTY.
PART #
DESCRIPTION
1
1
104113
FAUCET-HI HEAT
2
1
104114
NUT-HI HEAT FAUCET
3
1
800236
FITTING, TEA FAUCET
4
1
104118
FITTING-EXTENSION,
FAUCET
5
1
800244
GASKET-NYLON
.671*.937*.062
6
1
104111
VALVE ASSY-HOT
WATER
7
1
100155
CONNECTOR-MALE ¼ C X
1/8 NPT WITH NUT
8
1
104135
TUBE-COPPER INLET
9
1
511053
BLOCK-TERMINAL
120/240V
10
1
104117
TUBE ASSY-OVERFLOW
11
1
120256
BOARD-LIQUID LEVEL
12
1
111684
TRIAC-40 AMP, 600V
13
1
121659
HEATSINK
14
1
104109
TANK-HOT WATER
15
1
705002
LIMIT,66TM DPSTC 40A
16
1
120275
BOARD-LIQ CRYSTAL,
HOT WATER
1
800007
C RING, TEA URN
6

WATER TANK ASSY (CONT)
FIGURE #
QTY.
PART #
DESCRIPTION
1
1
104108
LID-SPOTWELD
HOT WATER
2
1
704221
GASKET-TANK SILICONE
3
1
151677
PROBE-DUAL
THERMISTOR
4
1
102019
TUBE-WATER INLET
5
1
701286-10
ELEMENT, DUAL
VOLTAGE 1350W/5500W
6
1
100431
NUT-BRASS 9/16-24
7
2
100030
GASKET-BRASS .566 ID
8
1
101720
CONNECT FM 3/C X 1/8
NPT
9
1
100149
ELBOW-1/4C 90 DEG W
NUT
10
1
704222
GASKET-SILICON 3 HOLE
11
2
100190
NUT-1/2-20 JAM, BRASS
12
1
705002
LIMIT, HI, 40 AMP
13
2
100409
GASKET-BRASS .520 ID
14
2
102836
GROMMET-SILICON
15
1
705071
PROBE-2”

8
FLOAT SWITCH ASSEMBLY
DRIP TRAY
FLOAT SWITCH
ASSY-HI TEMP
PN 151529
DRIP TRAY
GRATE
PN 104134
BRACKET-FLOAT
SWITCH
PN 151734
DRIP TRAY
PN 1041339
9

Service Notes
1) Should water overflow the tank into the float switch, the water fill valve
(solenoid) circuit is interrupted. This is a safety feature to prevent as spill from
occurring should the water level-probe system malfunction (ER6). To empty the
overflow cup, unplug the power cord and loosen screw on the sheet metal cup
holder bracket. (see illustration on page 9) and empty cup.
2) The heater element is protected by a hi-limit manual reset thermostat (ER5).
Error Modes - To reset an error condition simply power the machine off and
back on. If the error continues, check the condition of all sensors,
hardware & wiring.
ER1 –Top thermistor shorted
ER2 –Top thermistor open
ER3 –Bottom thermistor shorted
ER4 –Bottom thermistor open
ER5 –Heater has run for more than 45 minutes continuously
ER6 –Fill time has run for more than 6 minutes
