Newhank CHECKMATE User manual

USER MANUAL
CHECKMATE
www.newhank.com Checkmate

BoxContent
Rulesforinstallation
ThankyouforbuyingthisNewHankproduct.Pleasereadtheoperating instructions,
soyouwillknowhowtooperateyourmodelproperly.Afteryouhave finishedreading
theinstructions,puttheminasafeplaceforfuturereference.
Makesureallitemswhich listedintheBOXCONTENTSsectionareincludedinthebox.
Placemixerinanappropriatepositionforoperation.
Makesurealldevicesareturnedoffandallfadersandgainknobsaresetto"zero".
Connectthestereooutputstopoweramplifiers),tapedecks,and/orotheraudiosources.
PlugalldevicesintoACpower.
Switcheverythingoninthefollowingorder:
1.Audioinputsources(i.e.turntables,CDplayers,etc.)
2.Mixer
3.Last,anyamplifiersoroutputdevices
Whenturningoff,alwaysreversethisoperationby:
1.Turningoffamplifers
2.Mixer
3.Last,anyinputdevices
Specifications
Checkmate is a professional 1U single USB/BlueTooth media player, it is the best solution
for playing MP3/WAV/WMA music files from USB/SD-card, listening to your favourite FM
radio stations.
Introduction
www.newhank.com
12
Player
Remote control
AV Cable
Power Cord
Manual
1. Power supply: 90v- 260v (50hz/ 60hz)
2. The power consumption: 10w-15w
3. SNR: 95db
4. Frequency response: 20hz-20khz
5. Audio output: rca,xlr
6. Sound specifications: USB/FM/bluetooth
7. The total harmonic distortion: >0.01%
8. Dynamic Range: > 92db
9. Distortion: >0.01%
10. Frequency: 44.1khz
11. Size: 483mm* 44mm*130mm
12. Weight: 2kg
Checkmate

34

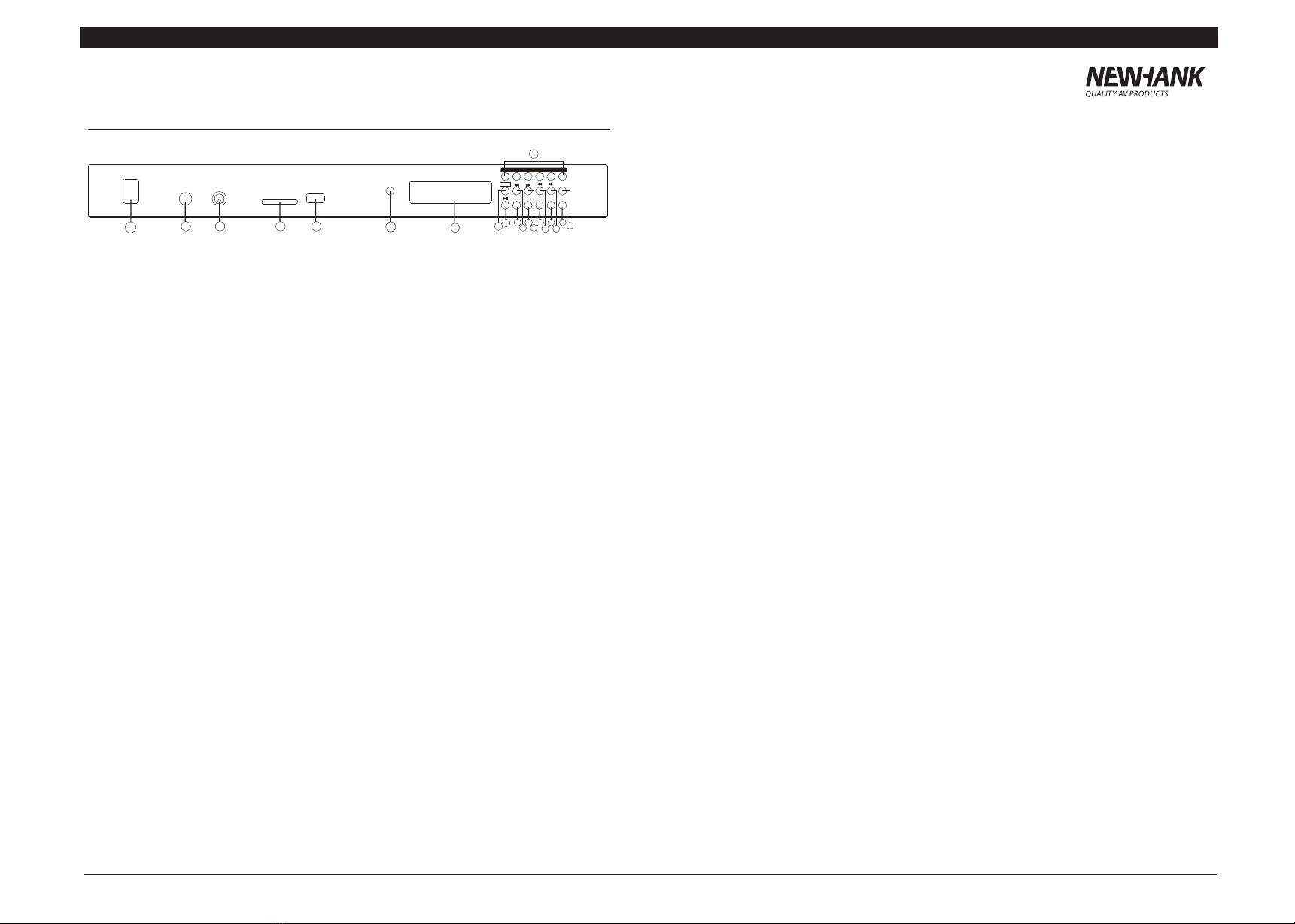

FrontPanelFunctionDescription
12
3
POWER
ON
OFF
WAV/MP3/WMA/FLAC/FM/BLUETOOTH
22334455
115+5+
V--V+
TIM E
SOURCE
INFO
SINGLE
-- REPEAT
A.SCAN STEP--STEP+
F -- F+
CH--CH+--RANDOM
PHONES LEVEL
LCD
456
12
11 13
10 1 4 9
15
8
7
17 16
1819 20
1. POWER BUTTON : Push to switch on or off.
2. LCD DISPLAY : It can display current audio playing state.
3. 1-5 / 5+ : Selection track s function. if select track 8. please press +5 and 3.
4. SOUCRCE BUTTON: Push to select USB, FM or Bluetooth.
5 . REV BUTTON / VOL- : Press one time the but ton to play last one
and press a bit volume reduction.
6. NEXT BUTTON / VOL+ : Press one time the button to play next one
and press a bit then volume increase.
7.REV BUTTON : Press the button would b e rewind search.
8. FWD BUTTON : Press the button would be fast-forward search.
9. CONT./SINGLE BUTTON : In sing le mode: after each track , the
uni t stop the reading. in continue mode: read all track and stop.
10. PLAY/PAUSE BUTTON : Each time you press this button , the
operation changes from play to pause or from pause t o play .FM:
auto search station and storage.
16. REMOTE CONTROL : Infrared remote control receiver unit.
17. USB SOCKET : Accept standard usb input.
18. SD SOCKET : Accept standard sd input.
19. EARPHONE OUTPUT : The standard 6.35 signal output
for earphone.
20. VOLUME CONTROL : Volume output knob.
11.T IME : Use this button to choose the time mode (elapsed time ,
remaining time).FM:search radio frequency.
12. INFO : Show the song ´ s id3 name on the lcd. FM: search
radio frequency.
13. PREV FOLDER BUTTON : Press the button to play last folder.
FM:select radio station.
14. NEXT FOLDER BUTTON : Press the button to play last folder.
FM:select radio station.
15. REPEAT : Press one time to repeat one track or all the tracks.
press a bit to random all the tracks.
www.newhank.com Checkmate

BackPanelFunctionDescription Safety
Thisequipmentisnotwaterproof.
Topreventafireorshockhazard,donotplaceanycontainerfilledwithliquidnear
thisequipment(suchasavaseorflowerpot)orexposeittodripping,splashing,
rainormoisture.
Topreventafirehazard,donotplaceanynakedfamesources(suchasalighted
candle)ontheequipment.
Topreventtheriskofelectricalshock,don’tremovecoverorback.Nouser
serviceablepartsinside.Referservicingtoqualifiedservicepersonnelonly.
56
1
2
3
4
ACAC 90~240V 50~60Hz
LR
RCA OUT RCA OUT
TOTAL POWER：25W
DESIGNED IN TAIWAN
LR
BALANCED OUTBALANCED OUT
FM
RADIORADIO
A/S No:
1. Power socket: Accept ac 90v-260v input.
2. RCA out: Stereo unbalanced output.
3. XLR out: Stereo balanced output.
4. FM socket: FM antenna connection.
www.newhank.com Checkmate
