Newland N5S User manual

SCANNING MADE SIMPLE
N5S
mobile computer
quick start guide

1
1. Safety Instructions
Before using this product, please read the safety instructions carefully to ensure safe and proper use of
the product. For more detailed information, please refer to the “Security warnings and precautions”
section in this guide.
Do not switch the product on
when use is prohibited or when
it may cause interference or
danger.
Do not place the product or
its accessories in
containers with a strong
electromagnetic field.
Do not use the product while
driving.
Keep the product away
from magnetic devices as
the radiation from this
product may erase the
information stored on them.
Follow any rules or regulations
in hospitals and health care
facilities. Switch off the product
near medical apparatus.
Do not put the product in a
high-temperature place or
use it in a place with
flammable gas such as a
gas station.

2
Switch off the product before
boarding an aircraft as it may
cause interference to control
equipment of the aircraft.
Keep the product and its
accessories out of the
reach of young children. Do
not allow children to use the
product without supervision.
Switch off the product near
high-precision electronic
devices as it may affect their
performance.
Use only approved batteries
and chargers to avoid the
risk of explosions.
Do not attempt to disassemble
the product or its accessories.
Only authorized repair stations
are allowed to repair the
product.
Observe any laws or
regulations on the use of
wireless devices. Respect
others' privacy and legal
rights when using the
wireless device.

3

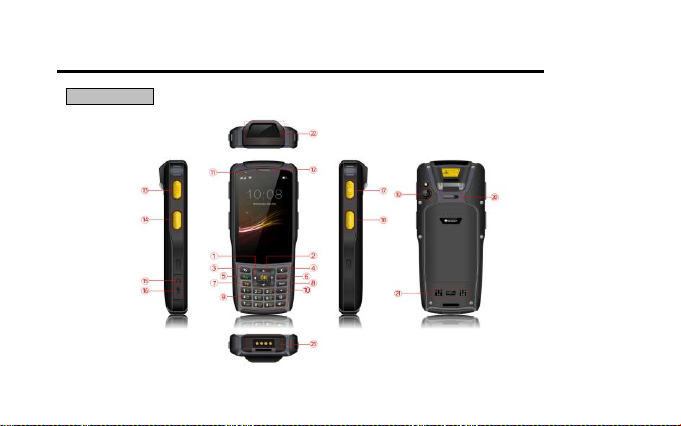

2. Your Terminal
Keys and parts

4
1
Arrow keys
9
Keypad
17
Power key
2
OK key
10
Period (.) key
18
Scan key (right)
3
Return key
11
Double-color LED*
19
Camera
4
Backspace key
12
Earpiece
20
Battery cover latch
5
Call key
13
Volume+/- key
21
Speaker
6
End key
14
Scan key (left)
22
Scanner
7
Fn key
15
Headphone jack
23
Cradle connector
8
Enter key
16
USB port
*Double-color LED indications:
Red LED on: Charging in progress.
Red LED flashes constantly: Low battery alert.
Blue LED on: Fully charged.
Blue LED flashes constantly: System notifications, eg. missed calls

5
3. Get Started

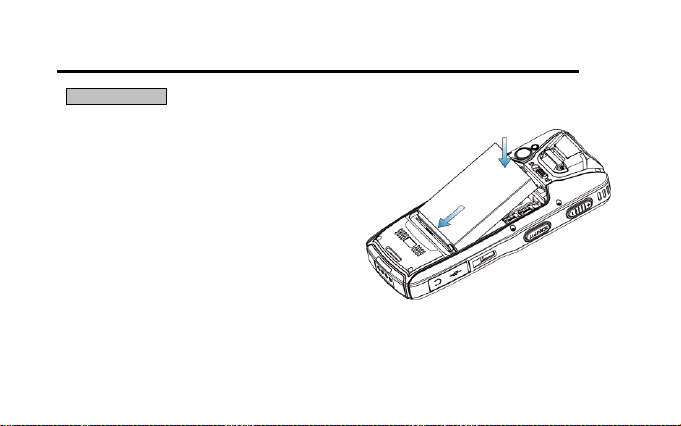

Install the battery
1. With the terminal facing down, slide the battery
cover latch to the unlock position and remove the
battery cover.
2. Insert the battery as indicated into the battery
compartment, with its metal contacts facing down
and lining up with the metal contacts on the inside of
the terminal.
3. Replace the battery cover and slide the battery
cover latch to the lock position.

6
Charge the battery
Before charging the battery, ensure that it has been properly installed on the terminal.
1. Open the dust cover on the left side of the terminal to reveal the USB port.
2. Connect the terminal to a power outlet using the included USB cable and power adapter.
Note:
1. Afully discharged battery charges in approximately 4 hours.
2. When the terminal battery is running low (at 20%), the battery icon in the notification bar at the
top of the screen starts flashing; when it goes down to 10%, the terminal emits beeping sounds
and displays a prompt; when the battery is running out, the terminal beeps and then shuts down
automatically.

7
Install SIM and microSD cards
1. With the terminal facing down, slide the
battery cover latch to the unlock position and
then remove the cover and the battery.
2. Slide the SIM card door to the right to unlock
it and open the door to expose the SIM slot.
Place the nano-SIM card in the slot with its
contacts facing down. Close the SIM card
door and slide it to the left to lock it in place.
3. If you have a microSD card, insert the card
into the memory card slot with its contacts
facing down.
4. Replace the battery and the cover. Slide the cover latch to the lock position.
Notice
To avoid water damage, ensure that the battery cover is properly locked,after installing the battery.

8
4. Safety Warnings And Precautions
Electronic device
⚫Switch off the terminal near high-precision electronic devices. The terminal may affect the
performance of these devices. Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic control devices. If you are using an electronic
medical device, consult the device manufacturer to confirm whether the radio wave affects the
operation of this device.
⚫Pacemaker manufacturers recommend that a minimum distance of 15cm be maintain between a
device and a pacemaker to prevent potential interference with the pacemaker. If you have a
pacemaker, use the terminal on the opposite side of the pacemaker and do not carry the terminal
in your front pocket.
Hospital
⚫Do not take the terminal into the operating room (OR), intensive care unit (ICU), or coronary care
unit (CCU).
⚫Follow rules and regulations set forth by hospitals and health care facilities. Do not use the
terminal when it is prohibited.
⚫When using the terminal near someone who is suffering from a heart disease, turn down the ring
tone volume or vibration properly so that it does not affect the person.

9
Area with inflammables and explosives
In any area with inflammables and explosives, turn off the terminal and do not take out, install or
charge the battery, to avoid explosion and fire. Areas with inflammables and explosives include, but
are not limited to:
⚫Gas stations
⚫Area for storing fuels (such as the bunk under the deck of a ship)
⚫Device/vehicle for transporting and storing fuels or chemical products
⚫Area with chemical substances and particles (such as granule, dust, metal powder) in the air
⚫Area with the sign of “Explosives”
⚫Area with the sign of “Turn off bi-direction wireless equipment”
⚫Area where it is generally suggested to turn off a vehicle engine
Traffic safety
⚫Please observe local laws and regulations on wireless device use. Do not use the terminal while
driving to avoid traffic accident. Secure the terminal on its holder. Do not place the terminal on
the seat or other places where it can get loose in a sudden stop or collision. Use the terminal
after the vehicle stops at a safe place.
⚫Do not place the terminal over the air bag or in the air bag deployment area. Otherwise, the
